1 Justin BarthJennifer Cofer Nathaniel Glab Nate Turley Jared Yenzer C.O.M.I.T C OLLABORATIVE O PTICS - BASED M ULTI - TOUCH I NFRARED T ABLE P RELIMINARY D ESIGN R EVIEW

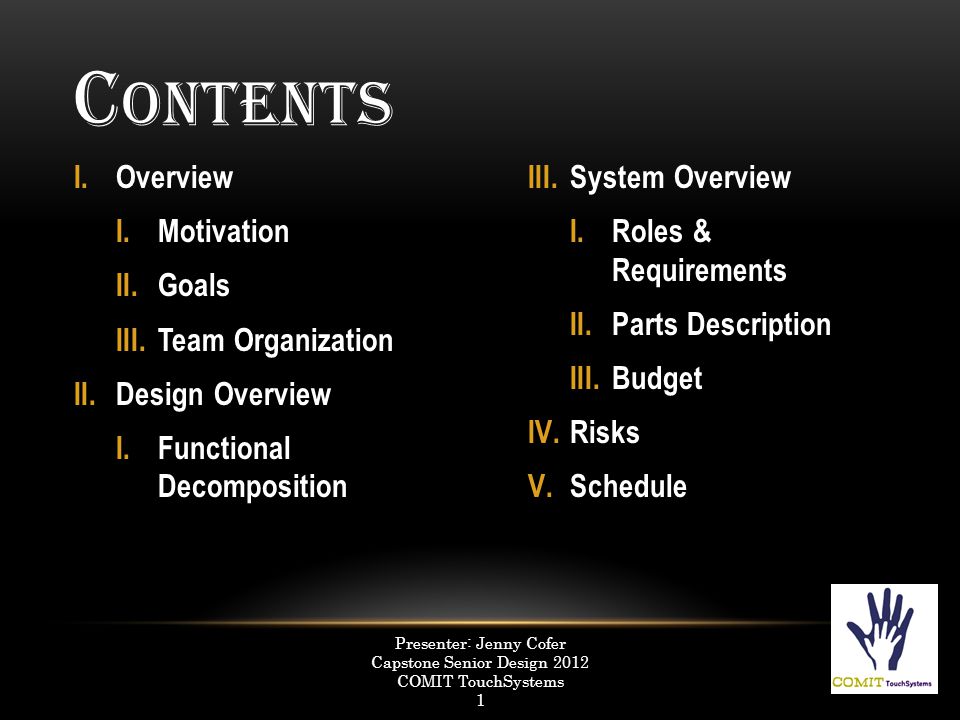

2 C ONTENTS I.Overview I.Motivation II.Goals III.Team Organization II.Design Overview I.Functional Decomposition III.System Overview I.Roles & Requirements II.Parts Description III.Budget IV.Risks V.Schedule Presenter: Jenny Cofer Capstone Senior Design 2012 COMIT TouchSystems 1

3 O VERVIEW This project will provide a table-sized multi-touch interface on which to run educational applications. Primary Focus: Exciting and dynamic to promote user engagement Non-conventional learning experience We intend to use exciting visual stimuli, touch, sound, and kinsesthetics to teach the users in a meaningful way. Presenter: Jenny Cofer Capstone Senior Design 2012 COMIT TouchSystems 2

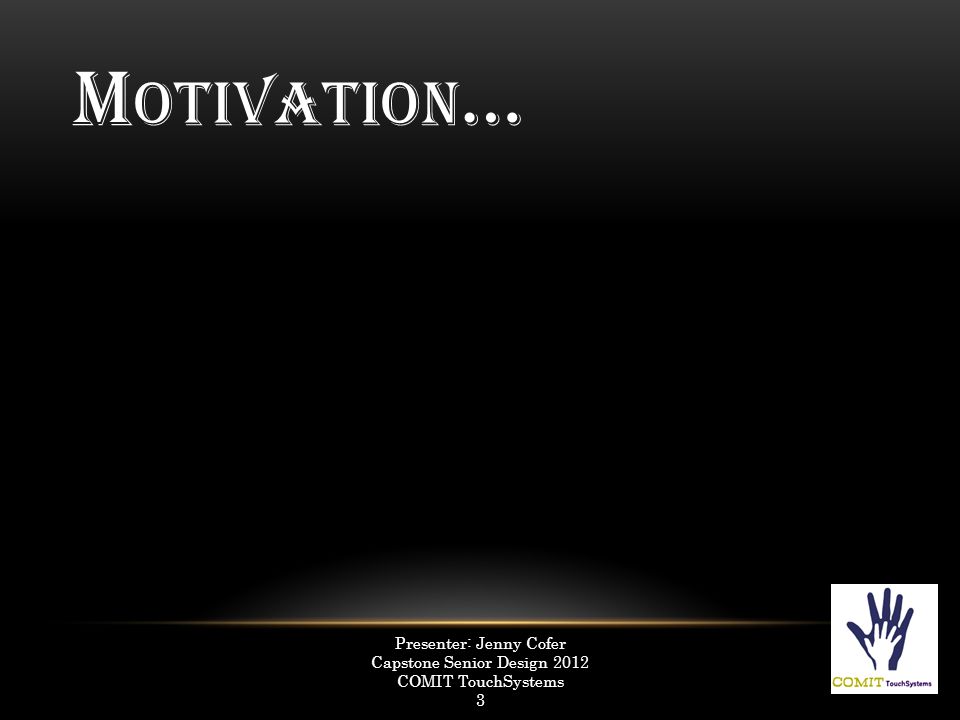

4 M OTIVATION … Presenter: Jenny Cofer Capstone Senior Design 2012 COMIT TouchSystems 3 4

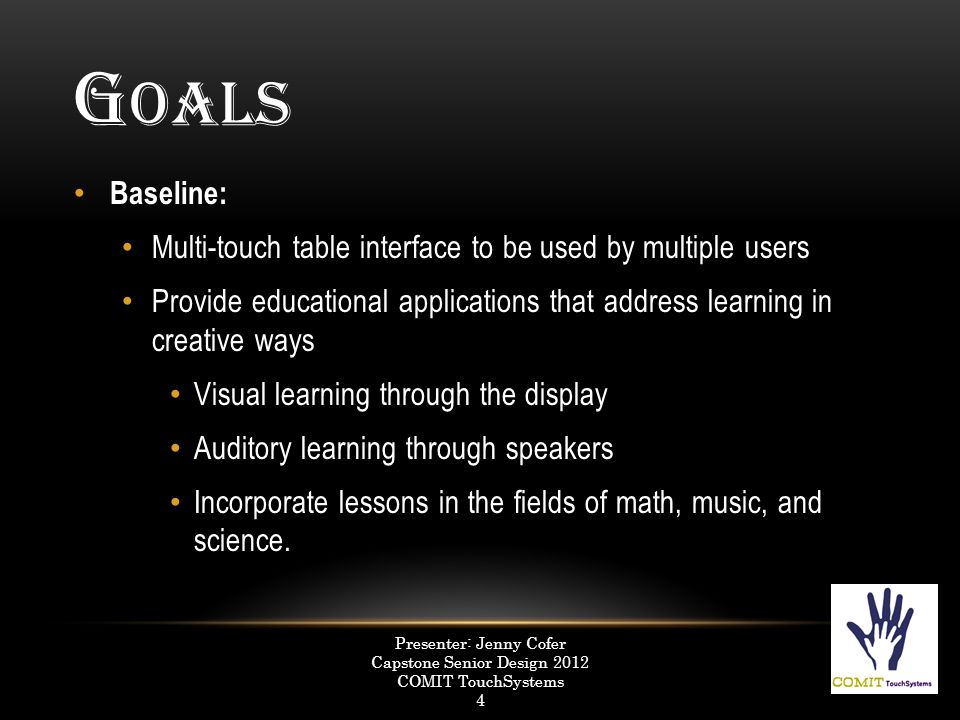

5 G OALS Baseline: Multi-touch table interface to be used by multiple users Provide educational applications that address learning in creative ways Visual learning through the display Auditory learning through speakers Incorporate lessons in the fields of math, music, and science. Presenter: Jenny Cofer Capstone Senior Design 2012 COMIT TouchSystems 4

6 G OALS Possible extension: Implement kinesthetic learning through objects that the table recognizes Incorporate lessons in the fields of geography, language, history, health, or other categories. Presenter: Jenny Cofer Capstone Senior Design 2012 COMIT TouchSystems 5

7 T EAM O RGANIZATION Team Member Roles NamePrimary Role Jenny CoferProject Manager Jared YenzerSystems Engineer Justin BarthHardware Engineer Nate TurleySoftware Engineer Nate GlabCreative Director Presenter: Jenny Cofer Capstone Senior Design 2012 COMIT TouchSystems 6

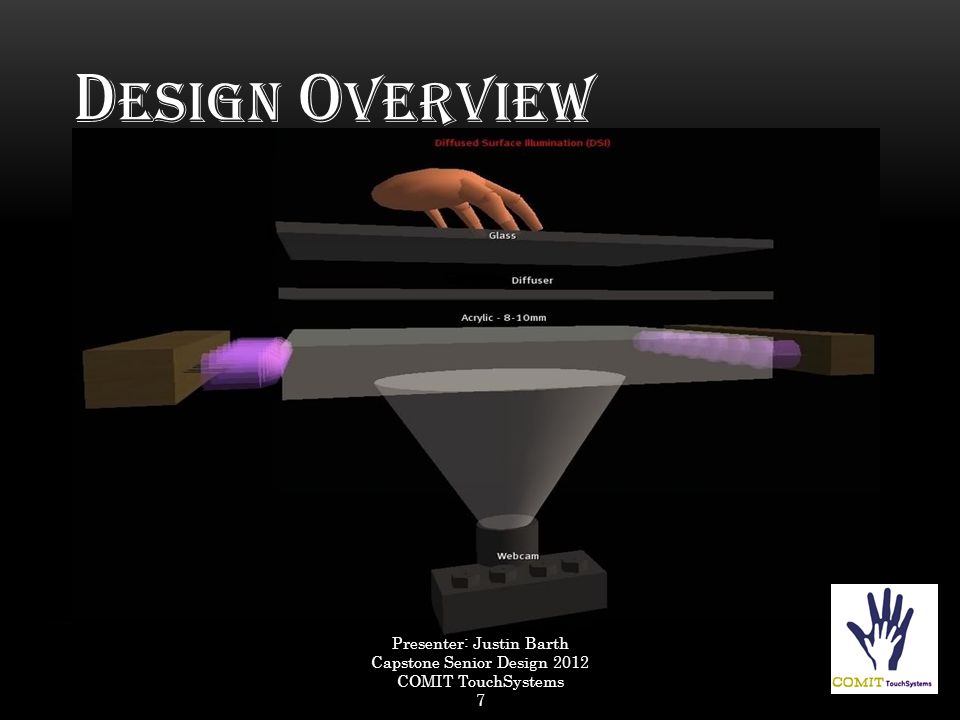

8 D ESIGN O VERVIEW Presenter: Justin Barth Capstone Senior Design 2012 COMIT TouchSystems 7

9 F UNCTIONAL D ECOMPOSITION Presenter: Jared Yenzer Capstone Senior Design 2012 COMIT TouchSystems 8

10 F UNCTIONAL D ECOMPOSITION Presenter: Jared Yenzer Capstone Senior Design 2012 COMIT TouchSystems 9

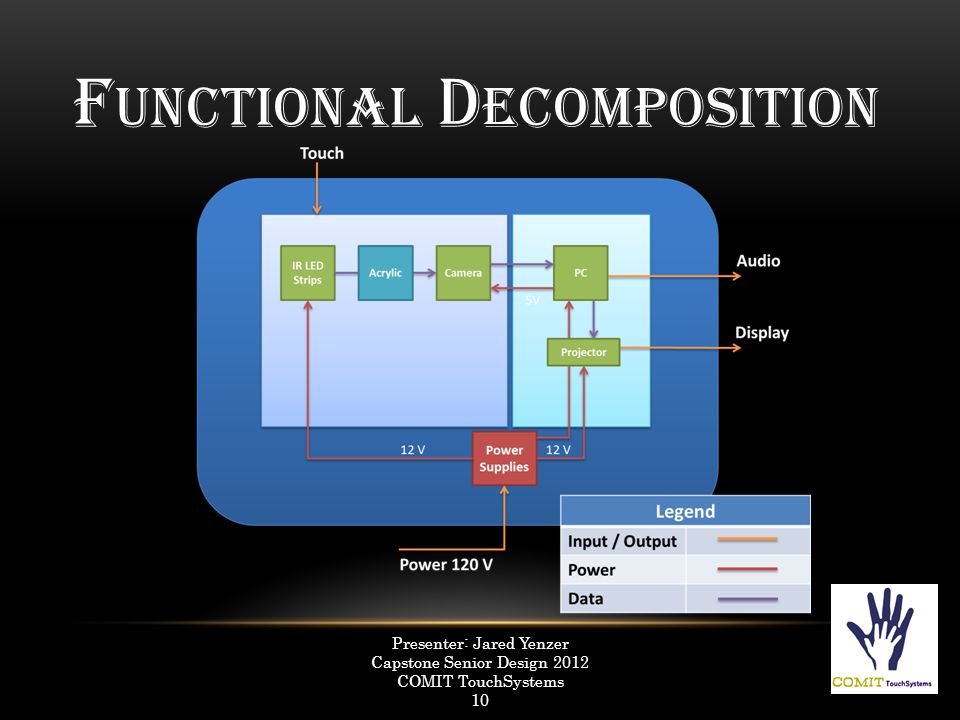

11 F UNCTIONAL D ECOMPOSITION Presenter: Jared Yenzer Capstone Senior Design 2012 COMIT TouchSystems 10

12 S YSTEM O VERVIEW Presenter: Nate Turley Capstone Senior Design 2012 COMIT TouchSystems 11 Table Surface Camera Lighting Power Supply Additional Illumination IR LED RIM Blob Detection Software TUIO Listener Application Programming Interface Custom Application Sound Card SpeakersProjector Video Card

13 R OLES & R ESPONSIBILITIES Responsibilities (System Functions) Roles (Components)HW ComponentSoftware Component IR Illumination Table Display System  IR LEDs  Diffuser acrylic Detect IR Light Touch Detector System  IR Light  Camera  Blob Detection Interpret Touch Standalone Application  TUIO Lib  Custom App Table Launches Menu Touch Detector System  IR Light  Camera  Blob Detection  Custom app Table Launches App Touch Detector System  IR Light  Camera  Blob Detection  Custom app Display Visuals Standalone Application, Projection System  Projector  Video Card  Graphics Library Produce Sound Standalone Application, Sound System  Sound Card  Speakers  Audio Library Presenter: Nate Turley Capstone Senior Design 2012 COMIT TouchSystems 12

14 P ART D ESCRIPTION Item Name Description Short throw projector Short throw enabling lower table height IR LED reel String of IR LEDs to illuminate the Endlighten acrylic IR LED track materials Track for holding the IR LEDs IR LED power supply Power Supply for IR LEDs IR Camera Cameras for detecting IR light Endlighten T Acrylic Special acrylic to support DSI technique Diffuser Projection material Sound system Desktop speaker system Structural materials Misc. materials for the overall structural build Presenter: Justin Barth Capstone Senior Design 2012 COMIT TouchSystems 13

15 B UDGET Item Name / DescriptionUnit PriceQuantityTotal Amount Short throw projector$7171 IR LED reel$2151 IR LED track materials$501 IR LED power supply, 12V $301 IR Camera$802$160 Endlighten T Acrylic, mar resistant $25.78/sq. ft.7 sq. ft. (40”x25”)$184 Diffuser$21.25/sq. ft.7 sq. ft. (40”x25”)$152 Presenter: Justin Barth Capstone Senior Design 2012 COMIT TouchSystems 14

16 B UDGET Item Name / DescriptionUnit PriceQuantityTotal Amount Acrylic polishing$3.74/sq. ft.7 sq. ft. (40”x25”)$26 Structural materials$1501 Sound system$ /20 Aluminum Eight Slot Fractional Extrusion $656$390 80/20 Aluminum Six Slot Fractional Extrusion $554$220 80/20 Aluminum Four Slot Fractional Extrusion $354$140 Tota l$2,535 Presenter: Justin Barth Capstone Senior Design 2012 COMIT TouchSystems 15

17 R ISK C HART 5 Poor software interfacing 4 Insufficient IR penetration Risk 3 IR camera calibration 2 System overheating Projector not bright enough Insufficient computing power Probability Presenter: Justin Barth Capstone Senior Design 2012 COMIT TouchSystems 16

18 S CHEDULE Presenter: Nate Glab Capstone Senior Design 2012 COMIT TouchSystems 17

19 S CHEDULE Presenter: Nate Glab Capstone Senior Design 2012 COMIT TouchSystems 18 DateTitleDeliverables Fall Semester Sept. 25/27 Milestone 1  Finalized project description  Initial Requirements and specification  Use Case Models Oct. 16/18 PDR  PDR CD  Behavior Models  Level 0 & 1 functional decomposition  UML context diagram  Roles, responsibility allocation Oct. 23/25 Functional Decomposition  Level 0, 1, 2, 3 Nov. 13/15 Milestone 2  Demonstration of major hardware components  Demonstration of major software components  Demonstration of subsystems critical to major functions Dec. 4/6 CDR  CDR CD  Architecture specification  Theory of Operation

20 S CHEDULE Presenter: Nate Glab Capstone Senior Design 2012 COMIT TouchSystems 19 DateTitleDeliverables Spring Semester Jan. 15/17 Milestone 3  Critical path prototype unit tests  Test results and analysis Apr. 16/18 Milestone 4  Integration and test (I&T) plan  Integrated test demonstration  Demonstration plan and dry-run Apr. 23/25 Expo  Completed table with custom software running

21 Q UESTIONS ? Capstone Senior Design 2012 COMIT TouchSystems 20
