Lightness and Retinex Theory Journal of the Optical Society of America Vol. 61, No. 1 Jan. 1971 Edwin H. Land & John J. McCann

2
Outline Introduction Independence of Color Edges Entire Field of View Physical Model The Colored Mondrian Conclusion

3
Outline Introduction Independence of Color Edges Entire Field of View Physical Model The Colored Mondrian Conclusion

4
Introduction Reflectance （ light or dark ） Color （ long-wave, middle-wave, and short-wave ） Color sensation （ the world & the field of view ） Departure （ for example ： insert a comparison standard ） The light （ the reflectance and illuminance ）

5
Outline Introduction Independence of Color Edges Entire Field of View Physical Model The Colored Mondrian Conclusion

6

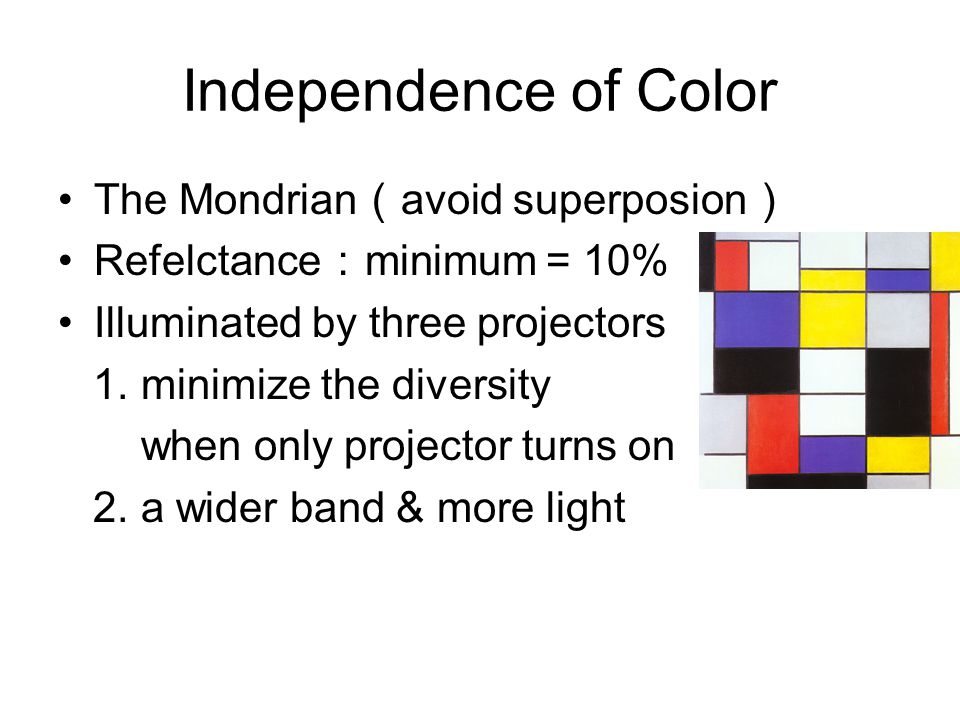

Independence of Color The Mondrian （ avoid superposion ） Refelctance ： minimum = 10% Illuminated by three projectors 1. minimize the diversity when only projector turns on 2. a wider band & more light

7

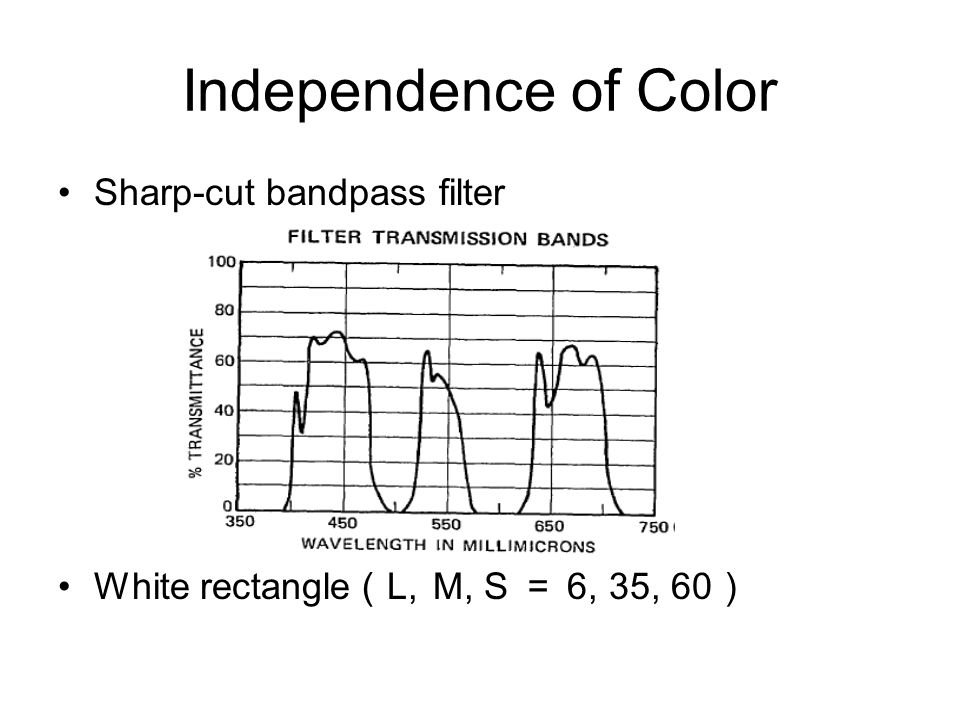

Independence of Color Sharp-cut bandpass filter White rectangle （ L, M, S ＝ 6, 35, 60 ）

8

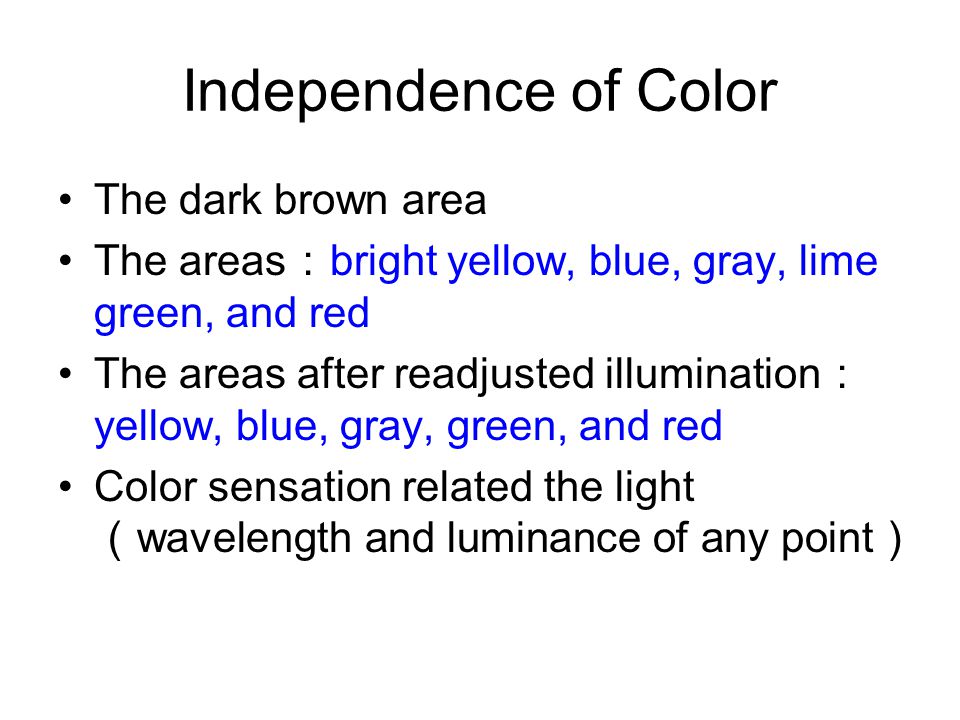

Independence of Color The dark brown area The areas ： bright yellow, blue, gray, lime green, and red The areas after readjusted illumination ： yellow, blue, gray, green, and red Color sensation related the light （ wavelength and luminance of any point ）

9

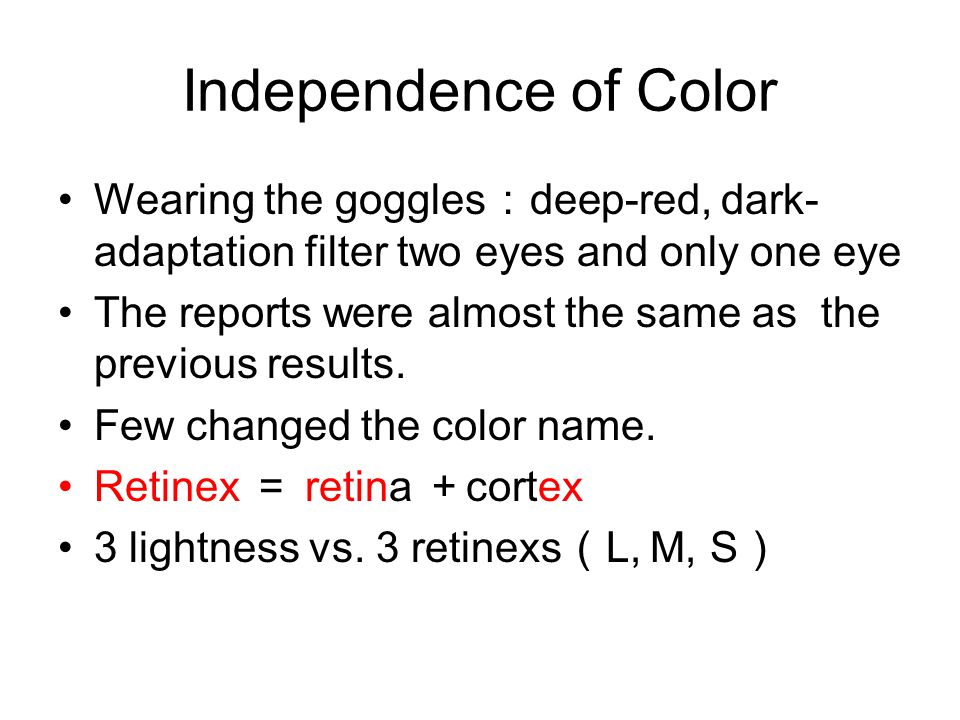

Independence of Color Wearing the goggles ： deep-red, dark- adaptation filter two eyes and only one eye The reports were almost the same as the previous results. Few changed the color name. Retinex ＝ retina ＋ cortex 3 lightness vs. 3 retinexs （ L, M, S ）

10
Outline Introduction Independence of Color Edges Entire Field of View Physical Model The Colored Mondrian Conclusion

11

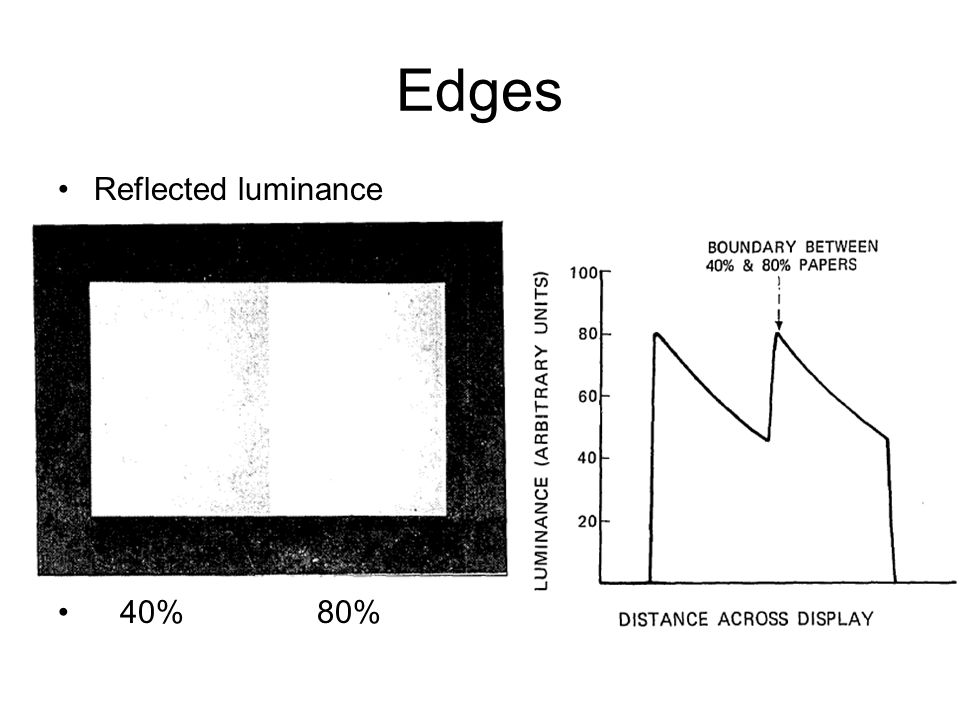

Edges Reflected luminance 40% 80%

12

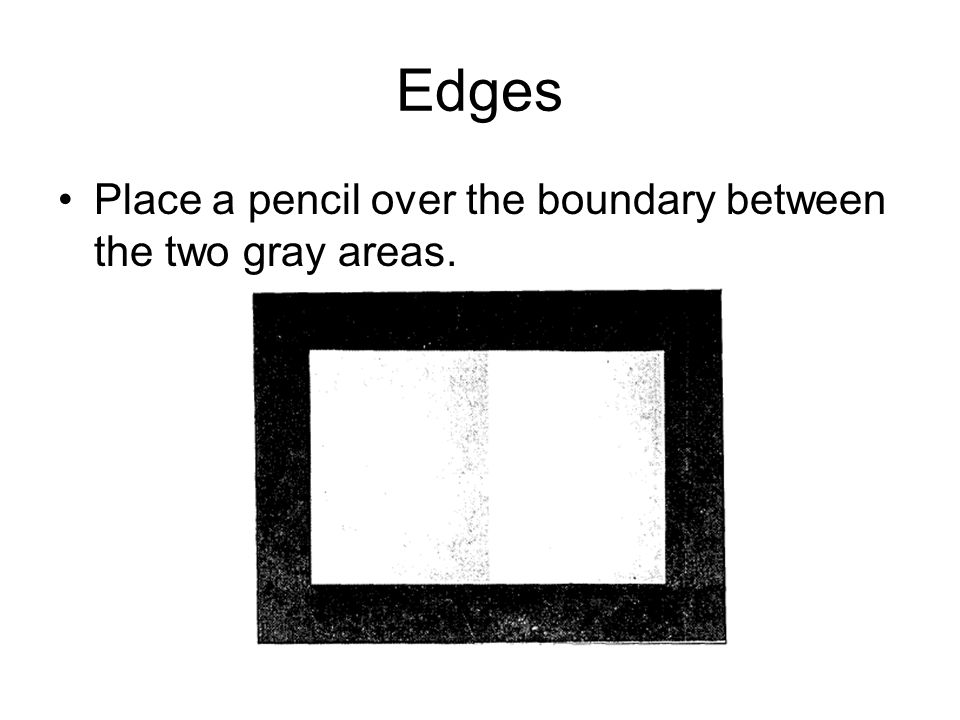

Edges Place a pencil over the boundary between the two gray areas.

13
Outline Introduction Independence of Color Edges Entire Field of View Physical Model The Colored Mondrian Conclusion

14

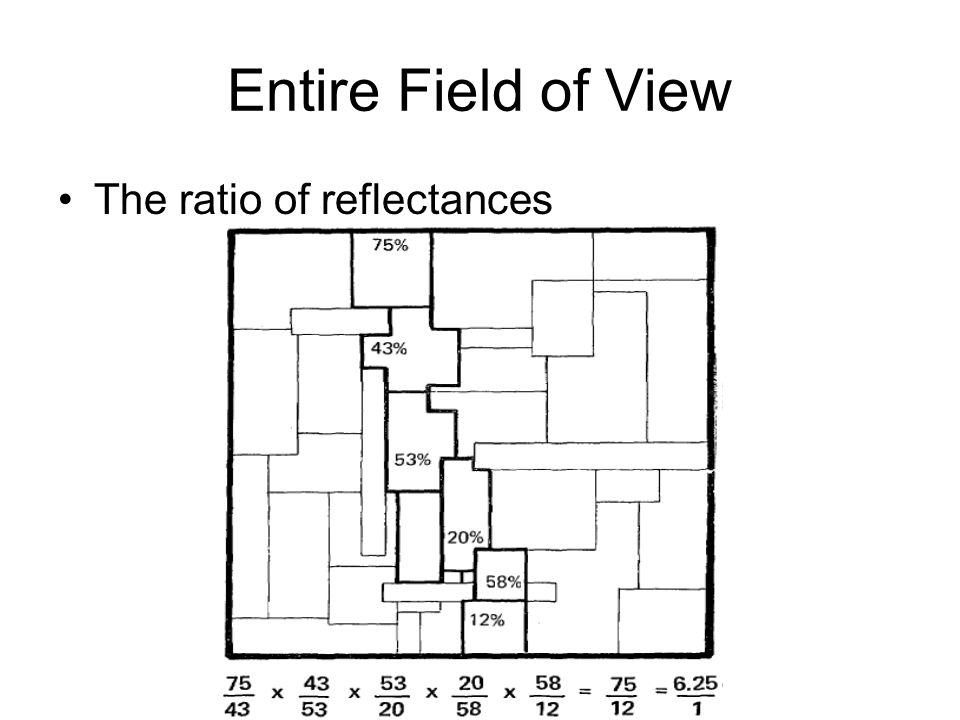

Entire Field of View The ratio of reflectances

15

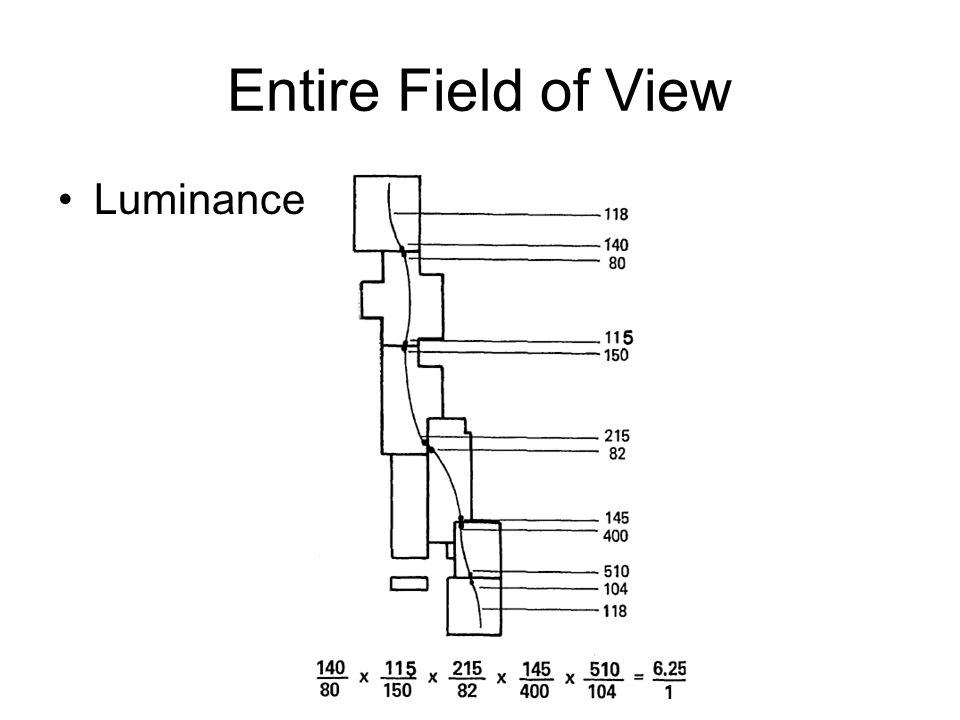

Entire Field of View Luminance

16
Outline Introduction Independence of Color Edges Entire Field of View Physical Model The Colored Mondrian Conclusion

17
Physical Model Luminance

18
Outline Introduction Independence of Color Edges Entire Field of View Physical Model The Colored Mondrian Conclusion

19
The Colored Mondrian Retinex theory ： 3 retinexs Each retinex served by one set of cones

20
The Colored Mondrian The black, white, and gray Mondrian the ratio of sequential products The colored Mondrian the ratio of the integrals the weighting factor of the wavelength

21
Outline Introduction Independence of Color Edges Entire Field of View Physical Model The Colored Mondrian Conclusion

22
The difference The function of retinex theory is to tell how the eye can ascertain reflectance in a field in which the illumination is unknowable and the reflectance is unknown.
