1 Synesthesia Synesthesia Romke Rouw University of Amsterdam

2

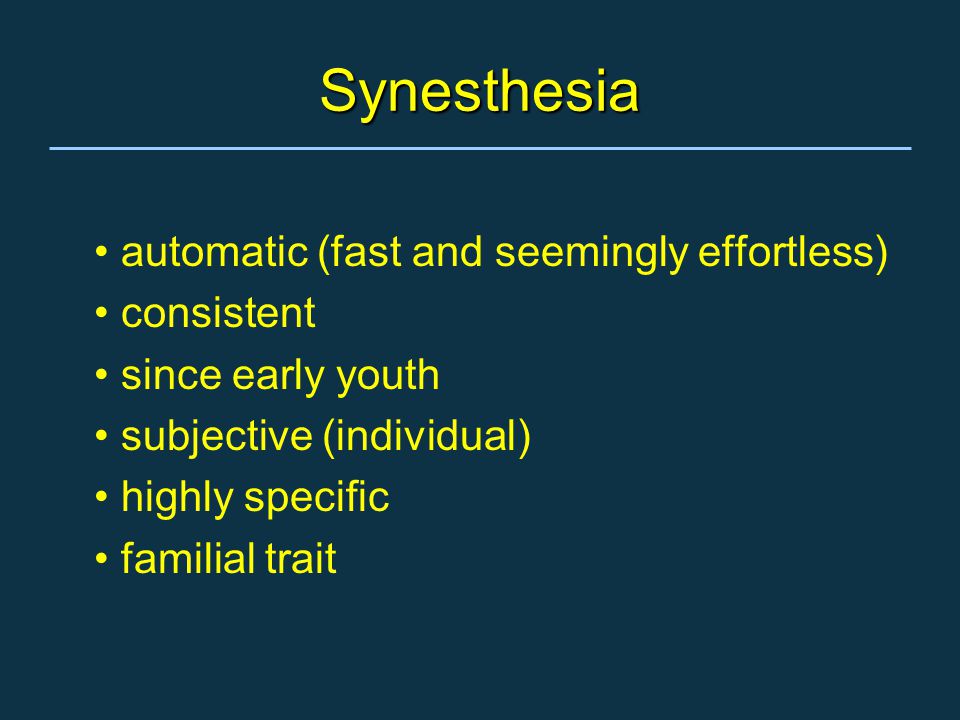

3 Synesthesia automatic (fast and seemingly effortless) consistent since early youth subjective (individual) highly specific familial trait

4 Grapheme – Color Synesthesia “The letter A is pale blue” “100 is black and white” “w is light-brownish-yellow”

5 Perceptual reality

6 visual search Palmeri et al. 2002

7 visual search Palmeri et al. 2002

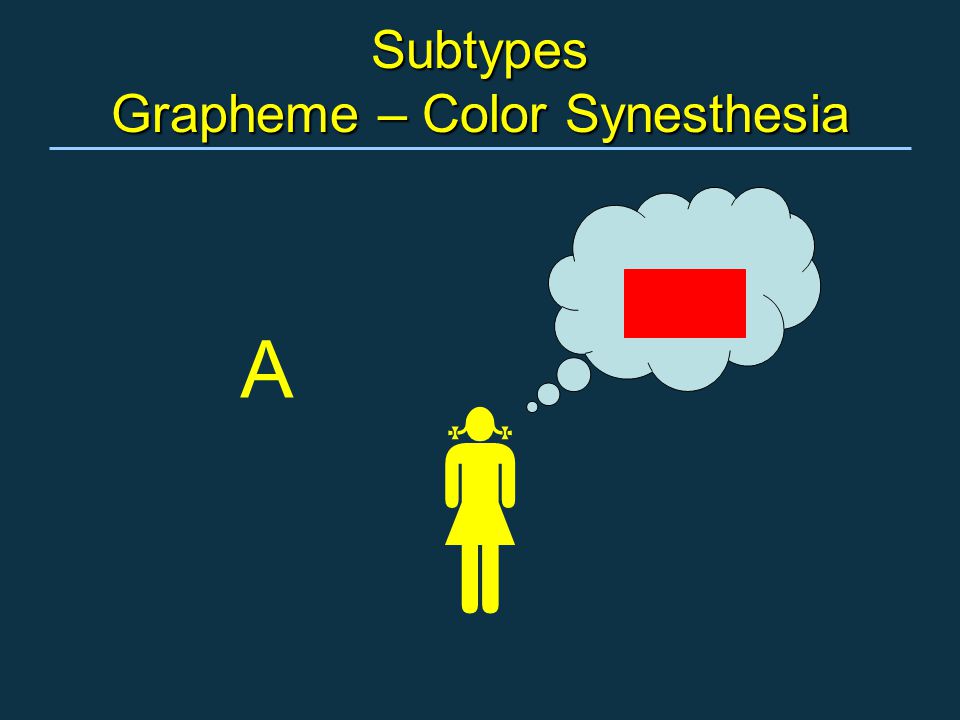

8 Subtypes Grapheme – Color Synesthesia A 

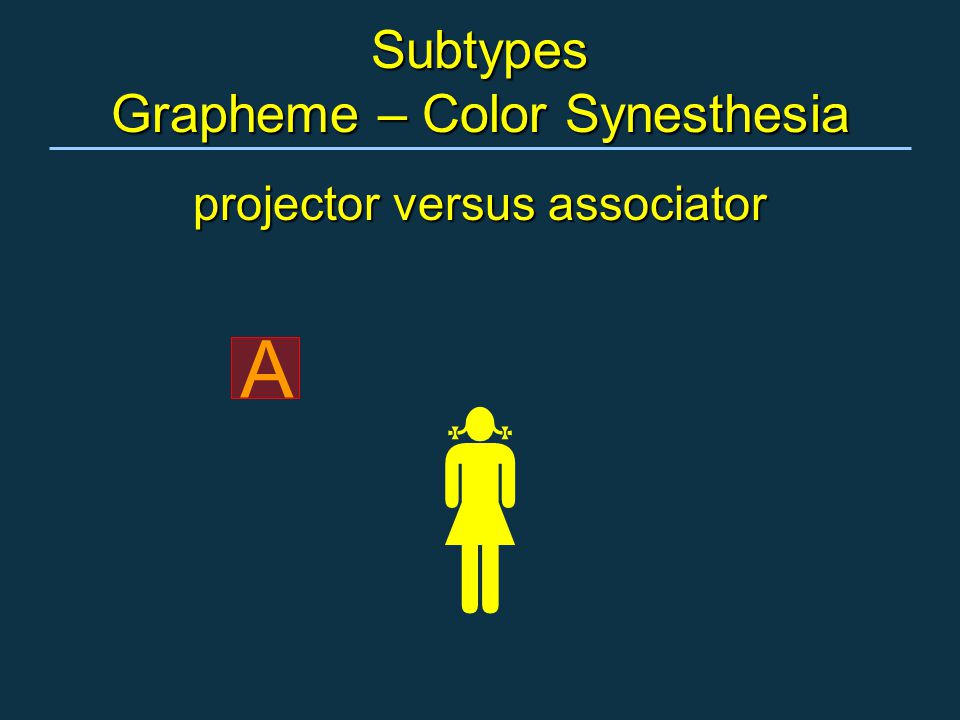

9 projector versus associator A 

10 Explanation?

11 Cross – activation grapheme and color areas adjacently located in the fusiform gyrus Hubbard et al.

12 Disinhibited feedback Feedback can also flow back from a multisensory nexus such as the superior temporal sulcus, posterior parietal lobe, intraparietal cortex, or temporo-parietal- occipital junction

13 Re-entrant processing Feedback from processing graphemic meaning in anterior fusiform travels back to posterior inferior temporal regions and V4/V8

14

15 Synesthesia & DTI with Steven Scholte

16 Subjects 18 females Age range 18 – 43 (mean age 28.7) 90 % consistency No history of psych. disease 18 matched controls 

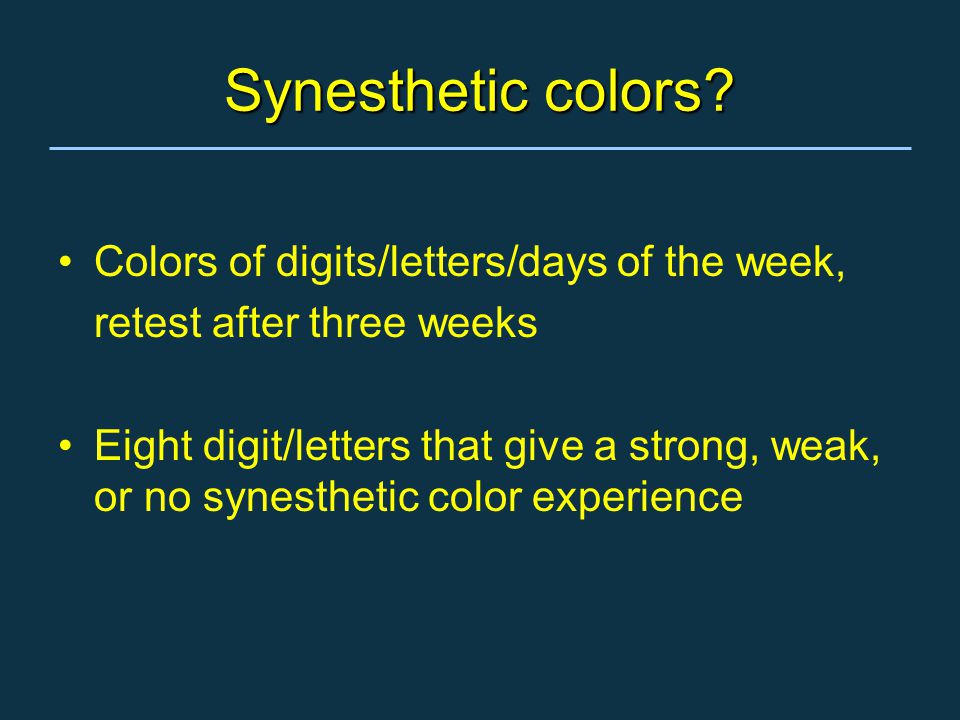

17 Synesthetic colors? Colors of digits/letters/days of the week, retest after three weeks Eight digit/letters that give a strong, weak, or no synesthetic color experience

18 How to measure... Behavioral, fMRI and DTI measurements

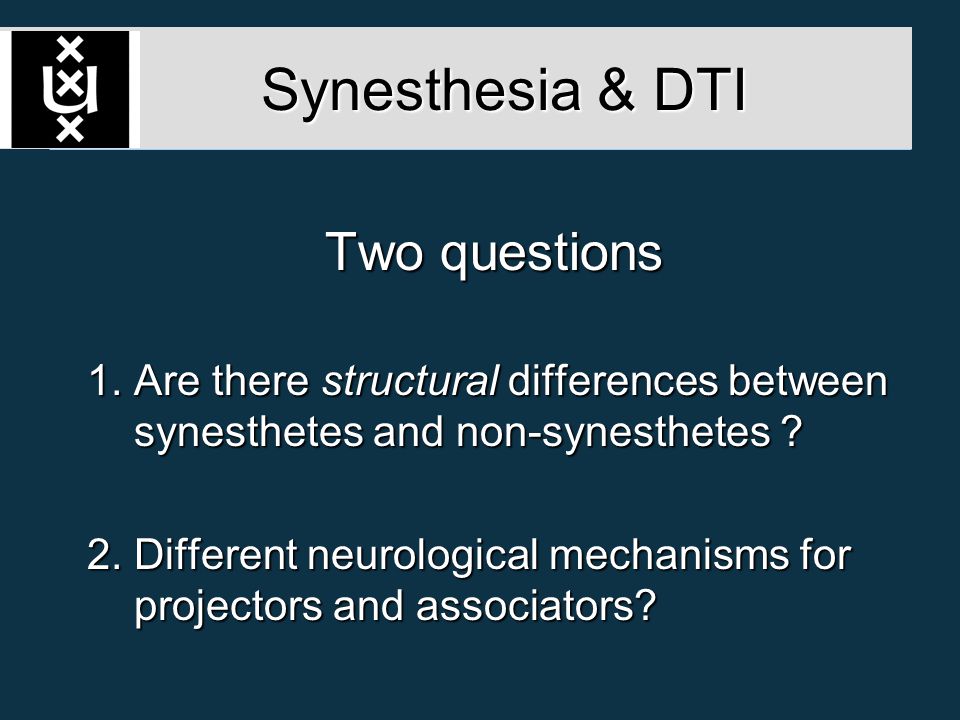

19 Synesthesia & DTI Two questions 1. Are there structural differences between synesthetes and non-synesthetes ? 2. Different neurological mechanisms for projectors and associators?

20 Synesthesia & DTI Question 1 Are there structural differences between synesthetes and non-synesthetes?

21 DTI FA: Diffusion Anisotropy IndiceFA: Diffusion Anisotropy Indice Degree to which the three tensor eigenvalues differ from one anotherDegree to which the three tensor eigenvalues differ from one another

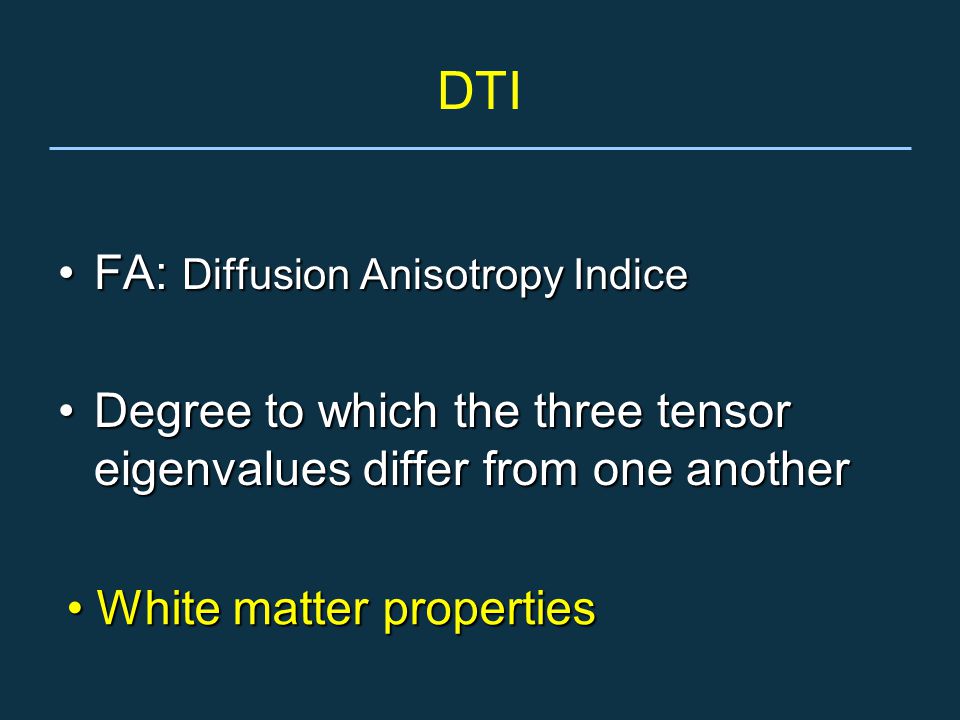

22 DTI FA: Diffusion Anisotropy IndiceFA: Diffusion Anisotropy Indice Degree to which the three tensor eigenvalues differ from one anotherDegree to which the three tensor eigenvalues differ from one another White matter properties White matter properties

23 Synesthetes > non-synesthetes bilateral cluster in frontal cortex left superior parietal cortex right inferior temporal cortex Increased structural connectivity in synesthesia

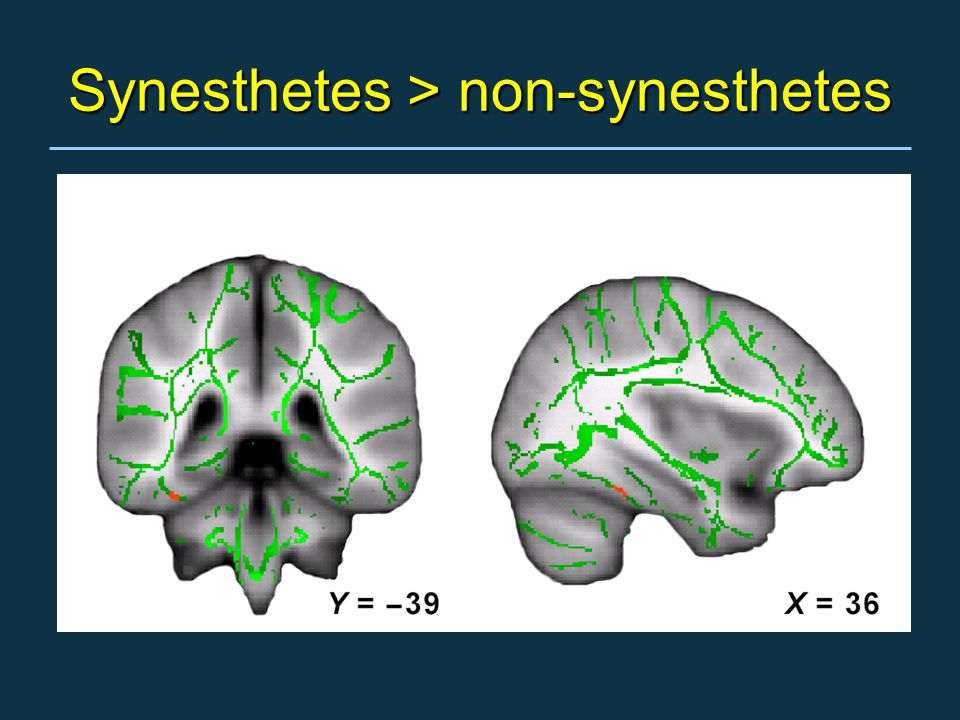

24 Synesthetes > non-synesthetes

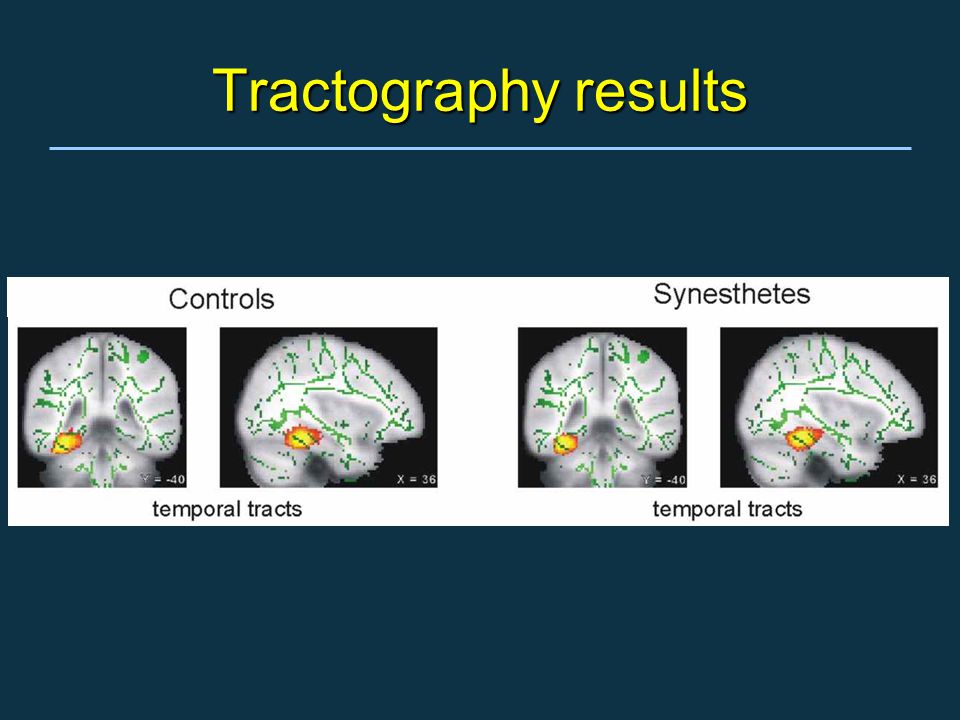

25 Tractography results

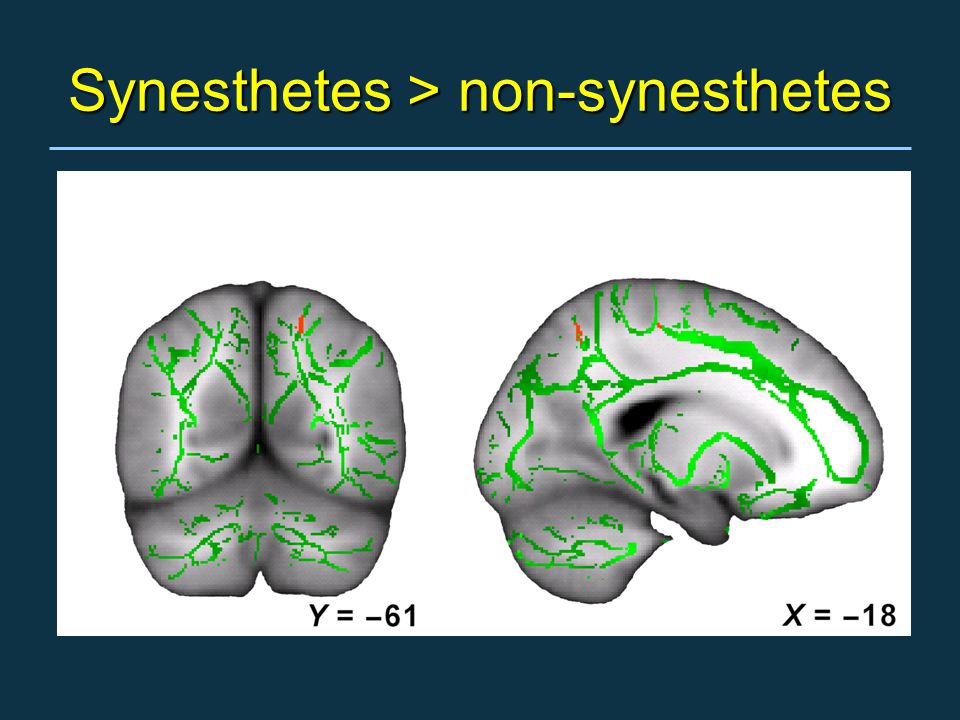

26 Synesthetes > non-synesthetes

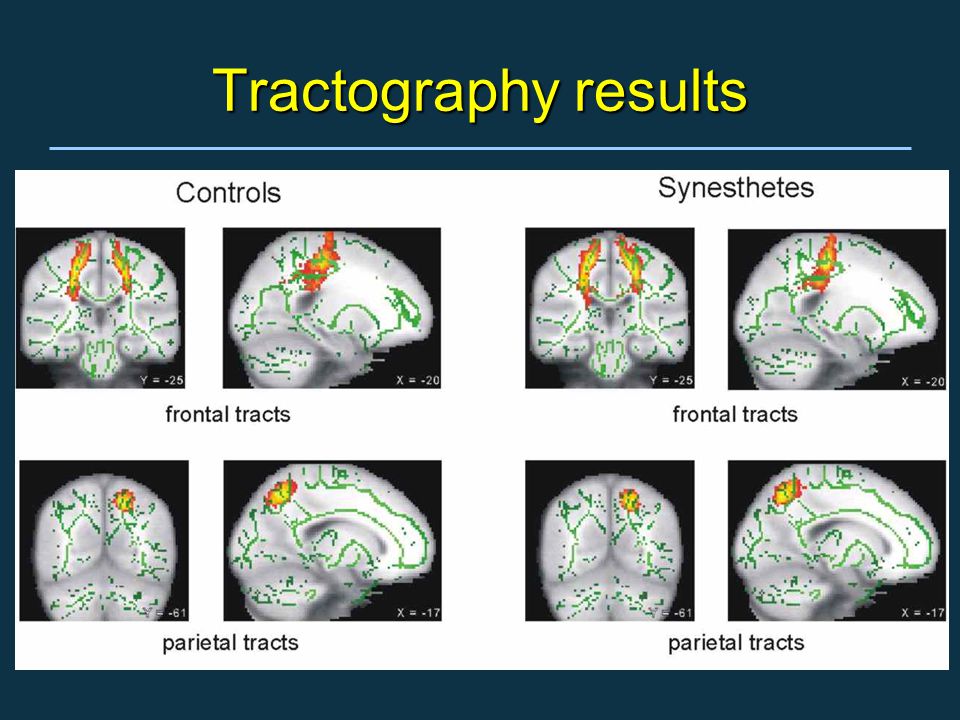

27 Tractography results

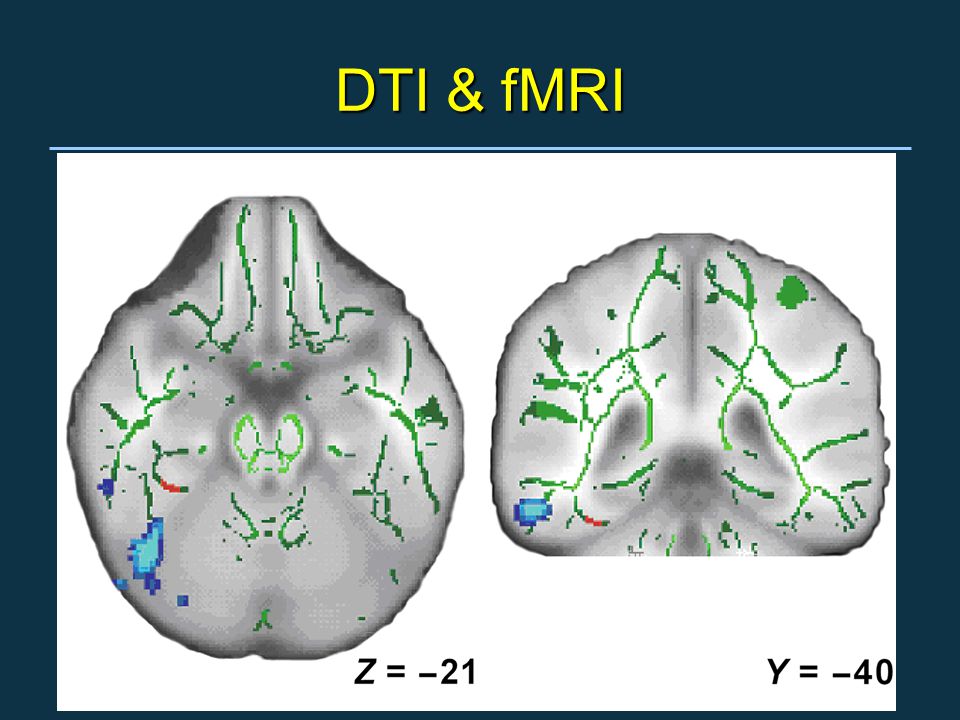

28 DTI & fMRI

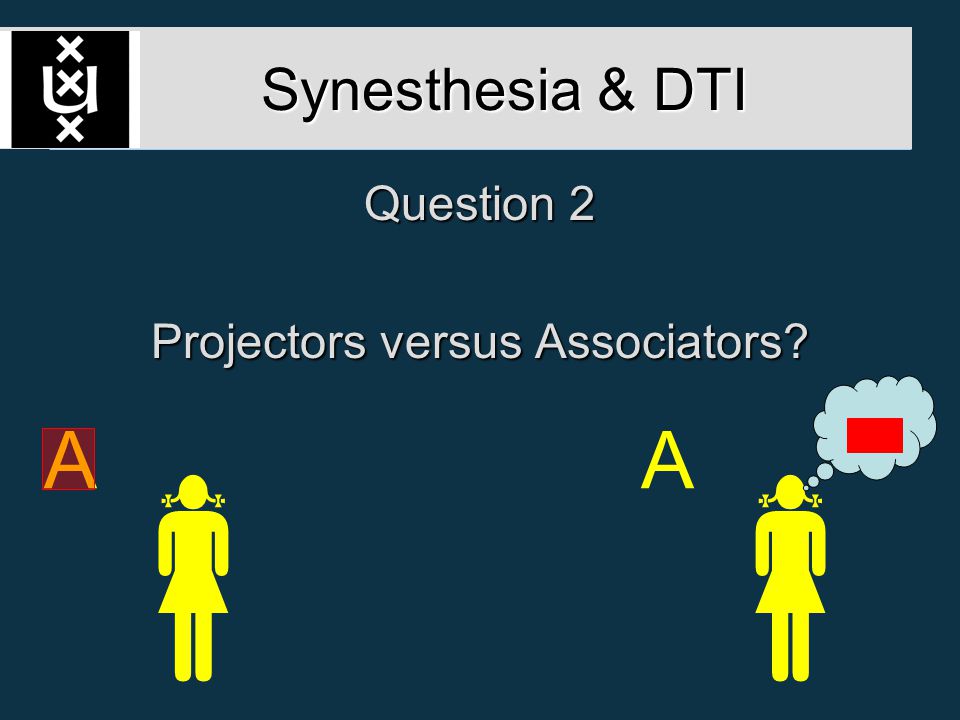

29 Synesthesia & DTI Question 2 Projectors versus Associators?  A  A

30 How can this be measured... Geef aan in hoeverre deze stellingen overeenkomen met uw synesthetische ervaringen (1 =sterk mee oneens, 5 = sterk mee eens), mits anders aangegeven. 1 Wanneer ik naar een bepaalde letter of cijfer kijk, dan zie ik een specifieke kleur Wanneer ik naar een bepaalde letter/cijfer kijk, verschijnt de bijbehorende kleur alleen in mijn gedachten en niet ergens buiten mijn hoofd (zoals op het papier)

31 Questionnaire “projector” vs “associator” questions: – when I look at a certain letter or digit, I really see a particular color –I see the color of the letter/digit only in my head five-point Likert Scale questions

32 Projector versus Associator? PA score projector associator

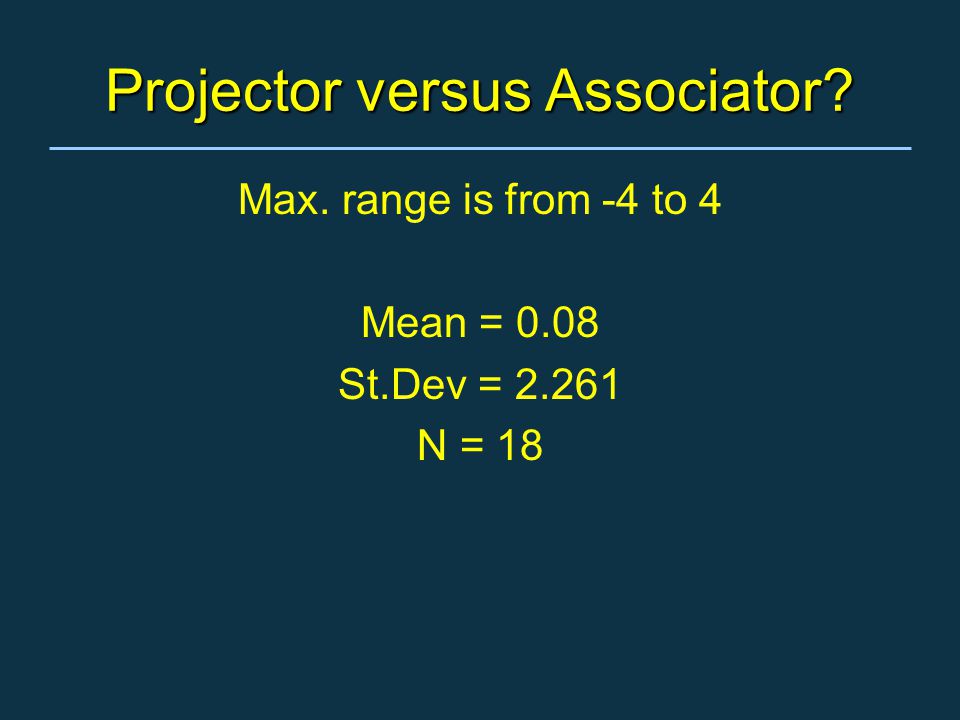

33 Projector versus Associator? Max. range is from -4 to 4 Mean = 0.08 St.Dev = N = 18

34 A   A

35

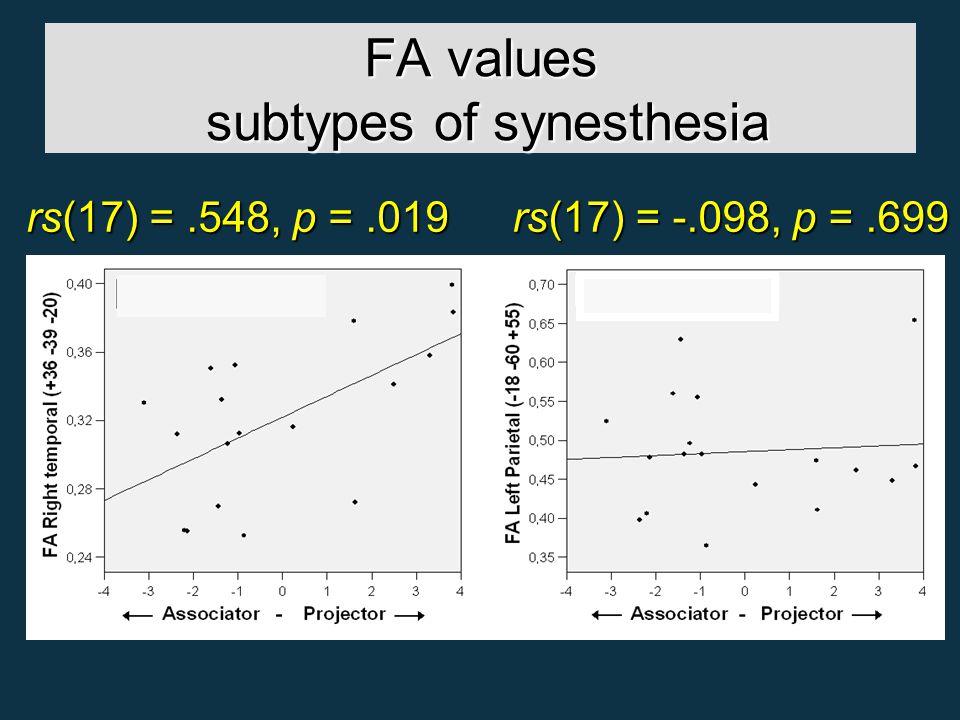

36 FA values subtypes of synesthesia rs(17) =.548, p =.019 rs(17) = -.098, p =.699

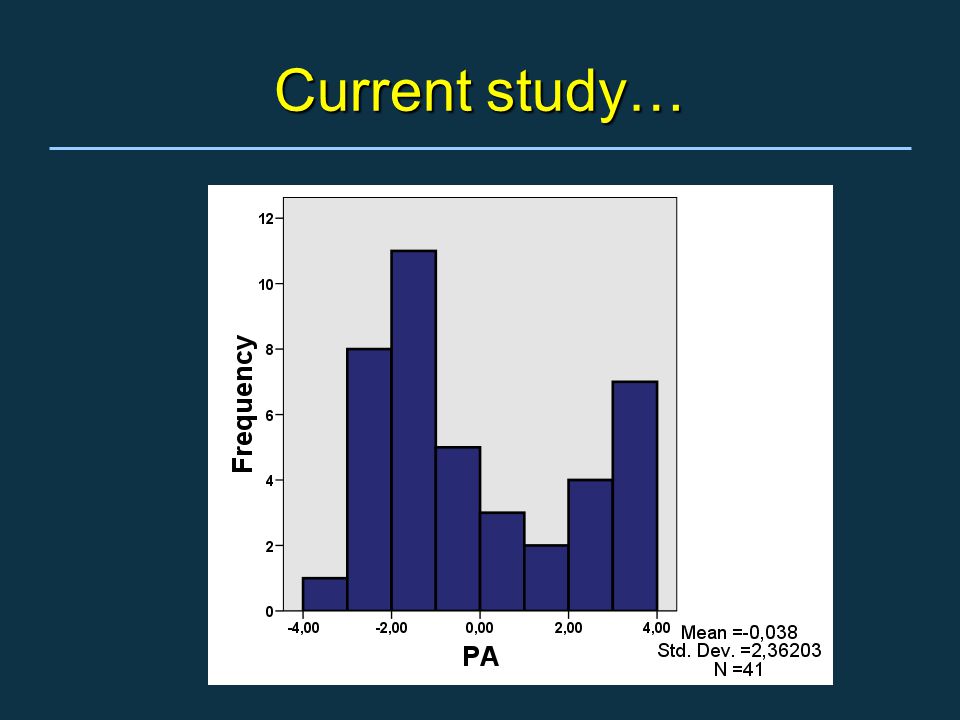

37 Current study…

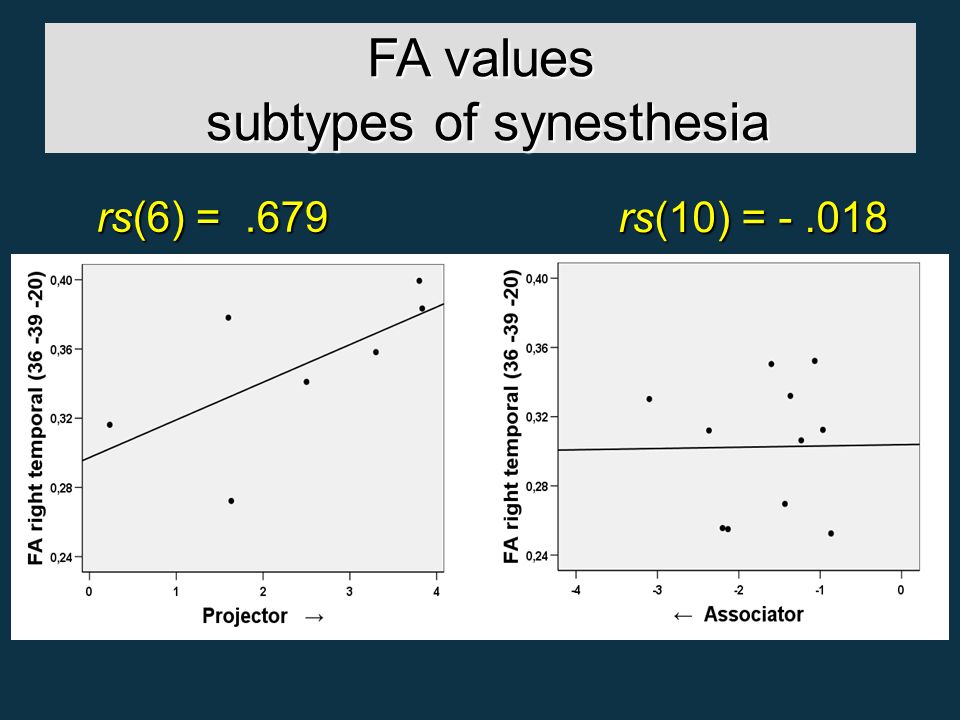

38 FA values subtypes of synesthesia rs(10) = rs(6) =.679

39

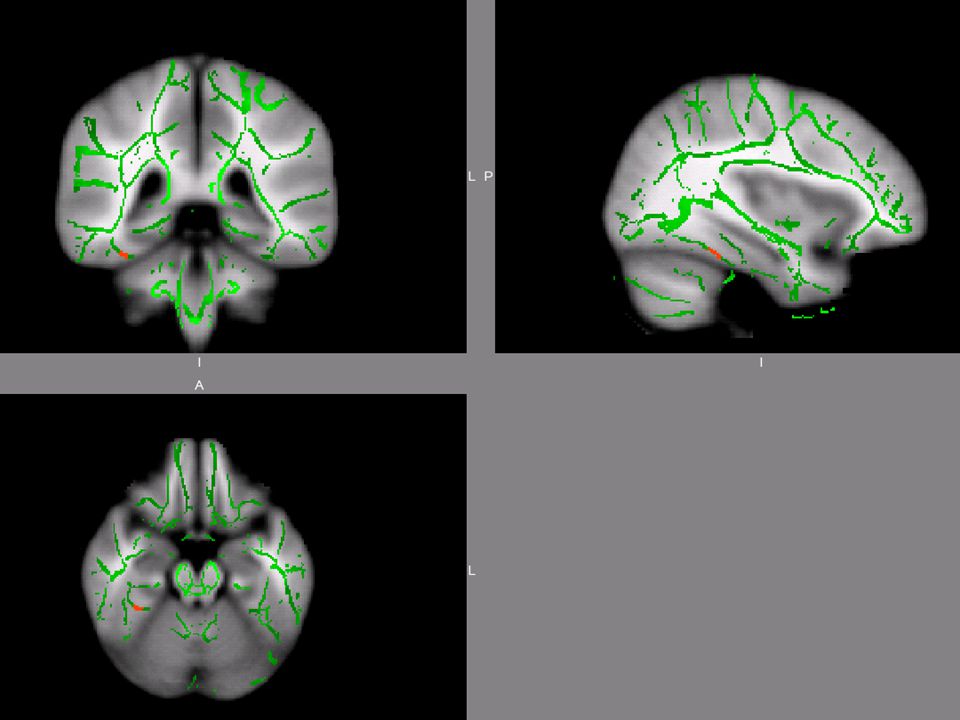

40

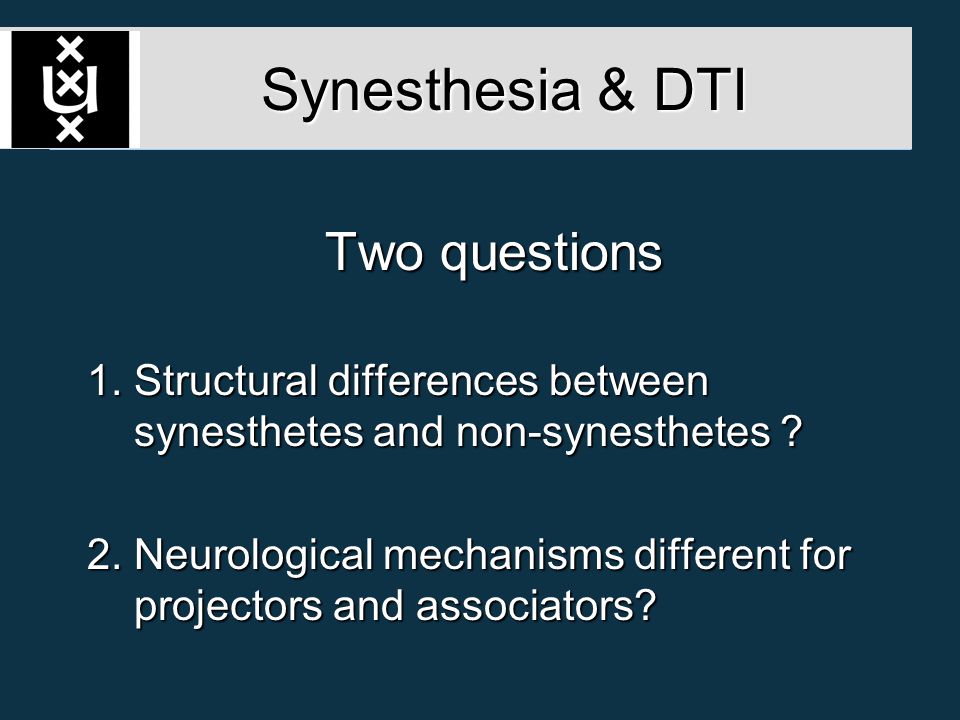

41 Synesthesia & DTI Two questions 1. Structural differences between synesthetes and non-synesthetes ? 2. Neurological mechanisms different for projectors and associators?

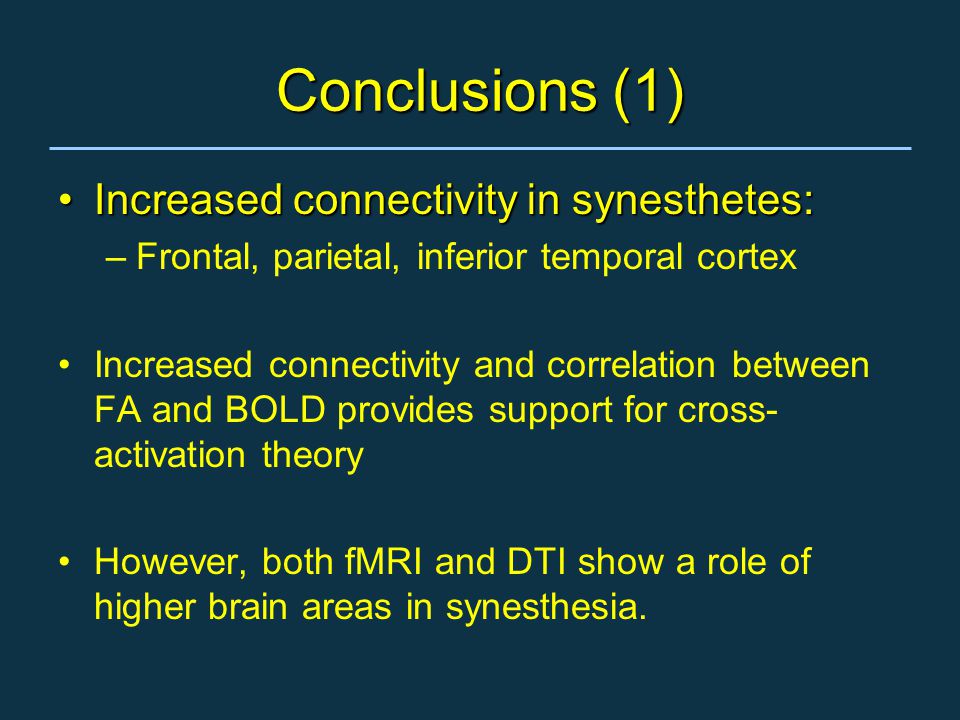

42 Conclusions (1) Increased connectivity in synesthetes:Increased connectivity in synesthetes: –Frontal, parietal, inferior temporal cortex Increased connectivity and correlation between FA and BOLD provides support for cross- activation theory However, both fMRI and DTI show a role of higher brain areas in synesthesia.

43 Conclusions (2) Of particular interest is a cluster of increased connectivity in inferior temporal cortex, near fusiform gyrus The strength of connectivity in this area correlates with the nature of synesthetic experienceThe strength of connectivity in this area correlates with the nature of synesthetic experience Rouw, R. & H.S. Scholte (2007). Nature Neuroscience, (10), Rouw, R. & H.S. Scholte (2007). Nature Neuroscience, (10),

44 Thank you

45

46 Increased FA in sup frontal cortex

47 Increased FA in left parietal cortex

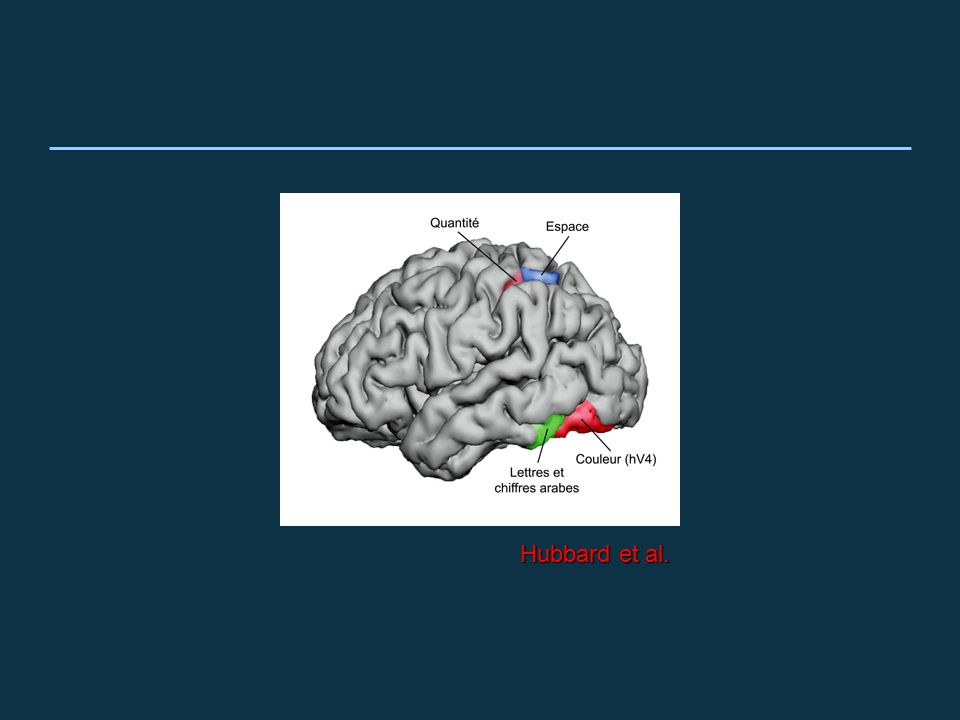

48 Hubbard et al.

49 Synesthetes > non-synesthetes Cluster size (mm 3 ) Talairach coordinates (mm) x y z Max effect size Sup. frontal l Sup. frontal r Parietal l Temporal r

50 grapheme task normal italic

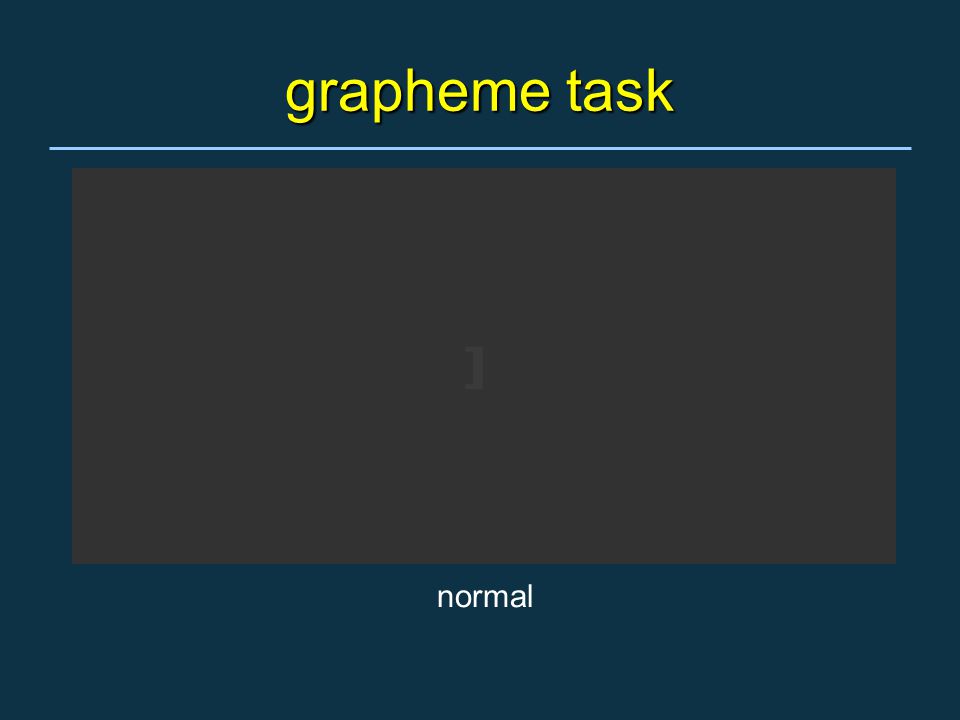

51 grapheme task normal

52 Results Synesthetic color (Strong + Weak) versus no color: synesthetes > non-synesthetes – Left middle frontal cortex 2944 mm3; CoG 49, -62, -18 (z); t max 3.98 –Right cerebellum, 984 mm3; 42, -68, -22; t max 3.47 –Right middle temporal gyrus 864 mm3; 54, -42, -12; t max 3.8 –Right fusiform gyrus (in posterior right temporal cortex) 1136 mm3; 23, 29, 29; t max 3.5 No activation non-synesthetes > synesthetes

53 Inferior temporal cortex

54 Results Synesthetic color (Strong + Weak) versus no color: synesthetes > non-synesthetes – Left middle frontal cortex 2944 mm3; CoG 49, -62, -18 (z); t max 3.98 –Right cerebellum, 984 mm3; 42, -68, -22; t max 3.47 –Right middle temporal gyrus 864 mm3; 54, -42, -12; t max 3.8 –Right fusiform gyrus (in posterior right temporal cortex) 1136 mm3; 23, 29, 29; t max 3.5 No activation controls > synesthetes

55 FA value – BOLD near/in fusiform gyrus Strong color Weak color No color Controls Spearman's rho Sig. (1-tailed) Synesth. Spearman's rho Sig. (1-tailed)

56 Questionnaire “projector” vs “associator” questions: – when I look at a certain letter or digit, I really see a particular color –I see the color of the letter/digit only in my head “perceptual” vs “conceptual” questions –I have to actually see a letter/digit to have a synesthetic experience – the synesthetic experience is strongest when I think of a certain letter/digit five-point Likert Scale questions

57 fMRI studies Inconsistent results: activation in Early visual areas ? Color area/V4 ? Parietal lobe Frontal regions

58 Visual processes Visual experience

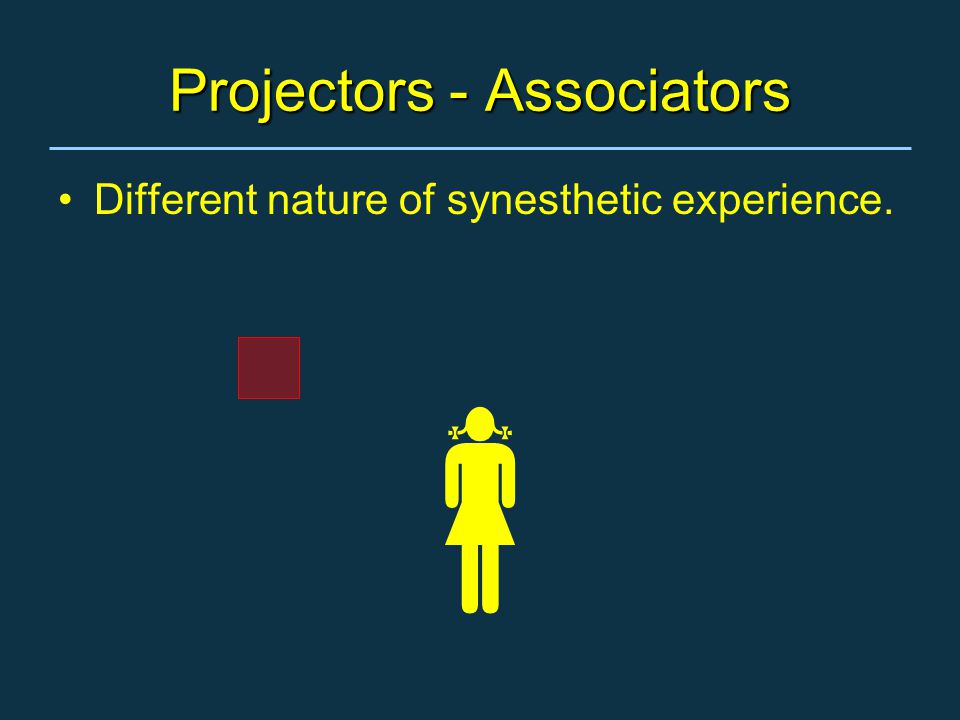

59 Projectors - Associators Different nature of synesthetic experience. 

60

61 FA values synesthetes versus non-synesthetes

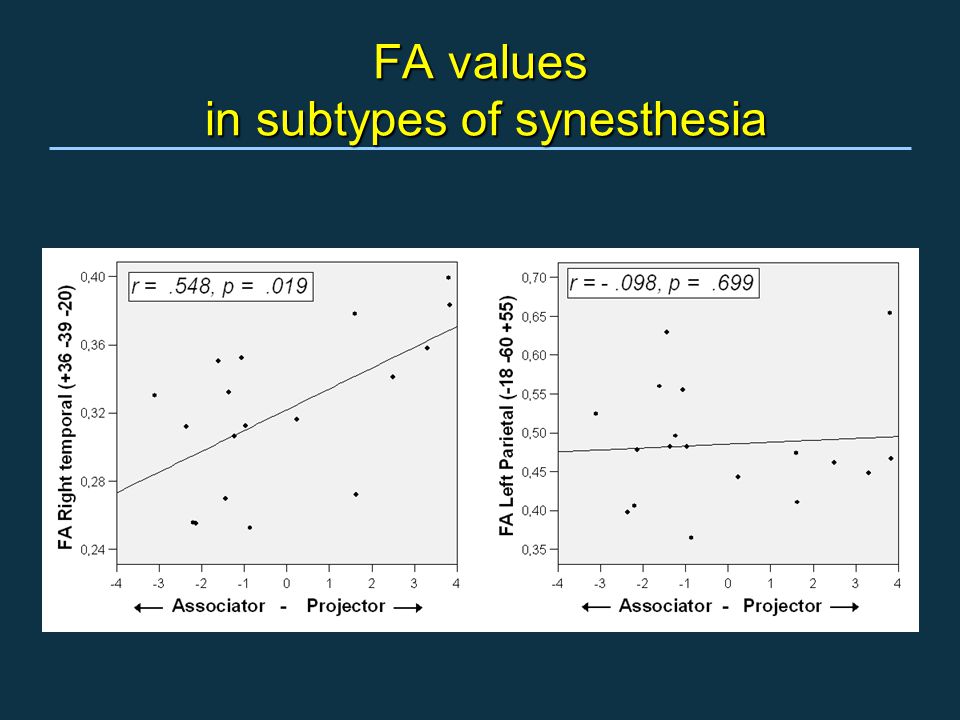

62 FA values in subtypes of synesthesia

63

64

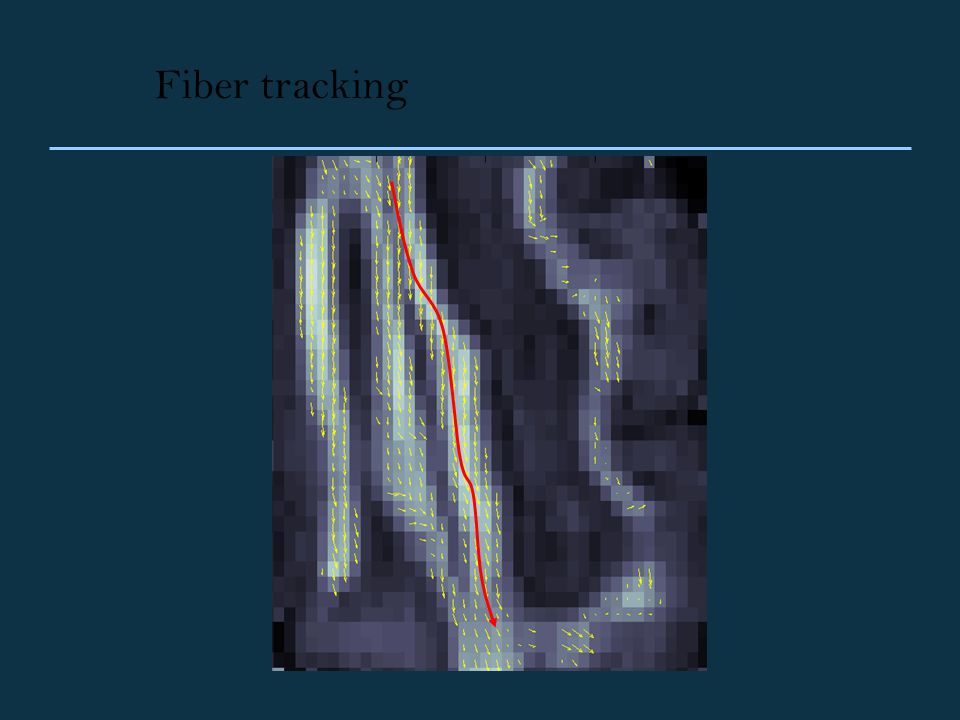

65 Fiber tracking

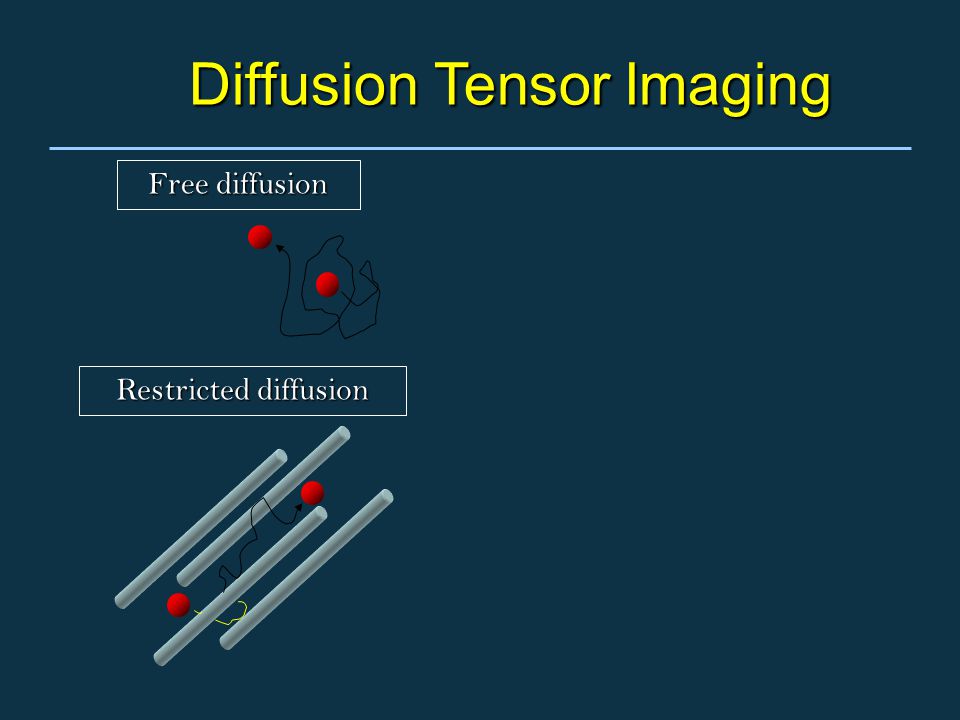

66 Diffusion Tensor Imaging Free diffusion Restricted diffusion

67 Anisotropic diffusion Free diffusion Restricted diffusion Isotropic diffusion Anisotropic diffusion

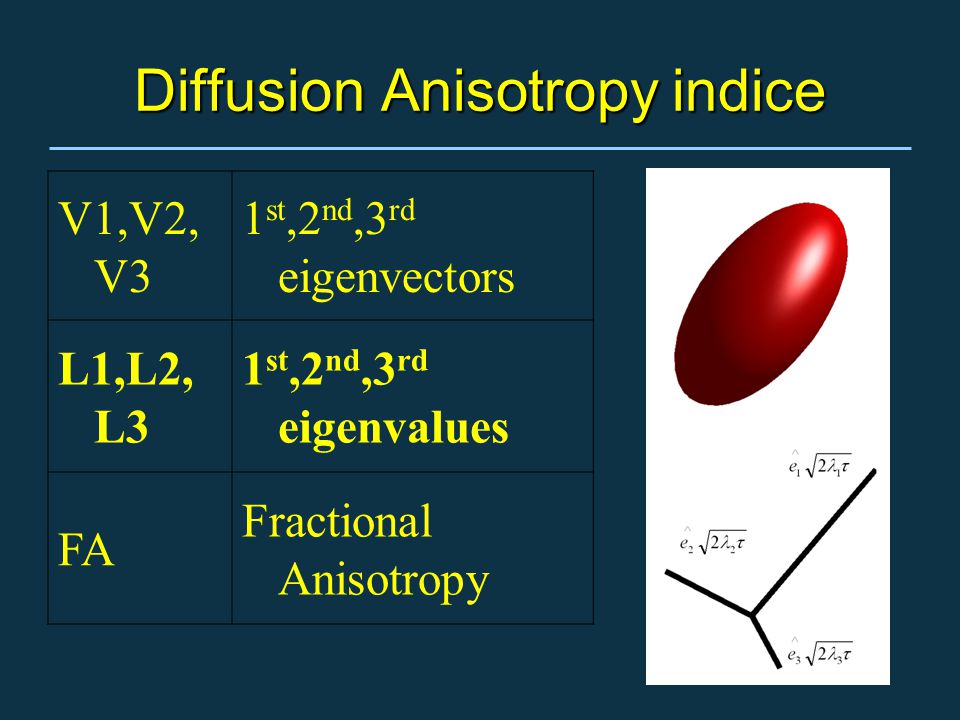

68 V1,V2, V3 1 st,2 nd,3 rd eigenvectors L1,L2, L3 1 st,2 nd,3 rd eigenvalues FA Fractional Anisotropy Diffusion Anisotropy indice

69 Fiber tracking

70

71

72

73 Inferior temporal cortex Recognition of visual categories Including the visual shape of a word

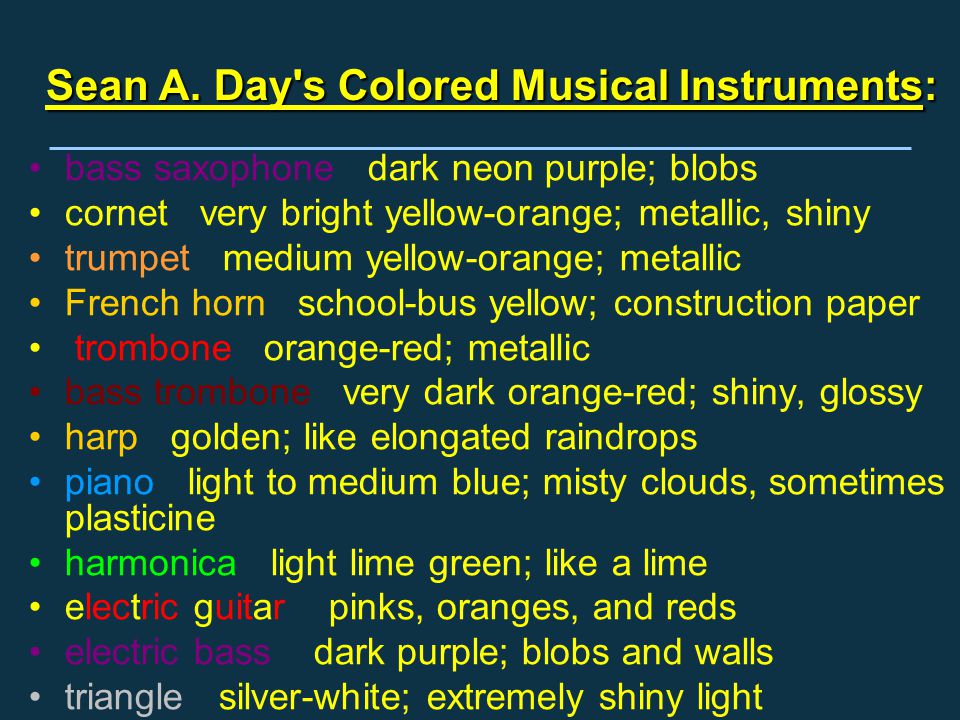

74 Sean A. Day's Colored Musical Instruments: Sean A. Day's Colored Musical Instruments: bass saxophone dark neon purple; blobs cornet very bright yellow-orange; metallic, shiny trumpet medium yellow-orange; metallic French horn school-bus yellow; construction paper trombone orange-red; metallic bass trombone very dark orange-red; shiny, glossy harp golden; like elongated raindrops piano light to medium blue; misty clouds, sometimes plasticine harmonica light lime green; like a lime electric guitar pinks, oranges, and reds electric bass dark purple; blobs and walls triangle silver-white; extremely shiny light

75 fMRI Graphemes task: –Graphemes that elicit strong synesthetic color –Graphemes that elicit weak synesthetic color –Graphemes that elicit no synesthetic color Is this letter/digit/symbol in italic?

76 Subjects with better performance on the behavioral experiments showed larger fMRI responses in early retinotopic visual areas Individual differences?

77 FA values synesthetes versus controls

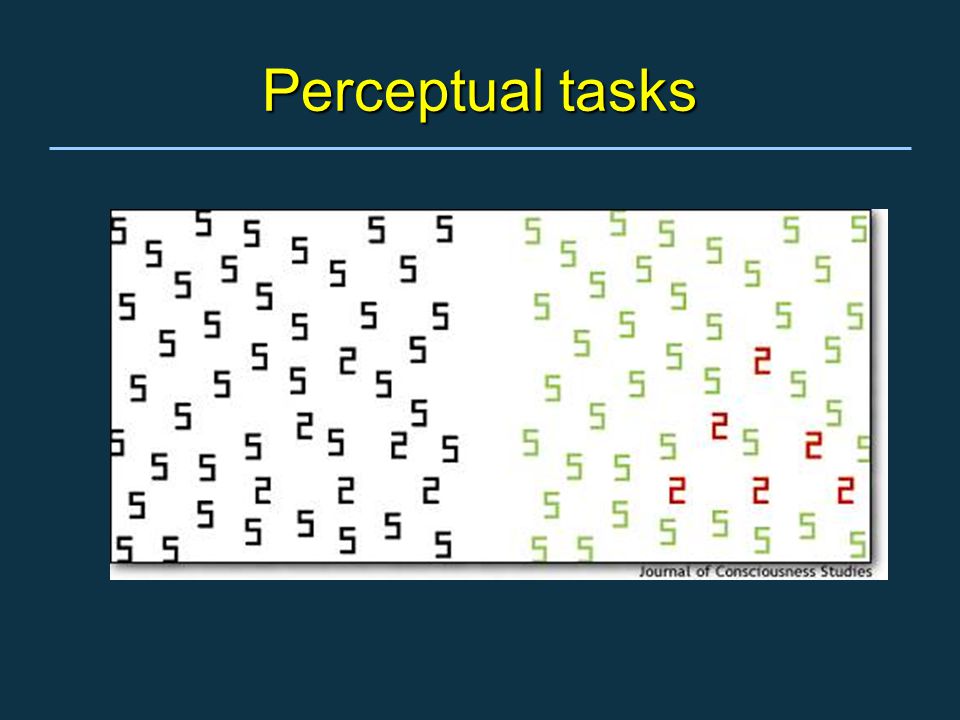

78 Perceptual tasks

79 Number forms

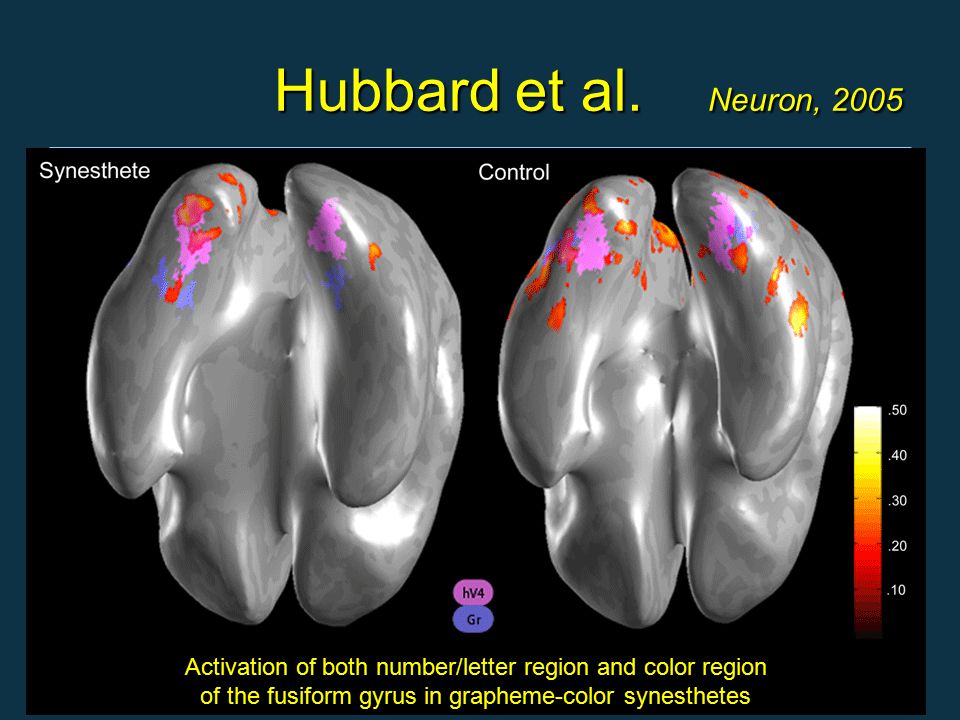

80 Hubbard et al. Neuron, 2005 Activation of both number/letter region and color region of the fusiform gyrus in grapheme-color synesthetes

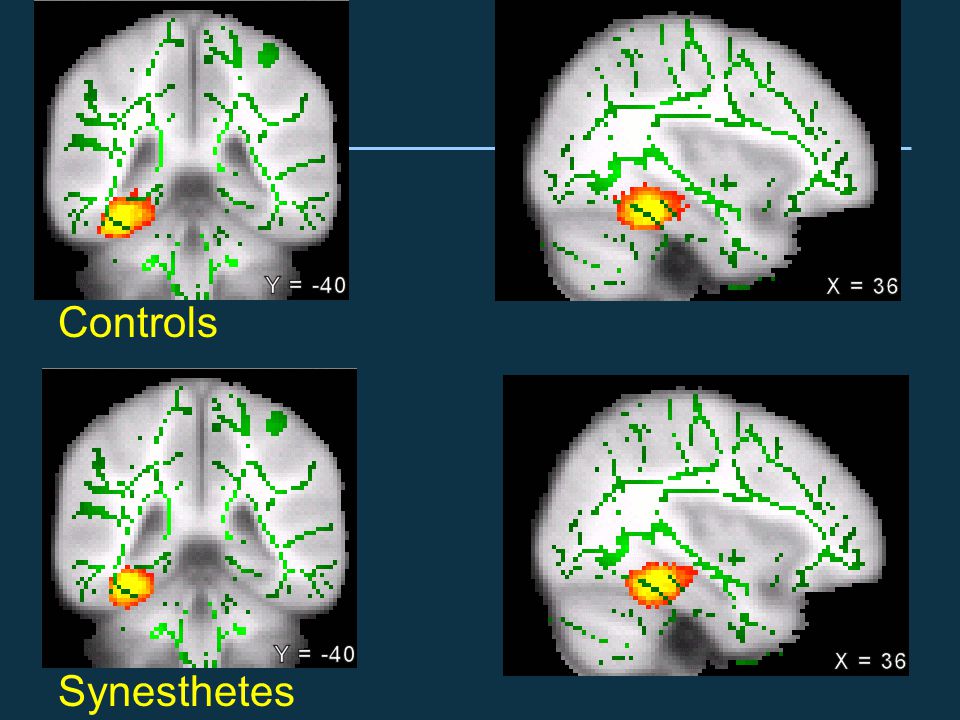

81 Controls Synesthetes

82 Increased FA r inferior temporal cortex

83 directions

84 Increased FA in sup frontal cortex

85 Increased FA in left parietal cortex

86

87 Synesthetic Experiences

88
