Alpha Techno Precision Tooling is specialized in manufacturing of high quality machined components and assemblies in a wide range of materials. The company.

Similar presentations


Presentation on theme: "Alpha Techno Precision Tooling is specialized in manufacturing of high quality machined components and assemblies in a wide range of materials. The company."— Presentation transcript:

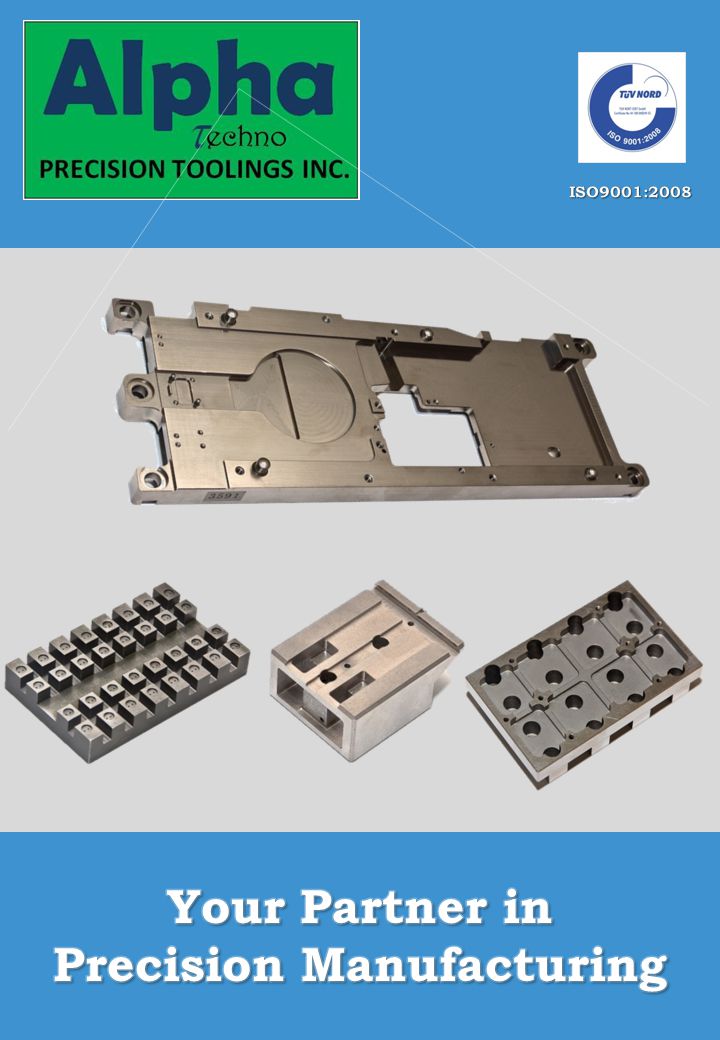

1

2 Alpha Techno Precision Tooling is specialized in manufacturing of high quality machined components and assemblies in a wide range of materials. The company was established 2009 and is located in Cavite Economic Zone, Rosario, Cavite - South of Manila the capital city of Philippines. The company has grown fast in recent year because of customer satisfaction which is the main focus of the company’s quality policy. Alpha Techno Precision is a ISO 9001:2008 certified company by TUV Nord Philippines. These achievements are the result of our open culture on stimulating the development of our team of professionals. Our Strengths:  Equipped with modern and latest technology on CNC machining  Temperature controlled QC with CMM measurement Brawn and Sharp with accuracy of 2 microns  Professional team of design engineers using Auto Desk Inventor  Products distributed to our customers in local and export markets Main Equipment:  HAAS CNC Machine  CHMER Wire-cut  CHMER EDM  Brawn and Sharp CMM  Easson Profile Projector About Us

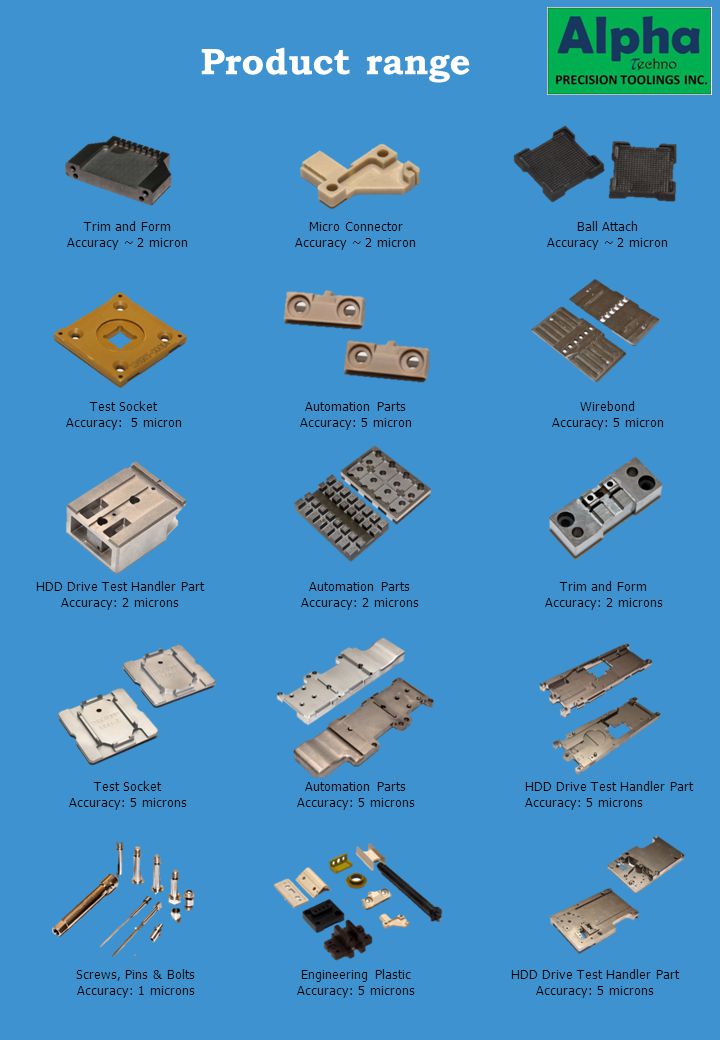

3 Product range Automation Parts Accuracy: 5 microns Automation Parts Accuracy: 2 microns HDD Drive Test Handler Part Accuracy: 2 microns Screws, Pins & Bolts Accuracy: 1 microns Engineering Plastic Accuracy: 5 microns Test Socket Accuracy: 5 micron Automation Parts Accuracy: 5 micron Wirebond Accuracy: 5 micron HDD Drive Test Handler Part Accuracy: 5 microns HDD Drive Test Handler Part Accuracy: 5 microns Test Socket Accuracy: 5 microns Micro Connector Accuracy ~ 2 micron Ball Attach Accuracy ~ 2 micron Trim and Form Accuracy: 2 microns Trim and Form Accuracy ~ 2 micron

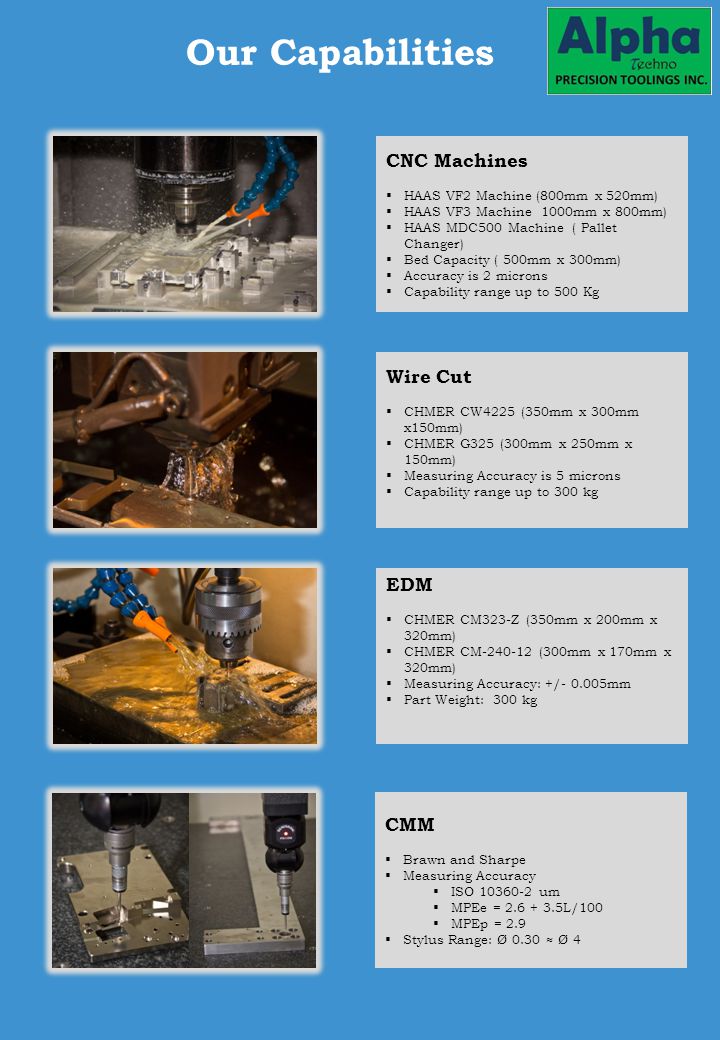

4 Our Capabilities CNC Machines  HAAS VF2 Machine (800mm x 520mm)  HAAS VF3 Machine 1000mm x 800mm)  HAAS MDC500 Machine ( Pallet Changer)  Bed Capacity ( 500mm x 300mm)  Accuracy is 2 microns  Capability range up to 500 Kg Wire Cut  CHMER CW4225 (350mm x 300mm x150mm)  CHMER G325 (300mm x 250mm x 150mm)  Measuring Accuracy is 5 microns  Capability range up to 300 kg CMM  Brawn and Sharpe  Measuring Accuracy  ISO um  MPEe = L/100  MPEp = 2.9  Stylus Range: Ø 0.30 ≈ Ø 4 EDM  CHMER CM323-Z (350mm x 200mm x 320mm)  CHMER CM (300mm x 170mm x 320mm)  Measuring Accuracy: +/ mm  Part Weight: 300 kg

5 Engineering & Quality Profile Projector  EASON Profile Projector  Lens Magnification : 10x and 20x  Can provide accurate 2D measurement for all common geometric features such as circle, line, angle, distance, location and radius Height Digimatic Indicator  Size: 1000mm x 750mm  Tolerance 3 micron  With support cylindrical sleeve base with a height indicator slide with changing of green/red back light color for easy go / no go reading Auto CAD Professional Software Support for  Reverse Engineering  Design Modification and Customization Development  A vector-based graphics that depict objects in two and three dimensions.  Increased design productivity with top advantage both initial composition and in any changes that takes place  Simplifies manufacturing process Technical Specifications  Size: dia mm to 1000 mm  Length: 1 mm to 1000 mm Material:  Stainless Steel 304 and 316  Engineering Plastics (Torlon, Natural Peek, Delrin, Teflon, CDR6, POM Black and Ultem, Aluminum T6061, T7071 and Ordinary Brass 360, Carbon Graphite and Carbide

6 List of Customers PHILIPPINES Address: Blk. 16, Phase IV, PIMES Compound, Cavite Economic Zone, Rosario, Cavite, Philippines, 4106 Tel.: Fax:
