1

2  Forces are contact forces or field forces.  When two bodies are in contact with each other, contact forces can result e.g. friction, twisting, pulling or pushing forces.

3

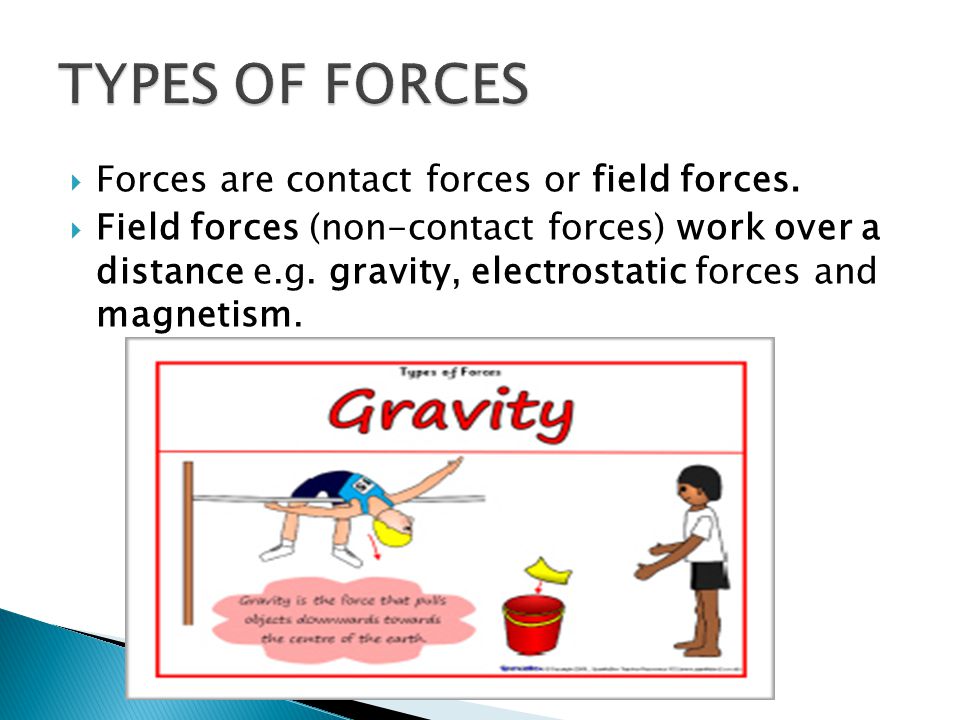

4  Forces are contact forces or field forces.  Field forces (non-contact forces) work over a distance e.g. gravity, electrostatic forces and magnetism.

5 A force can...  make a moving object stop.  cause a stationery object to move.  change speed of moving object.  change direction of moving object.  change shape of object.  have no effect at all.

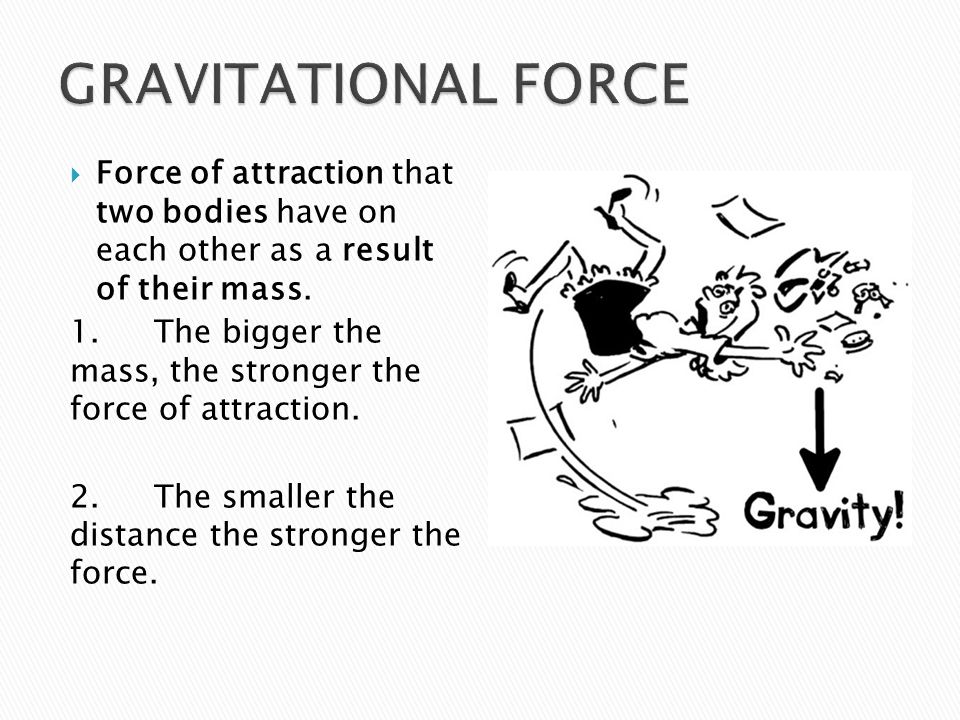

6  Force of attraction that two bodies have on each other as a result of their mass. 1.The bigger the mass, the stronger the force of attraction. 2.The smaller the distance the stronger the force.

7

8

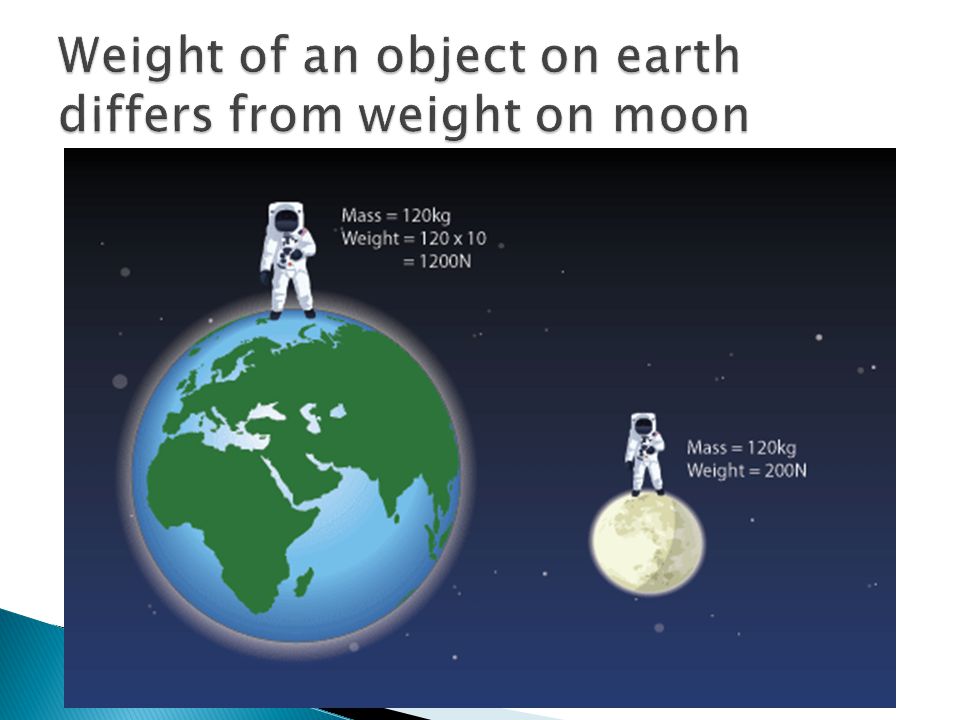

9 MASS vs WEIGHT Mass stays the same, weight different on earth and moon  Weight on Earth calculated using formula: F = mg  F = force (gravitation), m = mass, g = gravitational accelleration of 9,8 m/s 2. g on moon = 1,6 m/s 2  Weight of 50 kg person on Earth = 50 x 9,8  = 490 N  Weight on moon?  50 x 1,6 = 80 N

10

11

12

13

14

15

16

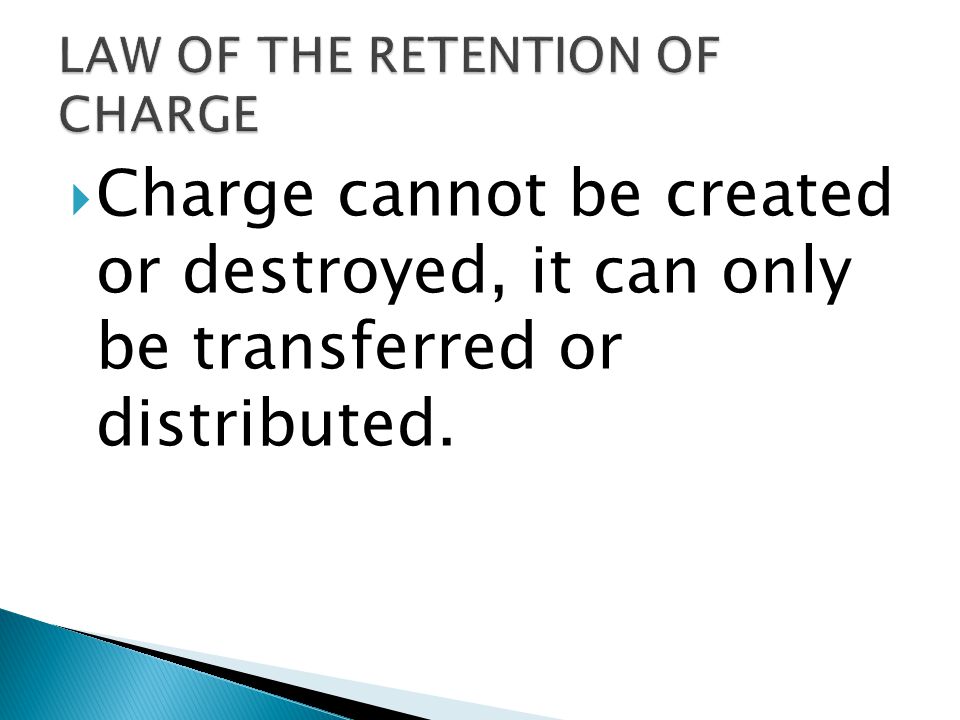

17  Charge cannot be created or destroyed, it can only be transferred or distributed.

18

19

20

21  Like poles (N and N, or S and S) repel each other.  Opposite poles (N and S) attract each other.

22

23  We know that the apple probably didn’t fall on Newton’s head, but a falling apple made him think about gravity... as well as many other concepts.

24

25

26

27

28

29
