1
ʘ exchange Forces For the hydrogen molecule For a particular pair of atoms, situated at a certain distance apart, there are certain electrostatic attractive forces and repulsire forces which can be calculated by Coulomb’s law. But there is still another force, entirely non-classical, which depends on the relative orientation of the spins of the two electrons -> exchange force. If the spins are antiparallel, the sum of all the forces is attractive and a stable molecule is formed; the total energy of the atoms is then less for a particular distance of separation than it is for smaller or larger distance. If the spins are parallel, the two atoms repel one another. The exchange force is a consequence of the Pauli exclusion principle, applied to the two atoms as a whole. The consideration introduces an additional term, the exchange energy, into the expression for the total energy of the two atoms.

2
The exchange energy forms an important part of the total energy of many molecules and of the covalent bond in many solids. If two atoms i and j have spin angular momentum S i h/2π and S j h/2π, respectively, the exchange energy between them is given by J ex : exchange integral θ: the angle between the spins (cos θ=1) If J ex > 0, E ex is a minimum, When the spins are parallel E ex is a maximum, When the spins are anti-parallel (cos θ=-1) If J ex < 0, E ex is a minimum, When the spins are anti-parallel E ex is a maximum, When the spins are parallel Ferromagnetism is due to the alignment of spin moments on adjacent atoms, -> J ex > 0 J ex is commonly negative, as in the hydrogen molecules, J ex < 0

3
Bethe-Slater curve Bethe-Slater curve, shows the postulated variation of the exchange integral with ratio r a /r 3d the radius of its 3d shell of electron. When is large, J ex is small and positive. When is small, a further decrease in the interatomic distance brings the 3d electron so close together that their spins must becomes anti-parallel (J ex antiferromagnetism When J ex > 0, it magnitude is proportional to T c, because spins which are held parallel to each other by strong exchange forces can be disordered only by large amounts of thermal energy. J ex (Co)> J ex (Fe)> J ex (Ni) Co,T c =1131 o C > Fe,T c =770 o C > Ni,T c =358 o C

4
Band theory The pauli principle: each energy level in an atom can contain a maximum of two electrons and they must have opposite spin. The 2P subshell is actually composed of 3 sub-subshells of almost the same energy, each capable of holding two electrons. 3d and 4s level have nearly the same energy and they shift their relative positive positions almost from atom to atom. The transition elements, those in which an incomplete 3d shell is being filled are the ones of most interest to us because they include 3 ferromagnetic metals. When atoms are brought close together to from a solid, the positions of the energy level are profoundly modified. 18

5

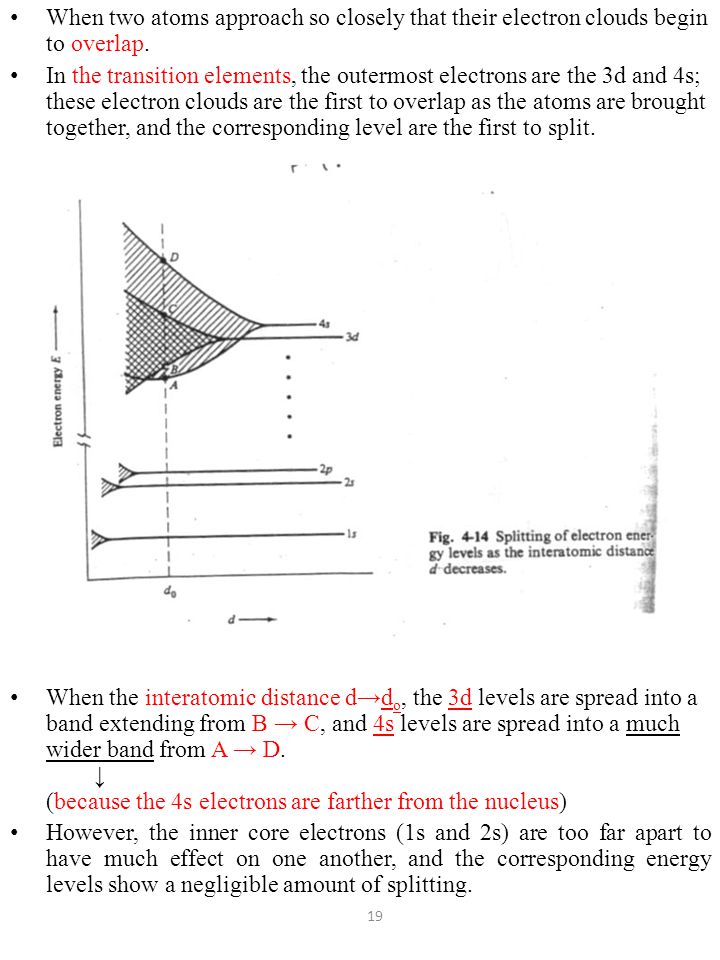

When two atoms approach so closely that their electron clouds begin to overlap. In the transition elements, the outermost electrons are the 3d and 4s; these electron clouds are the first to overlap as the atoms are brought together, and the corresponding level are the first to split. When the interatomic distance d→d o, the 3d levels are spread into a band extending from B → C, and 4s levels are spread into a much wider band from A → D. ↓ (because the 4s electrons are farther from the nucleus) However, the inner core electrons (1s and 2s) are too far apart to have much effect on one another, and the corresponding energy levels show a negligible amount of splitting. 19

6

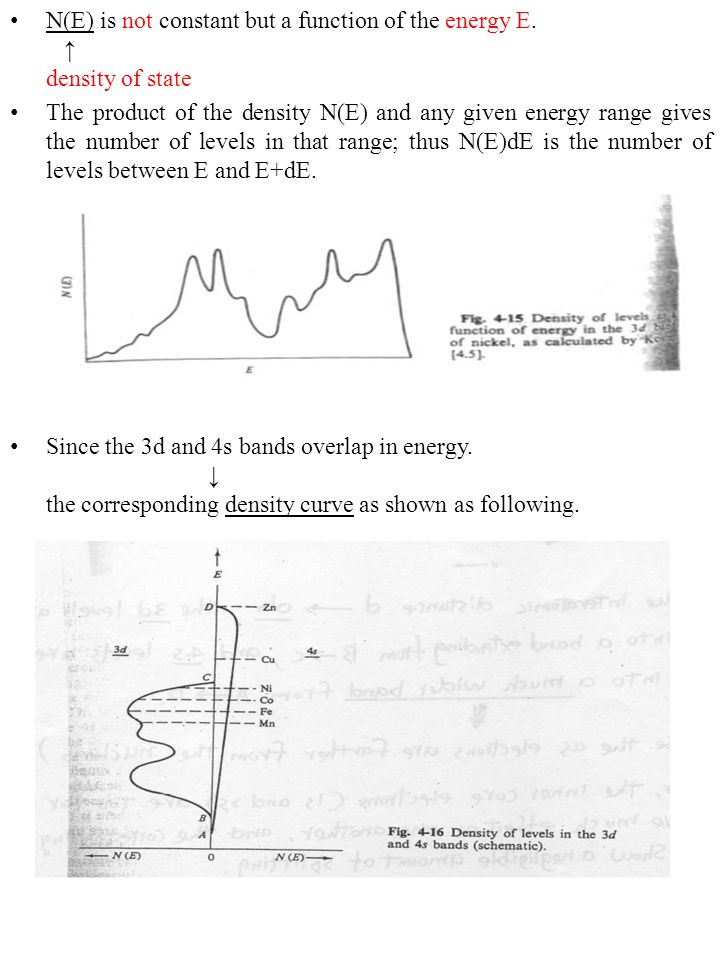

N(E) is not constant but a function of the energy E. ↑ density of state The product of the density N(E) and any given energy range gives the number of levels in that range; thus N(E)dE is the number of levels between E and E+dE. Since the 3d and 4s bands overlap in energy. ↓ the corresponding density curve as shown as following. 20

7
The density of 3d levels far greater than that of 4s levels, because there are five 3d levels per atom, with a capacity of a capacity of 2 electrons. Filled energy levels can’t contribute a magnetic moment, because the two electrons in each level have opposite spin and thus cancel each other out. Suppose that 10 atoms are brought together to form a “crystal”. Then the single level in the free atom will split into 10 levels, and the lower 5 will each contain 2 electrons. If one electron reverses its spin, as in (b), then a spin imbalance of 2 is created, and the magnetic moment, μ H =2/10 μ B /atom. The force creating this spin imbalance in a ferromagnetic is just the exchange force. 21

8
The ferromagnetism of Fe, Co, and Ni is due to spin imbalance in the 3d band. The maximum imbalance in 3d (the saturation magnetization), is achieved when one half-band is full of 5 electrons. Suppose we let n = no. of (3d+4s) electron per atom x = no. of 4s electron per atom n - x = no. of 3d electron per atom At saturation, five 3d electrons have spin up and (n - x - 5) have spin down → μ H = [5 - (n - x - 5)]μ B = [10 - (n - x)] μ B This eq. Shows that the max spin imbalance is equal to the no. of unfilled electron states in the 3d band. (The 4s electrons are assumed to make no contribution) For Ni, n = 10 and the experimental value of μ H = 0.6μ B insert μ H = [10 - (n - x)]μ B, we found x = 0.6 To assume that the no. of 4s electrons is constant at 0.6 for elements near Ni, we have μ H = ( n)μ B. 22

9

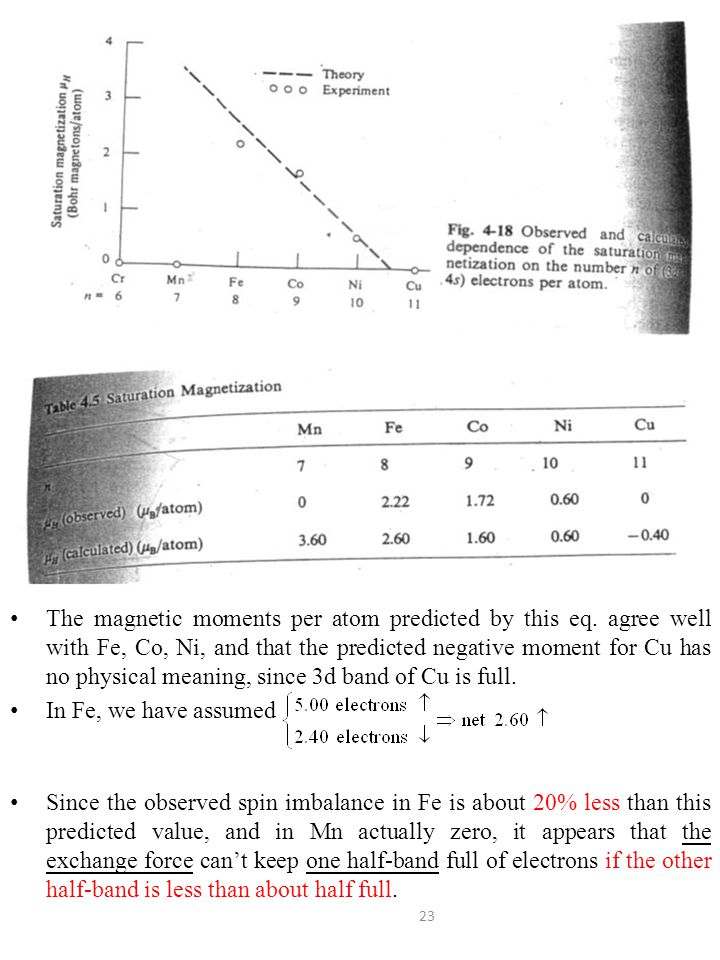

The magnetic moments per atom predicted by this eq. agree well with Fe, Co, Ni, and that the predicted negative moment for Cu has no physical meaning, since 3d band of Cu is full. In Fe, we have assumed Since the observed spin imbalance in Fe is about 20% less than this predicted value, and in Mn actually zero, it appears that the exchange force can’t keep one half-band full of electrons if the other half-band is less than about half full. 23

10
◎ Magnetic ceramics Each electron in an atom contributes a quantized amount of magnetic moment form its For the transition metal ions used in most ferrites, the contribution from the orbital angular momentum is negligible, and the magnetic moment of an ion is determined by the no. of unpaired electron spins. Each unpaired electron contributes a moment of one Bohr magneton (μ 0 ) In the transition metal series where 3d-shells are partially filled, the moment is determined by the net no. of unpaired spins. ◎ The resulting magnetic moments for the transition metal series. 24

11

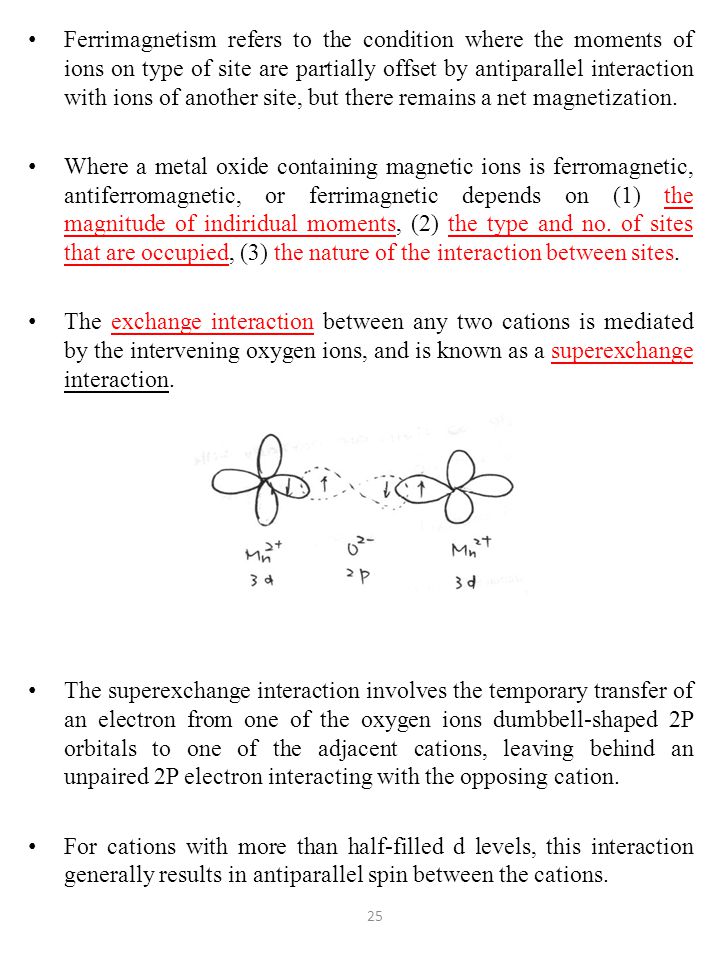

Ferrimagnetism refers to the condition where the moments of ions on type of site are partially offset by antiparallel interaction with ions of another site, but there remains a net magnetization. Where a metal oxide containing magnetic ions is ferromagnetic, antiferromagnetic, or ferrimagnetic depends on (1) the magnitude of indiridual moments, (2) the type and no. of sites that are occupied, (3) the nature of the interaction between sites. The exchange interaction between any two cations is mediated by the intervening oxygen ions, and is known as a superexchange interaction. The superexchange interaction involves the temporary transfer of an electron from one of the oxygen ions dumbbell-shaped 2P orbitals to one of the adjacent cations, leaving behind an unpaired 2P electron interacting with the opposing cation. For cations with more than half-filled d levels, this interaction generally results in antiparallel spin between the cations. 25

12
⊙ Molecular field theory We expect that exchange forces between the metal ions in a ferrimagnetic will act through the O ions by means of the indirect exchange (super exchange) mechanism, just as in antiferromagnetic. The exchange interaction in antiferromagnetic ionic solid takes place by the mechanism of indirect exchange (super exchange). The positive metal ions, which carry the magnetic moment are too far apart for direct exchange forces. Instead, they act indirectly through the neighboring anions (negative ions). For example, two Mn 2+ ions being brought up an O 2- ion from a large distance as in (a). The moment on these two ions are at first only randomly related and O 2- has no net moment. However, the outer electrons of the O 2- ion constitute two superimposed orbits, one with net spin up, the other with net spin down. 26

13

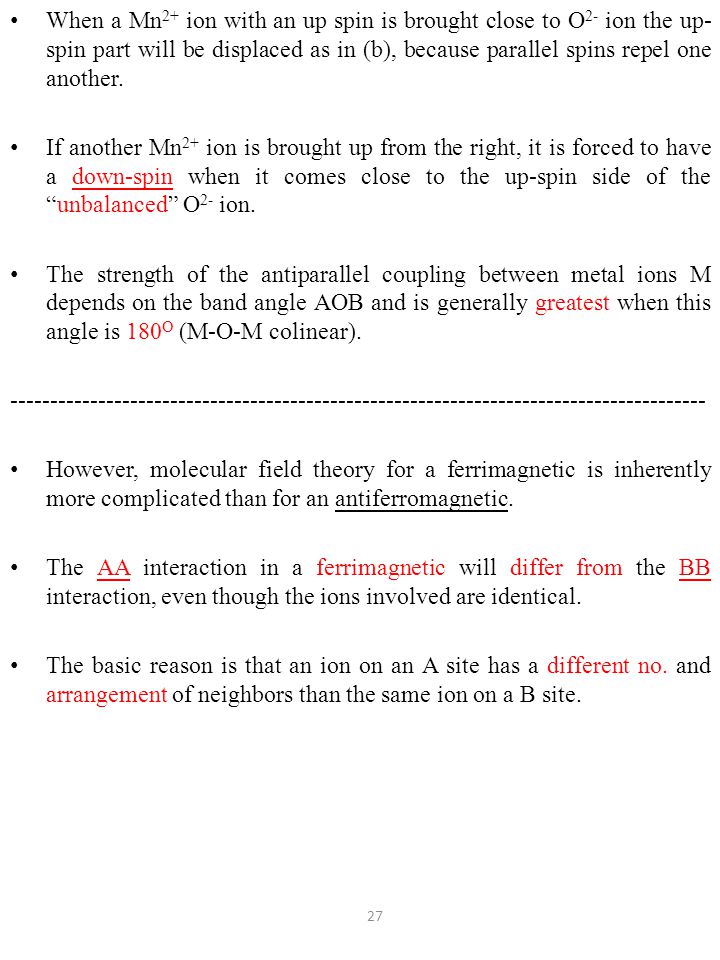

When a Mn 2+ ion with an up spin is brought close to O 2- ion the up- spin part will be displaced as in (b), because parallel spins repel one another. If another Mn 2+ ion is brought up from the right, it is forced to have a down-spin when it comes close to the up-spin side of the “unbalanced” O 2- ion. The strength of the antiparallel coupling between metal ions M depends on the band angle AOB and is generally greatest when this angle is 180 O (M-O-M colinear) However, molecular field theory for a ferrimagnetic is inherently more complicated than for an antiferromagnetic. The AA interaction in a ferrimagnetic will differ from the BB interaction, even though the ions involved are identical. The basic reason is that an ion on an A site has a different no. and arrangement of neighbors than the same ion on a B site. 27

14

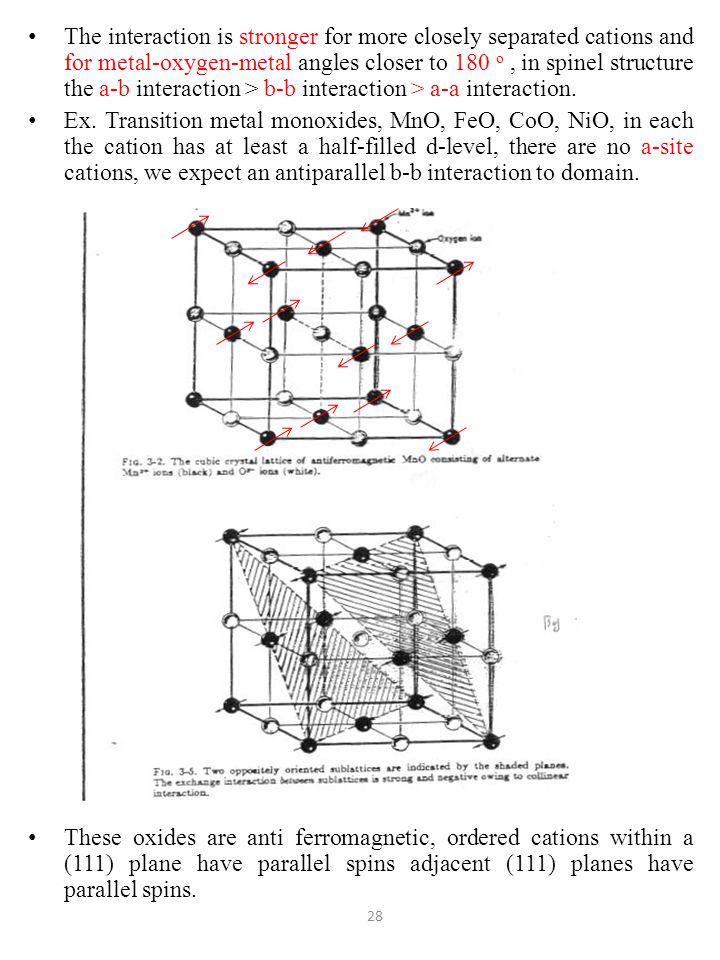

The interaction is stronger for more closely separated cations and for metal-oxygen-metal angles closer to 180 o, in spinel structure the a-b interaction > b-b interaction > a-a interaction. Ex. Transition metal monoxides, MnO, FeO, CoO, NiO, in each the cation has at least a half-filled d-level, there are no a-site cations, we expect an antiparallel b-b interaction to domain. These oxides are anti ferromagnetic, ordered cations within a (111) plane have parallel spins adjacent (111) planes have parallel spins. 28

15

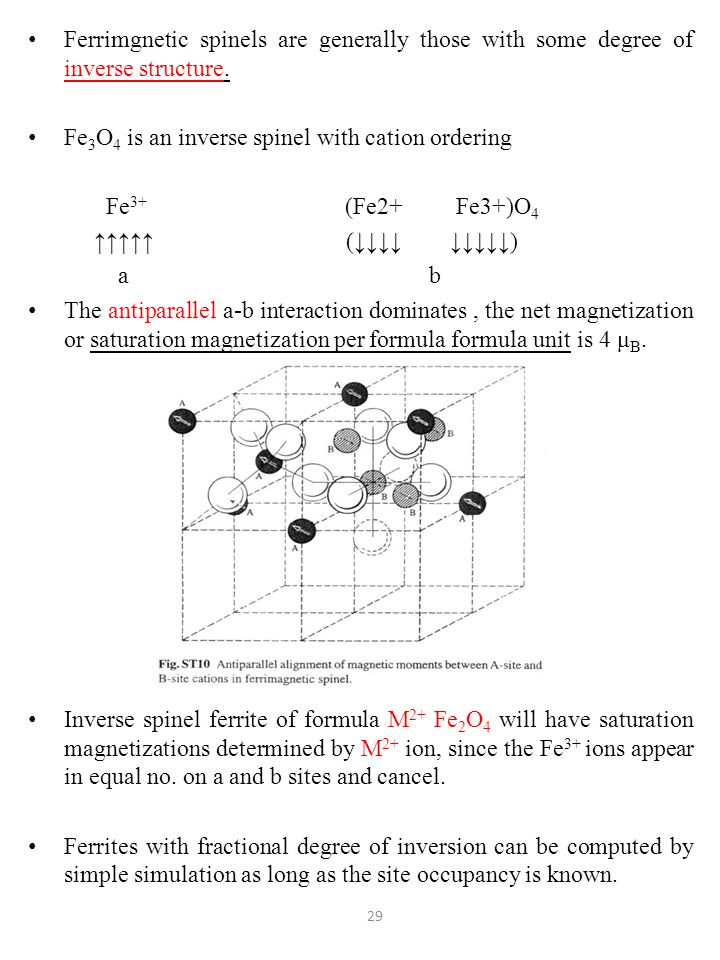

Ferrimgnetic spinels are generally those with some degree of inverse structure. Fe 3 O 4 is an inverse spinel with cation ordering Fe 3+ (Fe2+ Fe3+)O 4 ↑↑↑↑↑ (↓↓↓↓ ↓↓↓↓↓) a b The antiparallel a-b interaction dominates, the net magnetization or saturation magnetization per formula formula unit is 4 μ B. Inverse spinel ferrite of formula M 2+ Fe 2 O 4 will have saturation magnetizations determined by M 2+ ion, since the Fe 3+ ions appear in equal no. on a and b sites and cancel. Ferrites with fractional degree of inversion can be computed by simple simulation as long as the site occupancy is known. 29

16

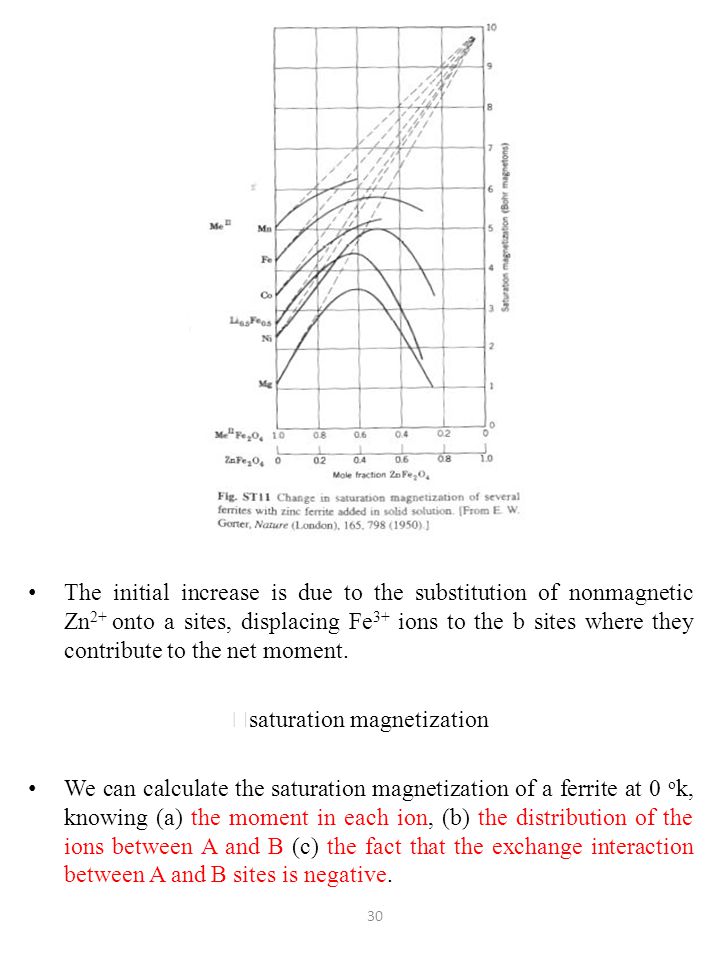

The initial increase is due to the substitution of nonmagnetic Zn 2+ onto a sites, displacing Fe 3+ ions to the b sites where they contribute to the net moment. ◎ saturation magnetization We can calculate the saturation magnetization of a ferrite at 0 o k, knowing (a) the moment in each ion, (b) the distribution of the ions between A and B (c) the fact that the exchange interaction between A and B sites is negative. 30

17

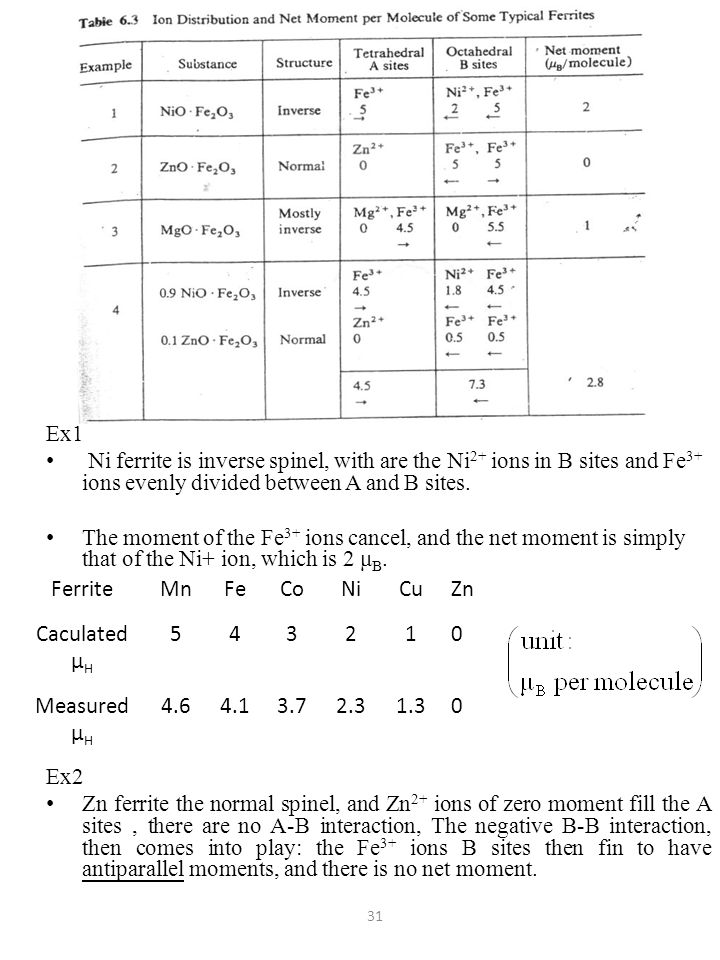

Ex1 Ni ferrite is inverse spinel, with are the Ni 2+ ions in B sites and Fe 3+ ions evenly divided between A and B sites. The moment of the Fe 3+ ions cancel, and the net moment is simply that of the Ni+ ion, which is 2 μ B. Ex2 Zn ferrite the normal spinel, and Zn 2+ ions of zero moment fill the A sites, there are no A-B interaction, The negative B-B interaction, then comes into play: the Fe 3+ ions B sites then fin to have antiparallel moments, and there is no net moment. FerriteMnFeCoNiCuZn Caculated μ H Measured μ H

18

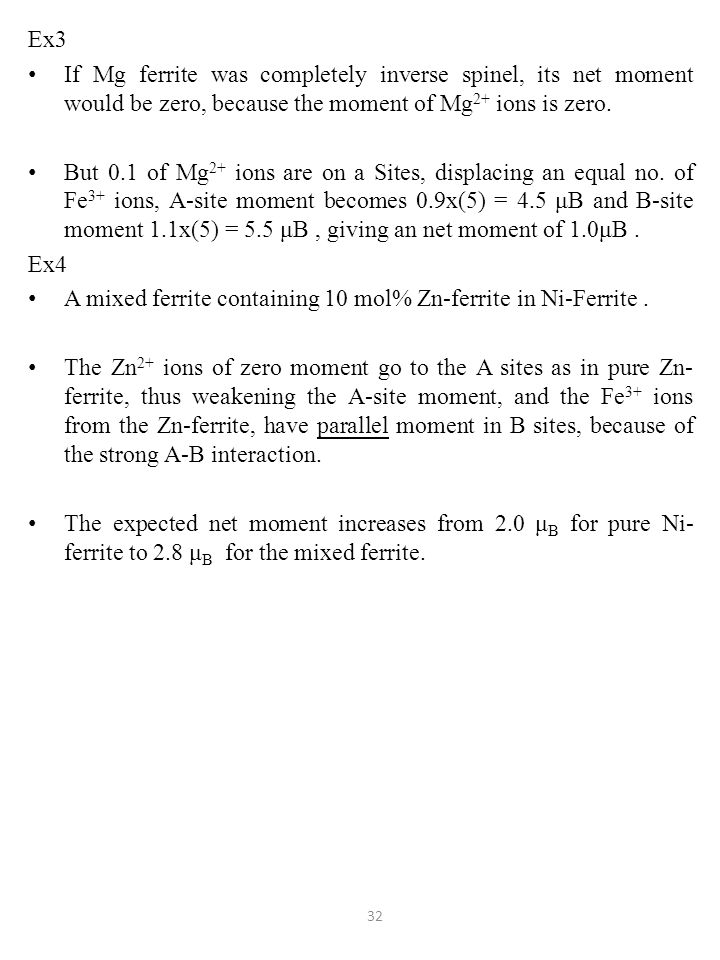

Ex3 If Mg ferrite was completely inverse spinel, its net moment would be zero, because the moment of Mg 2+ ions is zero. But 0.1 of Mg 2+ ions are on a Sites, displacing an equal no. of Fe 3+ ions, A-site moment becomes 0.9x(5) = 4.5 μB and B-site moment 1.1x(5) = 5.5 μB, giving an net moment of 1.0μB. Ex4 A mixed ferrite containing 10 mol% Zn-ferrite in Ni-Ferrite. The Zn 2+ ions of zero moment go to the A sites as in pure Zn- ferrite, thus weakening the A-site moment, and the Fe 3+ ions from the Zn-ferrite, have parallel moment in B sites, because of the strong A-B interaction. The expected net moment increases from 2.0 μ B for pure Ni- ferrite to 2.8 μ B for the mixed ferrite. 32

19
Summary: kinds of magnetism circle: an atom or ion (open and solid circles represent atoms of different valence or chemical species) arrow: through that circle represent its net magnetic moment. The five kinds of magnetism can be divided into two categories: 1.Diamagnetism and ideal paramagnetism (Curie law), characterized by non-cooperative behavior of the individual magnetic moments. 2.Nonideal paramagnetism (Curie-weiss law), ferromagnetism, antiferromagnetism and ferrimagnetism, which are all example of cooperative phenomena. 37

20

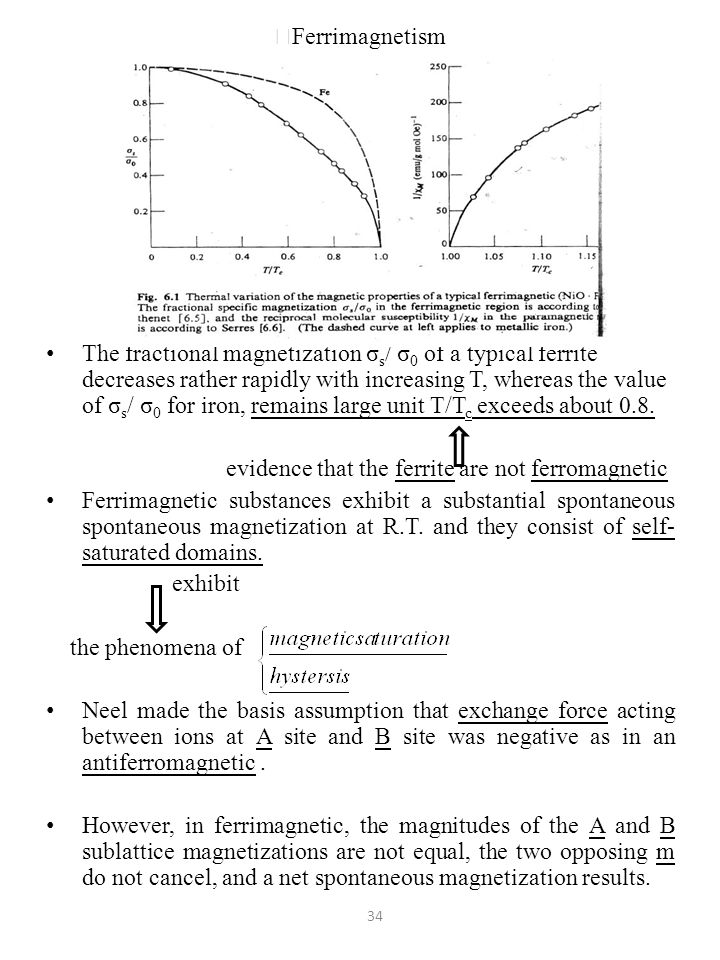

◎ Ferrimagnetism The fractional magnetization σ s / σ 0 of a typical ferrite decreases rather rapidly with increasing T, whereas the value of σ s / σ 0 for iron, remains large unit T/T c exceeds about 0.8. evidence that the ferrite are not ferromagnetic Ferrimagnetic substances exhibit a substantial spontaneous spontaneous magnetization at R.T. and they consist of self- saturated domains. exhibit the phenomena of Neel made the basis assumption that exchange force acting between ions at A site and B site was negative as in an antiferromagnetic. However, in ferrimagnetic, the magnitudes of the A and B sublattice magnetizations are not equal, the two opposing m do not cancel, and a net spontaneous magnetization results. 34

21

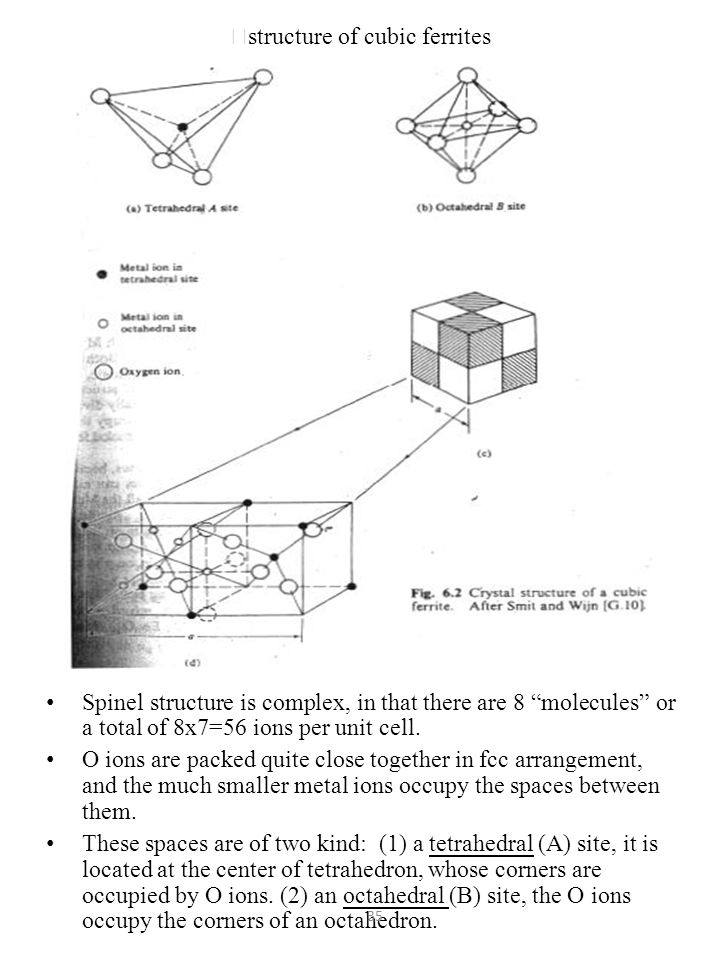

◎ structure of cubic ferrites Spinel structure is complex, in that there are 8 “molecules” or a total of 8x7=56 ions per unit cell. O ions are packed quite close together in fcc arrangement, and the much smaller metal ions occupy the spaces between them. These spaces are of two kind: (1) a tetrahedral (A) site, it is located at the center of tetrahedron, whose corners are occupied by O ions. (2) an octahedral (B) site, the O ions occupy the corners of an octahedron. 35

22

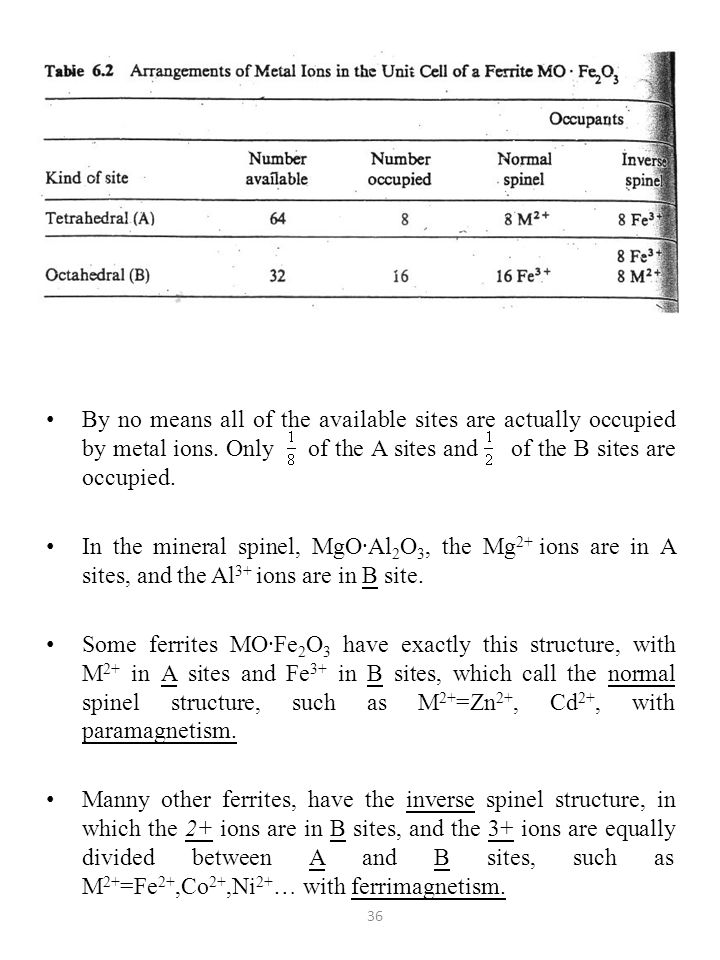

By no means all of the available sites are actually occupied by metal ions. Only of the A sites and of the B sites are occupied. In the mineral spinel, MgO·Al 2 O 3, the Mg 2+ ions are in A sites, and the Al 3+ ions are in B site. Some ferrites MO·Fe 2 O 3 have exactly this structure, with M 2+ in A sites and Fe 3+ in B sites, which call the normal spinel structure, such as M 2+ =Zn 2+, Cd 2+, with paramagnetism. Manny other ferrites, have the inverse spinel structure, in which the 2+ ions are in B sites, and the 3+ ions are equally divided between A and B sites, such as M 2+ =Fe 2+,Co 2+,Ni 2+ … with ferrimagnetism. 36

23
◎ Saturation magnetization The discrepancies between theory and experiment evident in above Figure, are generally ascribed to one or both of the following: 1.Orbital moments may not be completely quenched; ie, there may be an orbital moment, not allowed for in the theory, besides the spin moment, as shown of the Co 2+ ion. 2.The structure may not be complete inverse, the degree of inversion can sometimes be changed by heat treatment. The saturation magnetization then becomes a structure-sensitive 37

24

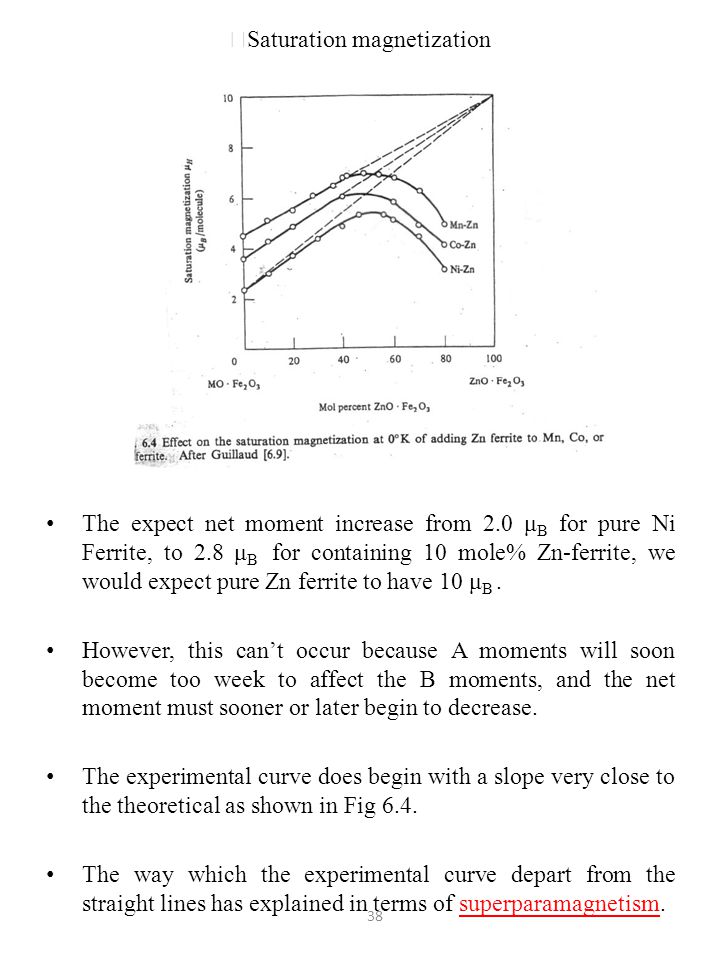

◎ Saturation magnetization The expect net moment increase from 2.0 μ B for pure Ni Ferrite, to 2.8 μ B for containing 10 mole% Zn-ferrite, we would expect pure Zn ferrite to have 10 μ B. However, this can’t occur because A moments will soon become too week to affect the B moments, and the net moment must sooner or later begin to decrease. The experimental curve does begin with a slope very close to the theoretical as shown in Fig 6.4. The way which the experimental curve depart from the straight lines has explained in terms of superparamagnetism. 38

25

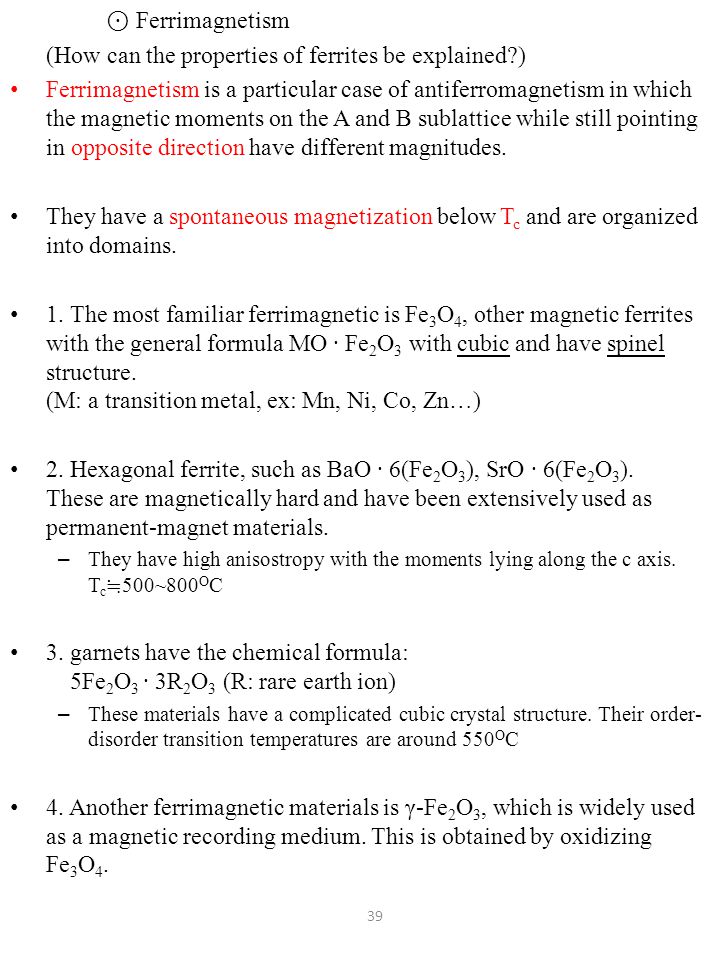

⊙ Ferrimagnetism (How can the properties of ferrites be explained?) Ferrimagnetism is a particular case of antiferromagnetism in which the magnetic moments on the A and B sublattice while still pointing in opposite direction have different magnitudes. They have a spontaneous magnetization below T c and are organized into domains. 1. The most familiar ferrimagnetic is Fe 3 O 4, other magnetic ferrites with the general formula MO · Fe 2 O 3 with cubic and have spinel structure. (M: a transition metal, ex: Mn, Ni, Co, Zn…) 2. Hexagonal ferrite, such as BaO · 6(Fe 2 O 3 ), SrO · 6(Fe 2 O 3 ). These are magnetically hard and have been extensively used as permanent-magnet materials. – They have high anisostropy with the moments lying along the c axis. T c ≒ 500~800 O C 3. garnets have the chemical formula: 5Fe 2 O 3 · 3R 2 O 3 (R: rare earth ion) – These materials have a complicated cubic crystal structure. Their order- disorder transition temperatures are around 550 O C 4. Another ferrimagnetic materials is γ-Fe 2 O 3, which is widely used as a magnetic recording medium. This is obtained by oxidizing Fe 3 O 4. 39

26

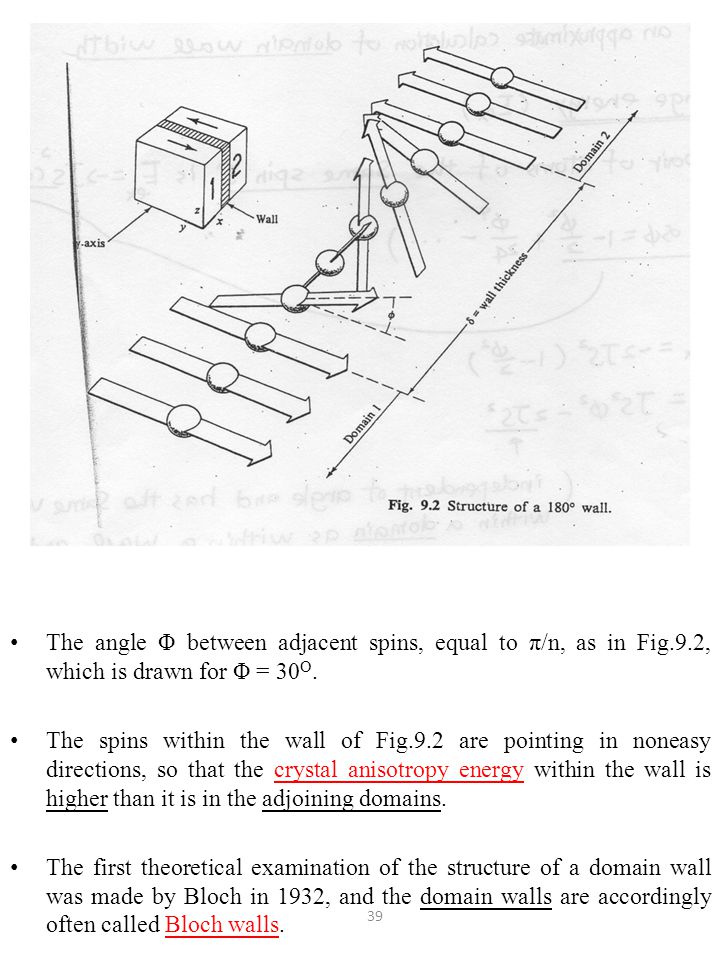

The angle Φ between adjacent spins, equal to π/n, as in Fig.9.2, which is drawn for Φ = 30 O. The spins within the wall of Fig.9.2 are pointing in noneasy directions, so that the crystal anisotropy energy within the wall is higher than it is in the adjoining domains. The first theoretical examination of the structure of a domain wall was made by Bloch in 1932, and the domain walls are accordingly often called Bloch walls. 39

27
⊙ an approximate calculation of domain wall width ⊙ Exchange energy (E ex ) For a pair of atoms of the same spin S is The extra exchange energy existing within the wall is JS 2 Φ 2, per spin pair. The exchange energy per unit area of domain wall. We assume simple cubic, with an atom at each corner of a cell of edge a, and the place of the wall parallel to the cubic face {100}. The wall is N atoms thick, the extra exchange energy per unit area of wall is γ ex = (JS 2 Φ 2 )(N)(1/a 2 ) If Φ = π/N for a 180 O wall, 40 ↑ (independent of angle and has the same value within a domain as within a wall, and it can therefore be dropped)

28

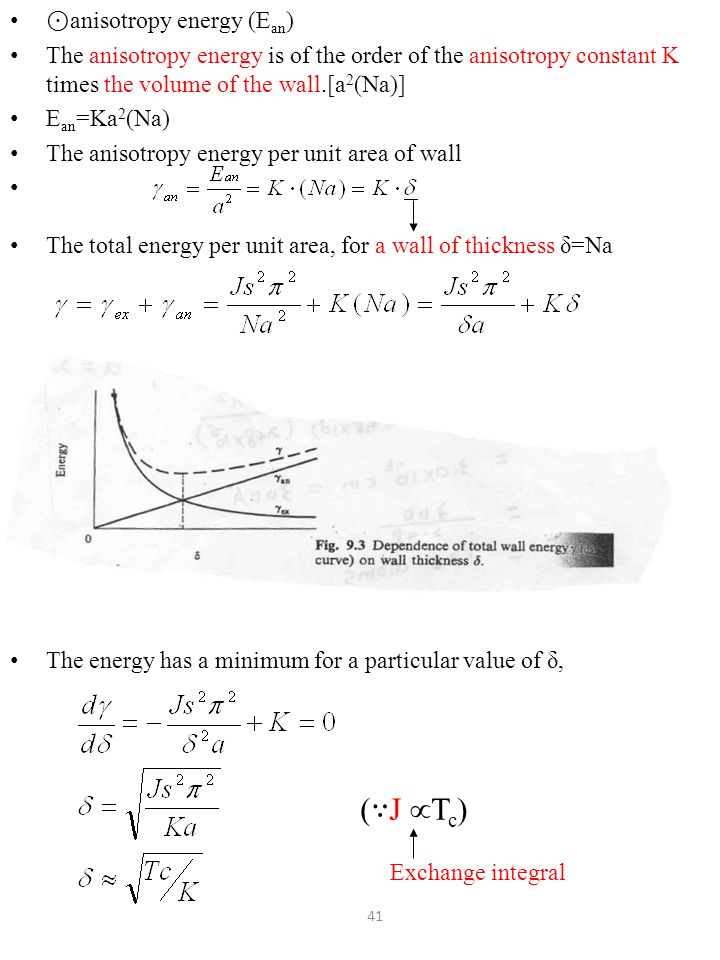

⊙ anisotropy energy (E an ) The anisotropy energy is of the order of the anisotropy constant K times the volume of the wall.[a 2 (Na)] E an =Ka 2 (Na) The anisotropy energy per unit area of wall The total energy per unit area, for a wall of thickness δ=Na The energy has a minimum for a particular value of δ, 41 (∵J Tc)(∵J Tc) Exchange integral

29

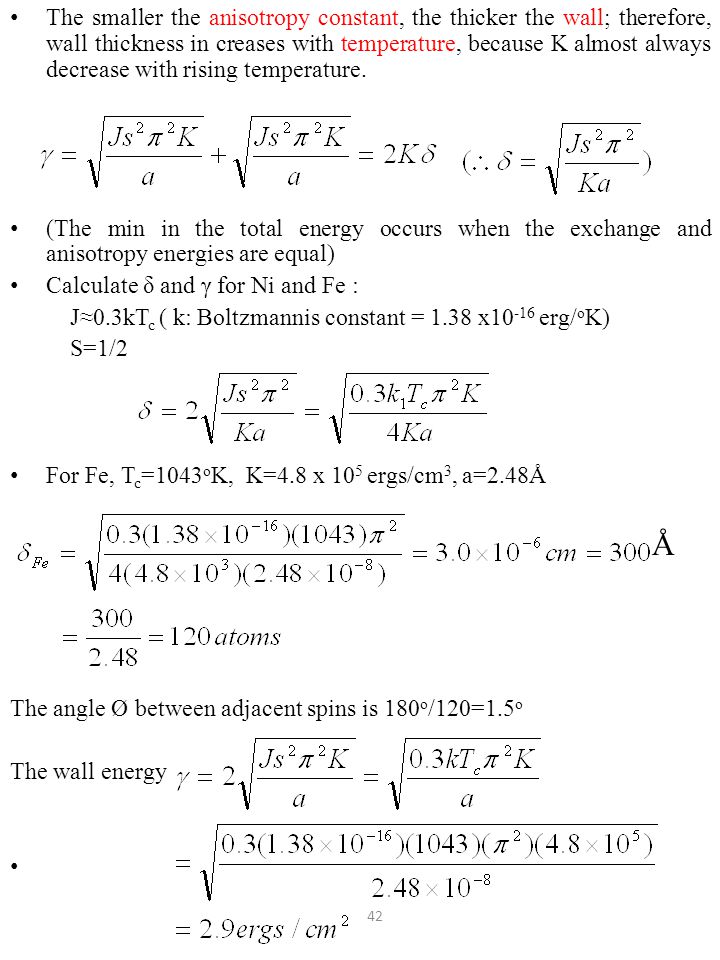

The smaller the anisotropy constant, the thicker the wall; therefore, wall thickness in creases with temperature, because K almost always decrease with rising temperature. (The min in the total energy occurs when the exchange and anisotropy energies are equal) Calculate δ and γ for Ni and Fe : J≈0.3kT c ( k: Boltzmannis constant = 1.38 х erg/ o K) S=1/2 For Fe, T c =1043 o K, K=4.8 х 10 5 ergs/cm 3, a=2.48Å Å The angle Ø between adjacent spins is 180 o /120=1.5 o The wall energy 42

30

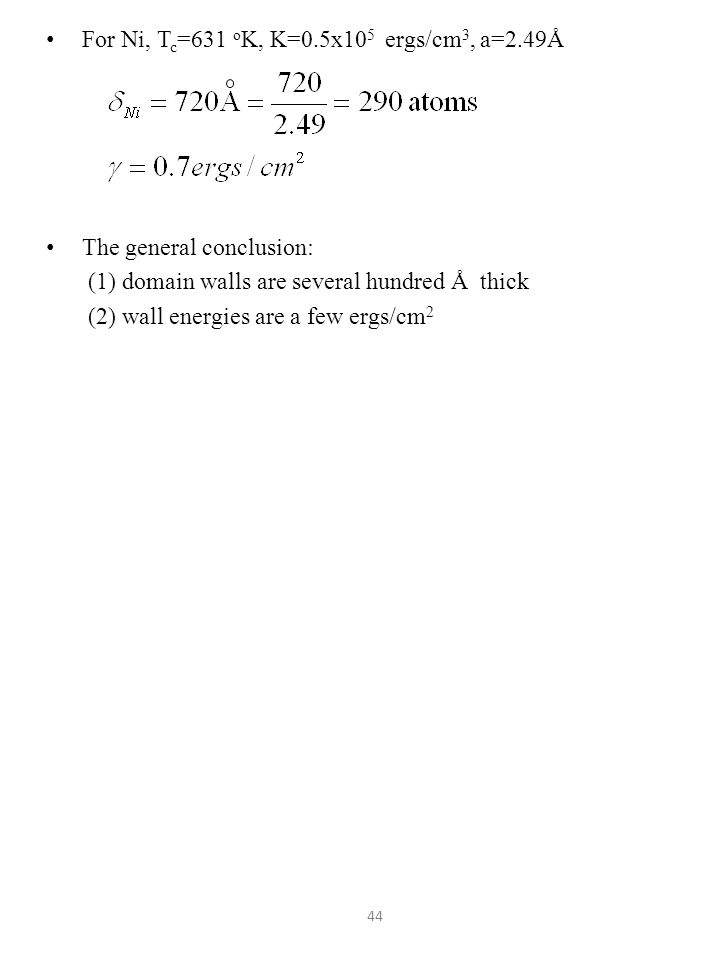

For Ni, T c =631 o K, K=0.5x10 5 ergs/cm 3, a=2.49Å The general conclusion: (1) domain walls are several hundred Å thick (2) wall energies are a few ergs/cm 2 44

31

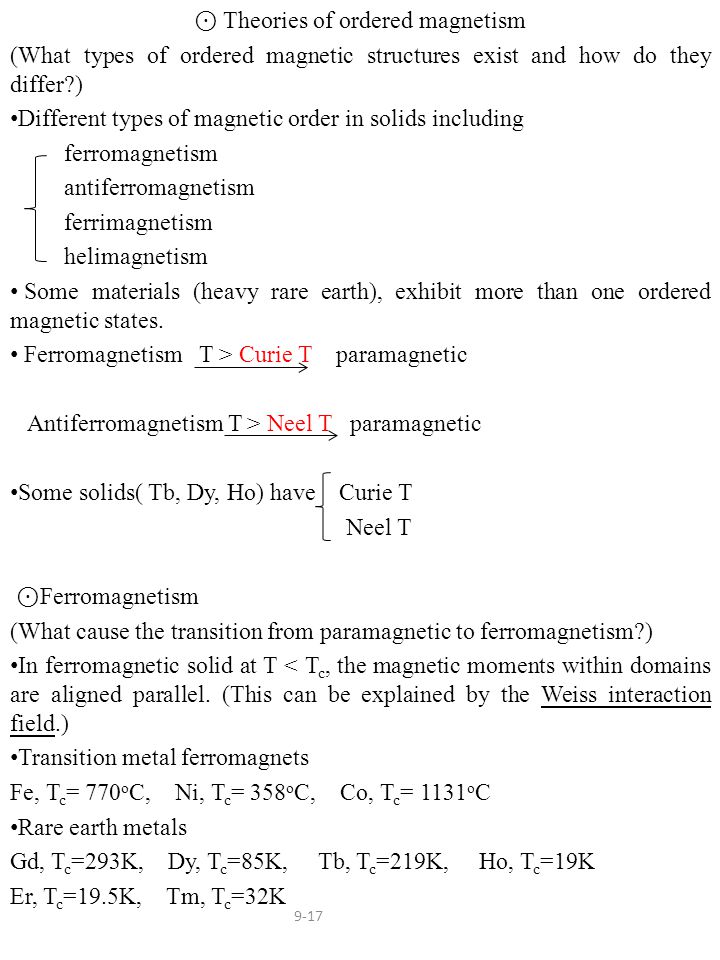

⊙ Theories of ordered magnetism (What types of ordered magnetic structures exist and how do they differ?) Different types of magnetic order in solids including ferromagnetism antiferromagnetism ferrimagnetism helimagnetism Some materials (heavy rare earth), exhibit more than one ordered magnetic states. Ferromagnetism T > Curie T paramagnetic Antiferromagnetism T > Neel T paramagnetic Some solids( Tb, Dy, Ho) have Curie T Neel T ⊙ Ferromagnetism (What cause the transition from paramagnetic to ferromagnetism?) In ferromagnetic solid at T < T c, the magnetic moments within domains are aligned parallel. (This can be explained by the Weiss interaction field.) Transition metal ferromagnets Fe, T c = 770 o C, Ni, T c = 358 o C, Co, T c = 1131 o C Rare earth metals Gd, T c =293K, Dy, T c =85K, Tb, T c =219K, Ho, T c =19K Er, T c =19.5K, Tm, T c =32K 9-17

32
The alignment of magnetic moments in various ordered ferromagnetic solid. At a critical T, the randomizing effect of thermal energy overcomes the aligning effect of the interaction energy, and above this T, the magnetic state becomes disordered. 9-18

33
9-18-1

34
⊙ Weiss theory of ferromagnetism (How can the Weiss interaction be used to explain magnetic order in ferromagnets? ) If the unpaired electronic magnetic moments which are responsible for the magnetic properties are localized on the atomic sites. The interaction between the unpaired moments, leads to the existence of a critical T be low which the thermal energy of the electronic moments is insufficient to cause random paramagnetic alignment. The effective field H e can be used to explain the alignment of magnetic moments within domains for T < T c. Theme for the interatomic interaction (exchange field): (1) the mean-field approximation -> used for the paramagnetic region (2) a nearest-neighbor interaction-> used for the ferromagnetic region Suppose that any atomic magnetic moment m i experiences an effective field H eij due to another moment m j. ( If we assume that this field is also in the direction of m j ) J ij 9-19

35
The total exchange interaction field at the moment m i will be the vector sum of all interaction with other moments. ⊙ Mean-field approximation (Is there a simple explanation of the Weiss interaction?) If the interactions between all moments are identical and hence independent of displacement between the moments, then all of the J ij are equal. within a domain: The interaction energy of the moment under these conditions: 9-20

36

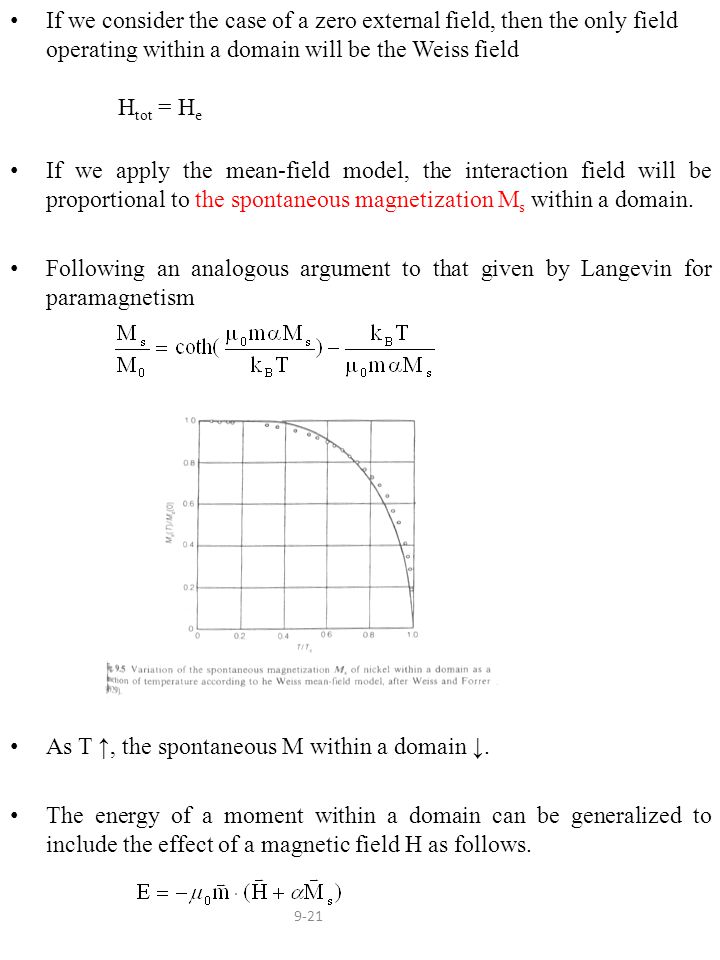

If we consider the case of a zero external field, then the only field operating within a domain will be the Weiss field H tot = H e If we apply the mean-field model, the interaction field will be proportional to the spontaneous magnetization M s within a domain. Following an analogous argument to that given by Langevin for paramagnetism As T ↑, the spontaneous M within a domain ↓. The energy of a moment within a domain can be generalized to include the effect of a magnetic field H as follows. 9-21

37
Magnetization within a domain This eq. is not encountered very often, because αM s >>H in ferromagnet (in iron, M s = 1.7x10 6 A/m, so αM s can up to 6.8x10 8 A/m, while H will rarely exceed 2x10 6 A/m) Consequently within the body of a domain, the action of the H field is not very significant when compared with the interaction field. Moderate magnetic field (H ≒ 8x10 3 A/m) can cause significant changes in the bulk magnetization M in ferromagnet. These changes occur principally at the domain boundaries where the exchange interaction is competing with the anisotropy energy to give an energy balance. Under these conditions, the additional field energy can just tip the balance and result in change in the direction of magnetic moments within the domain wall. ↓ domain wall motion 9-22

38
The magnetic moment in the domain wall do not couple to the spontaneous magnetization of the domain. The net interaction field per moment is different in this case because the domains on either side are align in different directions. ◎ Nearest – neighbor interactions ( Can the Weiss model be interpreted on the basis of localized interaction only? ) In the nearest – neighbor approximation, the electronic moments interact only with those of its Z nearest neighbors. For a simple cubic lattice, Z = 6 body – centered cubic, Z = 8 face – centered cubic, Z = 12 hexagonal lattice, Z = 12 The nearest – neighbor approach is particularly useful for considering magnetic moment in the domain wall. In this case, the moments do not couple to the magnetization within the body of the domain simply because they lie between domains with different magnetic directions and the direction of magnetization changes within the wall. 9-23

39
⊙ Weiss mean field theory What is the underlying cause of the alignment of atomic magnetic moments? In the original Weiss theory, the mean field was proportional to the bulk magnetization M so that H e = αM (α: the mean field constant) This is assumed that each atomic moment interacts equally with every other atomic moment within the solid. This was found to be a viable assumption in the paramagnetic phase because due to the homogeneous distribution of magnetic moment directions. However in the ferromagnetic phase the magnetization is locally inhomogenous on a scale larger than the domain size due to the variation in the direction of magnetization from domain to domain. Therefore, the idea of a Weiss mean field is applied only within a domain, arguing that the interaction between the atomic moments decayed with distance. It is generally considered that the Weiss field is good approximation to the real situation within a given domain because within the domain, the magnetization is homogeneous and has a value M s. The interaction field which is responsible for the ordering of moments within domains can be expressed H e = αM s M s : the spontaneous magnetization within the domain

40

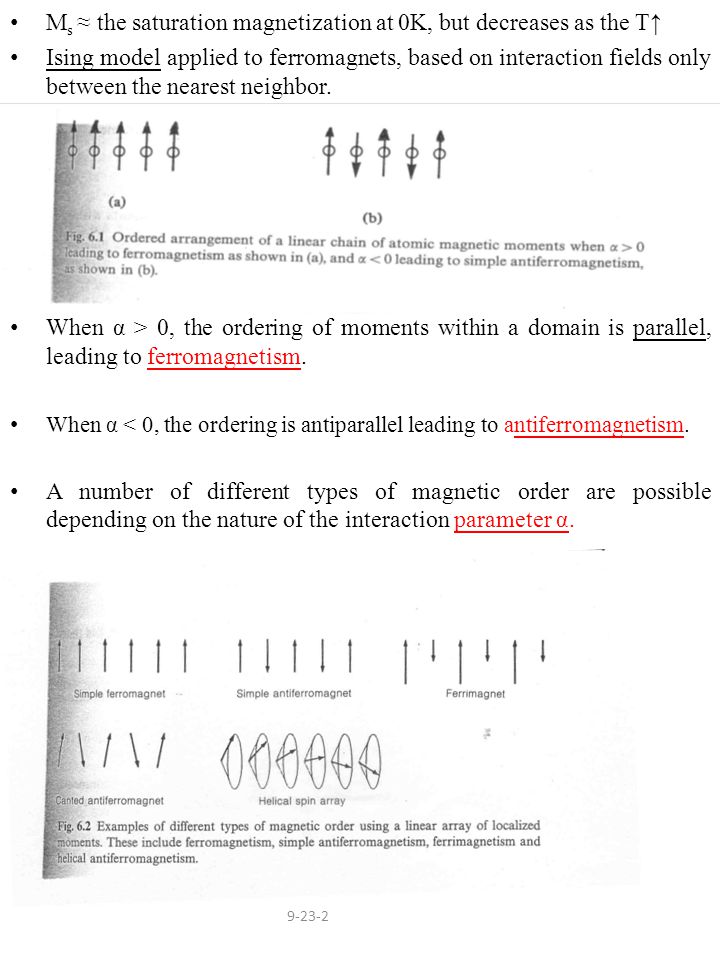

M s ≈ the saturation magnetization at 0K, but decreases as the T↑ Ising model applied to ferromagnets, based on interaction fields only between the nearest neighbor. When α > 0, the ordering of moments within a domain is parallel, leading to ferromagnetism. When α < 0, the ordering is antiparallel leading to antiferromagnetism. A number of different types of magnetic order are possible depending on the nature of the interaction parameter α

41
Suppose the field experienced by any magnetic moment m i within a domain due to its interaction with any other moment m j is The interaction with all moments is the sum over the moments within the domain, The energy of moment If the interactions with all moments are equal then all the α ij are equal. Let these be α The vector sum over all the moments within a domain gives the spontaneous magnetization M s Ex: For iron, M 0 =1.7x10 6 A/m (saturation magnetization), at R.T. M s (spontaneous magnetization) ≒ M 0 (saturation magnetization) if α = 400, H e = αMs = (400)(1.7x10 6 ) A/m = 6.8x10 8 A/m

42

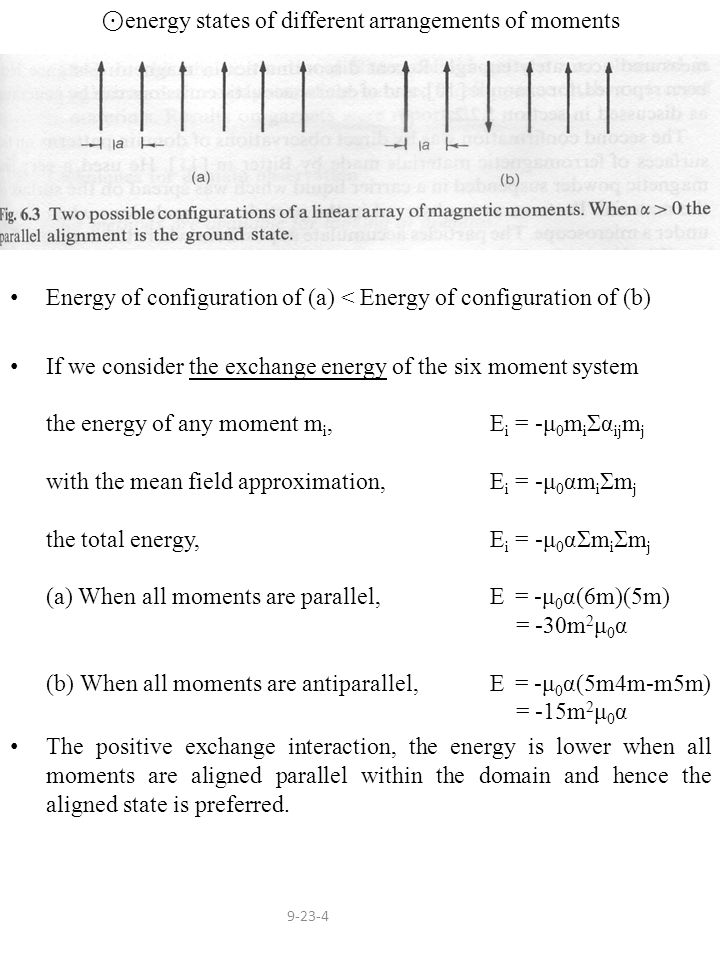

⊙ energy states of different arrangements of moments Energy of configuration of (a) < Energy of configuration of (b) If we consider the exchange energy of the six moment system the energy of any moment m i, E i = -μ 0 m i Σα ij m j with the mean field approximation, E i = -μ 0 αm i Σm j the total energy, E i = -μ 0 αΣm i Σm j (a) When all moments are parallel,E = -μ 0 α(6m)(5m) = -30m 2 μ 0 α (b) When all moments are antiparallel,E = -μ 0 α(5m4m-m5m) = -15m 2 μ 0 α The positive exchange interaction, the energy is lower when all moments are aligned parallel within the domain and hence the aligned state is preferred

43

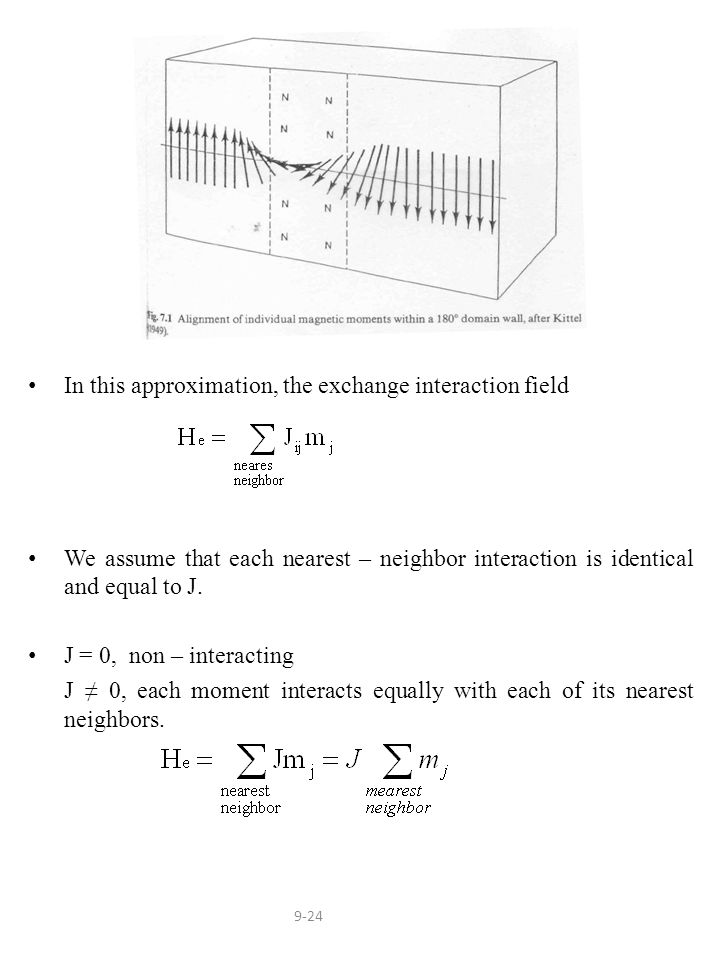

In this approximation, the exchange interaction field We assume that each nearest – neighbor interaction is identical and equal to J. J = 0, non – interacting J ≠ 0, each moment interacts equally with each of its nearest neighbors. 9-24

44

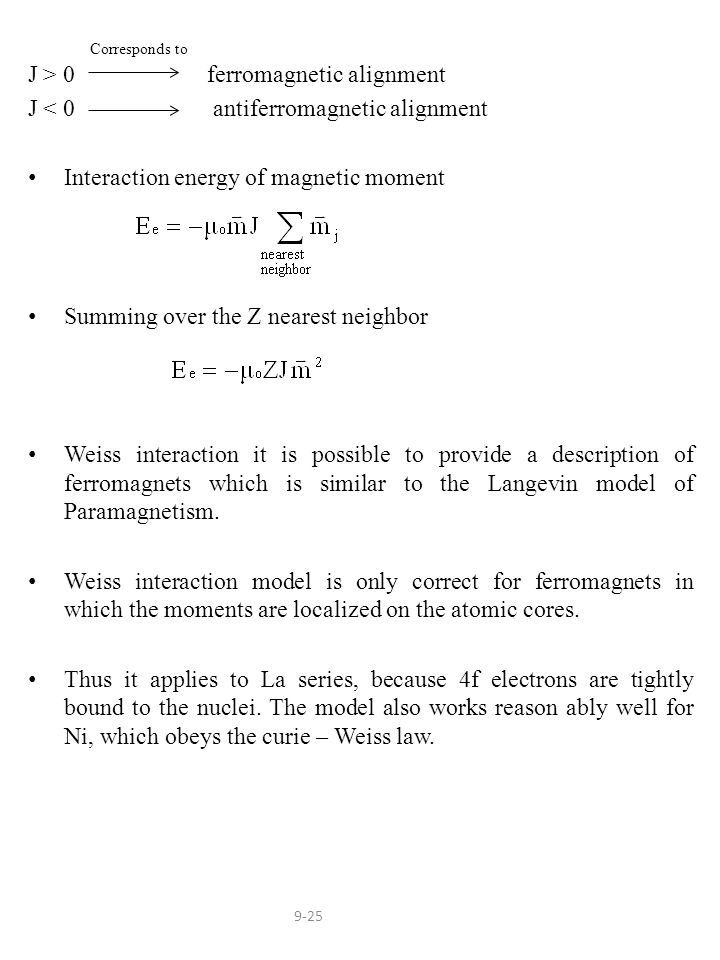

J > 0 ferromagnetic alignment J < 0 antiferromagnetic alignment Interaction energy of magnetic moment Summing over the Z nearest neighbor Weiss interaction it is possible to provide a description of ferromagnets which is similar to the Langevin model of Paramagnetism. Weiss interaction model is only correct for ferromagnets in which the moments are localized on the atomic cores. Thus it applies to La series, because 4f electrons are tightly bound to the nuclei. The model also works reason ably well for Ni, which obeys the curie – Weiss law. Corresponds to 9-25

45

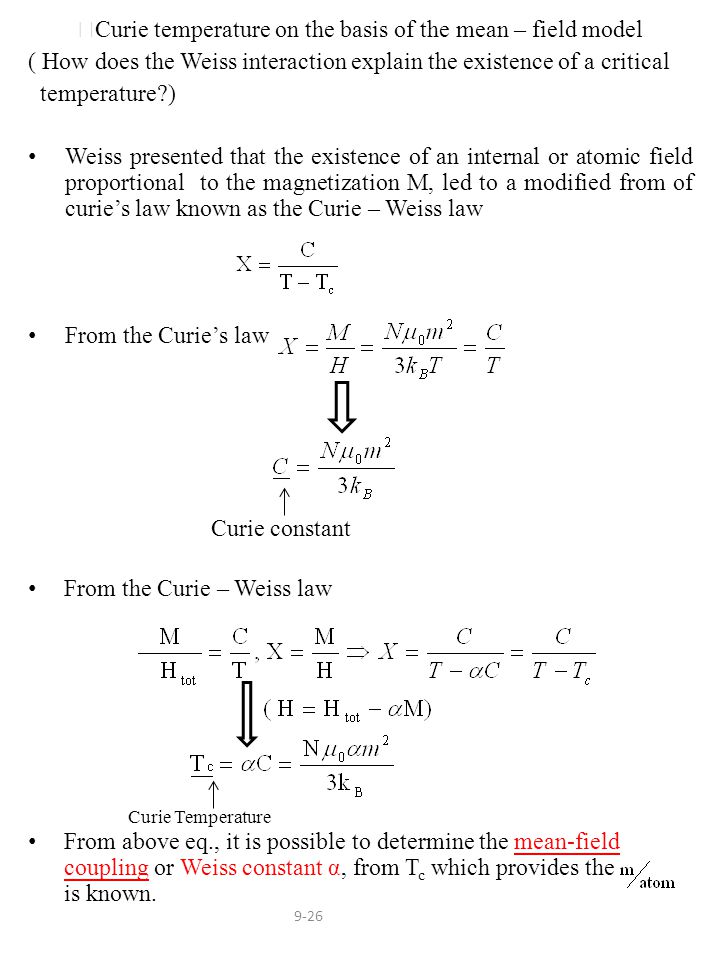

◎ Curie temperature on the basis of the mean – field model ( How does the Weiss interaction explain the existence of a critical temperature?) Weiss presented that the existence of an internal or atomic field proportional to the magnetization M, led to a modified from of curie’s law known as the Curie – Weiss law From the Curie’s law From the Curie – Weiss law From above eq., it is possible to determine the mean-field coupling or Weiss constant α, from T c which provides the is known. Curie constant Curie Temperature 9-26

46

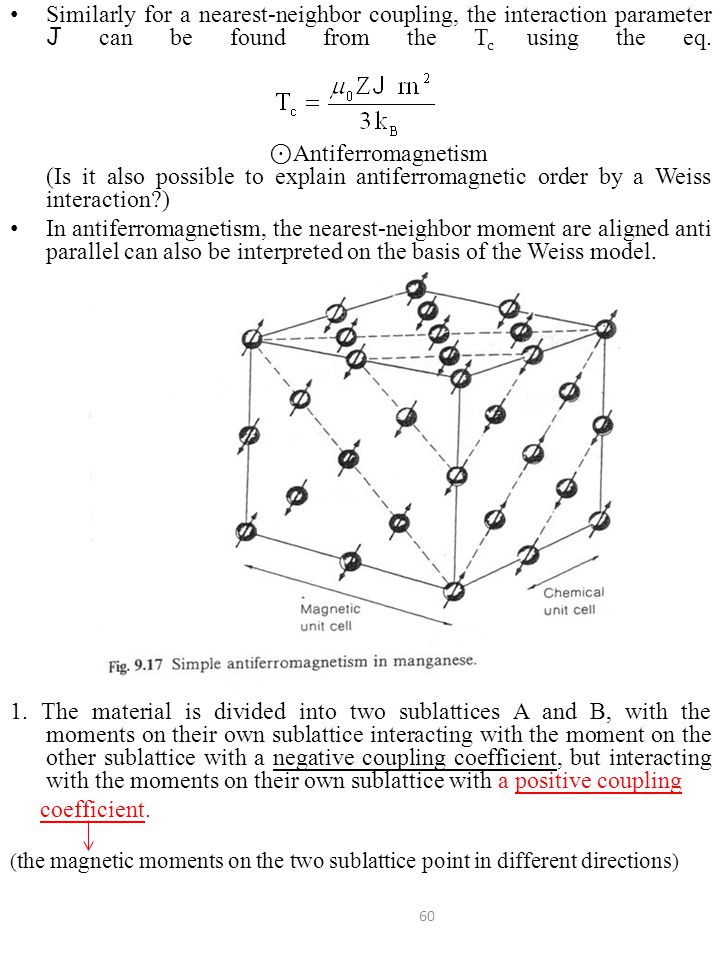

Similarly for a nearest-neighbor coupling, the interaction parameter J can be found from the T c using the eq. ⊙ Antiferromagnetism (Is it also possible to explain antiferromagnetic order by a Weiss interaction?) In antiferromagnetism, the nearest-neighbor moment are aligned anti parallel can also be interpreted on the basis of the Weiss model. 1. The material is divided into two sublattices A and B, with the moments on their own sublattice interacting with the moment on the other sublattice with a negative coupling coefficient, but interacting with the moments on their own sublattice with a positive coupling coefficient. ( the magnetic moments on the two sublattice point in different directions ) 60

47
With a negative interaction between nearest neighbor. The Curie-Weiss law also applies to antiferromagnets above their ordering T c (critical temperture). The plot Ex. Cr, T N = 37 O C Mn, T N = 100 K T↑ (-T c ) Antiferromagnet appear a straight line intercepting the T axis at –T c, but above 0 K known as the Neel temperature. 61
