1 CHE Pumps and gas moving equipment  For the fluid flow from point to another, a driving force is needed.  The driving force may be supplied by gravity, or a mechanical device that increase the mechanical energy of the fluid.  The most common methods of adding energy are positive displacement and centrifugal action.  Pumps: To move incompressible liquids. Fans, blowers and compressors: to move gasses (usually air).

2 CHE315  Fans discharge large volumes of gas at low pressures. Blowers and compressors discharge gas as at higher pressures.  In pumps and fans, the fluid density doesn’t change considerably, therefore the fluid is assumed incompressible.

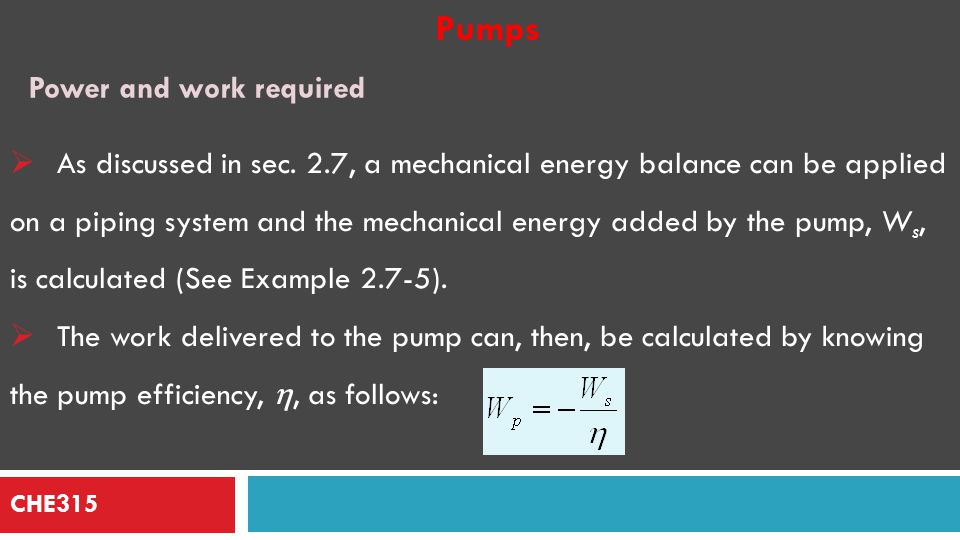

3 CHE315  As discussed in sec. 2.7, a mechanical energy balance can be applied on a piping system and the mechanical energy added by the pump, W s, is calculated (See Example 2.7-5).  The work delivered to the pump can, then, be calculated by knowing the pump efficiency, , as follows: Pumps Power and work required

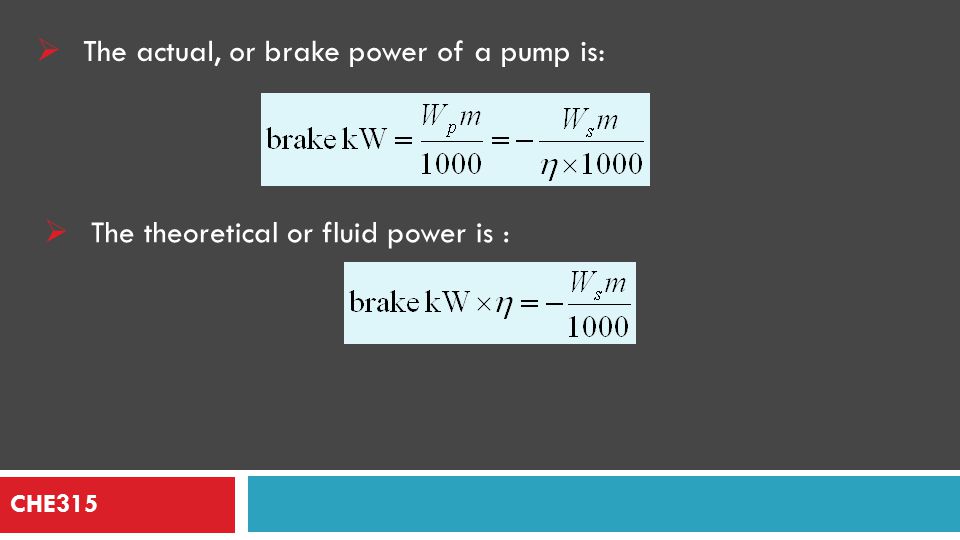

4 CHE315  The actual, or brake power of a pump is:  The theoretical or fluid power is :

5 CHE315 Power and work required  The mechanical energy added to the fluid, Ws, is often expressed as the developed head of the pump, H (in m of fluid being pumped) :

6 CHE315  Pumps are usually driven by electric motors. Therefore, the electric motor efficiency, must be taking into account to determine the total electric power input to the motor. Electric motor efficiency

7 CHE315  The power calculated from mechanical energy balance depends on the pressure differences and not on the actual pressures.  In pumps, the lower limit of the absolute pressure in the suction (inlet) line is fixed by the vapor pressure of the liquid at the inlet temperature.

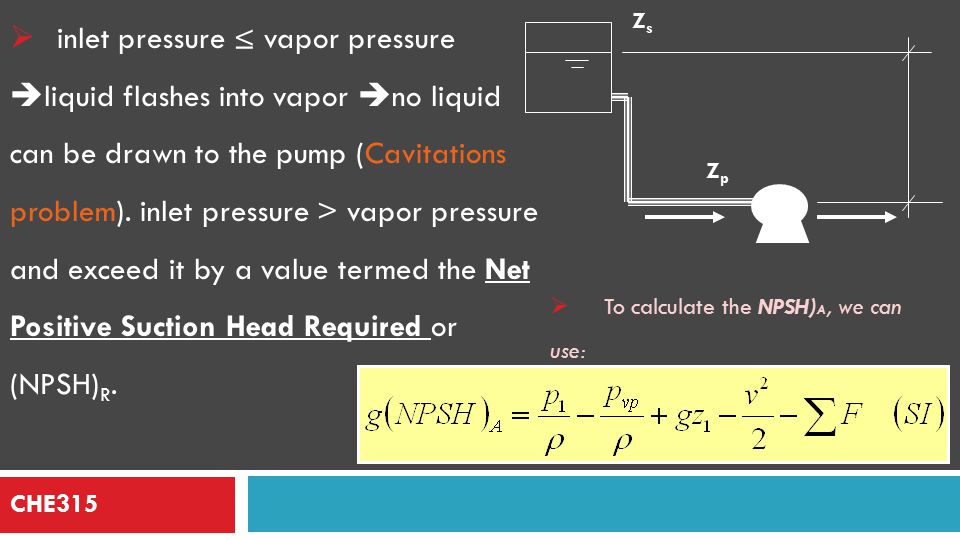

8 CHE315  inlet pressure ≤ vapor pressure  liquid flashes into vapor  no liquid can be drawn to the pump (Cavitations problem). inlet pressure > vapor pressure and exceed it by a value termed the Net Positive Suction Head Required or (NPSH) R. ZsZs ZpZp  To calculate the NPSH) A, we can use:

9 CHE315 Minimum (Required) NPSH R To ensure that cavitation will not occur, a minimum NPSH is established for a pump. Minimum NPSH (required NPSH) is the smallest amount of net positive suction head a pump must have at the inlet in order to prevent cavitations anywhere in the pump. The available NPSH A must be maintained at a value greater than or equal to the minimum NPSH R allowable to guarantee no cavitations.

10 CHE315  They are common in process industries.  A centrifugal pump consists mainly of an impeller rotating inside a casing.  How fluid is pumped? Pumps Centrifugal pumps  The performance of a pump is usually expressed by means of the characteristic curves, usually available for water. An example of characteristics curves is given in Figure

11 CHE315 Pumps Centrifugal pumps  The pressure produced, p = h  g, will be proportional to the density.  As approximation (Affinity laws):  the capacity q 1 (m 3 /s) is proportional to the rpm: (rpm means revolutions per minute)

12 CHE315  The head, H 1, is proportional to q 1 2 :  The power consumed, W 1 is proportional to the product of H 1  q 1 :  Pumps are usually rated based on the head and capacity at the point of peak efficiency (see figure 3.3-3).

13 CHE315  Example  Example 3.3.2
