1 A New Stripline Connection to JPARC Horn 1 Larry Bartoszek BARTOSZEK ENGINEERING 9/23/04

2 Polarity of plates New design has this polarity : RED-BLUE-RED-BLUE/BLUE-RED-BLUE-RED There is a mirror plane of symmetry for horns If there is no BLUE/BLUE mirror symmetry, the connection becomes almost impossible –Plates have to get around each other

3

4

5

6 Top view (viewing plane parallel to horn central axis)

7 View looking downstream along axis of horn

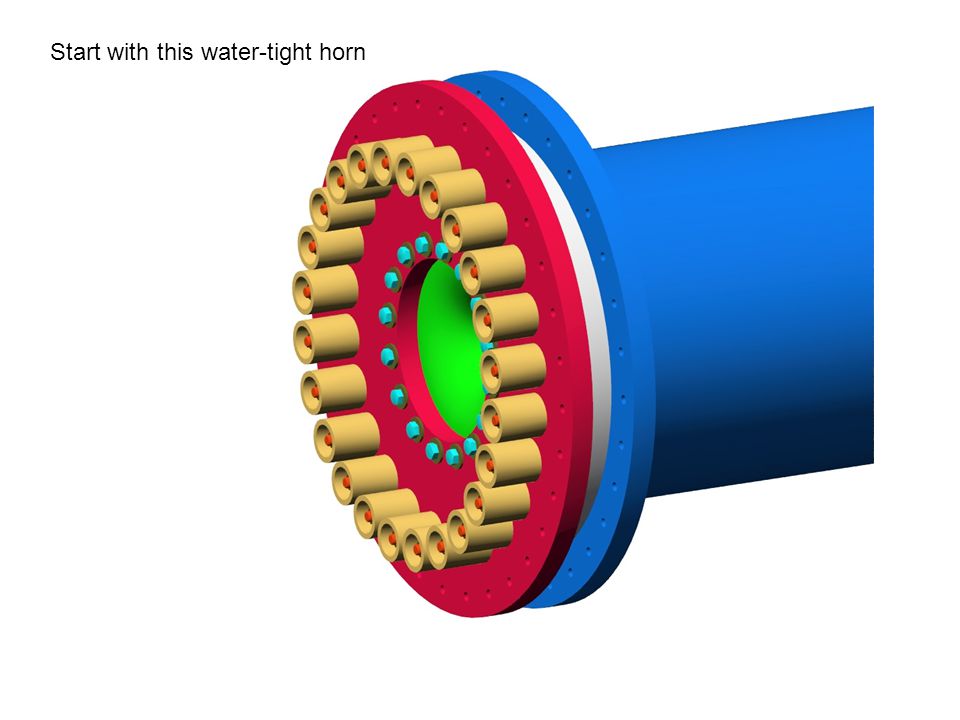

8 Start with this water-tight horn

9 “Ears” connect inner and outer conductors to stripline plates. Ears may be assembled last during horn module assembly.

10 Detail view of connection between horn and ears

11 Exploded View of connections

12 Outer conductor corner connection exploded

13 Outer conductor corner connection detail

14 Advantages of this design Tolerances in manufacturing of parts may be looser than the first design Tolerance-caused differences can be taken up in the loose fit of bolt holes Design does not rely on the accuracy of rolled and bent parts No plates should need machining at assembly Current may be more cylindrically uniform

15 Possible disadvantages The gap in between plates is not as constant as in the first design The overlap between blue and red plates is not as perfect as it was in the first design –Do these differences cause a problem for the electrical characteristics of the stripline?

16 What is missing? Need to develop a clamping mechanism to resist forces from stripline Need to design insulators as part of clamping mechanism

17 Fastener Bill of Materials (so far) DESCRIPTIONQTY 12 MM THREADED ROD24 HEX NUT - M1224 PLAIN WASHER - ANSI M - 16 N48 HEX-HEAD BOLT - ISO M16 X HEX NUT - M1624 PLAIN WASHER - ANSI B18.22 M - 10 R16 HEX BOLT - ANSI - M10 X 4516 M12 X 55 Socket Head Cap Screw84 FLAT WASHER-ANSI M - 12 W64 M12 X 50 Hex Head Cap Screw64 M12 X 25 Socket Head Cap Screw88
