1 SMACNA Seismic Restraint Manual Mark Terzigni Project Manager SMACNA Technical Resources

2 History l 1976 – Guidelines for Seismic Restraint of Mechanical Systems (Sheet Metal Industry Fund of Los Angeles) l 1982 – Guidelines for Seismic Restraints of Mechanical Systems and Plumbing Piping Systems (Sheet Metal Industry Fund of Los Angeles and The Plumbing and Piping Industry Council, Inc.)

3 History l 1991 – Seismic Restraint Manual – Guidelines for Mechanical Systems (SMACNA) –Included larger ducts –Included conduit –Created Seismic Hazard Level (SHL) l 1993 – Appendix E –Corrections and Clarifications –Specific Requirements for OSHPD –OSHPD Approval

4 History l 1998 – Second Edition l 2000 – ANSI Approval l 2000 – Addendum #1

5 QUESTION?? What is the Issue?

6 ANSWER Physics!!

7 PHYSICS F = Ma

8 Code Considerations OLDER CODES 1. BOCA F p = A v C c Pa c W c 2. SBCCI F p = A v C c Pa c W c 3. ICBO F p = ZI p C p W p

9 All Codes Take the Form of F p = C s W p Where C s = A series of constants given in the building code C s is a measure of acceleration

10 Current Codes International Building Code (IBC) 2000-2003 F p = 0.4a p S DS W p (1 + 2Z/h) R p /I p Uniform Building Code (UBC) 1997 F p = a p C a I p (1 + 3h x /h r ) W p R p

11 The Form is the Same IBC 0.4 a p S DS is a measure of acceleration R p /I p UBC a p C a I p is a measure of acceleration R p

12 Simplifying IBC F p = C s W p (1 +2Z/h) UBC F p = C s (1 + 3h x /h r )W p

13 The Components IBC (1 + 2Z/h) and UBC (1 + 3h x /h r ) Are Adjustments for the Anticipated Force Levels Depending on Location in the Building

14 Basic Equation F p = C s W p Where C s includes the Location Adjustment Factors

15 Rearranging the Equation FpFp = CsCs WpWp

16 The SMACNA Seismic Restraint Manual has Tables for Four Values of C s These Tables are Identified as Seismic Hazard Level (SHL)

17 SMACNA SHL Values SHL A = C s = 1.0 SHL B = C s = 0.75 SHL C = C s = 0.50 SHL D = C s = 0.25

18 The Design Professional Should 1. Calculate C s from the Information in the Applicable Local Building Code 2. Calculate the Values of C s at the Various Attachment Locations in the Building 3. Indicate the Required SMACNA SHL Tables to be Used at the Different Attachment Locations

19 Terms l Occupancy Category –I – IV Table 1-1 ASCE-7 05 l Seismic Design Category –Section 11.6 ASCE-7 05 l Seismic Hazard Level –A-D based on seismic acceleration SMACNA

20 ASCE-7 05

21 General Requirements 1. Details provide lateral bracing system. Typical vertical supports per local building code must be used. 2. Thermal expansion not given but must be considered. 3. Duct construction to conform to the appropriate SMACNA publications.

22 General Requirements 4. Pipes will conform to ANSI/ASME B 31.9 Building Services Piping Code. 5. Brace in-line equipment independently of ducts and pipes. 6. Cold formed angles to conform to the requirements of the latest "Specifications for the Design of Cold-Formed Steel Structural Members" (AISI) (FY = 33 KSI)

23 General Requirements 7. Hot rolled shapes and plates to conform to ASTM A36. Pipes used as braces to conform to ASTM A120 or A53. 8. Cables to have minimum breaking strength. Per Table 3-2.

24 General Requirements 9. Bolts to conform to ASTM A307. 10. Expansion anchors per Table 3-3. Proprietary connectors may be used where values are greater. 11. Welding to conform to AWS D1.1 using shielded or submerged ARC method. 12. Brace conduit same as equivalent weight of pipe.

25 General Requirements 13. Do not mix solid and cable bracing. 14. Bracing for equipment NOT included. 15. All runs will have a minimum of two transverse and one longitudinal braces. 16. A run is defined as any change in direction except as allowed by offsets.

26 Bracing of Ducts Seismic supports are not required for HVAC ductwork when the I p = 1.0 if either of the following conditions is met for the entire duct run: 1. Ducts are suspended from hangers 12 in. or less as measured from the top of the duct to the bottom of the support where

27 Bracing of Ducts the hanger is attached. Hangers must be positively attached to the duct within 2 in. of the top of the duct with a minimum of two #10 sheet metal screws. Lateral motion will not cause damaging impact with other systems. Lateral motion will not cause loss of vertical support. 2. Ducts have a cross-sectional area of 6 ft 2 or less.

28 Bracing of Ducts 1. Transverse and longitudinal bracing per tables (Chapters 5, 6, 7 and 8). 2. Ducts may be grouped. Select bracing requirements based on combined weight. Minimum of two sides to be attached to horizontal or vertical angles.

29 Bracing of Ducts 3. Wall penetrations may replace transverse brace. Solid blocking required.

30 Bracing of Pipes or Conduit 1. Brace fuel oil, and gas (such as, fuel gas, medical gas, and compressed air) as per local codes. 2. Brace all pipes 3 inch nominal diameter or larger.

31 Bracing of Pipes - Conduit 3. Transverse and longitudinal bracing as per tables (Chapters 5, 6, 7 and 8). 4. Provide joints/connections capable of accommodating seismic displacements where pipes pass through building seismic or expansion joints or where pipes connect to equipment with vibration isolators.

32 Bracing of Pipes - Conduit l Seismic supports are not required for piping systems where one of the following conditions is met: 1.Piping is supported by rod hangers; hangers in the pipe run are 12 in. (305 mm) or less in length from the top of the pipe to the supporting structure;

33 Bracing of Pipes - Conduit 1.hangers are detailed to avoid bending of the hangers and their attachments; and provisions are made for piping to accommodate expected deflections. 2.High-deformability piping is used; provisions are made to avoid impact with larger piping or mechanical

34 Bracing of Pipes - Conduit 2.components or to protect the piping in the event of such impact; and the following requirements are satisfied: a)For Seismic Design Categories D, E or F where I p is greater than 1.0, the nominal pipe size shall be 1 in. (25 mm) or less.

35 Bracing of Pipes - Conduit b)For Seismic Design Category C, where I p is greater than 1.0, the nominal pipe size shall be 2 in. (51 mm) or less. c)For Seismic Design Category D, E or F where I p is equal to 1.0, the nominal pipe size shall be 3 in. (76 mm) or less.

36 Vertical risers not specifically engineered will be laterally supported with a riser clamp at each floor.

37 DEFINITIONS l TRANSVERSE BRACE - those designed and installed to restrain movement in the direction perpendicular to the piping or duct run

38 DEFINITIONS l LONGITUDINAL BRACE - those designed and installed to restrain movement in the direction parallel to the piping or duct run l RUN (Piping or Duct) - a straight length with no changes in direction except as allowed by offsets

39 Elements of a Seismic Restraint l Brace l Attachment to the Component l Attachment to the Structure

40 Bracing Members RIGID l Angles l Pipes l Strut Channels NON-RIGID l Cables

41 Connection to the Element l Ducts l Pipes

42 Connections to Ducts l The SMACNA Seismic Restraint Manual Contains 12 Different Details for Connecting to Ductwork, Rectangular and Round

43 FIGURE 4-2 SIDE BRACING FOR RECTANGULAR DUCTS

44 FIGURE 4-3 SIDE BRACING FOR RECTANGULAR DUCTS

45 FIGURE 4-4 CABLE SIDE BRACING FOR RECTANGULAR DUCTS

46 FIGURE 4-5 SIDE BRACING FOR RECTANGULAR DUCTS

47 FIGURE 4-6 CENTER BRACING FOR RECTANGULAR DUCTS

48 FIGURE 4-7 CABLE CENTER BRACING FOR RECTANGULAR DUCTS

49 FIGURE 4-8 FLOOR SUPPORTED DUCT

50 FIGURE 4-9 SINGLE HANGER SPACING FOR ROUND DUCTS 33-36 INCHES (838-900 MM)

51 FIGURE 4-10 SINGLE HANGER CABLE BRACING FOR ROUND DUCTS 33-36 INCHES (838-900 MM)

52 Connections to Piping/Conduit Systems l The SMACNA Seismic Restraint Manual Contains 10 Different Details for Connecting to Piping/Conduit Systems

53 FIGURE 4-13 TRANSVERSE BRACING FOR PIPES

54 FIGURE 4-14 STRUT BRACING FOR PIPES

55 FIGURE 4-16 LONGITUDINAL BRACING FOR PIPES

56 FIGURE 4-18 CABLE BRACING FOR PIPES

57 FIGURE 4-20 STRUT BRACING FOR PIPE TRAPEZE

58 FIGURE 4-21 CABLE BRACING FOR PIPE TRAPEZE

59 FIGURE 4-22 FLOOR SUPPORTED PIPES

60 Tables

61 Table 5-1 Side Bracing For Rectangular Ducts, SHL A, L=2' 8" (MAX.)

62 Table 5-2 Side Bracing For Rectangular Ducts With Rod Hangers, SHL A

63 Table 5-6 Bracing For Round Ducts, SHL A

64 Table 5-7 Schedule For Bracing Pipes And Conduit, SHL A

65 Table 5-8 Schedule For Bracing Pipes On Trapeze, SHL A

66 Connection to the Structure

67 Connections to the Structure l The SMACNA Seismic Restraint Manual Contains 8 Levels for Connection into Concrete (2) 1 Bolt Connection (3) 2 Bolt Connections (3) 4 Bolt Connections

68 Connections to the Structure l The SMACNA Manual Contains (6) Alternative Connections to Concrete (6) Details for Connection to Steel (3) Details for Connections to Wood

69 FIGURE 8-1 CONNECTIONS TO CONCRETE

70 Table 9-1 Schedule For Typical Connections To Structural Supporting Members

71 Miscellaneous Connections

72 The SMACNA Manual contains: l Specific Details on Various Connections l Bracing for Hubless Cast Iron Pipe l Riser Bracing for Hubless Pipes l Seismic Joints in Pipes

73 Miscellaneous Connections The SMACNA Manual contains: l Welded Tabs for Pipe Connections l Stiffeners & Saddles at Pipe Clamps

74 FIGURE 8-2 ADJUSTABLE CONNECTIONS TO CONCRETE

75 FIGURE 8-4 ALTERNATE CONNECTIONS TO CONCRETE

76 FIGURE 8-6 CONNECTIONS TO CONCRETE FILL ON STEEL DECK

77 FIGURE 8-12 CONNECTIONS TO STEEL

78 FIGURE 9-5 CABLE END CONNECTION

79 FIGURE 9-10 RISER BRACING FOR HUBLESS PIPES

80 FIGURE 9-17 WELDED TABS

81 PROJECT:Getty Center - Brentwood, California SIZE: 6 Buildings, 110 Acres, 100 Year Life, 945,000 SF COST:1 Billion TIME:Start 1989, (1992), Complete 1997 MECHANICAL:4350 Tons Cooling - Central Plant PIPING/SHEET METAL:30 Million (No Equipment) SEISMIC RESTRAINT COST:3 Million SEISMIC REQUIREMENTS:10.0 Richter Earthquake SEISMIC DESIGN (Mechanical): Contractor/Consultant SEISMIC SOURCES:SMACNA Guidelines/Consultant

82

83

84

85

86

87

88

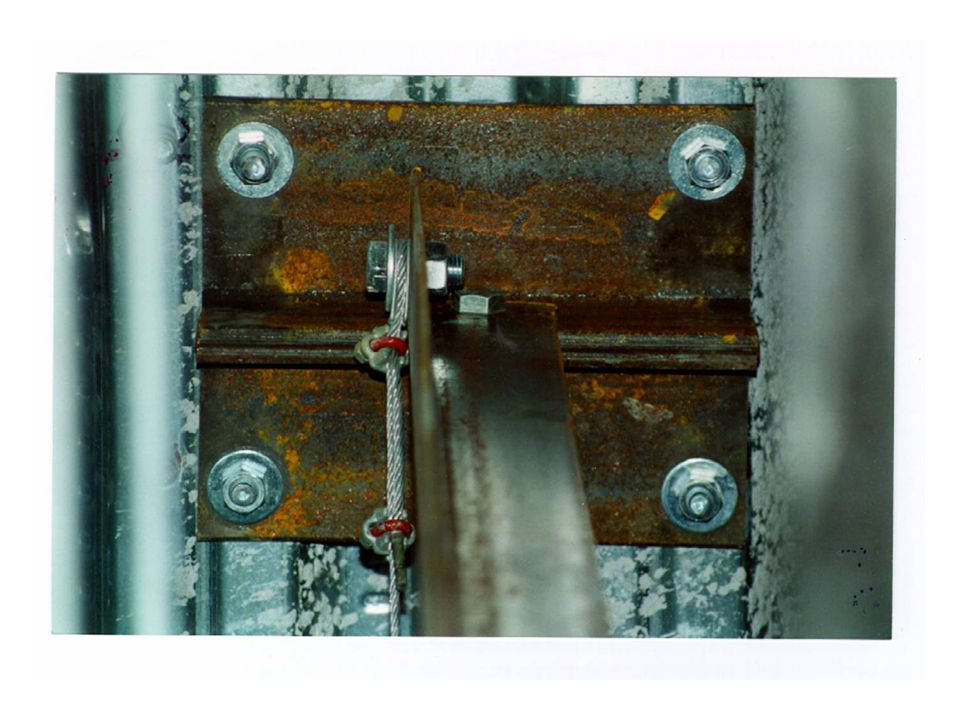

89

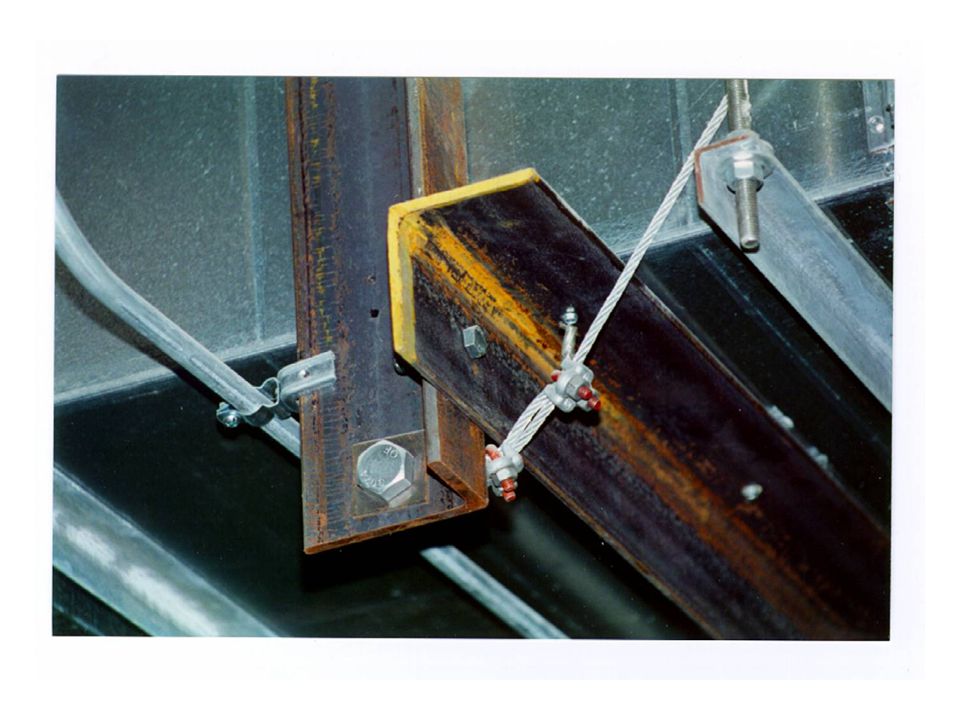

90

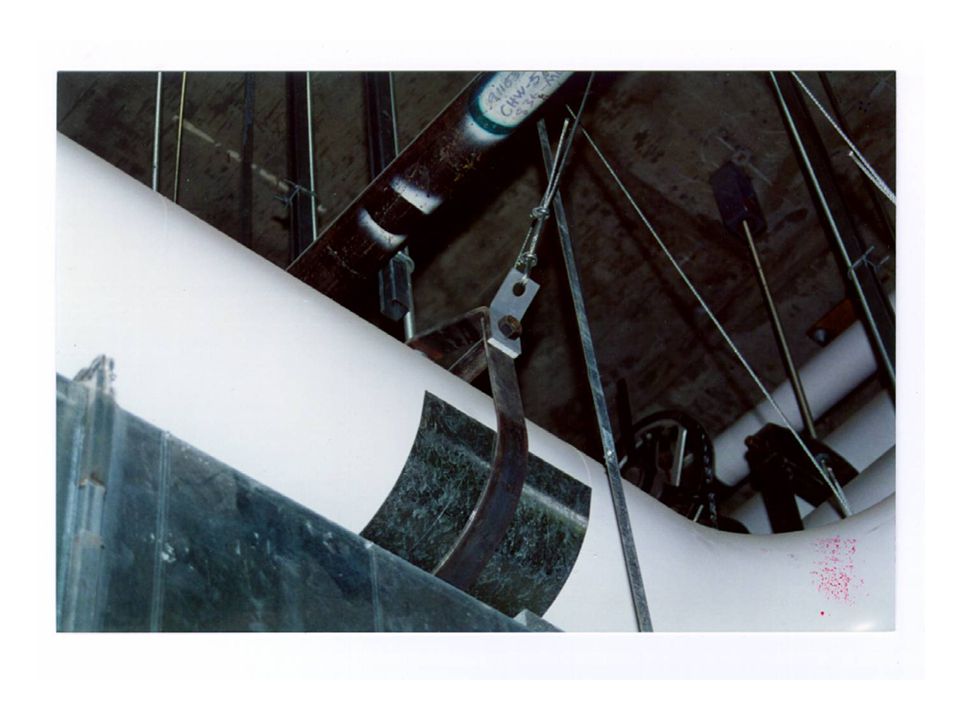

91

92

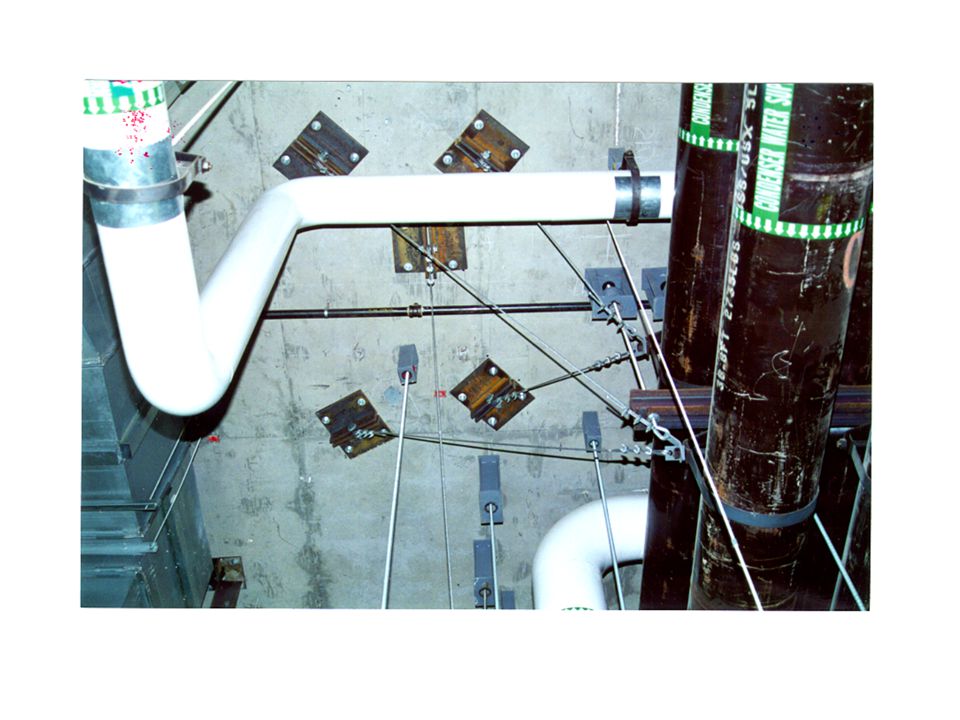

93

94

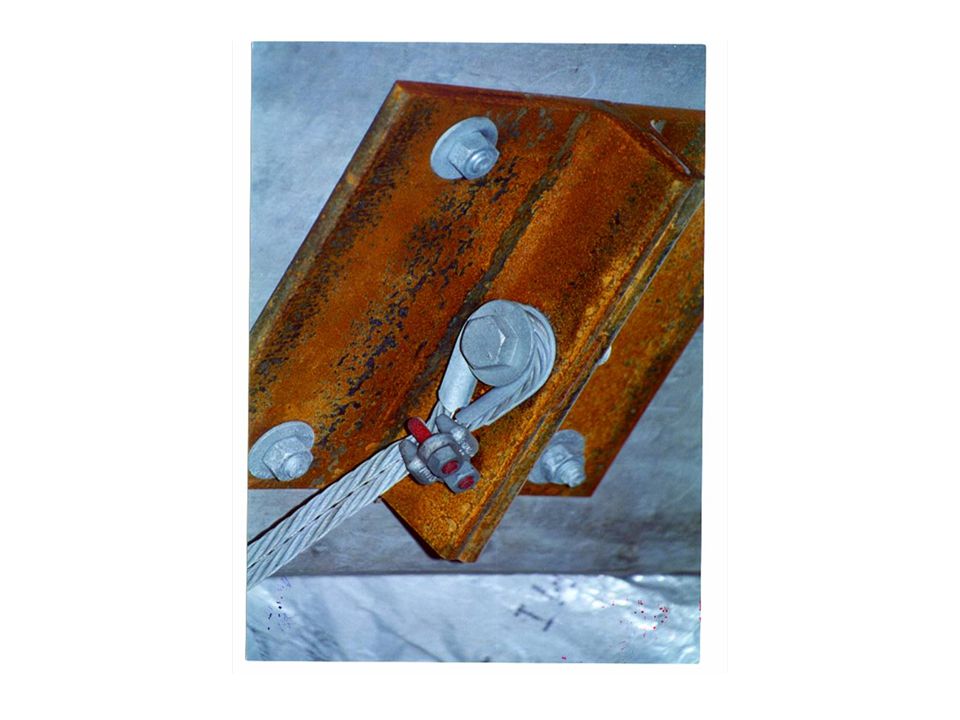

95

96

97 Other Resources l ASHRAE – A Practical Guide to Seismic Restraint
