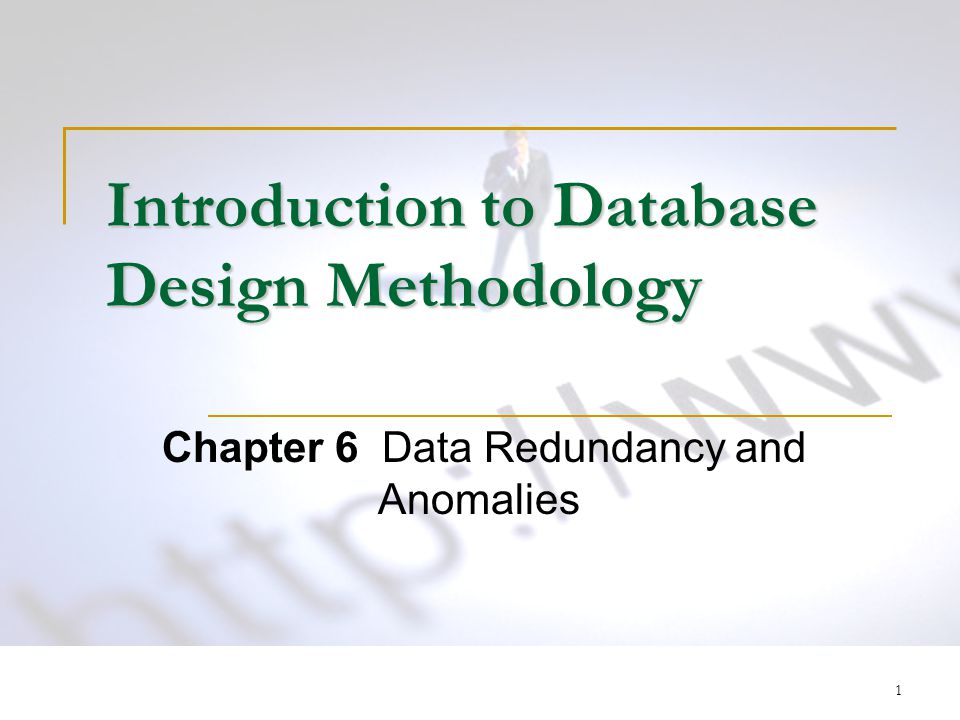

1 1 Introduction to Database Design Methodology Chapter 6 Data Redundancy and Anomalies

2 2 Learning Goals To explain the problems associated with poorly-designed database To identify good and poor table structures

3 3 Table of Contents Problems with Poorly-designed Database Data Redundancy and Data Inconsistency Anomalies in Modifying Data Example of Poorly-designed Tables

4 4

5 5 Problems with Poorly-designed Database In relational database, a poorly-designed database is the one with poorly-designed tables. Poorly-designed tables may lead to:  unnecessary data redundancy, which will increase the chance of data inconsistency require more storage space for storing the redundant data  different anomalies in modifying data in the database

6 6 Data Redundancy and Data Inconsistency Remark: Data redundancy occurs when the same data are stored more than once in one or more tables in a relational database. Data inconsistency means that the various copies of the data in a database no longer agree.

7 7 Anomalies in Updating Data Anomalies refer to the inconsistencies or errors that may arise when a user attempts to modify data in a database containing redundant data. There are three main types of anomalies in modifying data in a database:  Update Anomaly In updating a data item in a database, data inconsistency will arise if not all the corresponding copies of redundant data are updated.  Insertion Anomaly It may not be able to insert certain data in a database unless some data of other entities are stored.  Deletion Anomaly Deletion of some data may result in unintended loss of data in other entities.

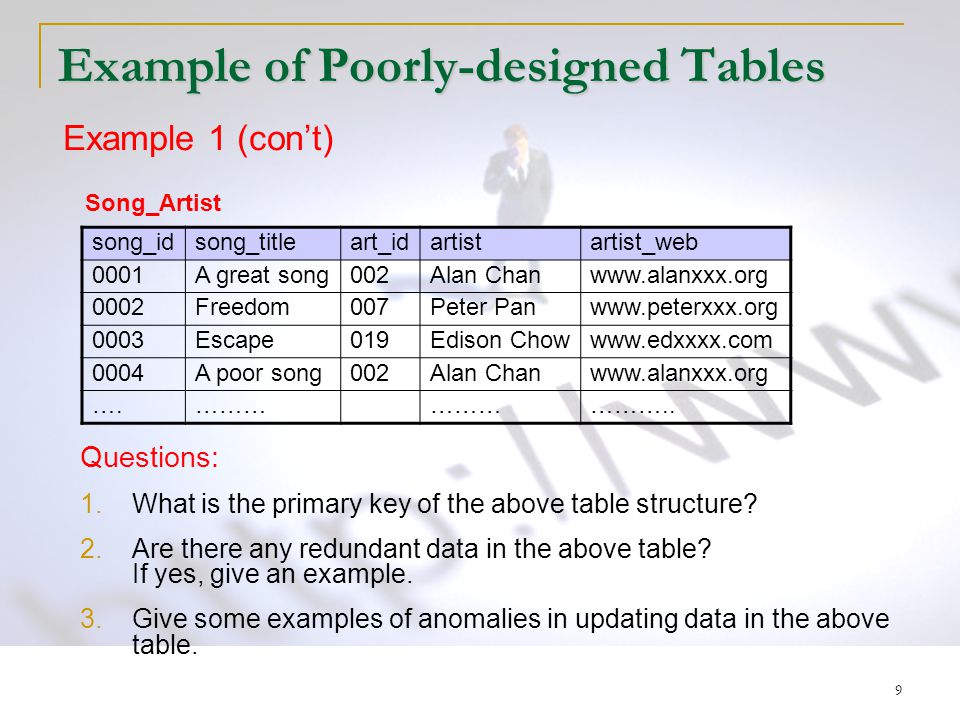

8 8 Example of Poorly-designed Tables Example 1 Suppose you are a pop song fan and would like to develop a database to store the information of pop songs. The original design of the database consists of a table with the following structure: song_idsong_titleart_idartistartist_web 0001A great song002Alan Chanwww.alanxxx.org 0002Freedom007Peter Panwww.peterxxx.org 0003Escape019Edison Chowwww.edxxxx.com 0004A poor song002Alan Chanwww.alanxxx.org ….……… ……….. Song_Artist Assume that each song is associated with one artist only.

9 9 Example of Poorly-designed Tables Questions: 1.What is the primary key of the above table structure? 2.Are there any redundant data in the above table? If yes, give an example. 3.Give some examples of anomalies in updating data in the above table. song_idsong_titleart_idartistartist_web 0001A great song002Alan Chanwww.alanxxx.org 0002Freedom007Peter Panwww.peterxxx.org 0003Escape019Edison Chowwww.edxxxx.com 0004A poor song002Alan Chanwww.alanxxx.org ….……… ……….. Example 1 (con’t) Song_Artist

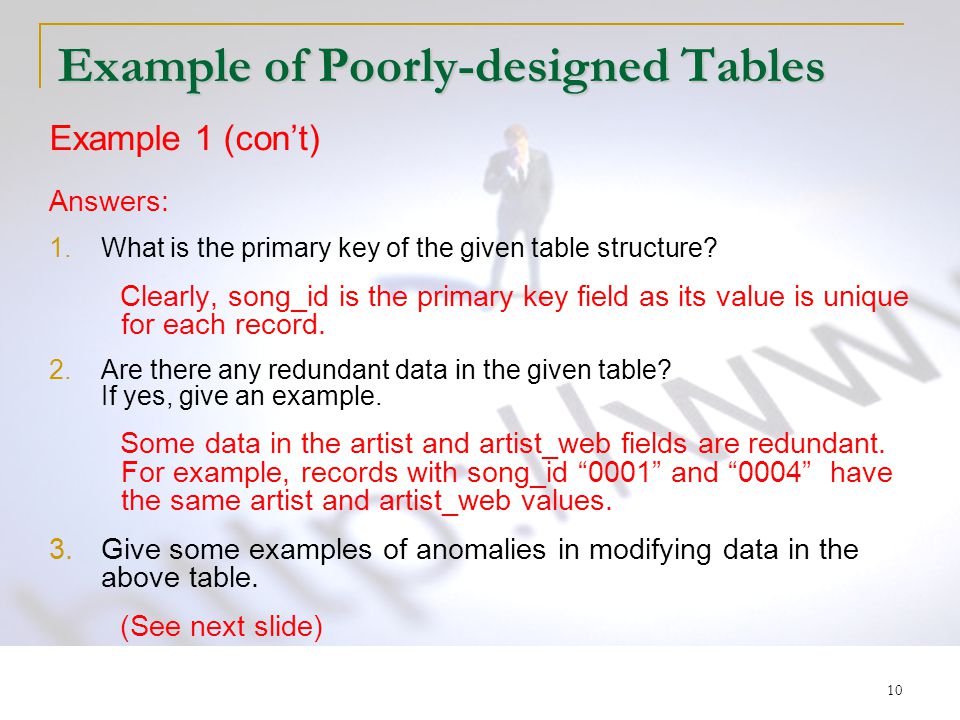

10 10 Example of Poorly-designed Tables Answers: 1.What is the primary key of the given table structure? Clearly, song_id is the primary key field as its value is unique for each record. 2.Are there any redundant data in the given table? If yes, give an example. Some data in the artist and artist_web fields are redundant. For example, records with song_id “0001” and “0004” have the same artist and artist_web values. 3.Give some examples of anomalies in modifying data in the above table. (See next slide) Example 1 (con’t)

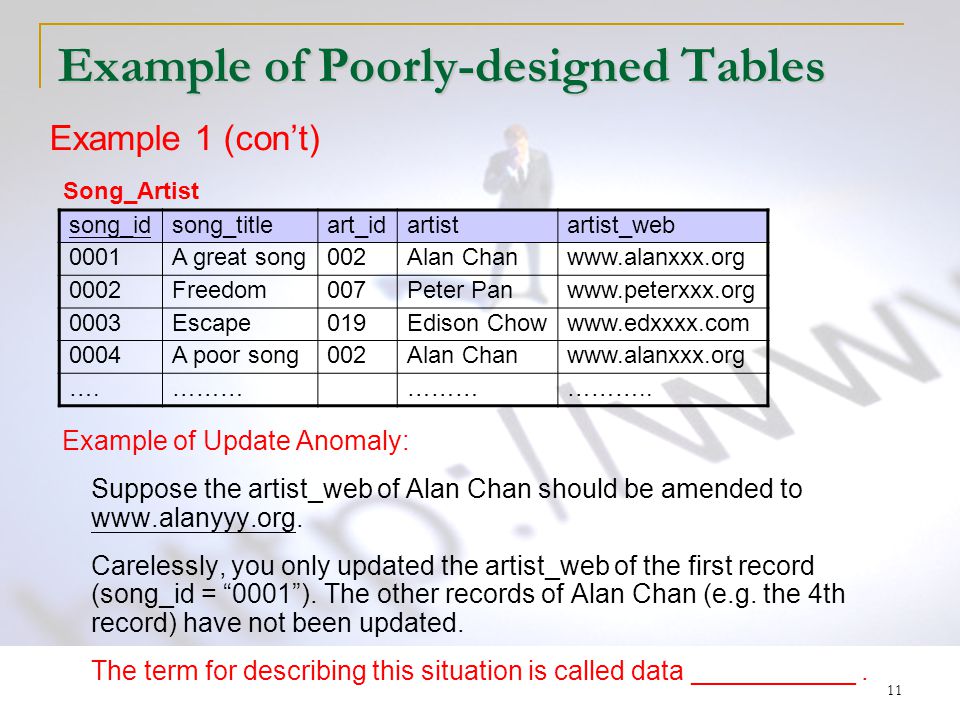

11 11 Example of Poorly-designed Tables Example of Update Anomaly: Suppose the artist_web of Alan Chan should be amended to Carelessly, you only updated the artist_web of the first record (song_id = “0001”). The other records of Alan Chan (e.g. the 4th record) have not been updated. The term for describing this situation is called data ___________. song_idsong_titleart_idartistartist_web 0001A great song002Alan Chanwww.alanxxx.org 0002Freedom007Peter Panwww.peterxxx.org 0003Escape019Edison Chowwww.edxxxx.com 0004A poor song002Alan Chanwww.alanxxx.org ….……… ……….. Example 1 (con’t) Song_Artist

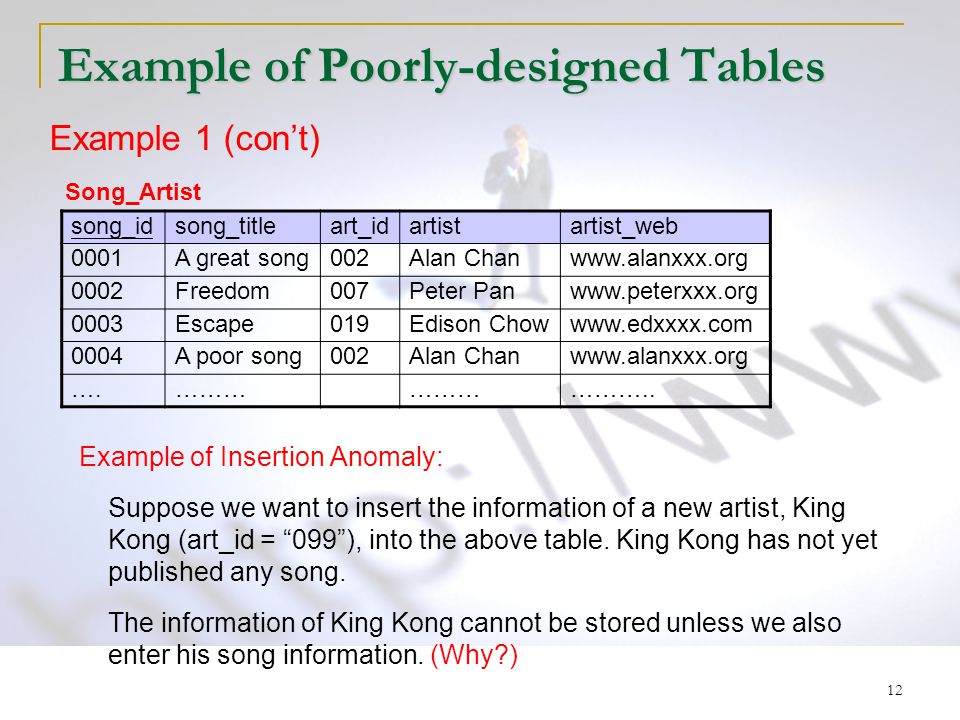

12 12 Example of Poorly-designed Tables Example of Insertion Anomaly: Suppose we want to insert the information of a new artist, King Kong (art_id = “099”), into the above table. King Kong has not yet published any song. The information of King Kong cannot be stored unless we also enter his song information. (Why?) Example 1 (con’t) song_idsong_titleart_idartistartist_web 0001A great song002Alan Chanwww.alanxxx.org 0002Freedom007Peter Panwww.peterxxx.org 0003Escape019Edison Chowwww.edxxxx.com 0004A poor song002Alan Chanwww.alanxxx.org ….……… ……….. Song_Artist

13 13 Example of Poorly-designed Tables Example of Deletion Anomaly: Peter Pan had only published one song (“Freedom”) up to now. Suppose you want to delete the record of the song “Freedom” (song_id=“0002”) from the table. What would be the problem of deleting the record (song_id=“0002”) from the above table? Example 1 (con’t) song_idsong_titleart_idartistartist_web 0001A great song002Alan Chanwww.alanxxx.org 0002Freedom007Peter Panwww.peterxxx.org 0003Escape019Edison Chowwww.edxxxx.com 0004A poor song002Alan Chanwww.alanxxx.org ….……… ……….. Song_Artist

14 14

15 15 Task 1 Complete Task 1 in Activity 1 of Chapter 6.

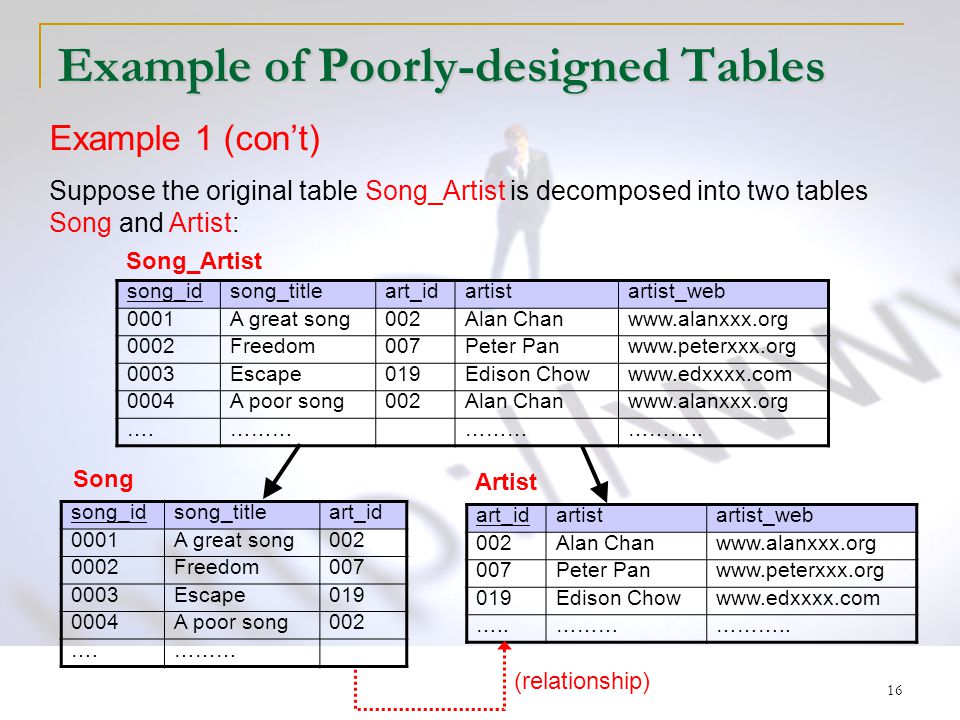

16 16 Example of Poorly-designed Tables song_idsong_titleart_idartistartist_web 0001A great song002Alan Chanwww.alanxxx.org 0002Freedom007Peter Panwww.peterxxx.org 0003Escape019Edison Chowwww.edxxxx.com 0004A poor song002Alan Chanwww.alanxxx.org ….……… ……….. Example 1 (con’t) Suppose the original table Song_Artist is decomposed into two tables Song and Artist: song_idsong_titleart_id 0001A great song Freedom Escape A poor song002 ….……… art_idartistartist_web 002Alan Chanwww.alanxxx.org 007Peter Panwww.peterxxx.org 019Edison Chowwww.edxxxx.com …..……………….. (relationship) Song_Artist Song Artist

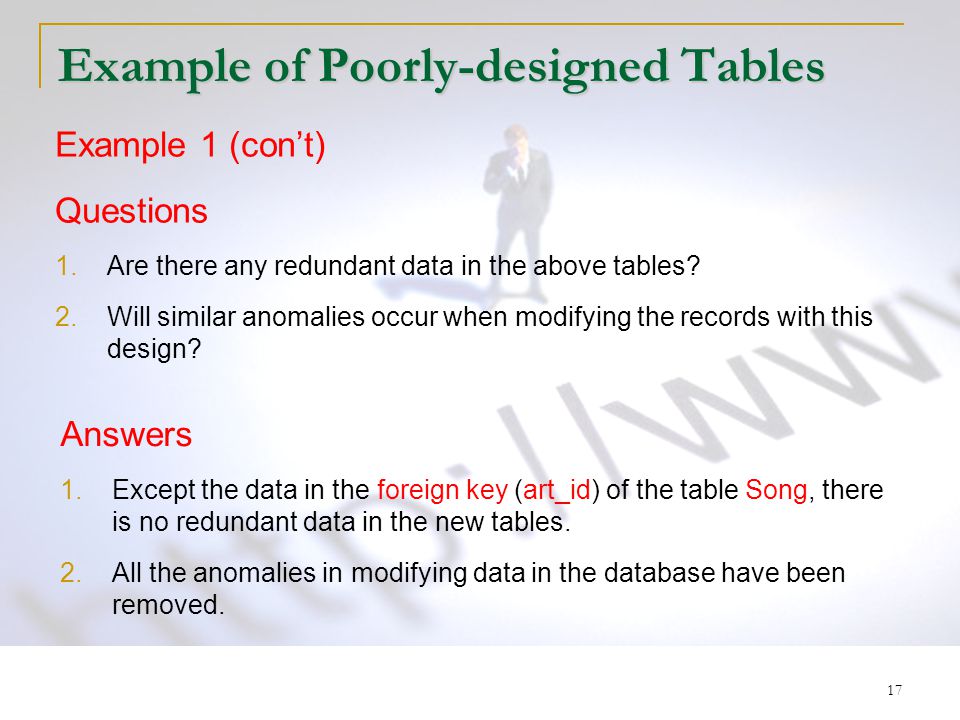

17 17 Example of Poorly-designed Tables Example 1 (con’t) Questions 1.Are there any redundant data in the above tables? 2.Will similar anomalies occur when modifying the records with this design? Answers 1.Except the data in the foreign key (art_id) of the table Song, there is no redundant data in the new tables. 2.All the anomalies in modifying data in the database have been removed.

18 18

19 19 Task 2 Complete Task 2 in Activity 1 of Chapter 6.

20 20 Conclusions from Example 1 Conclusions from the findings in Example 1: 1.Poorly-designed table structures may lead to: Unnecessary data redundancy Anomalies in: Updating Insertion Deletion 2.Poor table structures can be “repaired” by decomposing the tables into smaller ones. In the above Example, it is quite nature to decompose the original table Song_Artist into the tables Song and Artist. If we construct the ER diagram for the problem, the two basic entities that would be identified are probably Song and Artist.

21 21 Techniques for Constructing Well- Designed Tables In Chapters 4 and 5, you learnt how to construct an ER diagram and to transform the diagram into table structures for designing a relational database. Although this approach can help us identify the entities, attributes and relationships in a database, the identification process is mainly based on the collected users’ requirements and some common senses. It is still possible that the resulting tables are not well- designed.

22 22 Techniques for Constructing Well- Designed Tables Badly-structured tables may arise from the errors in the original ER diagram or in the process of translating the ER diagram into tables. Therefore, we need a more standardized technique for:  Checking whether the tables are well-structured;  “Repairing” poorly-designed table structures (mainly by decomposing the original tables);  Assisting the construction of tables from the collected users’ requirements. The technique we will study in next Chapter is called “normalisation”, which was introduced by Dr. E.F. Codd in (http://en.wikipedia.org/wiki/Database_normalization )

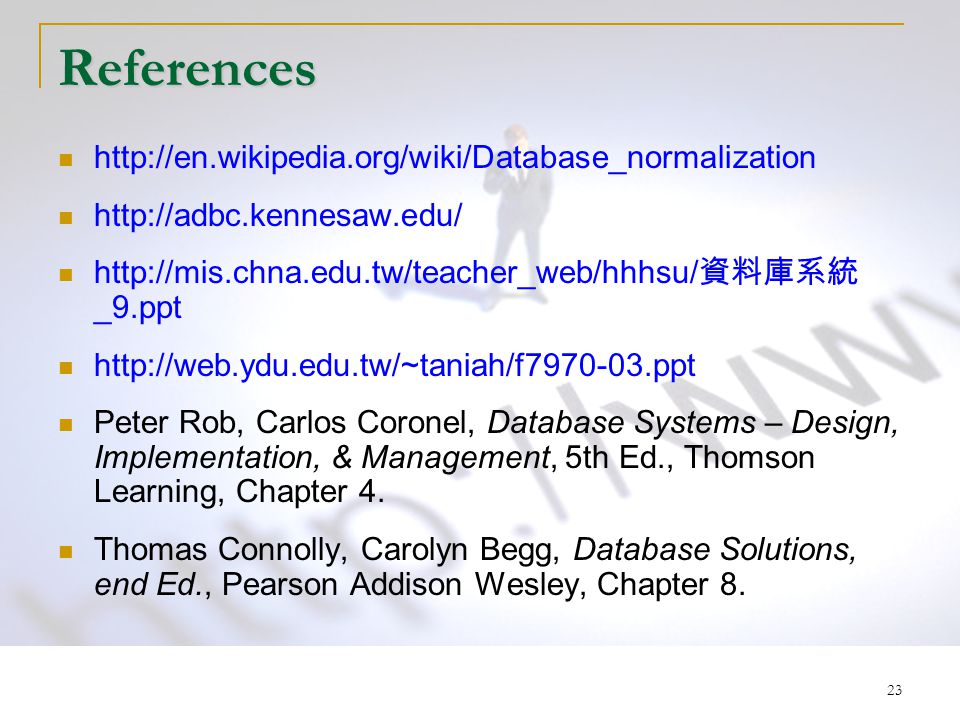

23 23 References 資料庫系統 _9.ppt Peter Rob, Carlos Coronel, Database Systems – Design, Implementation, & Management, 5th Ed., Thomson Learning, Chapter 4. Thomas Connolly, Carolyn Begg, Database Solutions, end Ed., Pearson Addison Wesley, Chapter 8.
