Numbers, We don’t need no stinkin’ numbers Adam Backman Vice President DBAppraise, Llc.

Similar presentations

Presentation on theme: "Numbers, We don’t need no stinkin’ numbers Adam Backman Vice President DBAppraise, Llc."— Presentation transcript:

1 Numbers, We don’t need no stinkin’ numbers Adam Backman Vice President DBAppraise, Llc

2 About the Presenter Progress user from when dinosaurs roamed the earth (nearly) President - White Star Software – Consulting: performance, coding, problem solving – Training: Programming, System and Database Administration Vice President – DBAppraise – Managed database services

3 Agenda Why performance is important? Components of performance Perception vs. reality Who is most important?

4 Why is performance important? Time is literally money Many idle hands cost real money A delayed customer is a lost customer Delayed support equals lost confidence

5 Put a value on performance Users wait 10 seconds Does not sound bad Users do the operation many times per day 10 seconds per transaction, 10 per hour, 8 hours a day. 800 seconds wasted per user per day. 13 minutes wasted per user per day times then number of users (500 users) That is over 100 hours of wasted time per day

6 Components of performance Network Disk Memory CPU Goal: Push the bottleneck to the fastest resource

7 Network Slowest resource Temp files going to network drive Need to minimize traffic – -Mm (Remember to increase frame size everywhere when increasing –Mm) – -Mn, -Mpb, -Mi, -Ma

8 Disk Most frequent offender People focus on wrong metrics Queue depth and service time are generally good indicators of congestion

9 Memory Move things off disk into memory -B (DB to shared memory) -Bt (temp disk files to temp buffers) OS and Disk array caches

10 CPU The “right” type of CPU activity – User – what you paid for – System – System overhead – Wait – Waiting on I/O (What type of I/O) – Idle – You need idle but having zero does not mean there is an issue

11 Numbers are good but … Performance stinks Performance is perception User experience is king

12 First, look for record locks or other application issues ProTop has a screen for blocked sessions Record locks can completely stop activity The user sees record in use by …. The administrator does not Additionally, I look for very high db requests from a single connection

13 ProTop: Blocked Sessions Blocked Sessions Usr Name Note ----- ------------ --------------------------------------------- 24 tom REC XQH 102 [Order] Adam

14 Promon: Block Access Block Access: Type Usr Name DB Requests DB Reads BI Reads \Writes \Writes Acc 999 TOTAL... 6415644367 54341274 6284 423828 521056 Acc 0 adam 165004 1317 5657 1245 93125 Acc 5 adam 1 0 0 191480 6 Acc 6 adam 1 0 0 184629 7 Acc 7 dbapprai 3549613 1 0 0 0

15 Buffer Hit Percentage Generally a good metric But … – A single table small table scan can vastly skew results – Low volume buffer hit percentage is nearly meaningless

16 How to Make Buffer Hit Rate Useful Know which tables are being read – Large tables – Small tables Know what is “normal”

17 How to Make Buffer Hit Rate Less Useful Bring up promon activity screen and only use the first sample Use really small sample sizes (seconds vs. minutes) Use really large sample sizes (hours vs. minutes)

18 Benchmarks Lie Do not test real-world – All read (Readprobe) – All write (ATM) – Wrong mix of read and write Time slicing can make results more attractive

19 CPU – Wait The CPU always blames everyone else If you have wait and idle it is generally no issue If you have wait and no idle you likely have an issue. Look at disk first

20 CPU - Idle If you have a single core then a single program can use 100% of the CPU This is a good thing. The process will use it’s CPU and complete

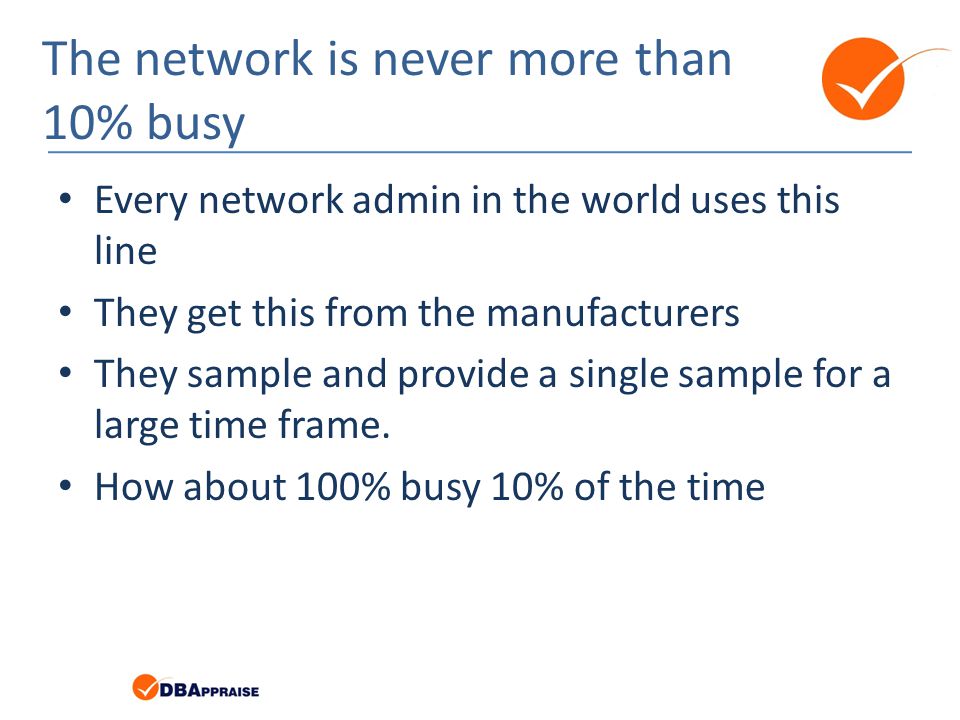

21 The network is never more than 10% busy Every network admin in the world uses this line They get this from the manufacturers They sample and provide a single sample for a large time frame. How about 100% busy 10% of the time

22 Setting –spin based on a calculation Gus said that it should be … Unless Gus is at your site any calculation is wrong Gus said this some time ago and was misquoted at that time Generally stated as # * CPUs This is nearly always wrong (you could get lucky by accident)

23 Percentage full on extents Is it 99% full or 327% full Important to look at allocated (actual growth) versus percentage fill of the last extent Hint it never shows 100% as it preallocates space for future extends of the area

24 Now we know how people lie but how do I determine if our performance is acceptable?

25 Ask the users

26 Method: Measuring Performance Determine your 5-10 most time critical portions of the application Time them in isolation Time them during the day when everyone says performance is OK. They will never say it’s good. These timings should be close if not exactly the same

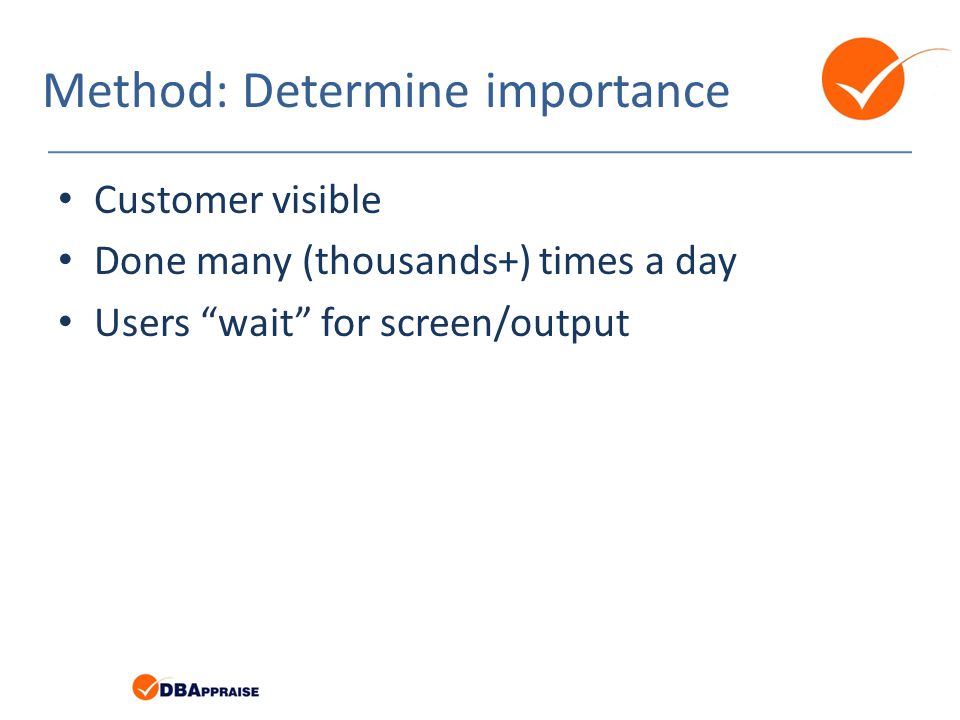

27 Method: Determine importance Customer visible Done many (thousands+) times a day Users “wait” for screen/output

28 Timings Need not be exact Wrist watch or cell phone timer is fine Keep track of these timings When people complain about performance redo the timings

29 If the timings are bad Look for bottlenecks – Network – Disk – Memory – CPU It will likely be one of the first two solved by using more of the second two

30 If the timings are good Smack the users around for wasting your time or Reevaluate timings, no really just smack the users

31 Conclusion Performance is perception – Reason for “working …” Focus on user experience Know what is normal – In stored statistics – In response times

32 Still more Conclusion Know what is important – Customer facing Benchmarks lie Buffer Hit Rate – You can make it whatever you want – Need to understand how to make it useful

33 Questions? Adam Backman

34 Thank you for your time!
