1 June 2007 Tumor Unknown Conference

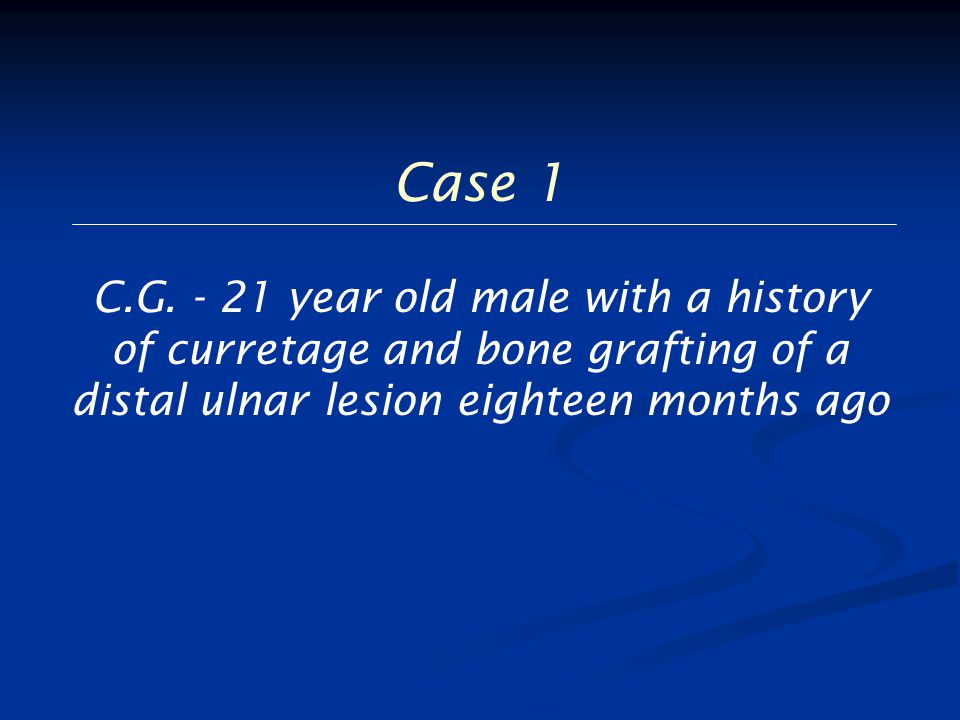

2 Case 1 C.G year old male with a history of curretage and bone grafting of a distal ulnar lesion eighteen months ago

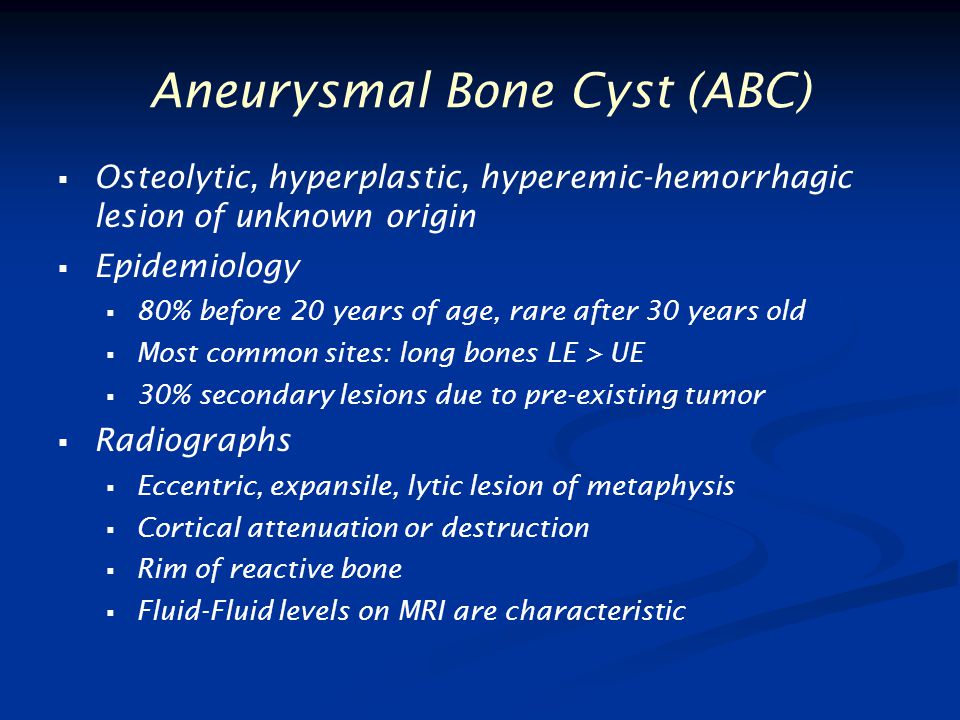

3 Aneurysmal Bone Cyst (ABC)   Osteolytic, hyperplastic, hyperemic-hemorrhagic lesion of unknown origin   Epidemiology   80% before 20 years of age, rare after 30 years old   Most common sites: long bones LE > UE   30% secondary lesions due to pre-existing tumor   Radiographs   Eccentric, expansile, lytic lesion of metaphysis   Cortical attenuation or destruction   Rim of reactive bone   Fluid-Fluid levels on MRI are characteristic

4 ABC   Histology   Cavernous spaces filled with blood, lacking endothelial lining   Fibroblastic cells, multinucleated giant cells and thin strands of bone

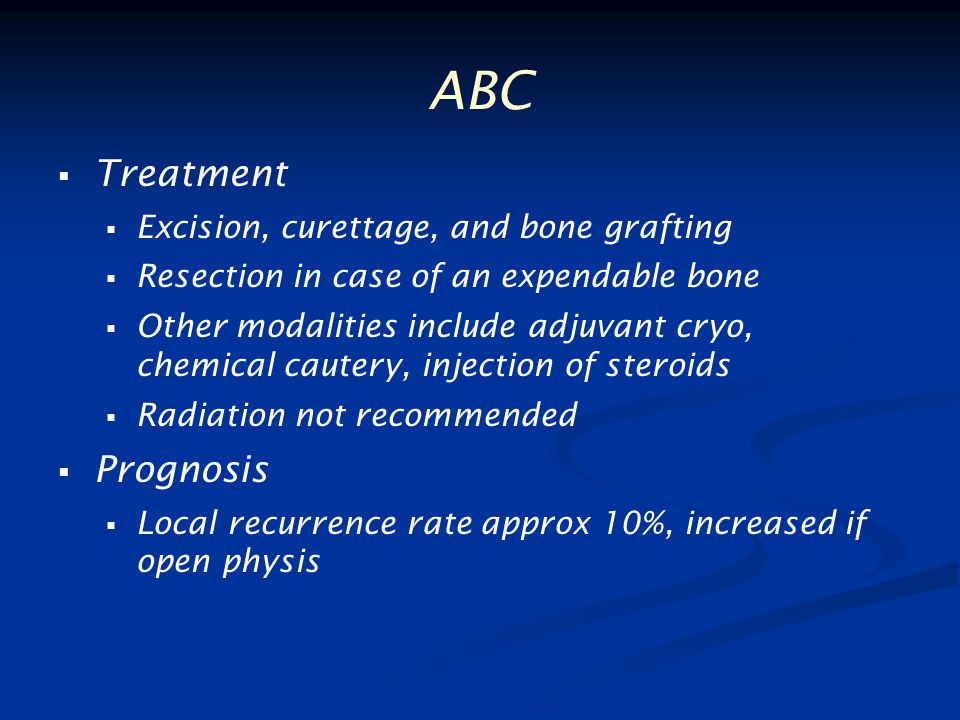

5 ABC   Treatment   Excision, curettage, and bone grafting   Resection in case of an expendable bone.   Other modalities include adjuvant cryo, chemical cautery, injection of steroids   Radiation not recommended   Prognosis   Local recurrence rate approx 10%, increased if open physis

6

7 Case 2 T.K year old male with asymptomatic left ankle swelling for several months

8 Aneurysmal Bone Cyst (ABC)   Osteolytic, hyperplastic, hyperemic-hemorrhagic lesion of unknown origin   Epidemiology   80% before 20 years of age, rare after 30 years old   Most common sites: long bones LE > UE   30% secondary lesions due to pre-existing tumor   Radiographs   Eccentric, expansile, lytic lesion of metaphysis   Cortical attenuation or destruction   Rim of reactive bone   Fluid-Fluid levels on MRI are characteristic

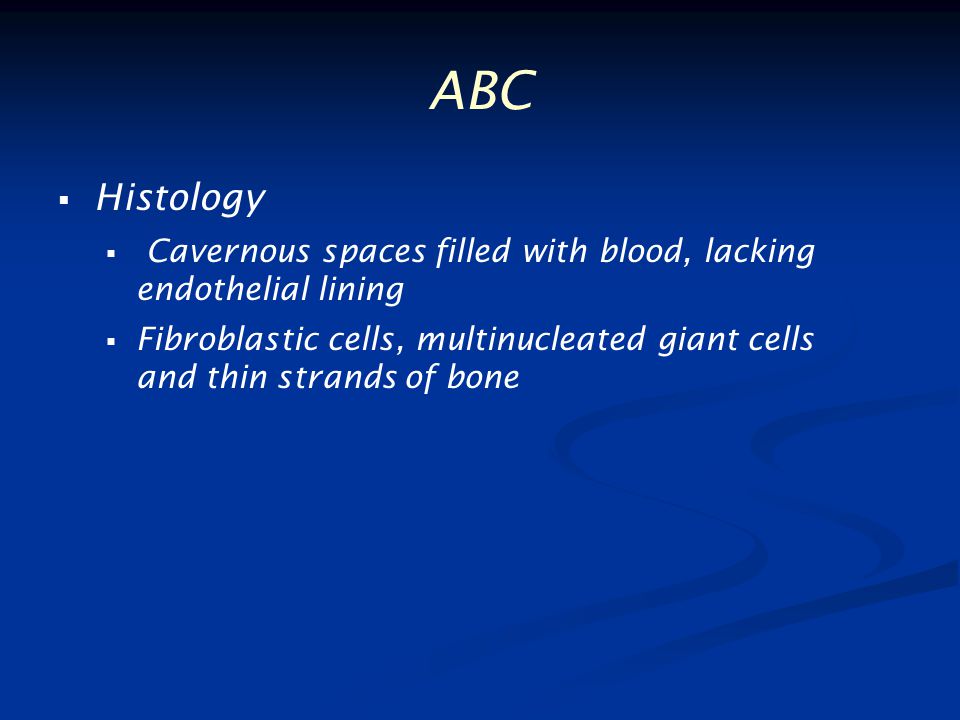

9 ABC   Histology   Cavernous spaces filled with blood, lacking endothelial lining   Fibroblastic cells, multinucleated giant cells and thin strands of bone

10 ABC   Treatment   Excision, curettage, and bone grafting   Resection in case of an expendable bone   Other modalities include adjuvant cryo, chemical cautery, injection of steroids   Radiation not recommended   Prognosis   Local recurrence rate approx 10%, increased if open physis

11

12 Case 3 S.P year old male with left hip pain after a minor fall

13 Unicameral Bone Cyst   Benign fluid filled cystic lesion of bone of unknown cause   Epidemiology   5-15 years of age   Male > Female   Proximal humerus most common, followed by proximal femur

14 Unicameral Bone Cyst   Symptoms   Asymptomatic unless fracture occurs   Radiographs   Central lytic lesion of metaphysis   Attenuation and slight expansion of cortex   Fluid filled on CT/MRI

15   Histology   Thin fibrous membrane lining cyst   Few macrophages, giant cells, leukocytes and slivers of bone and osteoid Unicameral Bone Cyst

16   Treatment   Cysts become inactive at skeletal maturity and typically resolve without surgical intervention   Multiple treatments including curettage and bone grafting, steroid injections have been tried with variable efficacy   Fractures tend to lead to resolution of cyst   Displaced fractures are the only absolute surgical indication Unicameral Bone Cyst

17 Case 4 A.M year old female with an asymptomatic posterior thigh soft tissue mass present for many years, the patient reports that it has increased in size over the past three months

18 Lipoma   Benign tumor of mature fat   Classification   Superficial: (more common)   contained within subcutis   prevalence for back, neck, proximal limbs   Deep: (less common)   within muscle or intermuscular spaces   Age   Most frequent between years old   Presentation   Slow growing asymptomatic mass

19 Lipoma   Imaging   Resembles normal fat on all CT and MRI images   Histology   Mature fat cells (lipocytes)   Rarely small areas of hemmorrage, necrosis, calcification   Absence of lipoblasts and pleomorphic, hyperchromatic nuclei differentiate lipoma from liposarcoma   Treatment   Marginal Excision   Local recurrence is rare

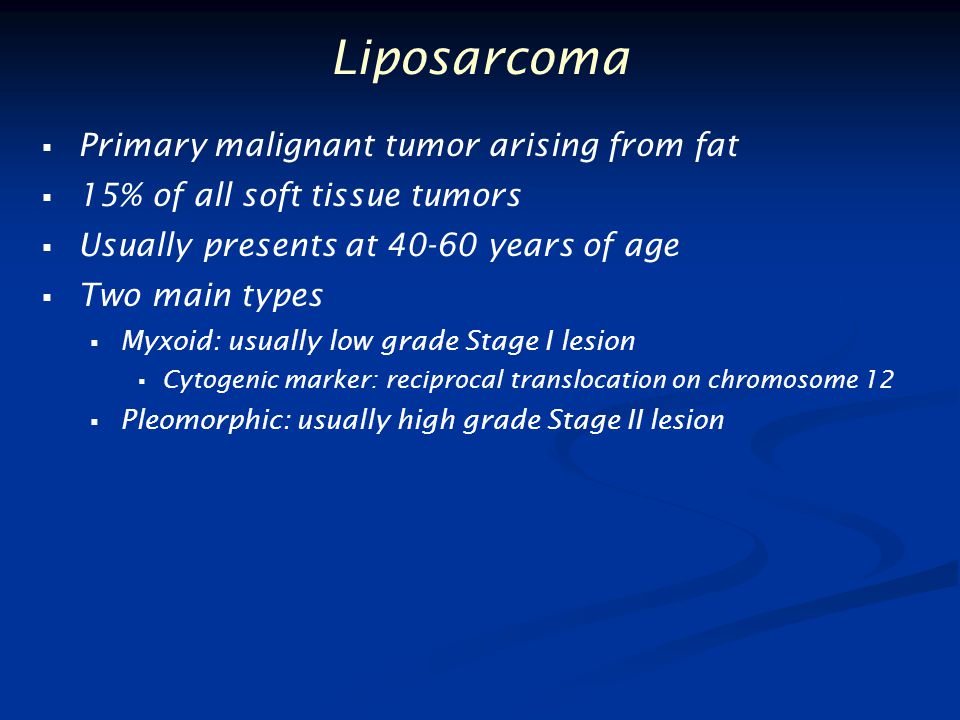

20   Primary malignant tumor arising from fat   15% of all soft tissue tumors   Usually presents at years of age   Two main types   Myxoid: usually low grade Stage I lesion   Cytogenic marker: reciprocal translocation on chromosome 12   Pleomorphic: usually high grade Stage II lesion Liposarcoma

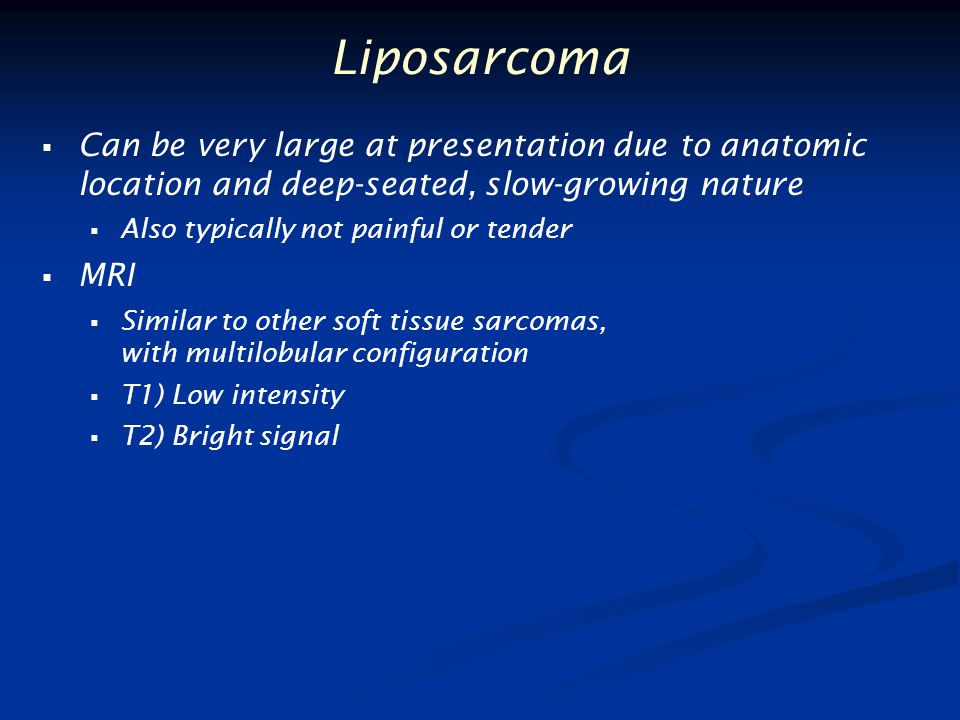

21   Can be very large at presentation due to anatomic location and deep-seated, slow-growing nature   Also typically not painful or tender   MRI   Similar to other soft tissue sarcomas, with multilobular configuration   T1) Low intensity   T2) Bright signal Liposarcoma

22   Myxoid Histology   Sheets of lipocytes or lipoblasts interspersed in myxo- matous amorphous matrix with low cell to matrix ratio   Fine branching capillaries with arborization pattern, resemble a road map   Pleomorphic Histology   More cellular   Lacks plexiform capillary network   May have large, bizarre lipoblasts with abundant eosinophilic cytoplasm Liposarcoma

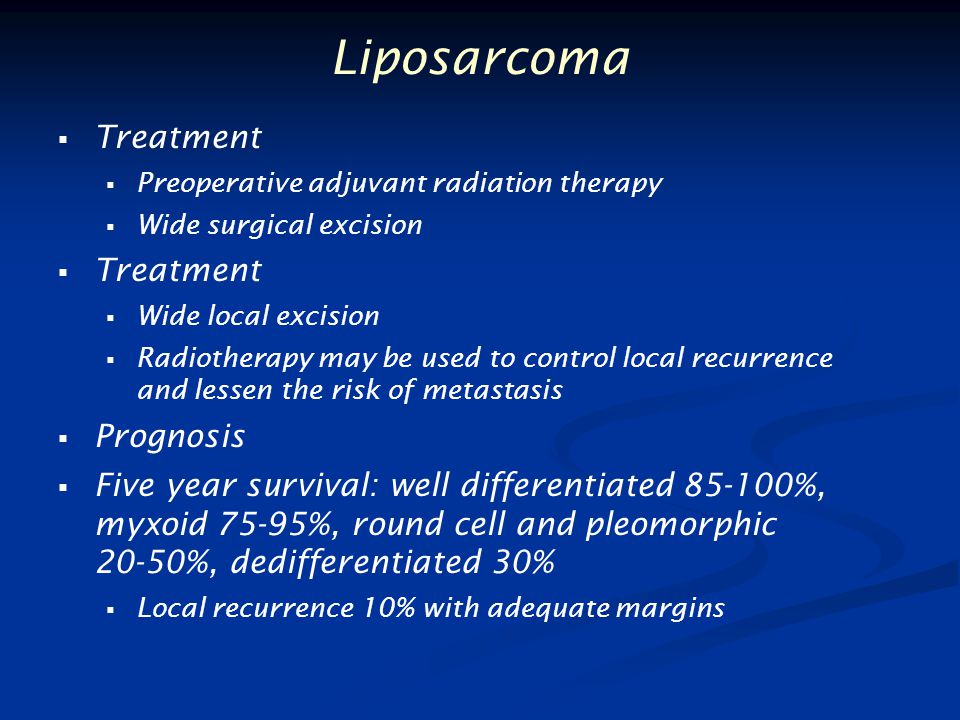

23   Treatment   Preoperative adjuvant radiation therapy   Wide surgical excision   Treatment   Wide local excision   Radiotherapy may be used to control local recurrence and lessen the risk of metastasis   Prognosis   Five year survival: well differentiated %, myxoid 75-95%, round cell and pleomorphic 20-50%, dedifferentiated 30%   Local recurrence 10% with adequate margins Liposarcoma

24 Case 5 T.S year old male with six month history of an anterior shoulder mass

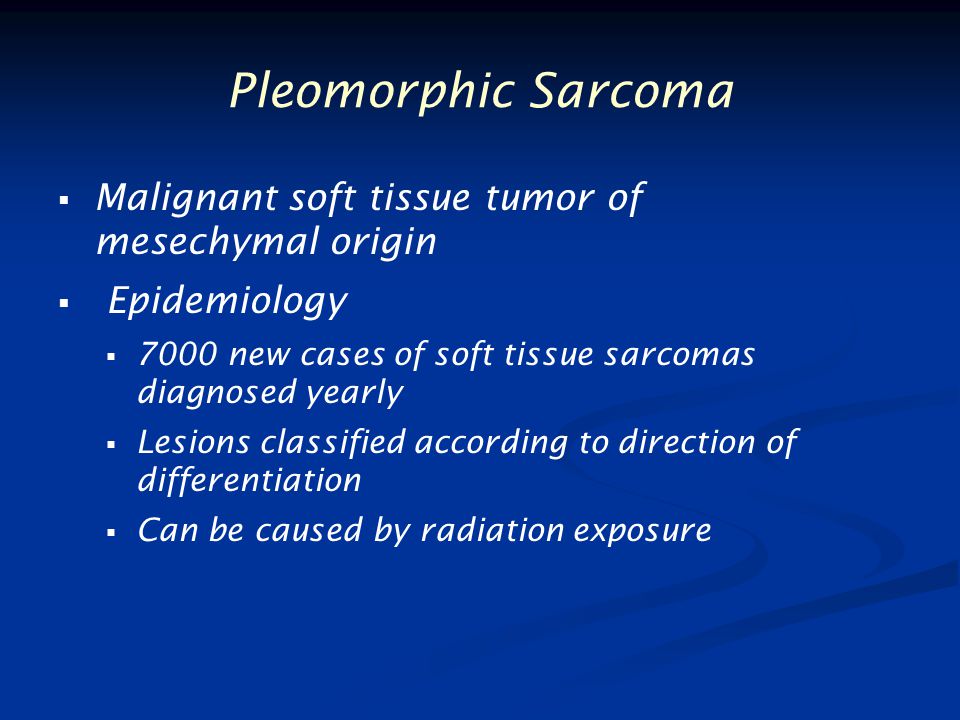

25 Pleomorphic Sarcoma   Malignant soft tissue tumor of mesechymal origin   Epidemiology   7000 new cases of soft tissue sarcomas diagnosed yearly   Lesions classified according to direction of differentiation   Can be caused by radiation exposure

26 Pleomorphic Sarcoma   Symptoms   Enlarging mass, most are large, deep and firm at diagnosis   Can be painless or painful   Radiographs   MRI is the best imaging modality

27 Pleomorphic Sarcoma   Histology   Dedifferentiated mesenchymal cells   Grade of tumors determined on histology   Treatment   Radiation therapy   Wide surgical excision, limb salvage if possible   Prognosis depends on   Tumor Grade   Size (> 5 cm)   Location superficial or deep to fascia

28 Case 6 D.E year old male with left knee pain after falling from a skateboard three weeks ago

29 Chondroblastoma   Benign tumor composed of chondroblasts   Epidemiology   Male: female is 3:1   years of age   Localization   Epiphysis, apophysis, or short bone   Extension to metaphysis and even through physeal plate.   Proximal humerus>distal femur>proximal tibia>proximal femur

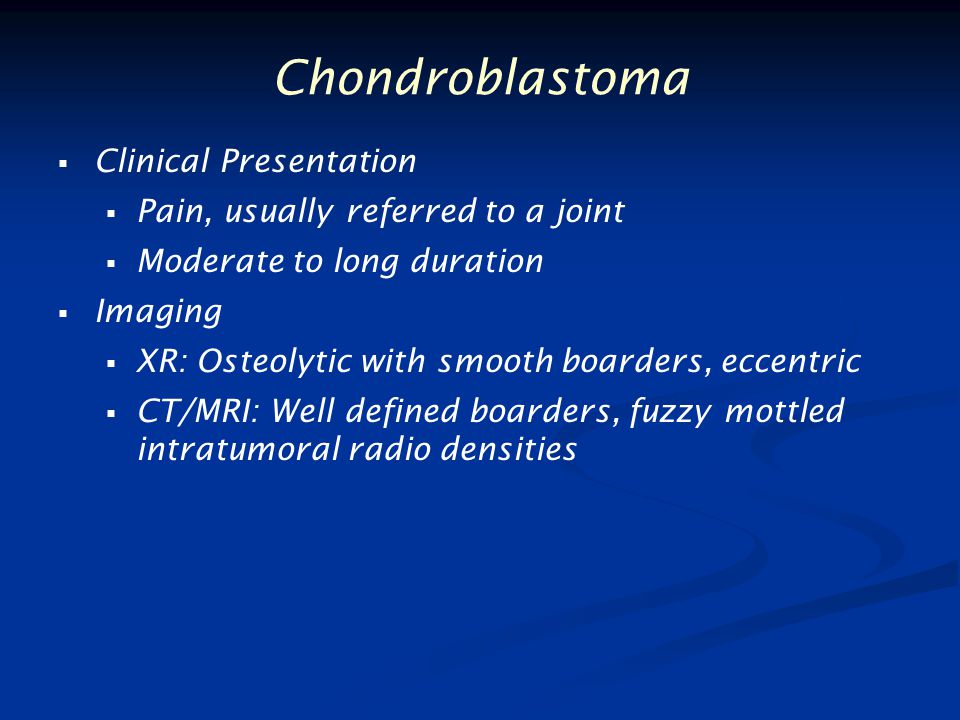

30   Clinical Presentation   Pain, usually referred to a joint   Moderate to long duration   Imaging   XR: Osteolytic with smooth boarders, eccentric   CT/MRI: Well defined boarders, fuzzy mottled intratumoral radio densities Chondroblastoma

31   Gross   Rubbery soft with sharp limits toward the surrounding bone   Pink to gray to tan in color   Whitish foci or chalky granules (calcifications)   Histo   Highly cellular: Chondroblasts and Giant cells   Pathognomonic: calcium in fine granules deposited on a reticular network producing a “chicken-wire” pattern Chondroblastoma

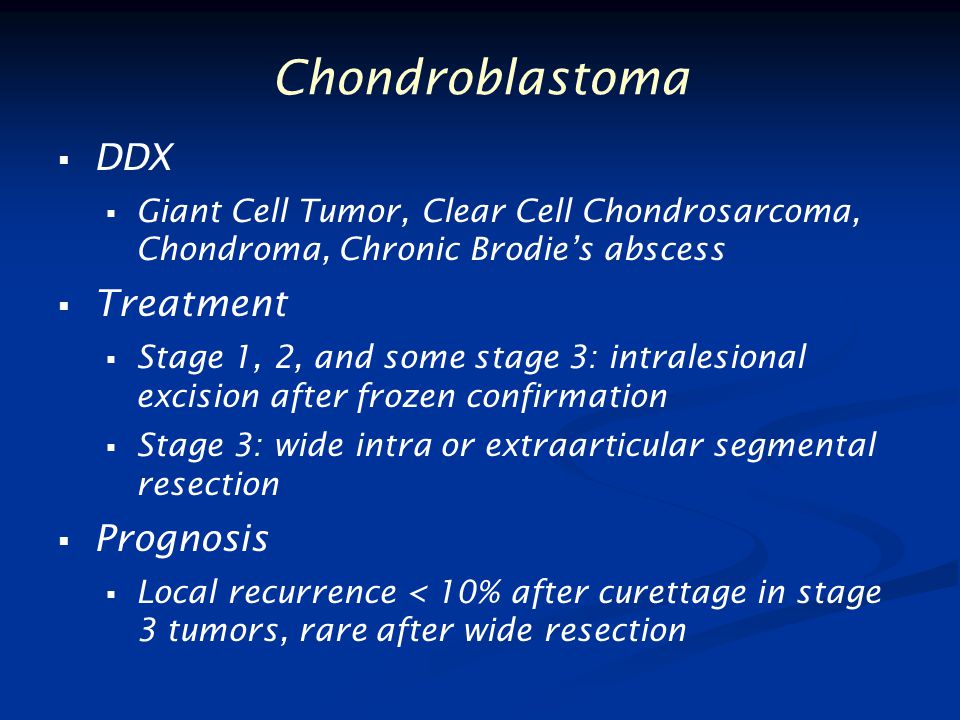

32   DDX   Giant Cell Tumor, Clear Cell Chondrosarcoma, Chondroma, Chronic Brodie’s abscess   Treatment   Stage 1, 2, and some stage 3: intralesional excision after frozen confirmation   Stage 3: wide intra or extraarticular segmental resection   Prognosis   Local recurrence < 10% after curettage in stage 3 tumors, rare after wide resection Chondroblastoma

33

34 Case 7 T.L year old male with left elbow pain and swelling after a fall

35 Osteomyelitis   Bone Infection   Acute hematogenous, subacute focal disease, and chronic types   Epidemiology   Most common in infants and children   Declining incidence due to better dx/tx   Staph aureus most common in all age groups

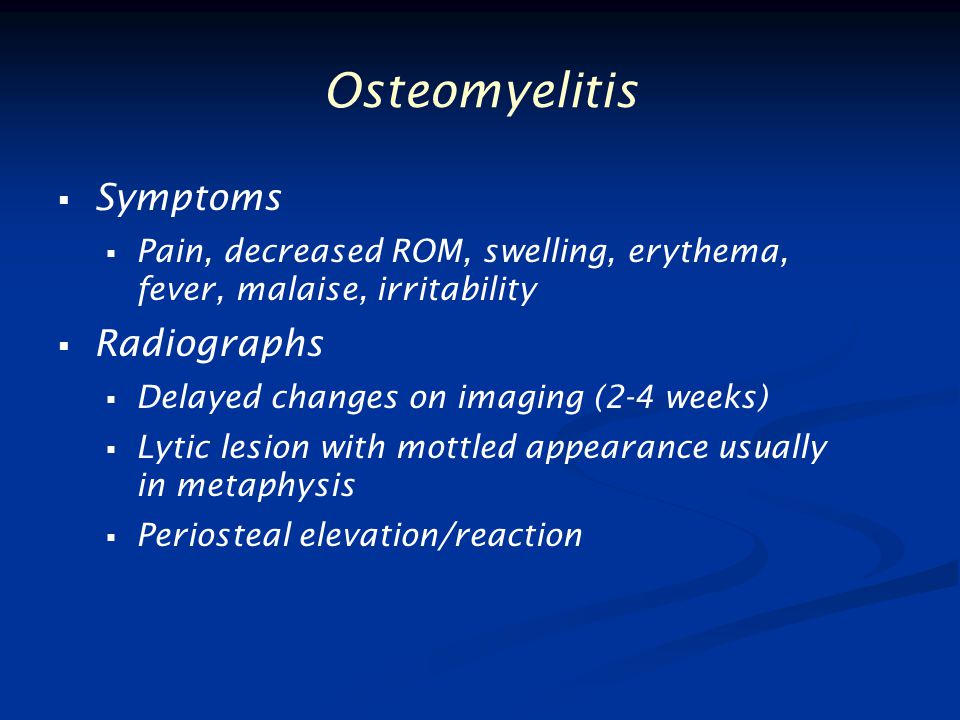

36 Osteomyelitis   Symptoms   Pain, decreased ROM, swelling, erythema, fever, malaise, irritability   Radiographs   Delayed changes on imaging (2-4 weeks)   Lytic lesion with mottled appearance usually in metaphysis   Periosteal elevation/reaction

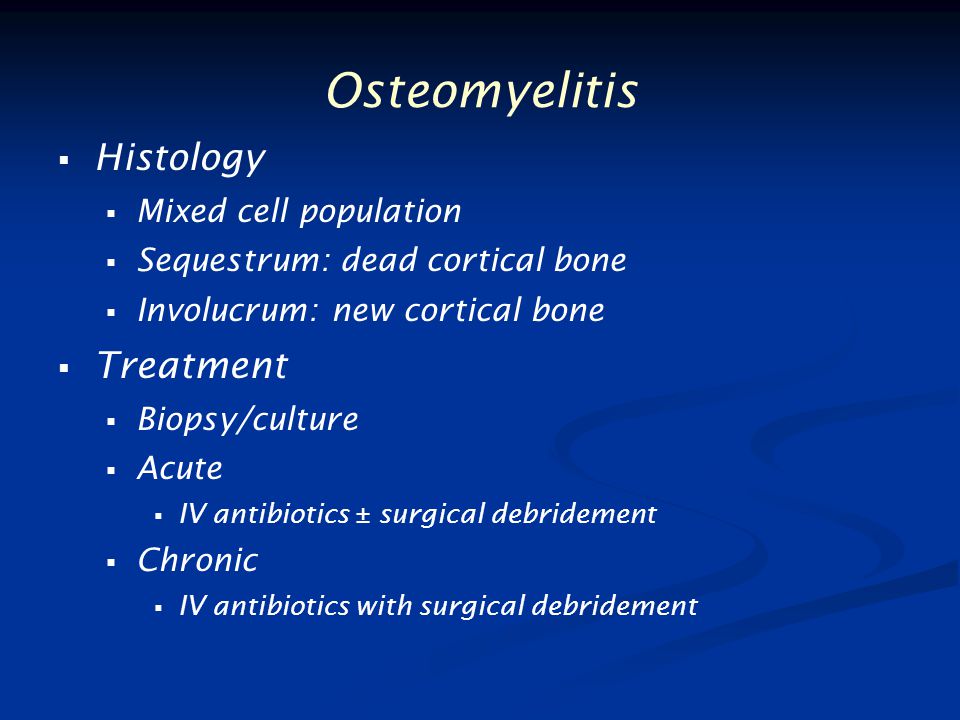

37 Osteomyelitis   Histology   Mixed cell population   Sequestrum: dead cortical bone   Involucrum: new cortical bone   Treatment   Biopsy/culture   Acute   IV antibiotics ± surgical debridement   Chronic   IV antibiotics with surgical debridement

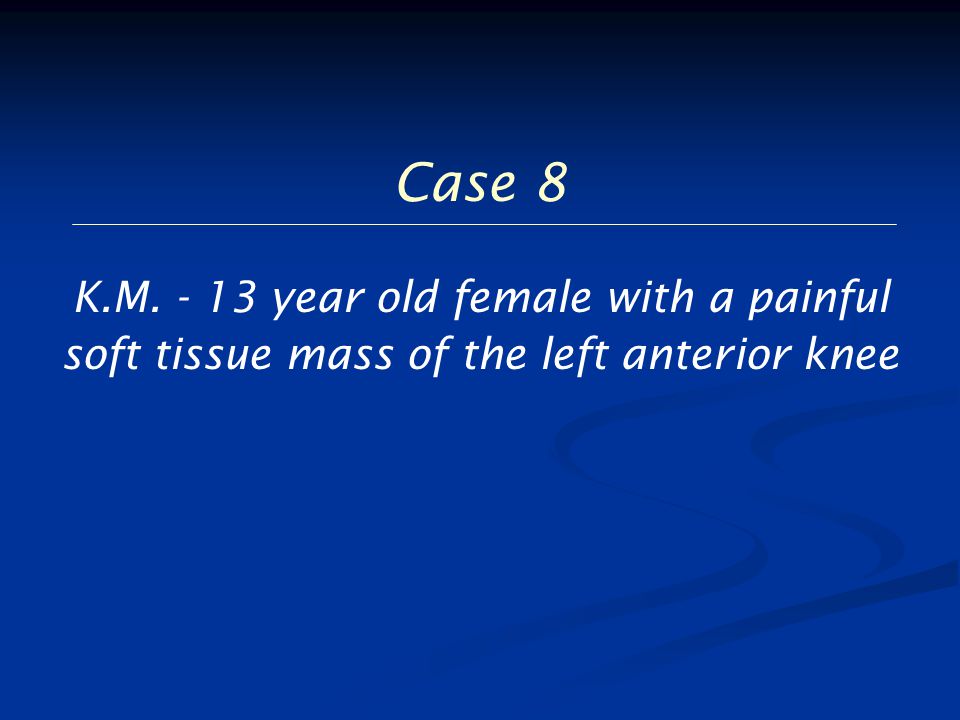

38 Case 8 K.M year old female with a painful soft tissue mass of the left anterior knee

39 Epithelioid Granulomatous Inflammation   Chronic inflammation   A compact collection of cells of the mononuclear phagocyte system   Types   Low Turnover: Foreign body   High Turnover: Epithelioid, hypersensitivity   Treatment   Marginal excision

40 Case 9 N.S year old male with a chest wall mass discovered on an x-ray for suspected bronchitis

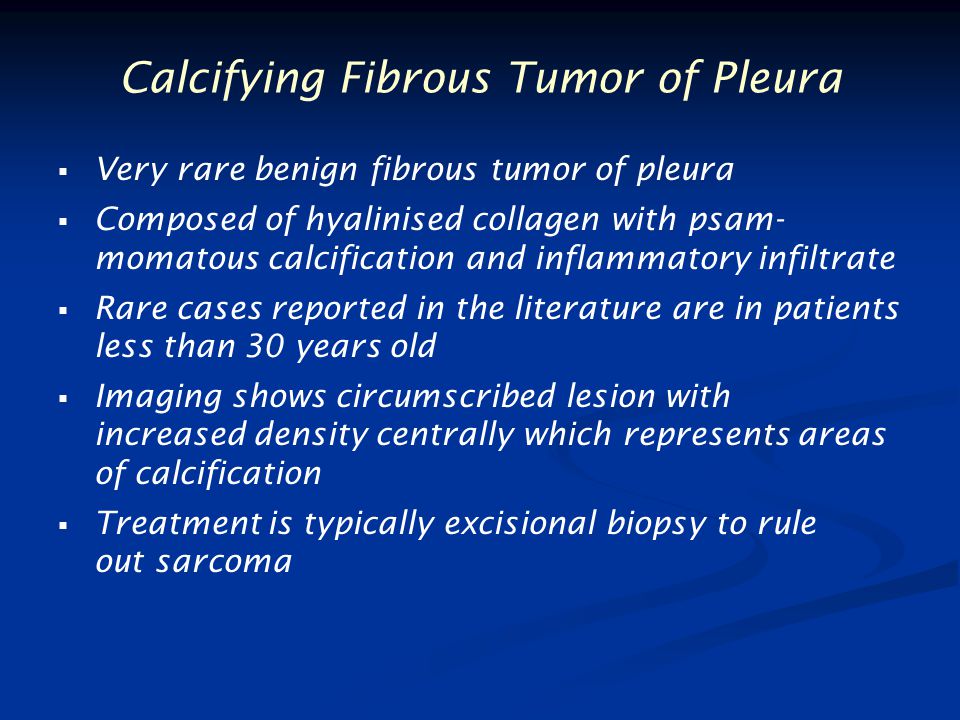

41 Calcifying Fibrous Tumor of Pleura   Very rare benign fibrous tumor of pleura   Composed of hyalinised collagen with psam- momatous calcification and inflammatory infiltrate   Rare cases reported in the literature are in patients less than 30 years old   Imaging shows circumscribed lesion with increased density centrally which represents areas of calcification   Treatment is typically excisional biopsy to rule out sarcoma

42 Case 10 A.Z year old female with left distal thigh pain and swelling for several weeks

43 B-Cell Lymphoma   Neoplasm of B-Lymphocytes   Most common Non-Hodgkin lymphoma   Fourth through seventh decades   Primary lymph node disease   Extranodal sites   More than 50% of patients will have extranodal involvement at diagnosis   Primary bone lymphomas are rare   (5% of extranodal disease)   Most common site is the thigh

44 Large B Cell Lymphoma of Soft Tissue   Symptoms   Often mild and prolonged before diagnosis   Radiographs   Lytic lesion with “moth eaten” appearance   Histology   Dense sheets of round cells   CD-20 positive

45 Large B Cell Lymphoma of Soft Tissue   Treatment   Combined chemotherapy and radiation to bony sites   Chemo: Cytoxan, adriamycin, vincristine, and prednisone   If remission is obtained by 6 cycles of chemo, cure rates approximate 60-70%

46
