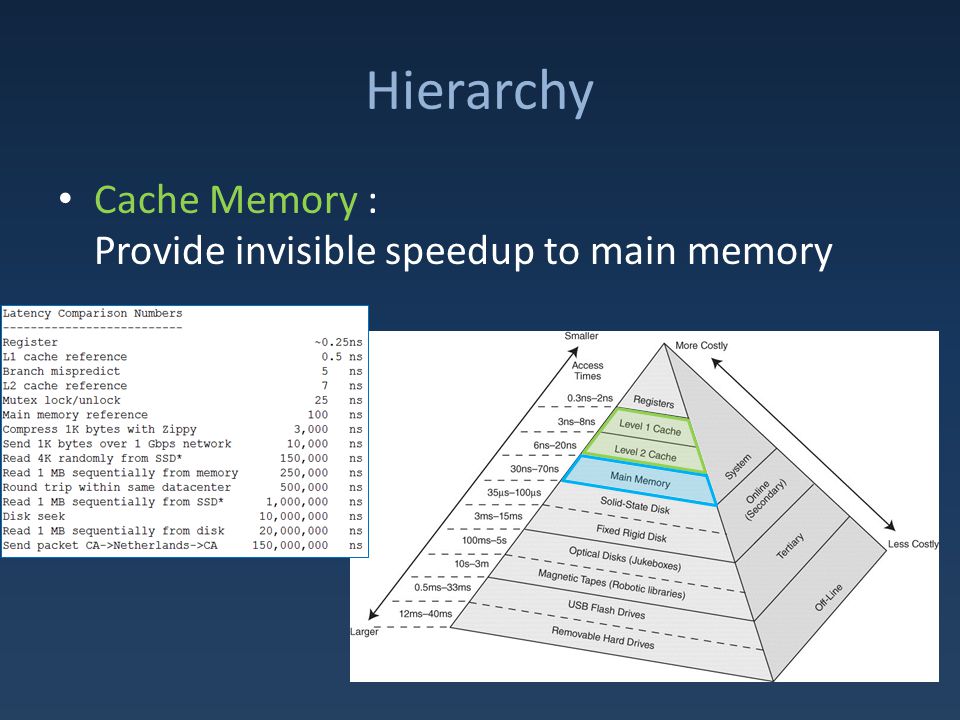

Hierarchy Cache Memory : Provide invisible speedup to main memory
Hierarchy Virtual Memory : Provide invisible extension to main memory
Virtual Memory How Why? – Allows multiple programs to coexist invisibly Each program thinks it has all memory

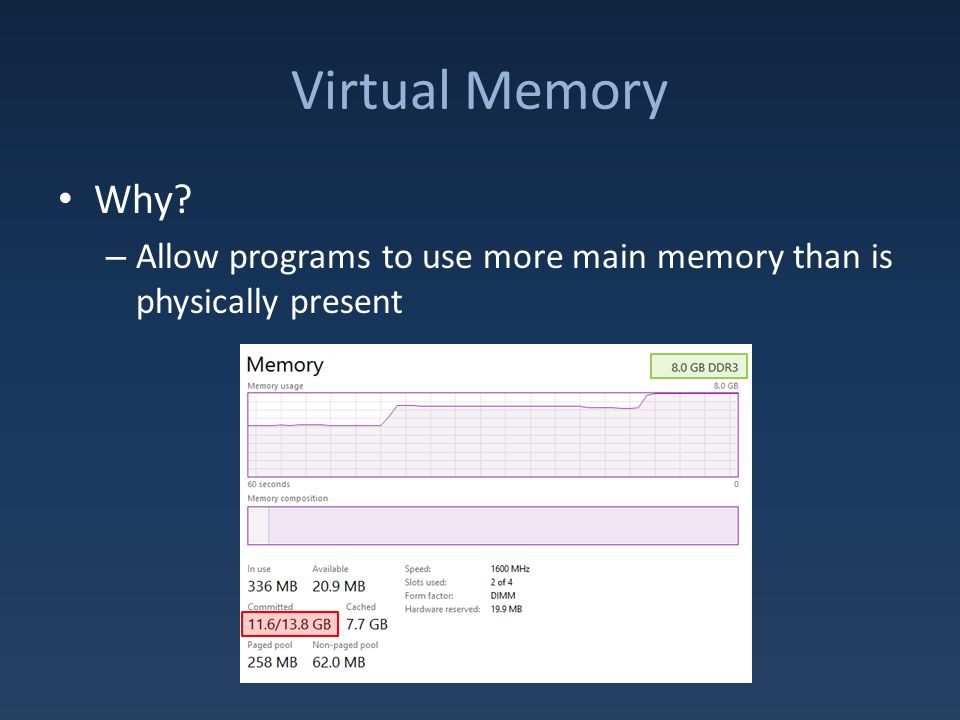

Virtual Memory Why? – Allow programs to use more main memory than is physically present
Terminology Virtual Address : address program uses Physical Address : real address in RAM virtual address is mapped to
Terminology Page : block of memory in virtual address space Page Frame : location in physical memory a page is placed
Terminology Page Fault : request for a page that is not in physical memory Paging : copying desired page from hard drive to RAM I need this address:

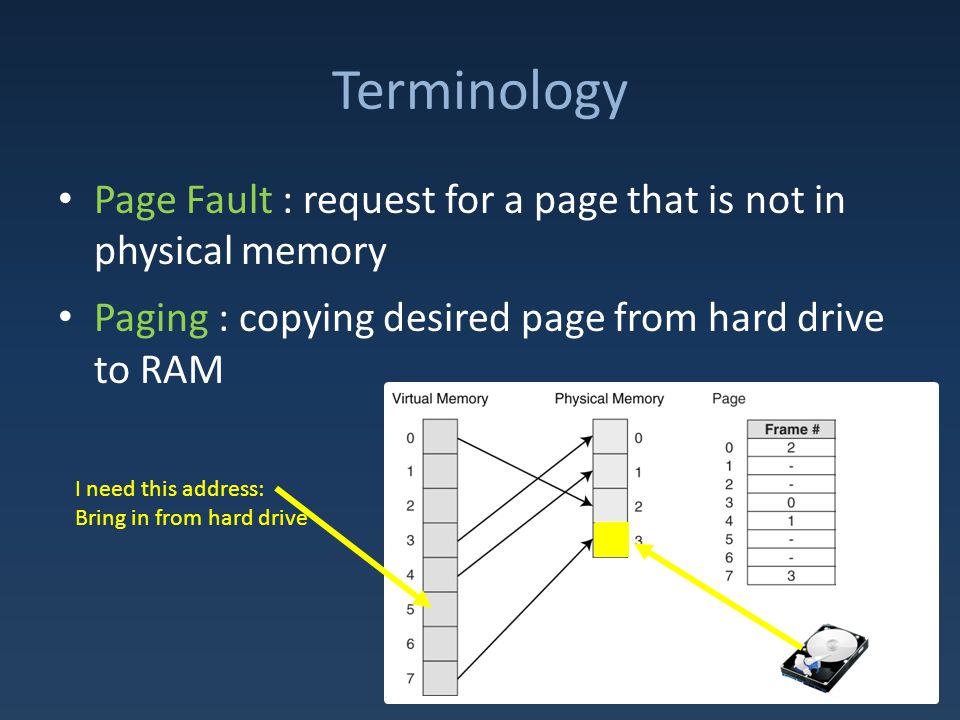

Terminology Page Fault : request for a page that is not in physical memory Paging : copying desired page from hard drive to RAM I need this address: Bring in from hard drive

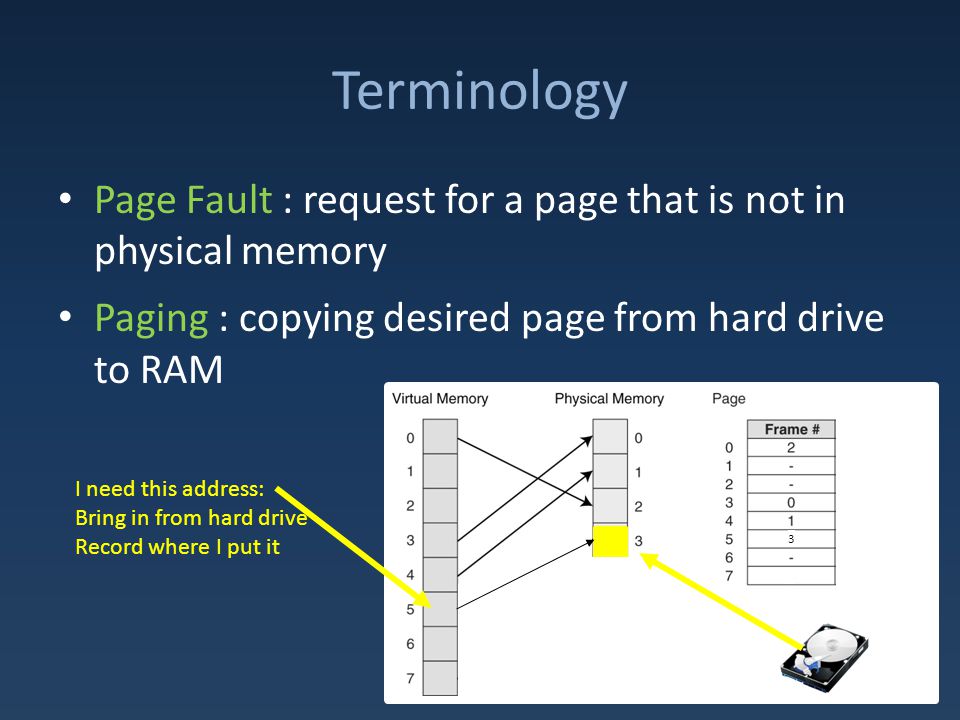

Terminology Page Fault : request for a page that is not in physical memory Paging : copying desired page from hard drive to RAM I need this address: Bring in from hard drive Record where I put it 3
Paging Page Table : Records frame frame block mapping – Valid bit : records if page present – Dirty bit : modified, needs to be stored

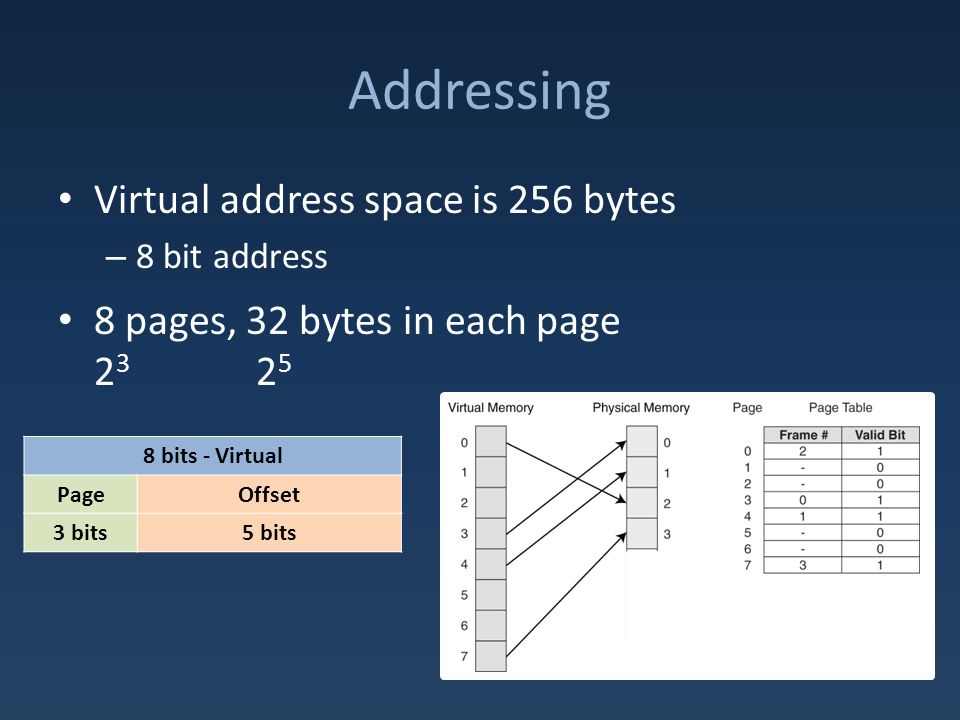

Addressing Virtual address space is 256 bytes – 8 bit address 8 pages, 32 bytes in each page 2 3 2 5 8 bits - Virtual PageOffset 3 bits5 bits
Addressing Physical memory is 128 bytes – 7 bit address 4 page frames, 32 bytes in each 2 2 2 5 7 bits - Physical Page Frame Offset 2 bits5 bits
Mapping Program asks for virtual address: 00001101 8 bits - Virtual PageOffset 000 Page 0 01101 Byte 13
Mapping Program asks for virtual address: 00001101 Page Table says that is page frame 2 : 10 8 bits - Virtual PageOffset 000 Page 0 01101 Byte 13 7 bits - Physical Page Frame Offset 10 Frame 2
Mapping Program asks for virtual address: 00001101 Page Table says that is page frame 2 : 10 Offset in frame same as offset in page: 01101 8 bits - Virtual PageOffset 000 Page 0 01101 Byte 13 7 bits - Physical Page Frame Offset 10 Frame 2 01101 Byte 13
Mapping Program asks for virtual address: 00001101 Gets value at: 1001101 8 bits - Virtual PageOffset 000 Page 0 01101 Byte 13 7 bits - Physical Page Frame Offset 10 Frame 2 01101 Byte 13

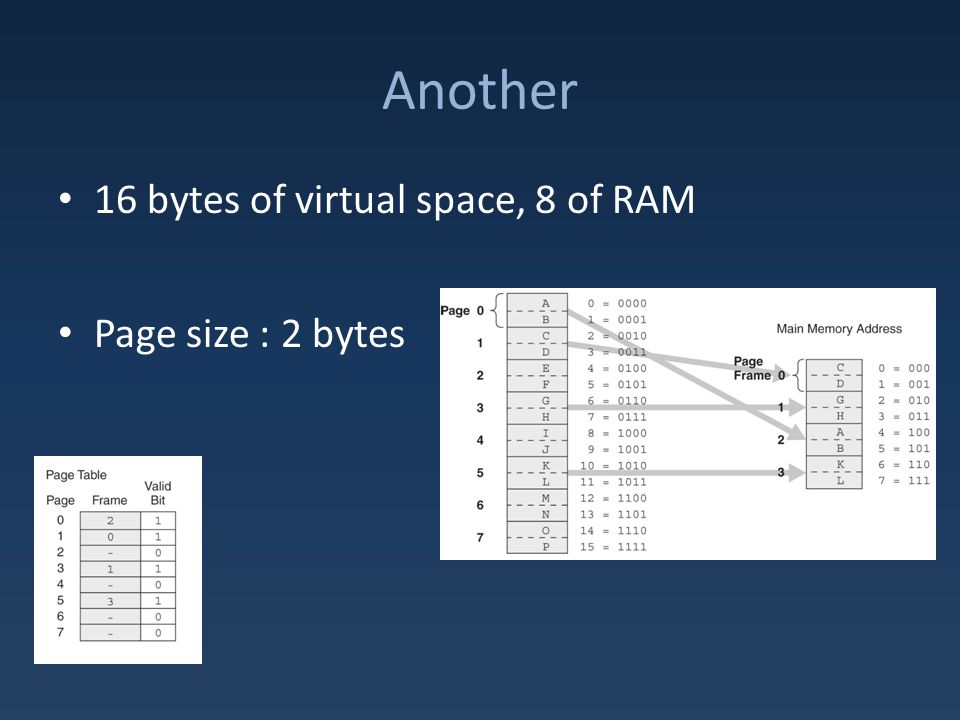

Another 16 bytes of virtual space, 8 of RAM Page size : 2 bytes
Another 16 bytes of virtual space, 8 of RAM 4 bit address3 bit address Page size : 2 bytes 1 bit offset What does 0111 map to?

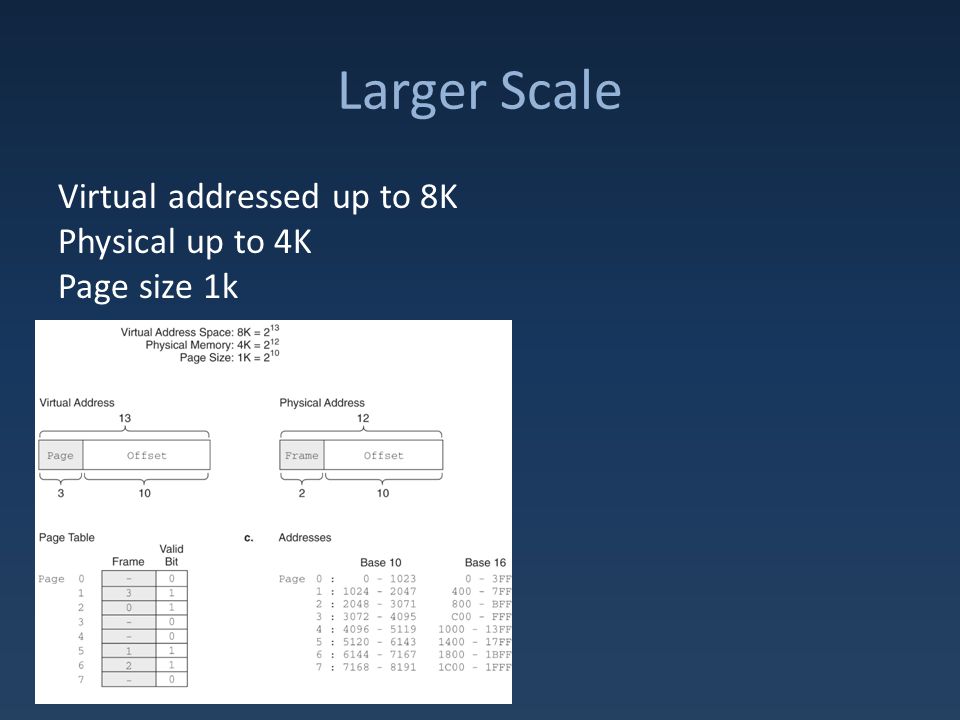

Larger Scale Virtual addressed up to 8K Physical up to 4K Page size 1k

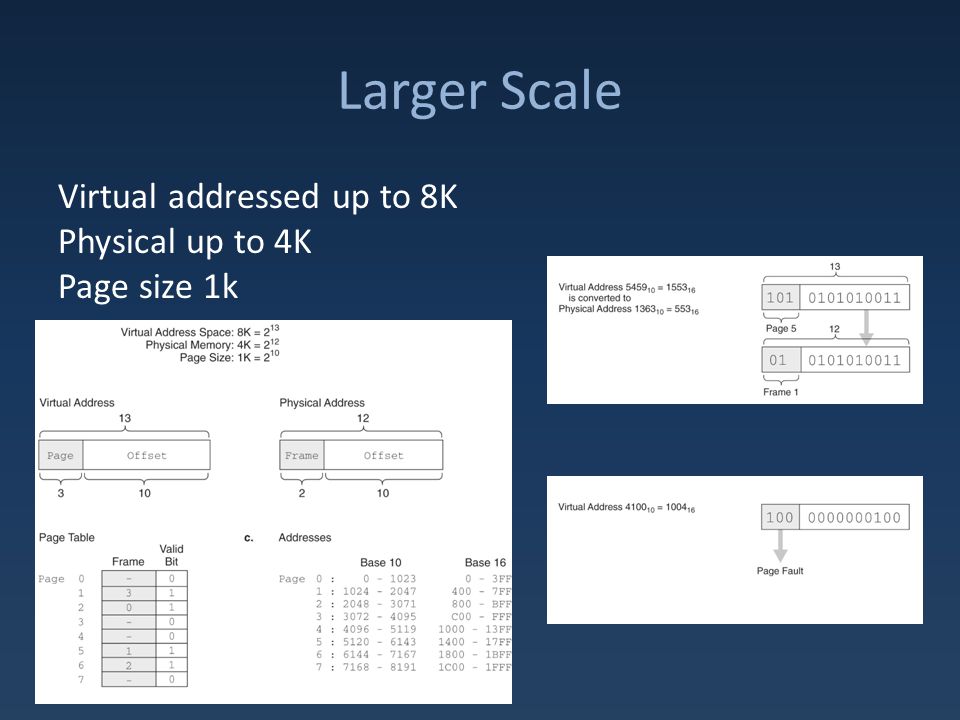

Larger Scale Virtual addressed up to 8K Physical up to 4K Page size 1k

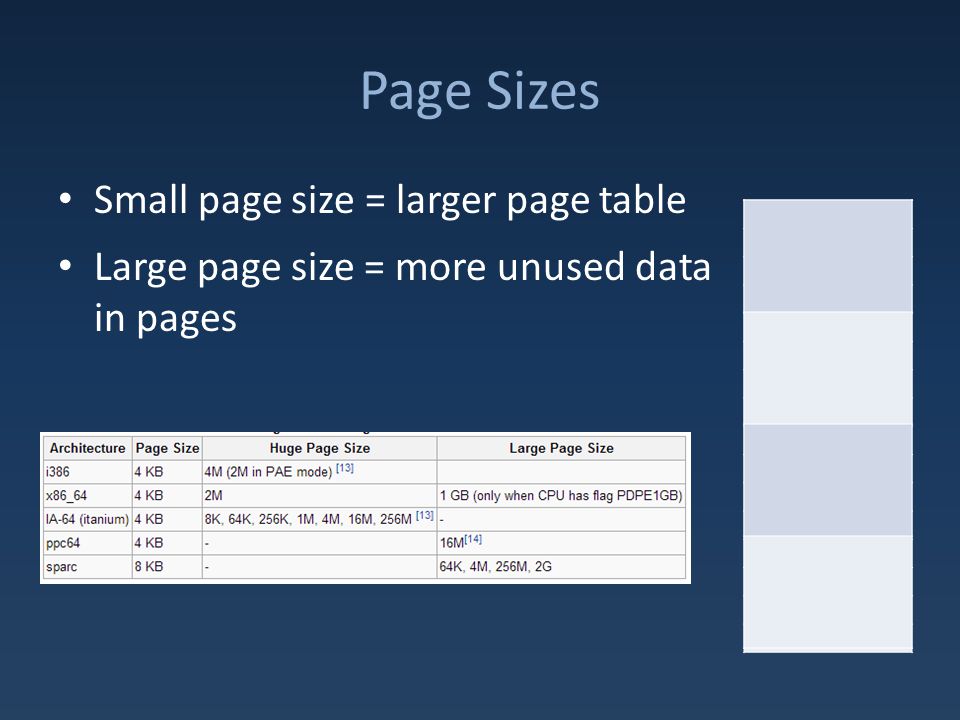

Page Sizes Small page size = larger page table
Page Sizes Small page size = larger page table Large page size = more unused data in pages
Paging & Caching Page table held in main memory by OS
Paging & Caching Page table held in main memory by OS Every mapping goes to main memory… Cache is worthless!
TLB Transition look-aside buffer Cache for page table – Subset of page table – Fully associative – May be multiple levels
TLB Using TLB
