1
Ch 3 Introduction to Linear Programming By Kanchala Sudtachat

2

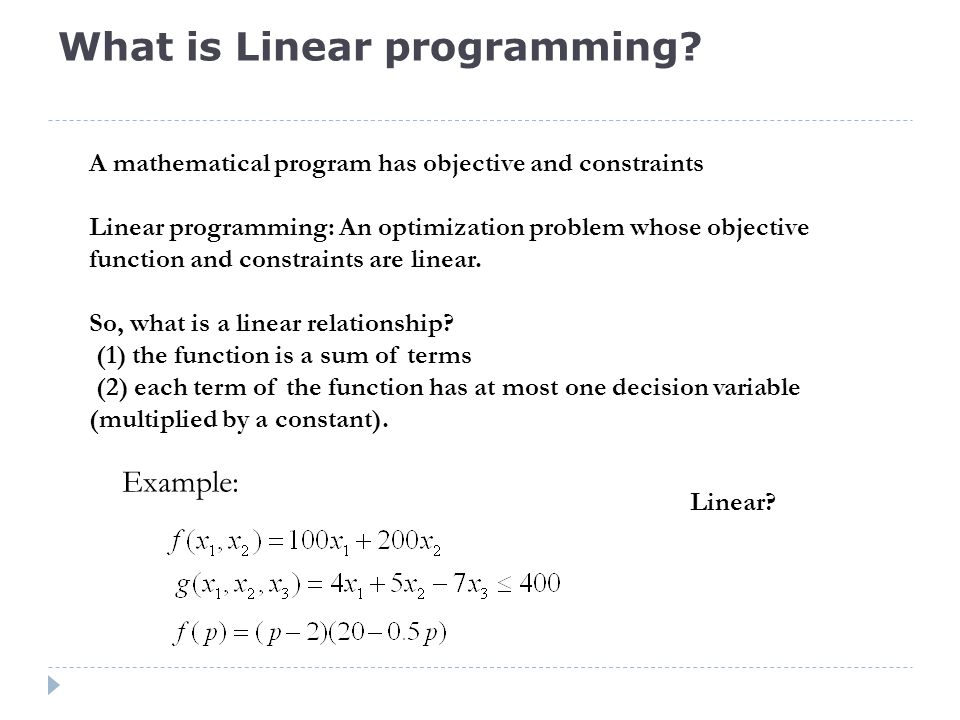

What is Linear programming? A mathematical program has objective and constraints Linear programming: An optimization problem whose objective function and constraints are linear. So, what is a linear relationship? (1) the function is a sum of terms (2) each term of the function has at most one decision variable (multiplied by a constant). Example: Linear?

3

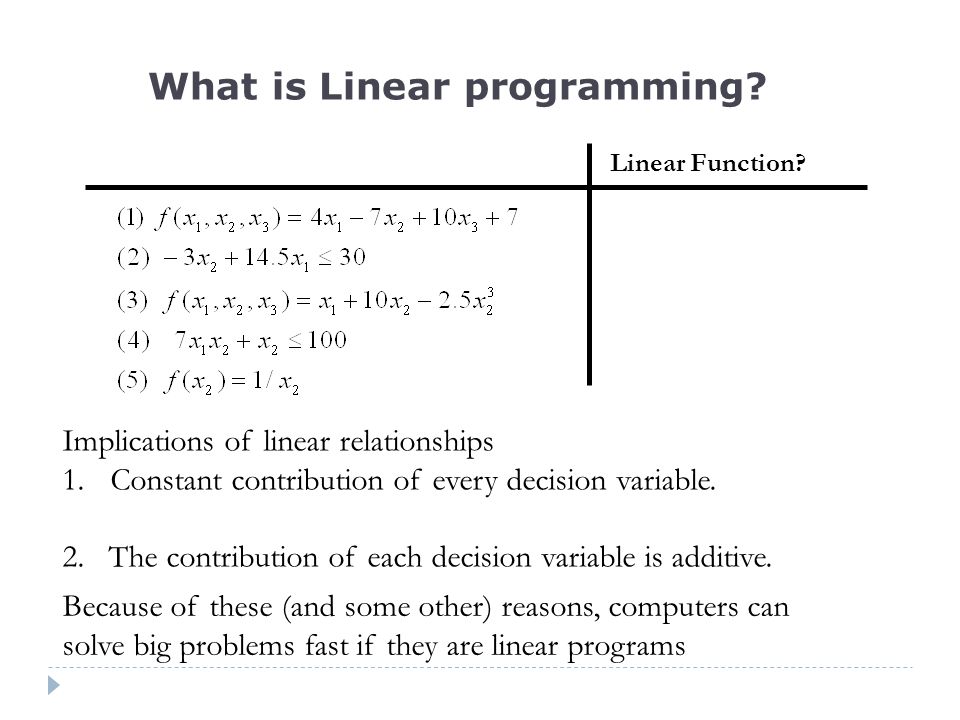

Linear Function? Implications of linear relationships 1.Constant contribution of every decision variable. 2. The contribution of each decision variable is additive. Because of these (and some other) reasons, computers can solve big problems fast if they are linear programs What is Linear programming?

4
Step 1: Identify Decision Variables: Step 2: Determine Objective function: Step 3: Determine Constraints: Step 4: Sign Restrictions: LP “four”mulation

5

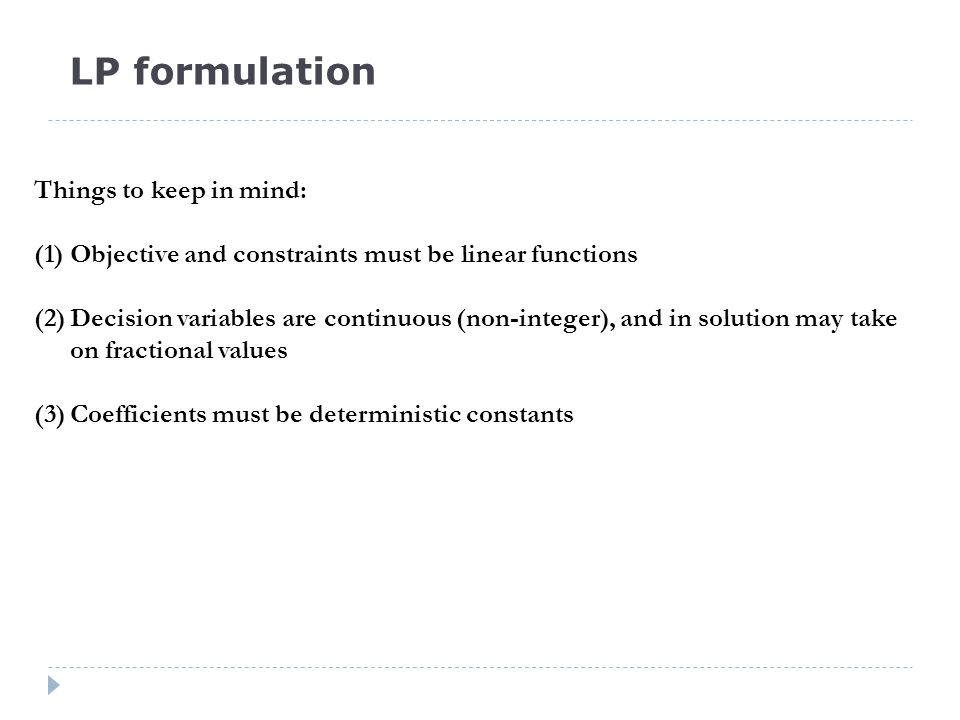

Things to keep in mind: (1)Objective and constraints must be linear functions (2)Decision variables are continuous (non-integer), and in solution may take on fractional values (3)Coefficients must be deterministic constants LP formulation

6
Ex1 Giapetto’s Woodcarving

8

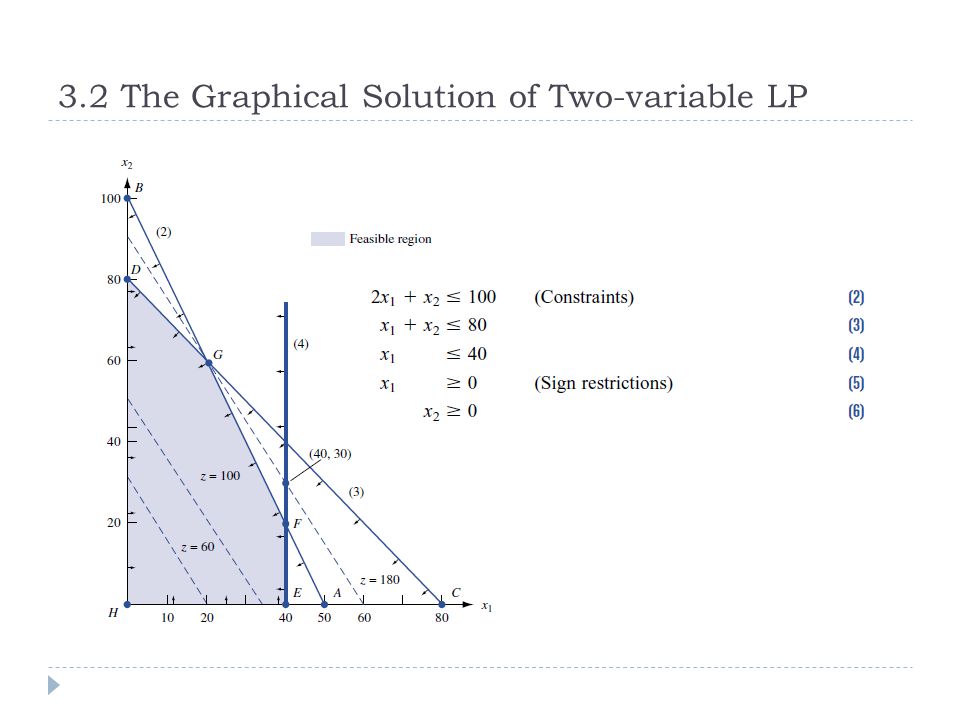

3.2 The Graphical Solution of Two-variable LP

9
Binding and Nonbinding Constraints

10
The Graphical Solution to Minimization Problems Ex 2 Dorian Auto

11
Ex 2 Dorian Auto

12
3.3 Special Cases We encounter three types of LPs that do not have unique optimal solutions. 1. Some LPs have an infinite number of optimal solutions (alternative or multiple optimal solutions). 2. Some LPs have no feasible solutions (infeasible LPs) 3. Some LPs are unbounded: There are points in the feasible region with arbitrarily large (in a max problem) z-values.

13
Ex 3 Alternative or Multiple Optimal Solutions

15
Ex 4 Infeasible LP

16
Ex 5 Unbounded LP

17
Every LP with two variables (4 cases) Case 1: The LP has a unique optimal solution. Case 2: The LP has alternative or multiple optimal solution Case 3: The LP is infeasible: the feasible region contains no points. Case 4: The LP is unbounded: There are points in the feasible region with arbitrarily large z- values (max problem or arbitrarily small z-values (min problem)

18
3.4 A Diet Problem

19
3.5 A Work-Scheduling Problem Ex 7 Post Office Problem

20
3.8 Blending Problems Ex 12: Oil Blending

21
3.9 Production Process Models Ex 13 Brute Production Process

22
Ex 14 Sailco Inventory
