1 Sales Kit (Internal Use Only) ISK 110 VESA Gaming Enthusiast Corporate

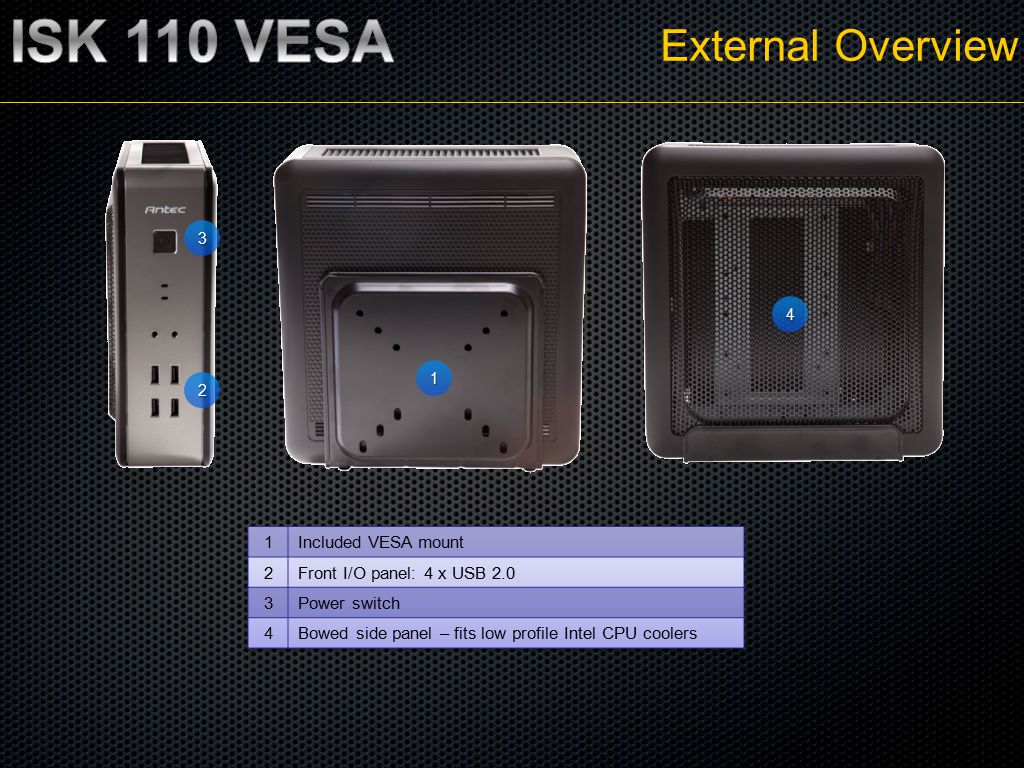

2 External Overview

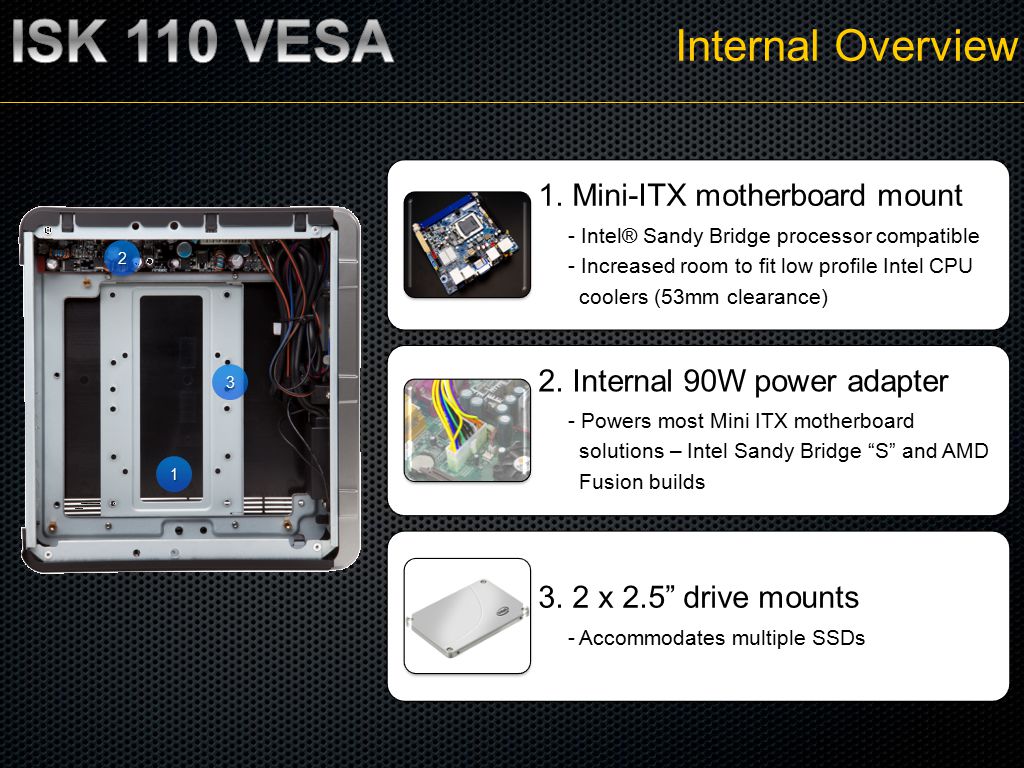

3 1. Mini-ITX motherboard mount - Intel® Sandy Bridge processor compatible - Intel® Sandy Bridge processor compatible - Increased room to fit low profile Intel CPU - Increased room to fit low profile Intel CPU coolers (53mm clearance) coolers (53mm clearance) 2. Internal 90W power adapter - Powers most Mini ITX motherboard - Powers most Mini ITX motherboard solutions – Intel Sandy Bridge “S” and AMD solutions – Intel Sandy Bridge “S” and AMD Fusion builds Fusion builds 3. 2 x 2.5” drive mounts - Accommodates multiple SSDs - Accommodates multiple SSDs Internal Overview3 2 1

4 Perfected with customer feedback Customers spoke, we listened. Redesigned for smart, practical SI builds. Improvements from ISK 100: Improvements from ISK 100: - Included VESA mount for SI mounting applications - no mounting applications - no stand included stand included - No side fan increases CPU - No side fan increases CPU cooler space – 53mm of cooler space – 53mm of space (Intel low profile CPU space (Intel low profile CPU cooler) cooler)

5 Overall Features Versatility VESA mount allows for extreme flexibility in product application Small form factor case applicable for corporate, commercial, HTPC use Convenience Includes pre- installed 90W power supply Fits Intel low-profile CPU coolers (53mm clearance) Mounts for two SSDs 4 x front panel USB 2.0 ports Style Discreet, small, stylish design Fits perfectly into corporate or commercial environments

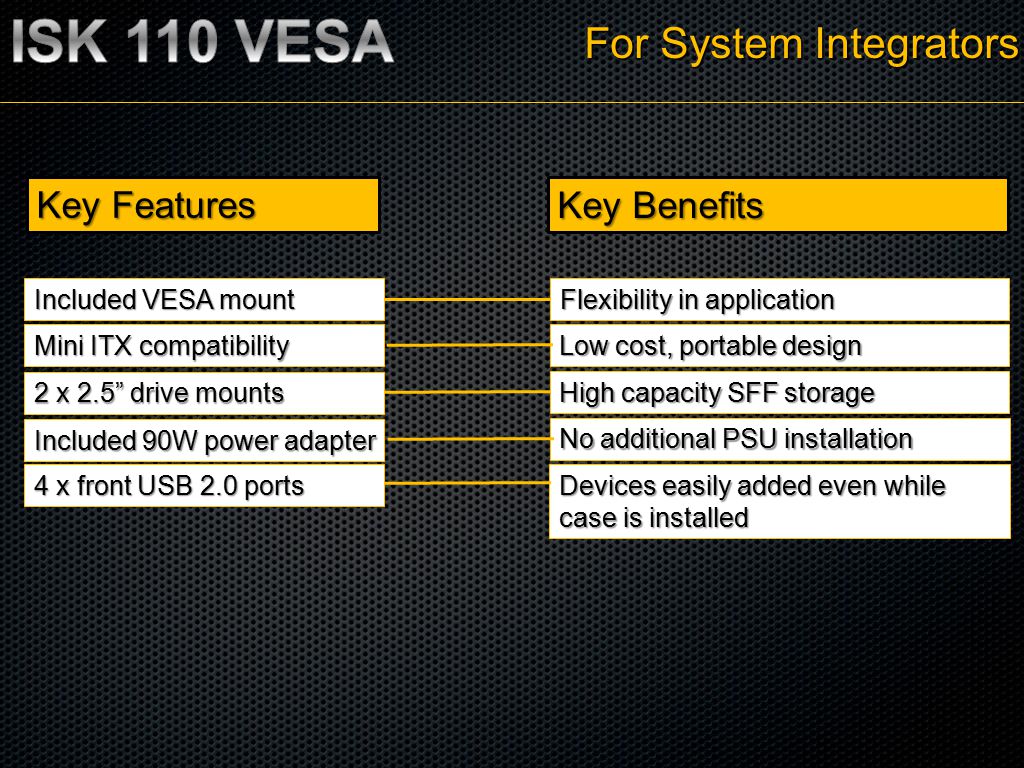

6 Included VESA mount Mini ITX compatibility 2 x 2.5” drive mounts 4 x front USB 2.0 ports Key Features Flexibility in application Low cost, portable design High capacity SFF storage Devices easily added even while case is installed Key Benefits Included 90W power adapter No additional PSU installation For System Integrators

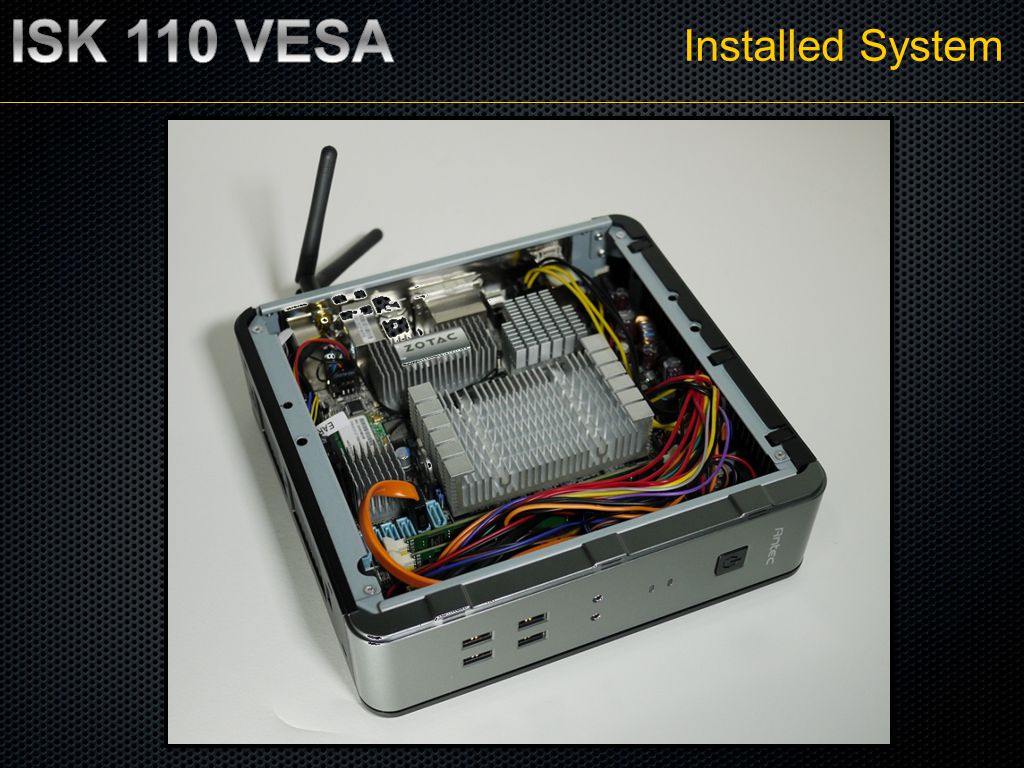

7 Installed System

8 Sample Applications HTPC Thin Client Environments Medical Applications Digital Signage

9 Sample Applications Corporate Builds Point of Sale Limited Only by Your Imagination

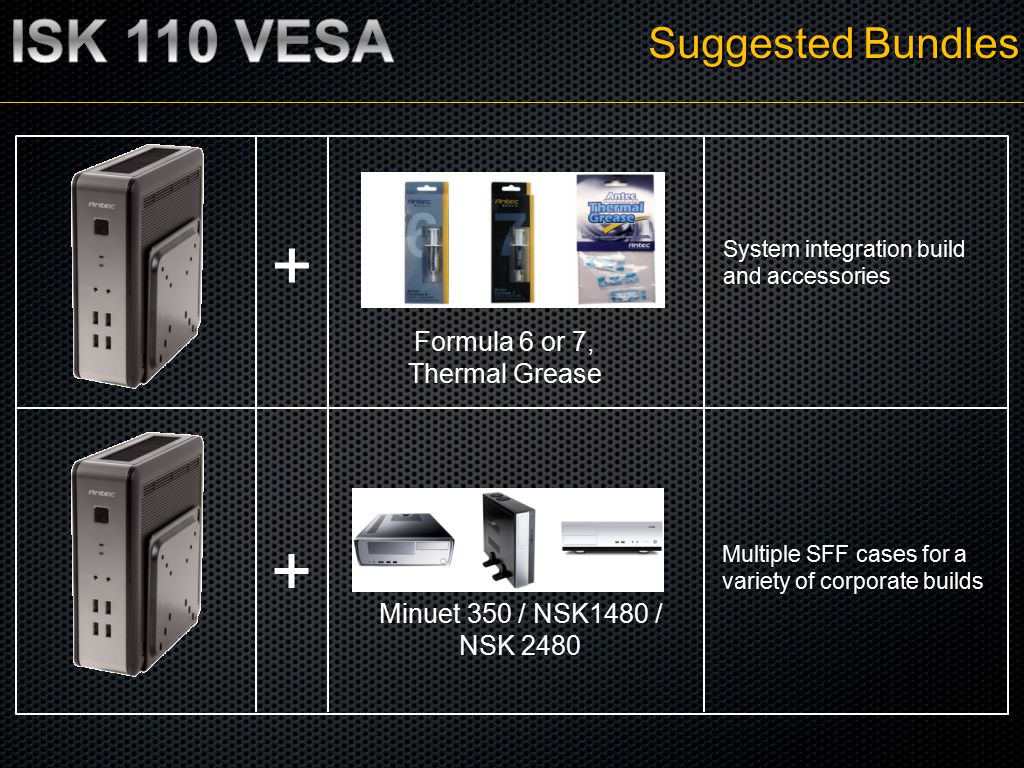

10 Suggested Bundles Formula 6 or 7, Thermal Grease System integration build and accessories Minuet 350 / NSK1480 / NSK 2480 Multiple SFF cases for a variety of corporate builds + +

11 Purchasing Information Product Package Dimensions255 mm x 126 mm x 460 mm 10” x 5” x 18.1” Master Carton4 pcs Net weight4.0 lbs / 1.8 kg 20’ Container Quantity2176 pcs 40’ Container Quantity4512 pcs 40’ HQ Container Quantity5080 pcs
