Copyright © The McGraw-Hill Companies, Inc. Permission required for reproduction or display. Chapter 2 Fundamental Concepts of Equipment Economics

2

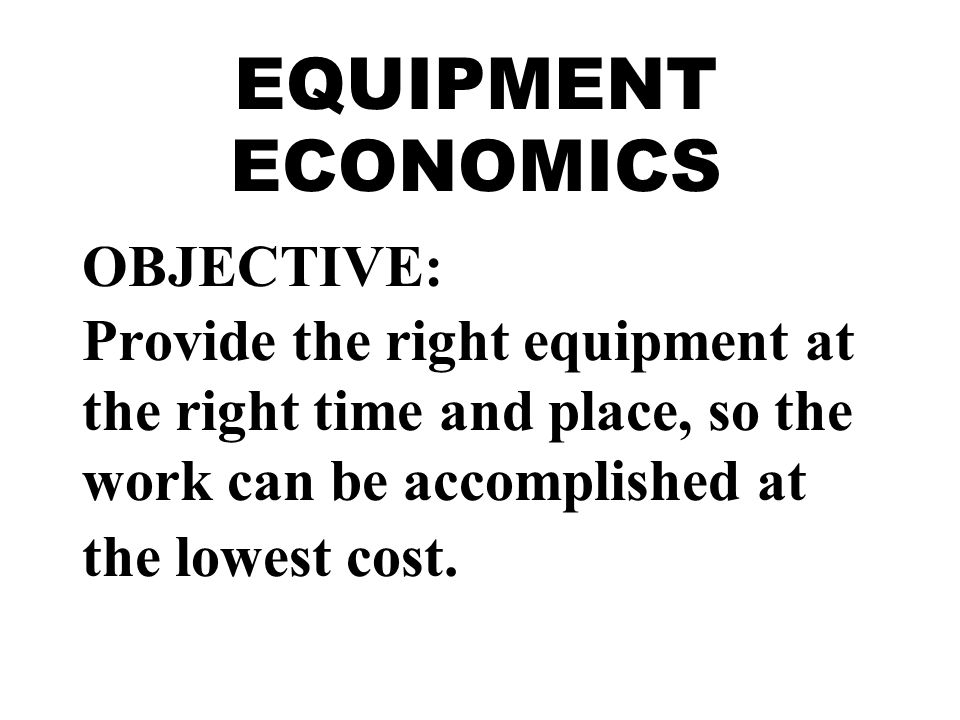

EQUIPMENT ECONOMICS OBJECTIVE: Provide the right equipment at the right time and place, so the work can be accomplished at the lowest cost.

3

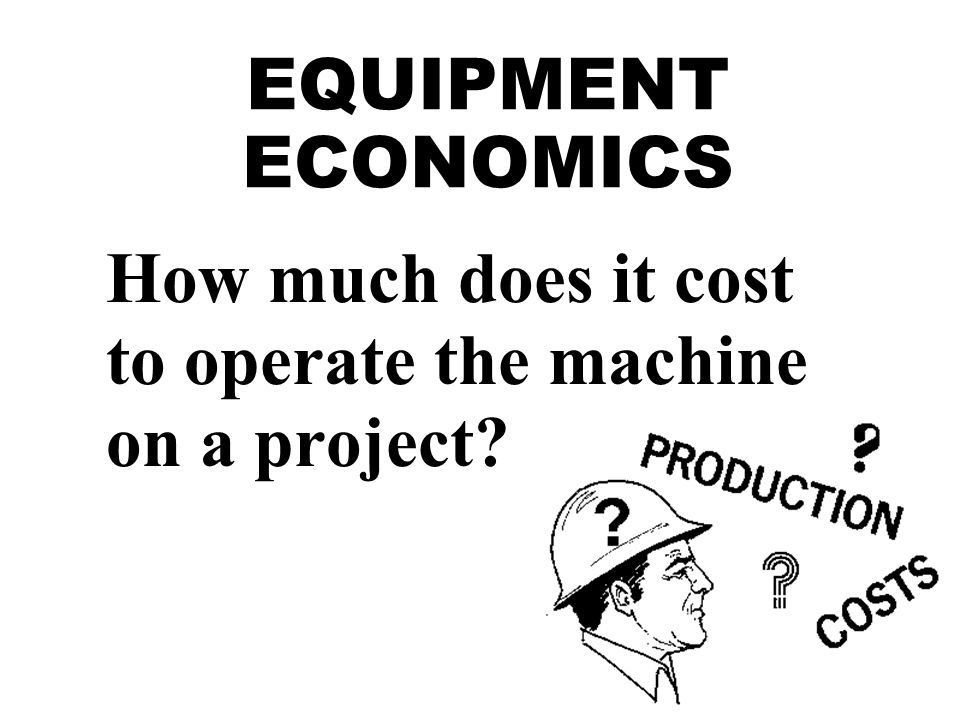

EQUIPMENT ECONOMICS How much does it cost to operate the machine on a project?

4

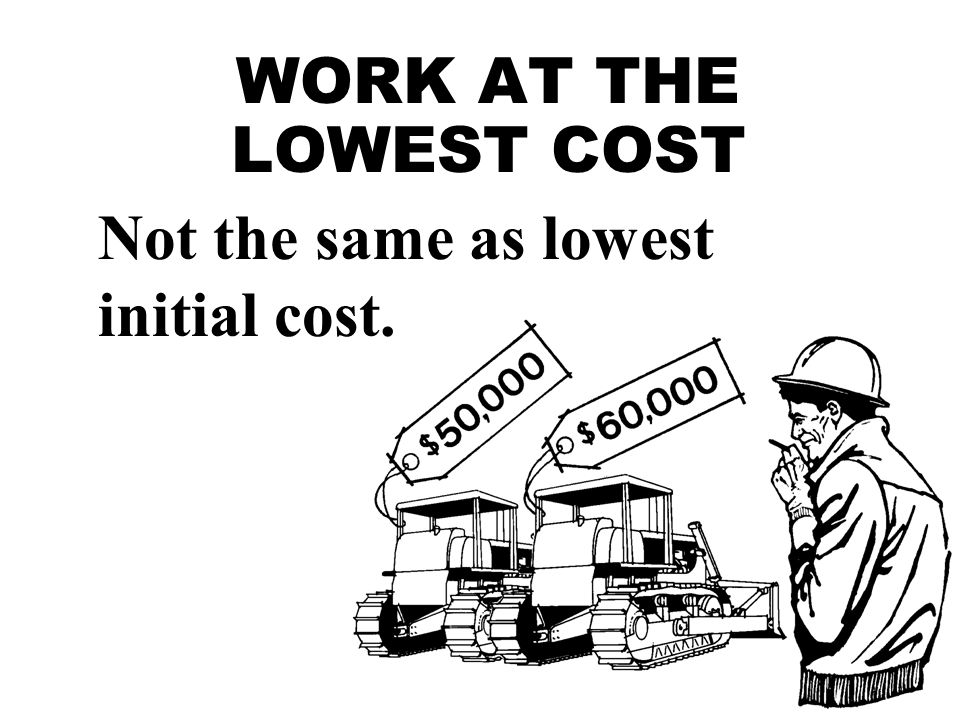

WORK AT THE LOWEST COST Not the same as lowest initial cost.

5

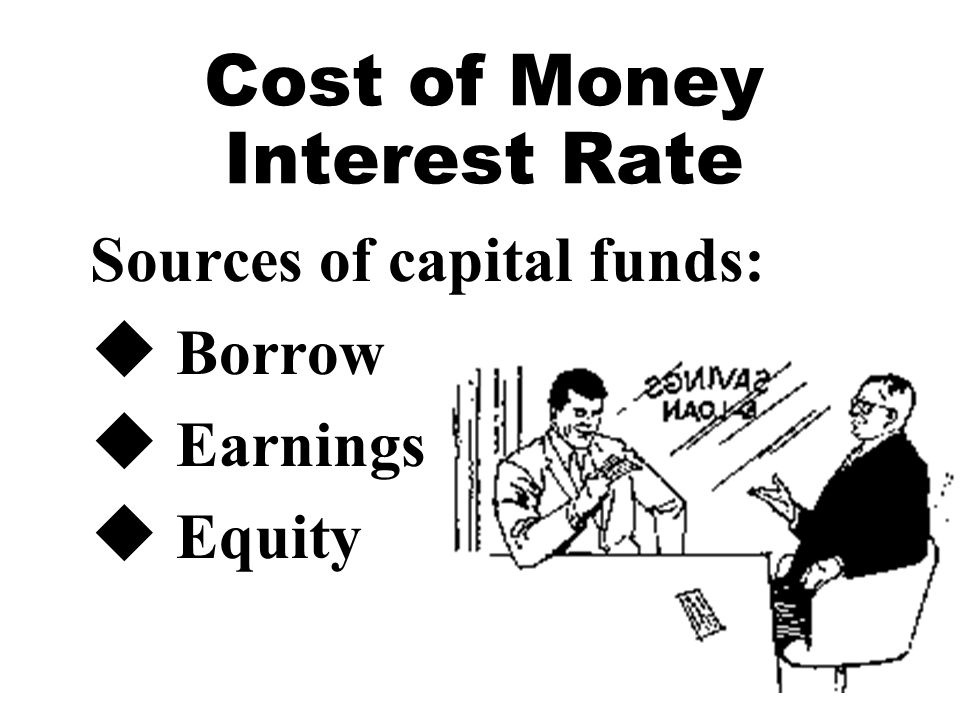

Cost of Money Interest Rate Sources of capital funds: u Borrow u Earnings u Equity

6

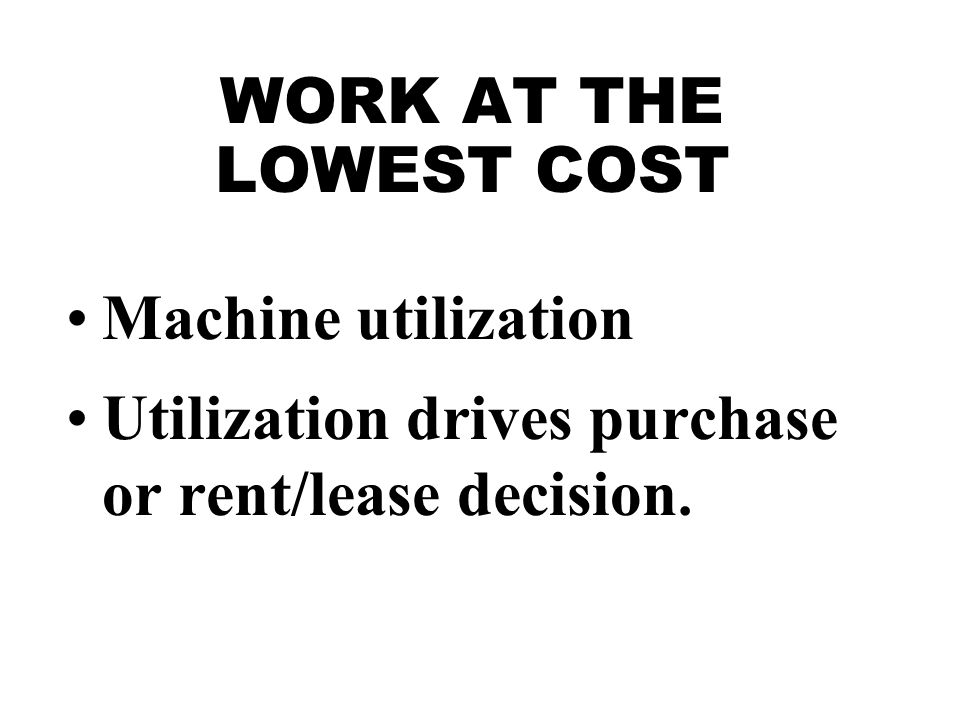

WORK AT THE LOWEST COST Machine utilization Utilization drives purchase or rent/lease decision.

7
SPECIFIC OBJECTIVES Minimize ownership and operating cost Increase availability Increase utilization

8
LIFE CYCLE COST Predicting costs of Ownership and Usage. Using that information in decision making.

9

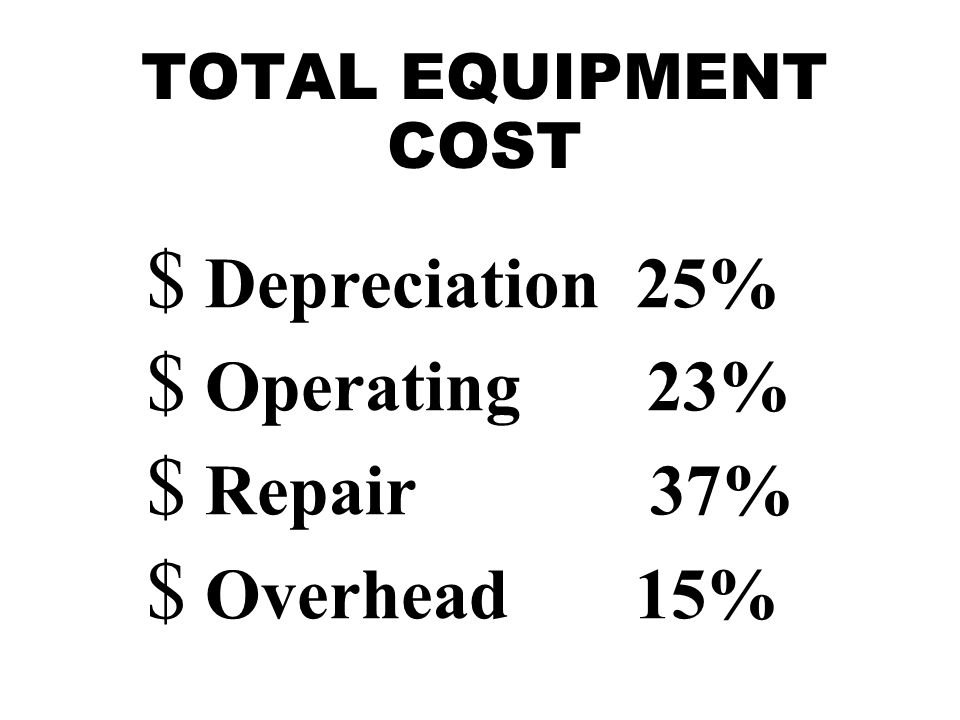

TOTAL EQUIPMENT COST $ Depreciation 25% $ Operating 23% $ Repair 37% $ Overhead 15%

10
EQUIPMENT COST Question No. 1 What is the largest single equipment cost?

11

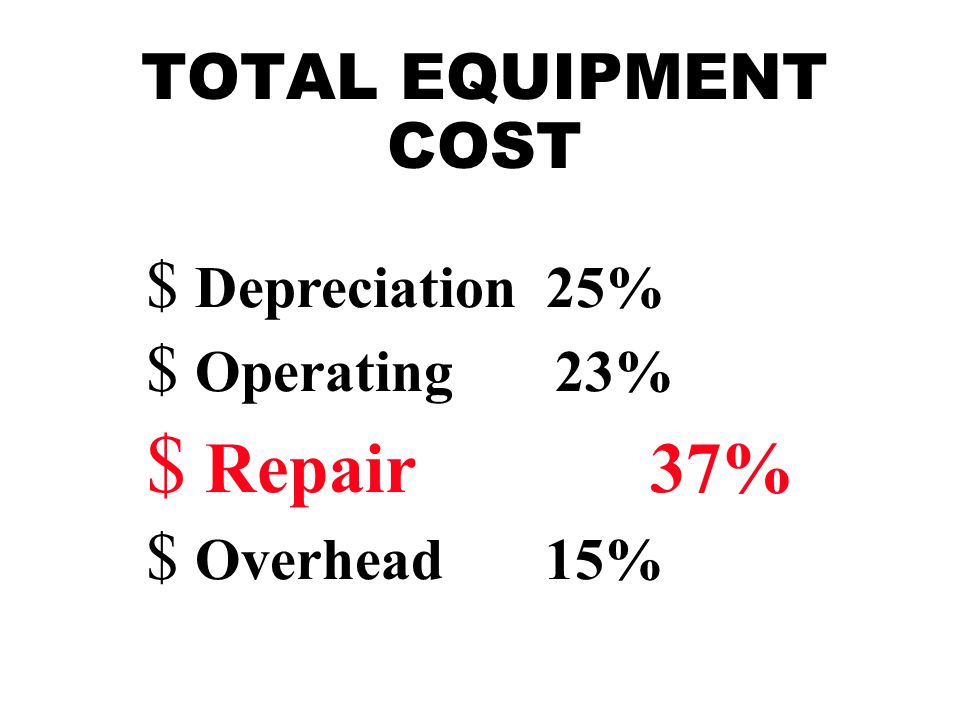

TOTAL EQUIPMENT COST $ Depreciation 25% $ Operating 23% $ Repair 37% $ Overhead 15%

12
INFORMATION SYSTEM Machine identification 4 Utilization data 4 Purchase cost 4 Repair cost 4 Operating charges FOG (fuel, oil, grease )

13
UTILIZATION DATA Load Speed Environment Underfoot

14
UTILIZATION Utilization is working time duration not calendar duration.

15
UTILIZATION DATA Basis of costing Hourly Daily Weekly Miles Fuel consumption

16

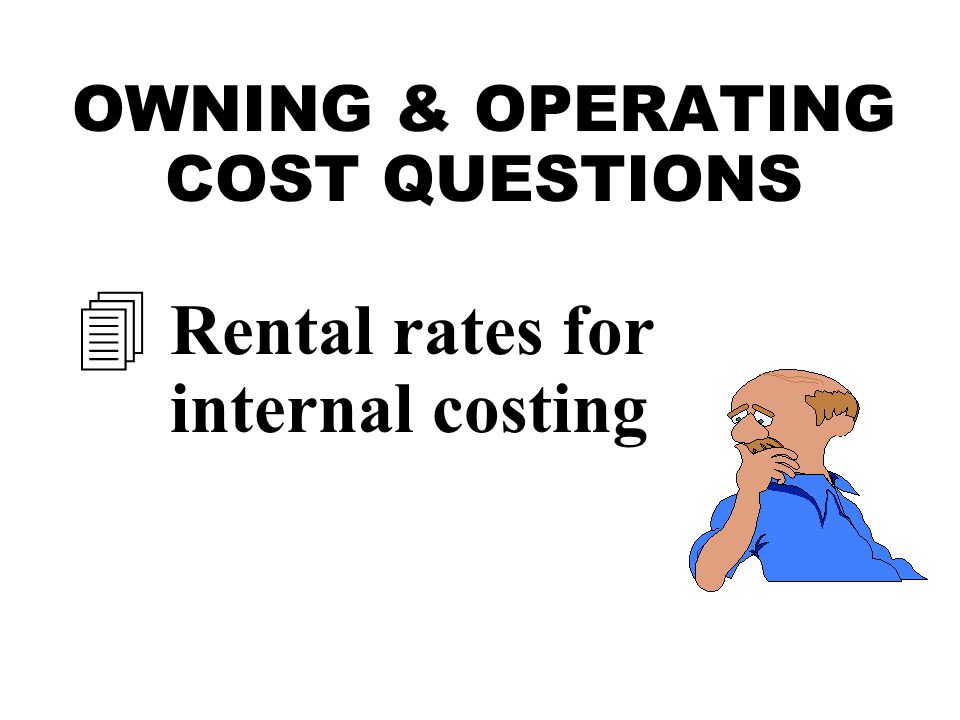

OWNING & OPERATING COST QUESTIONS 4 Rental rates for internal costing

17
OWNING & OPERATING COST QUESTIONS 4 Maintenance and PM decisions 4 Disposal/Replacement guidance

18
OWNERSHIP COST Depreciation (Purchase expense) 4 Insurance 4 Taxes 4 Salvage value 4 Shop expenses

19
OWNERSHIP COST Purchase price* - Salvage + Overhead = Ownership expense * A fixed cost, occurs if the machine works 1,000 or 17,000 hrs

20
OWNERSHIP COST Usage Cost

21
Average Hours to Replacement Rollers 9,500 Wheel loaders12,300 Crawler dozers 12,500 Hydraulic excavators12,500 Graders14,300 Scrapers16,100 Off-highway trucks18,300

22
OWNERSHIP COST Question No. 2 Regardless of how much a machine is used, the owner must pay owning cost. True False

23
OWNERSHIP COST Question No. 2 Regardless of how much a machine is used, the owner must pay owning cost. True False

24

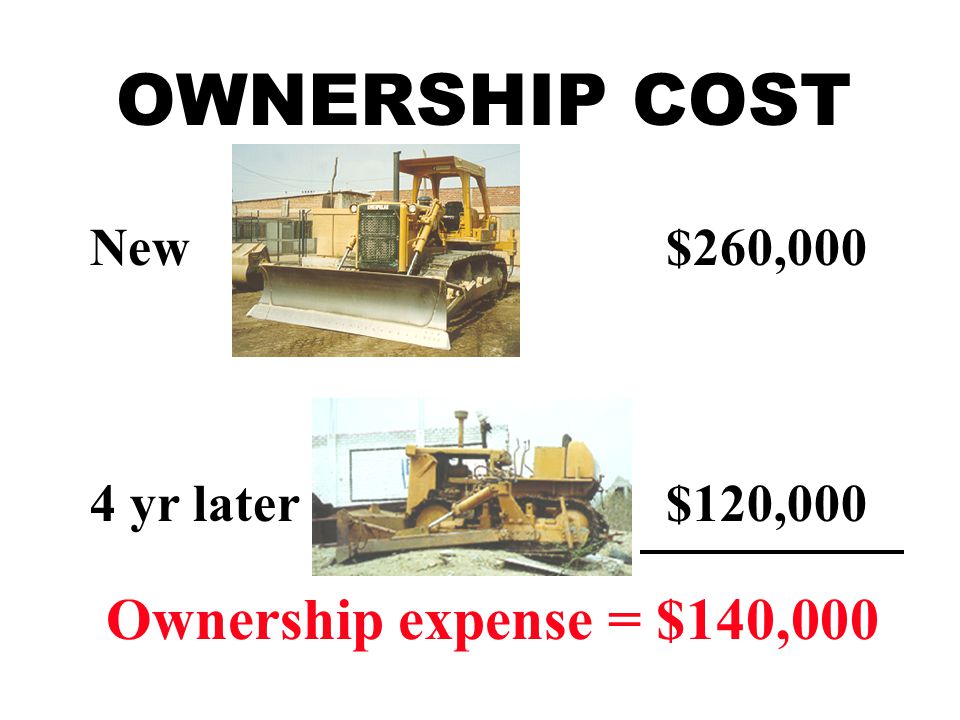

OWNERSHIP COST Ownership expense = $140,000 New$260,000 4 yr later$120,000

25

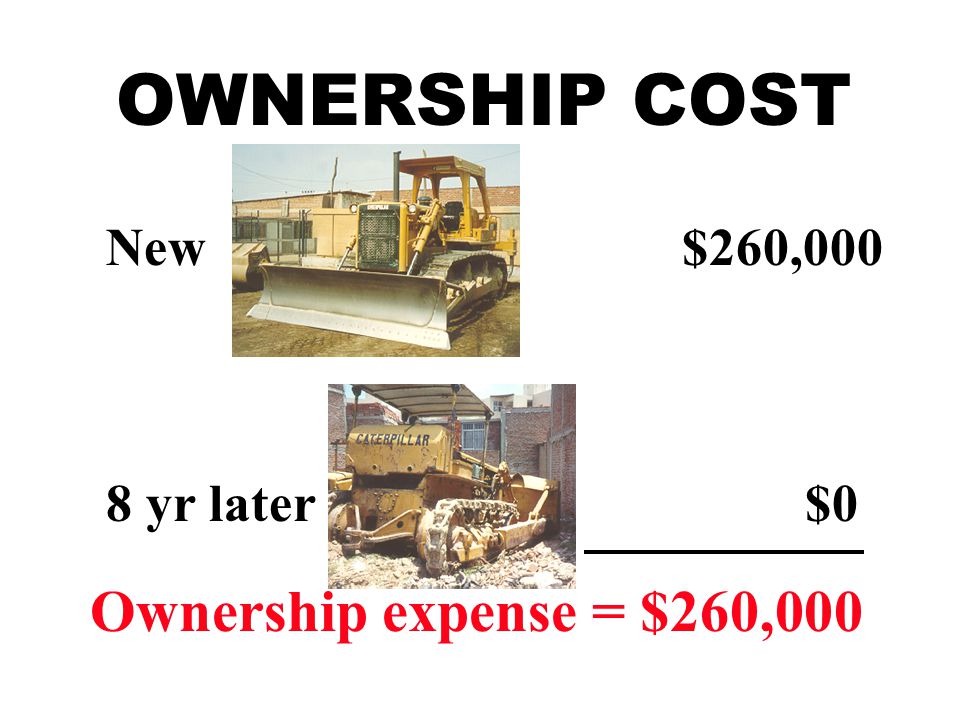

OWNERSHIP COST Ownership expense = $260,000 New$260,000 8 yr later $0

26

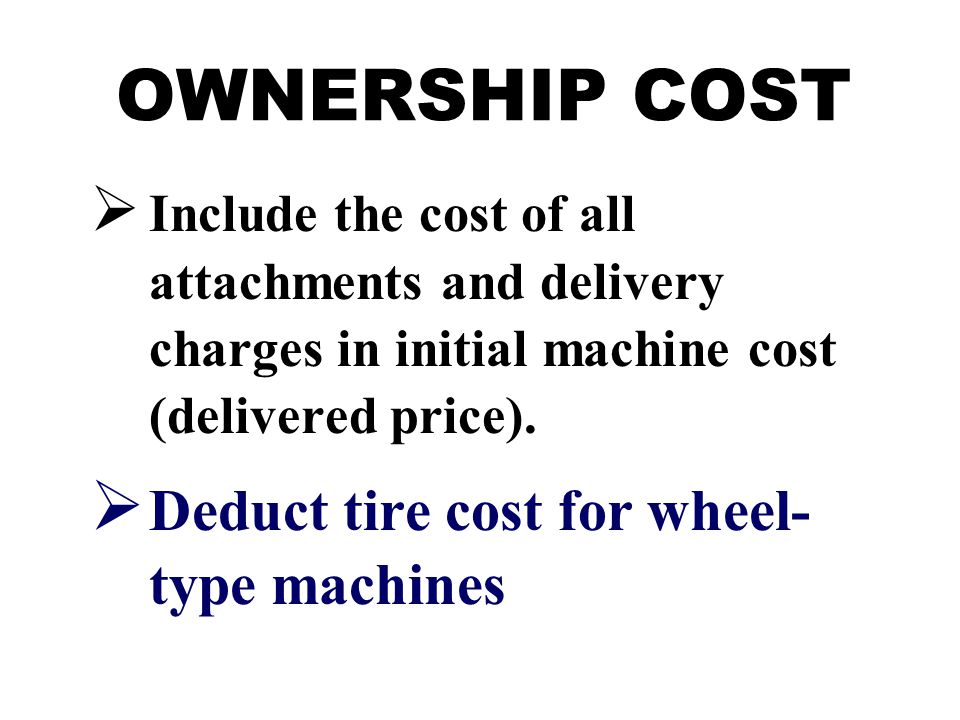

OWNERSHIP COST Include the cost of all attachments and delivery charges in initial machine cost (delivered price). Deduct tire cost for wheel- type machines

27
OWNERSHIP COST Question No. 3 Machine owning cost includes which of the expenses listed? $ Repairs $ Insurance $ Fuel $ Taxes

28
OWNERSHIP COST Question No. 3 Machine owning cost includes which of the expenses listed? $ Repairs $ Insurance $ Fuel $ Taxes

29

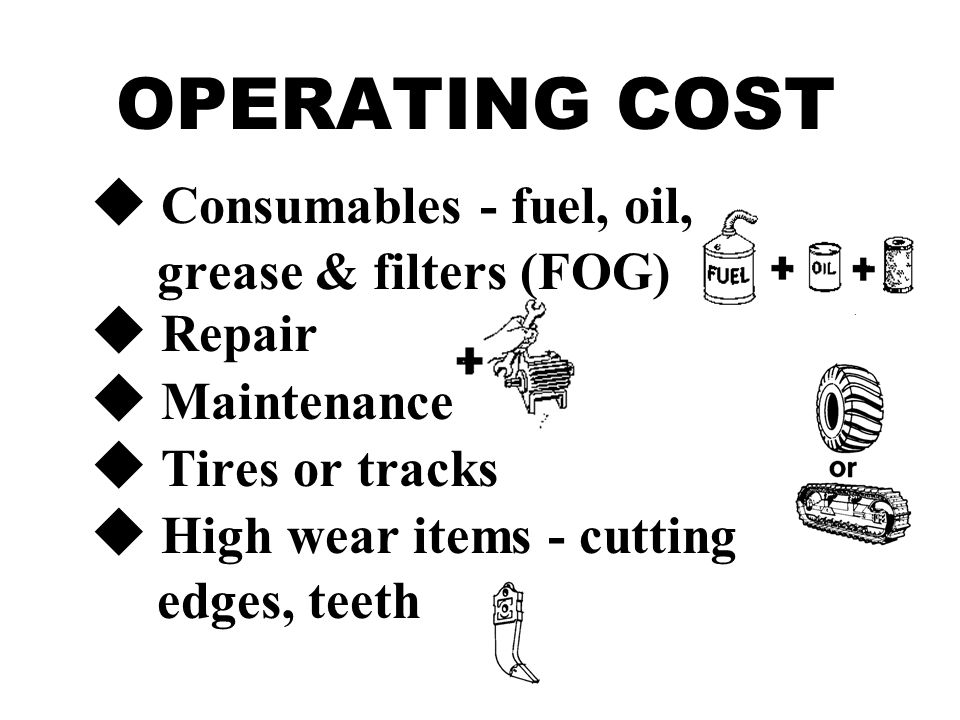

OPERATING COST u Consumables - fuel, oil, grease & filters (FOG) u Repair u Maintenance u Tires or tracks u High wear items - cutting edges, teeth

30
OPERATING COST High wear items u Bucket teeth u Cutting edges u Truck body liners u Ripper tips u Ripper shank protectors

31
OPERATING COST Question No. 4 Machine operating cost includes which of the expenses listed? $ Repairs $ Interest $ Tires $ Taxes

32

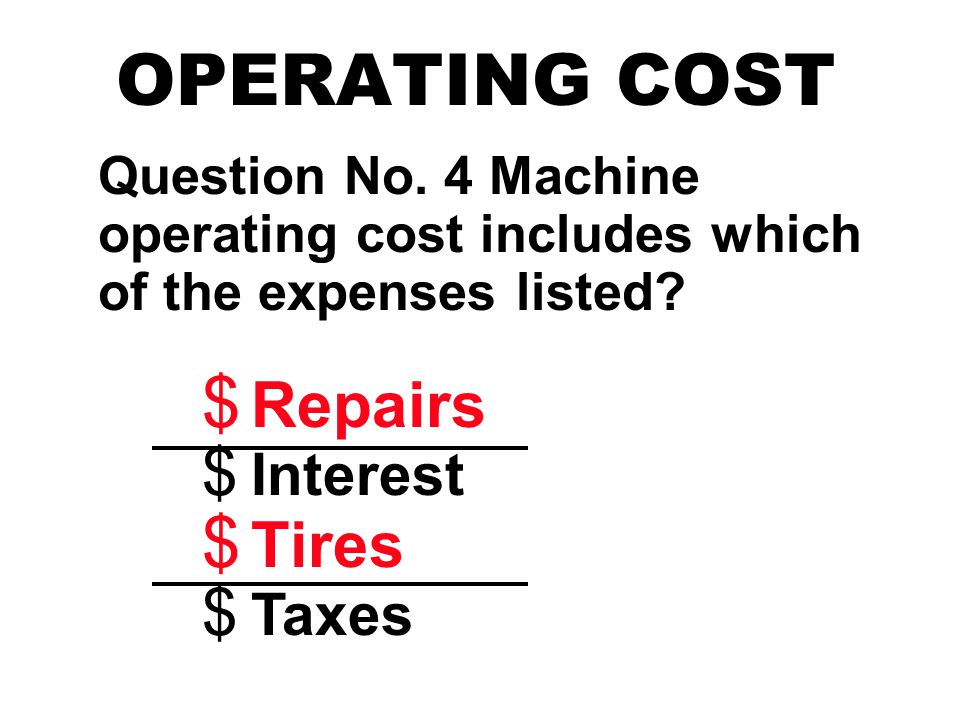

OPERATING COST Question No. 4 Machine operating cost includes which of the expenses listed? $ Repairs $ Interest $ Tires $ Taxes

33
OPERATING COST Usage Cost

34
Ownership Cost Example Determine the probable cost per hour of owning and operating a scraper given the following conditions. u Engine 350HP diesel

35
Ownership Cost u Overall cost of money 10% u Useful life 5 years u Hours used per year 2000 u Initial cost $470,000 u Cost of tires $30,000 u Estimated salvage value $60,000

36
Ownership Cost Time Value Method Deduct tire cost from the delivered price for large machines. Tires are considered a wear item and are treated as an operating cost.

37

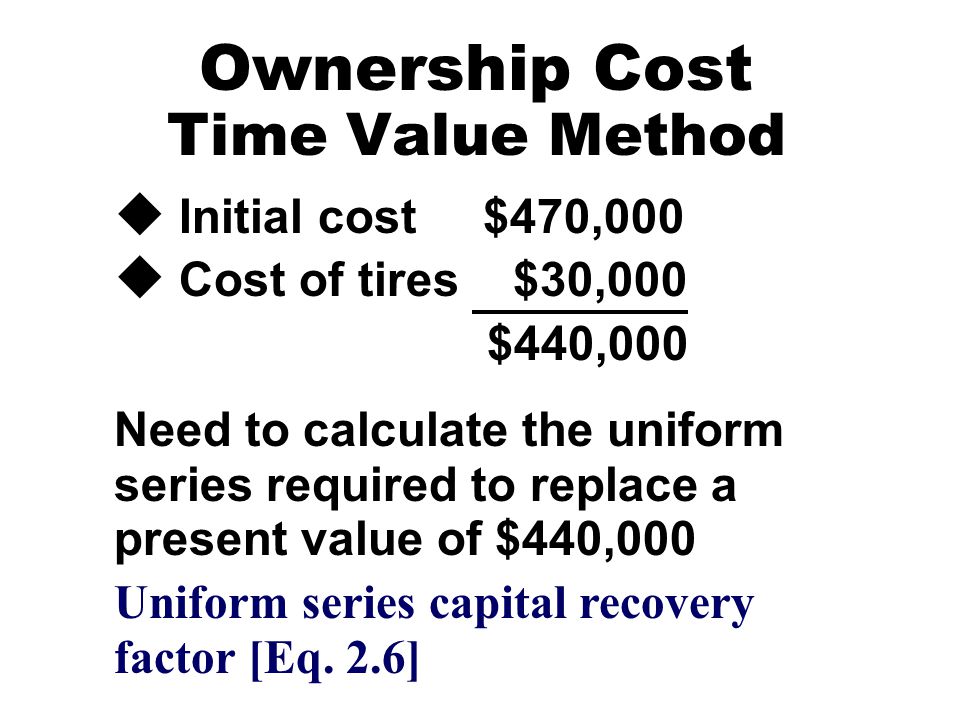

Ownership Cost Time Value Method u Initial cost $470,000 u Cost of tires $30,000 $440,000 Need to calculate the uniform series required to replace a present value of $440,000 Uniform series capital recovery factor [Eq. 2.6]

38
A = uniform end-of-period payments or receipts continuing for a duration of n periods.

39
Uniform series capital recovery factor [Eq. 2.6] P = a present single amount of money. i = the rate of interest per period of time (usually 1 year)

40

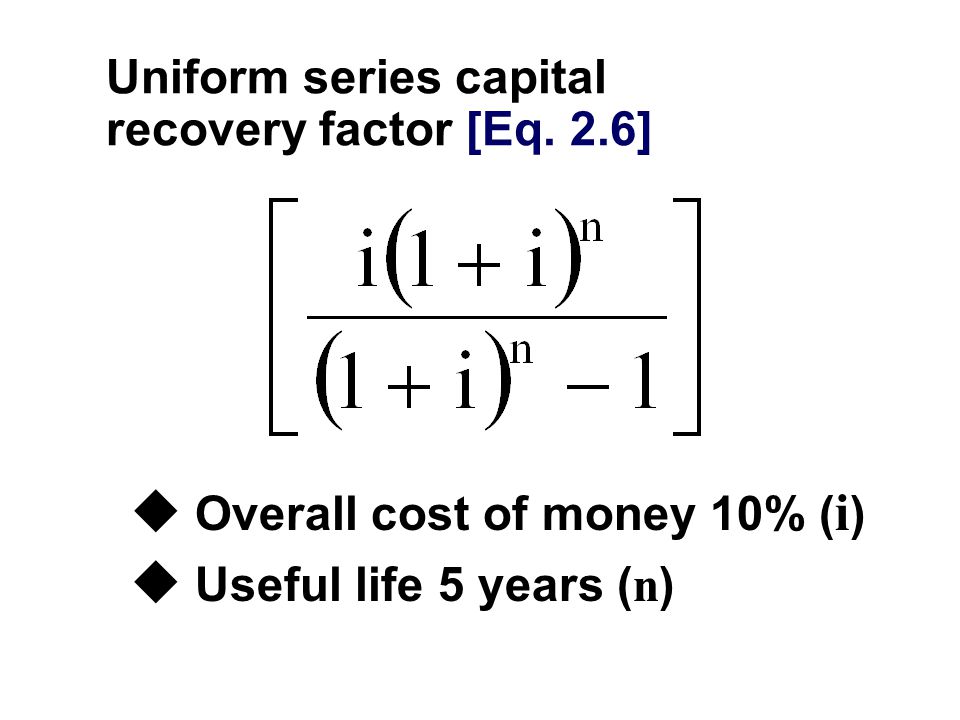

Uniform series capital recovery factor [Eq. 2.6] Overall cost of money 10% ( i ) Useful life 5 years ( n )

41
Uniform series capital recovery factor u Overall cost of money 10% u Useful life 5 years

42

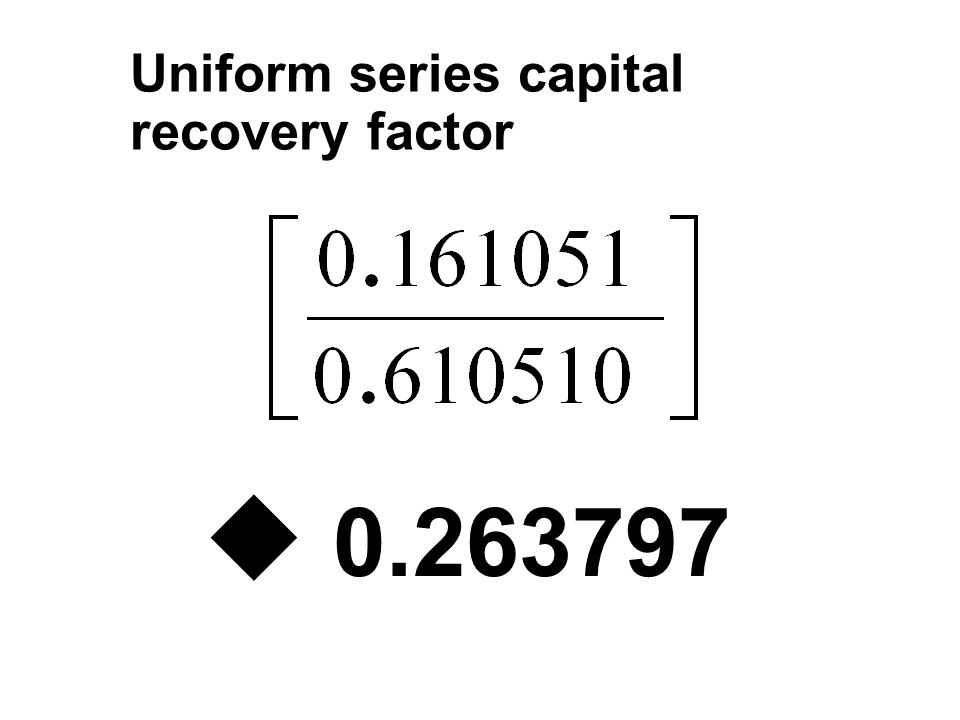

Uniform series capital recovery factor u 0.263797

43
Ownership Cost Time Value Method P = a present amount of money. A = $440,000 [0.263797] A = $116,071 per year

44
Ownership Cost Time Value Method Estimated salvage value $60,000 Need to calculate the uniform series required to replace a end of period amount of $60,000 Uniform series sinking fund factor [Eq. 2.4]

45
Uniform series sinking fund factor F = a future single amount after n periods of time.

46
Uniform series sinking fund factor F = $60,000

47
Uniform series sinking fund factor A = $60,000 [0.163797] A = $9,828 per year

48
Ownership Cost Time Value Method

49
Ownership Cost Average Annual Investment Method P = purchase price S = salvage value n = life in years

50
Ownership Cost Average Annual Investment Method P = $440,000 S = $60,000 n = 5 years

51
Ownership Cost Average Annual Investment Method AAI = $288,000/yr

52
Investment Cost

53
Depreciation

54
Hourly Depreciation

55
Ownership Cost Average Annual Investment Method $14.40 + $38.00 = $52.40/hr

56
Ownership Cost Time Value Method $53.12/hr Average Annual Investment Method $52.40/hr Difference between the methods $0.72

57
Operating Cost Example u Annual cost of repairs equals 70% of str. Line depreciation u Operating factor, 0.5 u Cost of fuel $1.02 per gal

58
Operating Cost u Crankcase capacity, 14 gal u Time between oil changes, 200 hr u Cost of lube oil $2.50 per gal u Cost of other oils and grease $0.45 per hour

59

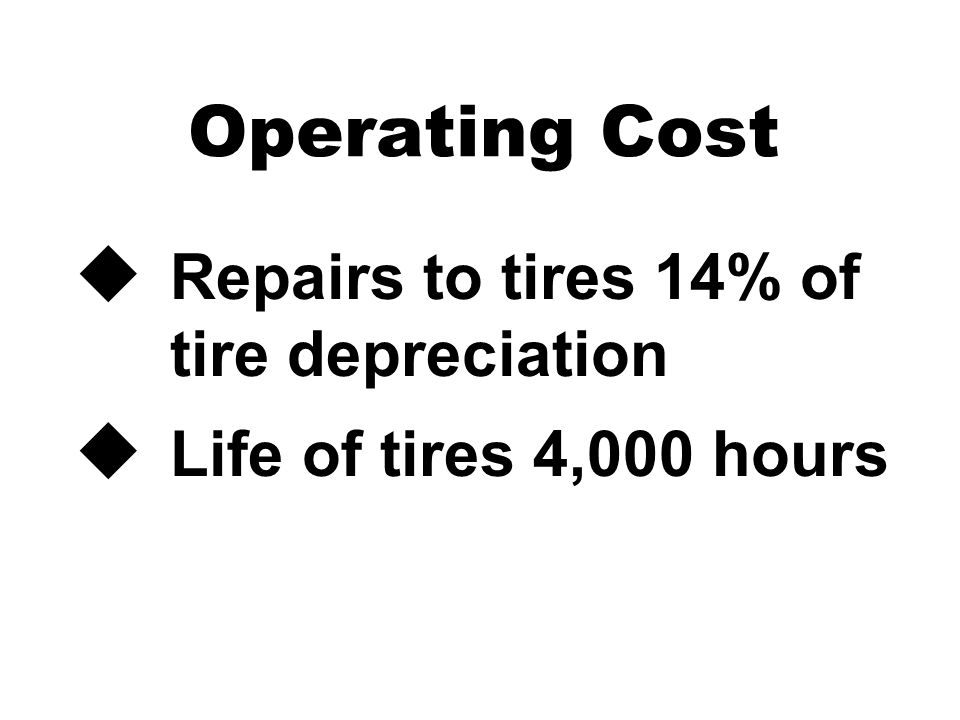

Operating Cost u Repairs to tires 14% of tire depreciation u Life of tires 4,000 hours

60

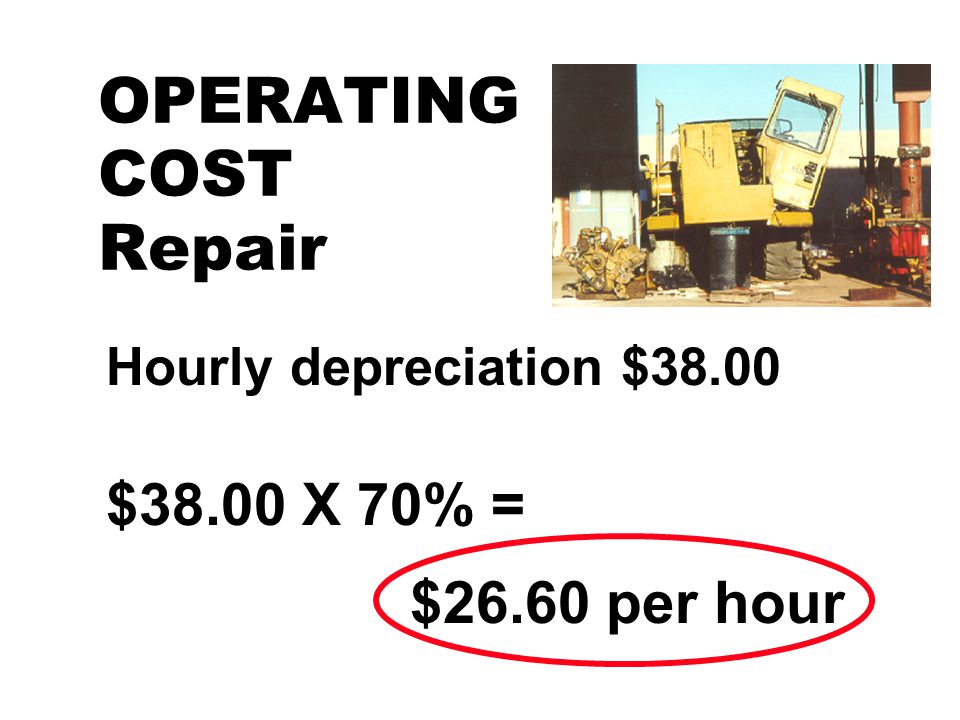

OPERATING COST Repair Hourly depreciation $38.00 $38.00 X 70% = $26.60 per hour

61
OPERATING COST Fuel u Operating factor, 0.5 u Cost of fuel $1.02 per gal See discussion top of page 36. 0.04 X 350hp X 0.5 = 7 gal/hr 7 gal X $1.02/gal = $7.14/hr

62
OPERATING COST Fuel Manufacturer’s consumption data can be used to estimate fuel.

63
OPERATING COST Oil & Grease What the engine burns Oil changes q = 0.1418919 + 0.070 = 0.212 gal/hr Equation 2.12, page 37

64
OPERATING COST Oil & Grease u Cost of lube oil $2.50 per gal u Cost other oils and grease $0.45/hr 0.212 gal/hr X $2.50/gal = $0.53/hr Other oils and grease = $0.45/hr Total cost O&G = $0.98/hr

65
OPERATING COST Tire Repair u Tire repairs 14% of tire depreciation u Life of tires 4,000 hours $7.50 X 14% = $1.05 per hour

66
OPERATING COST Tire Depreciation How many tire replacements u Life of tires 4,000 hours Therefore 3 sets

67
OPERATING COST Tire Depreciation First set: (purchased at time 0) Uniform series capital recovery factor [Eq. 2.6]

68

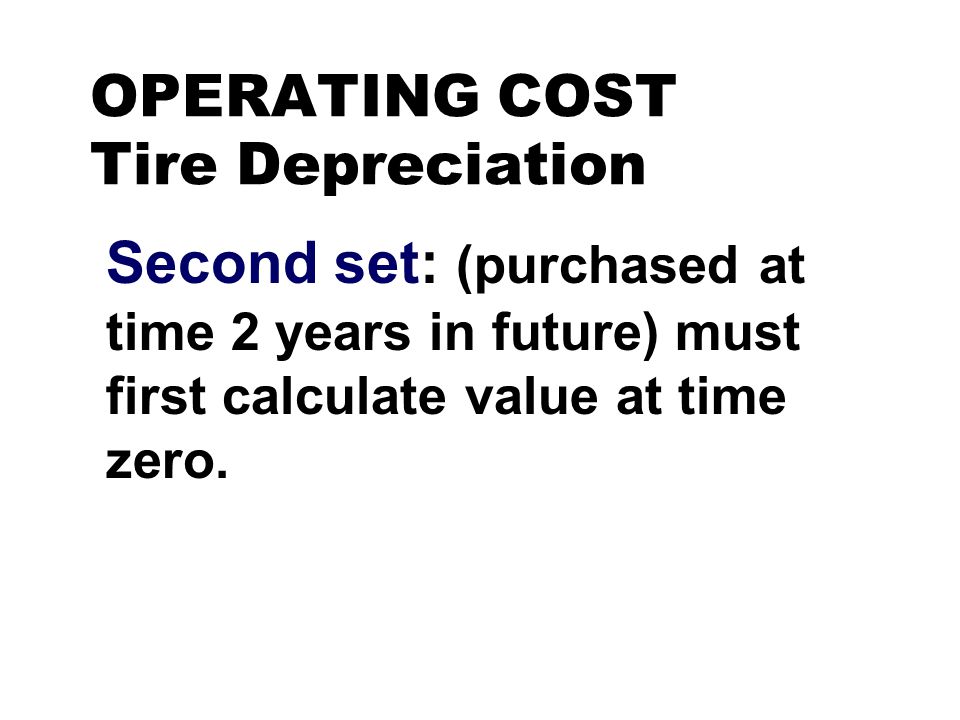

OPERATING COST Tire Depreciation Second set: (purchased at time 2 years in future) must first calculate value at time zero.

69
OPERATING COST Tire Depreciation Second set: 2 years in future If a future amount F is given, the present amount P equals [Eq. 2.2]:

70
Present Worth Compound Amount Factor Overall cost of money 10% ( i ) u n = 2 years

71
Present Worth Compound Amount Factor u Overall cost of money 10% u n = 2 years

72
OPERATING COST Tire Depreciation Second set: value at time zero. P = $30,000 X (0.826446) = $24,793

73
OPERATING COST Tire Depreciation Third set: (purchased at time 4 yr) must first calculate value at time zero. P = $30,000 X (0.683013) = $20,490

74

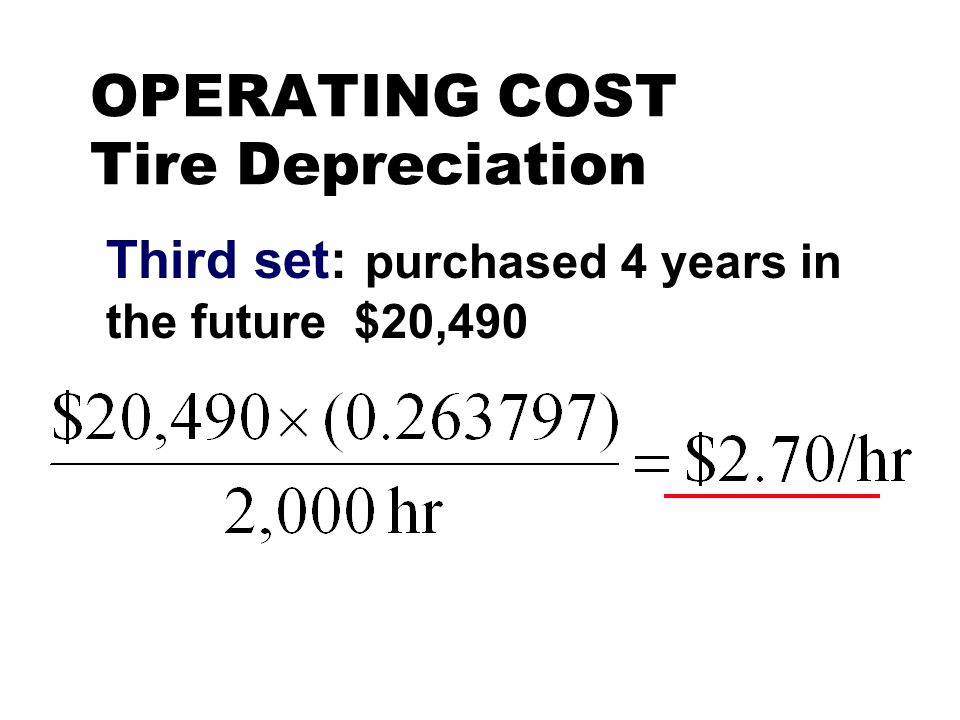

OPERATING COST Tire Depreciation Third set: purchased 4 years in the future $20,490

75
OPERATING COST Tire Depreciation First set: $3.96/hr Second set: $3.27/hr Third set: $2.70/hr Total Tire Dep. $9.93/hr

76
Operating Cost u Repair$26.60/hr u Fuel 7.14 u Lube Oils 0.98 u Tire repair 1.05 u Tire dep. 9.93 u Total Oper $45.70/hr

77
OPERATING COST OPERATOR WAGES
