1 CPI Separator for Separation of solids and Liquids. Pure Tech India, A-5, Trec step, Thuvakudi, Trichy Telephone: ; Telefax: website:

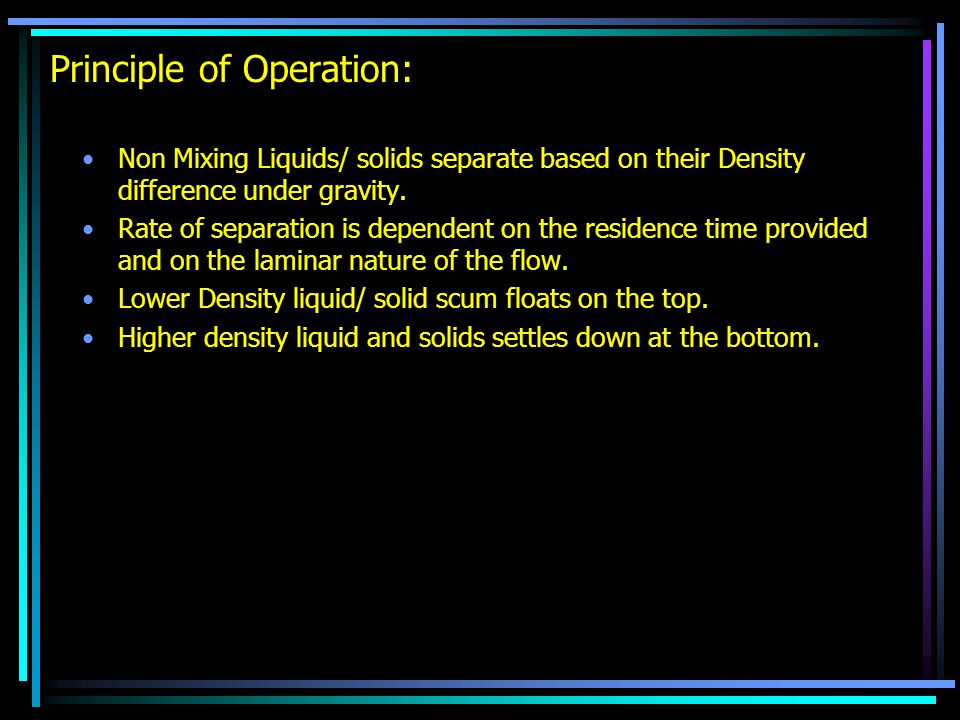

2 Principle of Operation: Non Mixing Liquids/ solids separate based on their Density difference under gravity. Rate of separation is dependent on the residence time provided and on the laminar nature of the flow. Lower Density liquid/ solid scum floats on the top. Higher density liquid and solids settles down at the bottom.

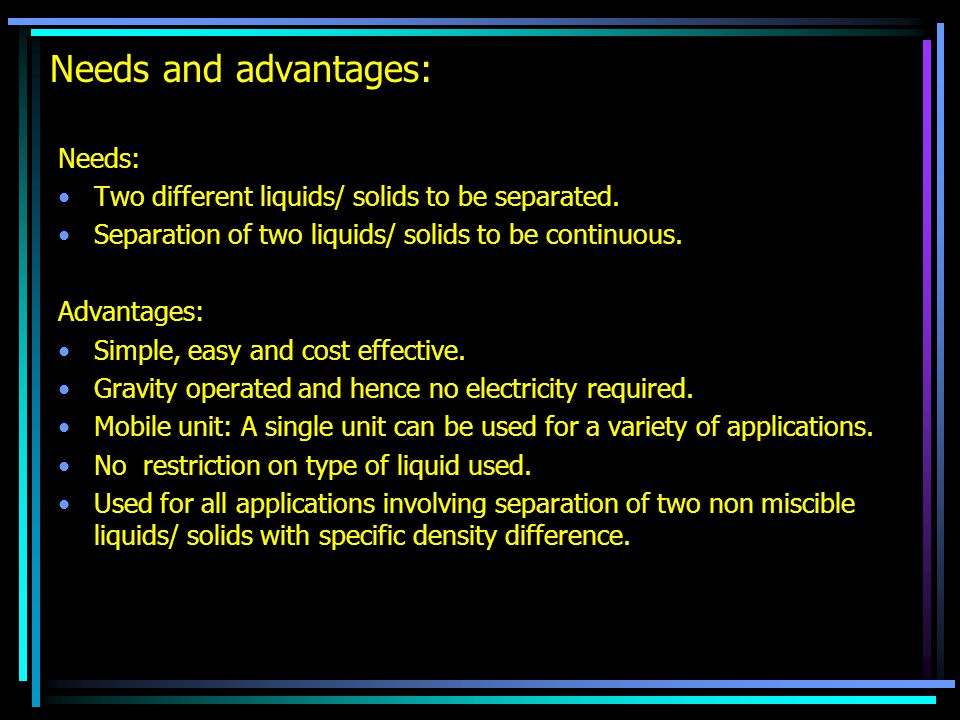

3 Needs and advantages: Needs: Two different liquids/ solids to be separated. Separation of two liquids/ solids to be continuous. Advantages: Simple, easy and cost effective. Gravity operated and hence no electricity required. Mobile unit: A single unit can be used for a variety of applications. No restriction on type of liquid used. Used for all applications involving separation of two non miscible liquids/ solids with specific density difference.

4 Liquid Flow Illustration- with CPI Interceptors : ELEVATION VIEW PLAN VIEW Oily Liquid Inlet Oil less Liquid Outlet Oil Outlet Activated Carbon Pre- Filter SS Coalescer CPI Interceptors Sludge Settling Slanted Baffle Plate for flow conversion Sludge Settling Oil trapped in funnel Liquid flow inside Desorber Sludge

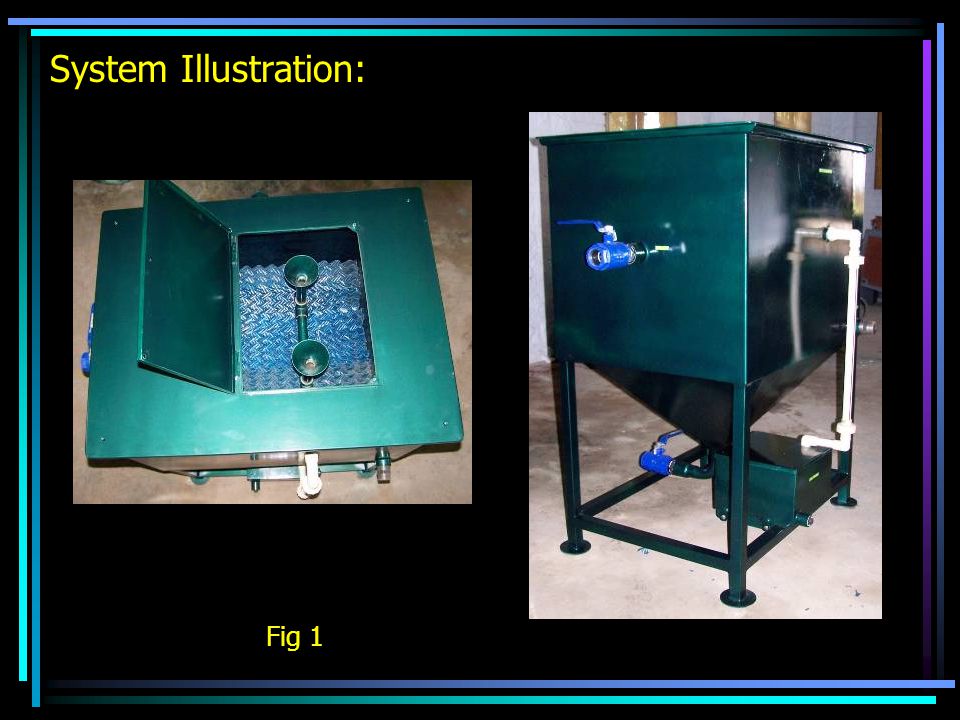

5 System Illustration: Fig 1

6 System Large Capacity:

7 System Assembly Illustration: Cpi Pack

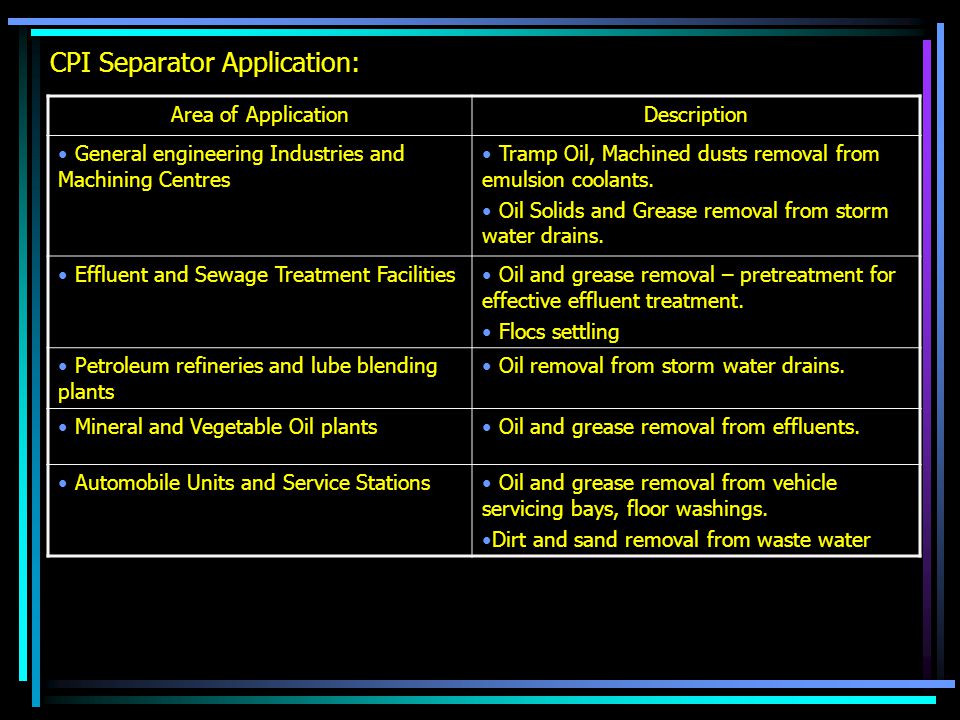

8 CPI Separator Application: Area of ApplicationDescription General engineering Industries and Machining Centres Tramp Oil, Machined dusts removal from emulsion coolants. Oil Solids and Grease removal from storm water drains. Effluent and Sewage Treatment Facilities Oil and grease removal – pretreatment for effective effluent treatment. Flocs settling Petroleum refineries and lube blending plants Oil removal from storm water drains. Mineral and Vegetable Oil plants Oil and grease removal from effluents. Automobile Units and Service Stations Oil and grease removal from vehicle servicing bays, floor washings. Dirt and sand removal from waste water

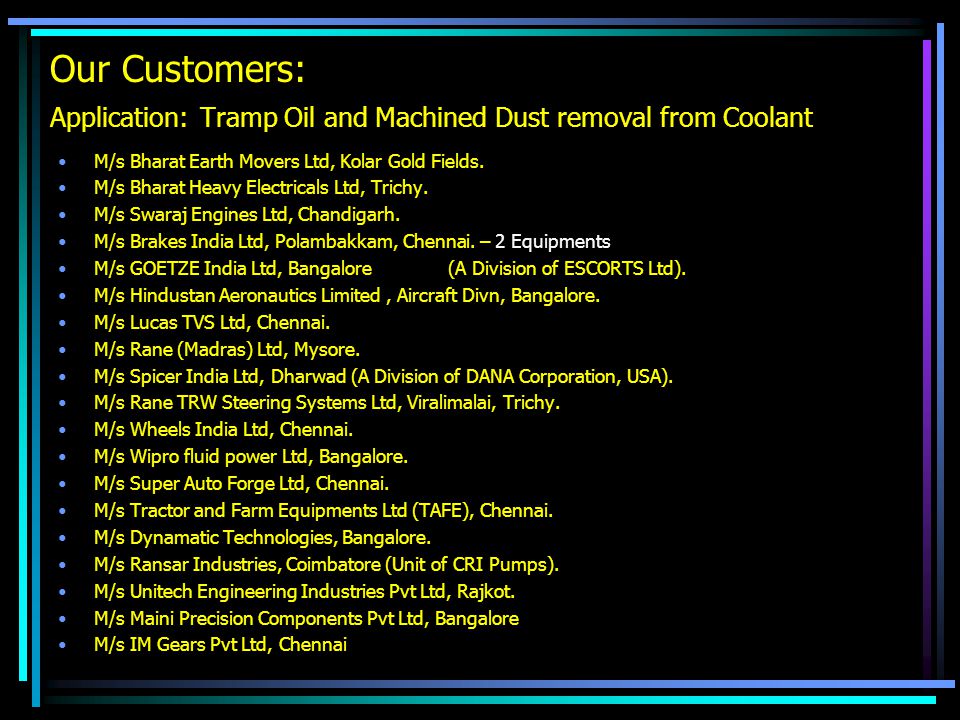

9 Our Customers: Application: Tramp Oil and Machined Dust removal from Coolant M/s Bharat Earth Movers Ltd, Kolar Gold Fields. M/s Bharat Heavy Electricals Ltd, Trichy. M/s Swaraj Engines Ltd, Chandigarh. M/s Brakes India Ltd, Polambakkam, Chennai. – 2 Equipments M/s GOETZE India Ltd, Bangalore (A Division of ESCORTS Ltd). M/s Hindustan Aeronautics Limited, Aircraft Divn, Bangalore. M/s Lucas TVS Ltd, Chennai. M/s Rane (Madras) Ltd, Mysore. M/s Spicer India Ltd, Dharwad (A Division of DANA Corporation, USA). M/s Rane TRW Steering Systems Ltd, Viralimalai, Trichy. M/s Wheels India Ltd, Chennai. M/s Wipro fluid power Ltd, Bangalore. M/s Super Auto Forge Ltd, Chennai. M/s Tractor and Farm Equipments Ltd (TAFE), Chennai. M/s Dynamatic Technologies, Bangalore. M/s Ransar Industries, Coimbatore (Unit of CRI Pumps). M/s Unitech Engineering Industries Pvt Ltd, Rajkot. M/s Maini Precision Components Pvt Ltd, Bangalore M/s IM Gears Pvt Ltd, Chennai

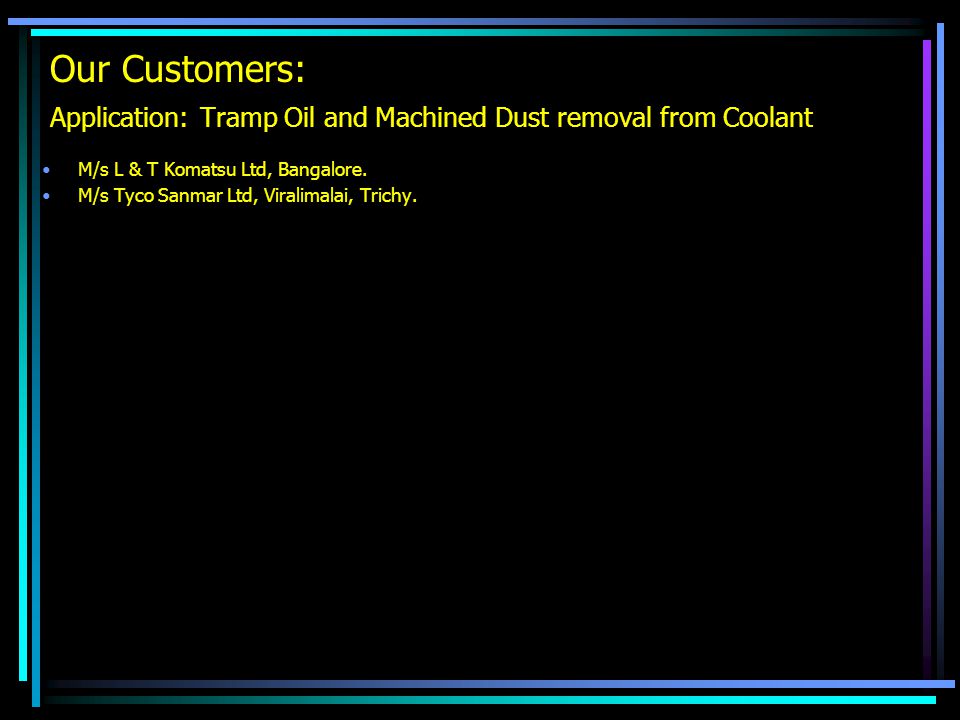

10 Our Customers: Application: Tramp Oil and Machined Dust removal from Coolant M/s L & T Komatsu Ltd, Bangalore. M/s Tyco Sanmar Ltd, Viralimalai, Trichy.

11 Our Customers: Application: Oil and solids removal from Effluent/ Water M/s Saint Gobain Glass India Ltd, Sriperumbudur – 2 Equipments M/s Sandvik Asia Ltd, Chatral, Ahmedabad. M/s Eveready Industries Ltd, Kolkata. M/s Eveready Industries Ltd, Hyderabad. M/s GOETZE India Ltd, Bangalore (A division of ESCORTS Ltd) M/s Hindustan Lever Ltd- Soap factory, Mangalore. M/s Rajshree Ford – (Ford Cars Service station), Madurai. M/s Nagappa Motors – (Hero Honda Bike Service Station), Madurai. M/s Kalyani Associates – (TVS two wheelers service station), Madurai. M/s EFTI Engineering Industries, Bangalore. M/s Pollutech Engineers, Bangalore. M/s Vimal Chrometech Pvt Ltd, Mumbai. M/s Life, Mysore M/s Asia Motors, Kutch through M/s Electrocoat Equipments Pvt Ltd, Pune M/s Gabriel India Ltd, Parwanoo through M/s Electrocoat Equipments Pvt Ltd, Pune

12 Thank You For Queries, Please contact: E- Mail: (Photographs shown are taken from our supplied equipments and there are feature additions taking place in each new equipment manufactured)
