1 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F CNPS90F Ultra Quiet CPU Cooler Sales Guide

2 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F Honeycomb fin design Optimized heat dissipation structure Minimized noise 92mm FSB fan Shark fin blade fan Compact light size Easy installation

3 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F Optimized the angle with honeycomb fin, helps to increase the airflow, minimize the noise. Honeycomb fin design

4 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F FHS(Flower Heat Sink) type heat transfer. Simplified and more direct link to the surface for broader heat dissipation area and more efficient cooling. 일반 히트싱크의 열전달경로 Heat source(A) Heat source (B) Down blowing type design Through emitting the air straight from the fan to the mother board, it cools down not only the CPU but also the components around it. Optimized heat dissipation structure

5 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F One of the Advanced Sleeve bearing FSB Fluid Shield Bearing) applied to prevent dust and strong cooling performance with 92mm fan with minimized noise. Minimized noise 92mm FSB fan

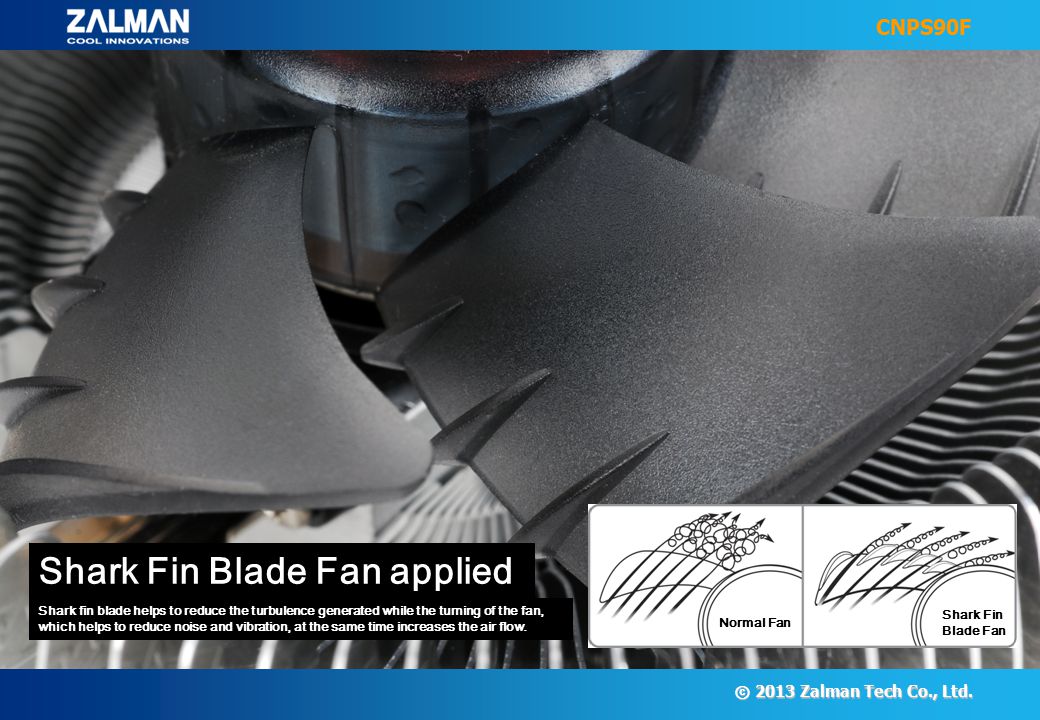

6 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F Shark fin blade helps to reduce the turbulence generated while the turning of the fan, which helps to reduce noise and vibration, at the same time increases the air flow. Shark Fin Blade Fan applied Normal Fan Shark Fin Blade Fan

7 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F 60mm high, small enough to mount into LP(Low Profile) case, perfect for home theater PC, with weight only 240g. 작고 가벼운 사이즈

8 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F Supported sockets Intel Socket LGA 1155/1156/775, AMD Socket FM2/FM1/AM3/AM2+/AM2 멀티 클립 써포터 Easy installation Wide compatibility and easy installation.

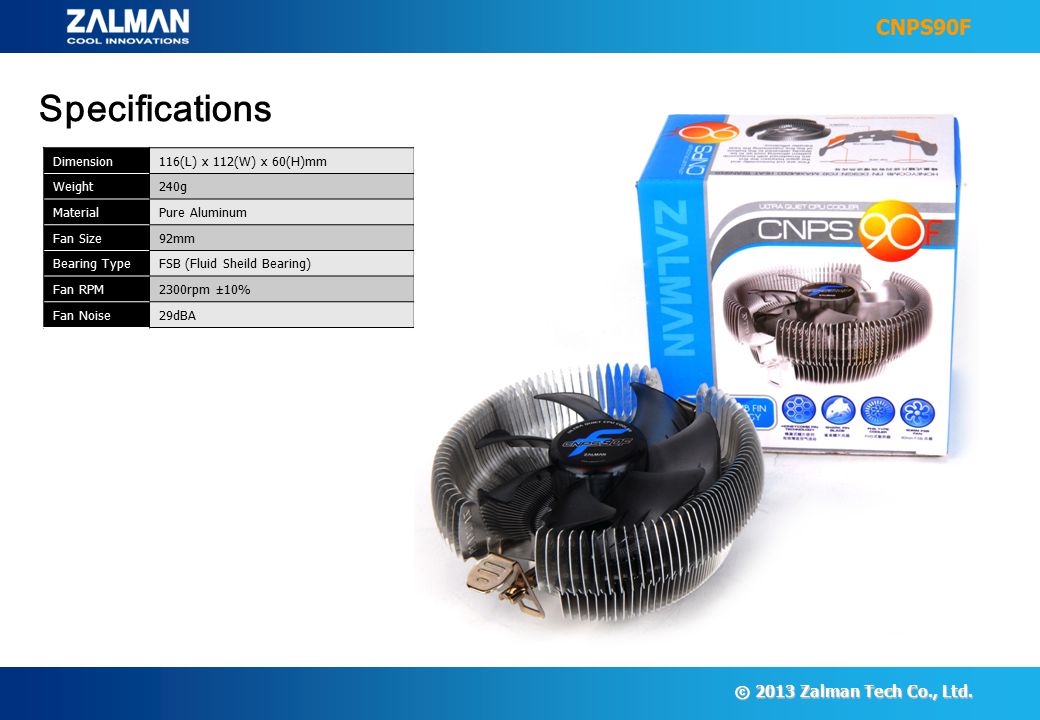

9 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F Specifications Dimension116(L) x 112(W) x 60(H)mm Weight240g MaterialPure Aluminum Fan Size92mm Bearing TypeFSB (Fluid Sheild Bearing) Fan RPM2300rpm ±10% Fan Noise29dBA

10 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F Contents CNPS80F Clip Support Push Pins Thermal Grease ZM-TG2 Manual

11 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F What cases are compatible? Can be installed in LP(Low Profile) type cases. ※ Dimension: 116(L) x 112(W) x 60(H)mm ※ For cases with air guide make sure there is no interference with the cooler before installing. Q&A Is it better to remove the previously applied thermal grease and replace with fresh thermal grease when re-installing the cooler? Yes. The heat transfer performance of thermal compounds may degrade over time. Please wipe off the previously used thermal compound and apply a fresh layer. What are some cautionary considerations prior to installing the cooler? For cases with air guide, make sure there is no interference with the cooler before installing. While installing, wear gloves to prevent any possible injury. Also Keep out of the reach for children (do not ingest the thermal grease), and if there is problem with the product, please notify the retailer. What CPUs are supported? All single, dual and quad core CPUs based on Intel socket LGA1155/1156/775 and AMD socket FM2/FM1/AM3/AM2+/AM2 are supported.

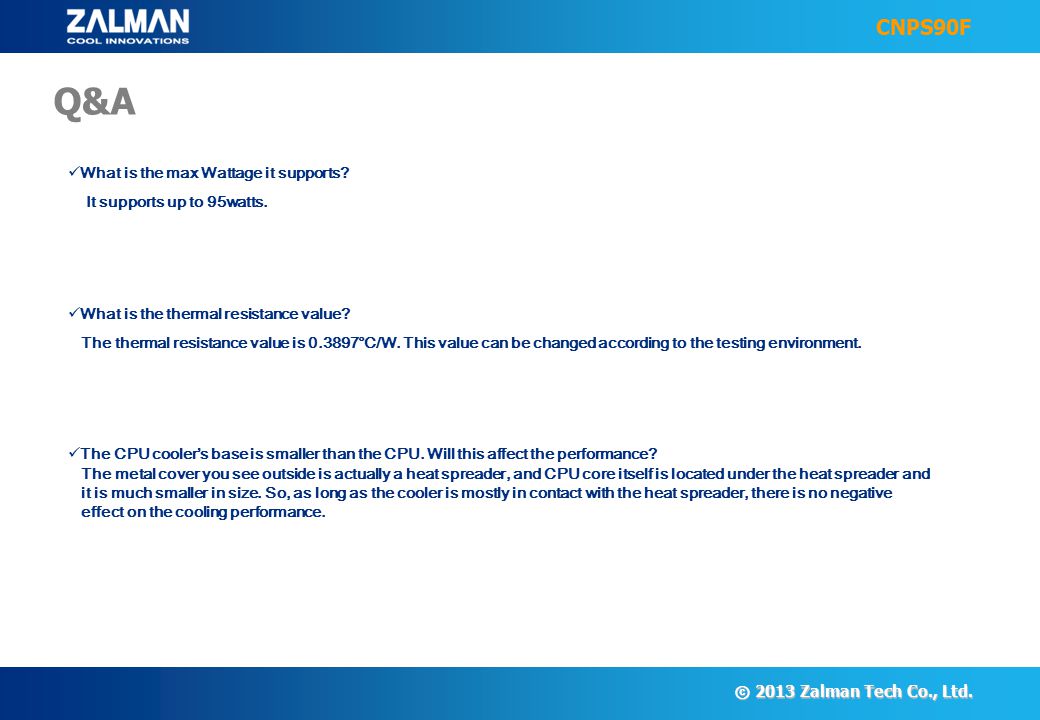

12 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F What is the max Wattage it supports? It supports up to 95watts. What is the thermal resistance value? The thermal resistance value is °C/W. This value can be changed according to the testing environment. Q&A The CPU cooler’s base is smaller than the CPU. Will this affect the performance? The metal cover you see outside is actually a heat spreader, and CPU core itself is located under the heat spreader and it is much smaller in size. So, as long as the cooler is mostly in contact with the heat spreader, there is no negative effect on the cooling performance.

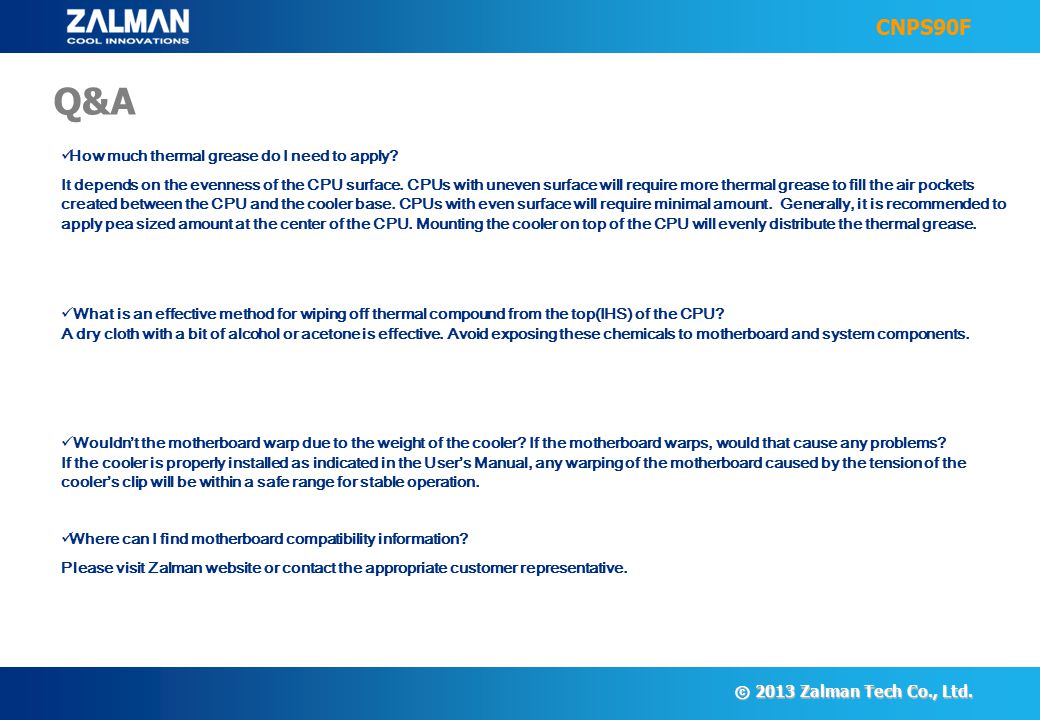

13 ⓒ 2013 Zalman Tech Co., Ltd. CNPS90F Q&A How much thermal grease do I need to apply? It depends on the evenness of the CPU surface. CPUs with uneven surface will require more thermal grease to fill the air pockets created between the CPU and the cooler base. CPUs with even surface will require minimal amount. Generally, it is recommended to apply pea sized amount at the center of the CPU. Mounting the cooler on top of the CPU will evenly distribute the thermal grease. What is an effective method for wiping off thermal compound from the top(IHS) of the CPU? A dry cloth with a bit of alcohol or acetone is effective. Avoid exposing these chemicals to motherboard and system components. Wouldn’t the motherboard warp due to the weight of the cooler? If the motherboard warps, would that cause any problems? If the cooler is properly installed as indicated in the User’s Manual, any warping of the motherboard caused by the tension of the cooler’s clip will be within a safe range for stable operation. Where can I find motherboard compatibility information? Please visit Zalman website or contact the appropriate customer representative.
