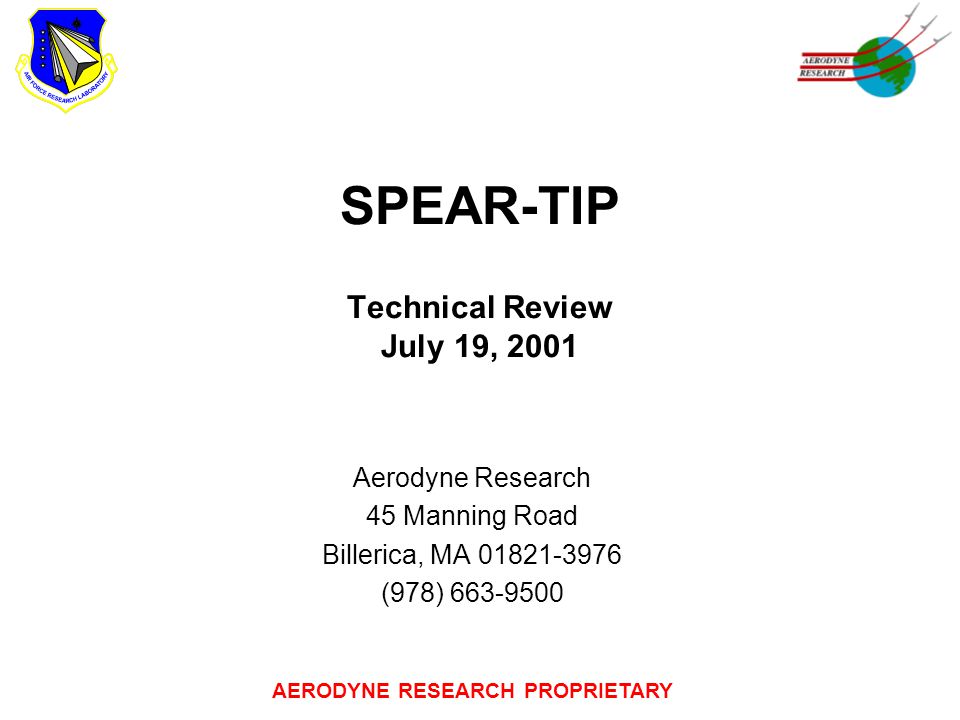

1 AERODYNE RESEARCH PROPRIETARY SPEAR-TIP Technical Review July 19, 2001 Aerodyne Research 45 Manning Road Billerica, MA (978)

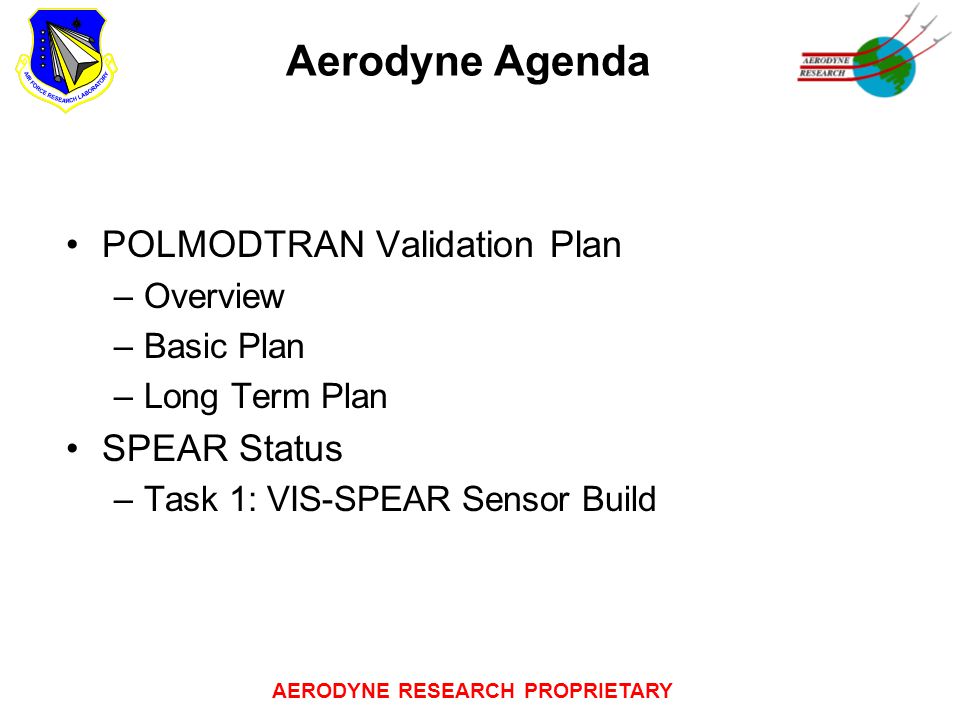

2 AERODYNE RESEARCH PROPRIETARY Aerodyne Agenda POLMODTRAN Validation Plan –Overview –Basic Plan –Long Term Plan SPEAR Status –Task 1: VIS-SPEAR Sensor Build

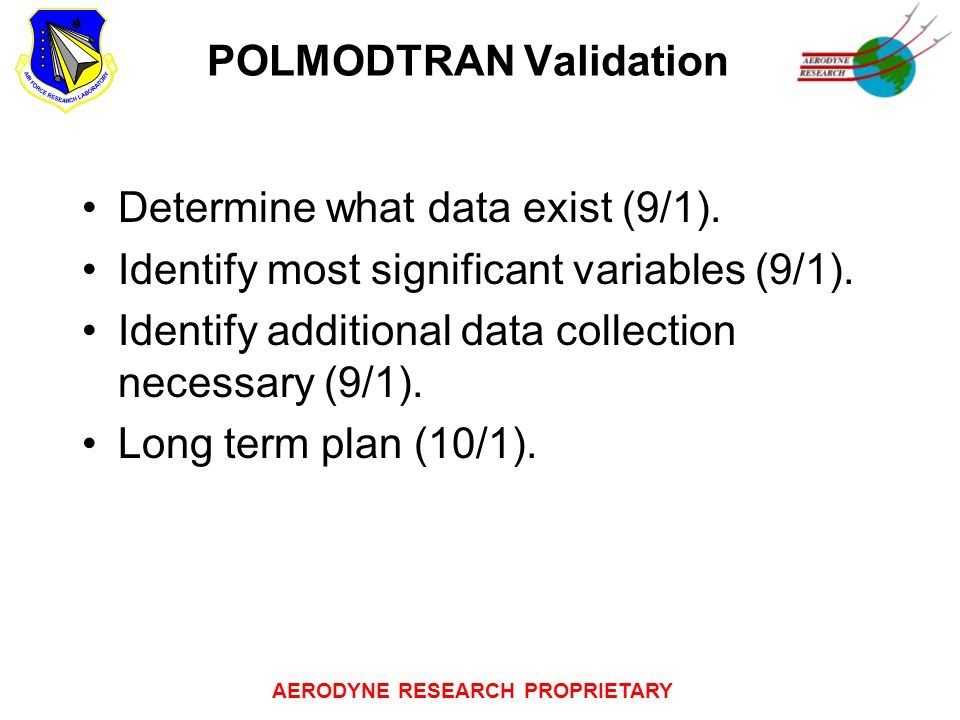

3 AERODYNE RESEARCH PROPRIETARY POLMODTRAN Validation Determine what data exist (9/1). Identify most significant variables (9/1). Identify additional data collection necessary (9/1). Long term plan (10/1).

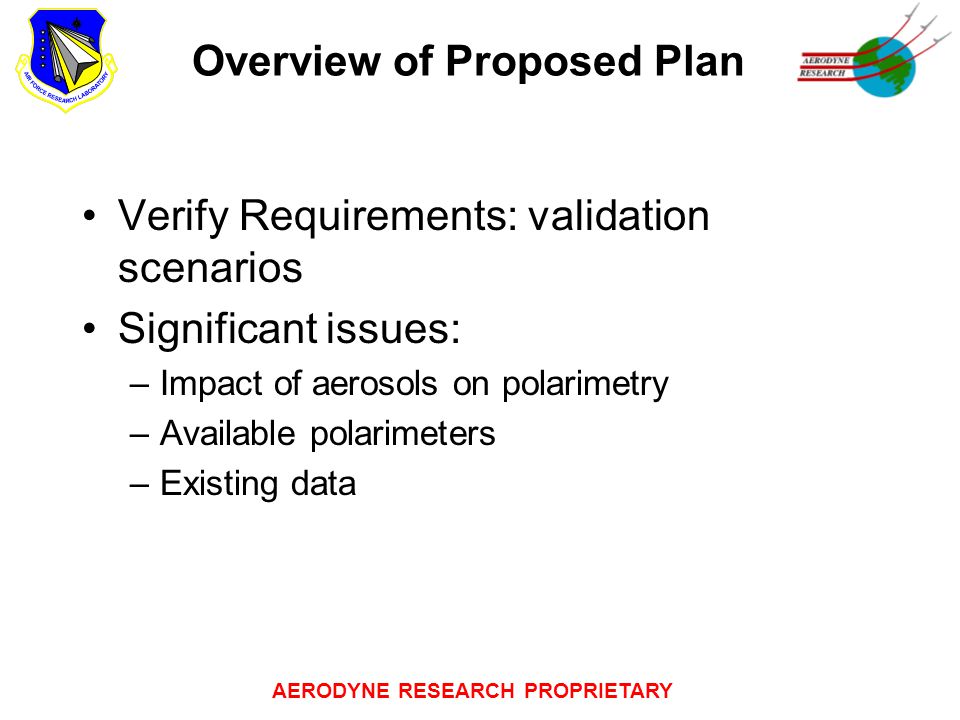

4 AERODYNE RESEARCH PROPRIETARY Overview of Proposed Plan Verify Requirements: validation scenarios Significant issues: –Impact of aerosols on polarimetry –Available polarimeters –Existing data

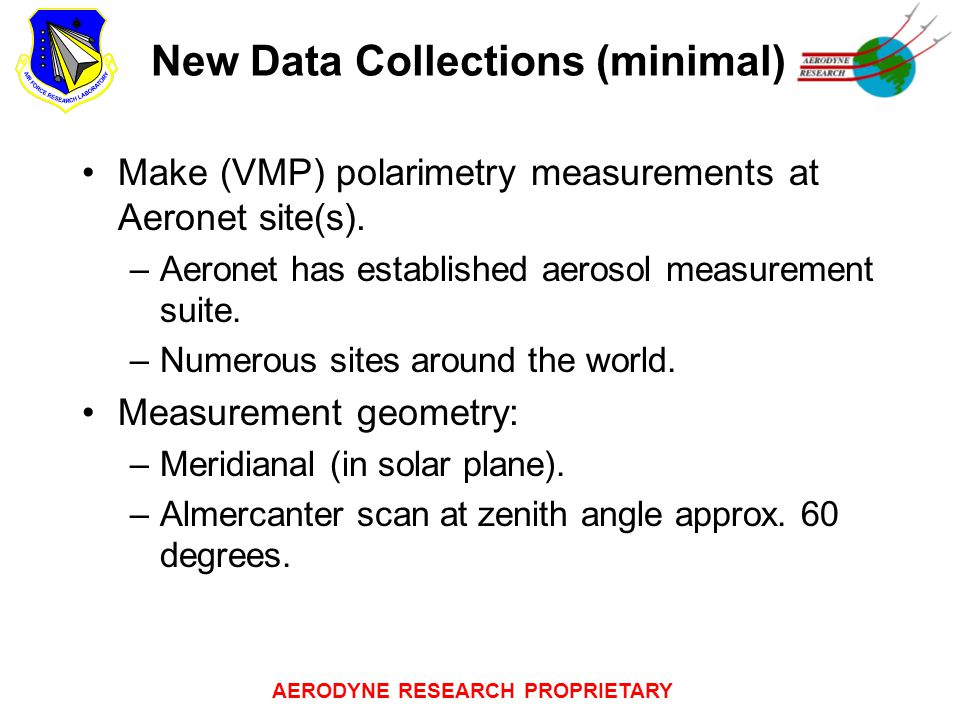

5 AERODYNE RESEARCH PROPRIETARY New Data Collections (minimal) Make (VMP) polarimetry measurements at Aeronet site(s). –Aeronet has established aerosol measurement suite. –Numerous sites around the world. Measurement geometry: –Meridianal (in solar plane). –Almercanter scan at zenith angle approx. 60 degrees.

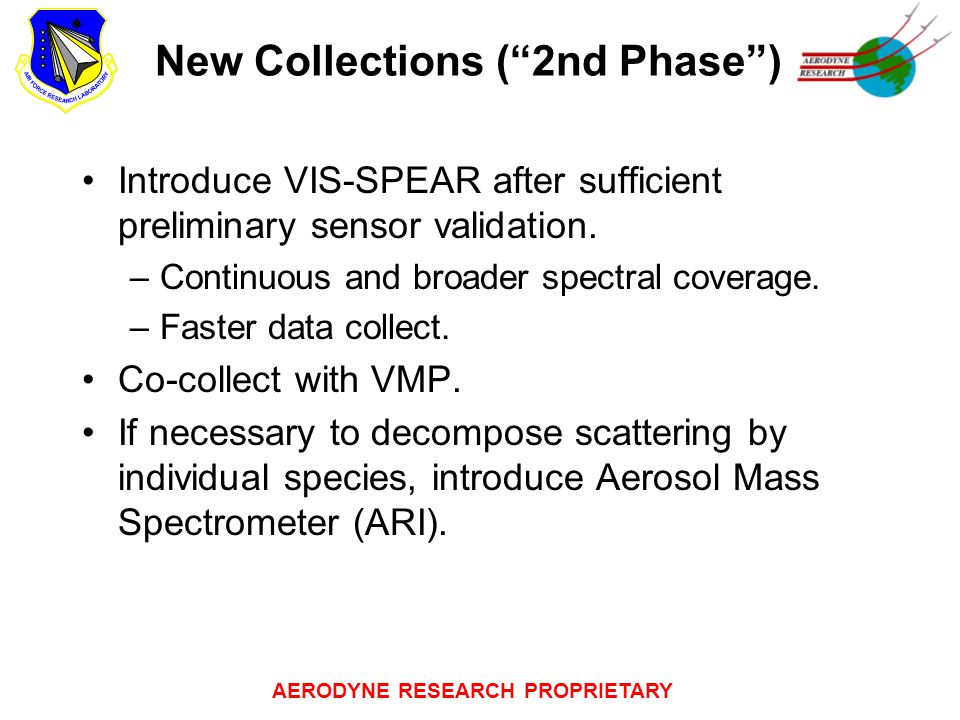

6 AERODYNE RESEARCH PROPRIETARY New Collections (“2nd Phase”) Introduce VIS-SPEAR after sufficient preliminary sensor validation. –Continuous and broader spectral coverage. –Faster data collect. Co-collect with VMP. If necessary to decompose scattering by individual species, introduce Aerosol Mass Spectrometer (ARI).

7 AERODYNE RESEARCH PROPRIETARY Summary of Existing Polarimetry Data Research Scanning Polarimeter (RSP) –NASA Goddard Institute for Space Studies Data Collection Contract with SpecTIR –Nine Channel VNIR Polarimeter, Prototype for Earth Observing Scanning Polarimeter –Approx 25 Flights

8 AERODYNE RESEARCH PROPRIETARY Significant Variables Case for aerosol retrieval goes here.

9 AERODYNE RESEARCH PROPRIETARY Task 3: Field Testing Field test objectives to include MODEL VALIDATION and SENSOR VALIDATION. Consider including AEROSOL MEASUREMENTS to the test plan. Design test(s) and SELECT SITE(S) to accomplish these objectives most effectively. –Hanscom AFB Rooftop –Wright-Patterson AFB Tower –Aeronet Sites –Millstone Hill (MIT Lincoln Lab) –Kirtland AFB Tower –Huntsville Tower –Elsewhere...

10 AERODYNE RESEARCH PROPRIETARY Aerodyne AMS

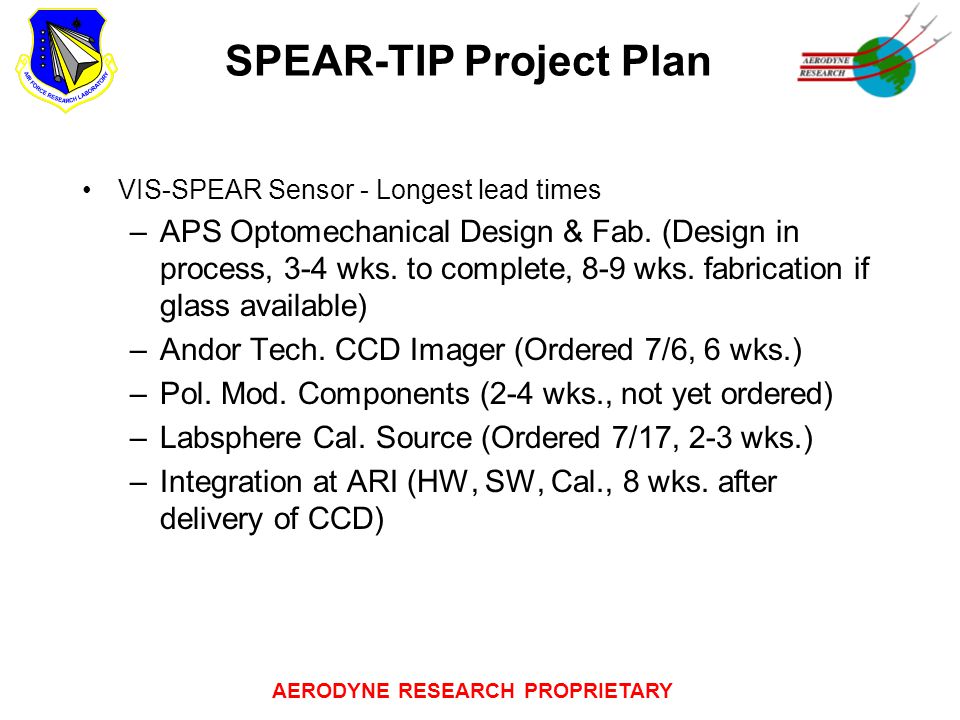

11 AERODYNE RESEARCH PROPRIETARY SPEAR-TIP Project Plan VIS-SPEAR Sensor - Longest lead times –APS Optomechanical Design & Fab. (Design in process, 3-4 wks. to complete, 8-9 wks. fabrication if glass available) –Andor Tech. CCD Imager (Ordered 7/6, 6 wks.) –Pol. Mod. Components (2-4 wks., not yet ordered) –Labsphere Cal. Source (Ordered 7/17, 2-3 wks.) –Integration at ARI (HW, SW, Cal., 8 wks. after delivery of CCD)

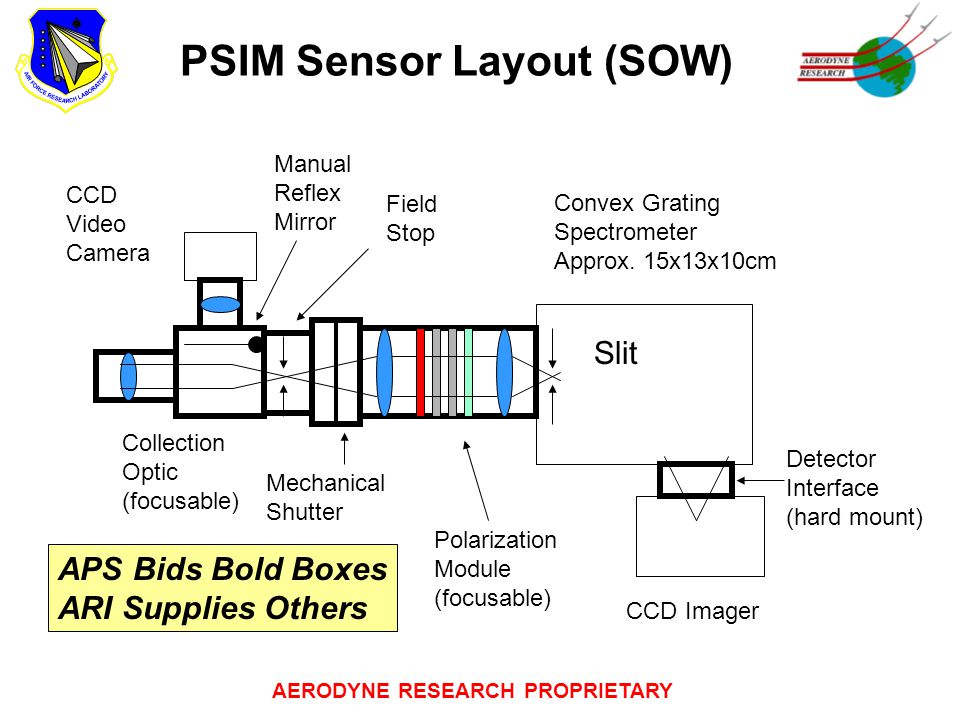

12 AERODYNE RESEARCH PROPRIETARY PSIM Sensor Layout (SOW) Collection Optic (focusable) CCD Video Camera Manual Reflex Mirror Polarization Module (focusable) Convex Grating Spectrometer Approx. 15x13x10cm Detector Interface (hard mount) CCD Imager Slit APS Bids Bold Boxes ARI Supplies Others Mechanical Shutter Field Stop

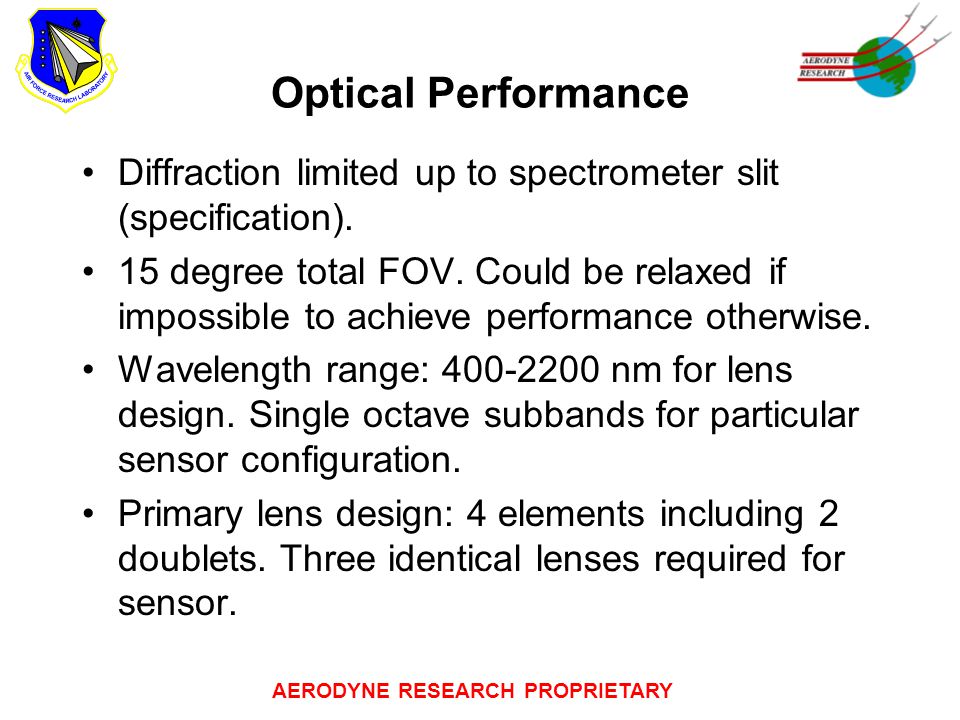

13 AERODYNE RESEARCH PROPRIETARY Optical Performance Diffraction limited up to spectrometer slit (specification). 15 degree total FOV. Could be relaxed if impossible to achieve performance otherwise. Wavelength range: nm for lens design. Single octave subbands for particular sensor configuration. Primary lens design: 4 elements including 2 doublets. Three identical lenses required for sensor.

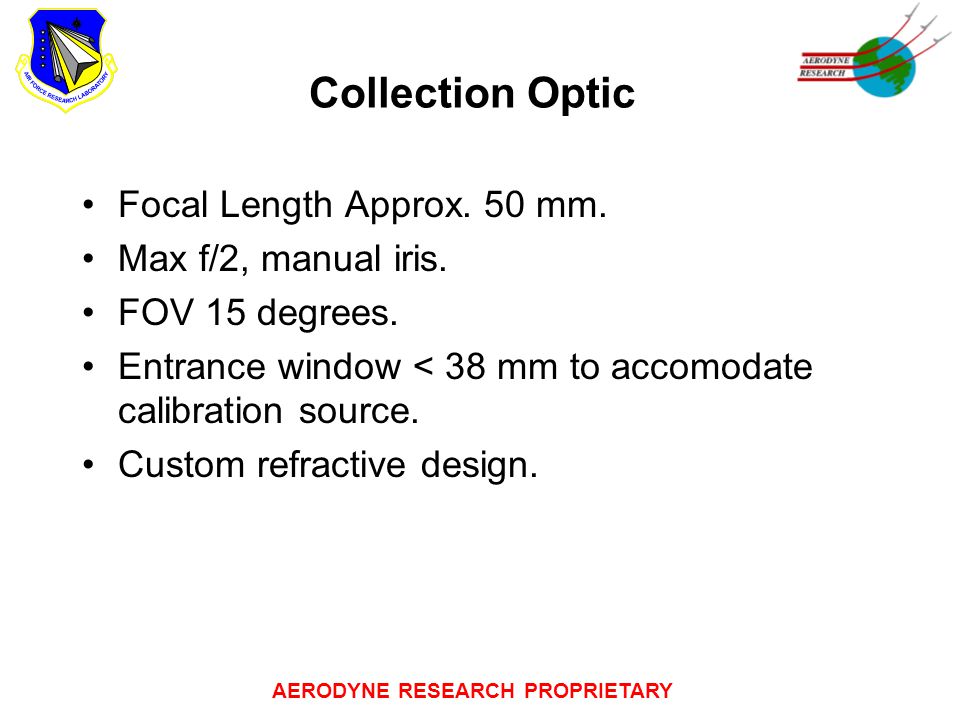

14 AERODYNE RESEARCH PROPRIETARY Collection Optic Focal Length Approx. 50 mm. Max f/2, manual iris. FOV 15 degrees. Entrance window < 38 mm to accomodate calibration source. Custom refractive design.

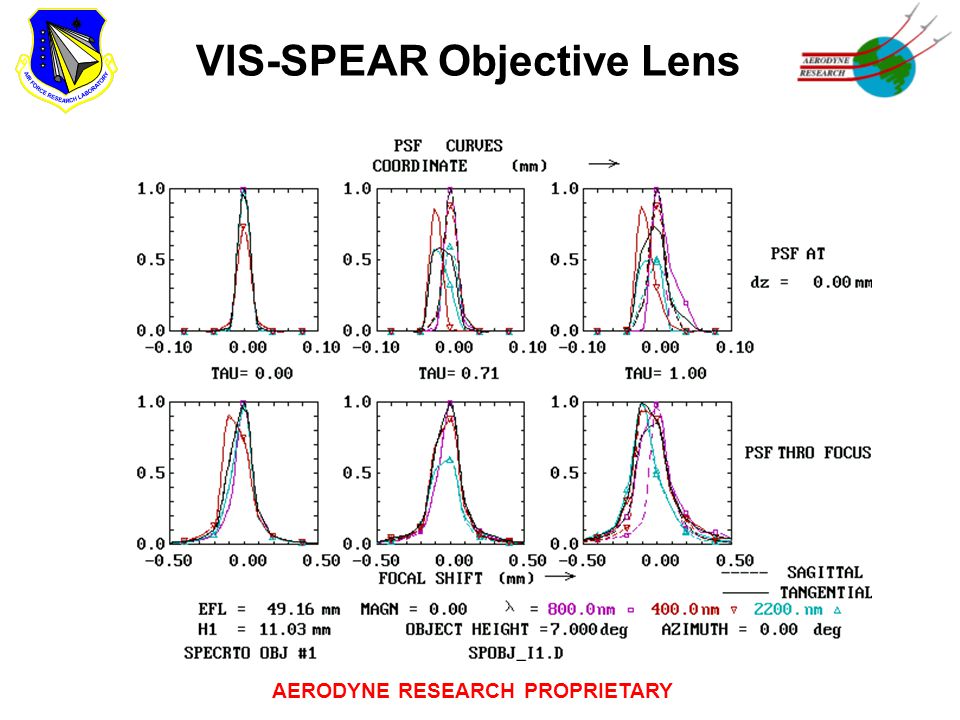

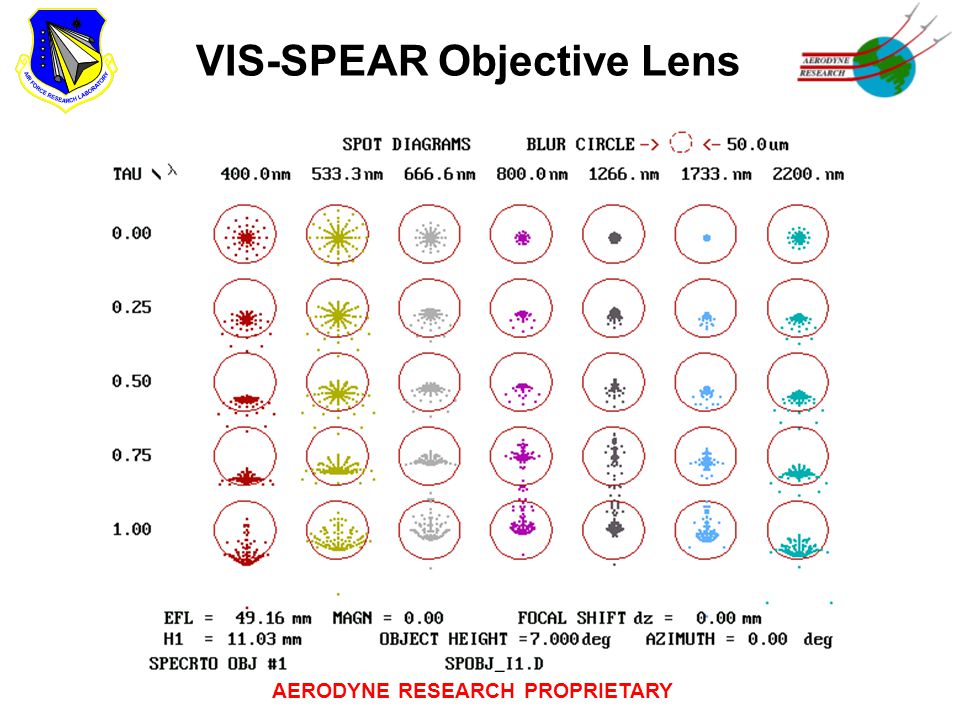

15 AERODYNE RESEARCH PROPRIETARY VIS-SPEAR Objective Lens

16 AERODYNE RESEARCH PROPRIETARY VIS-SPEAR Objective Lens

17 AERODYNE RESEARCH PROPRIETARY VIS-SPEAR Objective Lens

18 AERODYNE RESEARCH PROPRIETARY Self Polarization Effects Contributors to self polarization: –Intrinsic birefringence of glass –Stress birefringence of lens grinding/polishing process –Stress birefringence of mount Measures to avoid self polarization: –Use glass w/ low birefringence (high quality grade): retardance = 4 nm/cm. –Design mount and assemble to avoid excessive stress on optics. –As part of alignment, rotate lens groups for minimum birefringence. Only first two lens groups will contribute to measurement error.

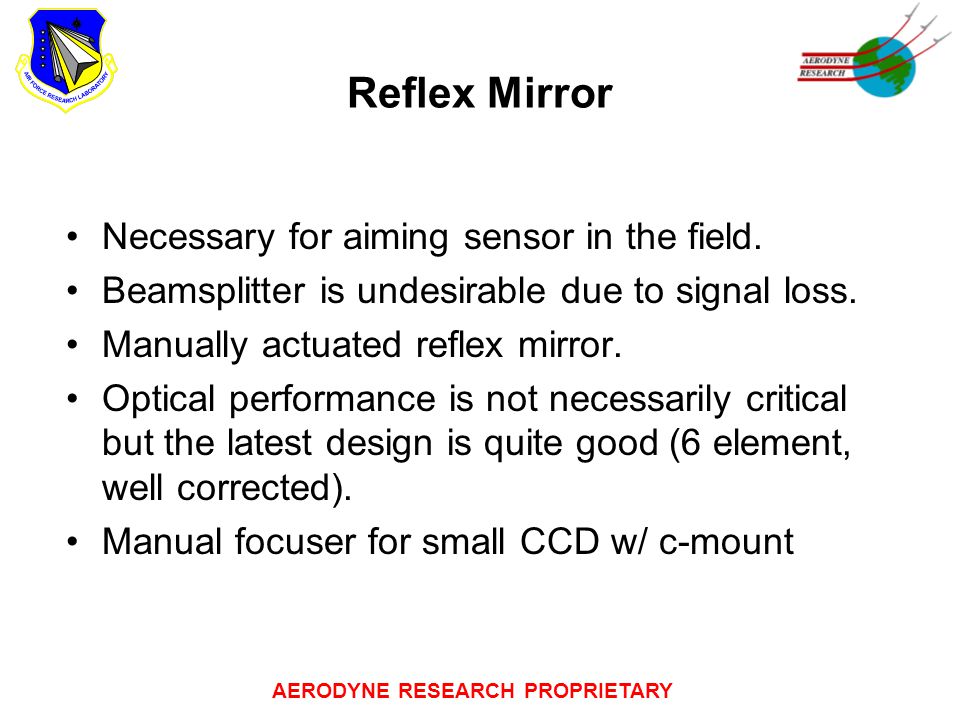

19 AERODYNE RESEARCH PROPRIETARY Reflex Mirror Necessary for aiming sensor in the field. Beamsplitter is undesirable due to signal loss. Manually actuated reflex mirror. Optical performance is not necessarily critical but the latest design is quite good (6 element, well corrected). Manual focuser for small CCD w/ c-mount

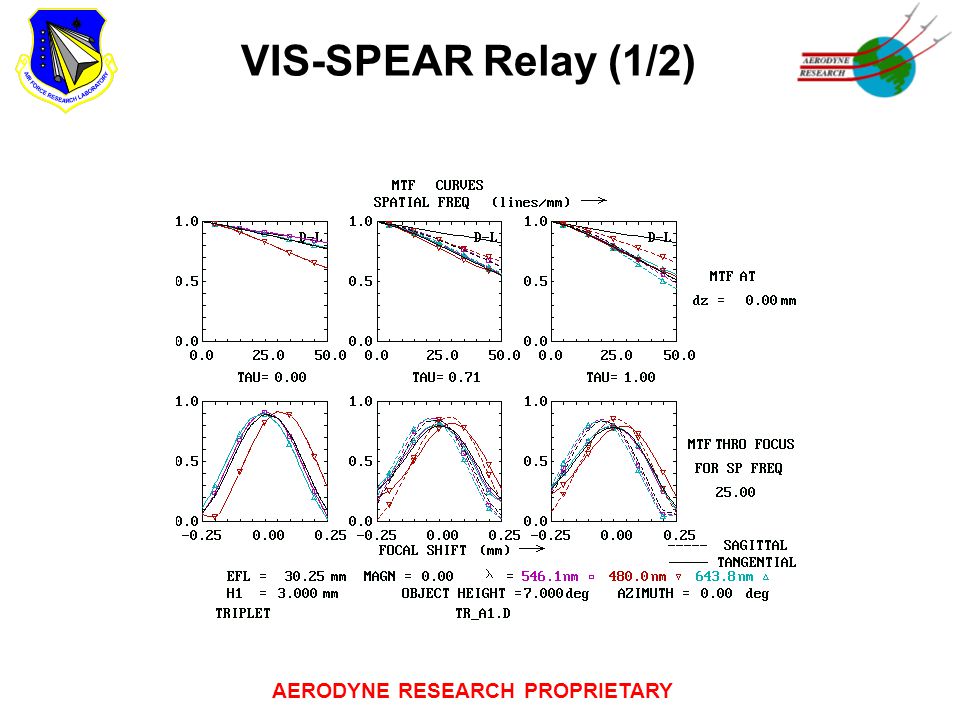

20 AERODYNE RESEARCH PROPRIETARY VIS-SPEAR Relay (1/2)

21 AERODYNE RESEARCH PROPRIETARY VIS-SPEAR Relay (1/2)

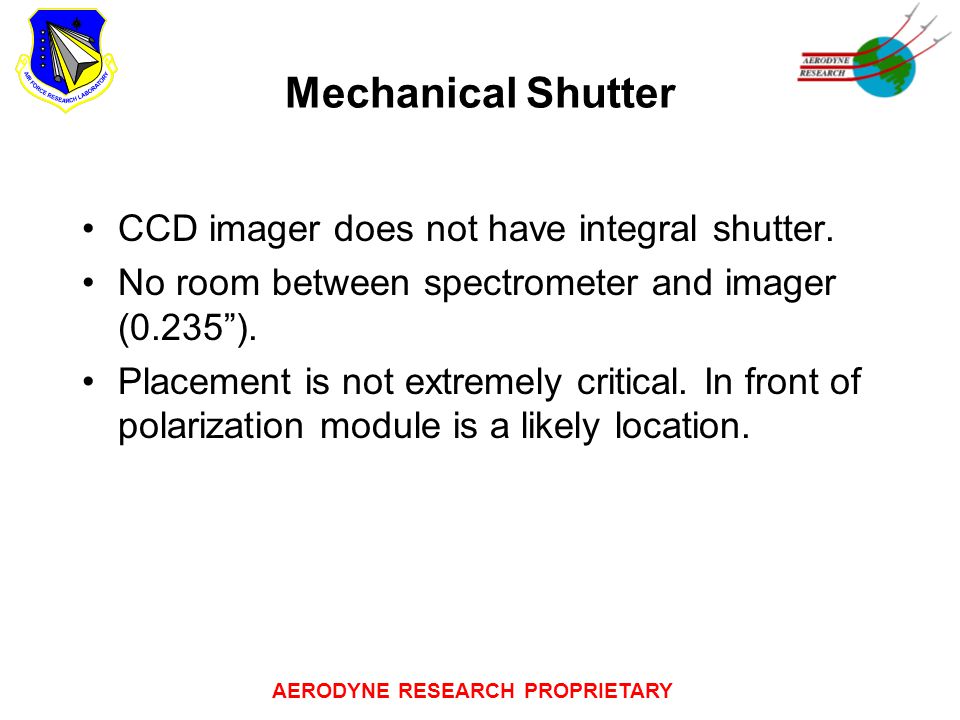

22 AERODYNE RESEARCH PROPRIETARY Mechanical Shutter CCD imager does not have integral shutter. No room between spectrometer and imager (0.235”). Placement is not extremely critical. In front of polarization module is a likely location.

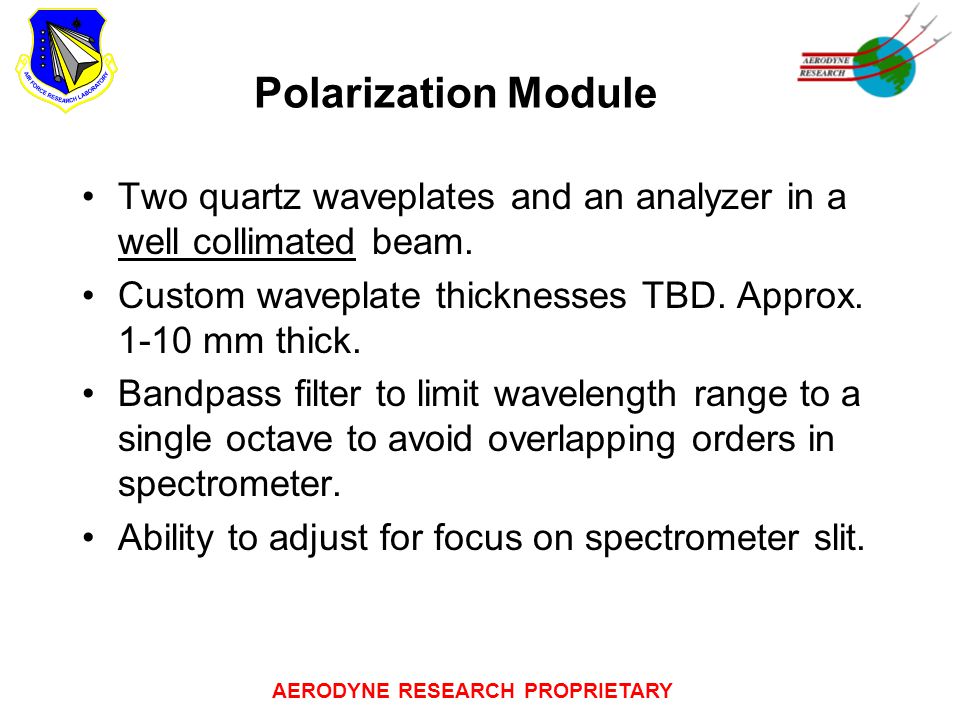

23 AERODYNE RESEARCH PROPRIETARY Polarization Module Two quartz waveplates and an analyzer in a well collimated beam. Custom waveplate thicknesses TBD. Approx mm thick. Bandpass filter to limit wavelength range to a single octave to avoid overlapping orders in spectrometer. Ability to adjust for focus on spectrometer slit.

24 AERODYNE RESEARCH PROPRIETARY Polarization Module (cont.) ARI will want ONLY ONE polarization module but it must be possible to interchange waveplates. Dichroic sheet analyzer to achieve high purity and high throughput -- as compared to prisms. Optic axes of waveplates must be oriented 45 deg. w/ respect to each other.

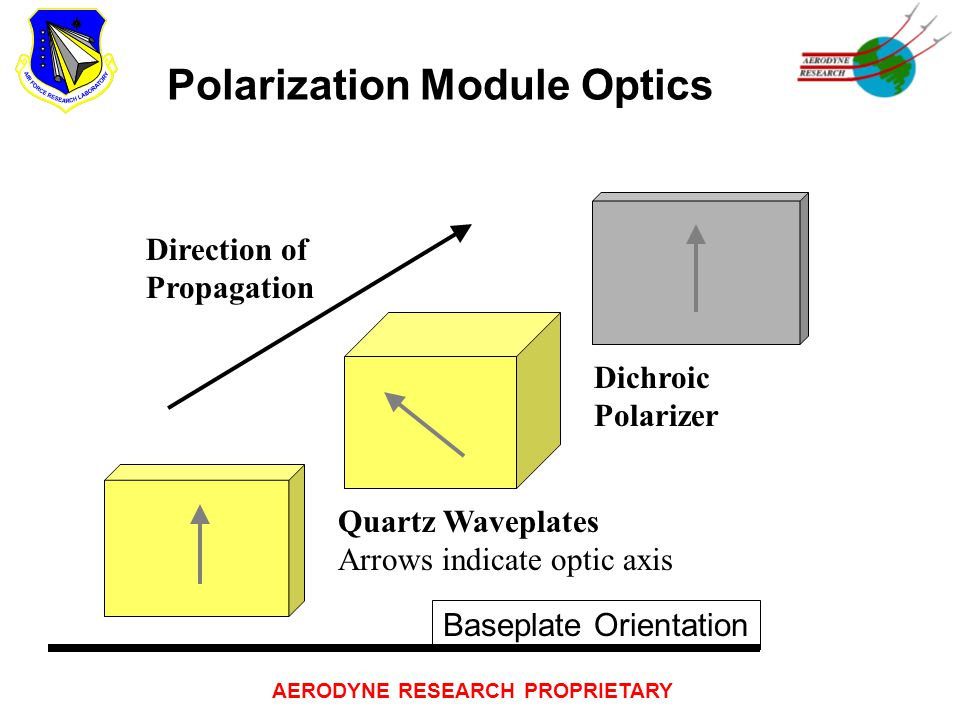

25 AERODYNE RESEARCH PROPRIETARY Polarization Module Optics Quartz Waveplates Arrows indicate optic axis Dichroic Polarizer Direction of Propagation Baseplate Orientation

26 AERODYNE RESEARCH PROPRIETARY Convex Grating Spectrometer Agilent VS-15 –http://www.agilent.com/cm/diffract/VS15.shtml Offner relay, holographic grating, 100 nm/mm dispersion, f/2. Consider having larger dispersion grating fabricated (probably holographic). Current slit width 12 um: undersampled w/ 24 um pixels. Consider having larger slit(s) fabricated. Aerodyne will furnish to APS for mechanical integration. Slit is 0.710” behind mounting flange. Back working distance is 0.629”.

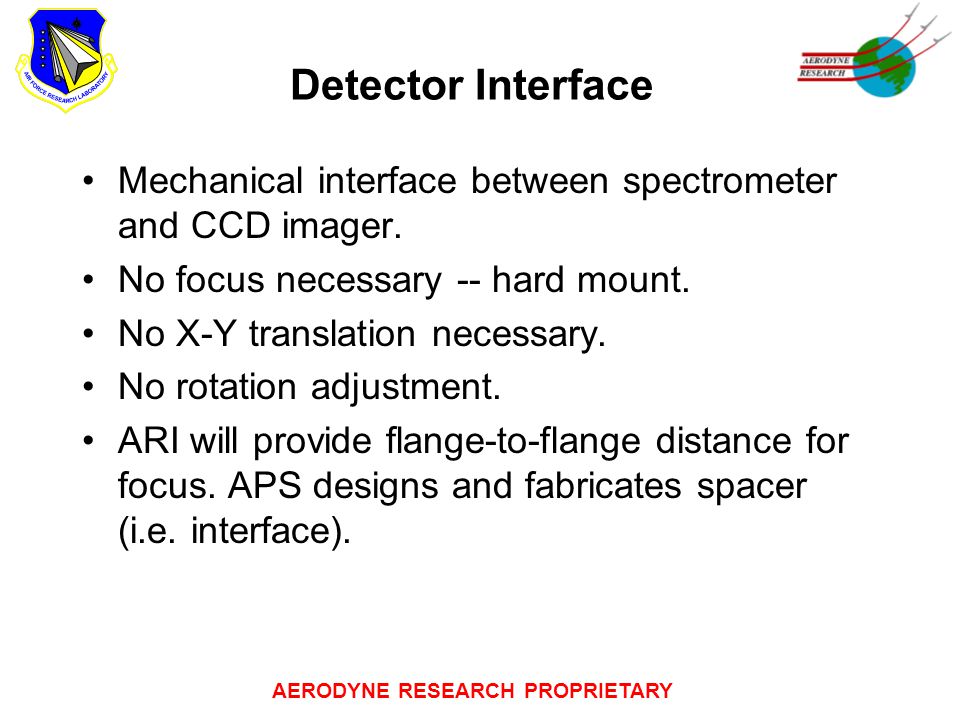

27 AERODYNE RESEARCH PROPRIETARY Detector Interface Mechanical interface between spectrometer and CCD imager. No focus necessary -- hard mount. No X-Y translation necessary. No rotation adjustment. ARI will provide flange-to-flange distance for focus. APS designs and fabricates spacer (i.e. interface).

28 AERODYNE RESEARCH PROPRIETARY Andor DV412 CCD Imager TE Cooled (-60C in air), thinned, back illuminated detector array. Large pixels - 24x24 um. Total chip size 12.3 x12.3 mm (512 x 512). 1 Mpixel/s readout, 10e- ro noise typical.
