Preparing for "The Big One": Protection and Recovery Using Windows Server 2012 and System Center 2012 SP1 Mahesh Unnikrishnan Neela Syam Kolli Microsoft.

Similar presentations


Presentation on theme: "Preparing for "The Big One": Protection and Recovery Using Windows Server 2012 and System Center 2012 SP1 Mahesh Unnikrishnan Neela Syam Kolli Microsoft."— Presentation transcript:

1 Preparing for "The Big One": Protection and Recovery Using Windows Server 2012 and System Center 2012 SP1 Mahesh Unnikrishnan Neela Syam Kolli Microsoft Corporation MGT327

2

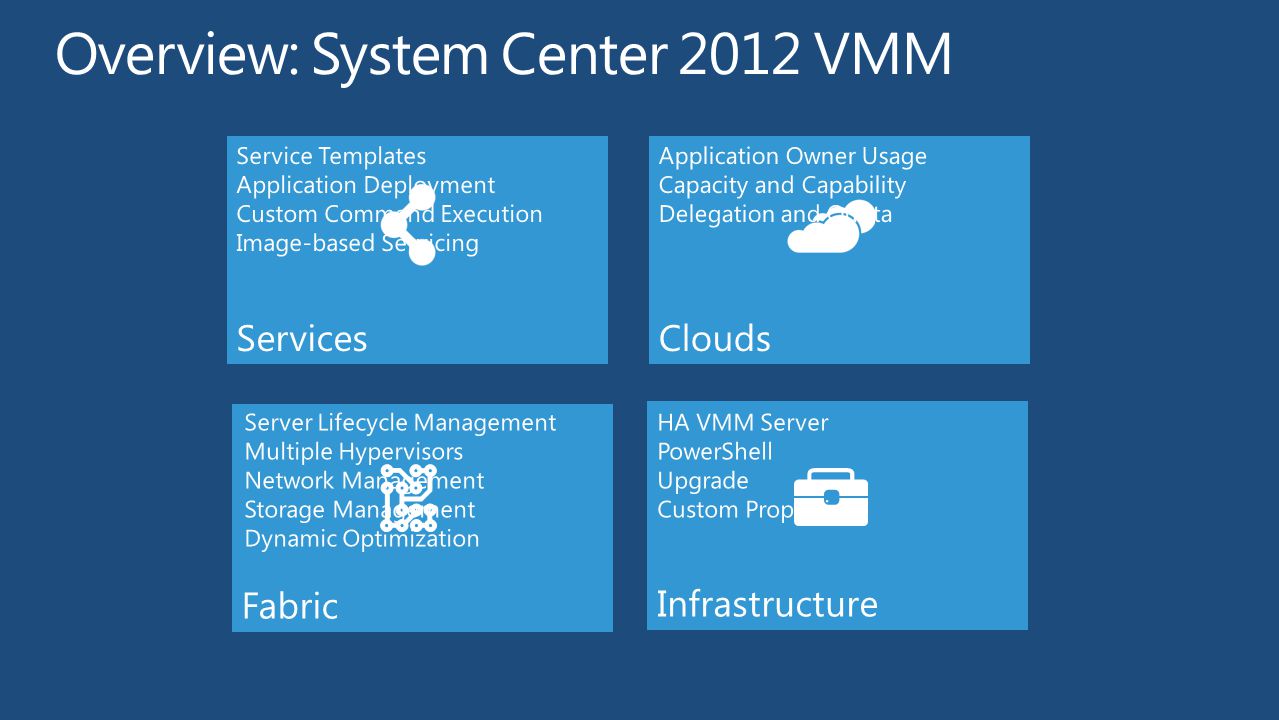

3 Infrastructure HA VMM Server PowerShell Upgrade Custom Properties Services Fabric Clouds Server Lifecycle Management Multiple Hypervisors Network Management Storage Management Dynamic Optimization Service Templates Application Deployment Custom Command Execution Image-based Servicing Application Owner Usage Capacity and Capability Delegation and Quota

4 Increase Scale Increase Performance Decrease Latency Large VMs Live Migration Enhancements Network Virtualization Storage Management Clustering & High Availability Tenant Administrator VM Network Isolation Service Deployment UI Add-ins Service Templates Server Hardware Providers Load Balancer Providers Storage automation

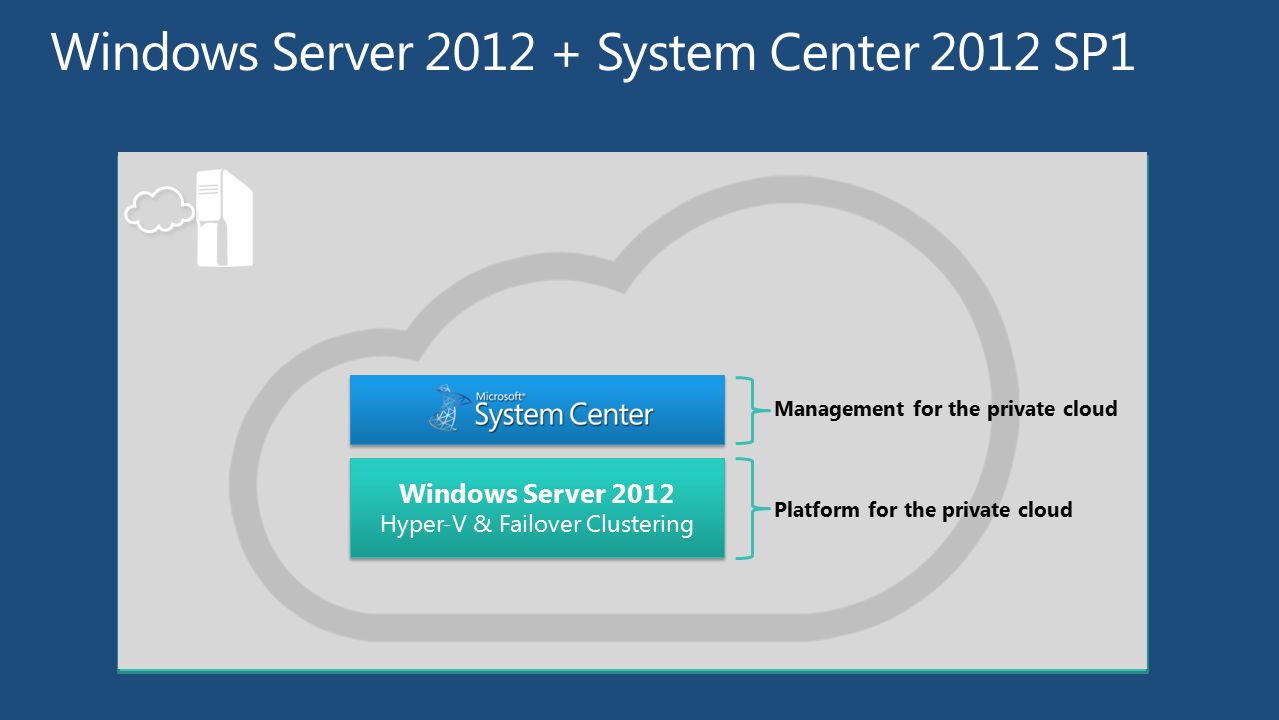

5 Windows Server 2012 Hyper-V & Failover Clustering Windows Server 2012 Hyper-V & Failover Clustering Management for the private cloud Platform for the private cloud

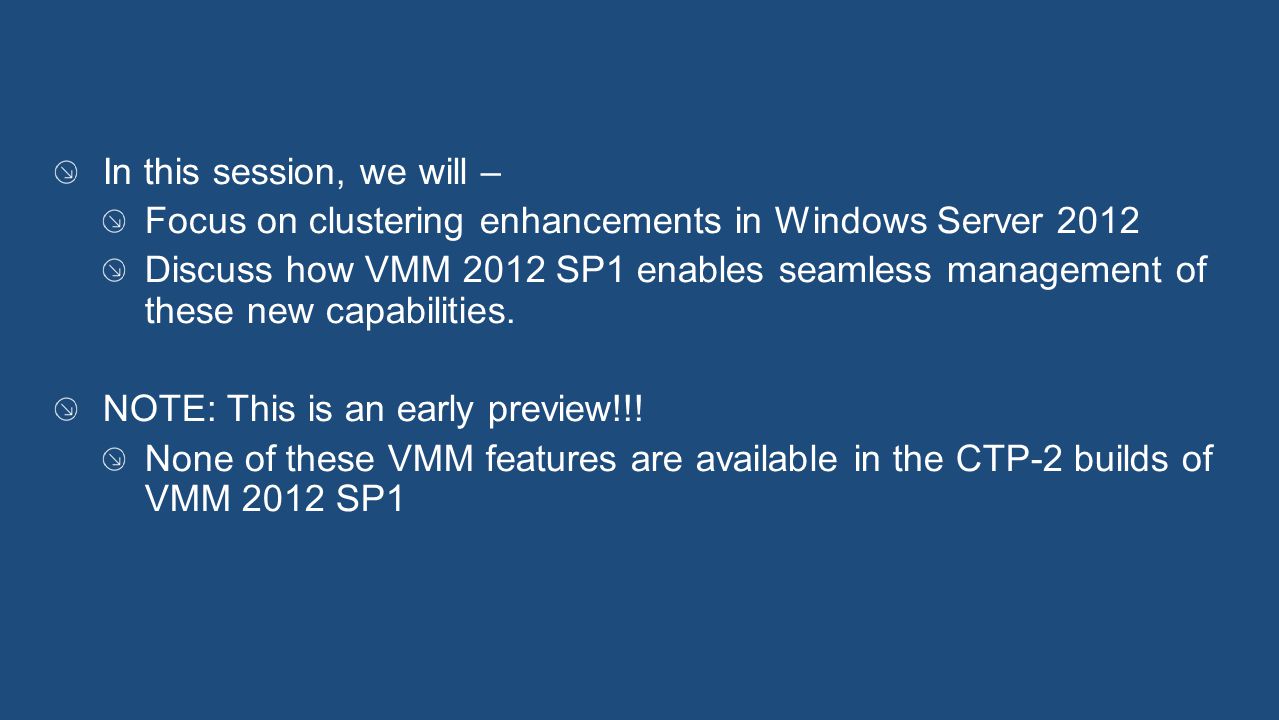

6 In this session, we will – Focus on clustering enhancements in Windows Server 2012 Discuss how VMM 2012 SP1 enables seamless management of these new capabilities. NOTE: This is an early preview!!! None of these VMM features are available in the CTP-2 builds of VMM 2012 SP1

7 Massive clusters & CSV2

8 Windows Server 2012 supports an industry best 4,000 VMs per cluster and can now massively scale out to 64 nodes in a cluster... Scale up Scale out... Effortless management

9 Windows Server 2012 – Next generation Scale-out app platform Supports file servers - File based (SMB) storage for Hyper-V Improved backup Direct I/O for more scenarios Better VM creation and copy performance Multi-subnet support VMM 2012 SP1 will: Support CSV2 and CSVFS for Windows Server 2012 clusters Support converting available storage to CSV2 and vice-versa Continue to support CSV v1 for Windows Server 2008 R2 CSV2 is enabled by default for Windows Server 2012 based clusters.

10 Preferred Owners

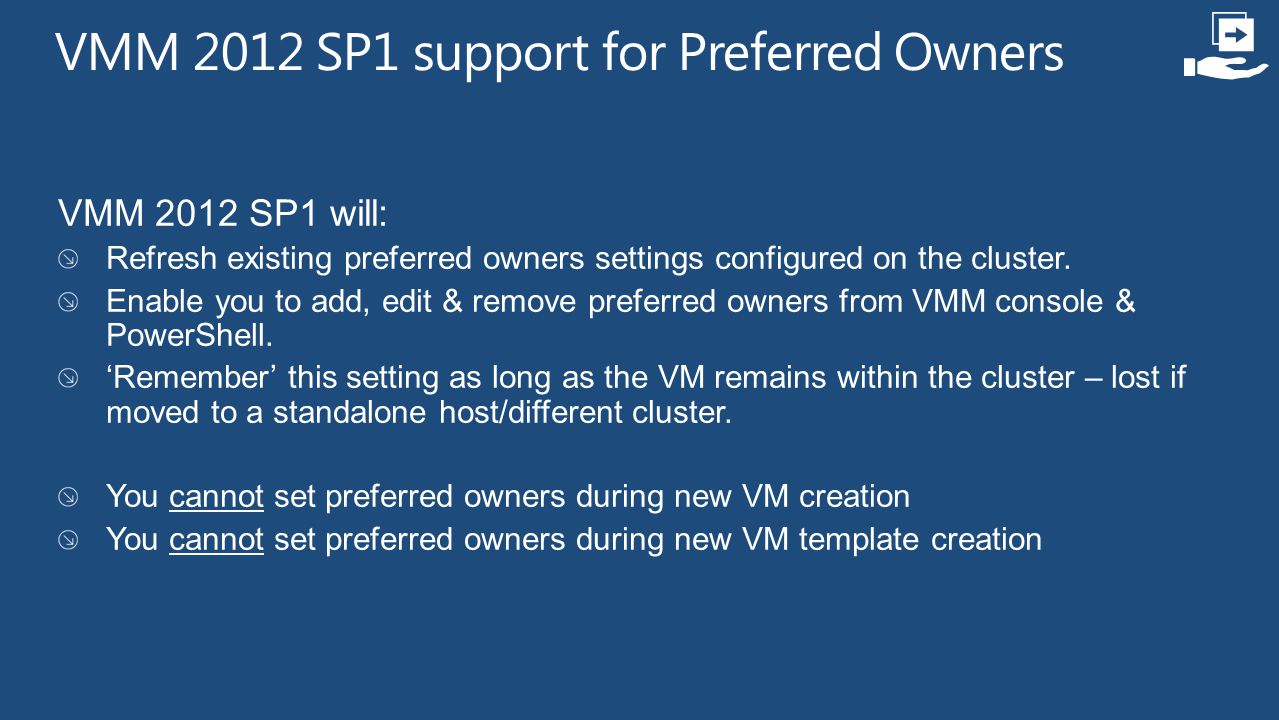

11 VMM 2012 SP1 will: Refresh existing preferred owners settings configured on the cluster. Enable you to add, edit & remove preferred owners from VMM console & PowerShell. ‘Remember’ this setting as long as the VM remains within the cluster – lost if moved to a standalone host/different cluster. You cannot set preferred owners during new VM creation You cannot set preferred owners during new VM template creation

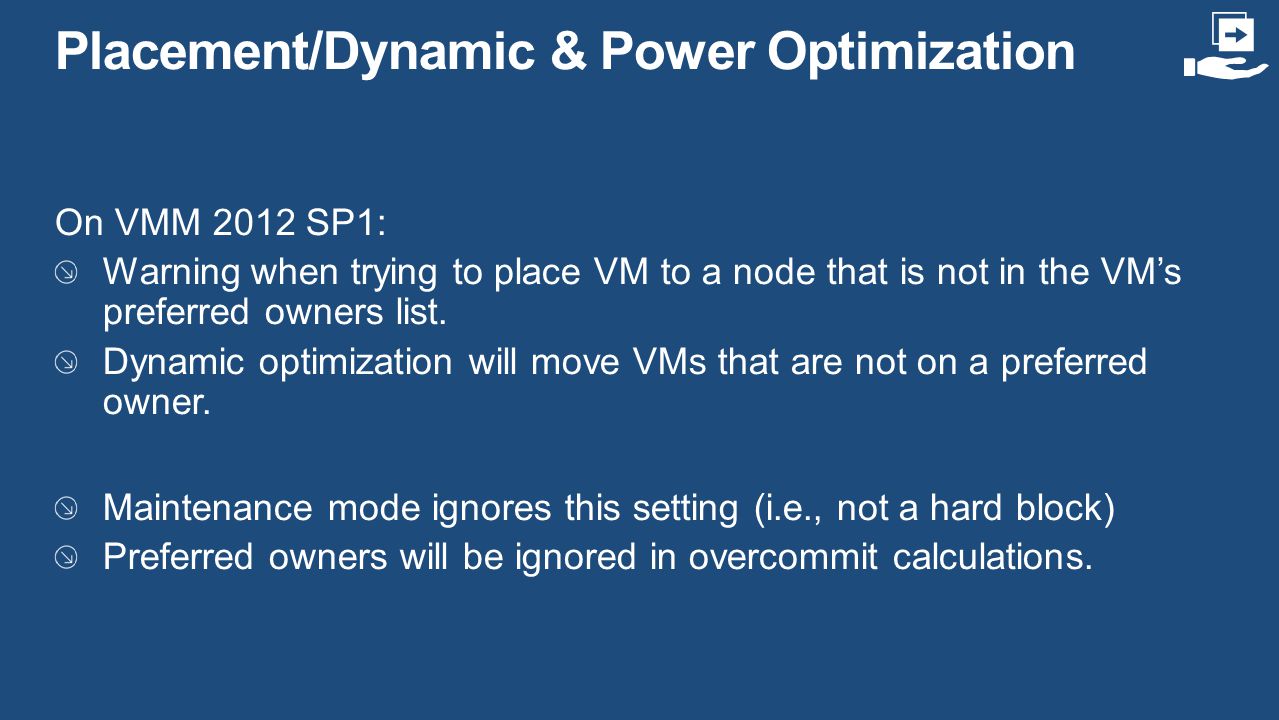

12 Placement/Dynamic & Power Optimization On VMM 2012 SP1: Warning when trying to place VM to a node that is not in the VM’s preferred owners list. Dynamic optimization will move VMs that are not on a preferred owner. Maintenance mode ignores this setting (i.e., not a hard block) Preferred owners will be ignored in overcommit calculations.

13

14 Possible Owners

15 VMM 2012 SP1 will: Refresh existing possible owners settings configured on the cluster. Enable you to add, edit & remove possible owners from VMM console & PowerShell. ‘Remember’ this setting as long as the VM remains within the cluster – lost if moved to a standalone host/different cluster. You cannot set possible owners during new VM creation You cannot set possible owners during new VM template creation

16 Placement/Dynamic & Power Optimization On VMM 2012 SP1: Zero stars when trying to place to a node that is not in the VM’s possible owners list. DO will move VMs that are not on a possible owner. VMs will not be migrated to a node that is not a possible owner. VMM Maintenance mode ignores this setting (i.e., not a hard block) “Can’t calculate over-commit” warning - for VMs with custom possible owners configured.

17

18 VM Priority

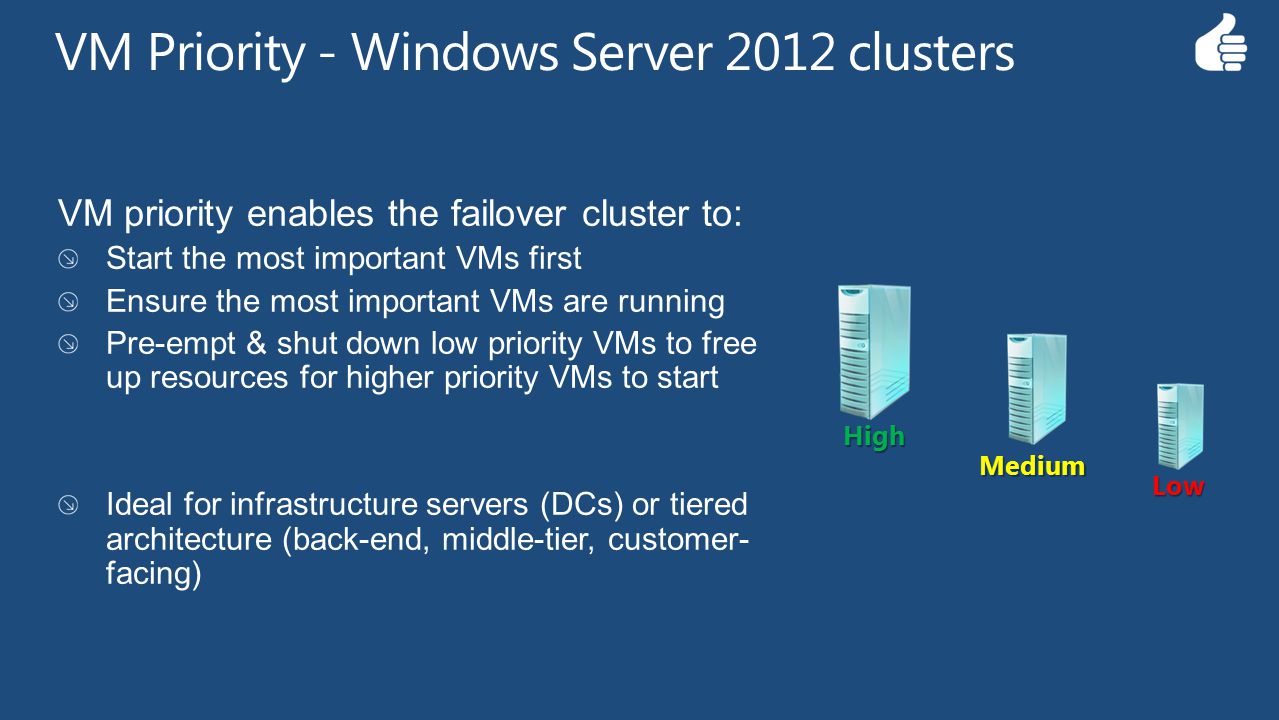

19 High Medium Low

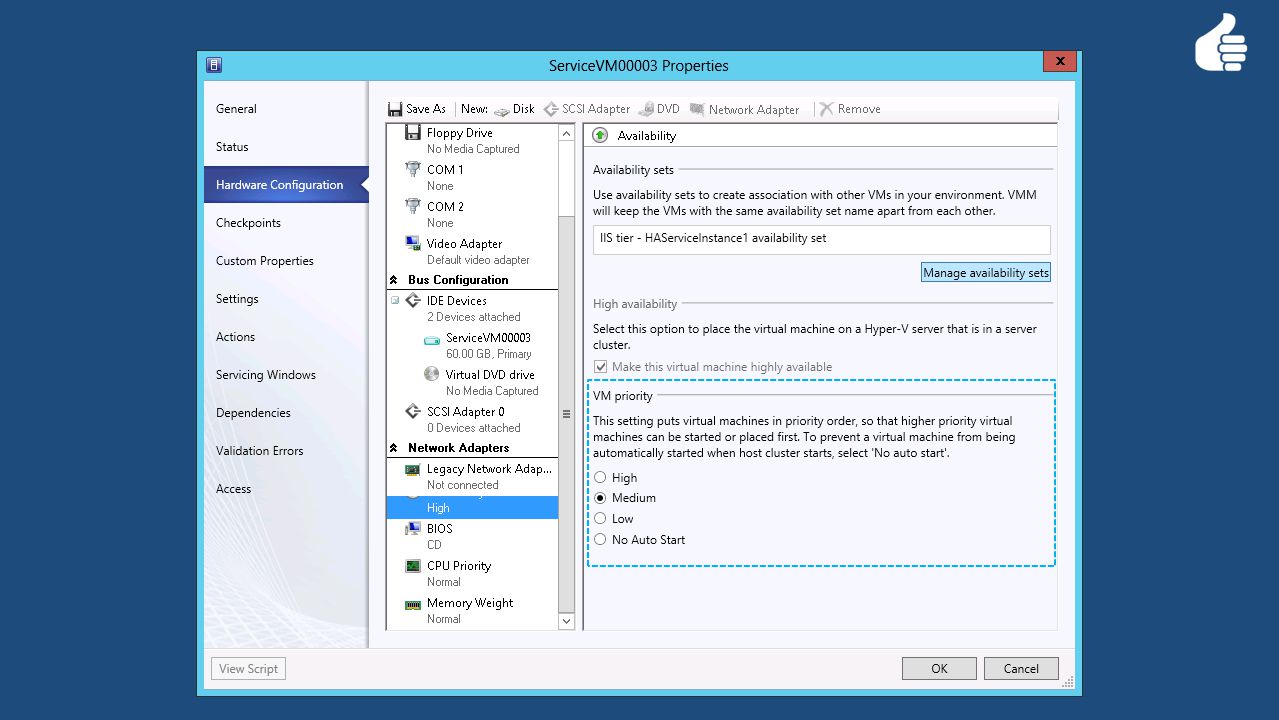

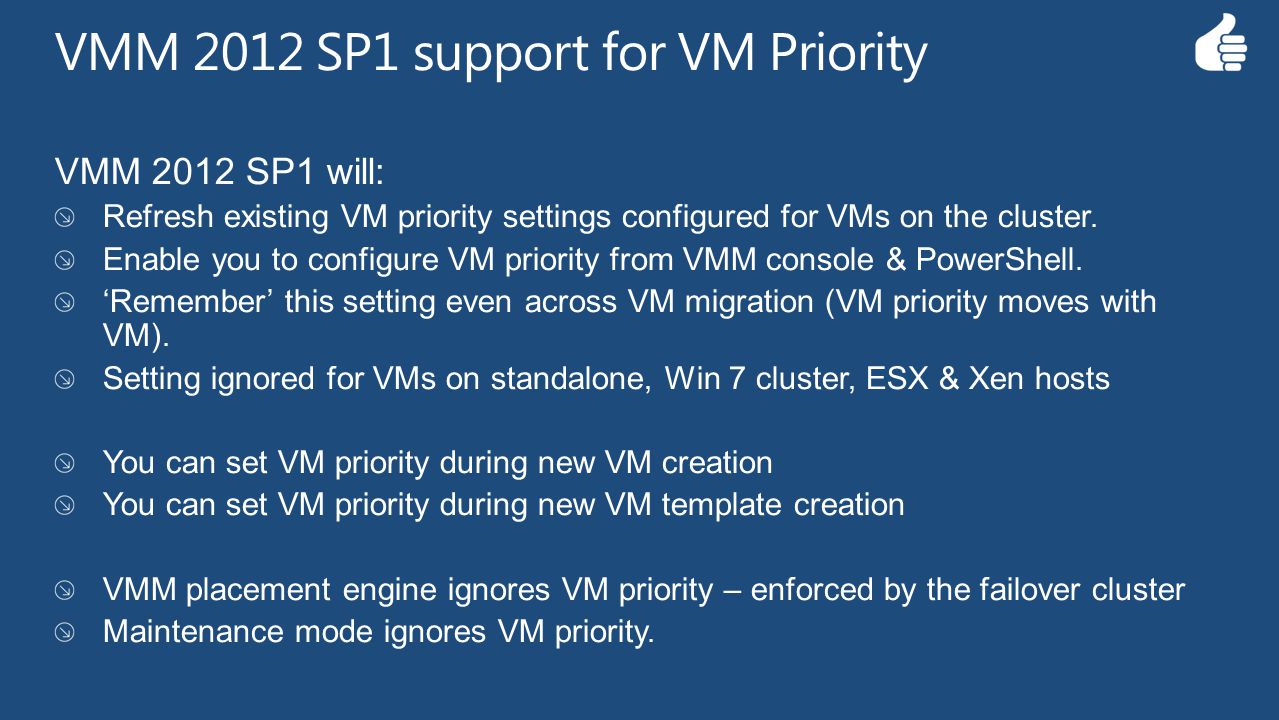

20 VMM 2012 SP1 will: Refresh existing VM priority settings configured for VMs on the cluster. Enable you to configure VM priority from VMM console & PowerShell. ‘Remember’ this setting even across VM migration (VM priority moves with VM). Setting ignored for VMs on standalone, Win 7 cluster, ESX & Xen hosts You can set VM priority during new VM creation You can set VM priority during new VM template creation VMM placement engine ignores VM priority – enforced by the failover cluster Maintenance mode ignores VM priority.

21

22 VMM Availability Sets

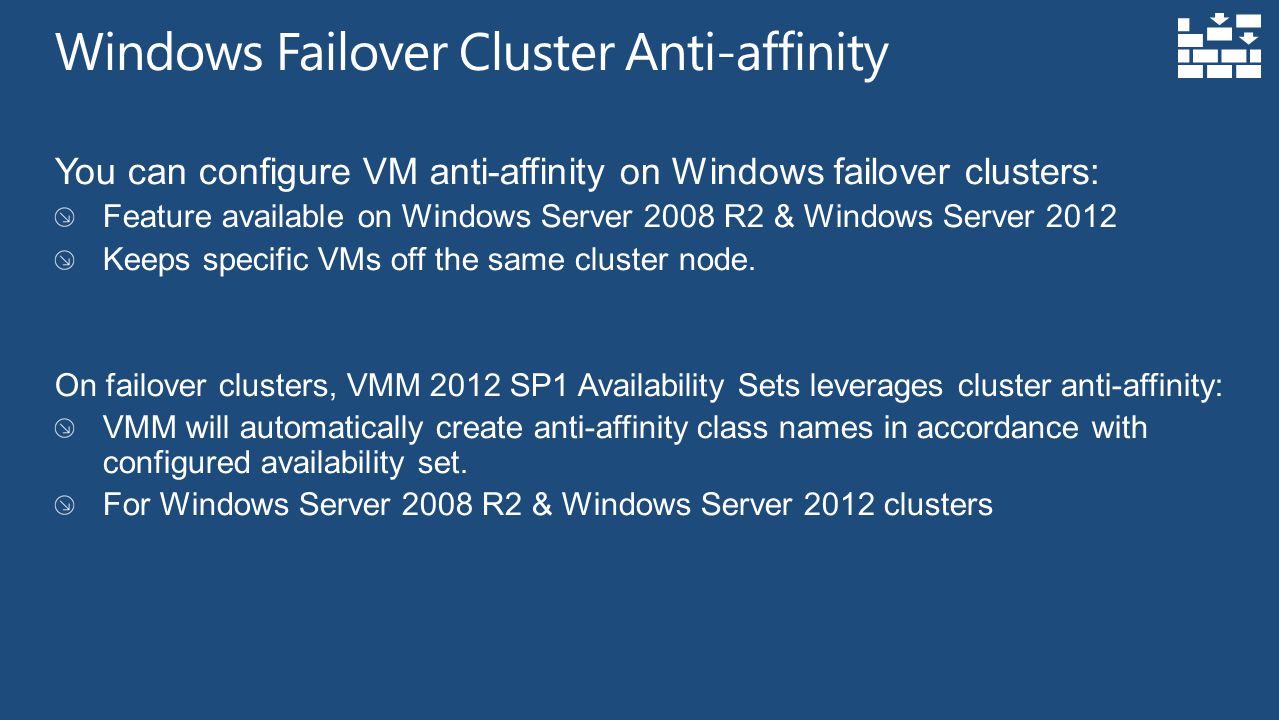

23 You can configure VM anti-affinity on Windows failover clusters: Feature available on Windows Server 2008 R2 & Windows Server 2012 Keeps specific VMs off the same cluster node. On failover clusters, VMM 2012 SP1 Availability Sets leverages cluster anti-affinity: VMM will automatically create anti-affinity class names in accordance with configured availability set. For Windows Server 2008 R2 & Windows Server 2012 clusters

24 Availability Set: “DCs” Availability Set  configurable anti- affinity rules for VMs VMM 2012 SP1 ensures VMs are placed on different hosts for better availability. VMM Placement algorithm offers suggestions based on availability sets. Works across: Standalone (non-clustered) Hyper-V hosts* Hyper-V clusters* Xen Server hosts VMware hosts * Windows Server 2008 R2 & Windows Server 2012 based hosts

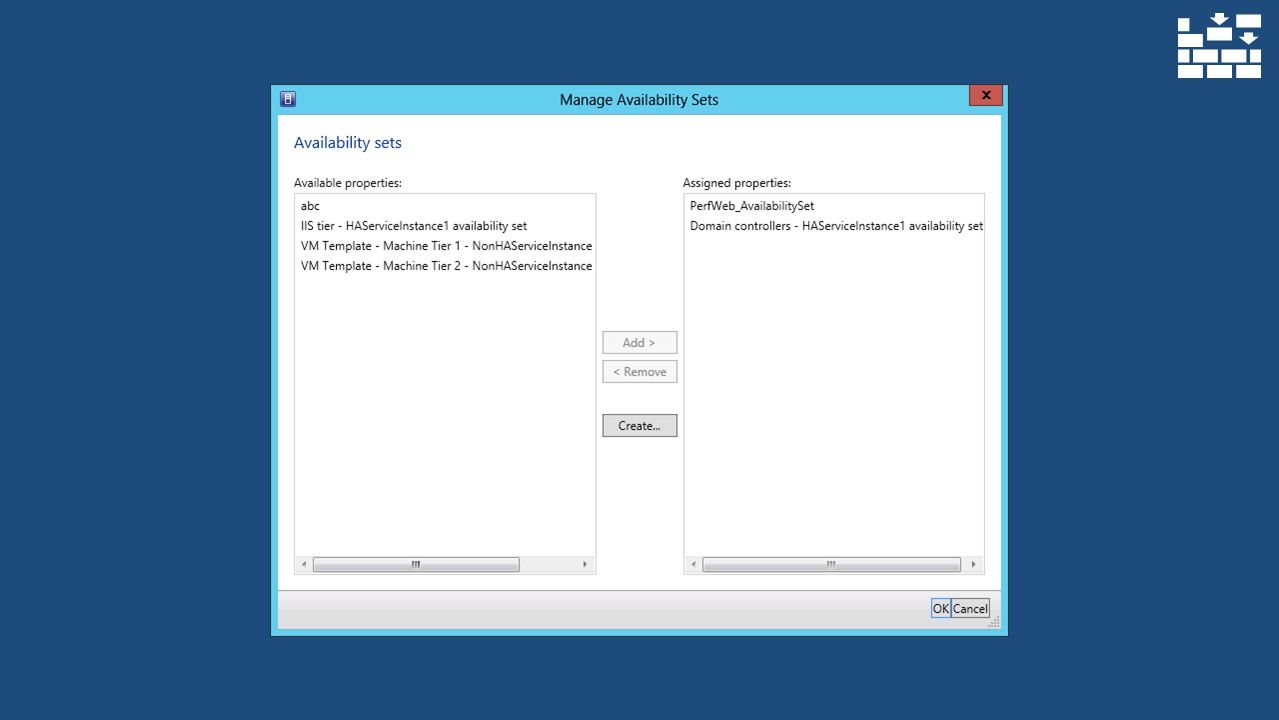

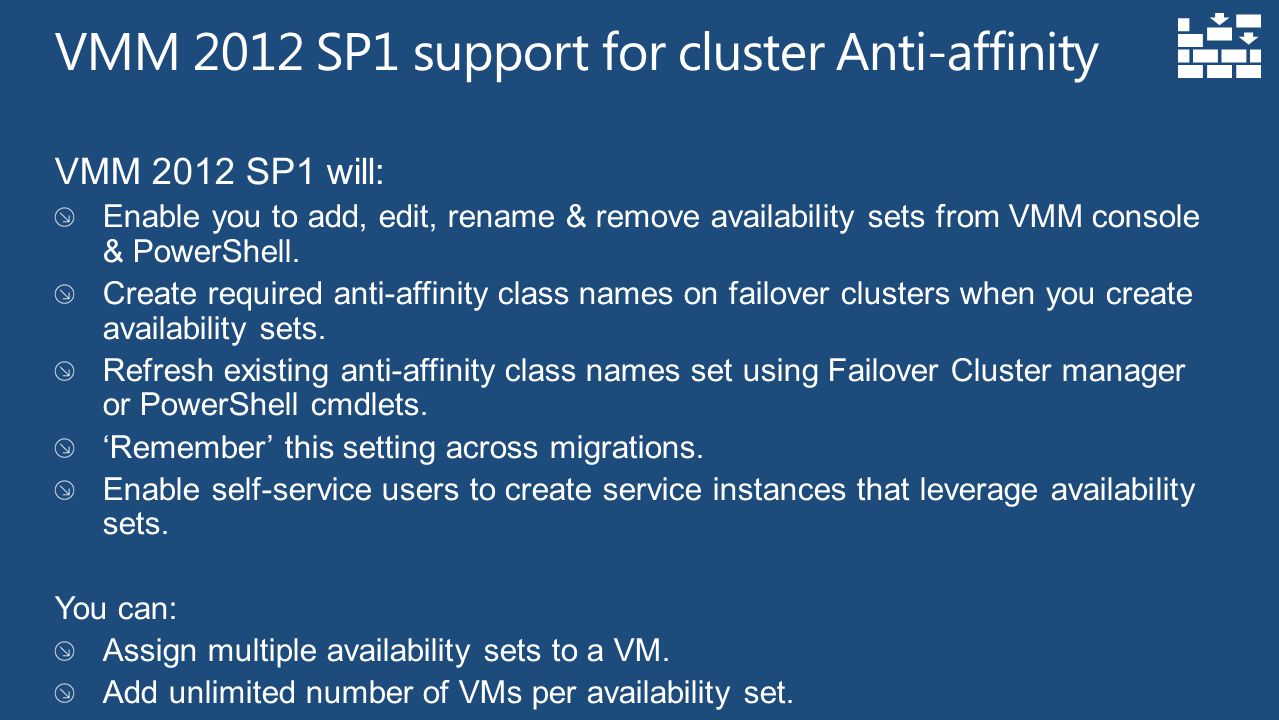

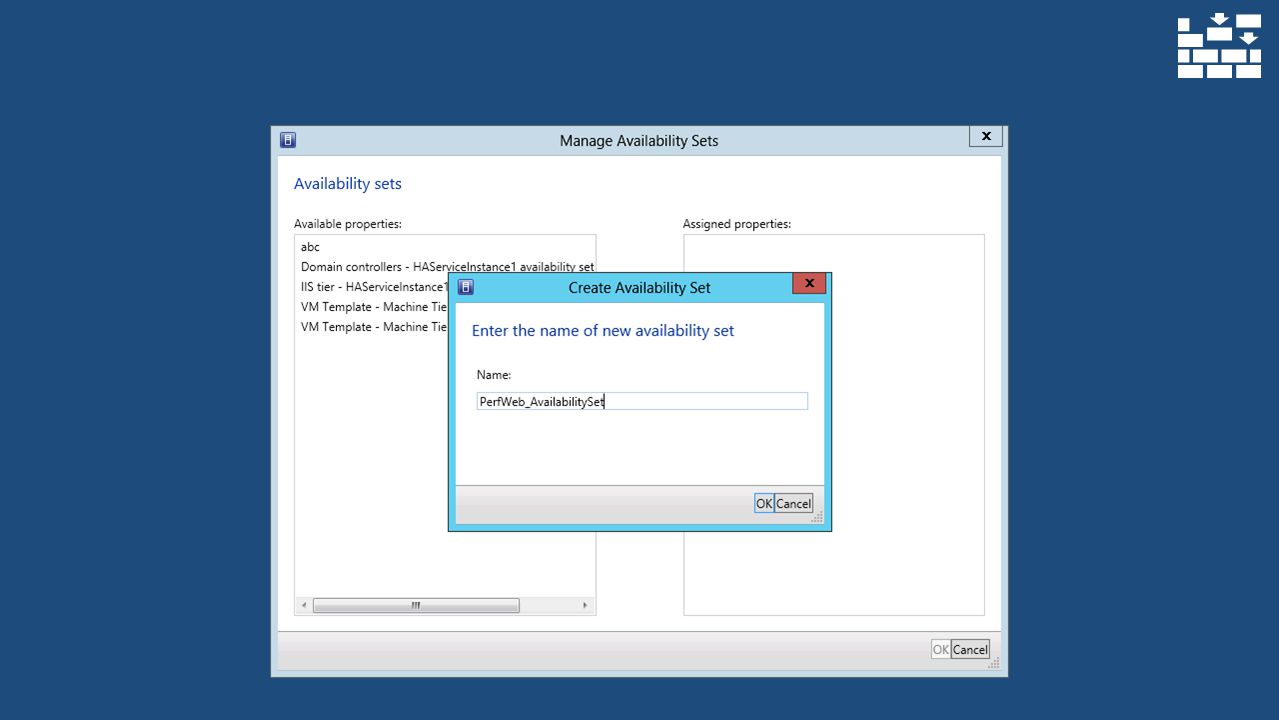

25 VMM 2012 SP1 will: Enable you to add, edit, rename & remove availability sets from VMM console & PowerShell. Create required anti-affinity class names on failover clusters when you create availability sets. Refresh existing anti-affinity class names set using Failover Cluster manager or PowerShell cmdlets. ‘Remember’ this setting across migrations. Enable self-service users to create service instances that leverage availability sets. You can: Assign multiple availability sets to a VM. Add unlimited number of VMs per availability set.

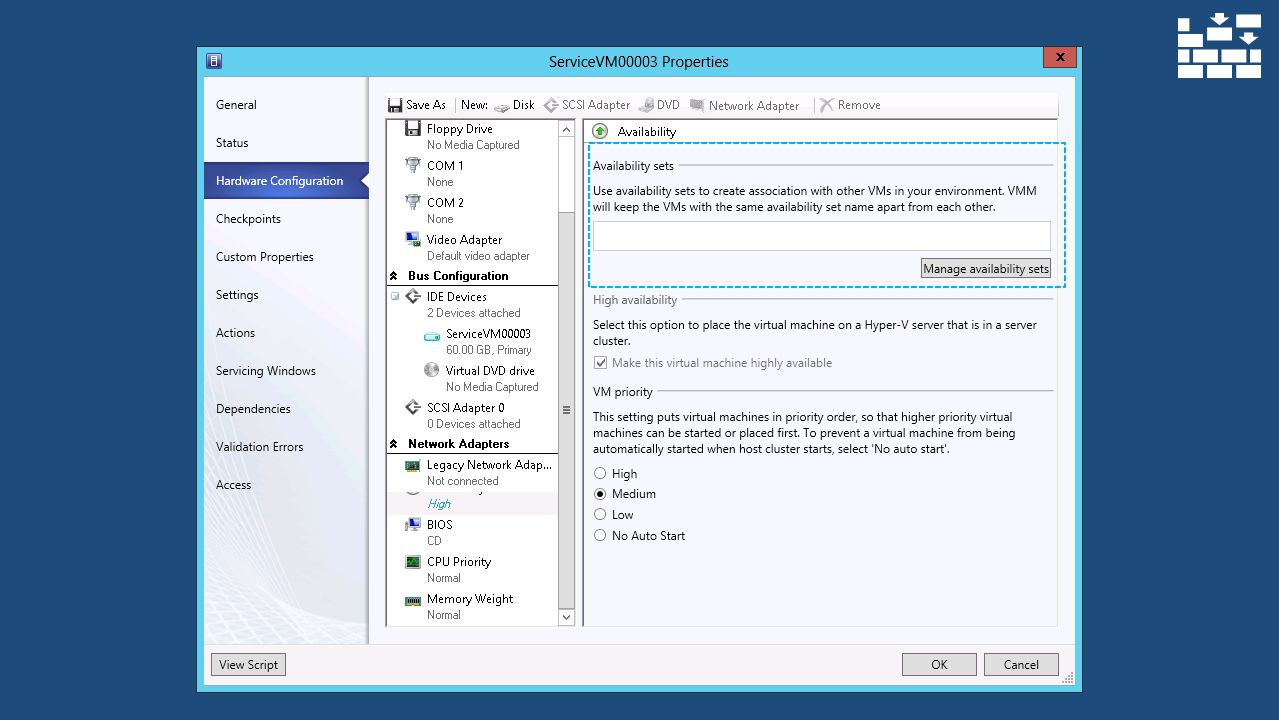

26

27

28

29

30

31 Placement/Dynamic & Power Optimization On VMM 2012 SP1: Warnings displayed when trying to place VMs belonging to an availability set on the same host. DO will try to fix cases where VMs in an availability set are on same cluster node. VMM Maintenance mode ignores this setting (i.e., not a hard block)

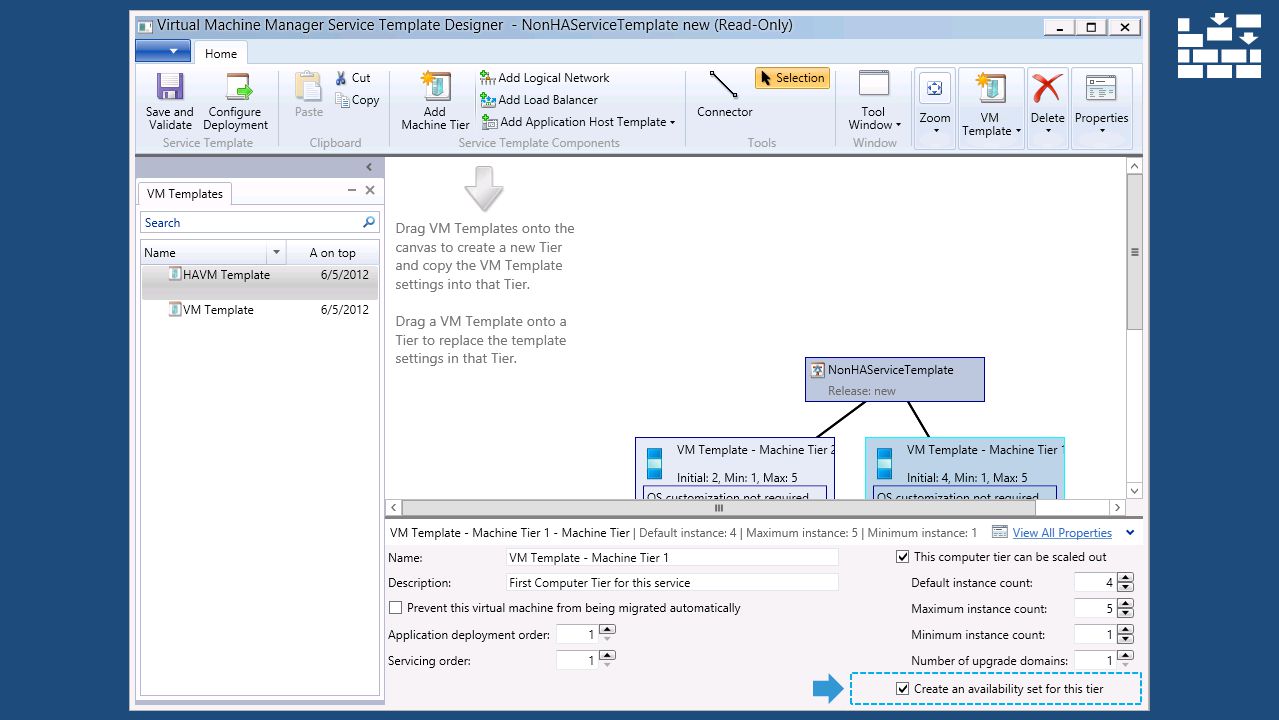

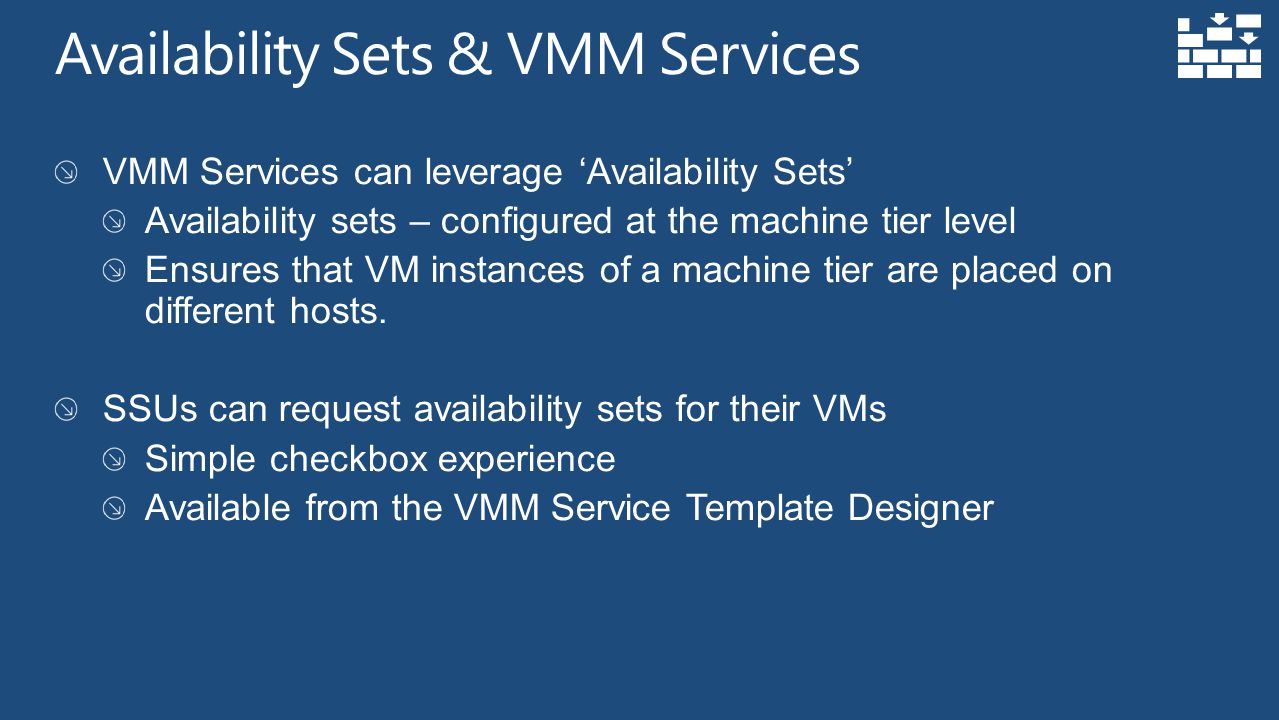

32 VMM Services can leverage ‘Availability Sets’ Availability sets – configured at the machine tier level Ensures that VM instances of a machine tier are placed on different hosts. SSUs can request availability sets for their VMs Simple checkbox experience Available from the VMM Service Template Designer

33

34

35 Backup & Recovery

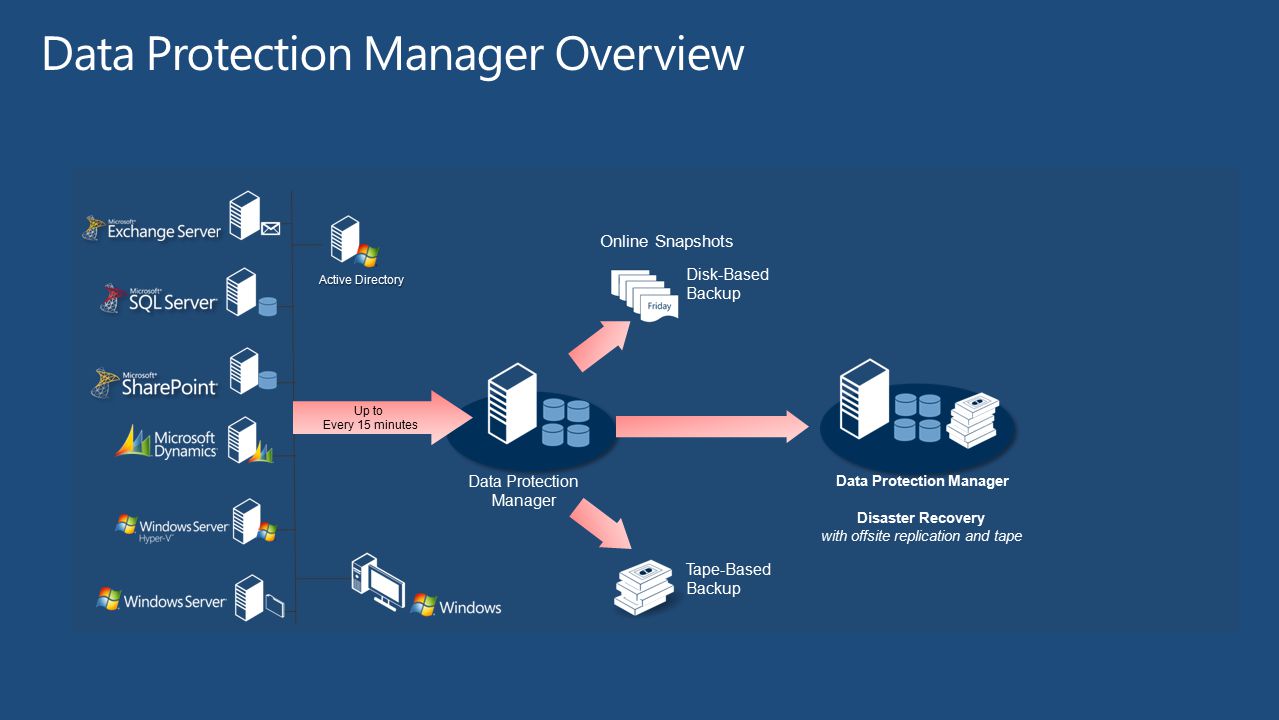

36 Online Snapshots Disk-Based Backup Active Directory Tape-Based Backup Data Protection Manager Up to Every 15 minutes Disaster Recovery with offsite replication and tape Data Protection Manager

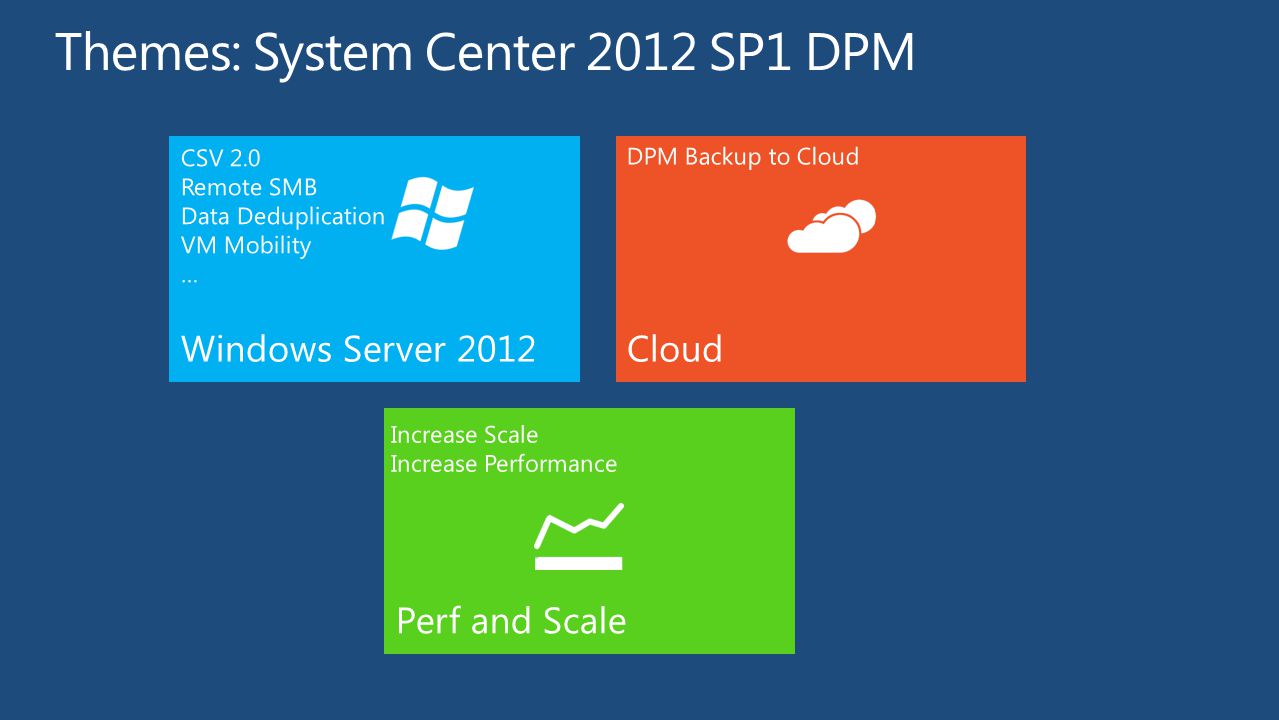

37 CSV 2.0 Remote SMB Data Deduplication VM Mobility … DPM Backup to Cloud Increase Scale Increase Performance

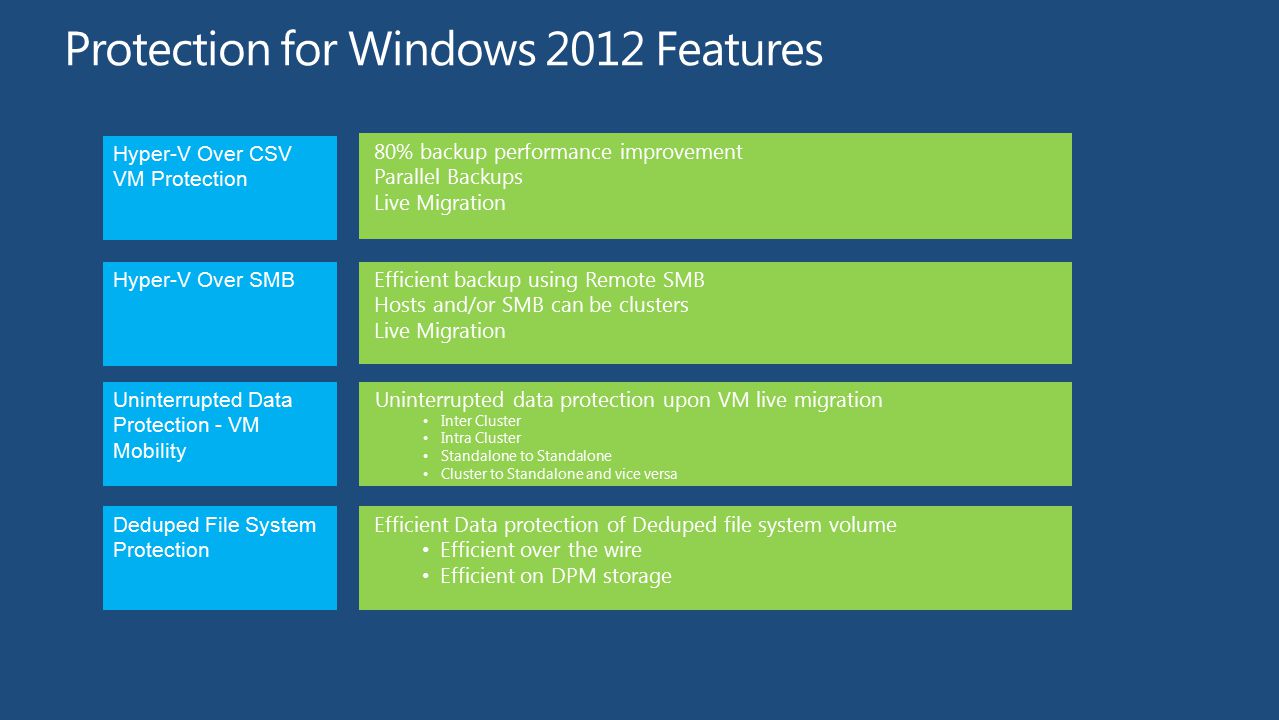

38 80% backup performance improvement Parallel Backups Live Migration Hyper-V Over CSV VM Protection Efficient backup using Remote SMB Hosts and/or SMB can be clusters Live Migration Hyper-V Over SMB Uninterrupted data protection upon VM live migration Inter Cluster Intra Cluster Standalone to Standalone Cluster to Standalone and vice versa Uninterrupted Data Protection - VM Mobility Efficient Data protection of Deduped file system volume Efficient over the wire Efficient on DPM storage Deduped File System Protection

39 demos Neela Syam Kolli Microsoft Corporation Protection for CSV, Remote SMB, VM Mobility and DeDupe

40 DPM Backup to Cloud

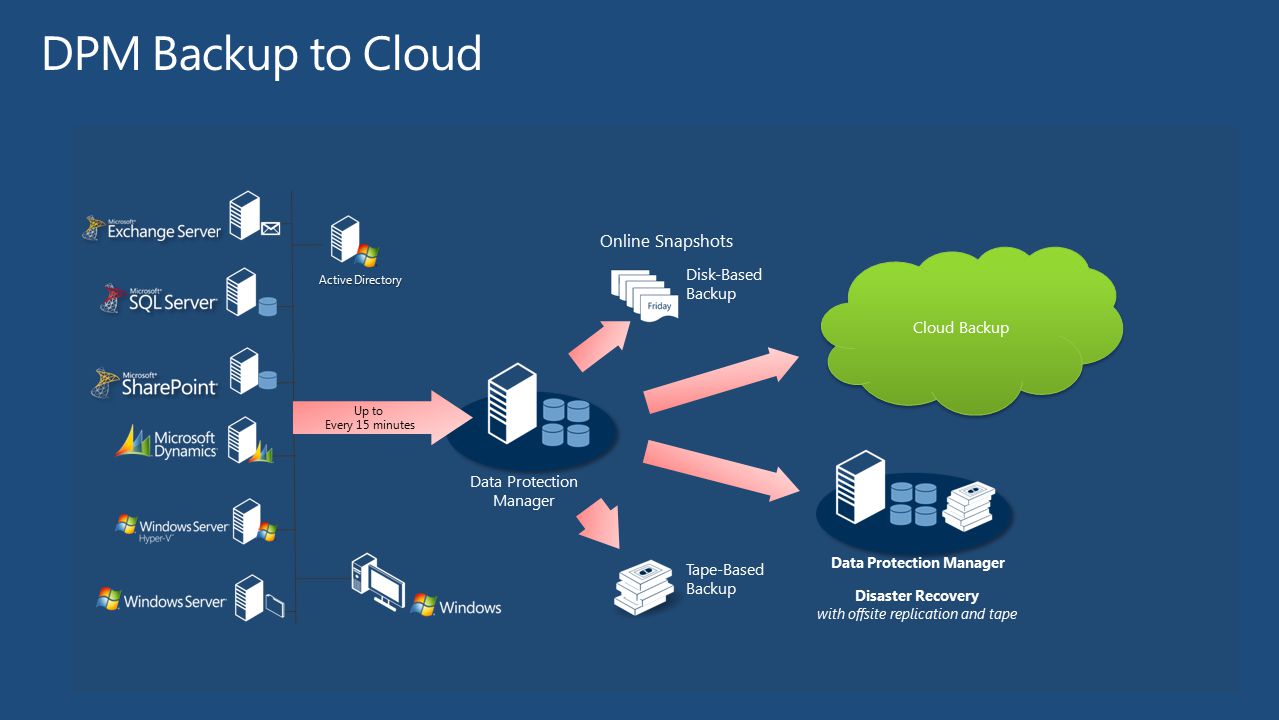

41 Online Snapshots Disk-Based Backup Active Directory Tape-Based Backup Data Protection Manager Up to Every 15 minutes Disaster Recovery with offsite replication and tape Data Protection Manager Cloud Backup

42 demo Neela Syam Kolli Microsoft Corporation DPM backup to cloud

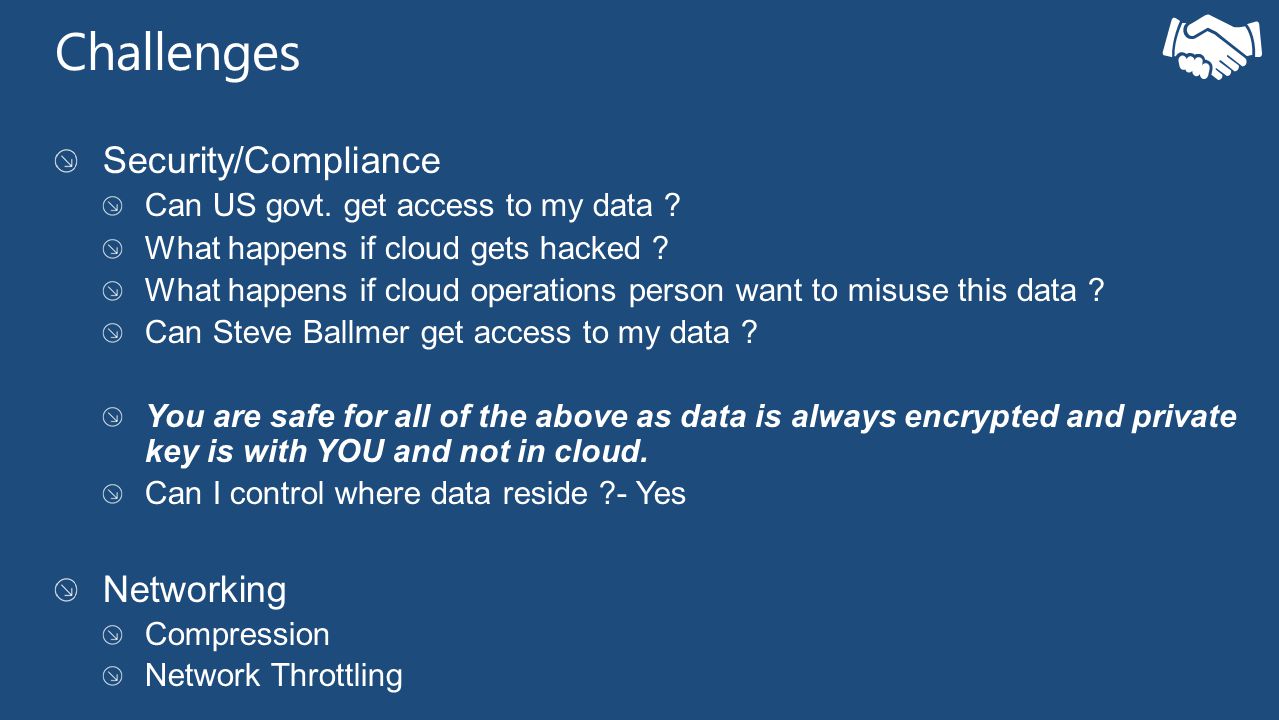

43 Security/Compliance Can US govt. get access to my data ? What happens if cloud gets hacked ? What happens if cloud operations person want to misuse this data ? Can Steve Ballmer get access to my data ? You are safe for all of the above as data is always encrypted and private key is with YOU and not in cloud. Can I control where data reside ?- Yes Networking Compression Network Throttling

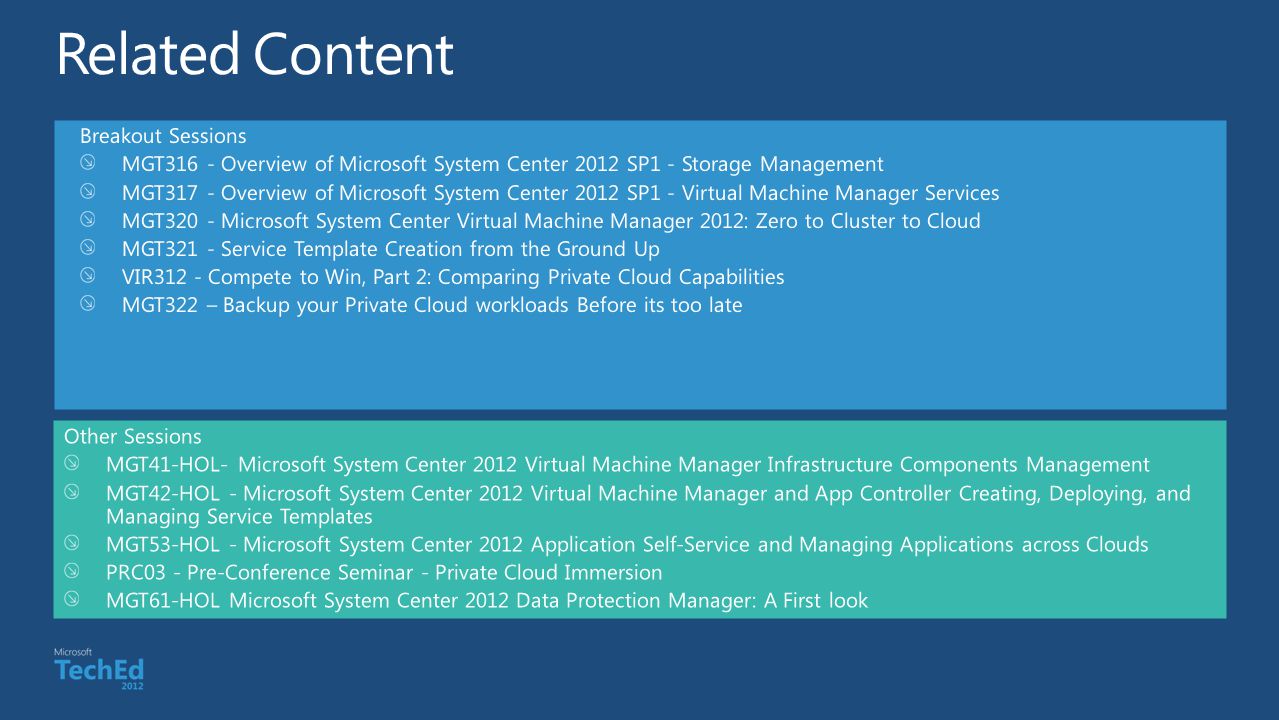

44 Breakout Sessions MGT316 - Overview of Microsoft System Center 2012 SP1 - Storage Management MGT317 - Overview of Microsoft System Center 2012 SP1 - Virtual Machine Manager Services MGT320 - Microsoft System Center Virtual Machine Manager 2012: Zero to Cluster to Cloud MGT321 - Service Template Creation from the Ground Up VIR312 - Compete to Win, Part 2: Comparing Private Cloud Capabilities MGT322 – Backup your Private Cloud workloads Before its too late Other Sessions MGT41-HOL- Microsoft System Center 2012 Virtual Machine Manager Infrastructure Components Management MGT42-HOL - Microsoft System Center 2012 Virtual Machine Manager and App Controller Creating, Deploying, and Managing Service Templates MGT53-HOL - Microsoft System Center 2012 Application Self-Service and Managing Applications across Clouds PRC03 - Pre-Conference Seminar - Private Cloud Immersion MGT61-HOL Microsoft System Center 2012 Data Protection Manager: A First look

45 DOWNLOAD System Center 2012 SP1 CTP microsoft.com/systemcenter #TEMGT327 DOWNLOAD System Center 2012 Evaluation microsoft.com/systemcenter Hands-On Labs Talk to our Experts at the TLC

46 Connect. Share. Discuss. Learning Microsoft Certification & Training Resources TechNet Resources for IT Professionals Resources for Developers

47 Evaluations Submit your evals online

48

49
