Wing Trade Study. Wing Process Flowchart CFD (In)Validation.

Similar presentations


Presentation on theme: "Wing Trade Study. Wing Process Flowchart CFD (In)Validation."— Presentation transcript:

1 Wing Trade Study

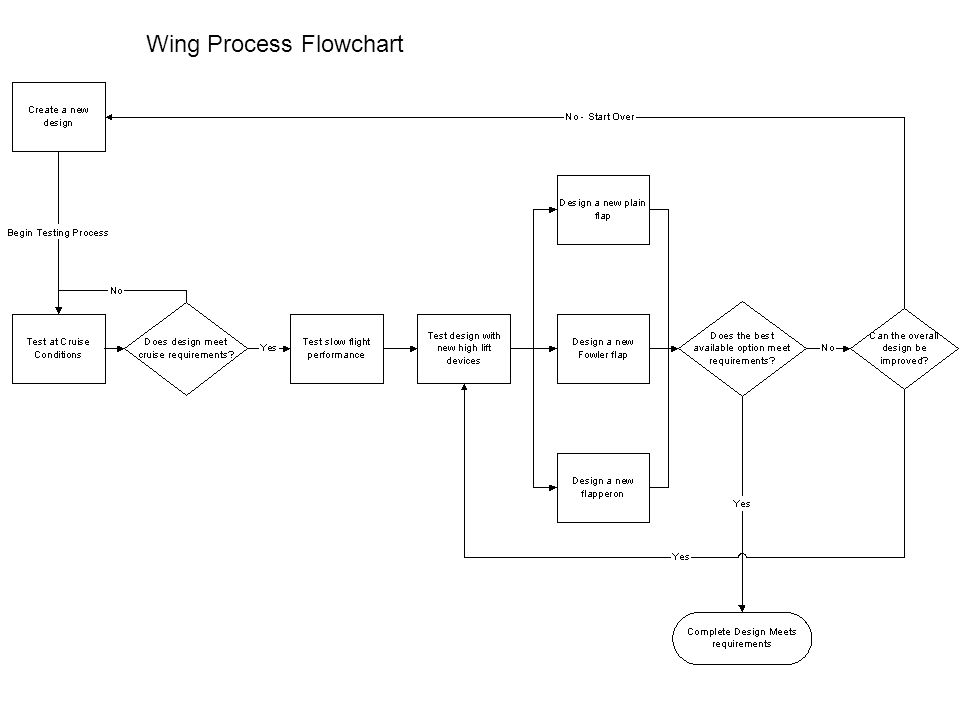

2 Wing Process Flowchart

3 CFD (In)Validation

4 Cruise Wing Optimization

5 Cruise wing optimization Guidelines Maintain the same or lower drag Increase lift by 300 pounds Maintain the same or lower surface area, and maintain the same or lower wingspan So, improve lift to drag ratio and wing loading of the baseline wing. Note, only considering cruise conditions at the moment.

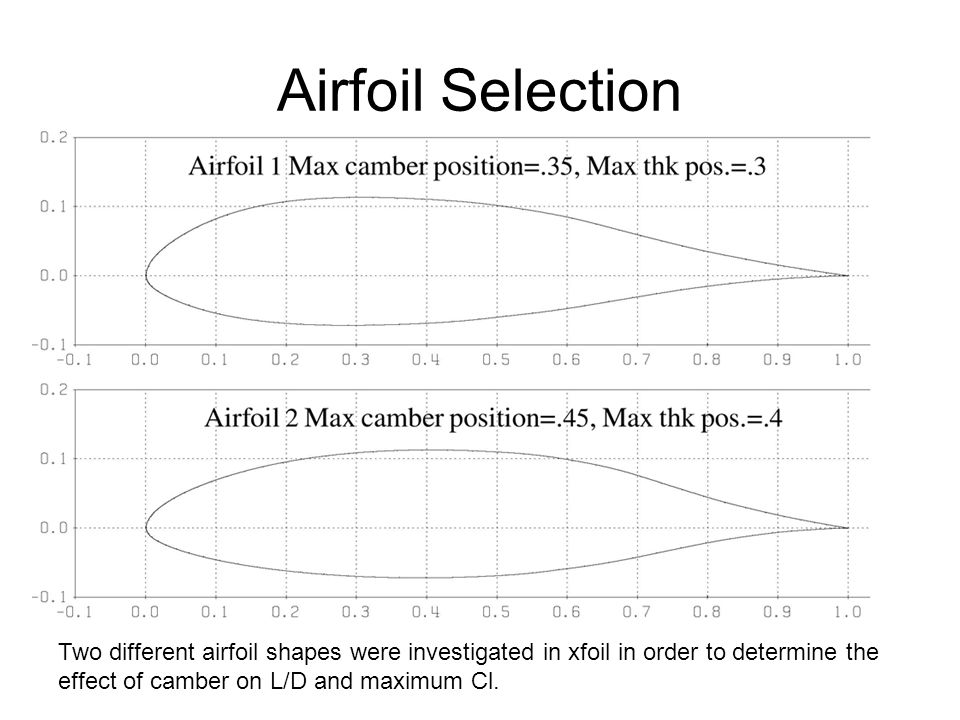

6 Airfoil Selection Two different airfoil shapes were investigated in xfoil in order to determine the effect of camber on L/D and maximum Cl.

7 Airfoil Selection Curves made in x-foil. Both plots are of airfoil 1 with varying cambers at Re=6 million

8 Airfoil selection Curves made in x-foil. Both plots are of airfoil 2 with varying cambers at Re=6 million

9 Optimized wing

10 Plain Flaps/Slats Study

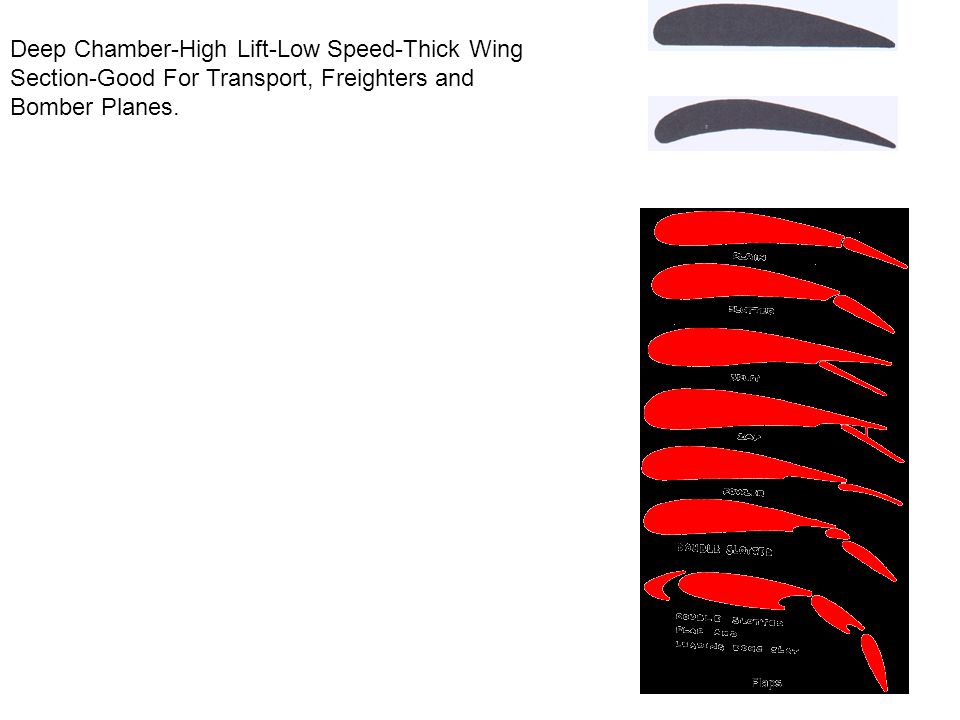

11 Deep Chamber-High Lift-Low Speed-Thick Wing Section-Good For Transport, Freighters and Bomber Planes.

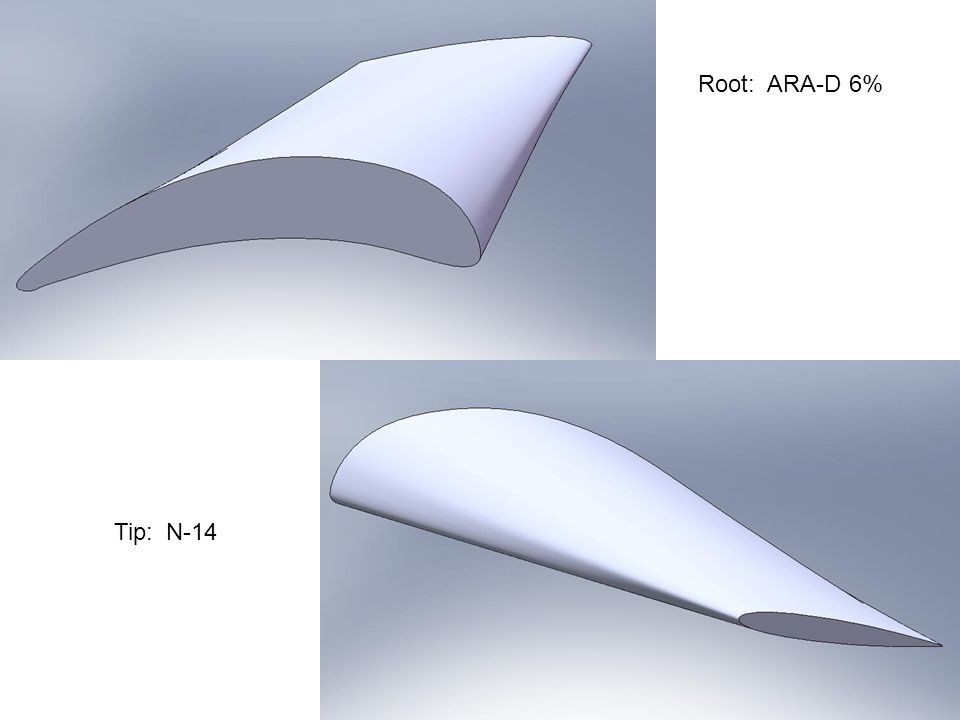

12 Root: ARA-D 6% Tip: N-14

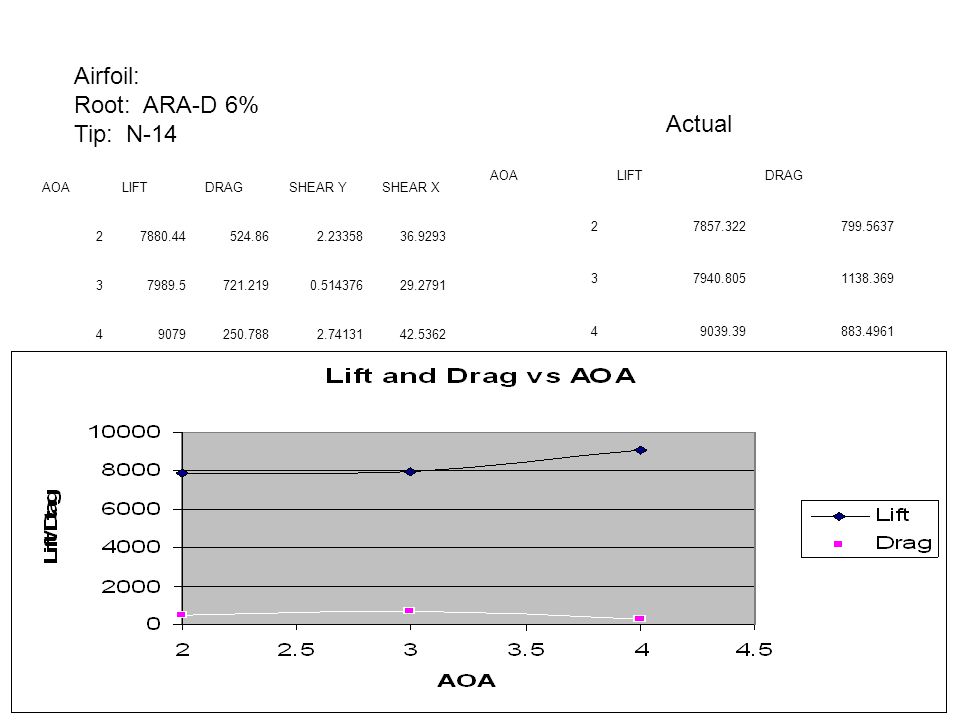

13 AOALIFTDRAGSHEAR YSHEAR X AOALIFTDRAG Airfoil: Root: ARA-D 6% Tip: N-14 Actual

14 Root: ARA-D 10% Tip: N-14

15 Actual AOALIFTDRAGSHEAR YSHEAR X AOALIFTDRAG Airfoil: Root: ARA-D 10% T: N-14

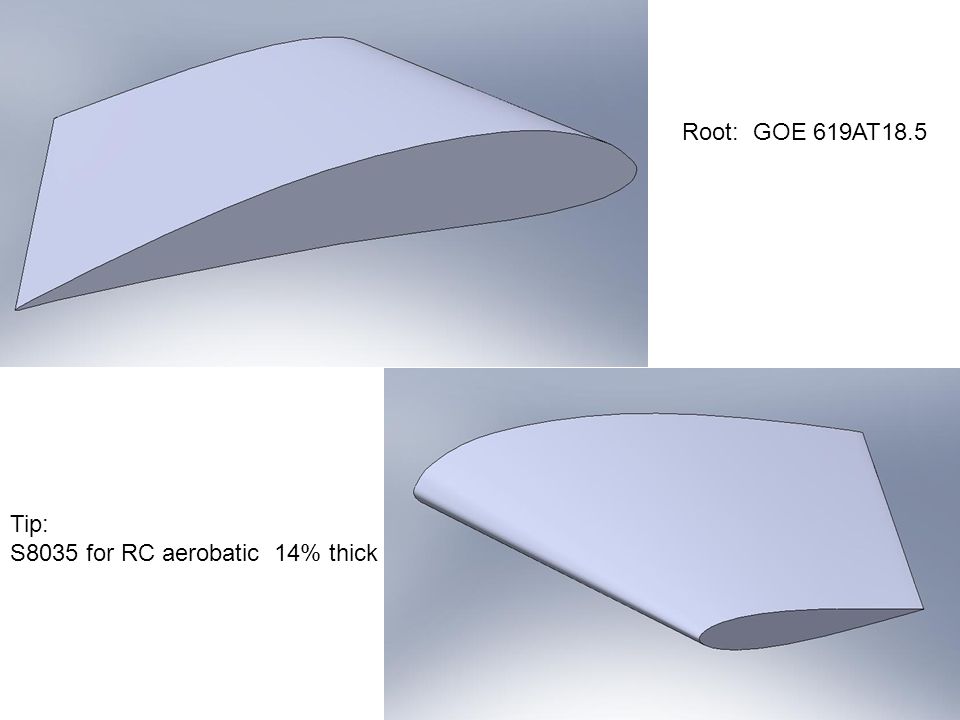

16 Root: GOE 619AT18.5 Tip: S8035 for RC aerobatic 14% thick

17 AOALIFTDRAGSHEAR YSHEAR X Airfoil: Root: GOE 619 Tip: S8035 for RC aerobatic 14% thick AOALIFTDRAG ACTUAL

18 Root: FX Tip: FX %

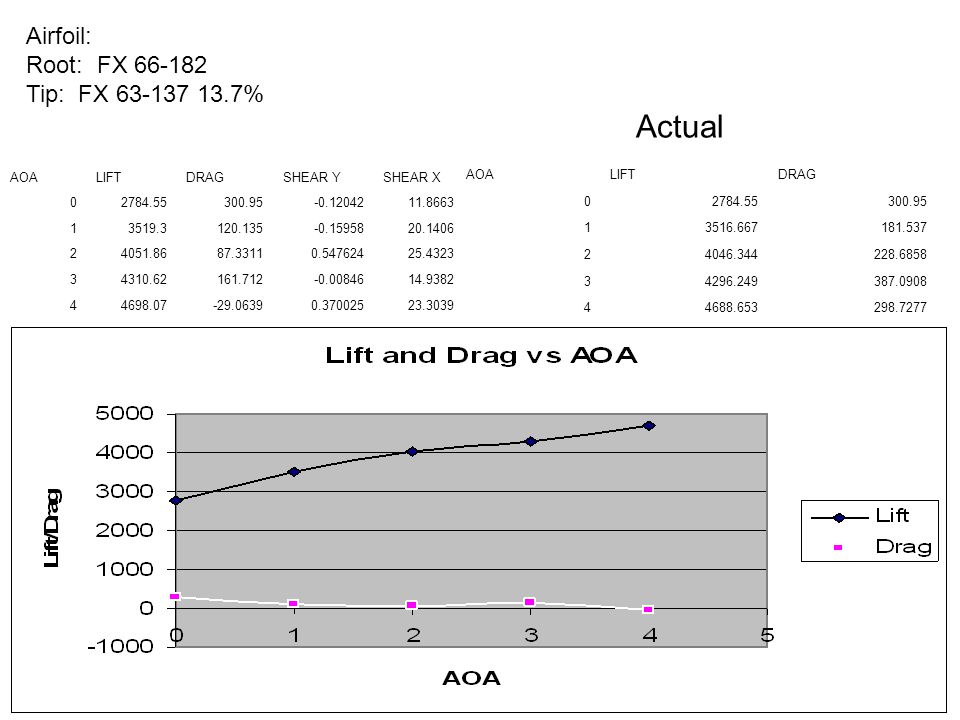

19 Actual AOALIFTDRAGSHEAR YSHEAR X AOALIFTDRAG Airfoil: Root: FX Tip: FX %

20 Actual AOALIFTDRAGSHEAR YSHEAR X AOALIFTDRAG Airfoil 2: Root: FX Tip: FX %

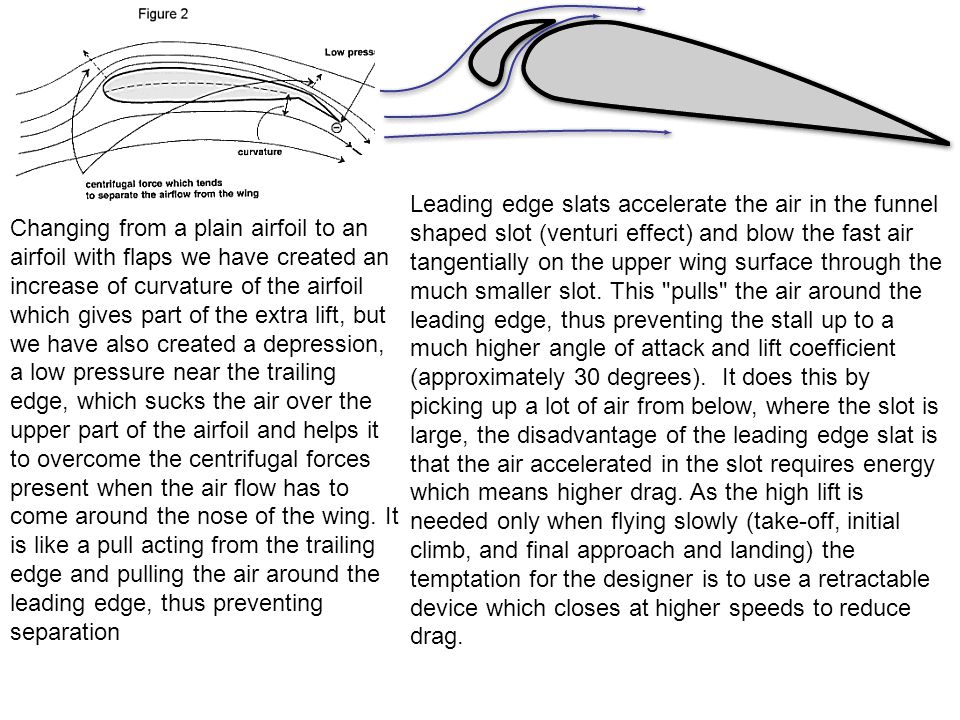

21 Leading edge slats accelerate the air in the funnel shaped slot (venturi effect) and blow the fast air tangentially on the upper wing surface through the much smaller slot. This "pulls" the air around the leading edge, thus preventing the stall up to a much higher angle of attack and lift coefficient (approximately 30 degrees). It does this by picking up a lot of air from below, where the slot is large, the disadvantage of the leading edge slat is that the air accelerated in the slot requires energy which means higher drag. As the high lift is needed only when flying slowly (take-off, initial climb, and final approach and landing) the temptation for the designer is to use a retractable device which closes at higher speeds to reduce drag. Changing from a plain airfoil to an airfoil with flaps we have created an increase of curvature of the airfoil which gives part of the extra lift, but we have also created a depression, a low pressure near the trailing edge, which sucks the air over the upper part of the airfoil and helps it to overcome the centrifugal forces present when the air flow has to come around the nose of the wing. It is like a pull acting from the trailing edge and pulling the air around the leading edge, thus preventing separation

22

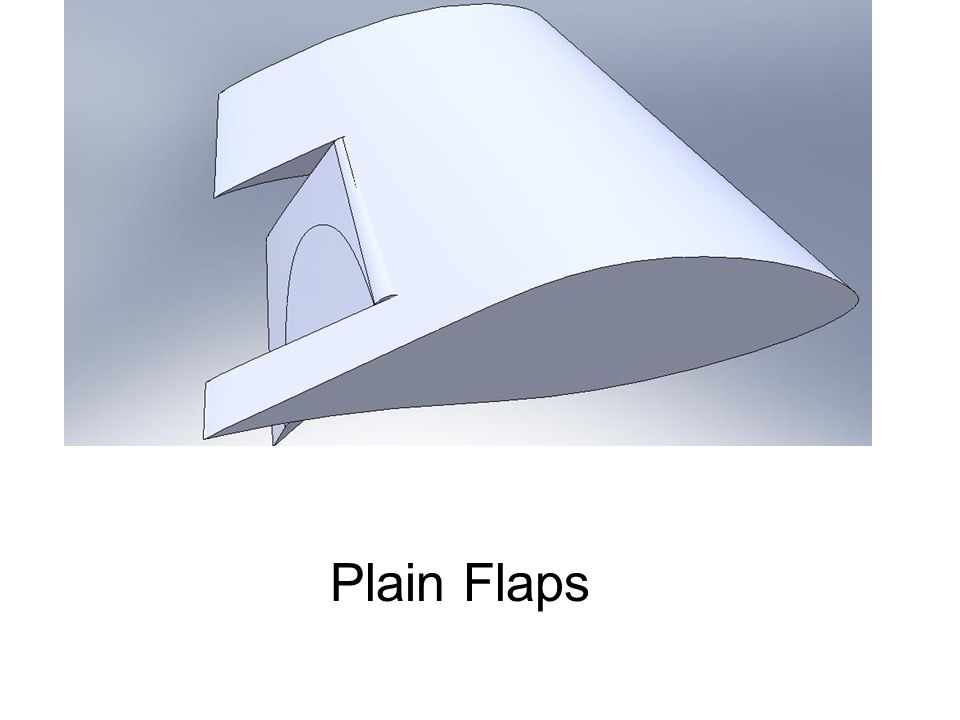

23 Plain Flaps

24 Actual FLAP ANGLELIFTDRAGSHEAR YSHEAR X FLAP ANGLELIFTDRAG Plain Flap at AOA of 13

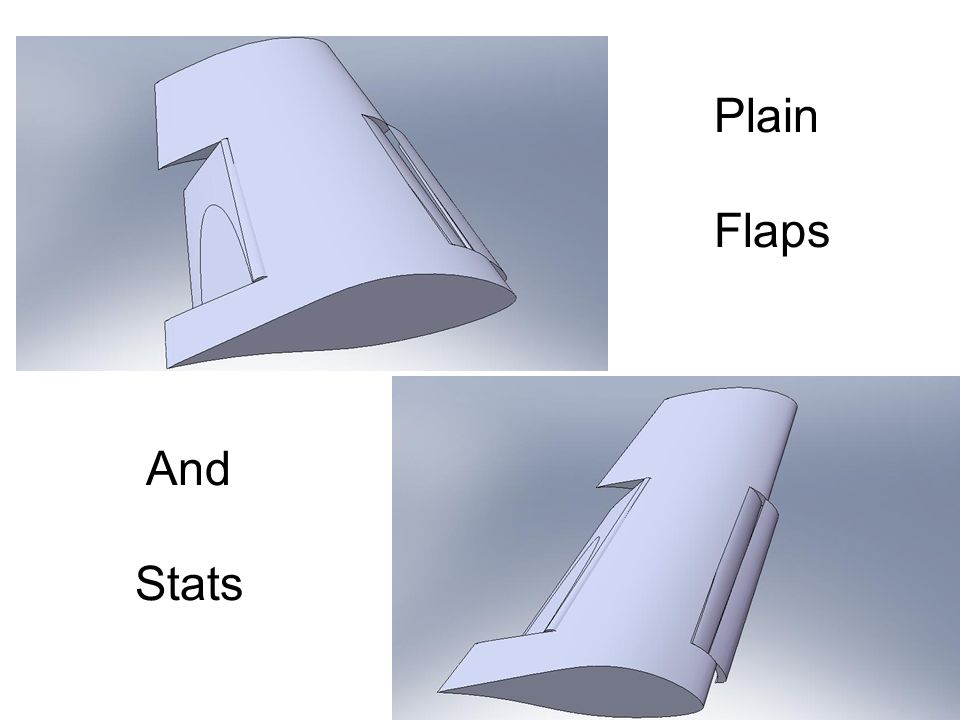

25 And Stats Plain Flaps

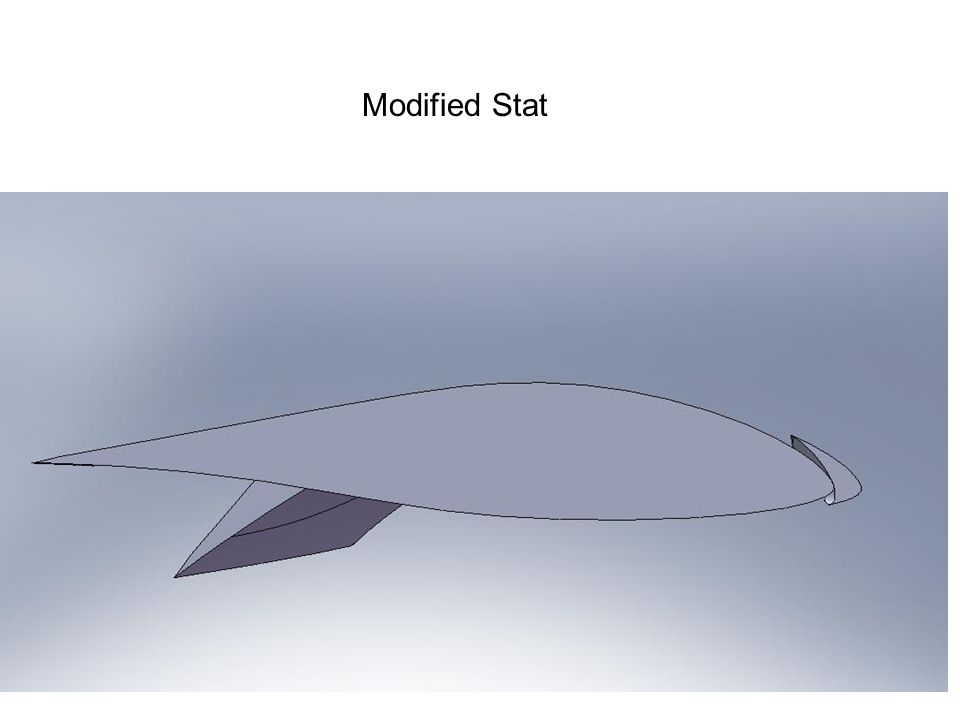

26 Modified Stat

27 FLAP ANGLELIFTDRAGSHEAR YSHEAR X FLAP ANGLELIFTDRAGSHEAR YSHEAR X

28 Fowler Flap Study

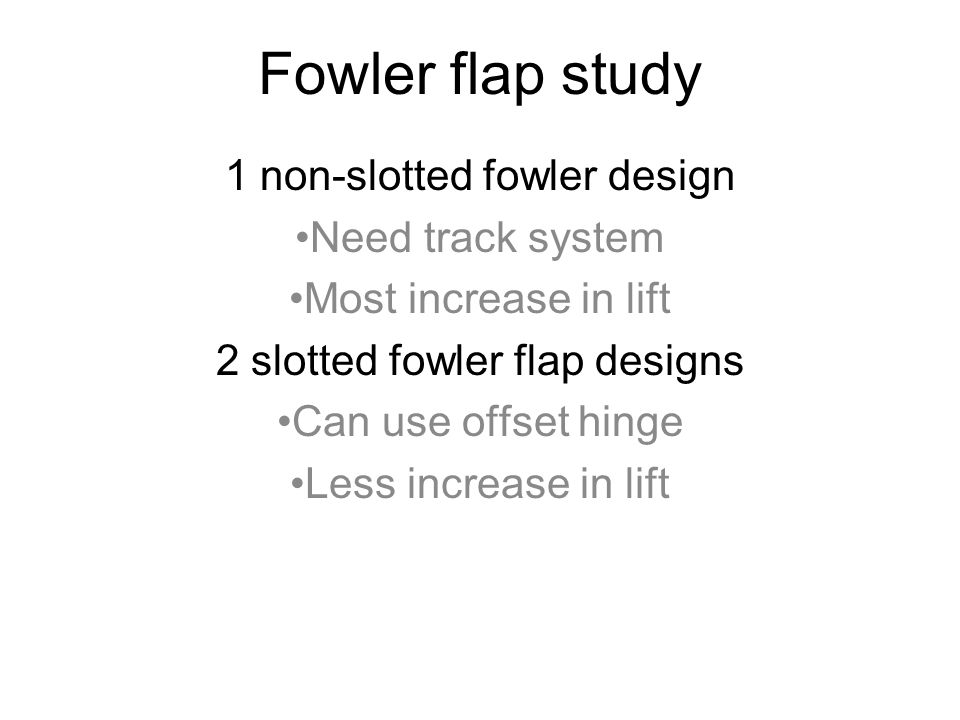

29 Fowler flap study 1 non-slotted fowler design Need track system Most increase in lift 2 slotted fowler flap designs Can use offset hinge Less increase in lift

30 Non-slotted fowler flap Provides the highest increase in surface area Requires largest movement of flap

31 Slotted fowler flap Doesn’t provide as much increase in wing area Doesn’t require as much movement

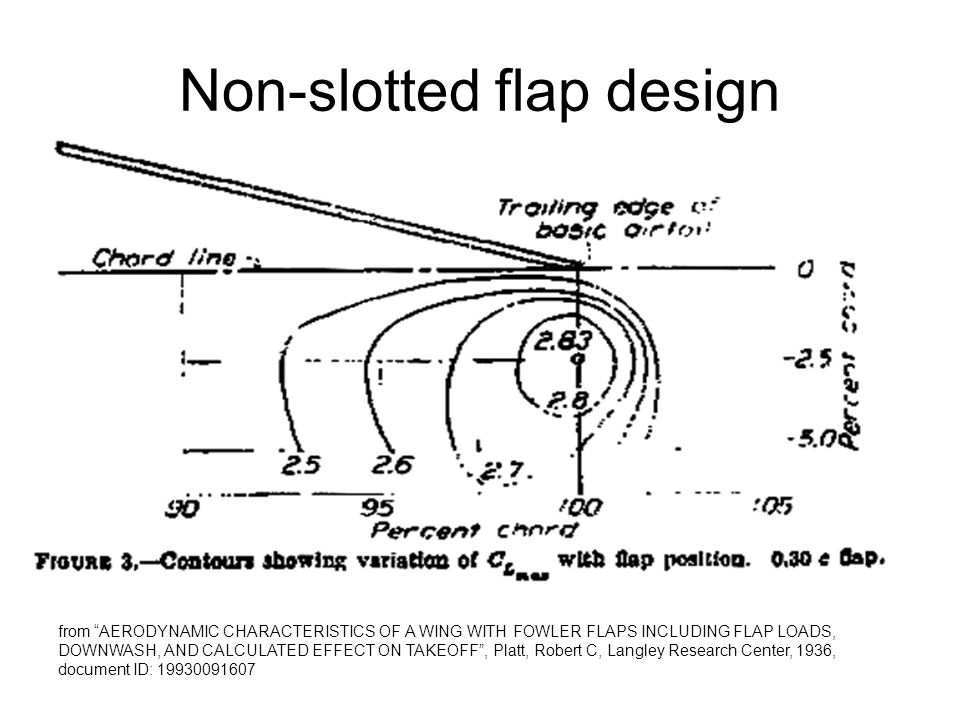

32 Non-slotted flap design from “AERODYNAMIC CHARACTERISTICS OF A WING WITH FOWLER FLAPS INCLUDING FLAP LOADS, DOWNWASH, AND CALCULATED EFFECT ON TAKEOFF”, Platt, Robert C, Langley Research Center, 1936, document ID:

33 Non-slotted flap design Optimum position of leading edge of flap is X=c, Y=-.025c Optimum flap deflection angle is 40 degrees for Reynolds number of 300,000 Note: optimum position is generally true for most airfoil shapes, but optimum angle isn’t as general, as it also depends on the flap shape too.

34 Non-slotted flap design 30% of the chord at all stations 104 inches long, which is 48% span of wing (including the portion inside fuselage) 30 degrees deflection, hedging on safety against uncertainty in flow separation Results using sea level conditions at 60 knots: AOA 10, Cl =.55, produces pounds of lift AOA 13, Cl =.52, produces pounds of lift, has severe flow seraration

35 Slotted flap design guidelines Optimum position of flap leading edge depends primarily on the shape of the slot, and is best determined by experiment In general, moves inward when lip is increased but is generally about.01c forward of lip Usually a slot opening on the order of.01c or slightly more is best. Best Cl’s are achieved using flaps with a wing shape. Avoid flaps with blunt leading edge. from “Theory of wing sections”, Ira H. Abbott and Albert E. von Doenhoff, p Dover Publications, NY, 1959.

36 Slotted flap design Two different shapes of slots with different flap shapes. The one on the right has a small lip with max cl=2.57, the one on the left is a smooth slot with max cl=2.35.

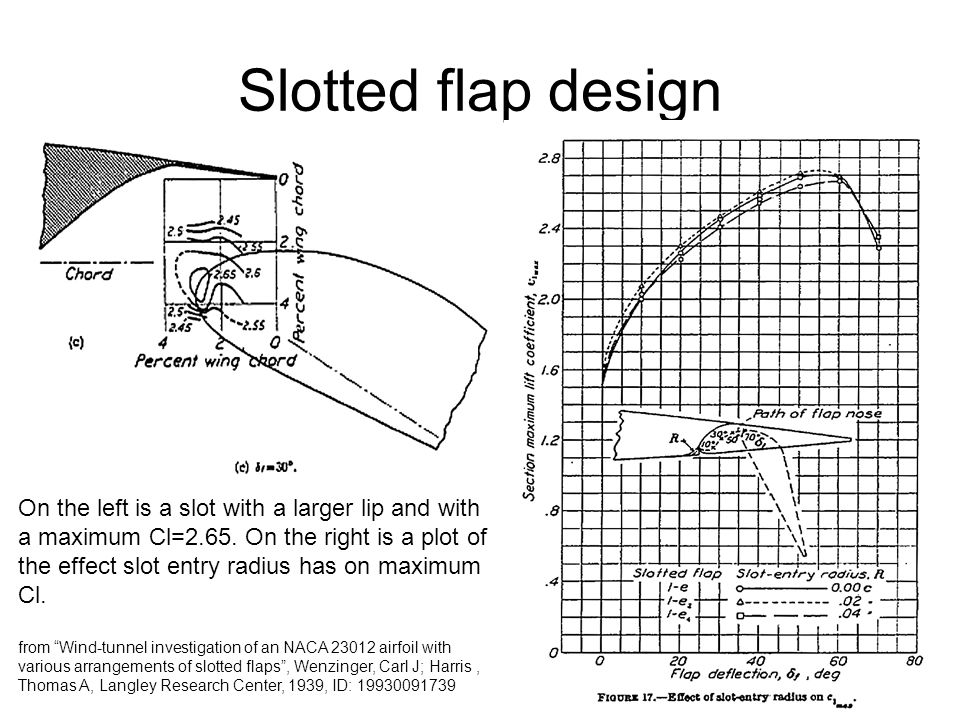

37 Slotted flap design On the left is a slot with a larger lip and with a maximum Cl=2.65. On the right is a plot of the effect slot entry radius has on maximum Cl. from “Wind-tunnel investigation of an NACA airfoil with various arrangements of slotted flaps”, Wenzinger, Carl J; Harris, Thomas A, Langley Research Center, 1939, ID:

38 Slotted flap design 1 30% of the chord at all stations 104 inches long, which is 48% span of wing (including the portion inside fuselage) 30 degrees deflection Results using sea level conditions at 60 knots: AOA 10, Cl =.6, produces pounds of lift AOA 13, Cl =.7, produces pounds of lift

39 Slotted flap 1 with slot in flap 30% of the chord at all stations 104 inches long, which is 48% span of wing (including the portion inside fuselage) 30 degrees deflection Results using sea level conditions at 60 knots: AOA 10, Cl =.6, produces pounds of lift AOA 13, Cl =.8, produces pounds of lift

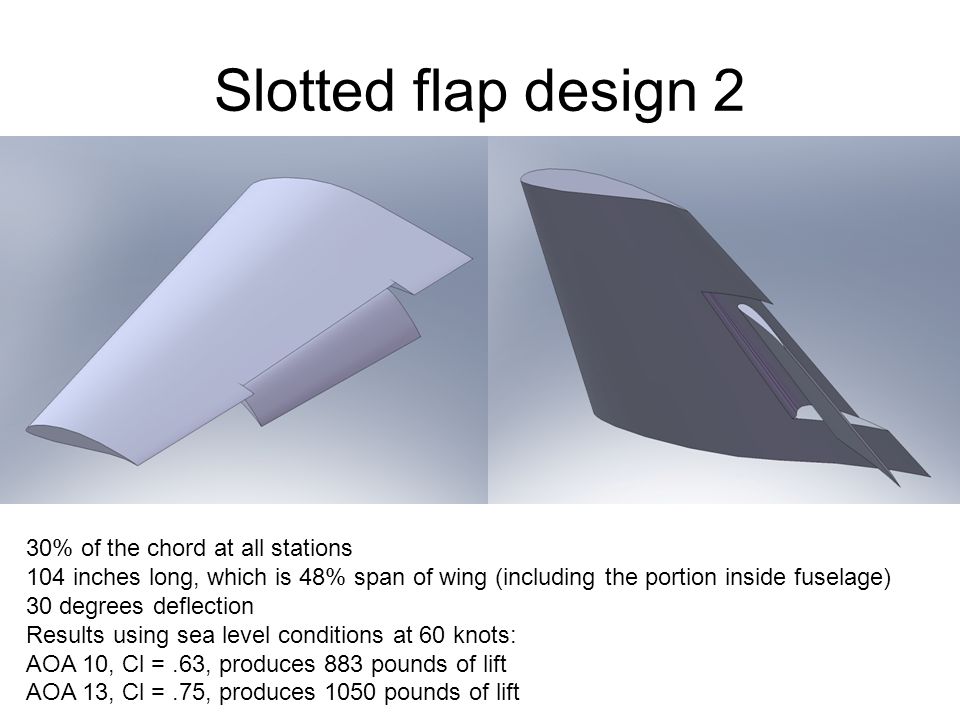

40 Slotted flap design 2 30% of the chord at all stations 104 inches long, which is 48% span of wing (including the portion inside fuselage) 30 degrees deflection Results using sea level conditions at 60 knots: AOA 10, Cl =.63, produces 883 pounds of lift AOA 13, Cl =.75, produces 1050 pounds of lift

41 Slotted flap 2 with slot in flap 30% of the chord at all stations 104 inches long, which is 48% span of wing (including the portion inside fuselage) 30 degrees deflection Results using sea level conditions at 60 knots: AOA 10, Cl =.65, produces 916 pounds of lift AOA 13, Cl =.654, produces 921 pounds of lift

42 Comparison Non-slotted flap was calculated to have the least lift. Slotted flap 1 produced more lift with a slot in the flap at AOA 13 than slotted flap 2. Slotted flap 2 produced more overall lift without a slot in the flap than slotted flap 1. Conclusion: Design 2 is better, but the slot on the flap isn’t optimized.

43 Flapperon Study

44 FLAPPERON DESIGN

45 DIMENSIONS OF FLAPPERON

46 COSTS / BENEFITS COSTS –Increased drag when compared to non- deployed flapperons. Possibly caused by flow separation due to gap between wing and flapperon when deployed. –Could be difficult to work mechanically with the pulley system in place now. –Hard to control during landing due to adverse yaw effects.

47 BENEFITS –Increase camber during landing. –Increase lift due to increased camber. Optimal position is with flapperons deployed 40°

48 Cargo Pod Design

49 Cirrus SR22 Cargo Pod

50 Cargo Pod Guidelines With 2 passengers (including pilot), 4 hours of fuel, carry one of the following: 2 sets of skis with equipment –Required volume of 12in x 6in x 79 in 2 sets of golf clubs (with drivers) –Required volume of 35in x 11in x 50in Fishing poles

51 Pod on Fuselage

52 Clearance/ Tail Strike Envelope

53 Bottom View

54 Attachment View

55 Front Fairing (2) Rear Fairing

56 Attachment Method Design

57 Attachment Brackets Rough Solid Works Models

58 Front Attachment to Longerons

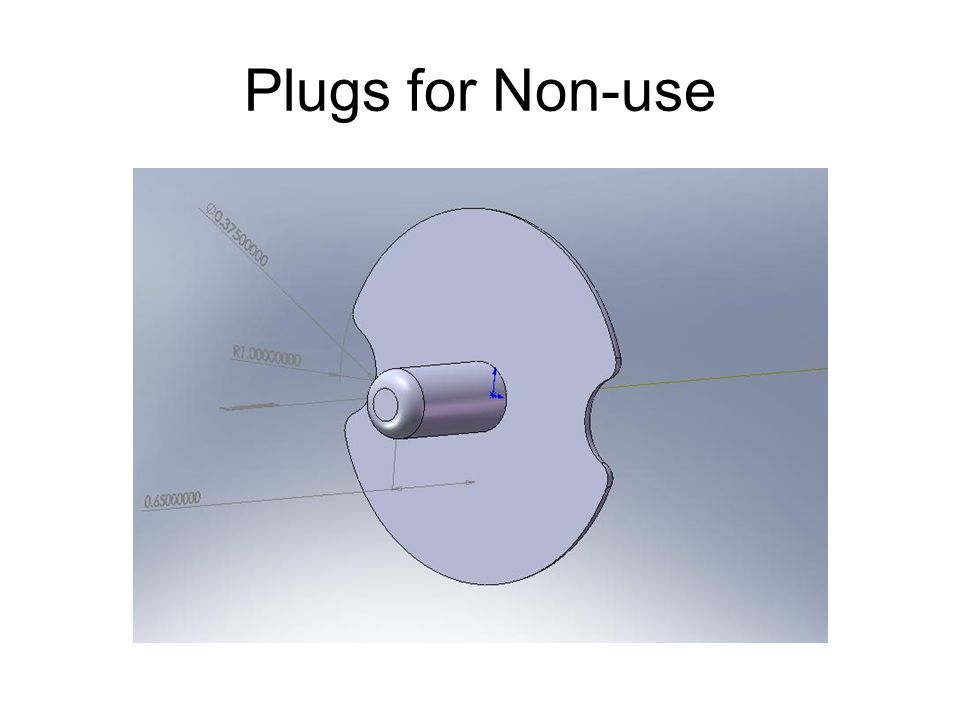

59 Plugs for Non-use

60 Rear Longeron Attachment

61 Example of floor with Longerons

62 Screw holes Screw Holes are 3/8 in. in diameter. Plug screw in to holes when Pod is not attached

63 Attachment from Belly to Pod

64 Piece from Pod to Belly

65 Belly/Pod attachment The Belly to Pod piece screws into front longeron attachment. Pod to belly piece is embedded into Fiberglass Pod. Belly/Pod pieces bolt together

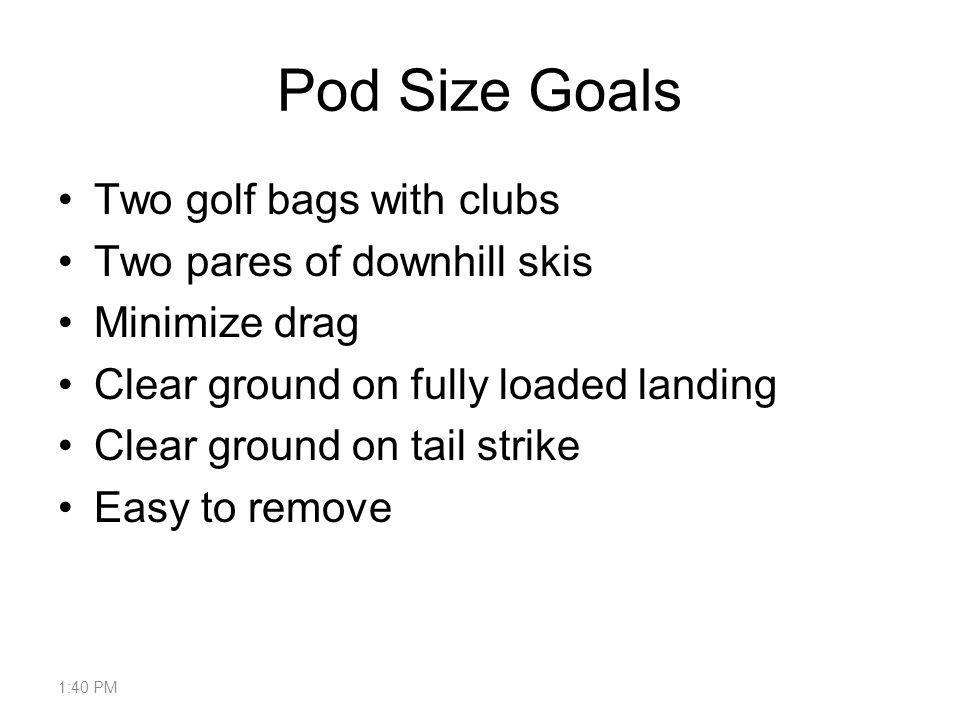

66 Pod Size Goals Two golf bags with clubs Two pares of downhill skis Minimize drag Clear ground on fully loaded landing Clear ground on tail strike Easy to remove 1:42 PM

67 Solid works attached Pod model 1:42 PM

68 Clearance 1:42 PM

69 Solid Works model 1:42 PM

70 Pod Ground Clearance 1:42 PM

71 Pod wheel Clearance 1:42 PM

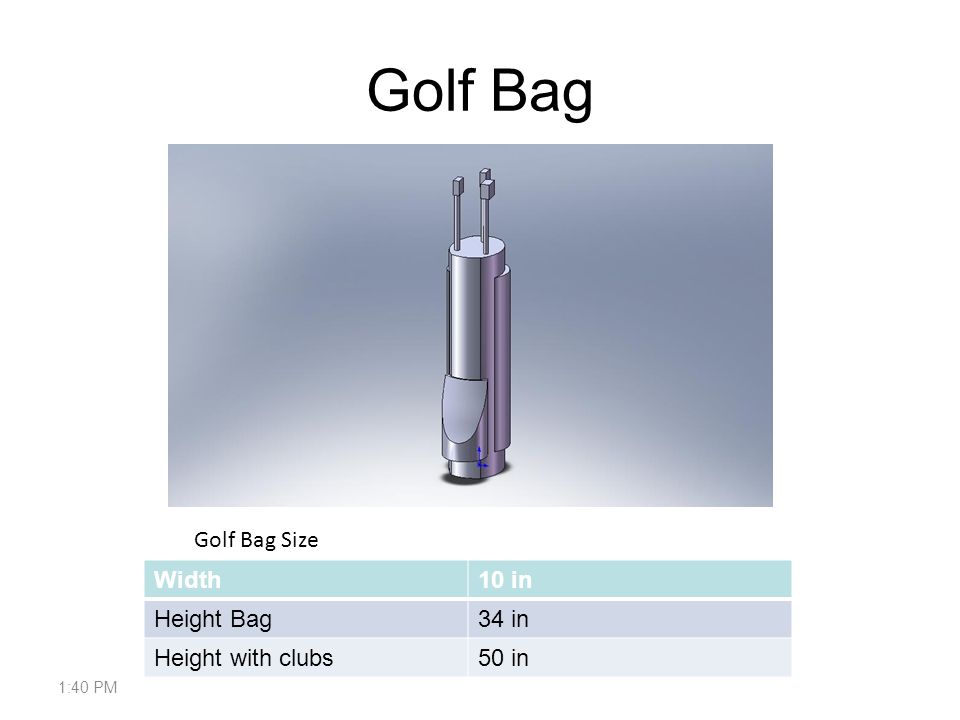

72 Golf Bag Width10 in Height Bag34 in Height with clubs50 in Golf Bag Size 1:42 PM

73 Golf Bag Clearance 1:42 PM

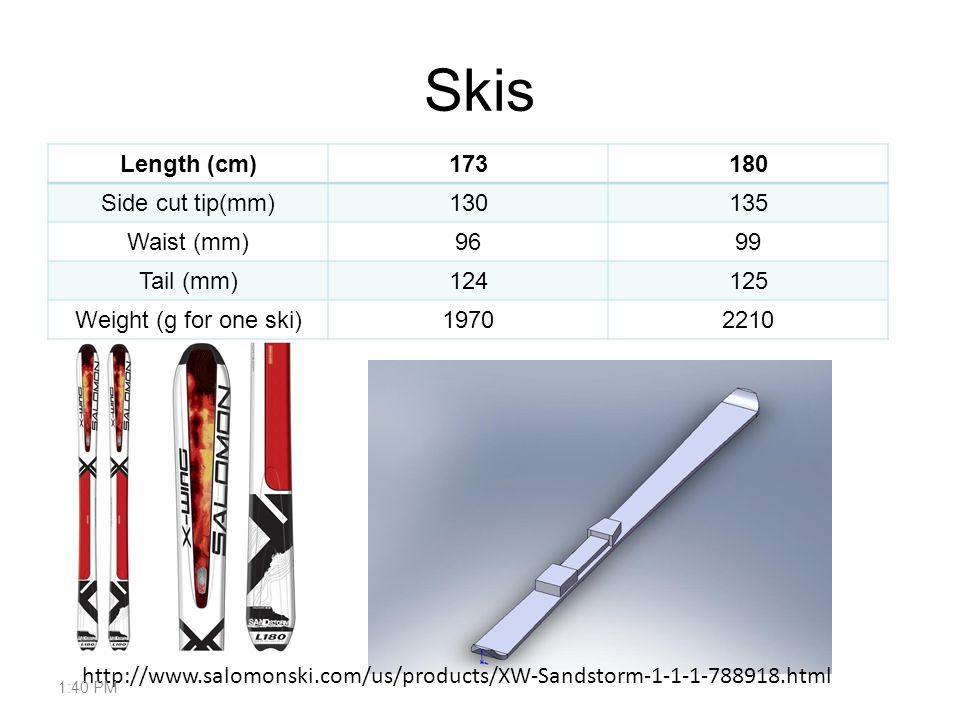

74 Skis Length (cm) Side cut tip(mm) Waist (mm)9699 Tail (mm) Weight (g for one ski) :42 PM

75

76 Cody’s Stuff – Performance, weights, drag

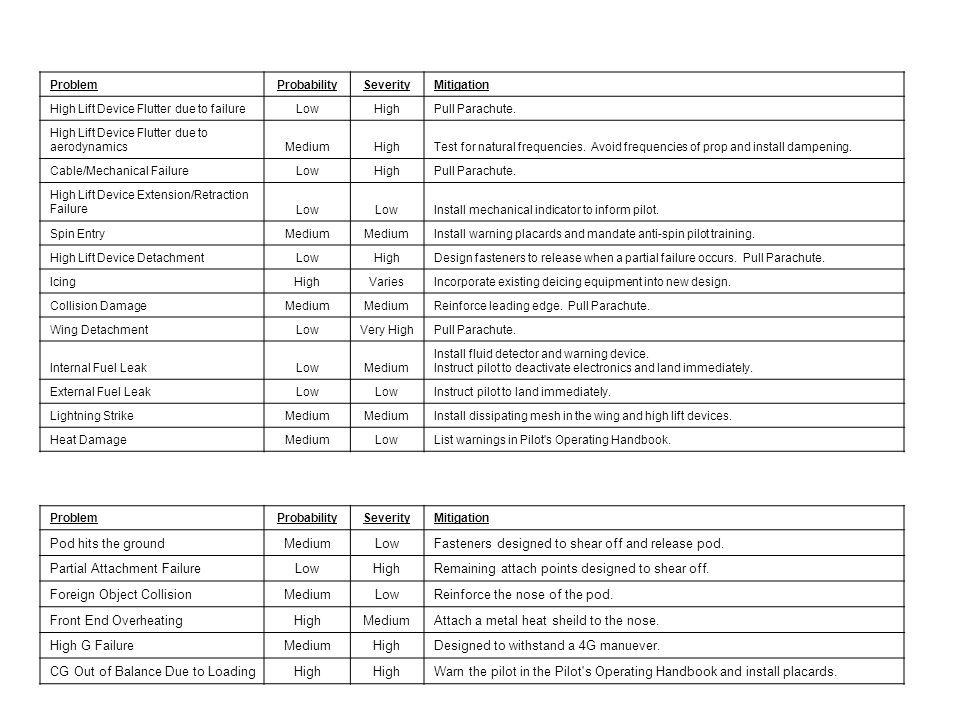

77 Failure Modes and Effects Analysis Enviromental Impact

78 ProblemProbabilitySeverityMitigation High Lift Device Flutter due to failureLowHighPull Parachute. High Lift Device Flutter due to aerodynamicsMediumHighTest for natural frequencies. Avoid frequencies of prop and install dampening. Cable/Mechanical FailureLowHighPull Parachute. High Lift Device Extension/Retraction FailureLow Install mechanical indicator to inform pilot. Spin EntryMedium Install warning placards and mandate anti-spin pilot training. High Lift Device DetachmentLowHighDesign fasteners to release when a partial failure occurs. Pull Parachute. IcingHighVariesIncorporate existing deicing equipment into new design. Collision DamageMedium Reinforce leading edge. Pull Parachute. Wing DetachmentLowVery HighPull Parachute. Internal Fuel LeakLowMedium Install fluid detector and warning device. Instruct pilot to deactivate electronics and land immediately. External Fuel LeakLow Instruct pilot to land immediately. Lightning StrikeMedium Install dissipating mesh in the wing and high lift devices. Heat DamageMediumLowList warnings in Pilot's Operating Handbook. ProblemProbabilitySeverityMitigation Pod hits the groundMediumLowFasteners designed to shear off and release pod. Partial Attachment FailureLowHighRemaining attach points designed to shear off. Foreign Object CollisionMediumLowReinforce the nose of the pod. Front End OverheatingHighMediumAttach a metal heat sheild to the nose. High G FailureMediumHighDesigned to withstand a 4G manuever. CG Out of Balance Due to LoadingHigh Warn the pilot in the Pilot's Operating Handbook and install placards.
