Lecture I: Introduction to White Dwarfs S. R. Kulkarni, E. Ofek

Similar presentations


Presentation on theme: "Lecture I: Introduction to White Dwarfs S. R. Kulkarni, E. Ofek"— Presentation transcript:

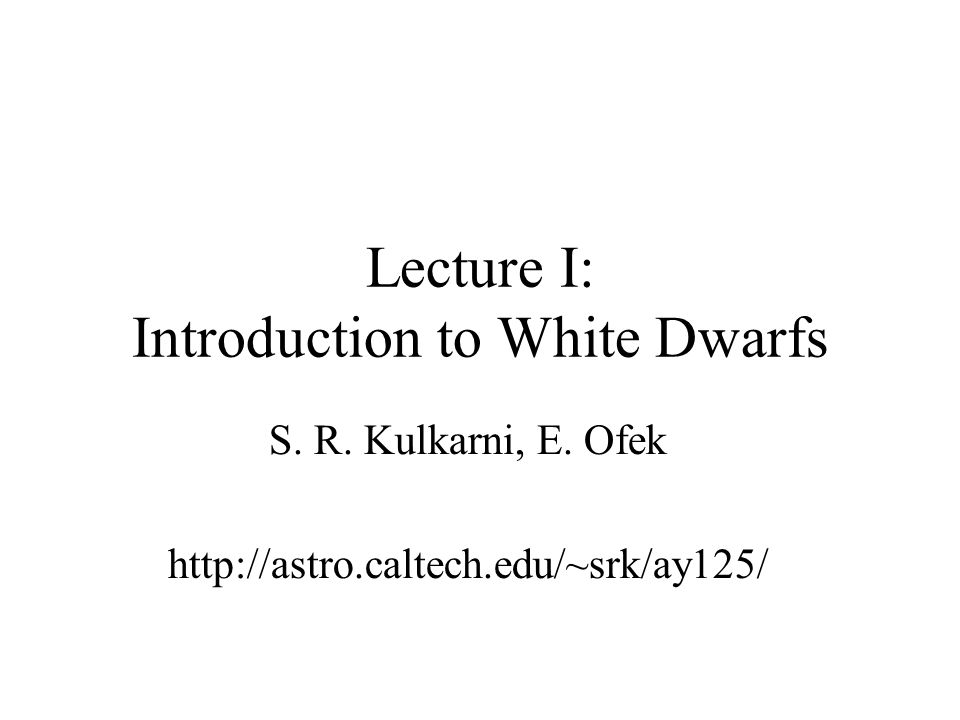

1 Lecture I: Introduction to White Dwarfs S. R. Kulkarni, E. Ofek

2 Lecture 1: White Dwarfs (Introduction) 2 References D. Koester, A&A Review (2002) “White Dwarfs: Recent Developments” Hansen & Liebert, Ann Rev A&A (2003) “Cool White Dwarfs” Wesemael et al. PASP (1993) “An Atlas of Optical Spectra of White-Dwarf Stars” Wickramsinghe & Ferrario PASP (2000) “Magnetism in Isolated & Binary White Dwarfs”

3 Lecture 1: White Dwarfs (Introduction) 3 Sirius B

4 Lecture 1: White Dwarfs (Introduction) 4 White Dwarfs – Physical understanding 1926: Fermi & Dirac - statistical physics of electron gas 1926: Fowler – electron degeneracy pressure can support stellar mass object against its gravity 1939: Chandrasekhar – derived the equations for the structure, mass-radius-core composition relations.

5 Lecture 1: White Dwarfs (Introduction) 5 Degenerate gas

6 Lecture 1: White Dwarfs (Introduction) 6 Interesting implications of degenerate electron gas “inverted” mass radius relation

7 Lecture 1: White Dwarfs (Introduction) 7 Interesting implications of degenerate electron gas Nuclear reactions are explosive Novae Type Ia supernovae He flash in evolved stars WD are condactive

8 Lecture 1: White Dwarfs (Introduction) 8 Observed properties T=4,500 – 150,000 K log g = 7 – 9 (cgs) mass = 0.4 – 1.4 solar mass mean radius = solar radius log L = -4.3 – 3 (in solar luminosity) Upper limit on rotation : Vsini < 65 km/s observed mass density solar mass per cubic pc formation rate: x pc -3 yr -1 Galactic scale height: pc

9 Lecture 1: White Dwarfs (Introduction) 9 Spectroscopic classification DA - only Balmer lines; no HeI or metals (75% of WD) DB – HeI lines, no H or metals DC – Continuous spectrum, no lines deeper than 5% DO – strong HeII, HeI or H present DZ – Metal lines only, no H or He DQ – Carbon features Temperature index in the range 0-9 in units of 5040K

10 Lecture 1: White Dwarfs (Introduction) 10 Spectroscopic Features: A few comments Strong gravity of white dwarfs result in rapid settling of elements e.g. Hydrogen always rises to the top and can mask other elements Given the above white dwarf atmosphere modeling is generally considered to be more tractable than for other stars If trace elements are seen as in DZ white dwarfs then they must be of recent origin (e.g. accretion from the ISM, comets etc)

11 Lecture 1: White Dwarfs (Introduction) 11

12 Lecture 1: White Dwarfs (Introduction) 12

13 Lecture 1: White Dwarfs (Introduction) 13

14 Lecture 1: White Dwarfs (Introduction) 14

15 Lecture 1: White Dwarfs (Introduction) 15

16 Lecture 1: White Dwarfs (Introduction) 16 DQZ T=7740K log(g)=8.0 Mass from Orbit

17 Lecture 1: White Dwarfs (Introduction) 17

18 Lecture 1: White Dwarfs (Introduction) 18 Determination of Mass (Field Objects) Spectroscopic Method: Line (Hydrogen) width is sensitive to pressure which is proportional to gravity g = GM/R 2 * gravitational redshift (M/R) Photometric Method: Broad-band photometry fitted to black body yields Teff and angular size Combine with parallax to get radius R Use Mass-Radius relation to derive Mass

19 Lecture 1: White Dwarfs (Introduction) 19

20 Lecture 1: White Dwarfs (Introduction) 20

21 Lecture 1: White Dwarfs (Introduction) 21

22 Lecture 1: White Dwarfs (Introduction) 22 Masses of White Dwarfs

23 Lecture 1: White Dwarfs (Introduction) 23 How stars die Stars above 8 Msun form neutron stars and black holes Below 8 Msun the stars condense to O-Ne- Mg white dwarfs (high mass stars) or usually C-O white dwarfs – Supported by cluster observations

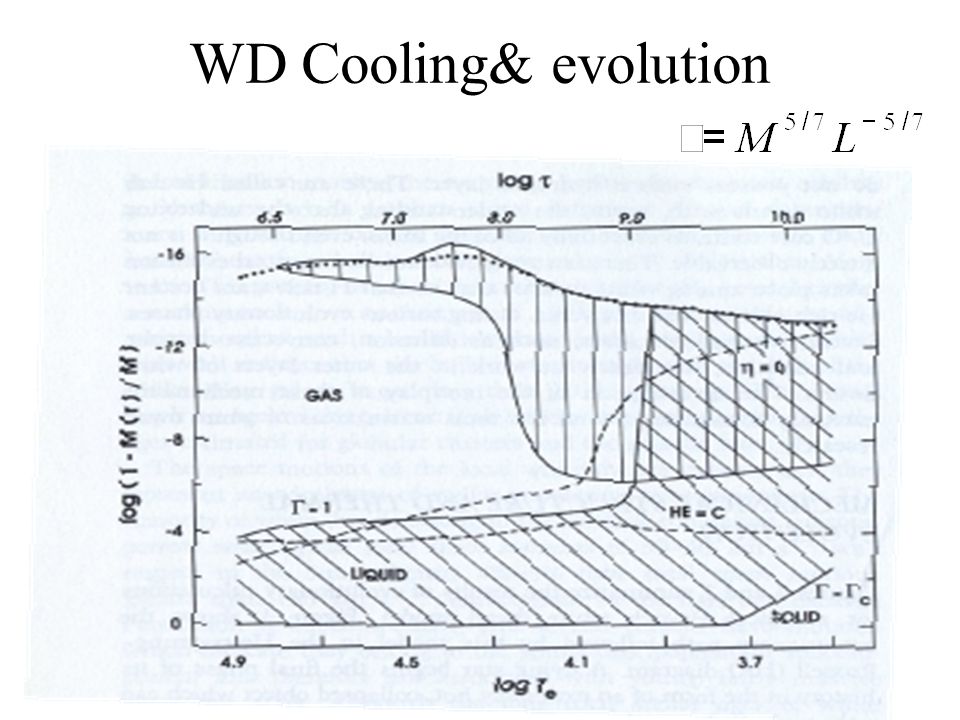

24 Lecture 1: White Dwarfs (Introduction) 24 WD Cooling& evolution

25 Lecture 1: White Dwarfs (Introduction) 25 White Dwarfs in Globular Clusters

26 Lecture 1: White Dwarfs (Introduction) 26 White Dwarfs in Clusters Chronometers: Use cooling models to derive the ages of globular clusters Yardsticks: Compare nearby and cluster white dwarfs. Forensics: Diagnose the long dead population of massive stars

27 Lecture 1: White Dwarfs (Introduction) 27 The Globular Cluster M4 Fainter white dwarfs are seen in this nearby cluster -> age = /- 0.7 Gyr M4 formed at about z=6 Disk formed at about z=1.5 dN/dM, differential mass spectrum dN/dM propto M -0.9

28 Lecture 1: White Dwarfs (Introduction) 28 White Dwarfs in Open Clusters Open Clusters have a wide range of ages (100 Myr to 9 Gyr, the age of the disk) Use white dwarfs as chronometers Derive initial-mass to final-mass mapping Key Result: M WD about 8 M Sun This result is in agreement with stellar models

29 Lecture 1: White Dwarfs (Introduction) 29

30 Lecture 1: White Dwarfs (Introduction) 30

31 Lecture 1: White Dwarfs (Introduction) 31 Field White Dwarfs Identified by large proper motion yet faint object LHS (Leuyten Half Second) NLTT (New Leuyten Two Tenths) Blue Objects (found in quasar surveys) Very Hot objects (found in X-ray surveys)

32 Lecture 1: White Dwarfs (Introduction) 32

33 Lecture 1: White Dwarfs (Introduction) 33 Field White Dwarfs

34 Lecture 1: White Dwarfs (Introduction) 34

35 Lecture 1: White Dwarfs (Introduction) 35 Old White Dwarfs Microlensing observations indicate presence of 0.5 Msun objects in the halo Old white white dwarfs expected in our disk, thick disk and halo These old white dwarfs are paradoxically blue (cf cool brown dwarfs)

36 Lecture 1: White Dwarfs (Introduction) 36 Magnetism in Isolated White Dwarfs About 5% of field white dwarfs exhibit strong magnetism On an averge these white dwarfs have larger mass Some rotate rapidly and some not at all Magnetism thus influences the initial-final mapping relation Or speculatively some of these are the result of coalescence of white dwarfs

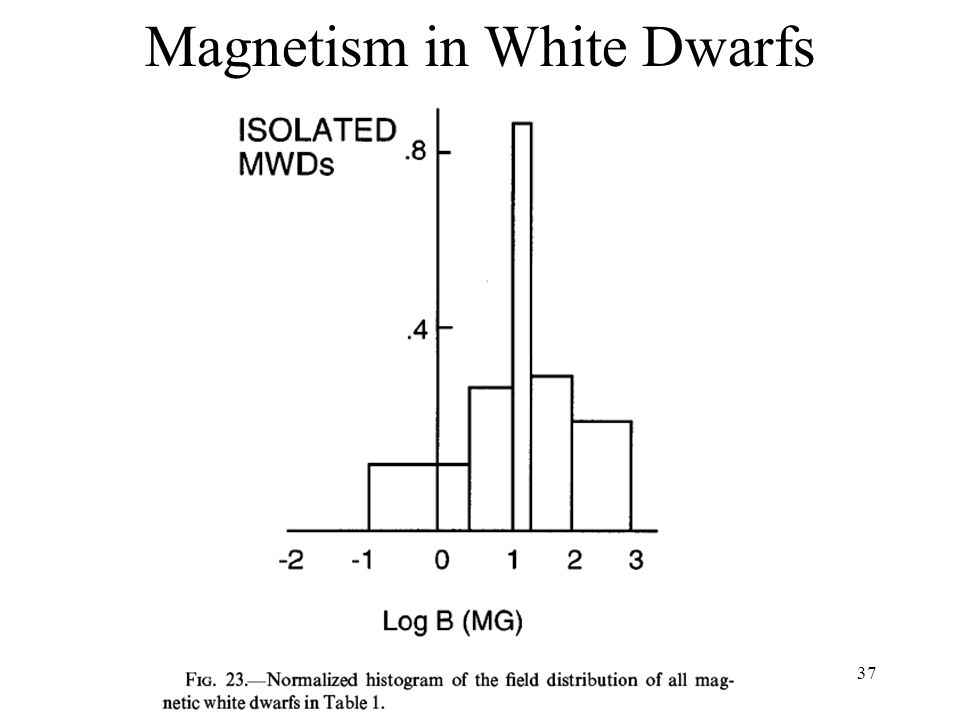

37 Lecture 1: White Dwarfs (Introduction) 37 Magnetism in White Dwarfs

38 Lecture 1: White Dwarfs (Introduction) 38

39 Lecture 1: White Dwarfs (Introduction) 39

40 Lecture 1: White Dwarfs (Introduction) 40 Zeeman (Landau) Splitting

41 Lecture 1: White Dwarfs (Introduction) 41

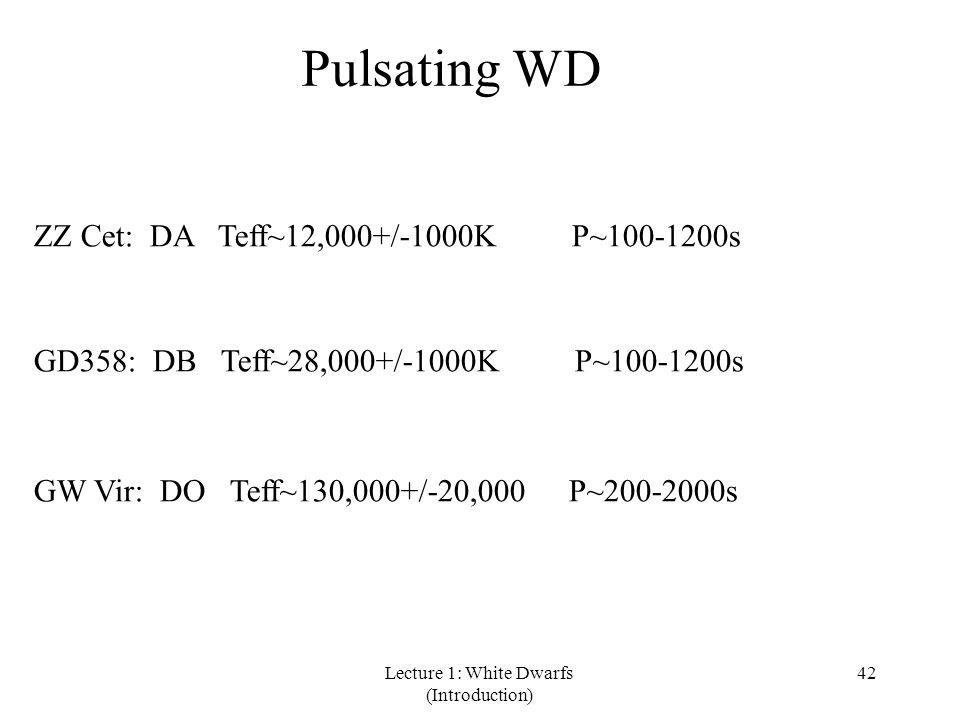

42 Lecture 1: White Dwarfs (Introduction) 42 Pulsating WD ZZ Cet: DA Teff~12,000+/-1000K P~ s GD358: DB Teff~28,000+/-1000K P~ s GW Vir: DO Teff~130,000+/-20,000 P~ s

43 Lecture 1: White Dwarfs (Introduction) 43 End

44 Lecture 1: White Dwarfs (Introduction) 44 How stars die Stars above 8 Msun form neutron stars and black holes Below 8 Msun the stars condense to O-Ne- Mg white dwarfs (high mass stars) or usually C-O white dwarfs Single stars do not form He white dwarfs but can form in binary stars We know of no channel to form H white dwarfs of some reasonable mass

45 Lecture 1: White Dwarfs (Introduction) 45 Cluster White Dwarf Spectroscopy

46 Lecture 1: White Dwarfs (Introduction) 46 Spectroscopic Classification DA, strong Hydrogen lines DB, strong He I lines DO, strong He II lines DC, no strong lines (“continuous”) spectrum DZ, strong metal lines (excluding carbon) DQ, strong carbon lines Multiple families shown in decreasing order e.g. DAB, DQAB, DAZ

47 Lecture 1: White Dwarfs (Introduction) 47
