1 APPLICATIONS OF METEOSAT SECOND GENERATION (MSG) Flooding Author: Pirkko Pylkkö (Finnish Meteorological Institute) Jochen Kerkmann (EUMETSAT) Sep 2005

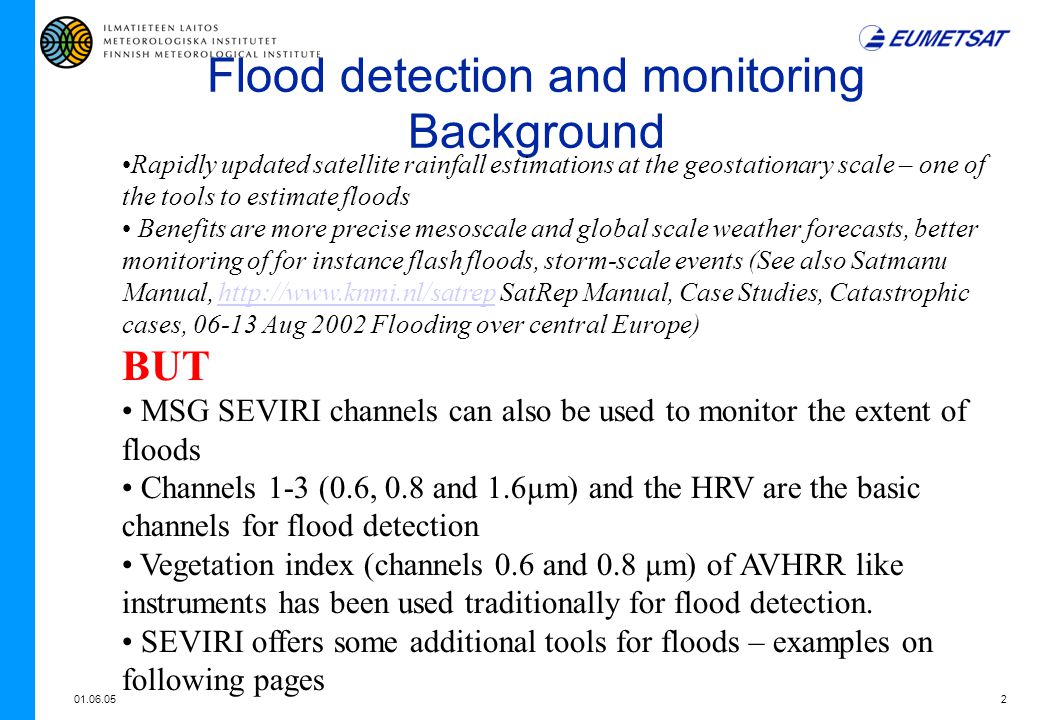

2 Flood detection and monitoring Background Rapidly updated satellite rainfall estimations at the geostationary scale – one of the tools to estimate floods Benefits are more precise mesoscale and global scale weather forecasts, better monitoring of for instance flash floods, storm-scale events (See also Satmanu Manual, SatRep Manual, Case Studies, Catastrophic cases, Aug 2002 Flooding over central Europe)http://www.knmi.nl/satrep BUT MSG SEVIRI channels can also be used to monitor the extent of floods Channels 1-3 (0.6, 0.8 and 1.6µm) and the HRV are the basic channels for flood detection Vegetation index (channels 0.6 and 0.8 µm) of AVHRR like instruments has been used traditionally for flood detection. SEVIRI offers some additional tools for floods – examples on following pages

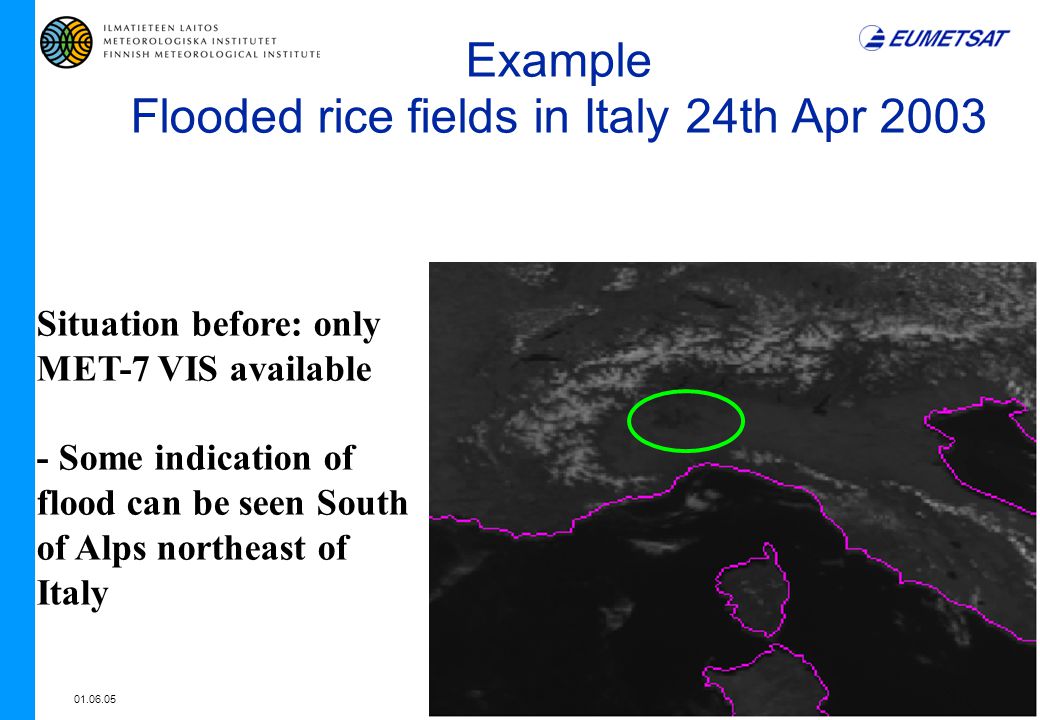

3 Example Flooded rice fields in Italy 24th Apr 2003 Situation before: only MET-7 VIS available - Some indication of flood can be seen South of Alps northeast of Italy

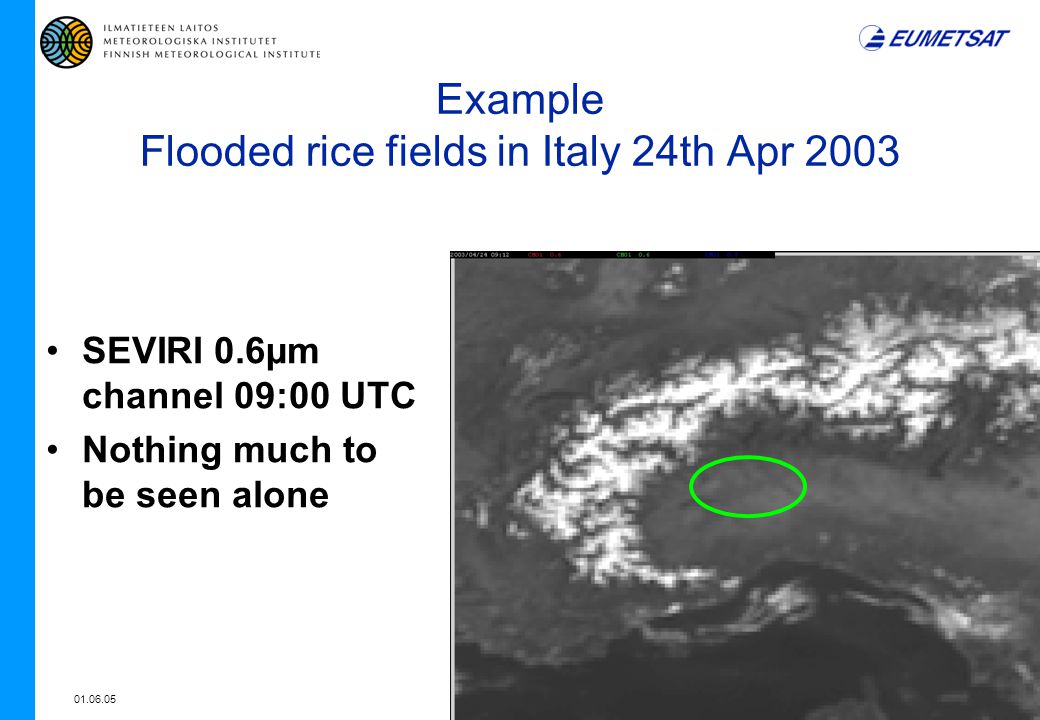

4 Example Flooded rice fields in Italy 24th Apr 2003 SEVIRI 0.6µm channel 09:00 UTC Nothing much to be seen alone

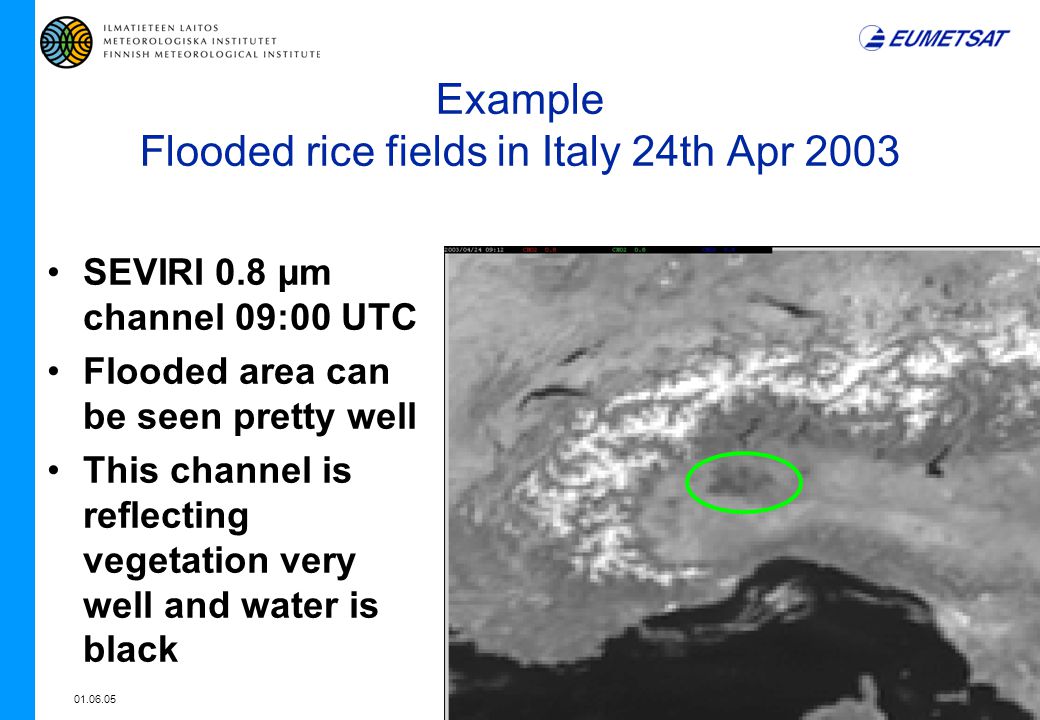

5 Example Flooded rice fields in Italy 24th Apr 2003 SEVIRI 0.8 µm channel 09:00 UTC Flooded area can be seen pretty well This channel is reflecting vegetation very well and water is black

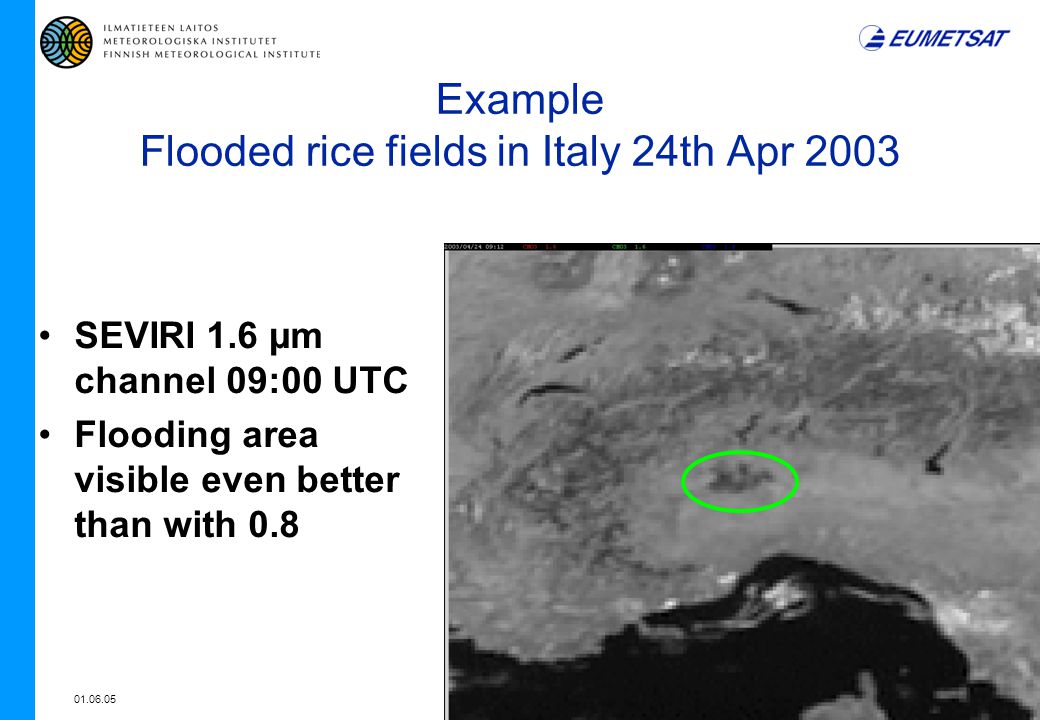

6 Example Flooded rice fields in Italy 24th Apr 2003 SEVIRI 1.6 µm channel 09:00 UTC Flooding area visible even better than with 0.8

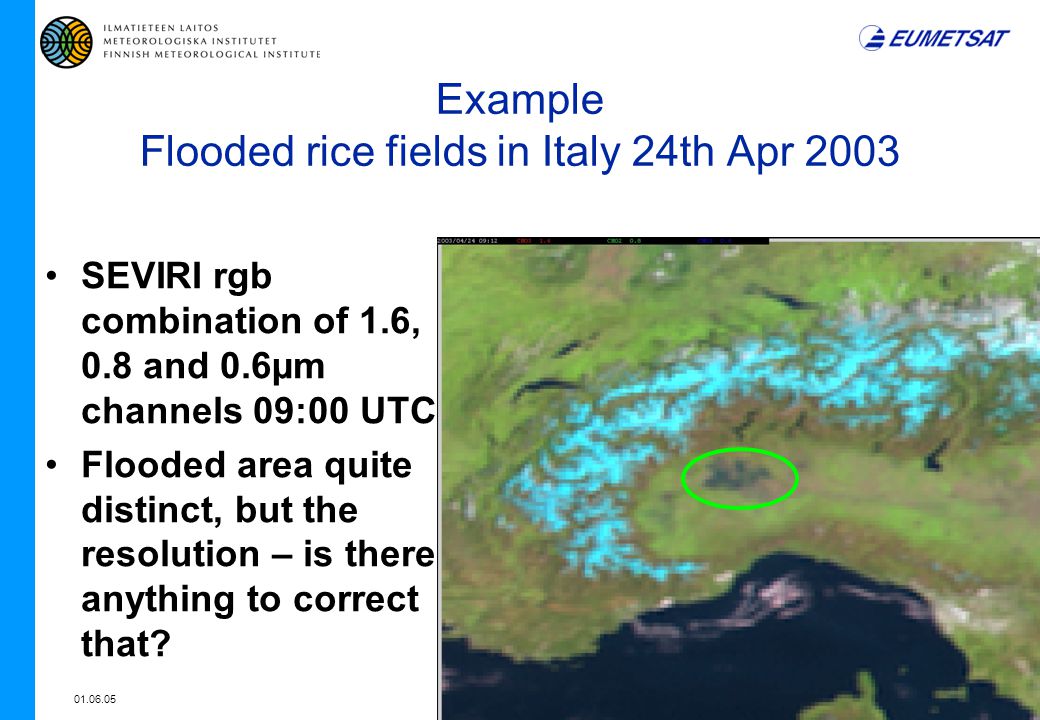

7 Example Flooded rice fields in Italy 24th Apr 2003 SEVIRI rgb combination of 1.6, 0.8 and 0.6µm channels 09:00 UTC Flooded area quite distinct, but the resolution – is there anything to correct that?

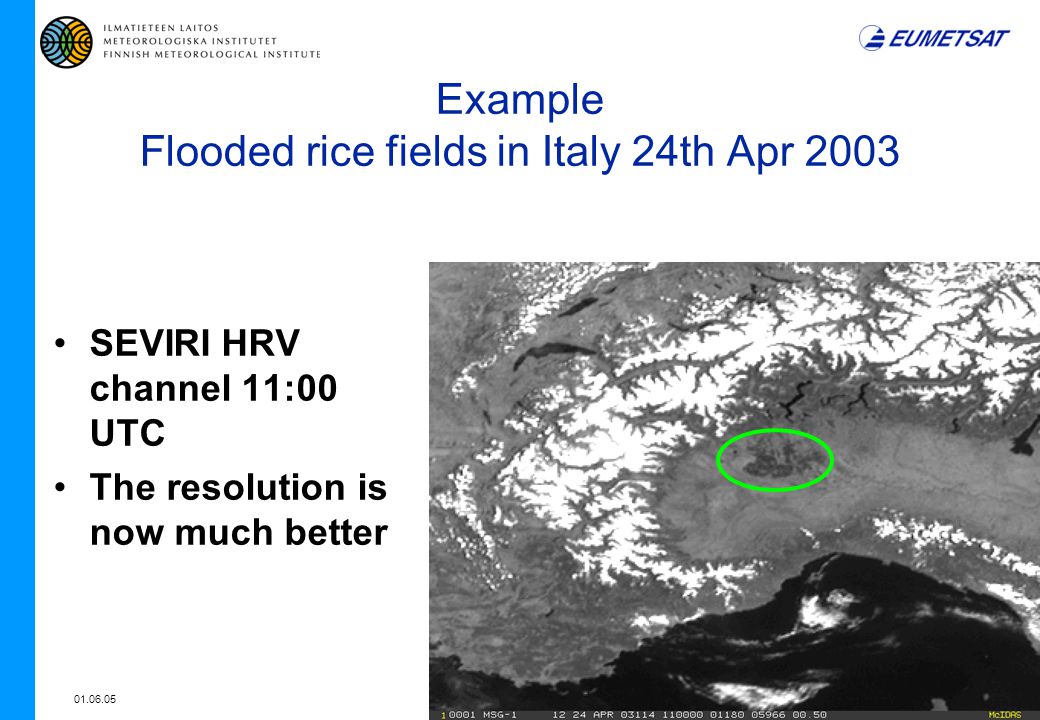

8 Example Flooded rice fields in Italy 24th Apr 2003 SEVIRI HRV channel 11:00 UTC The resolution is now much better

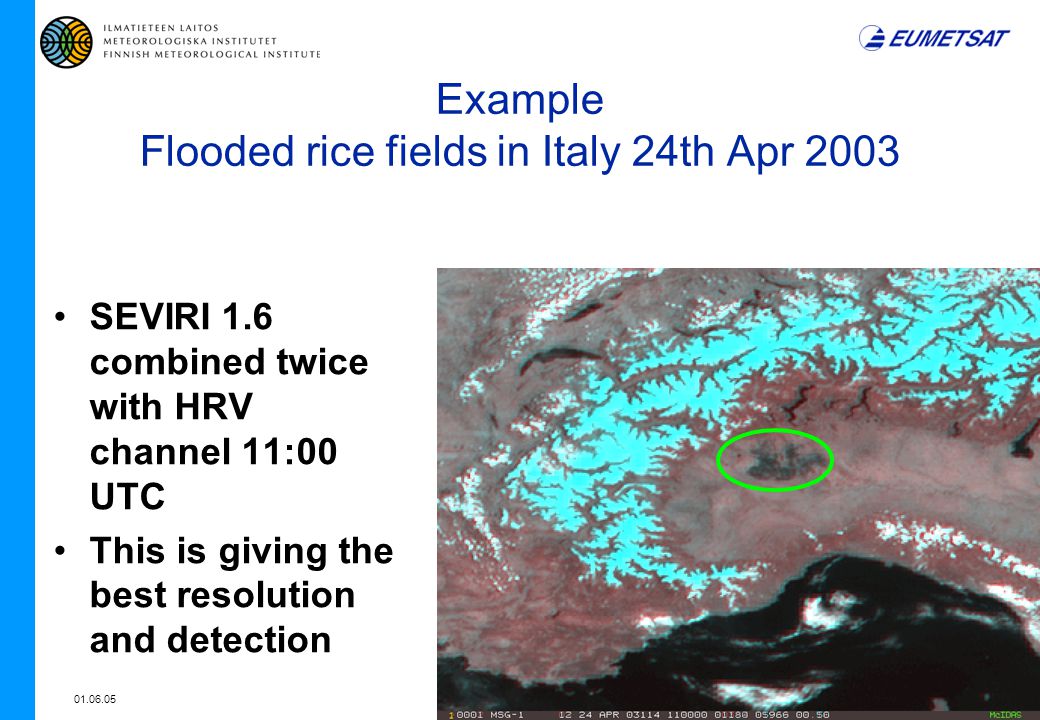

9 Example Flooded rice fields in Italy 24th Apr 2003 SEVIRI 1.6 combined twice with HRV channel 11:00 UTC This is giving the best resolution and detection

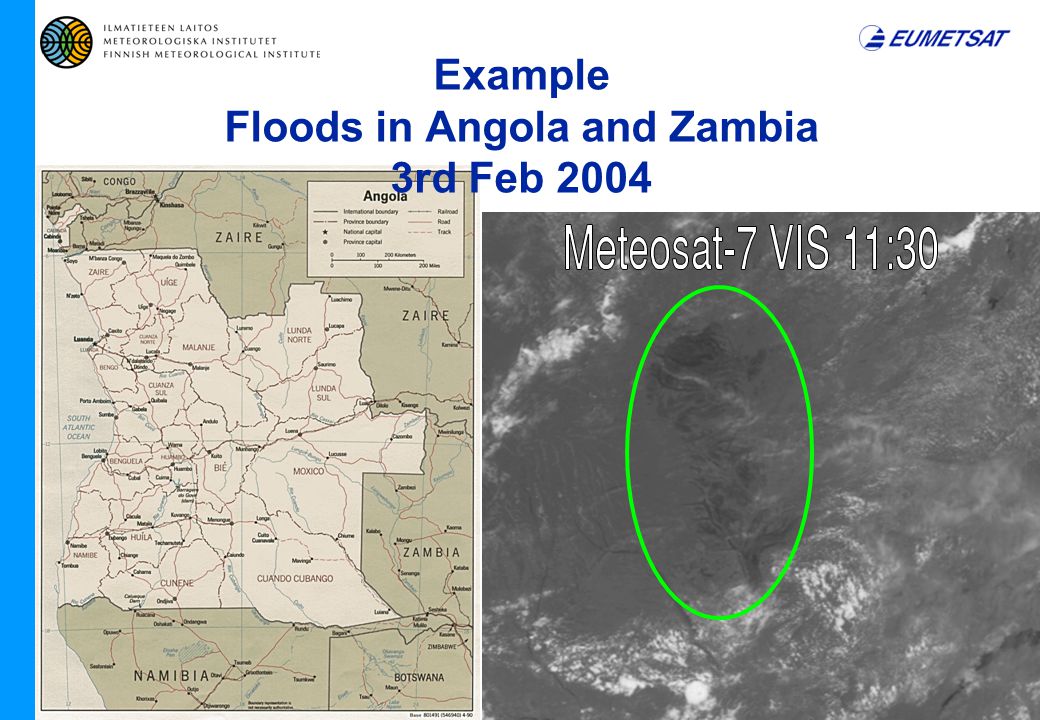

10 Example Floods in Angola and Zambia 3rd Feb 2004

11 Example Floods in Angola and Zambia 3rd Feb :30

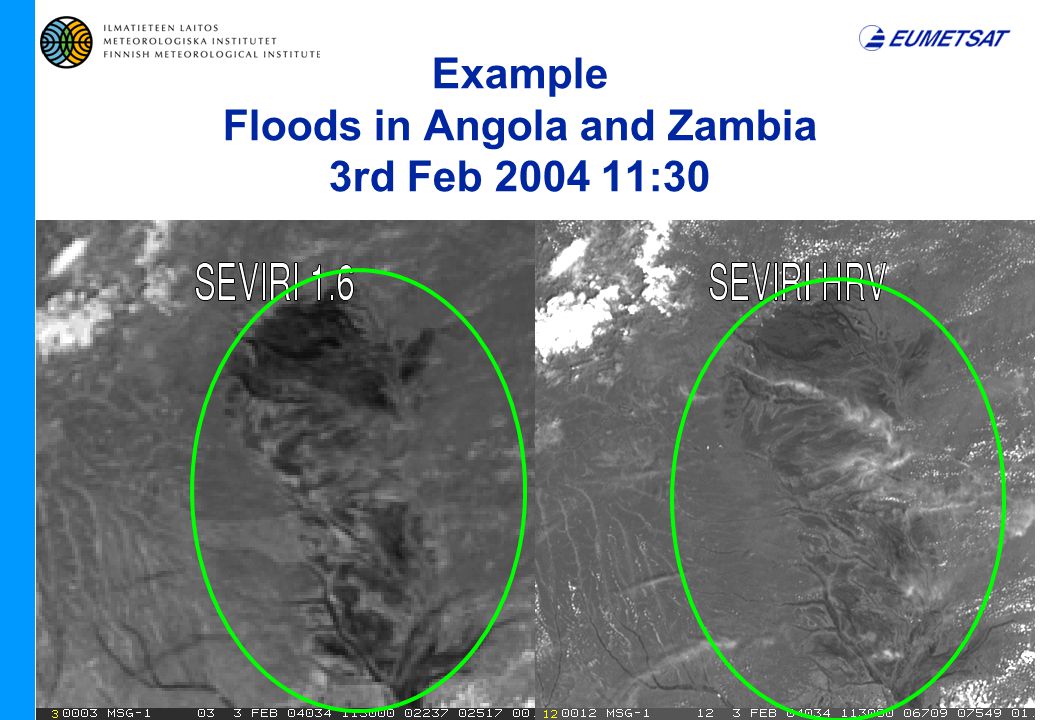

12 Example Floods in Angola and Zambia 3rd Feb :30

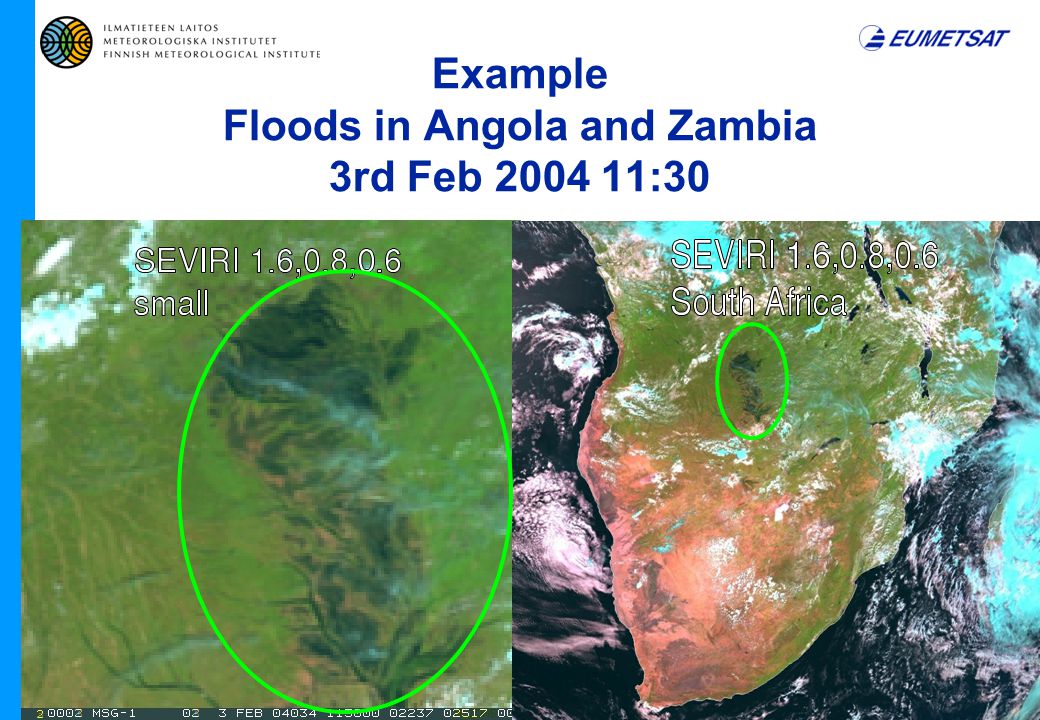

13 Example Floods in Angola and Zambia 3rd Feb :30

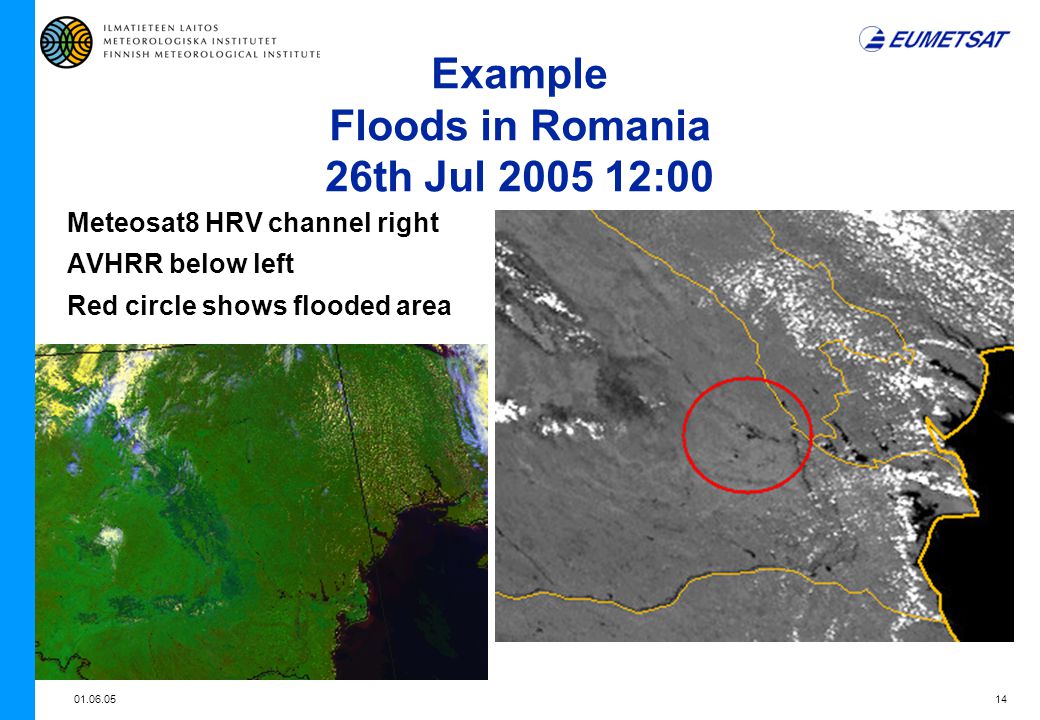

14 Example Floods in Romania 26th Jul :00 Meteosat8 HRV channel right AVHRR below left Red circle shows flooded area
