A Modern Approach to Controlling ICP Spray Chamber Temperature Jerry Dulude, Glass Expansion,

Similar presentations


Presentation on theme: "A Modern Approach to Controlling ICP Spray Chamber Temperature Jerry Dulude, Glass Expansion,"— Presentation transcript:

1 A Modern Approach to Controlling ICP Spray Chamber Temperature Jerry Dulude, Glass Expansion,

2 Glass Expansion 1 Limitations of Externally Controlled Spray Chambers Requires antifreeze solution Requires bulky floor model chiller Cumbersome coolant lines from chiller to chamber Freezing of condensate on lines Requires intricate jacketed chamber

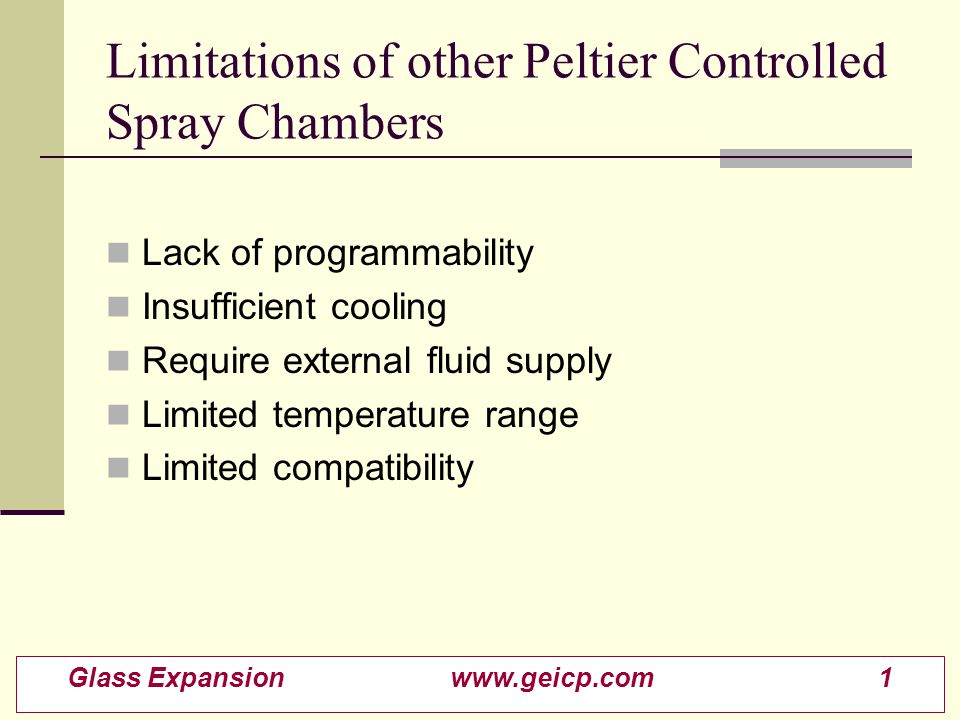

3 Glass Expansion 1 Limitations of other Peltier Controlled Spray Chambers Lack of programmability Insufficient cooling Require external fluid supply Limited temperature range Limited compatibility

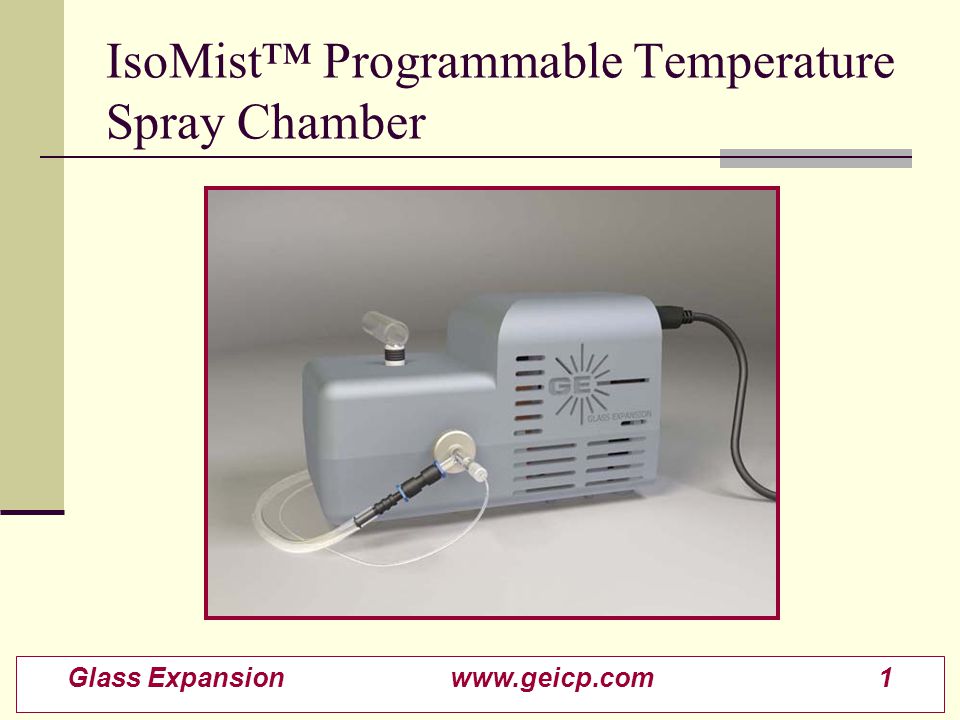

4 Glass Expansion 1 IsoMist™ Programmable Temperature Spray Chamber

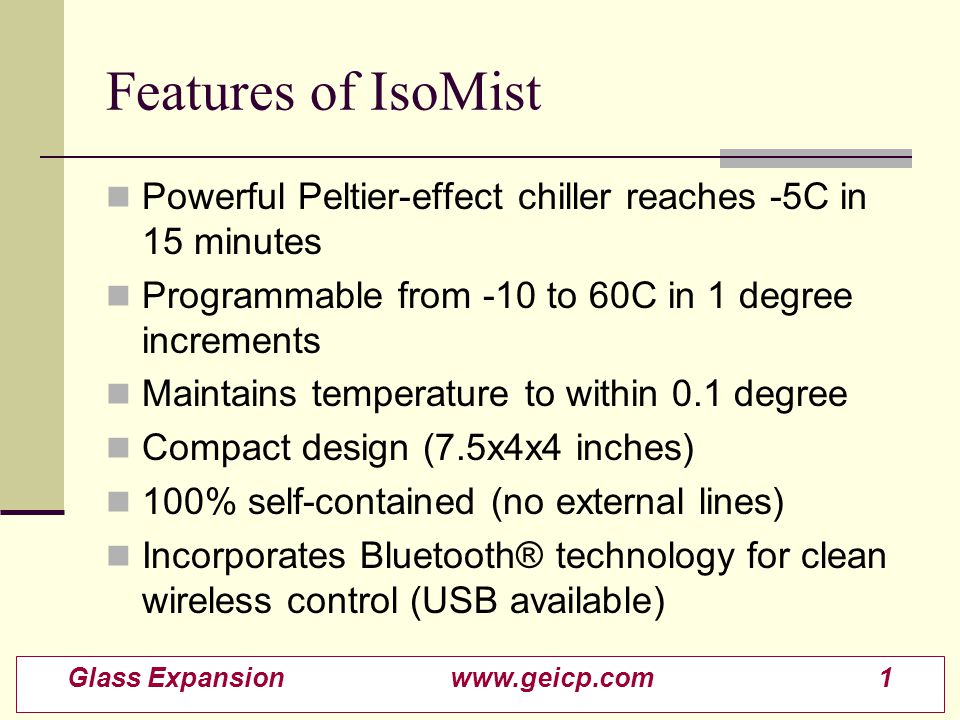

5 Glass Expansion 1 Features of IsoMist Powerful Peltier-effect chiller reaches -5C in 15 minutes Programmable from -10 to 60C in 1 degree increments Maintains temperature to within 0.1 degree Compact design (7.5x4x4 inches) 100% self-contained (no external lines) Incorporates Bluetooth® technology for clean wireless control (USB available)

6 Glass Expansion 1 PC Screen showing IsoMist Software

7 Glass Expansion 1 Variety of Cyclonic Spray Chambers Borosilicate glass: most aqueous and organic applications Quartz: Trace boron determinations PFA: HF and ultra trace applications

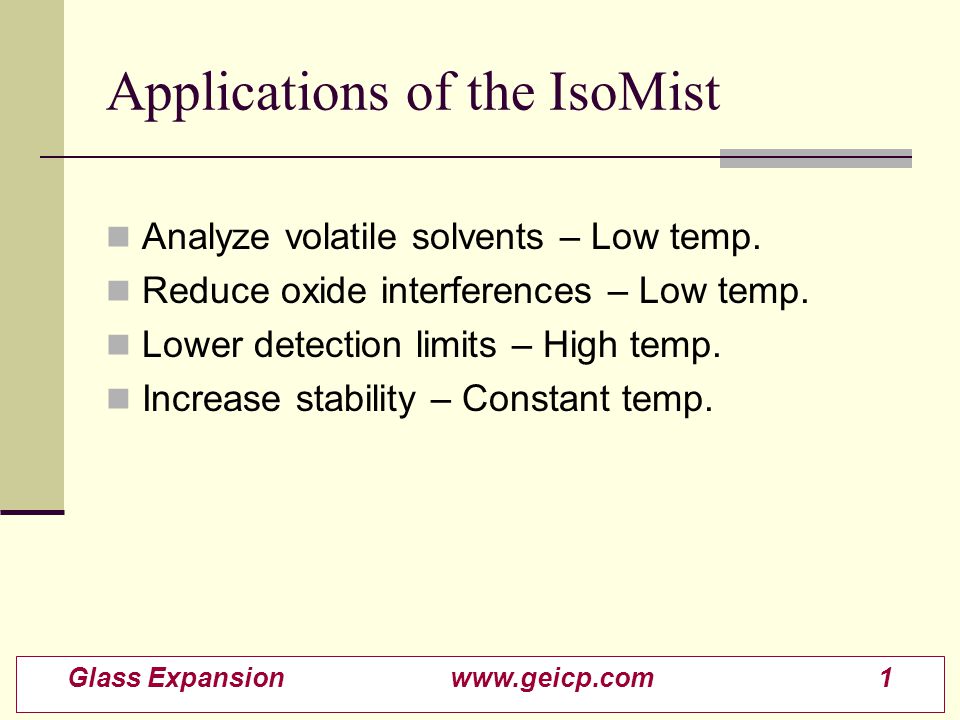

8 Glass Expansion 1 Applications of the IsoMist Analyze volatile solvents – Low temp. Reduce oxide interferences – Low temp. Lower detection limits – High temp. Increase stability – Constant temp.

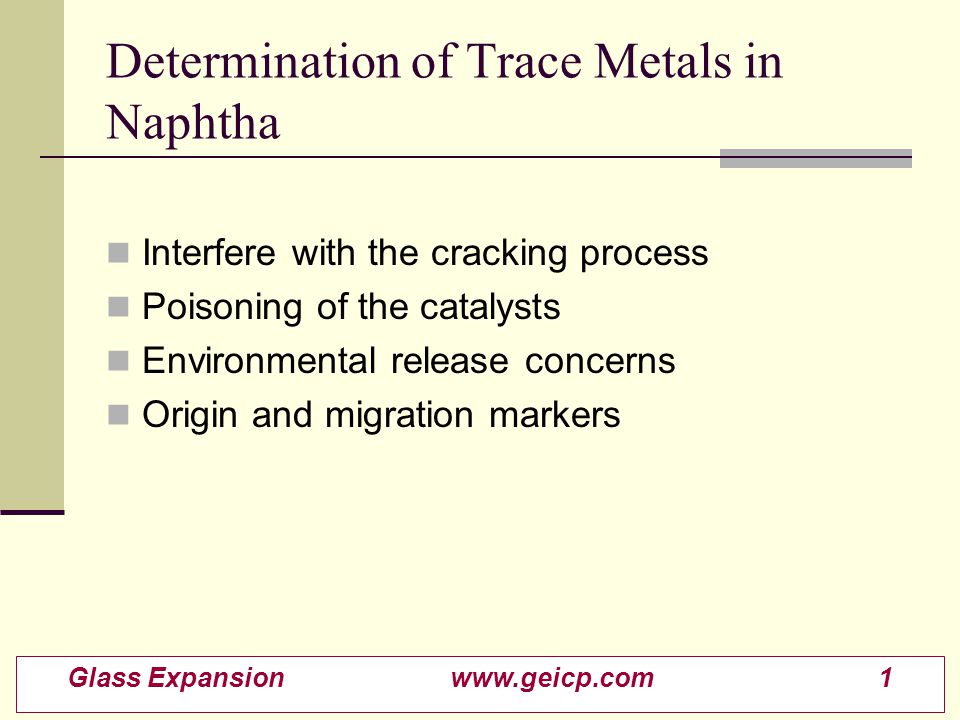

9 Glass Expansion 1 Determination of Trace Metals in Naphtha Interfere with the cracking process Poisoning of the catalysts Environmental release concerns Origin and migration markers

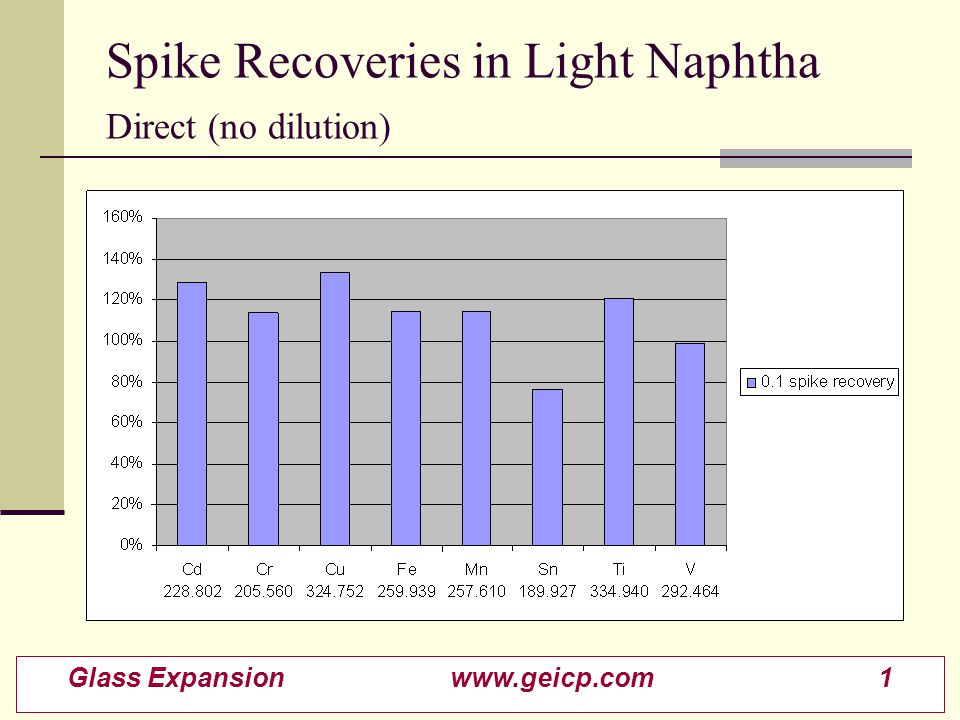

10 Glass Expansion 1 Spike Recoveries in Light Naphtha Direct (no dilution)

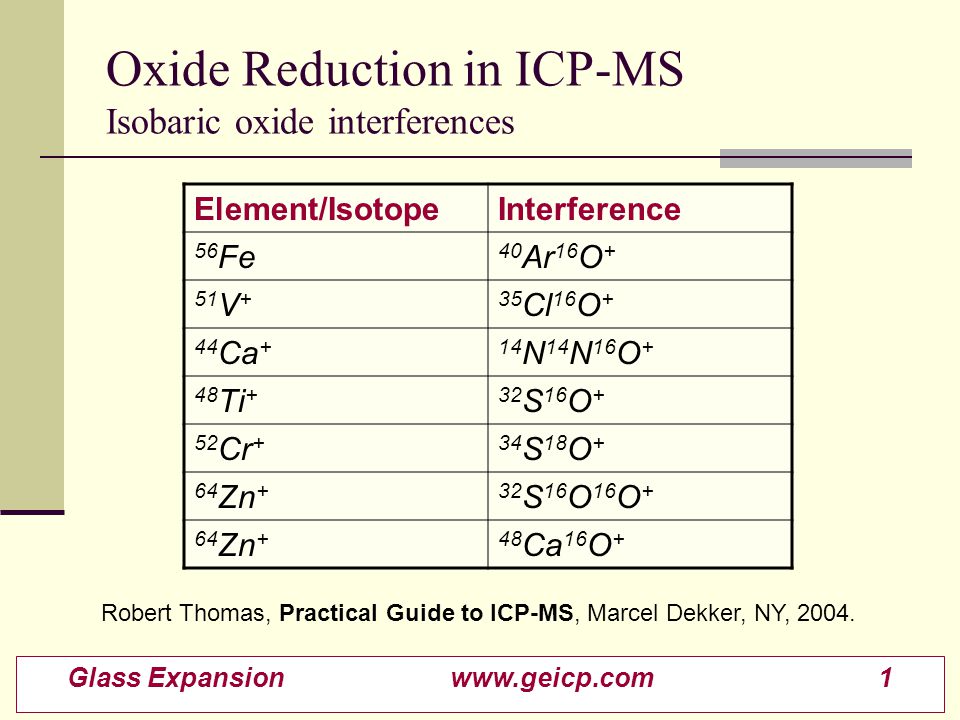

11 Glass Expansion 1 Oxide Reduction in ICP-MS Isobaric oxide interferences Element/IsotopeInterference 56 Fe 40 Ar 16 O + 51 V +35 Cl 16 O + 44 Ca +14 N 14 N 16 O + 48 Ti +32 S 16 O + 52 Cr +34 S 18 O + 64 Zn +32 S 16 O 16 O + 64 Zn +48 Ca 16 O + Robert Thomas, Practical Guide to ICP-MS, Marcel Dekker, NY, 2004.

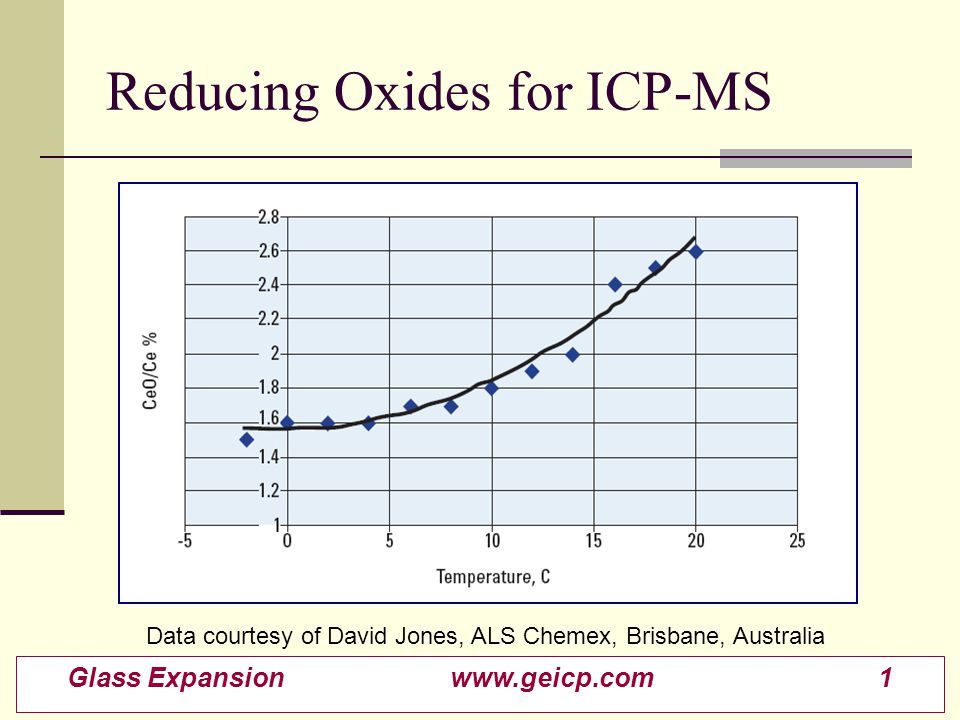

12 Glass Expansion 1 Reducing Oxides for ICP-MS Data courtesy of David Jones, ALS Chemex, Brisbane, Australia

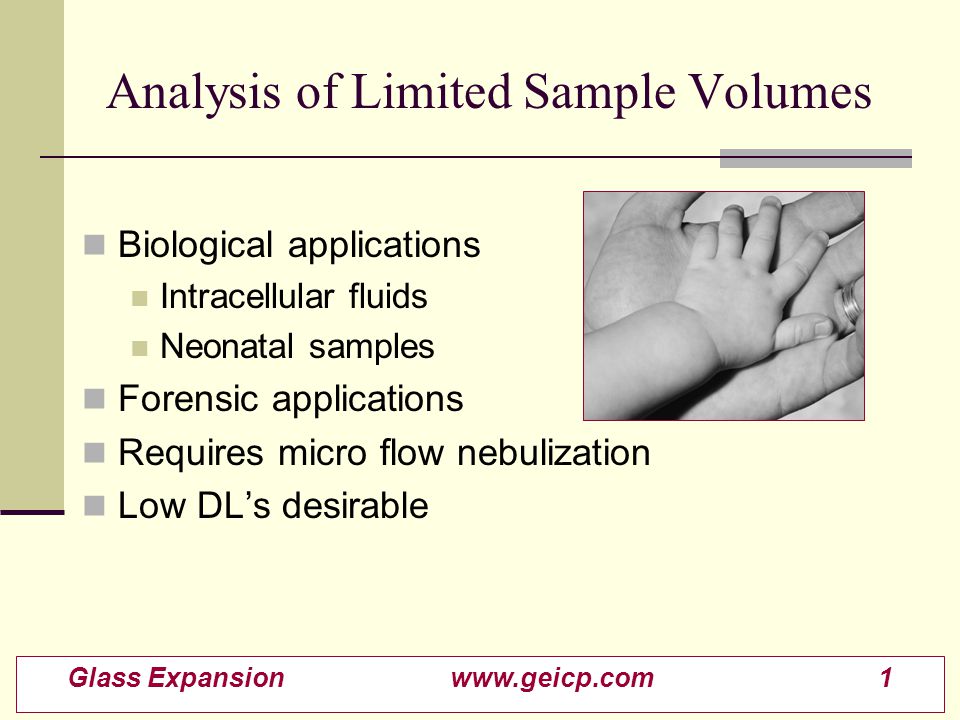

13 Glass Expansion 1 Analysis of Limited Sample Volumes Biological applications Intracellular fluids Neonatal samples Forensic applications Requires micro flow nebulization Low DL’s desirable

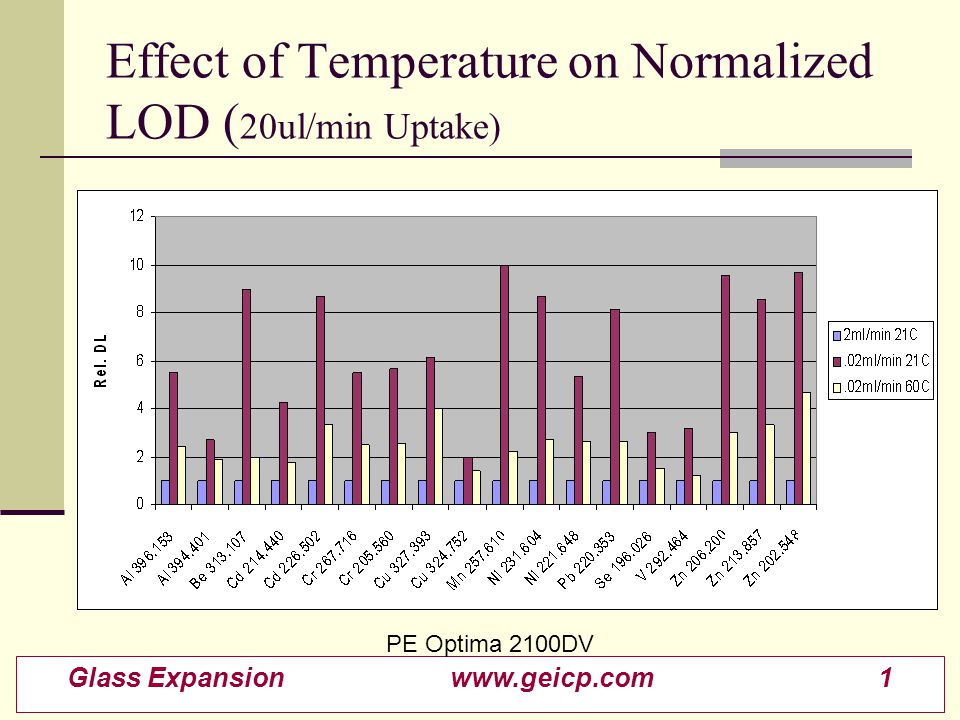

14 Glass Expansion 1 Effect of Temperature on Normalized LOD ( 20ul/min Uptake) PE Optima 2100DV

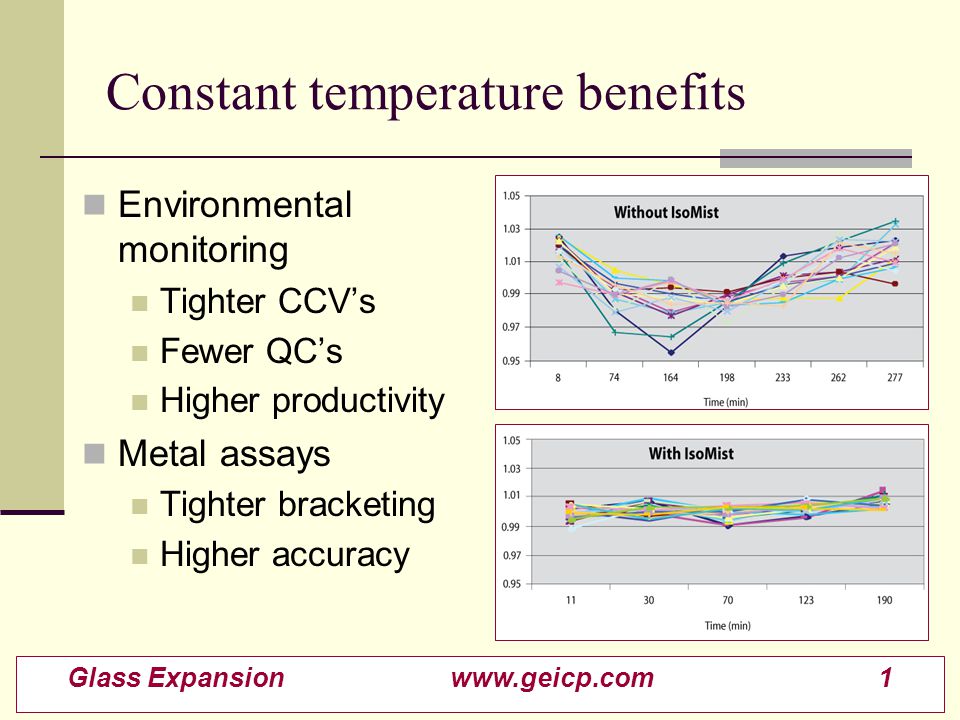

15 Glass Expansion 1 Constant temperature benefits Environmental monitoring Tighter CCV’s Fewer QC’s Higher productivity Metal assays Tighter bracketing Higher accuracy

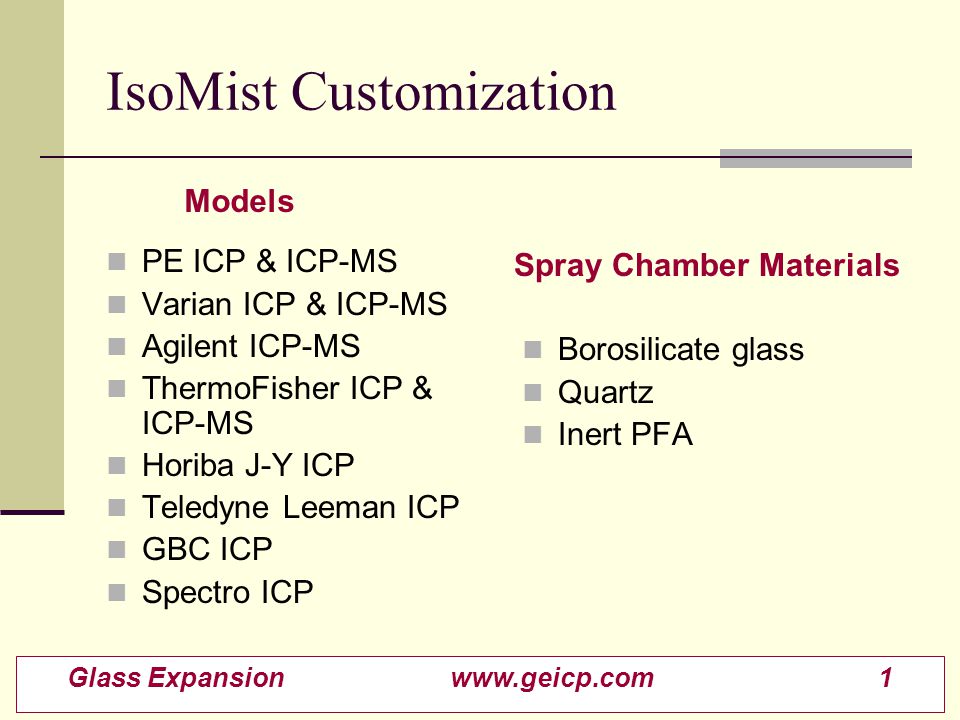

16 Glass Expansion 1 IsoMist Customization PE ICP & ICP-MS Varian ICP & ICP-MS Agilent ICP-MS ThermoFisher ICP & ICP-MS Horiba J-Y ICP Teledyne Leeman ICP GBC ICP Spectro ICP Borosilicate glass Quartz Inert PFA Models Spray Chamber Materials

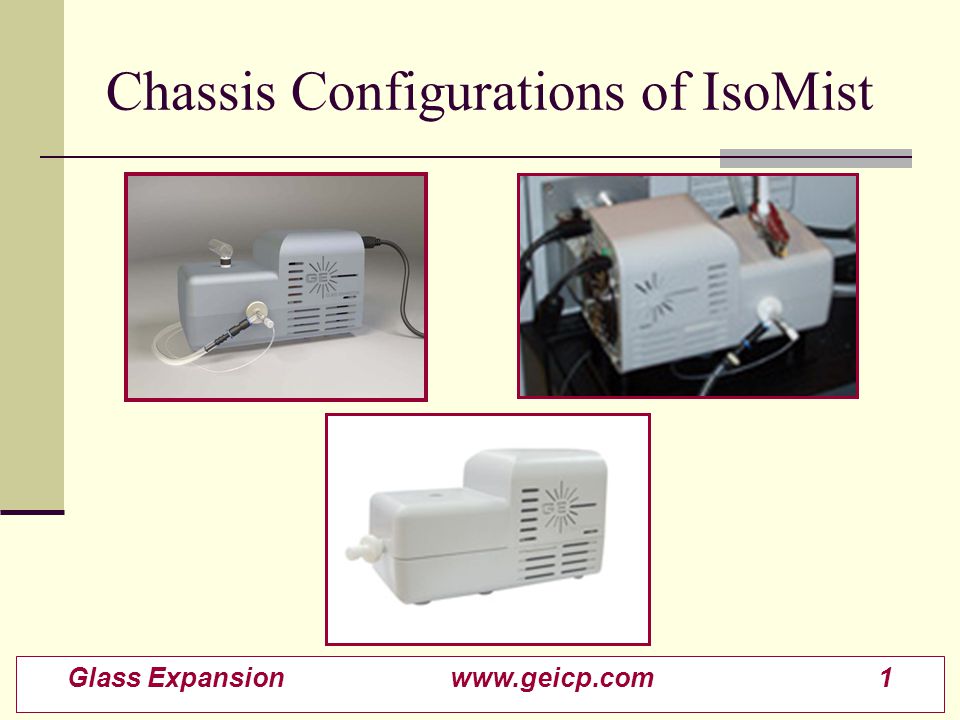

17 Glass Expansion 1 Chassis Configurations of IsoMist

18 Glass Expansion 1 IsoMist on Optima 2100DV

19 Glass Expansion 1 IsoMist on Optima 2100DV

20 Glass Expansion 1 IsoMist on the Agilent 7500 ICP-MS

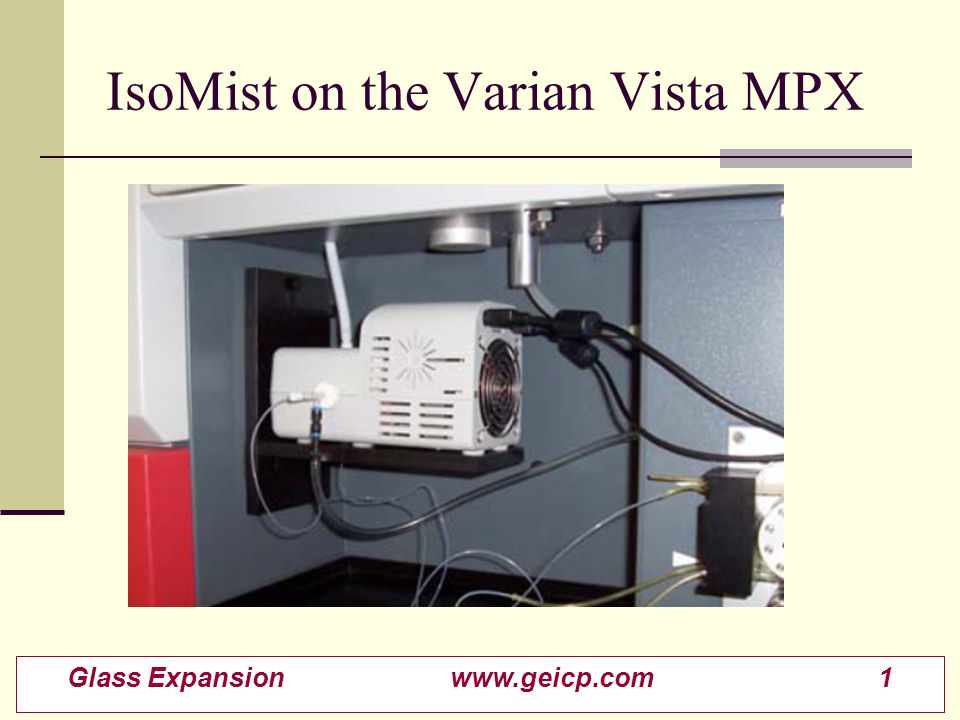

21 Glass Expansion 1 IsoMist on the Varian Vista MPX

22 Glass Expansion 1 IsoMist on the Varian Vista MPX

23 Glass Expansion 1 IsoMist on the Thermo iCAP 6500DV

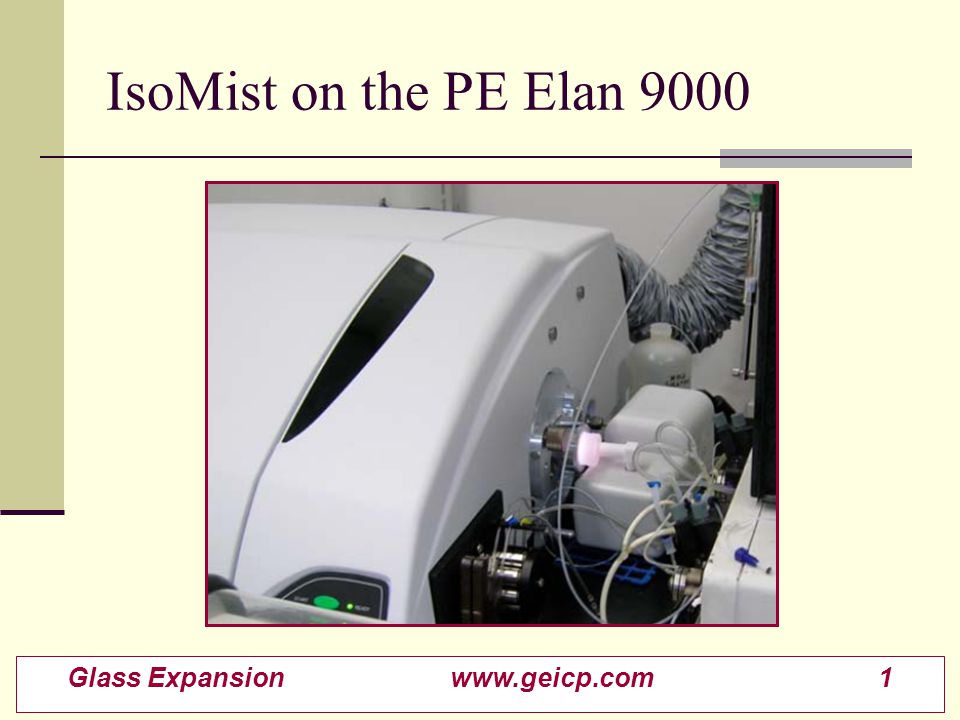

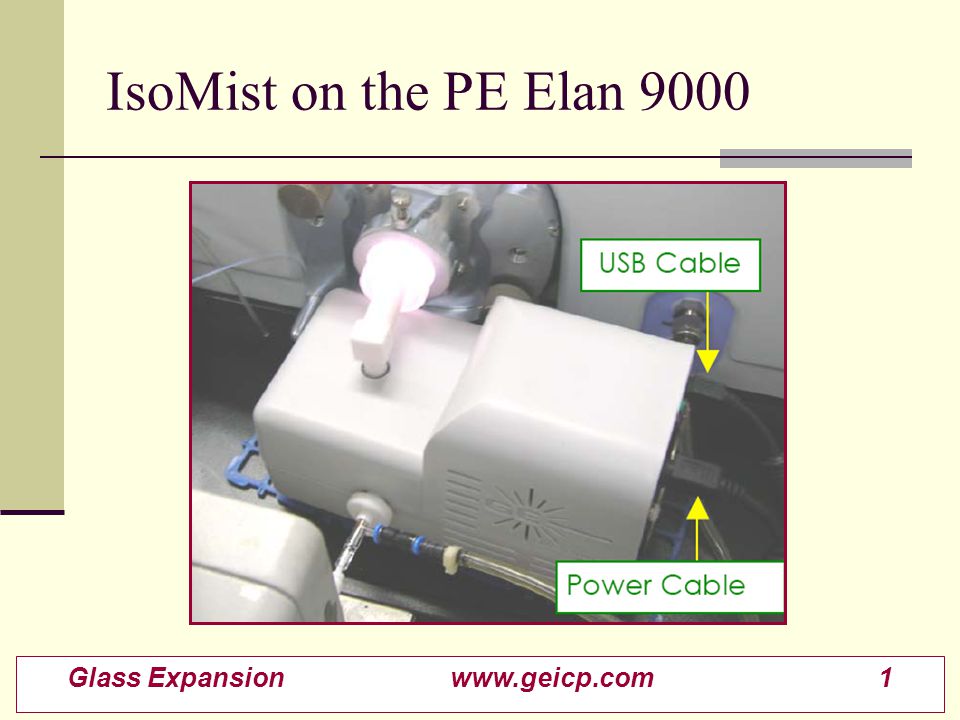

24 Glass Expansion 1 IsoMist on the PE Elan 9000

25 Glass Expansion 1 IsoMist on the PE Elan 9000

26 Glass Expansion 1 Summary Control of Spray chamber temperature enhances the capability of your ICP. The IsoMist is easily installed. The IsoMist is easily and precisely controlled. Compatible with all major ICP-OES & ICP-MS models.
