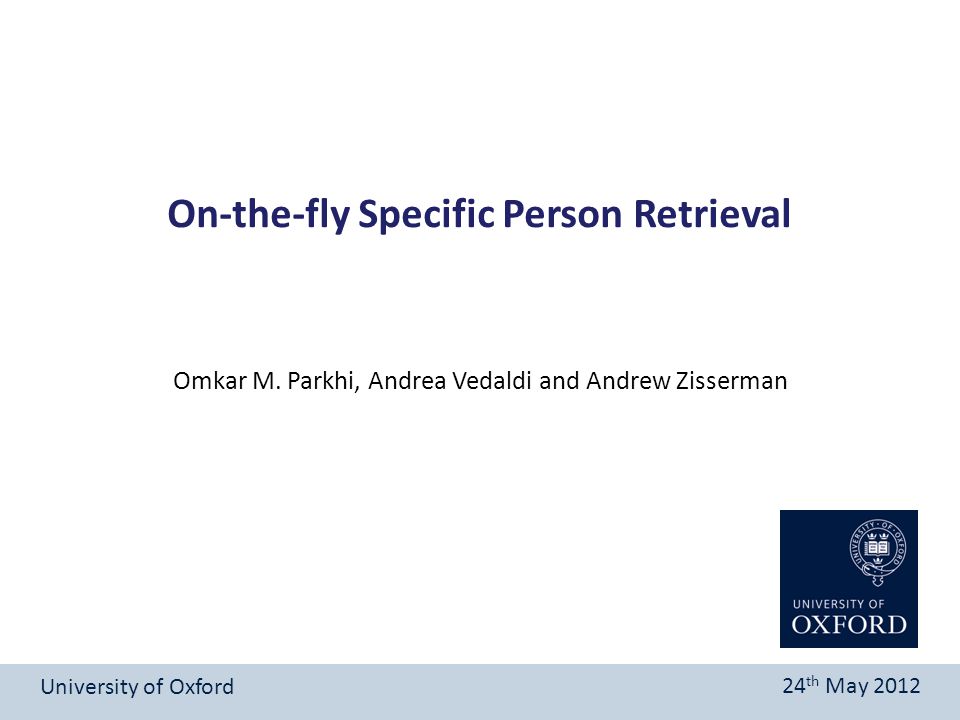

1 On-the-fly Specific Person Retrieval University of Oxford 24 th May 2012 Omkar M. Parkhi, Andrea Vedaldi and Andrew Zisserman

2 Overview People “Barack Obama” “George Bush” “Courtney Cox” Ranked ShotsTextual Queries Search for: On-the-fly i.e. with no previous knowledge or model for these queries Large collection of un-annotated videos Large collection of un-annotated videos

3 Scrubs Data Set 12 Episodes from Seasons 1-5 and 8 5 hours of video data About 400k frames, partitioned into 5k shots About 300k near frontal face detections 768 x 576 MPEG2 format

4 Demo Search for “Courteney Cox” in Scrubs dataset. Steps: 1.Download example images from Google 1.Train a ranking function 1.Apply ranking function to video collection

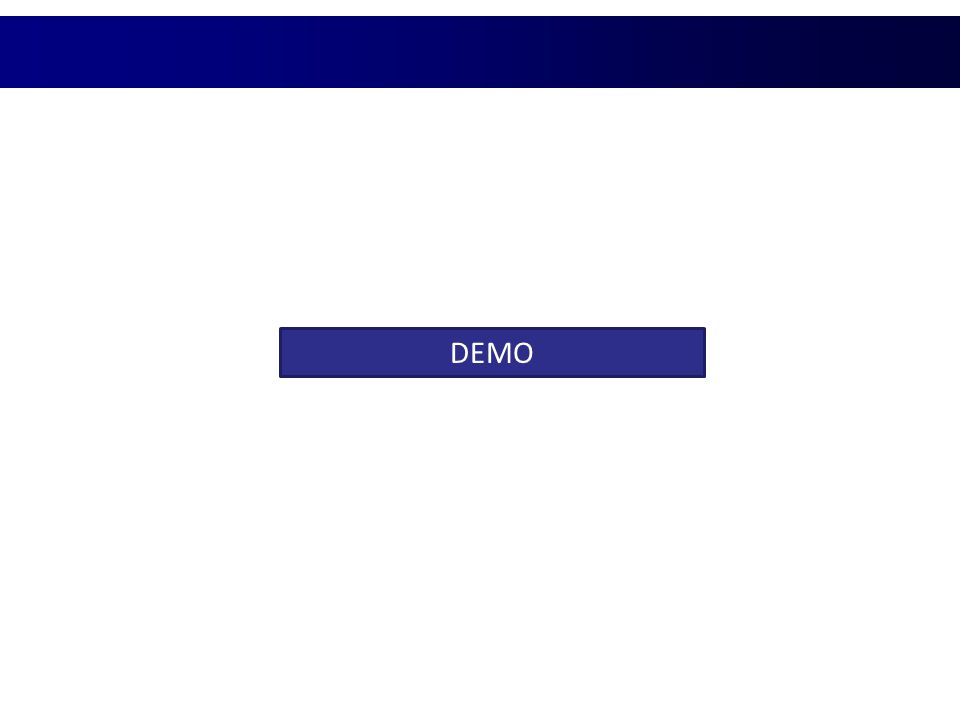

5 DEMO

6 Demo- Scrubs Data Set

7

8 On the fly person retrieval system Text Query “Courteney Cox” Negative Training Images Video Collection Face Tracks Facial Features & Descriptors Facial Features & Descriptors Results ON-LINE PROCESSING OFF-LINE PROCESSING Google Image Search “Courteney Cox” Facial Features & Descriptors Fast Linear Classifier Ranking

9 Detection and Tracking Viola-Jones face detection on each frame Tracking measures “ connectedness ” of a pair of faces by point tracks intersecting both Doesn ’ t require contiguous detections No drift Faces clustered into tracks [Everingham et al. 2006, Apostoloff & Zisserman, 2007]

10 Scrubs Data Set 12 Episodes from Seasons 1-5 and 8 5 hours of video data About 400k frames, partitioned into 5k shots 300k face detections 6k face tracks 768 x 576 MPEG2 format

11 Detecting facial feature points Pictorial structure model Joint model of feature appearance and position [Felzenszwalb and Huttenlocher’2004, Everingham et al ]

12 Face Appearance Representation  Affine transformation of face to canonical frame  Independent photometric normalization of parts  Represent gradients over circle centred on facial feature points  Feature descriptor is a 3849 dimensional vector [ Everingham et al ]

13 Negative Training Images Combination of faces from Random downloaded images Labeled Faces in the Wild dataset Caltech Faces dataset About 16k face detections. Caltech 10, 000 Web Faces: Labeled Faces in the Wild:

14 On-the-fly Person Retrieval Text Query “Courteney Cox” Negative Training Images Video Collection Face Tracks Facial Features & Descriptors Facial Features & Descriptors Results ON-LINE PROCESSING OFF-LINE PROCESSING Google Image Search “Courteney Cox” Facial Features & Descriptors Fast Linear Classifier Ranking

15 DEMO

16 Demo- Scrubs Data Set

17 TRECVid 2011 (IACC.1.B) About 200 hours of video data. 8k videos. MPEG4, 320x240 pixels 130k shots, About 3 million face detections 25,535 face tracks.

18 DEMO

19 Demo - TRECVid 2011 (IACC.1.B)

20 Facial attributes – FaceTracer project  Examples:  gender: male, female  age: baby, child, youth, middle age, senior  race: white, black, asian  smiling, mustache, eye-wear, hair colour N. Kumar, P. N. Belhumeur and S. K. Nayar, FaceTracer: A Search Engine for Large Collections of Images with Faces, European Conference on Computer Vision (ECCV), Method person independent training set with attribute facial feature representation discriminative training of classifier for attribute

21 DEMO

22 Facial attributes – Glasses

23 DEMO Facial attributes – Beard

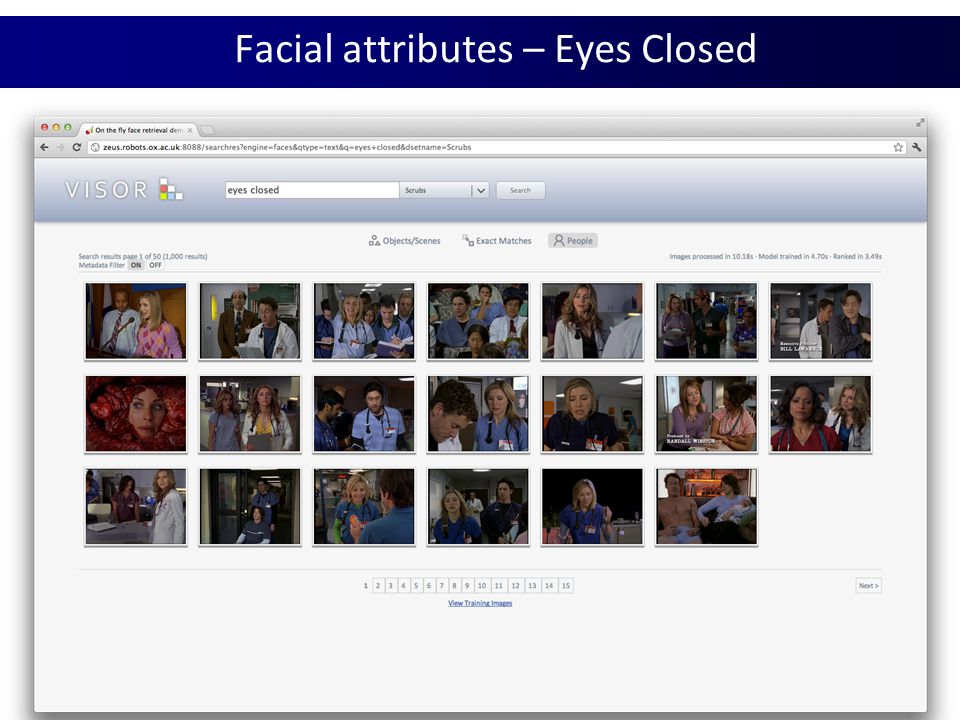

24 Facial attributes – Eyes Closed

25 Quantitative Performance - Scrubs Dataset Performance evaluation for 3 guest actors (Brendan Fraser, Courteney Cox and Michael J Fox) 12 dataset videos split into training and test sets (3 Training, 9 Testing) Annotations: Manual labeling of training and test set for each actor Manual labeling of positive training images from Google Negative training images from Caltech Faces dataset.

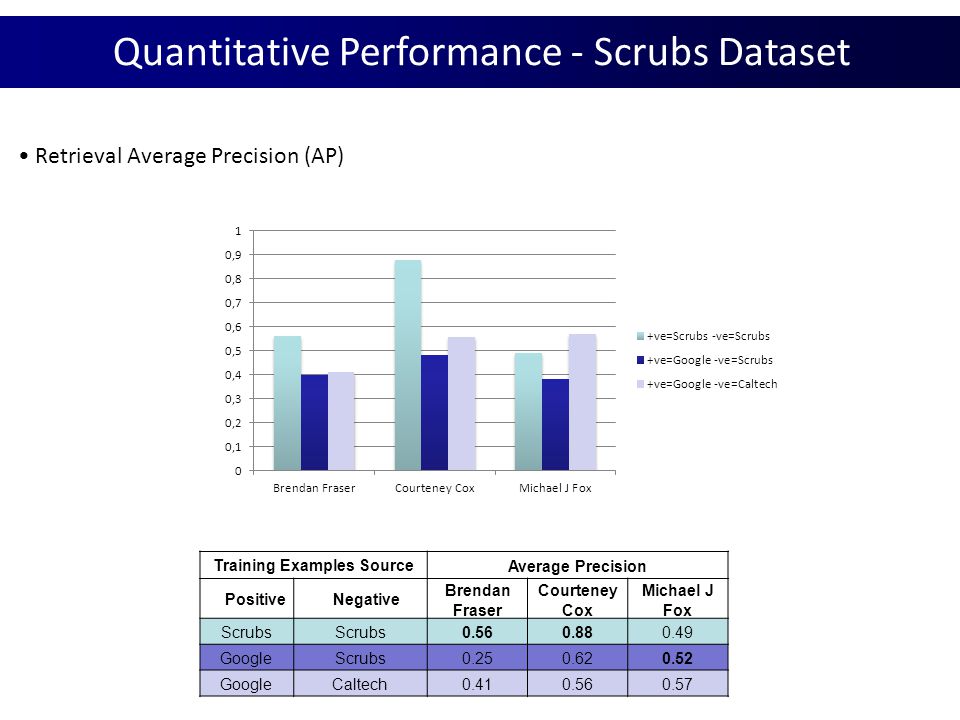

26 Quantitative Performance - Scrubs Dataset Retrieval Average Precision (AP) Training Examples SourceAverage Precision Positive Negative Brendan Fraser Courteney Cox Michael J Fox Scrubs GoogleScrubs GoogleCaltech

27 Quantitative Performance - Scrubs Dataset Using more training data per track Training Examples Source # samples per track Average Precision Positive Negative Brendan Fraser Courteney Cox Michael J Fox Scrubs Single Scrubs Multiple

28 Future Work Exploring sources for positive examples Better feature representations Combination of attributes and identities

29  Any Questions?
