1 Augmentative and Alternative Communication Systems Damian Gordon Cook and Hussey, Chapter 11

2 What is Assistive Technology? “Any product, instrument, equipment or technical system used by a disabled or elderly person, made specially or existing on the market, aimed to prevent, compensate, relieve or neutralise the deficiency, the inability or the handicap.” International ISO-9999 Standard

3 Last Time

4 Introduction AAC are “designed to ameliorate the communication problems of people who have severe speech and language impairments across the age span.”

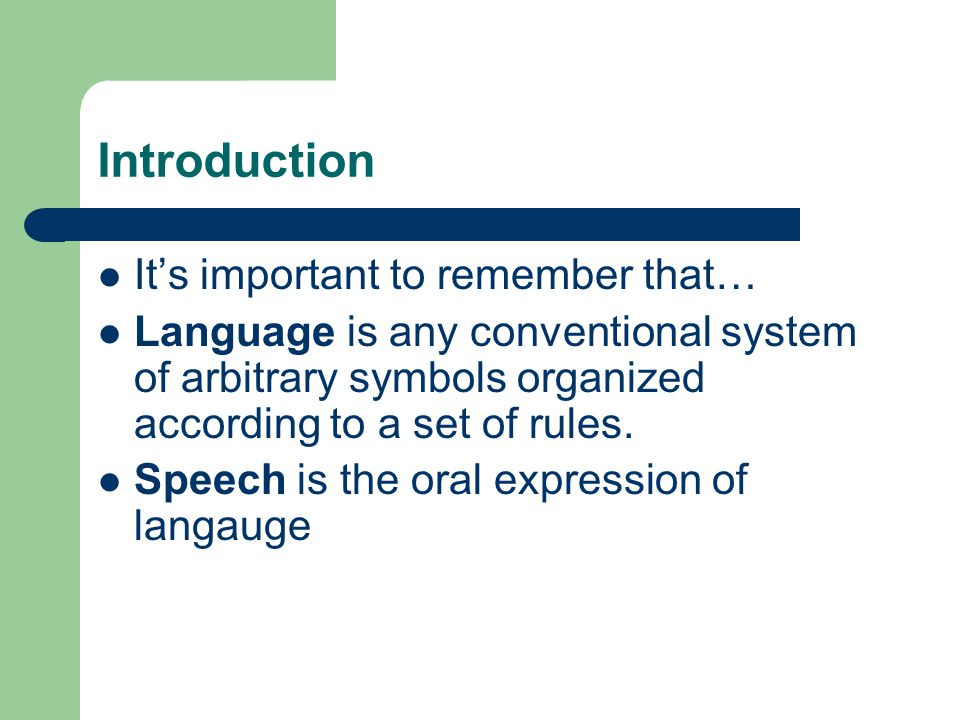

5 Introduction It’s important to remember that… Language is any conventional system of arbitrary symbols organized according to a set of rules. Speech is the oral expression of langauge

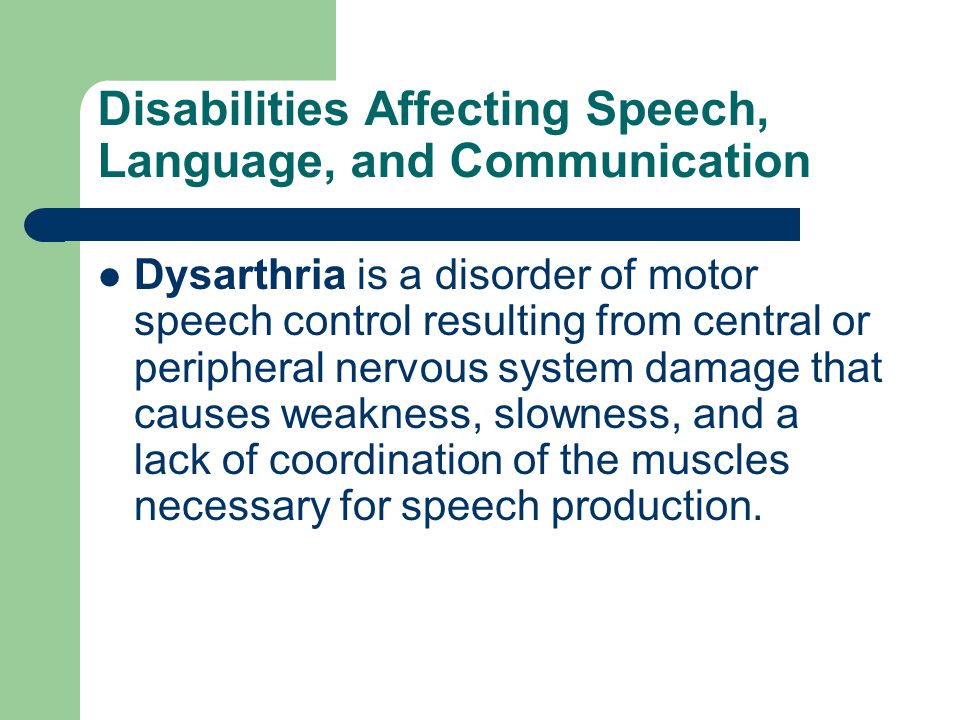

6 Disabilities Affecting Speech, Language, and Communication Dysarthria is a disorder of motor speech control resulting from central or peripheral nervous system damage that causes weakness, slowness, and a lack of coordination of the muscles necessary for speech production.

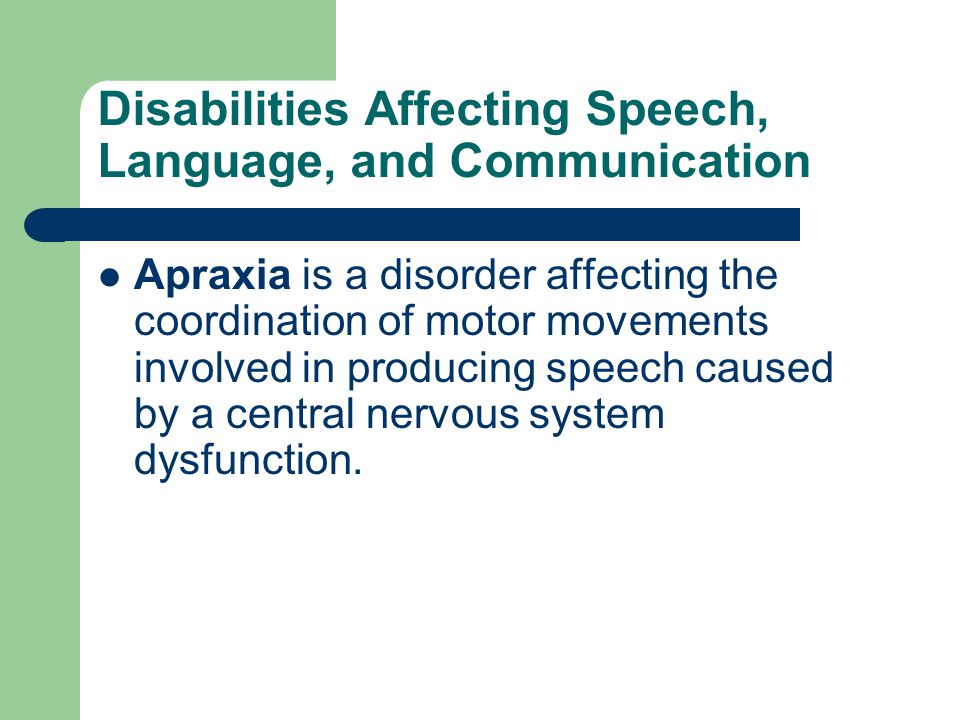

7 Disabilities Affecting Speech, Language, and Communication Apraxia is a disorder affecting the coordination of motor movements involved in producing speech caused by a central nervous system dysfunction.

8 Disabilities Affecting Speech, Language, and Communication Aphasia is a language disorder that occurs as a result of a cerebral vascular accident to Traumatic Brain Injury (TBI). It can affect both expression of spoken and written language, e.g. some people can forget names, places, or events. Others may lose the ability to understand spoken langauge.

9 Disabilities Affecting Speech, Language, and Communication Other conditions ameliorated by ACC – Cerebral Palsy – Autism – Stoke – Spinal Cord Injury – Degenerative Diseases

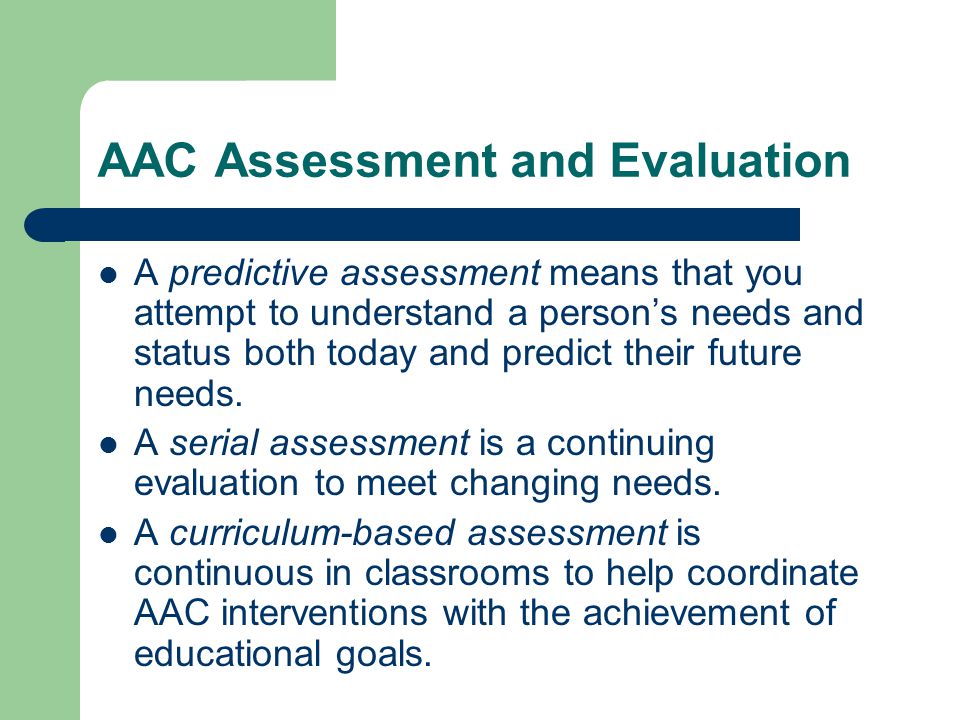

10 AAC Assessment and Evaluation A predictive assessment means that you attempt to understand a person’s needs and status both today and predict their future needs. A serial assessment is a continuing evaluation to meet changing needs. A curriculum-based assessment is continuous in classrooms to help coordinate AAC interventions with the achievement of educational goals.

11 Barriers to Participation Consider the case of a child with a speech difficulty, if their school that purchases a speech-generating device (SGD), the child will have to leave the device at school when they go home. This creates a real barrier into providing full societal participation. But school typically allow student to take home musical instruments, why is this?

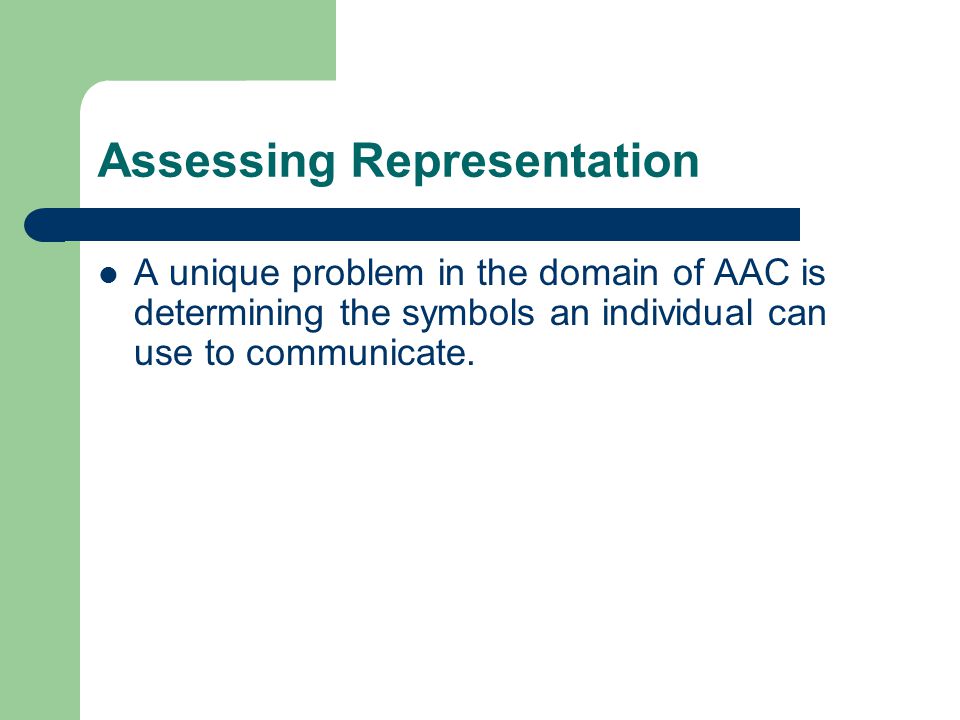

12 Assessing Representation A unique problem in the domain of AAC is determining the symbols an individual can use to communicate.

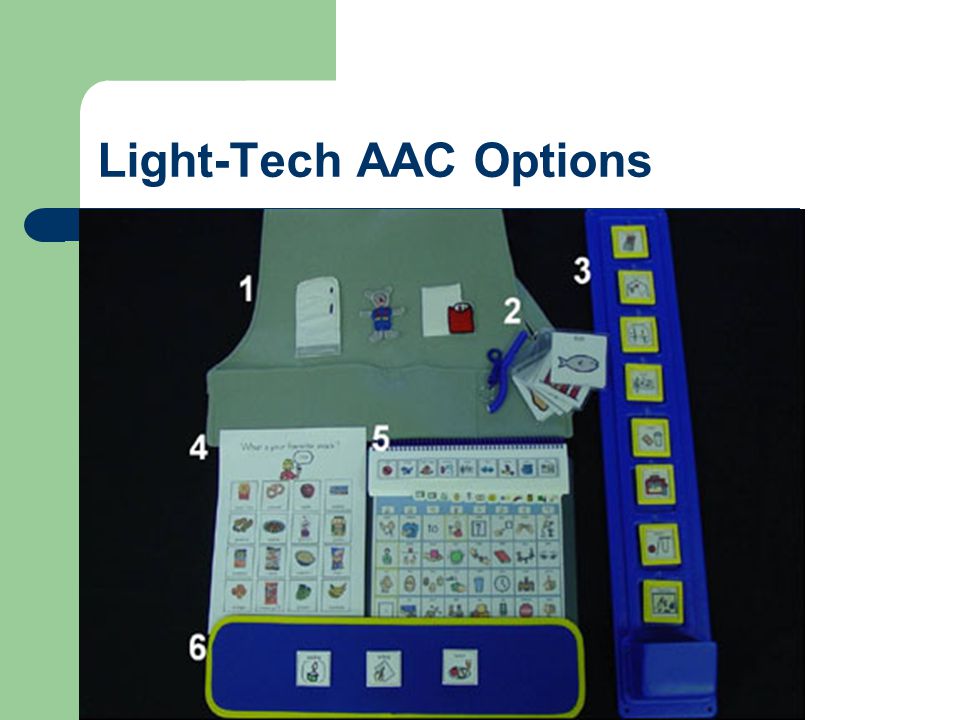

13 Light-Tech AAC Options

14 Mid-Tech AAC Devices

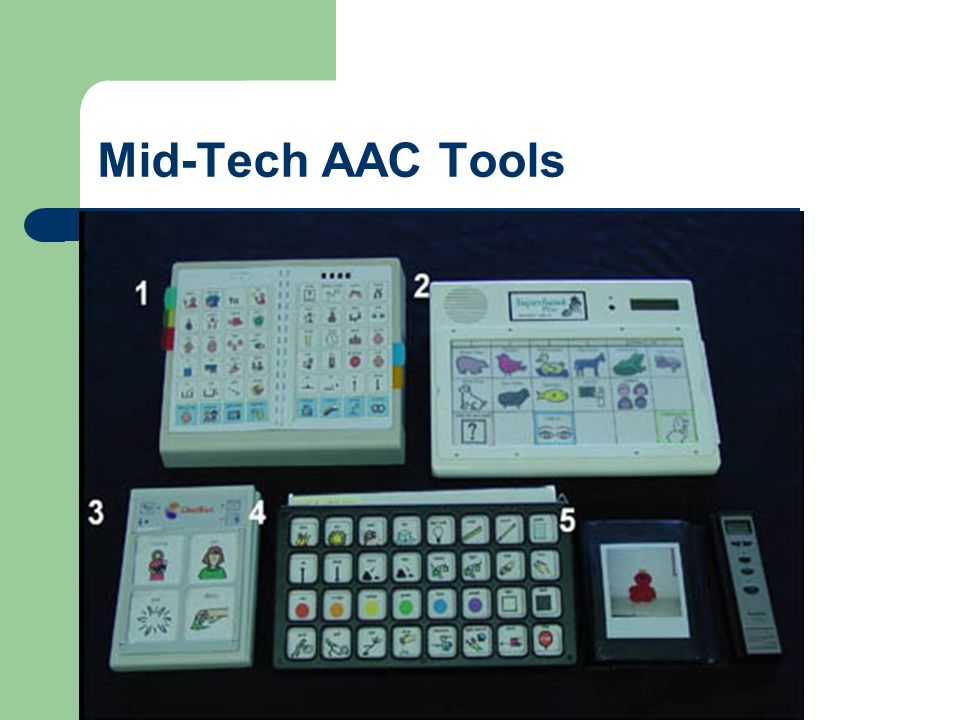

15 Mid-Tech AAC Tools

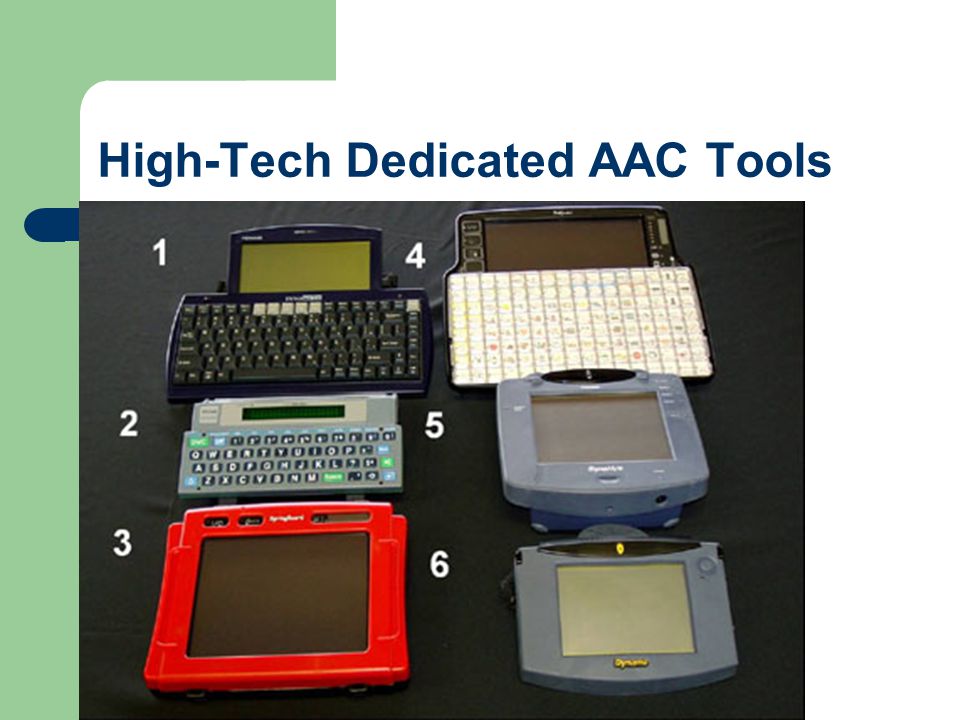

16 High-Tech Dedicated AAC Tools

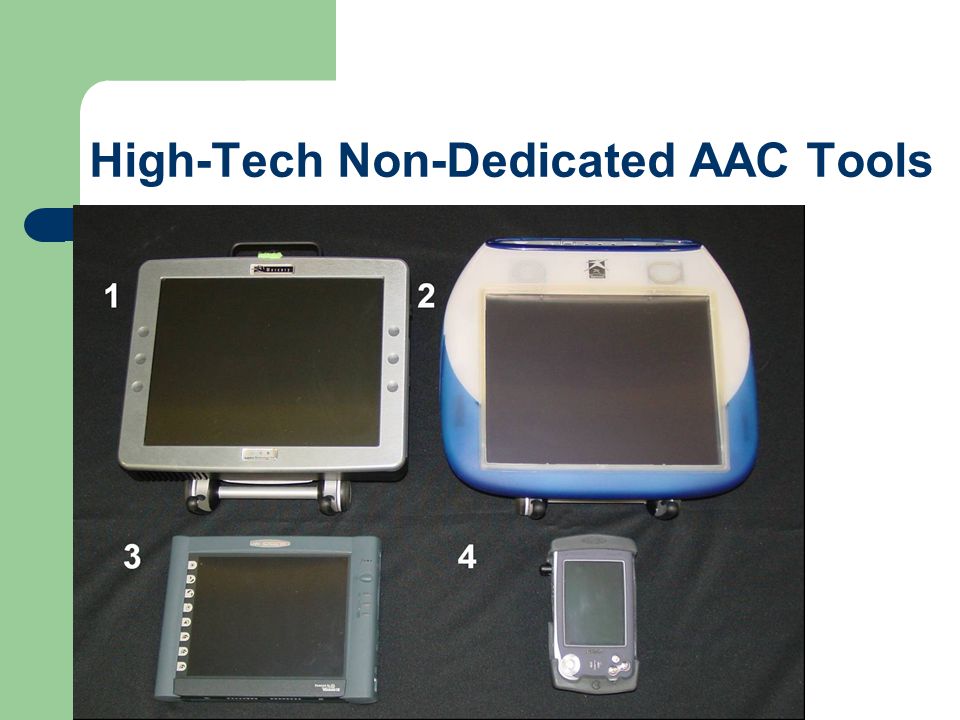

17 High-Tech Non-Dedicated AAC Tools

18 Communication Software

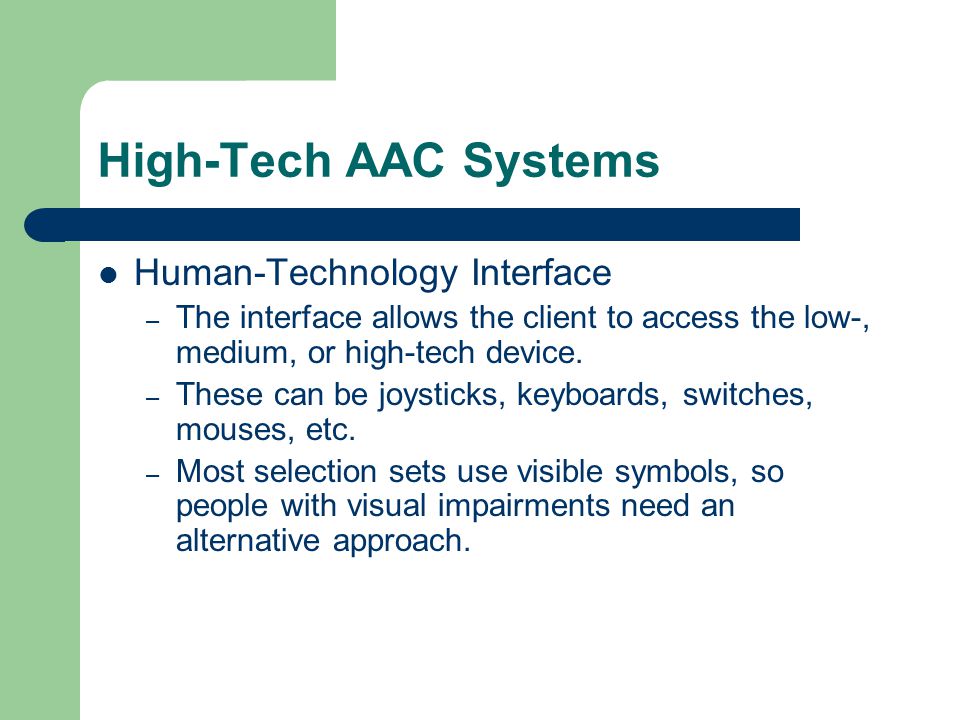

19 High-Tech AAC Systems Human-Technology Interface – The interface allows the client to access the low-, medium, or high-tech device. – These can be joysticks, keyboards, switches, mouses, etc. – Most selection sets use visible symbols, so people with visual impairments need an alternative approach.

20 Vocabulary Retrieval Techniques Abbreviation expansion Word prediction Word completion

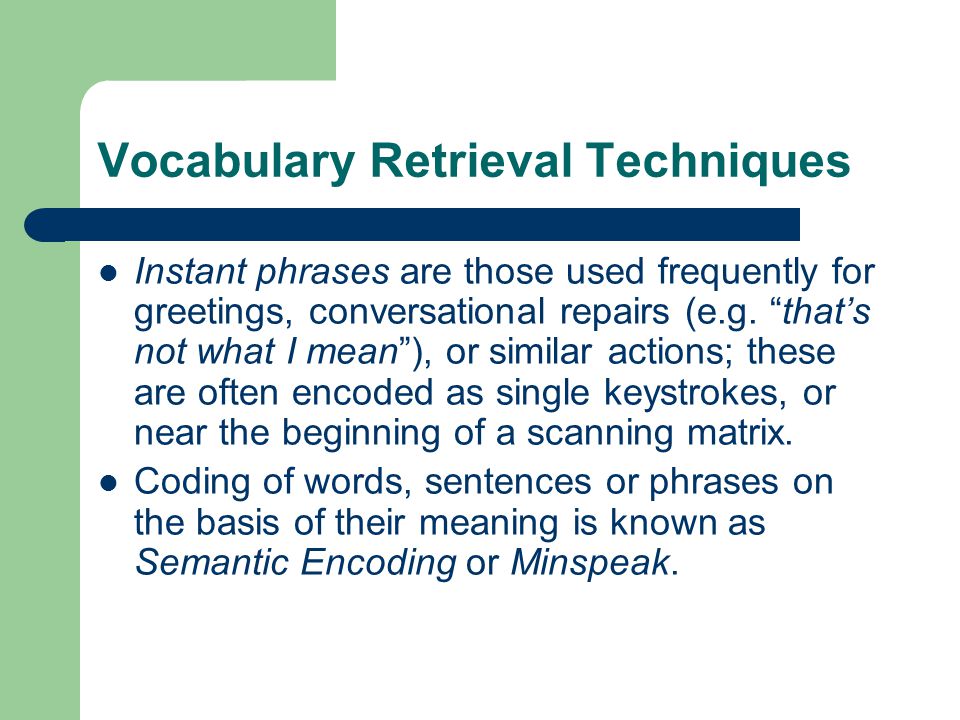

21 Vocabulary Retrieval Techniques Instant phrases are those used frequently for greetings, conversational repairs (e.g. “that’s not what I mean”), or similar actions; these are often encoded as single keystrokes, or near the beginning of a scanning matrix. Coding of words, sentences or phrases on the basis of their meaning is known as Semantic Encoding or Minspeak.

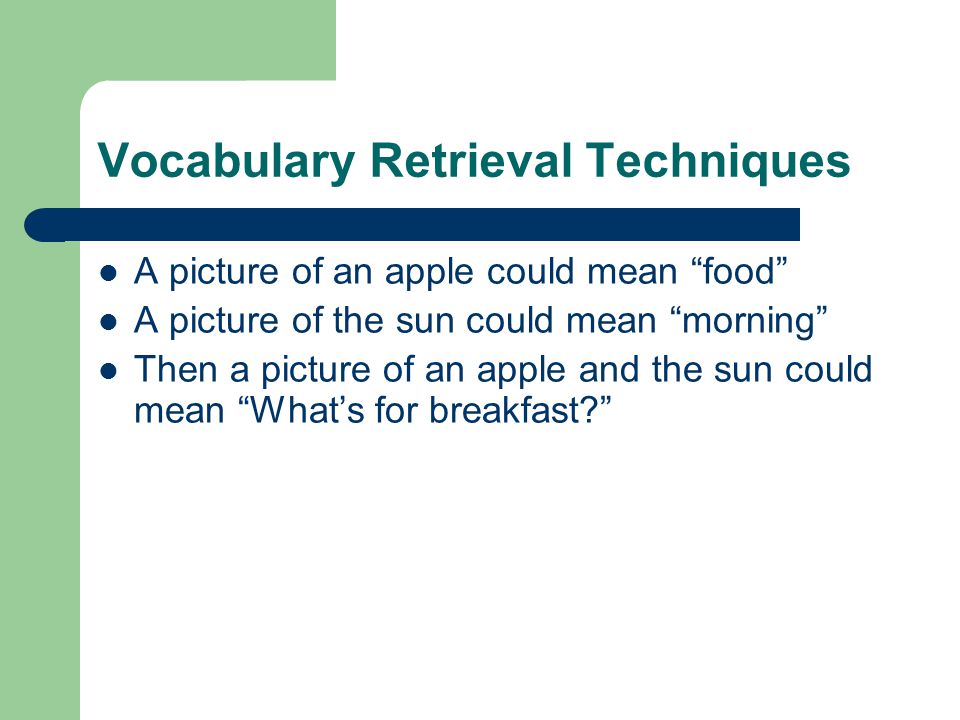

22 Vocabulary Retrieval Techniques A picture of an apple could mean “food” A picture of the sun could mean “morning” Then a picture of an apple and the sun could mean “What’s for breakfast?”

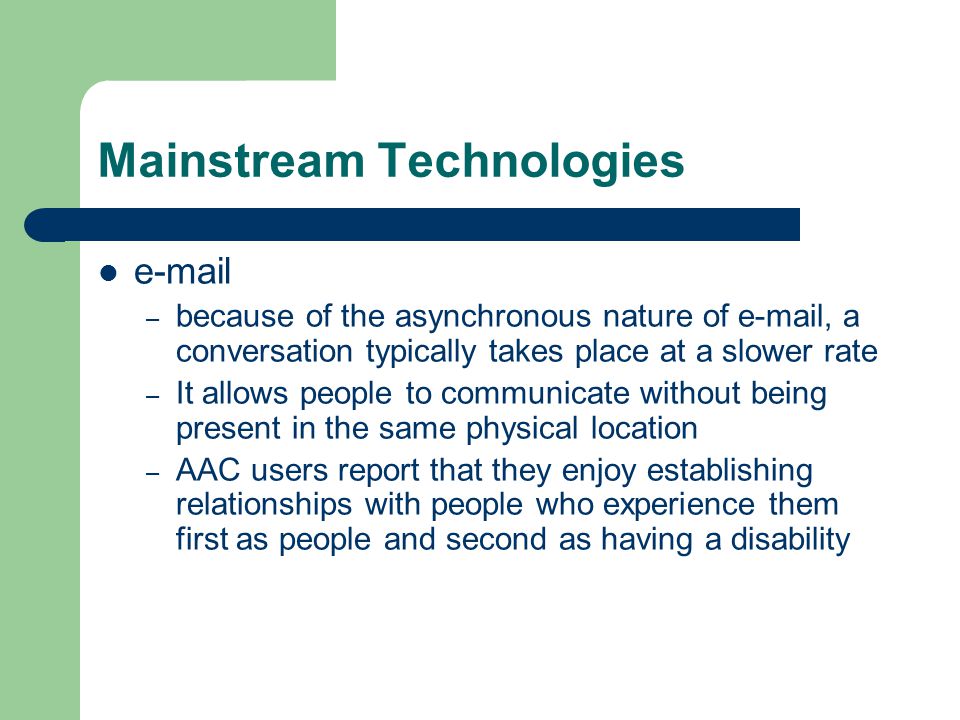

23 Mainstream Technologies e-mail – because of the asynchronous nature of e-mail, a conversation typically takes place at a slower rate – It allows people to communicate without being present in the same physical location – AAC users report that they enjoy establishing relationships with people who experience them first as people and second as having a disability

24 Mainstream Technologies Mobile phones – As phones get more open-source leads to a greater diversity in software tools such as text-to- speech, voice recognition, and downloadable user profiles – Cameras being built into phones as help those CCN users

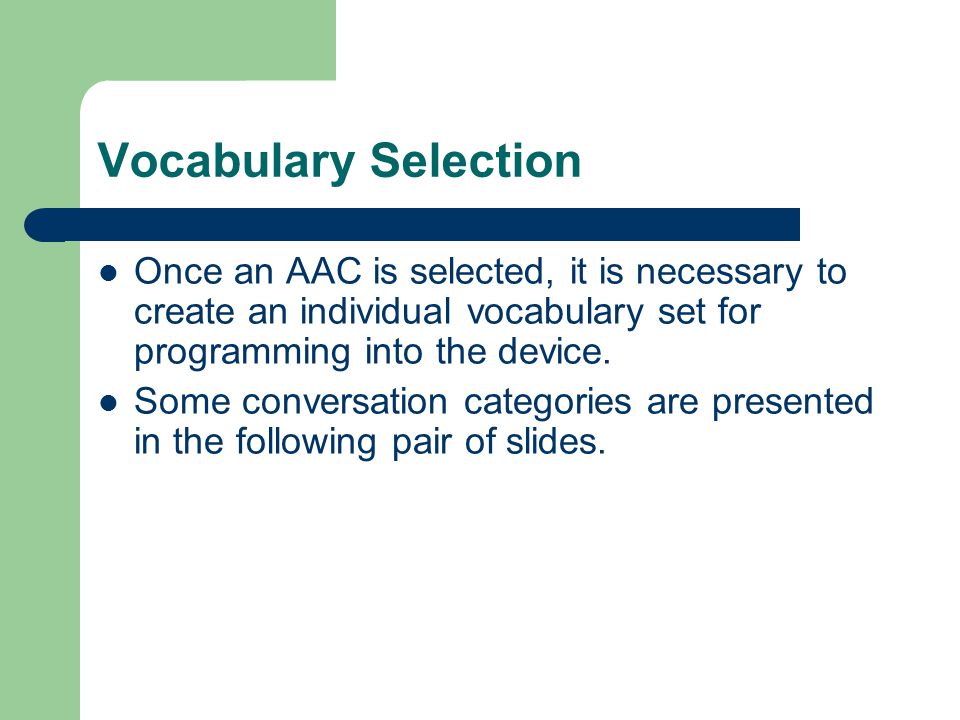

25 Vocabulary Selection Once an AAC is selected, it is necessary to create an individual vocabulary set for programming into the device. Some conversation categories are presented in the following pair of slides.

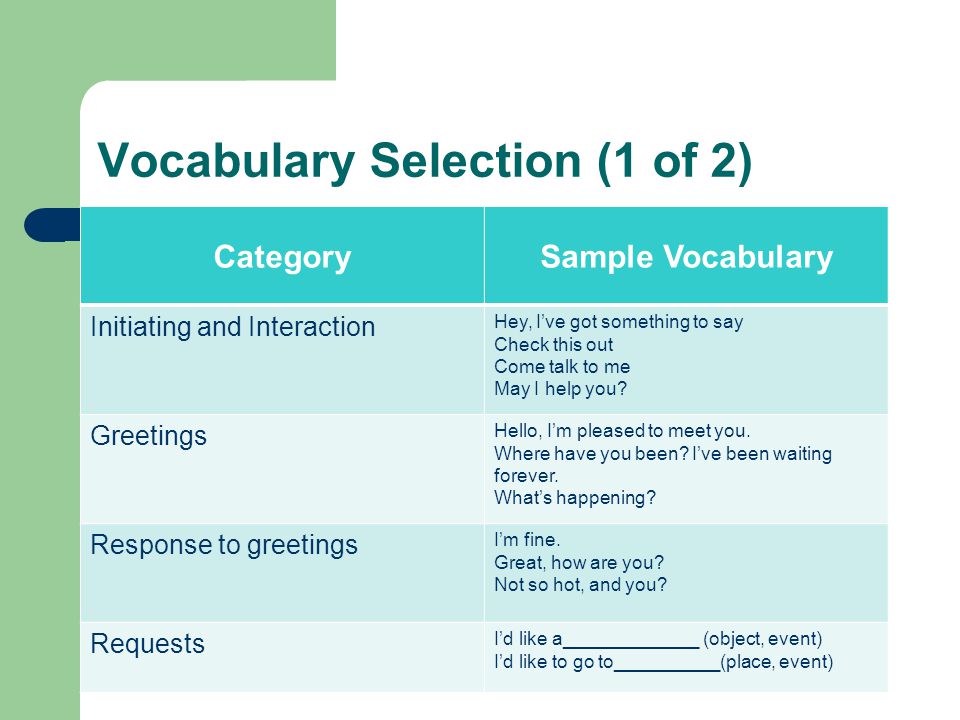

26 Vocabulary Selection (1 of 2) CategorySample Vocabulary Initiating and Interaction Hey, I’ve got something to say Check this out Come talk to me May I help you? Greetings Hello, I’m pleased to meet you. Where have you been? I’ve been waiting forever. What’s happening? Response to greetings I’m fine. Great, how are you? Not so hot, and you? Requests I’d like a_____________ (object, event) I’d like to go to__________(place, event)

27 Vocabulary Selection (2 of 2) CategorySample Vocabulary Information Exchange What time is it? I have a question. The concert begins at 8pm. Commenting I agree. / I disagree. What a great idea! Uh-huh. OK. Wrap-Up/farewell Well, gotta go. See you later. Bye, nice talking to you Conversational Repair Let’s start over. That’s not what I meant. You misunderstood me.

28 Vocabulary Selection Vocabulary needs to vary by context, communication mode, and individual characteristics. Good stuff at; –

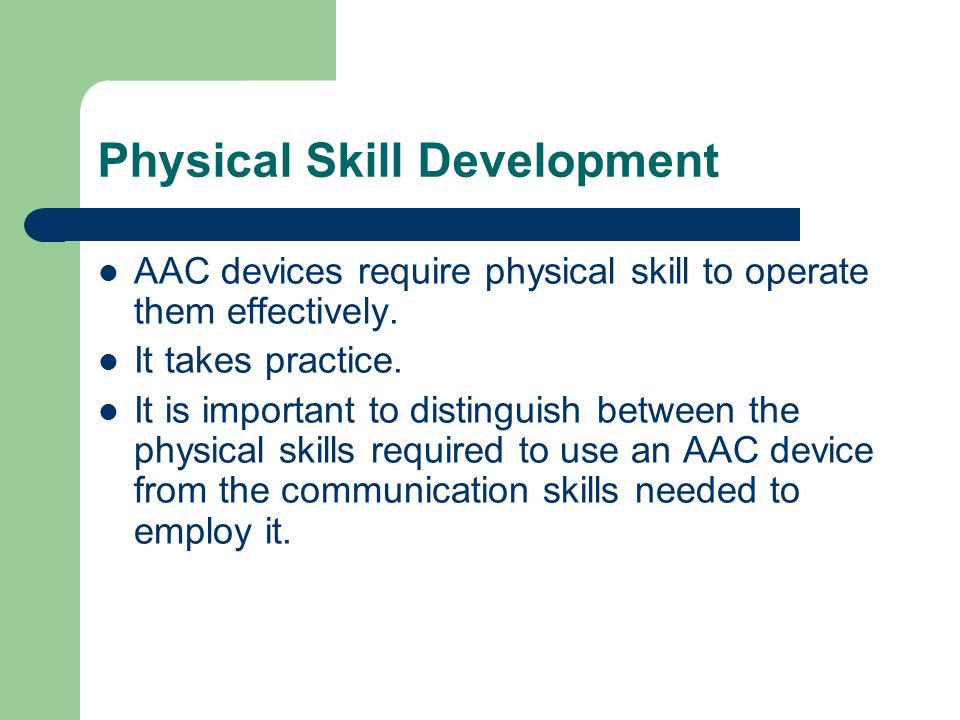

29 Physical Skill Development AAC devices require physical skill to operate them effectively. It takes practice. It is important to distinguish between the physical skills required to use an AAC device from the communication skills needed to employ it.

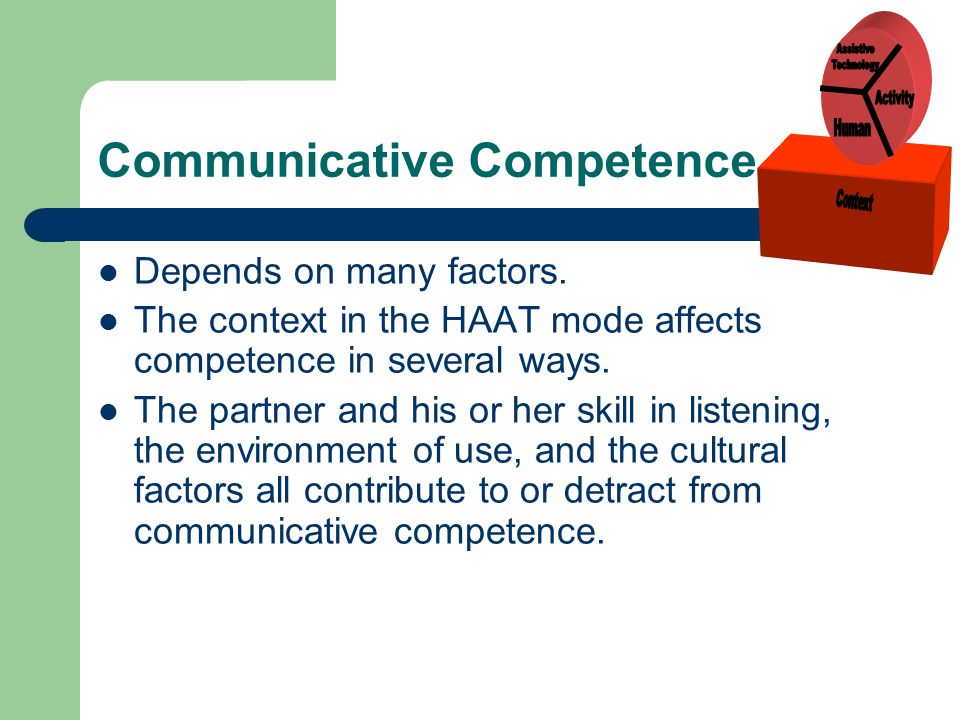

30 Communicative Competence Depends on many factors. The context in the HAAT mode affects competence in several ways. The partner and his or her skill in listening, the environment of use, and the cultural factors all contribute to or detract from communicative competence.

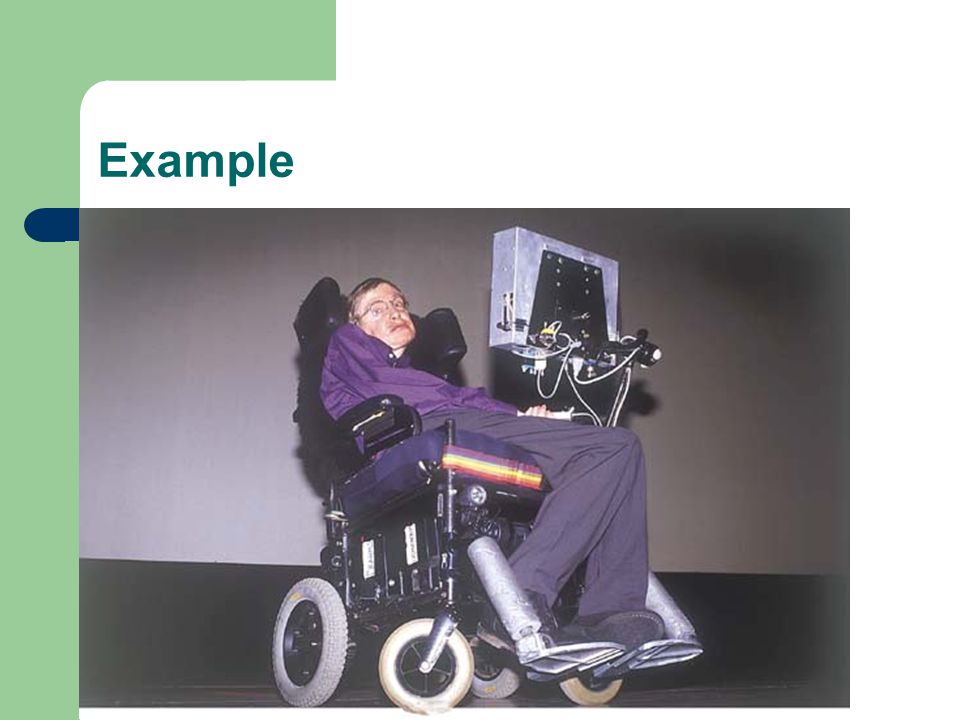

31 Example

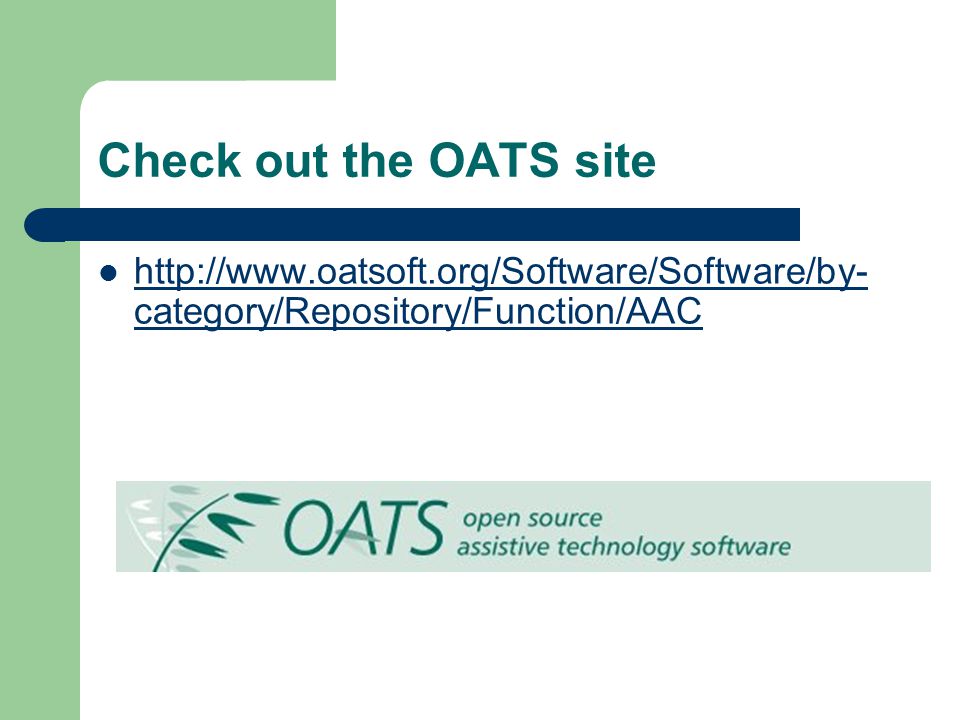

32 Check out the OATS site category/Repository/Function/AAC category/Repository/Function/AAC
