2 17.8 Stokes’ Theorem In this section, we will learn about: The Stokes’ Theorem and using it to evaluate integrals. VECTOR CALCULUS

3
3 STOKES’ VS. GREEN’S THEOREM Stokes’ Theorem can be regarded as a higher-dimensional version of Green’s Theorem. Green’s Theorem relates a double integral over a plane region D to a line integral around its plane boundary curve. Stokes’ Theorem relates a surface integral over a surface S to a line integral around the boundary curve of S (a space curve).

4
4 INTRODUCTION The figure shows an oriented surface with unit normal vector n. The orientation of S induces the positive orientation of the boundary curve C. Fig. 17.8.1, p. 1129

5
5 INTRODUCTION This means that: If you walk in the positive direction around C with your head pointing in the direction of n, the surface will always be on your left. Fig. 17.8.1, p. 1129

6
6 STOKES’ THEOREM Let: S be an oriented piecewise-smooth surface bounded by a simple, closed, piecewise-smooth boundary curve C with positive orientation. F be a vector field whose components have continuous partial derivatives on an open region in that contains S. Then,

7
7 STOKES’ THEOREM The theorem is named after the Irish mathematical physicist Sir George Stokes (1819–1903). What we call Stokes’ Theorem was actually discovered by the Scottish physicist Sir William Thomson (1824–1907, known as Lord Kelvin). Stokes learned of it in a letter from Thomson in 1850.

8
8 STOKES’ THEOREM Thus, Stokes’ Theorem says: The line integral around the boundary curve of S of the tangential component of F is equal to the surface integral of the normal component of the curl of F.

9
9 STOKES’ THEOREM The positively oriented boundary curve of the oriented surface S is often written as ∂S. So, the theorem can be expressed as: Equation 1

10
10 STOKES’ THEOREM, GREEN’S THEOREM, & FTC There is an analogy among Stokes’ Theorem, Green’s Theorem, and the Fundamental Theorem of Calculus (FTC). As before, there is an integral involving derivatives on the left side of Equation 1 (recall that curl F is a sort of derivative of F). The right side involves the values of F only on the boundary of S.

11
11 STOKES’ THEOREM, GREEN’S THEOREM, & FTC In fact, consider the special case where the surface S: Is flat. Lies in the xy-plane with upward orientation.

12
12 STOKES’ THEOREM, GREEN’S THEOREM, & FTC Then, The unit normal is k. The surface integral becomes a double integral. Stokes’ Theorem becomes:

13
13 STOKES’ THEOREM, GREEN’S THEOREM, & FTC This is precisely the vector form of Green’s Theorem given in Equation 12 in Section 17.5 Thus, we see that Green’s Theorem is really a special case of Stokes’ Theorem.

14
14 STOKES’ THEOREM Stokes’ Theorem is too difficult for us to prove in its full generality. Still, we can give a proof when: S is a graph. F, S, and C are well behaved.

15
15 STOKES’ TH.—SPECIAL CASE We assume that the equation of S is: z = g(x, y), (x, y) D where: g has continuous second-order partial derivatives. D is a simple plane region whose boundary curve C 1 corresponds to C. Proof

16
16 If the orientation of S is upward, the positive orientation of C corresponds to the positive orientation of C 1. Proof STOKES’ TH.—SPECIAL CASE Fig. 16.8.2, p. 1129

17
17 STOKES’ TH.—SPECIAL CASE We are also given that: F = P i + Q j + R k where the partial derivatives of P, Q, and R are continuous. Proof

18
18 STOKES’ TH.—SPECIAL CASE S is a graph of a function. Thus, we can apply Formula 10 in Section 17.7 with F replaced by curl F. Proof

19
19 STOKES’ TH.—SPECIAL CASE The result is: where the partial derivatives of P, Q, and R are evaluated at (x, y, g(x, y)). Proof—Equation 2

20
20 STOKES’ TH.—SPECIAL CASE Suppose x = x(t) y = y(t) a ≤ t ≤ b is a parametric representation of C 1. Then, a parametric representation of C is: x = x(t) y = y(t) z = g(x(t), y(t)) a ≤ t ≤ b Proof

21
21 STOKES’ TH.—SPECIAL CASE This allows us, with the aid of the Chain Rule, to evaluate the line integral as follows: Proof

22
22 STOKES’ TH.—SPECIAL CASE We have used Green’s Theorem in the last step. Proof

23
23 STOKES’ TH.—SPECIAL CASE Next, we use the Chain Rule again, remembering that: P, Q, and R are functions of x, y, and z. z is itself a function of x and y. Proof

24
24 STOKES’ TH.—SPECIAL CASE Thus, we get: Proof

25
25 STOKES’ TH.—SPECIAL CASE Four terms in that double integral cancel. The remaining six can be arranged to coincide with the right side of Equation 2. Hence, Proof

26
26 STOKES’ THEOREM Evaluate where: F(x, y, z) = –y 2 i + x j + z 2 k C is the curve of intersection of the plane y + z = 2 and the cylinder x 2 + y 2 = 1. (Orient C to be counterclockwise when viewed from above.) Example 1

27
27 STOKES’ THEOREM The curve C (an ellipse) is shown here. could be evaluated directly. However, it’s easier to use Stokes’ Theorem. Example 1 Fig. 17.8.3, p. 1131

28
28 STOKES’ THEOREM We first compute: Example 1

29
29 STOKES’ THEOREM There are many surfaces with boundary C. The most convenient choice, though, is the elliptical region S in the plane y + z = 2 that is bounded by C. If we orient S upward, C has the induced positive orientation. Example 1 Fig. 17.8.3, p. 1131

30
30 STOKES’ THEOREM The projection D of S on the xy-plane is the disk x 2 + y 2 ≤ 1. So, using Equation 10 in Section 17.7 with z = g(x, y) = 2 – y, we have the following result. Example 1 Fig. 17.8.3, p. 1131

31
31 STOKES’ THEOREM Example 1

32
32 STOKES’ THEOREM Use Stokes’ Theorem to compute where: F(x, y, z) = xz i + yz j + xy k S is the part of the sphere x 2 + y 2 + z 2 = 4 that lies inside the cylinder x 2 + y 2 =1 and above the xy-plane. Example 2 Fig. 17.8.4, p. 1131

33
33 STOKES’ THEOREM To find the boundary curve C, we solve: x 2 + y 2 + z 2 = 4 and x 2 + y 2 = 1 Subtracting, we get z 2 = 3. So, (since z > 0). Example 2 Fig. 17.8.4, p. 1131

34
34 STOKES’ THEOREM So, C is the circle given by: x 2 + y 2 = 1, Example 2 Fig. 17.8.4, p. 1131

35
35 STOKES’ THEOREM A vector equation of C is: r(t) = cos t i + sin t j + k 0 ≤ t ≤ 2π Therefore, r’(t) = –sin t i + cos t j Also, we have: Example 2

36
36 STOKES’ THEOREM Thus, by Stokes’ Theorem, Example 2

37
37 STOKES’ THEOREM Note that, in Example 2, we computed a surface integral simply by knowing the values of F on the boundary curve C. This means that: If we have another oriented surface with the same boundary curve C, we get exactly the same value for the surface integral!

38
38 STOKES’ THEOREM In general, if S 1 and S 2 are oriented surfaces with the same oriented boundary curve C and both satisfy the hypotheses of Stokes’ Theorem, then This fact is useful when it is difficult to integrate over one surface but easy to integrate over the other. Equation 3

39
39 CURL VECTOR We now use Stokes’ Theorem to throw some light on the meaning of the curl vector. Suppose that C is an oriented closed curve and v represents the velocity field in fluid flow.

40
40 CURL VECTOR Consider the line integral and recall that v ∙ T is the component of v in the direction of the unit tangent vector T. This means that the closer the direction of v is to the direction of T, the larger the value of v ∙ T.

41
41 CIRCULATION Thus, is a measure of the tendency of the fluid to move around C. It is called the circulation of v around C. Fig. 17.8.5, p. 1132

42
42 CURL VECTOR Now, let: P 0 (x 0, y 0, z 0 ) be a point in the fluid. S a be a small disk with radius a and center P 0. Then, (curl F)(P) ≈ (curl F)(P 0 ) for all points P on S a because curl F is continuous.

43
43 CURL VECTOR Thus, by Stokes’ Theorem, we get the following approximation to the circulation around the boundary circle C a :

44
44 CURL VECTOR The approximation becomes better as a → 0. Thus, we have: Equation 4

45
45 CURL & CIRCULATION Equation 4 gives the relationship between the curl and the circulation. It shows that curl v ∙ n is a measure of the rotating effect of the fluid about the axis n. The curling effect is greatest about the axis parallel to curl v.

46
46 CURL & CIRCULATION Imagine a tiny paddle wheel placed in the fluid at a point P. The paddle wheel rotates fastest when its axis is parallel to curl v. Fig. 17.8.6, p. 1132

47
47 CLOSED CURVES Finally, we mention that Stokes’ Theorem can be used to prove Theorem 4 in Section 16.5: If curl F = 0 on all of, then F is conservative.

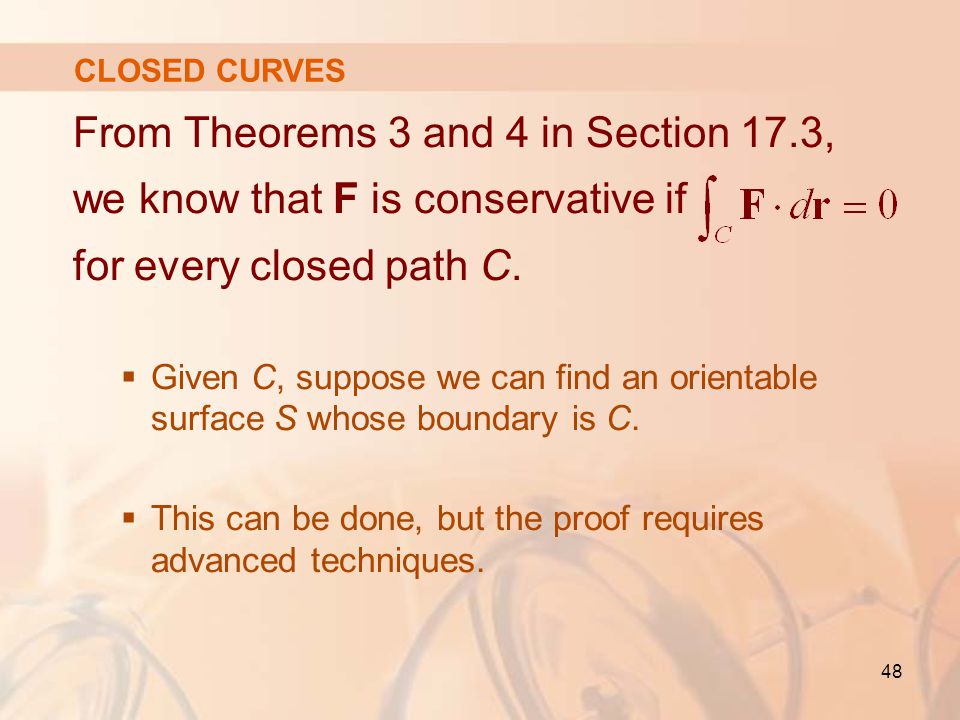

48
48 CLOSED CURVES From Theorems 3 and 4 in Section 17.3, we know that F is conservative if for every closed path C. Given C, suppose we can find an orientable surface S whose boundary is C. This can be done, but the proof requires advanced techniques.

49
49 CLOSED CURVES Then, Stokes’ Theorem gives: A curve that is not simple can be broken into a number of simple curves. The integrals around these curves are all 0.

50
50 CLOSED CURVES Adding these integrals, we obtain: for any closed curve C.
