LWB Refractories Quarry – York, PA Facing West. LWB Refractories Quarry – Unit Exposures Kinzers Fm. western patch reef “white marble” Triassic fanglomerate.

Similar presentations


Presentation on theme: "LWB Refractories Quarry – York, PA Facing West. LWB Refractories Quarry – Unit Exposures Kinzers Fm. western patch reef “white marble” Triassic fanglomerate."— Presentation transcript:

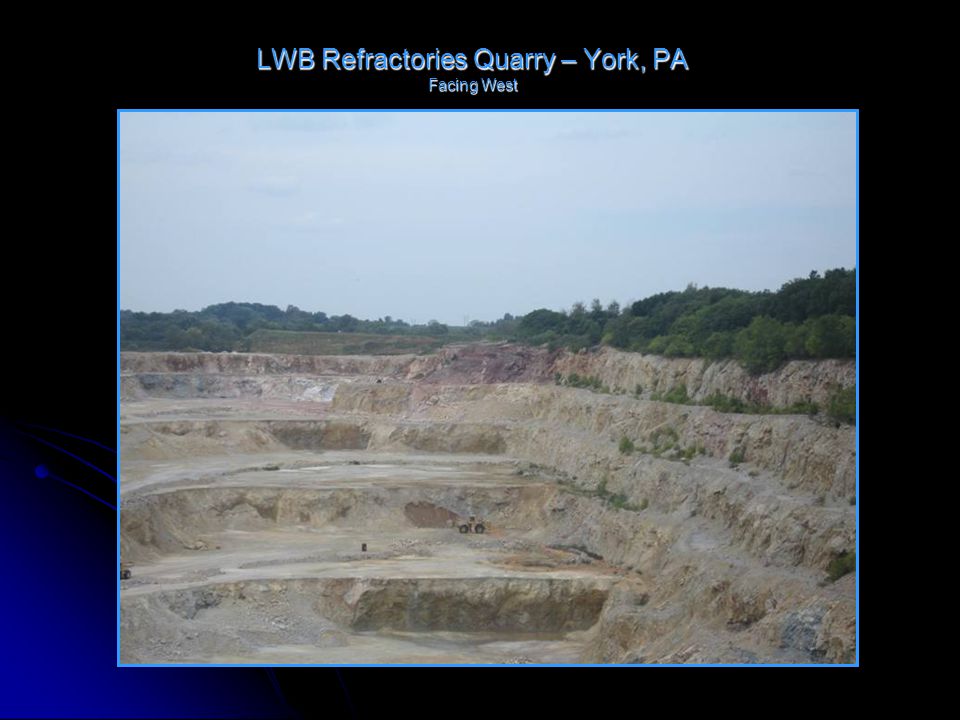

1 LWB Refractories Quarry – York, PA Facing West

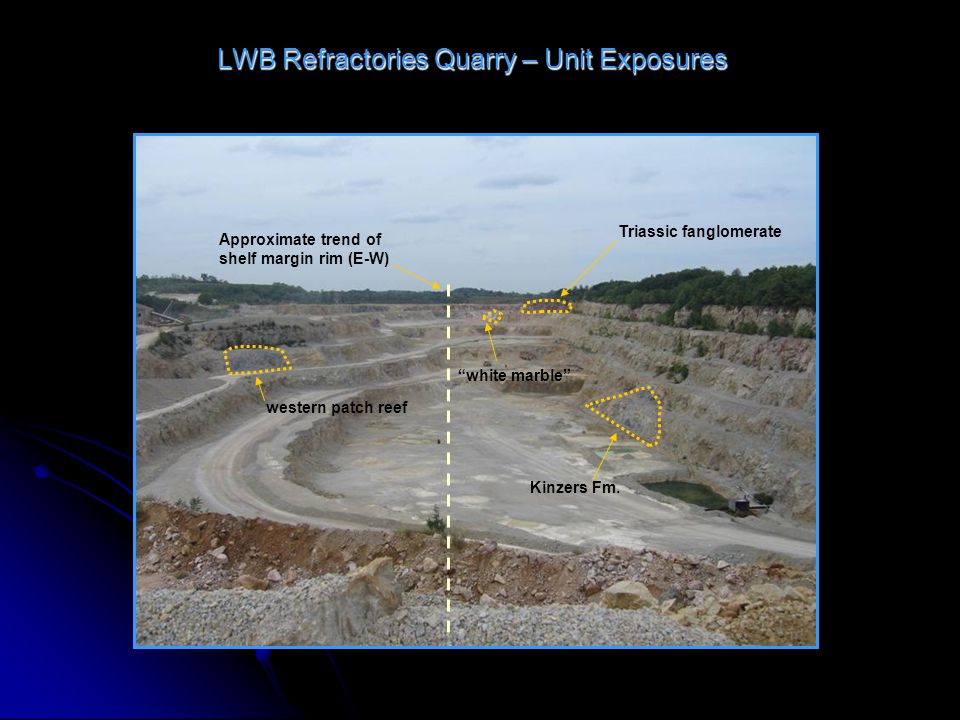

2 LWB Refractories Quarry – Unit Exposures Kinzers Fm. western patch reef “white marble” Triassic fanglomerate Approximate trend of shelf margin rim (E-W)

3 LWB Refractories Quarry – York, PA Facing West

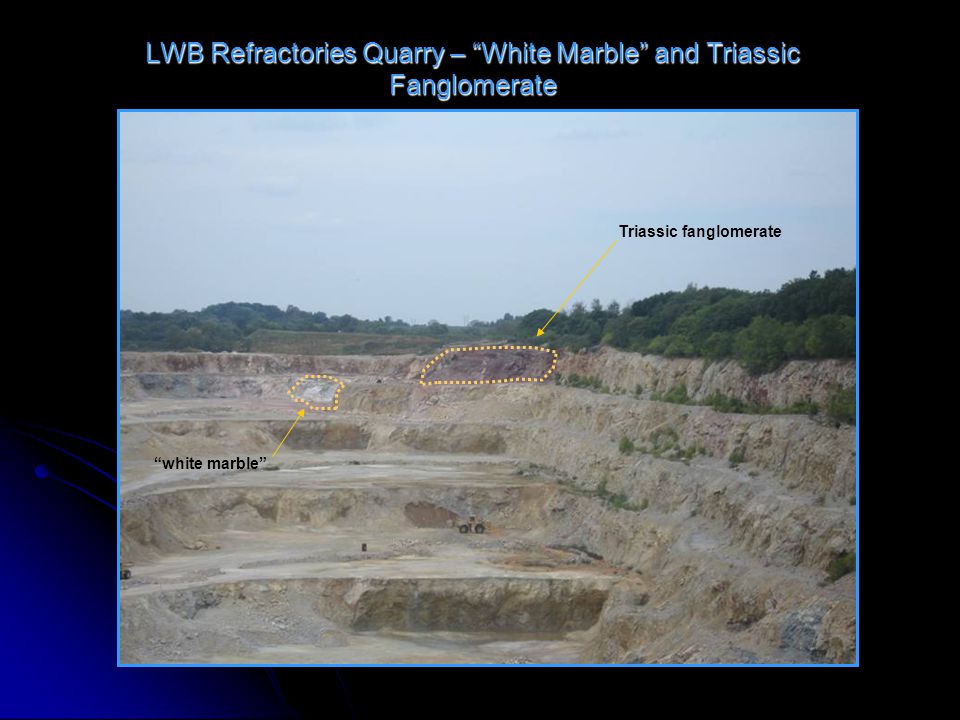

4 LWB Refractories Quarry – “White Marble” and Triassic Fanglomerate “white marble” Triassic fanglomerate

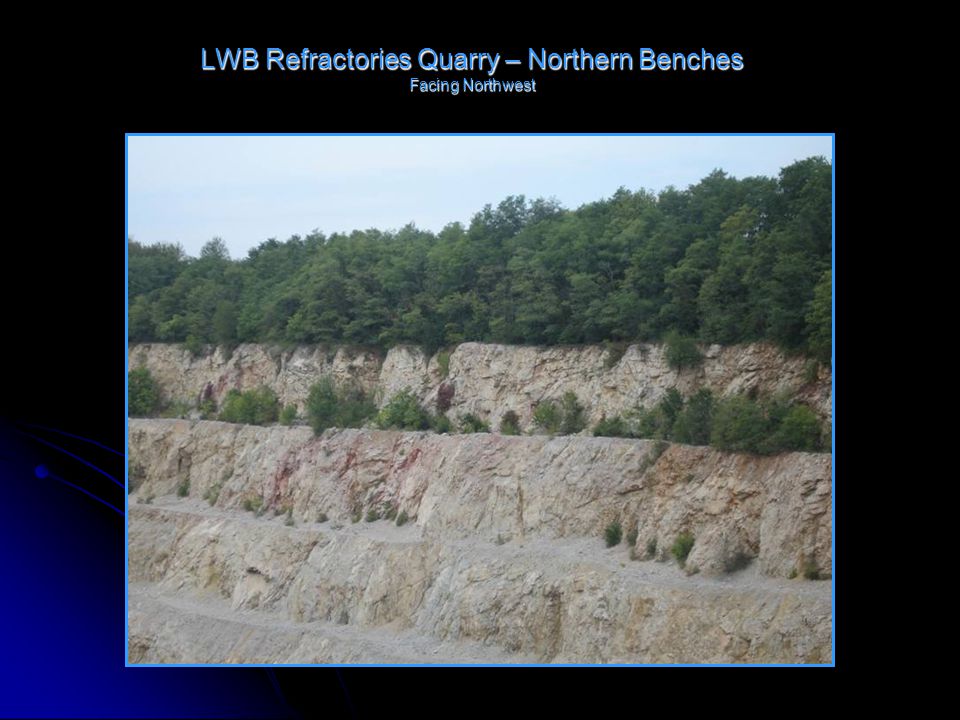

5 LWB Refractories Quarry – Northern Benches Facing Northwest

6 LWB Refractories Quarry – Overburden Facing East

7 LWB Refractories Quarry – Polished Microbialite Reef Facies

8

9 LWB Refractories Quarry – Microbialite Reef Facies Karst Pinnacles in East Patch Reef

10 LWB Refractories Quarry – Submarine Cavity Filling Cements and Gas Escape Structure in East Patch Reef

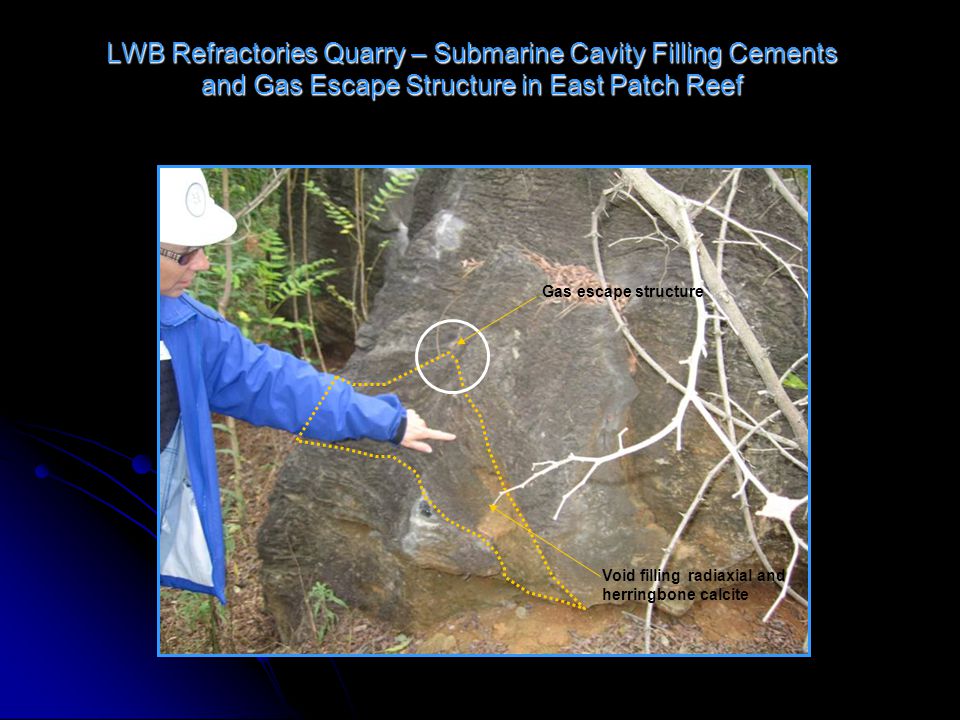

11 Void filling radiaxial and herringbone calcite Gas escape structure

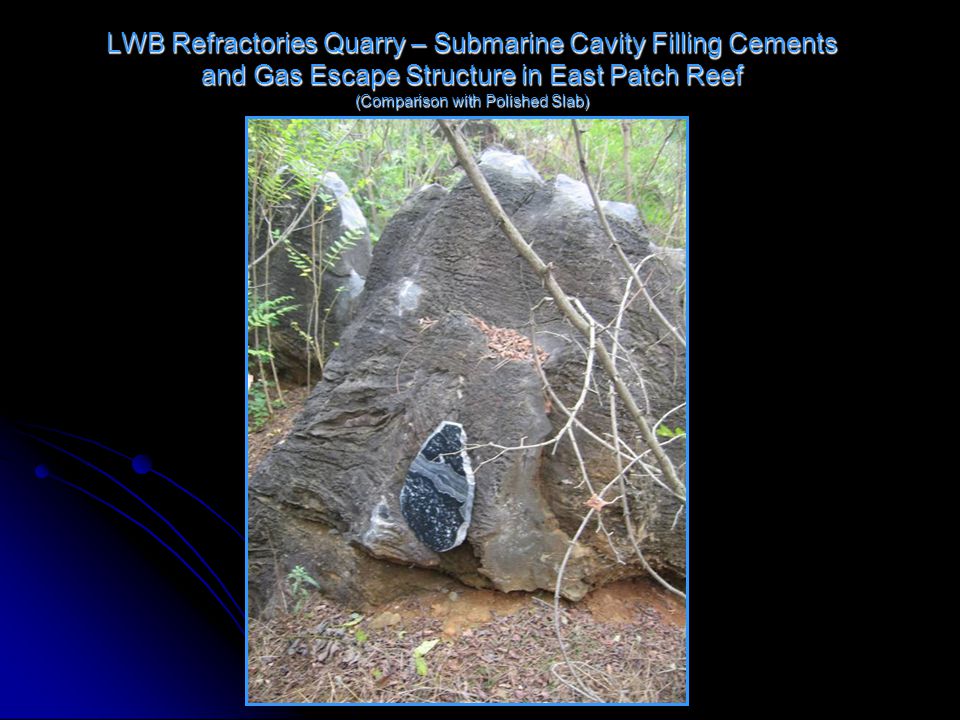

12 LWB Refractories Quarry – Submarine Cavity Filling Cements and Gas Escape Structure in East Patch Reef (Comparison with Polished Slab)

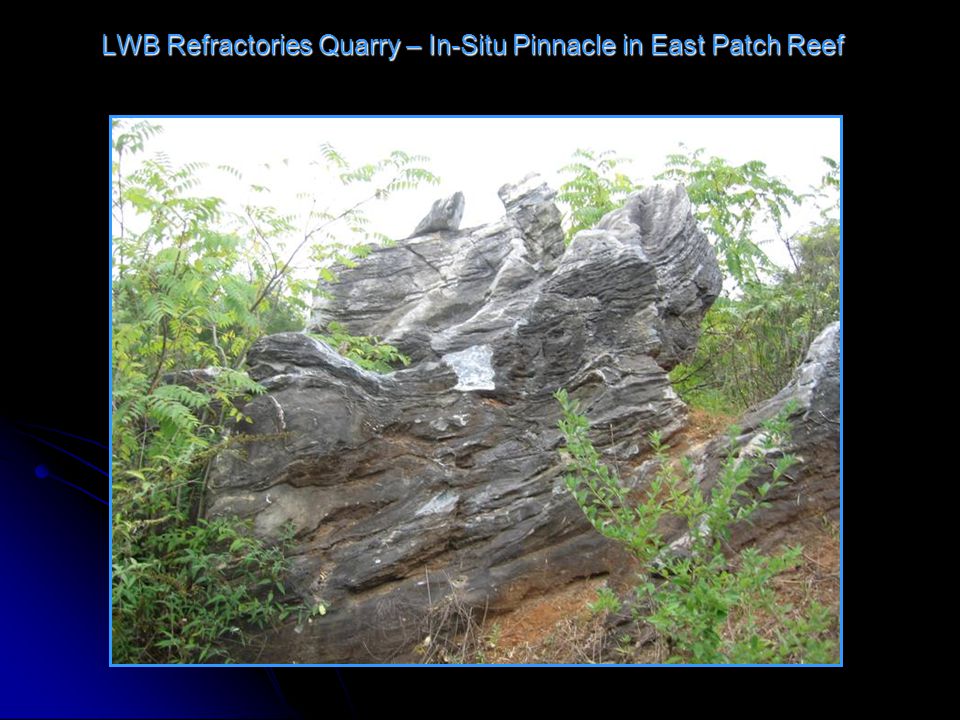

13 LWB Refractories Quarry – In-Situ Pinnacle in East Patch Reef

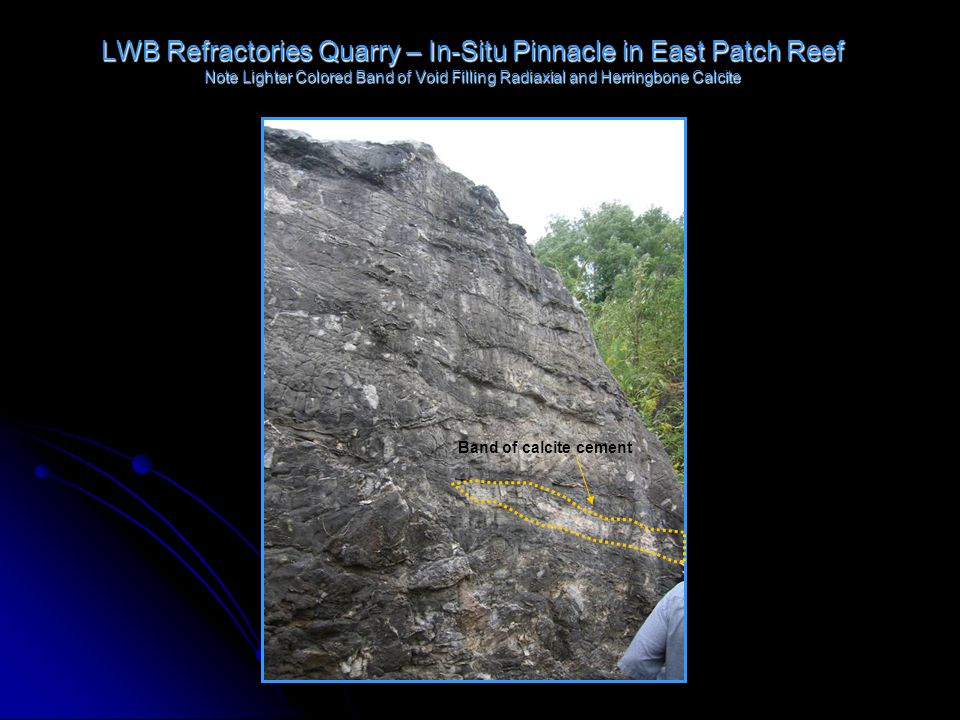

14 LWB Refractories Quarry – In-Situ Pinnacle in East Patch Reef Note Lighter Colored Band of Void Filling Radiaxial and Herringbone Calcite

15 Band of calcite cement

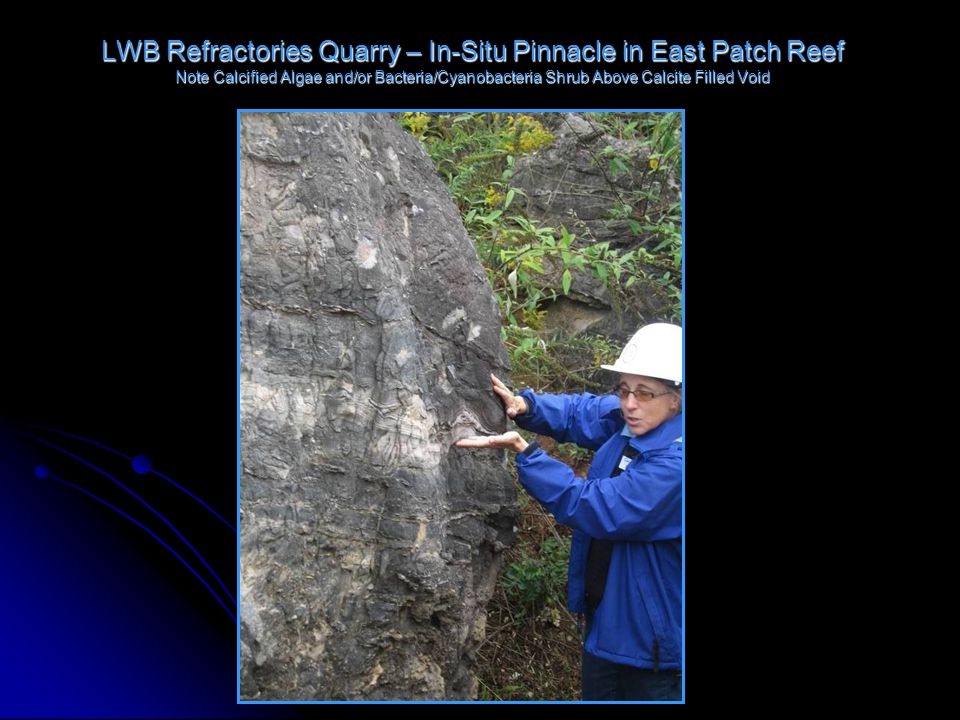

16 LWB Refractories Quarry – In-Situ Pinnacle in East Patch Reef Note Calcified Algae and/or Bacteria/Cyanobacteria Shrub Above Calcite Filled Void

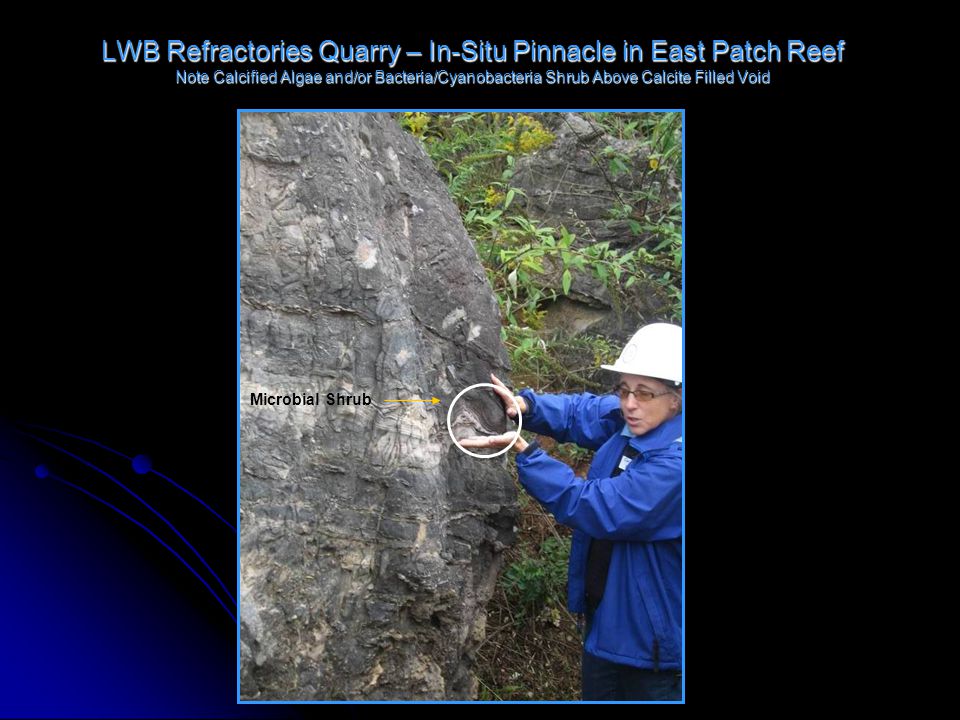

17 Microbial Shrub

18 LWB Refractories Quarry – In-Situ Pinnacle in East Patch Reef Close-up of Radiaxial and Herringbone Calcite Cement with Grainstone Layer at Base and Enclosure of Microbial Growth

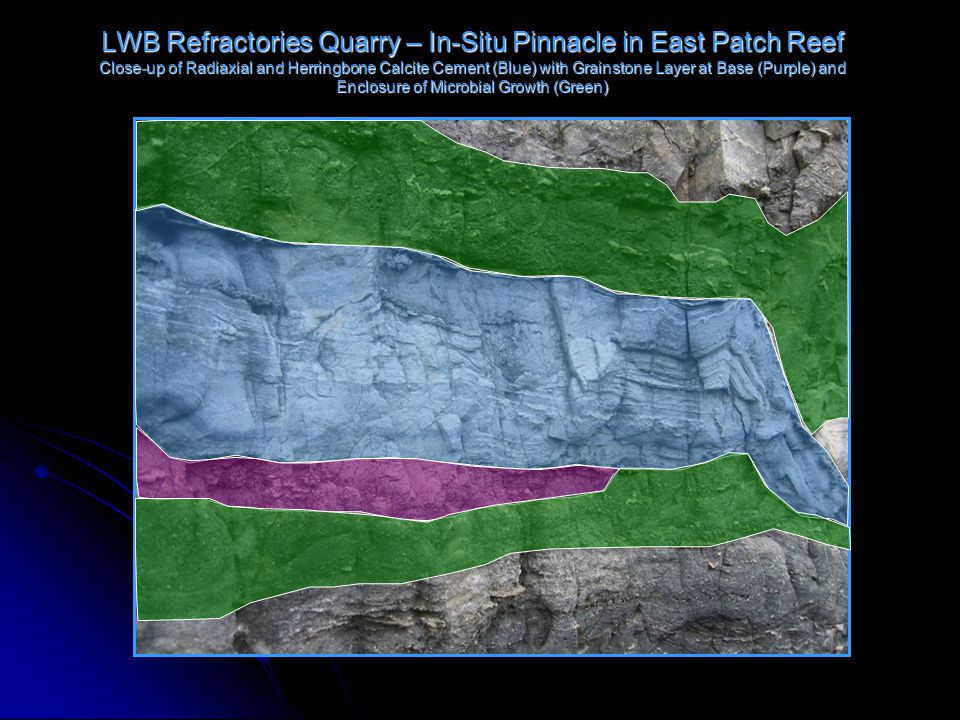

19 LWB Refractories Quarry – In-Situ Pinnacle in East Patch Reef Close-up of Radiaxial and Herringbone Calcite Cement (Blue) with Grainstone Layer at Base (Purple) and Enclosure of Microbial Growth (Green)

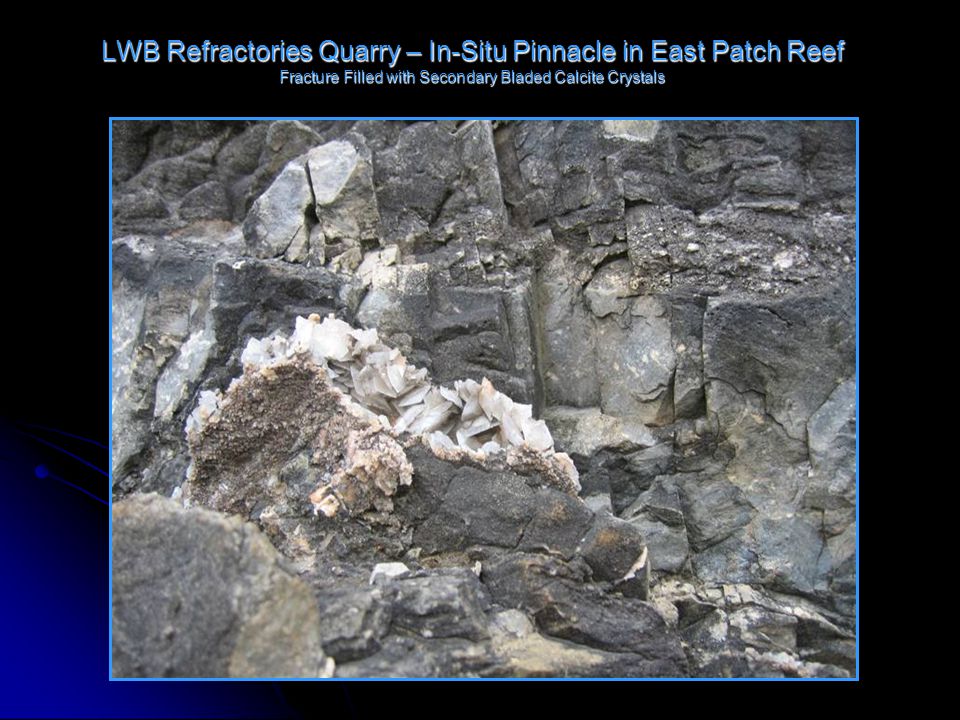

20 LWB Refractories Quarry – In-Situ Pinnacle in East Patch Reef Fracture Filled with Secondary Bladed Calcite Crystals

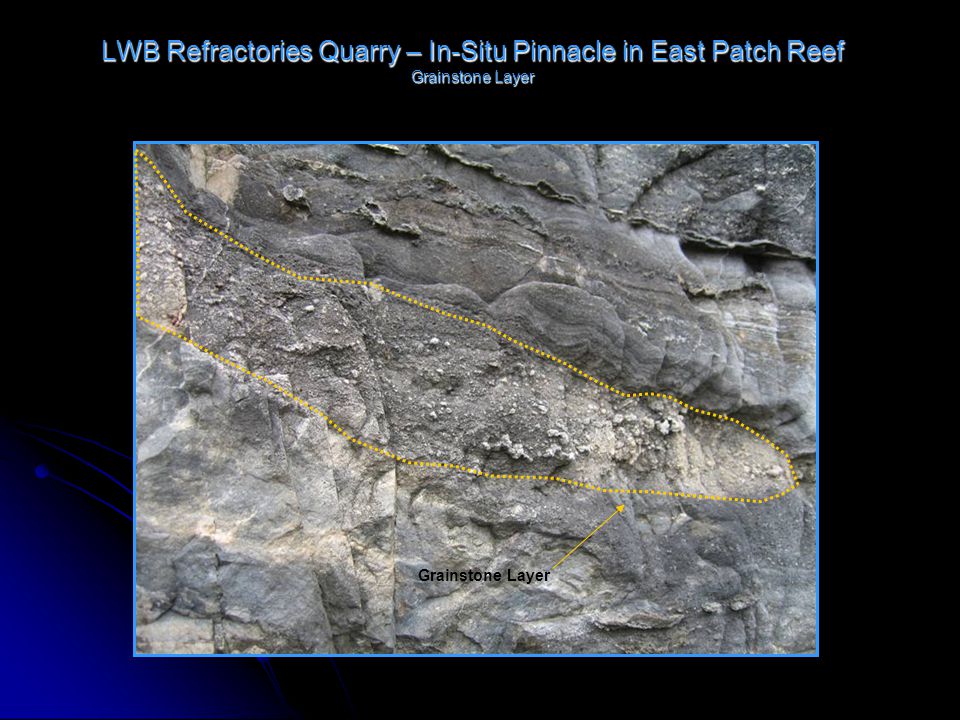

21 LWB Refractories Quarry – In-Situ Pinnacle in East Patch Reef Grainstone Layer

22 Grainstone Layer

23 LWB Refractories Quarry – In-Situ Pinnacle in East Patch Reef Close-up of Radiaxial and Herringbone Calcite Cement Layer Enclosed by Microbialite

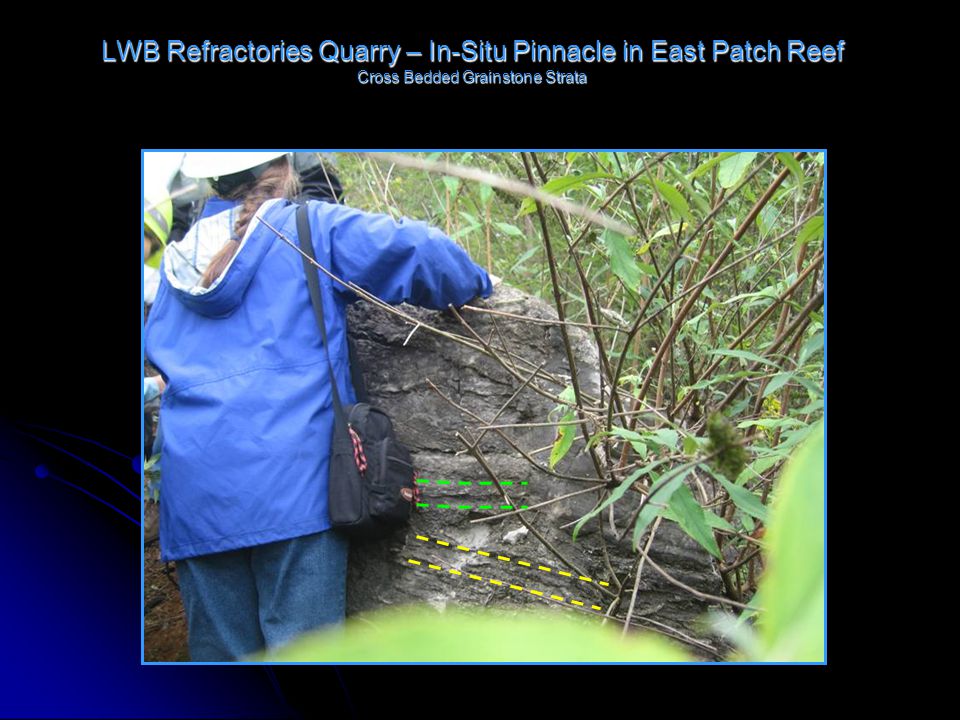

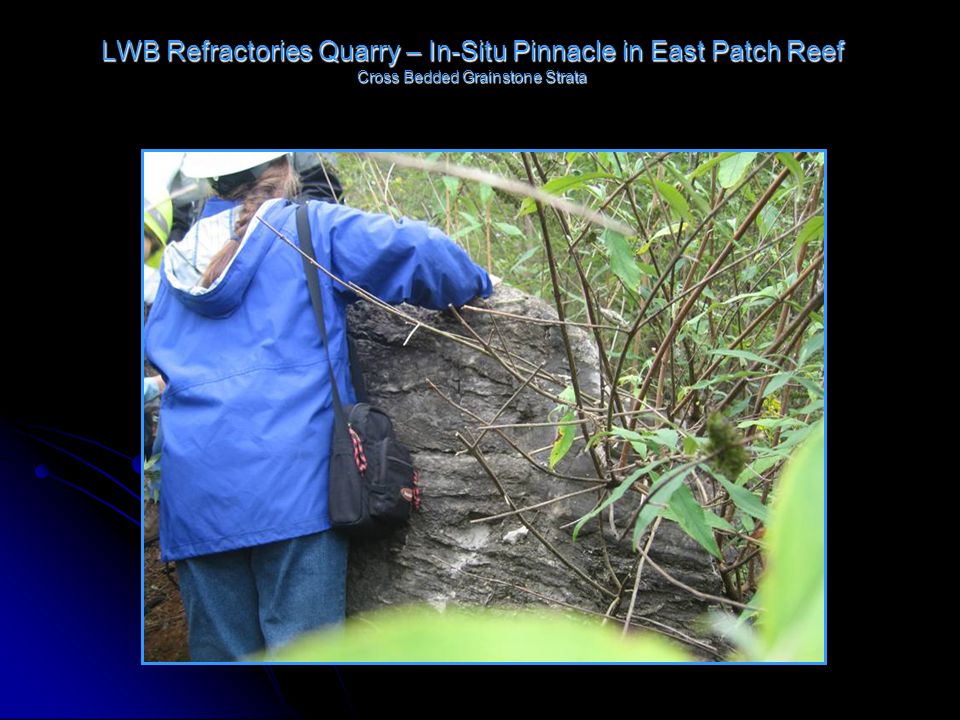

24 LWB Refractories Quarry – In-Situ Pinnacle in East Patch Reef Cross Bedded Grainstone Strata

25

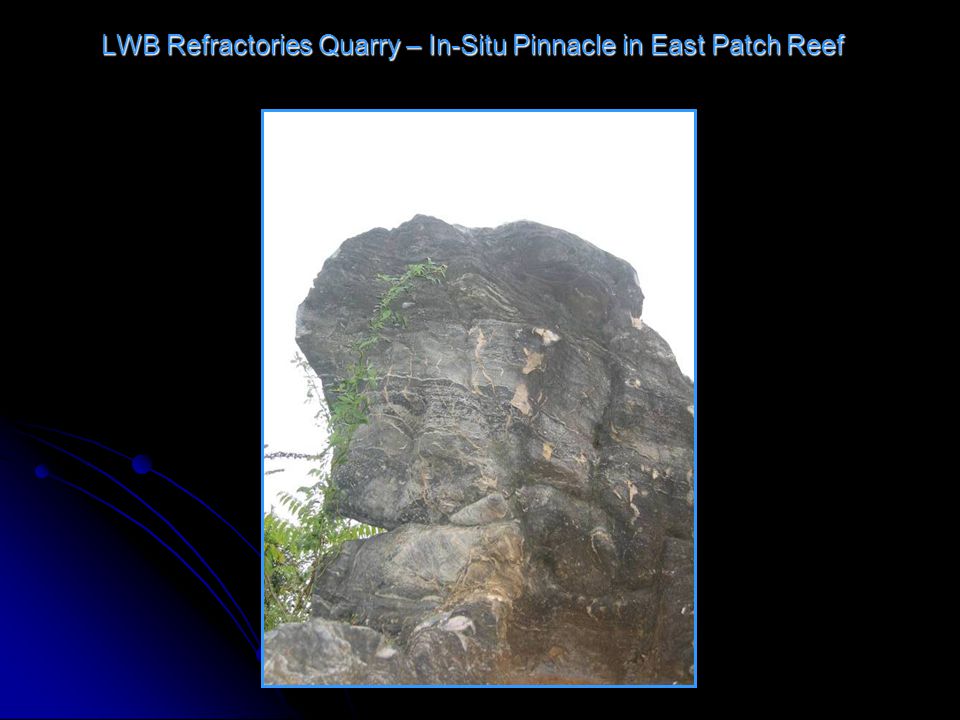

26 LWB Refractories Quarry – In-Situ Pinnacle in East Patch Reef

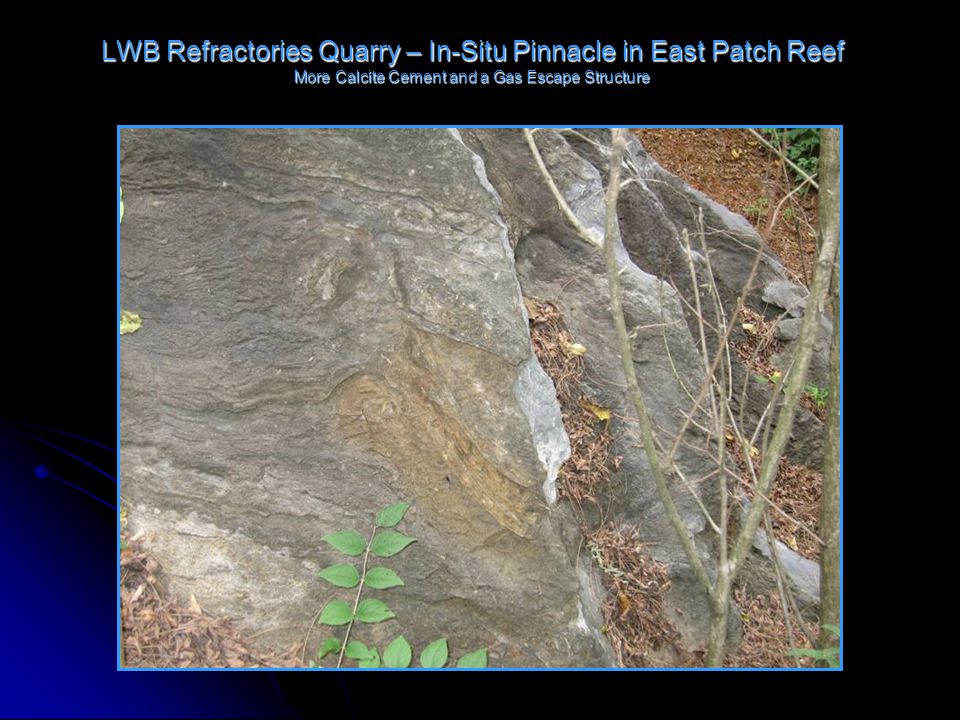

27 LWB Refractories Quarry – In-Situ Pinnacle in East Patch Reef More Calcite Cement and a Gas Escape Structure

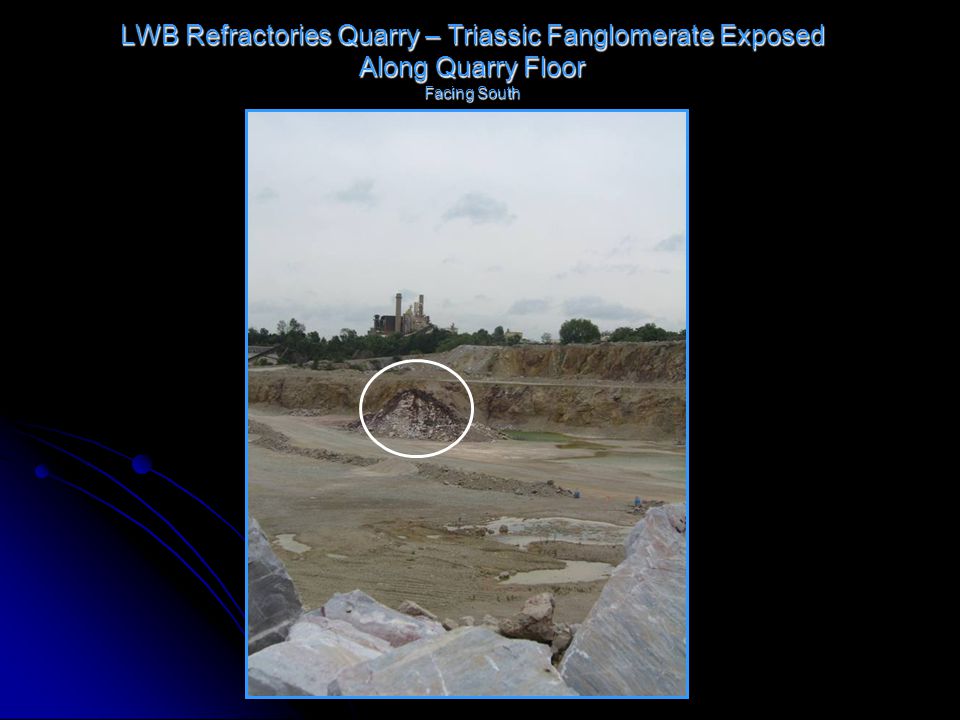

28 LWB Refractories Quarry – Triassic Fanglomerate Exposed Along Quarry Floor Facing South

29

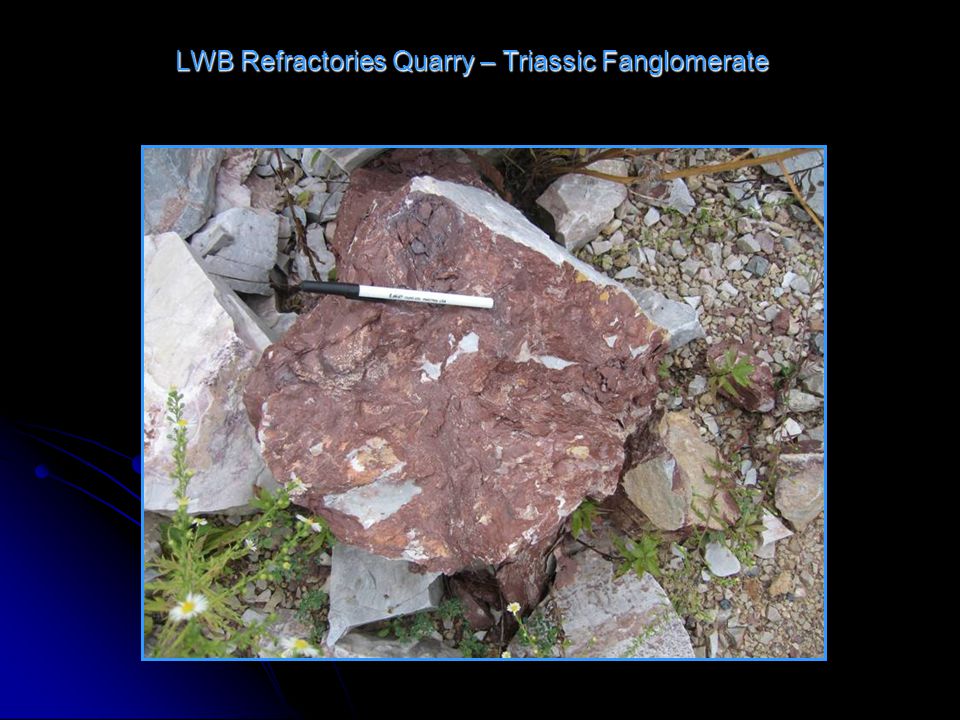

30 LWB Refractories Quarry – Triassic Fanglomerate

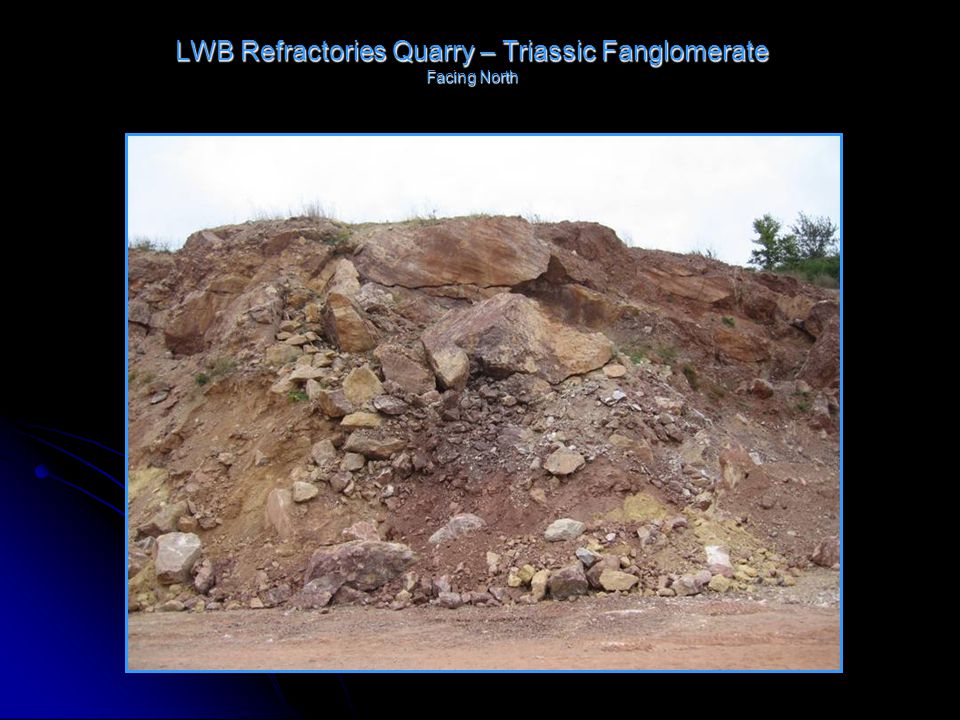

31 LWB Refractories Quarry – Triassic Fanglomerate Facing North

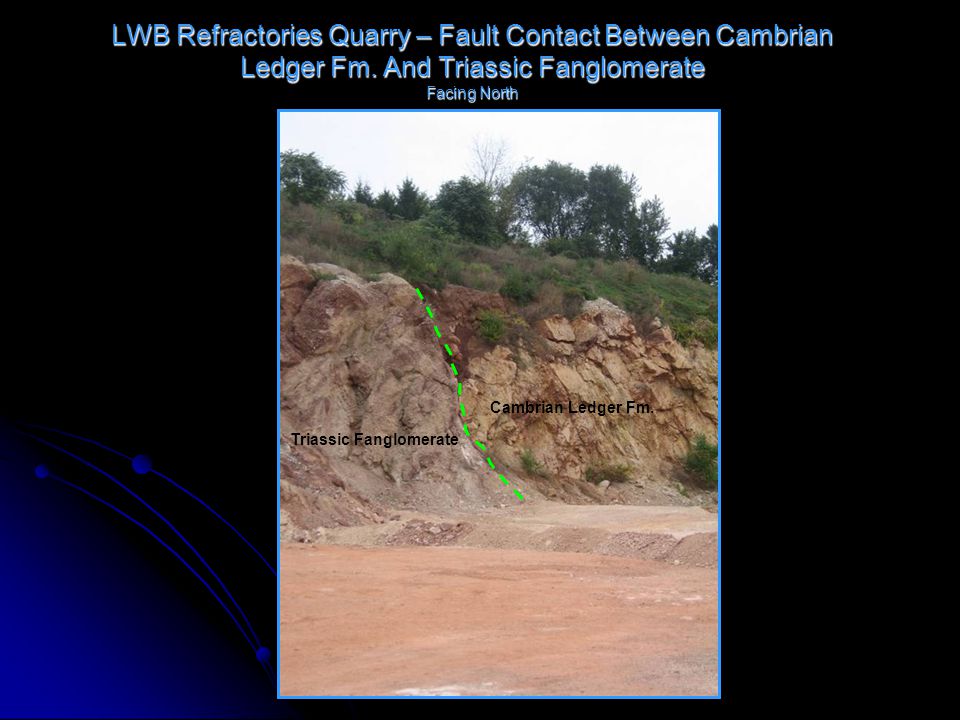

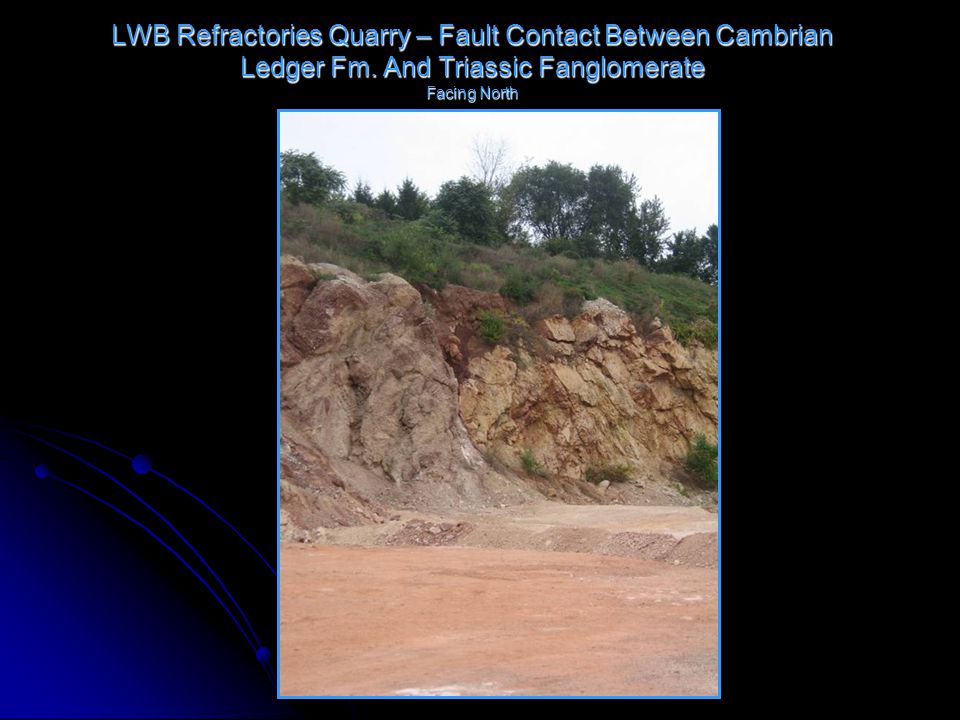

32 LWB Refractories Quarry – Fault Contact Between Cambrian Ledger Fm. And Triassic Fanglomerate Facing North

33 Triassic Fanglomerate Cambrian Ledger Fm.

34 LWB Refractories Quarry – Triassic Fanglomerate Note Coarse Dolomite and Limestone Clasts in Fine Hematitic Matrix

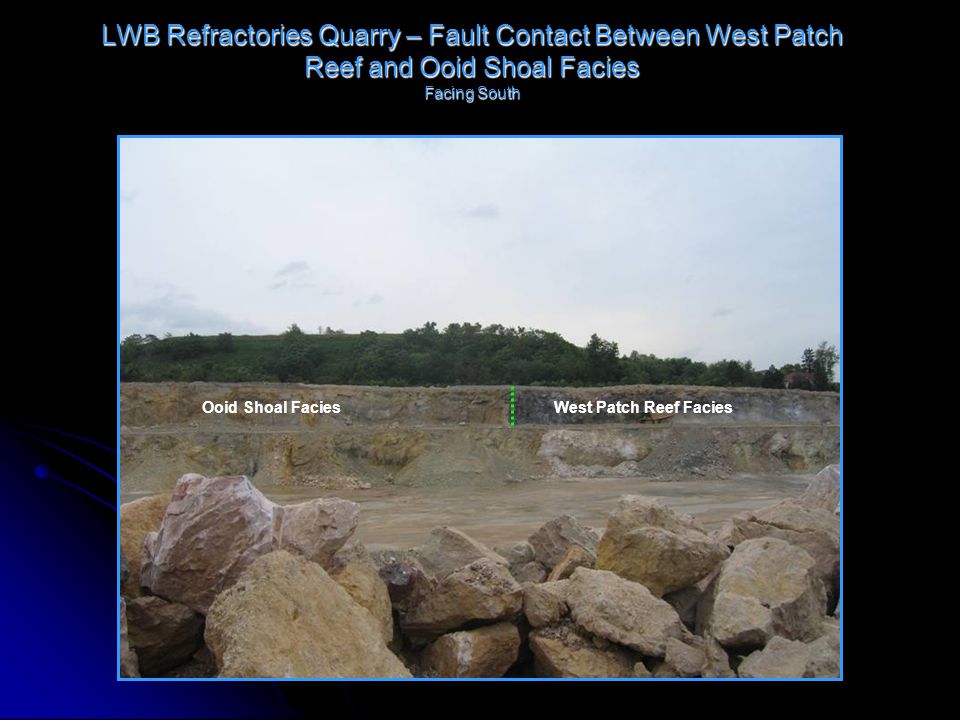

35 LWB Refractories Quarry – Fault Contact Between West Patch Reef and Ooid Shoal Facies Facing South

36 Ooid Shoal FaciesWest Patch Reef Facies

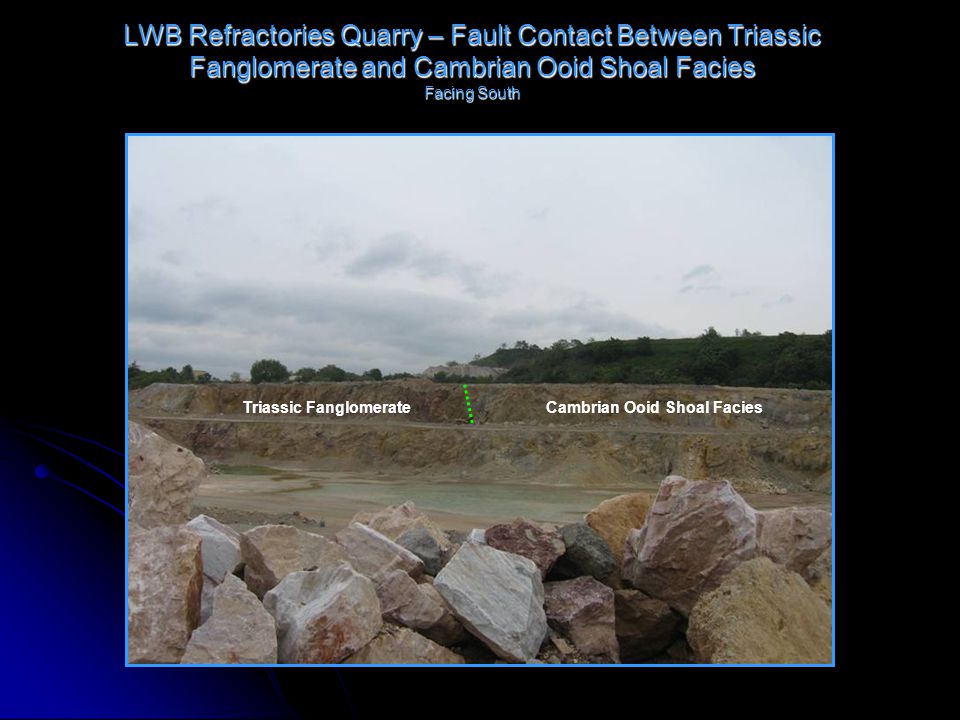

37 LWB Refractories Quarry – Fault Contact Between Triassic Fanglomerate and Cambrian Ooid Shoal Facies Facing South

38 Cambrian Ooid Shoal FaciesTriassic Fanglomerate

39 LWB Refractories Quarry – Void Filling Radiaxial and Herringbone Calcite Cement and Gas Escape Structure Block from West Patch Reef Removed During Blasting; Scale Blocks in Centimeters

40 LWB Refractories Quarry – Close-Up of Void Filling Radiaxial and Herringbone Calcite Cement and Gas Escape Structure Block from West Patch Reef Removed During Blasting

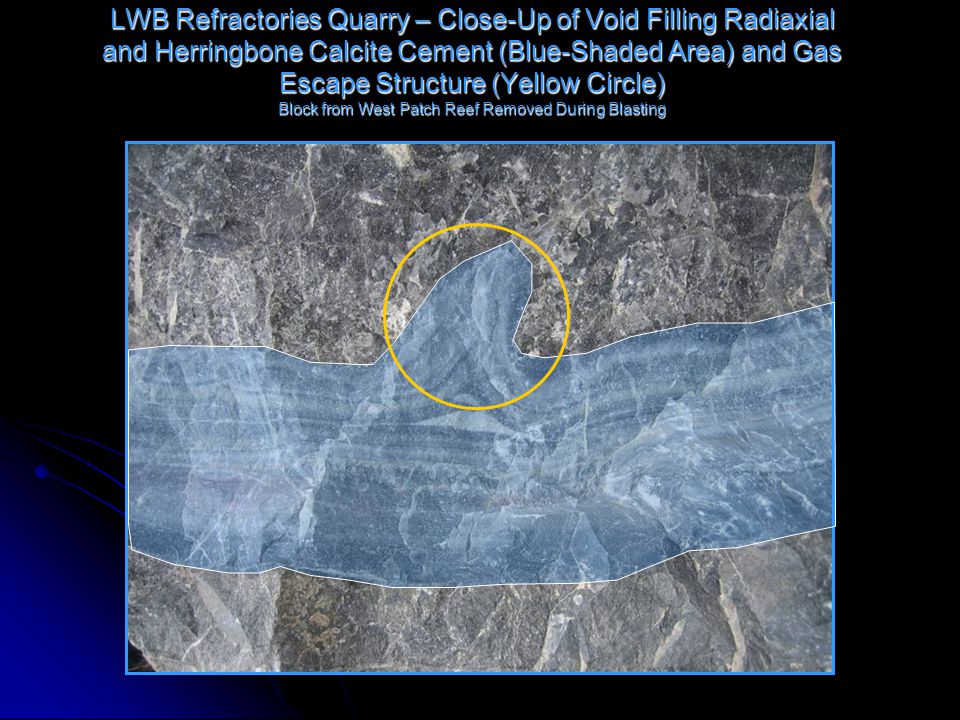

41 LWB Refractories Quarry – Close-Up of Void Filling Radiaxial and Herringbone Calcite Cement (Blue-Shaded Area) and Gas Escape Structure (Yellow Circle) Block from West Patch Reef Removed During Blasting

42 LWB Refractories Quarry – Close-Up Grainstone Layer Block from West Patch Reef Removed During Blasting

43 LWB Refractories Quarry – View of Ooid Shoal Facies from Quarry Floor Facing South

44 LWB Refractories Quarry – View of Ooid Shoal Facies from Quarry Floor Facing North; Note Red Hematitic Weathering Products

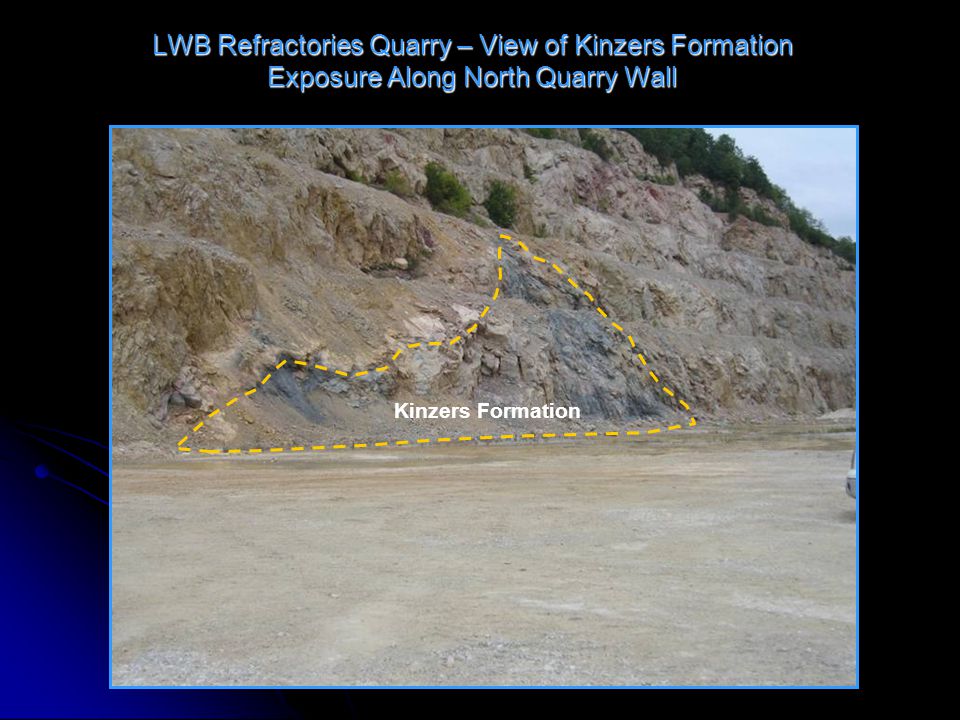

45 LWB Refractories Quarry – View of Kinzers Formation Exposure Along North Quarry Wall

46 Kinzers Formation

47 LWB Refractories Quarry – An Amateur Film on High Energy Depositional Systems Double-Click Blue Screen to Play

48 References and Additional Information de Wet, C.B. and Dave Hopkins. “Pre-conference Field Trip: Ooid Shoals, Microbialite Reefs and Shoal Shoreface Sands, The Ledger Formation, LWB Refractories Site, York County Pennsylvania.” 73 rd Annual Field Conference of Pennsylvania Geologists. September 25, de Wet, C.B., H.M. Frey, S.B. Gaswirth, C.I. Mora, M. Rahnis, and C.R. Bruno. “Origin of Meter-scale Submarine Cavities and Herringbone Calcite in a Cambrian Microbial Reef, Ledger Formation, (U.S.A.).” Journal of Sedimentary Research : Skinner, Ethan S. “Taphonomy and Depositional Circumstances of Exceptionally Preserved Fossils from the Kinzers Formation (Cambrian), Southeastern Pennsylvania.” Palaeogeography, Palaeoclimatology, Palaeoecology : Smoot, Joseph P. “Chapter 12A: Early Mesozoic – Sedimentary Rocks.” The Geology of Pennsylvania, edited by Charles H. Schultz. Harrisburg and Pittsburgh: Pennsylvania Geological Survey and Pittsburgh Geological Society de Wet, C.B. and Dave Hopkins. “Pre-conference Field Trip: Ooid Shoals, Microbialite Reefs and Shoal Shoreface Sands, The Ledger Formation, LWB Refractories Site, York County Pennsylvania.” 73 rd Annual Field Conference of Pennsylvania Geologists. September 25, de Wet, C.B., H.M. Frey, S.B. Gaswirth, C.I. Mora, M. Rahnis, and C.R. Bruno. “Origin of Meter-scale Submarine Cavities and Herringbone Calcite in a Cambrian Microbial Reef, Ledger Formation, (U.S.A.).” Journal of Sedimentary Research : Skinner, Ethan S. “Taphonomy and Depositional Circumstances of Exceptionally Preserved Fossils from the Kinzers Formation (Cambrian), Southeastern Pennsylvania.” Palaeogeography, Palaeoclimatology, Palaeoecology : Smoot, Joseph P. “Chapter 12A: Early Mesozoic – Sedimentary Rocks.” The Geology of Pennsylvania, edited by Charles H. Schultz. Harrisburg and Pittsburgh: Pennsylvania Geological Survey and Pittsburgh Geological Society
