Chief of Information Processing Office, CSEAS Kimiya Kitani Manual for Wireless Connection in Kyoto University - For Staffs.

Similar presentations


Presentation on theme: "Chief of Information Processing Office, CSEAS Kimiya Kitani Manual for Wireless Connection in Kyoto University - For Staffs."— Presentation transcript:

1 Chief of Information Processing Office, CSEAS Kimiya Kitani Manual for Wireless Connection in Kyoto University - For Staffs - 28 Dec, 2011 ComparisionGUEST IDStaff ID PPTP Serverpptpg.kuins.kyoto-u.ac.jppptp0.kuins.kyoto-u.ac.jp ProxyNonehttp://wpad.kuins.net/proxy.pac

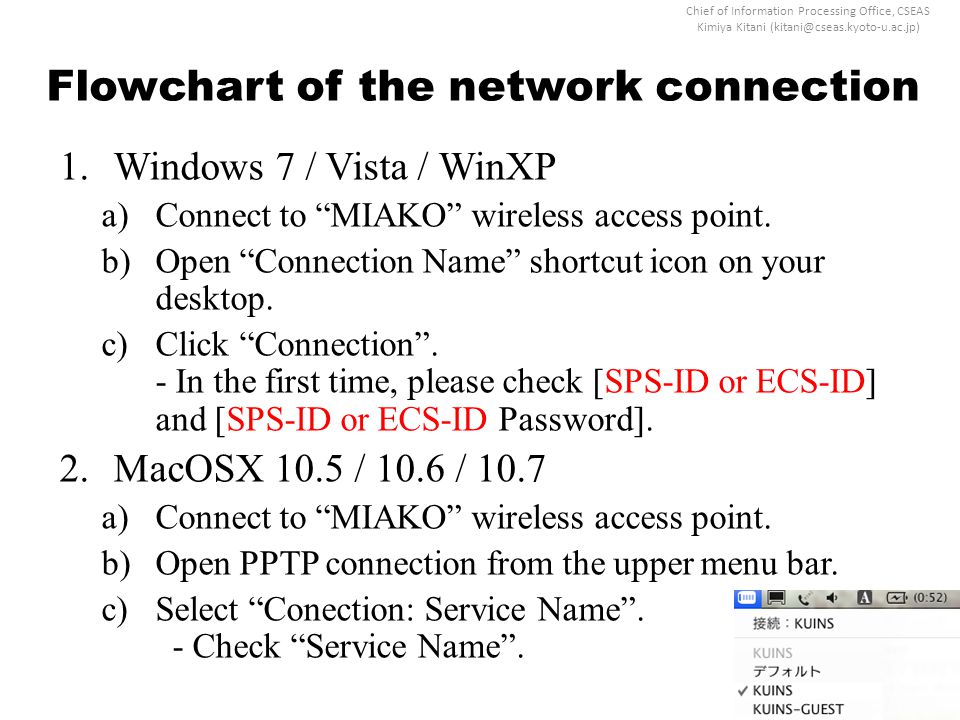

2 Chief of Information Processing Office, CSEAS Kimiya Kitani Flowchart of the network connection 1.Windows 7 / Vista / WinXP a)Connect to “MIAKO” wireless access point. b)Open “Connection Name” shortcut icon on your desktop. c)Click “Connection”. - In the first time, please check [SPS-ID or ECS-ID] and [SPS-ID or ECS-ID Password]. 2.MacOSX 10.5 / 10.6 / 10.7 a)Connect to “MIAKO” wireless access point. b)Open PPTP connection from the upper menu bar. c)Select “Conection: Service Name”. - Check “Service Name”.

3 Chief of Information Processing Office, CSEAS Kimiya Kitani Troubleshooting 1.Why cannot my PC establish PPTP connection? – If all settings are right, please check your security software setting. – In case of ”Windows Live OneCare”, PPTP(VPN) connection is blocked in default setting. If you’d like to disable this setting, please try to change to the following setting. 1.Open Windows Live OneCare software, click View or change settings. 2.Click the Firewall tab. 3.Under Other settings, click Advanced Settings. 4.Click the Ports and Protocols tab. 5.Click to select the check box for VPN connection, and turn on it. 6.Click OK.

4 Chief of Information Processing Office, CSEAS Kimiya Kitani Manuals for setting up “PPTP” connection - Windows 7, Vista, XP -MacOSX 10.7 (Lion) / 10.6 (Snow Leopard) / 10.5 (Leopard)

5 Chief of Information Processing Office, CSEAS Kimiya Kitani Setting up “PPTP” for Staffs - Windows 7 / Vista (English) - 1.From the “Start” Menu, select “Control Panel”. 2.Select the link to “View network status and tasks” in the category of “Network and Internet”. 3.Select “Set up a connection or network” in the left sidebar of “Network and Sharing Center”. 4.Select “Connect to a workplace.” and click “Next”. 5.Select “Use my Internet connection (VPN)” and double click it. 6.Select “I’ll set up an Internet Connection later”. 7.Check the following Settings and click “Next”. – Internet address: pptp0.kuins.kyoto-u.ac.jp – Destination name: Understandable name like KUINS-PPTP – Check off “Allow other people to use this connection” – Check on “Don’t connect now”. 8.Check the following Settings and click “Create”. – Username: [Your SPS-ID or ECS-ID] – Password: [Your SPS-ID or ECS-ID Password] 9.Click Close. 10.Select “Manage network connections” in the left sidebar of “Network and Sharing Center”. 11.Right click in “KUINS-PPTP” (Destination name) and select “Create Shortcut”. 12.Click “Yes” on the alert of “Windows cannot create a shortcut here”. * In case of Windows7, please check the following settings. 1.Right click on “KUINS-PPTP” (Destination name) and Select “Properties“. 2.Click on “Security” tab and select “Point to Point Tunneling Protocol (PPTP)” in “Type of VPN:” menu.

6 Chief of Information Processing Office, CSEAS Kimiya Kitani Setting up “PPTP” for Staffs - Windows XP (English)- 1.From the “Start” Menu, select “Control Panel”. 2.Select ”Network (and Internet) Connections. 3.From the “File” menu, select “Create a new connection”. 4.“New connection Wizard” will be activated and click “Next”. 5.Select “Connect to the network at my workplace” and click “Next”. 6.Select “Virtual Private Network connection” and click “Next”. 7.In the “Connection Name” dialog box, please input it and click “Next”. - Understandable name like KUINS-PPTP 8.Select “Do not dial the initial connection” and click “Next”. 9.In the “VPN Server Selection” dialog box, please input the following name and click “Next”. - pptp0.kuins.kyoto-u.ac.jp 10.Check on “Add a shortcut to this connection to my desktop” and click “Finish”.

7 Chief of Information Processing Office, CSEAS Kimiya Kitani Setting up “PPTP” for Staffs - MacOSX 10.5/10.6 / 10.7 (English) - 1.From the “Apple” Menu, select “System Preferences”. 2.Select “Network”. 3.Click ”+” button. - If this button is disabled, please click “Key” icon and apply the administrator authorization. 4.Select the following new network. - Interface: VPN - VPN type: PPTP - Service Name: Understandable name like KUINS-PPTP 5.Check the following network setting. - Server Address: pptp0.kuins.kyoto-u.ac.jp - Account name: [SPS-ID or ECS-ID] - Check on “Show VPN status in menu bar”. 6.Select “Authorization settings” option and check the following setting. - Check on “Password”. - Input [SPS-ID or ECS-ID Password] in the dialog box. 7.Select “Advanced” option and check the following setting. - Check on “Send all traffic over VPN connection”. 8.Then, click “Apply”.

8 Chief of Information Processing Office, CSEAS Kimiya Kitani Manuals for setting up “Web Proxy” - Windows 7, Vista, XP -MacOSX 10.7 (Lion) / 10.6 (Snow Leopard) / 10.5 (Leopard)

9 Chief of Information Processing Office, CSEAS Kimiya Kitani Setting up “Web Proxy” for Staffs - Internet Explorer 8 / 9 - First, please try to update to the latest version (http://update.microsoft.com/microsoftupdate). Windows 1.Push “Alt” key and click on “Internet Options” in “Tools” menu. 2.Click on “Connections” tab. 3.Click on “KUINS-PPTP” in dialog box called “Dial-up and Virtual Private Network settings:” and click on “Settings” button. 4.Check on “Use automatic configuration script” and input the following URL. Then, Check off other check boxes.

10 Chief of Information Processing Office, CSEAS Kimiya Kitani Setting up “Web Proxy” for Staffs - Safari / Google Chrome - Windows – Basically, Safari and Google Chrome refers to the setting of Internet Explorer. Therefore, please check the manual of “Internet Explorer”. MacOSX (Safari) – Basically, Google Chrome refers to the setting of Safari. Therefore, please check the manual of “Safari” 1.Click on “System Preferences” in Apple menu. 2.Click on “Network”. 3.Select “KUINS-PPTP” in the left side menu. 4.Click on “Advanced” button. Then, click “Proxies” tab. 5.Select “Using a PAC file” and input the following URL. Then, Check off other check boxes. * In case of MacOSX 10.5, “Using a PAC file” selection is in “Configure Proxies” menu.

11 Chief of Information Processing Office, CSEAS Kimiya Kitani Setting up “Web Proxy” for Staffs - Firefox 9 - First, please try to update to the latest version (http://mozilla.org). Windows 1.Click on “Options” in “Tools” menu. 2.Click on “Network” tab in “Advanced” menu. 3.Click on “Settings” button 4.Check on “Automatic proxy configuration URL” and input the following URL. MacOSX 1.Click on “Preferences” in Firefox menu. 2.Click on “Network” tab in “Advanced” menu. 3.Click on “Settings” button 4.Check on “Automatic proxy configuration URL” and input the following URL.
