1
Interacting Viruses: Can Both Survive? Alex Beutel, B. Aditya Prakash, Roni Rosenfeld, Christos Faloutsos Carnegie Mellon University, USA KDD 2012, Beijing

2
Competing Contagions Beutel et. al. 2012 2 Firefox v ChromeBlockbuster v Hulu Biological common flu/avian flu

3

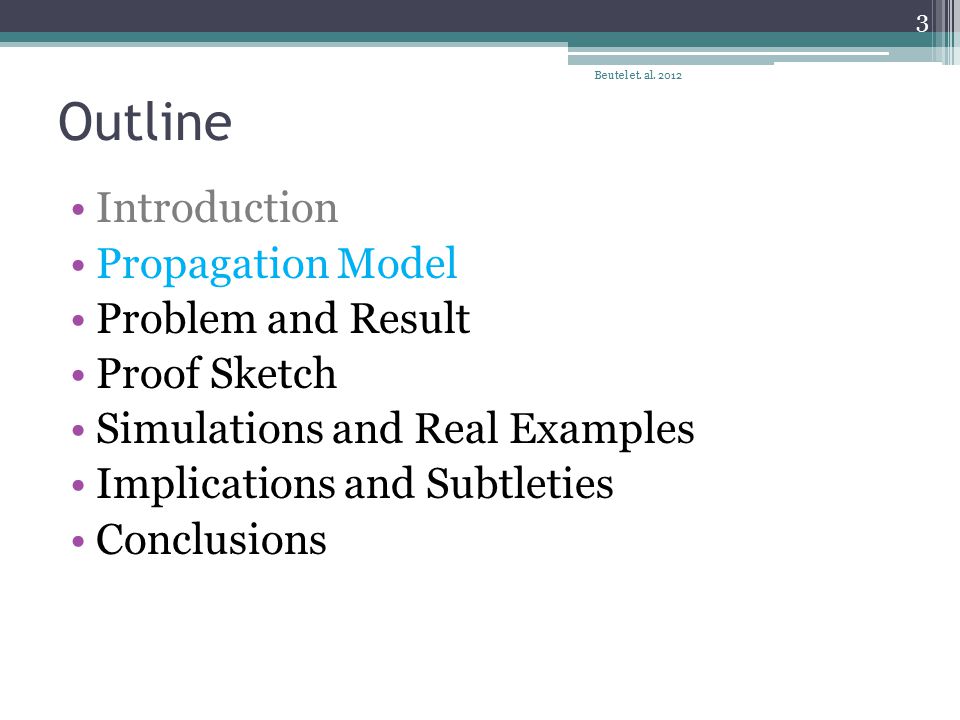

Outline Introduction Propagation Model Problem and Result Proof Sketch Simulations and Real Examples Implications and Subtleties Conclusions Beutel et. al. 2012 3

4
A simple model: SI 1|2 S Modified flu-like (SIS) Susceptible-Infected 1 or 2 -Susceptible Interaction Factor ε ▫Full Mutual Immunity: ε = 0 ▫Partial Mutual Immunity (competition): ε < 1 ▫Cooperation: ε > 1 Beutel et. al. 2012 4 Virus 1 Virus 2 &

5

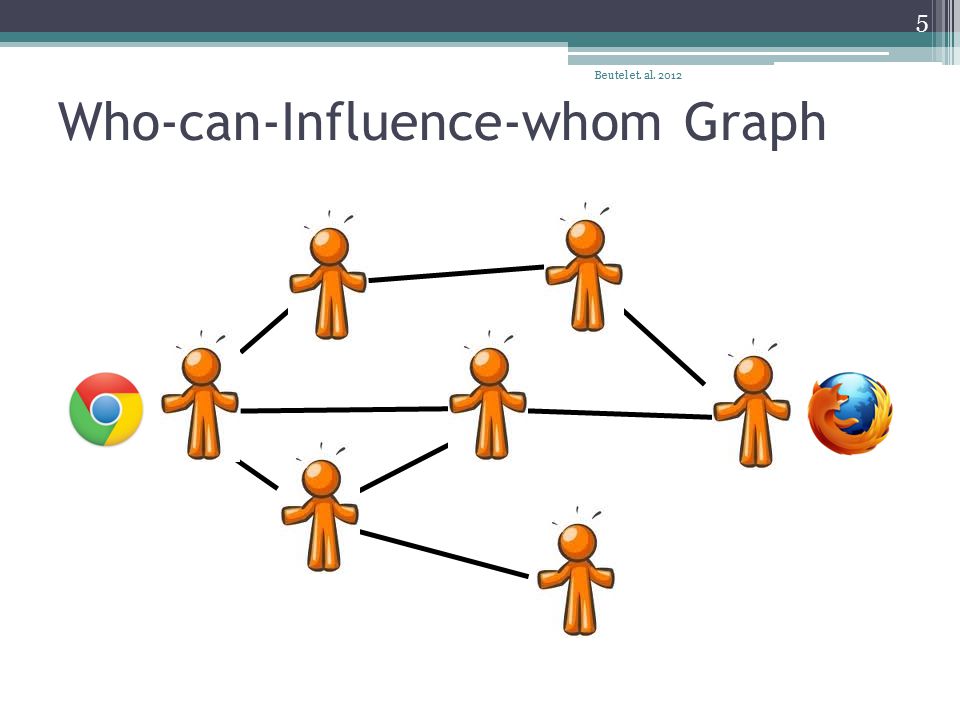

Who-can-Influence-whom Graph Beutel et. al. 2012 5

6

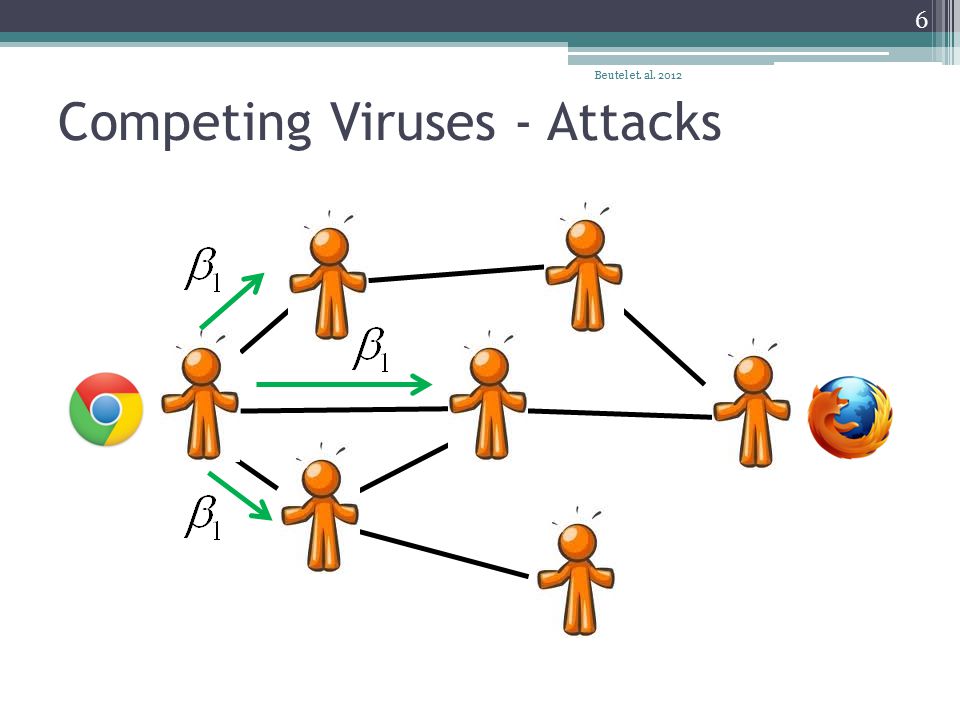

Competing Viruses - Attacks Beutel et. al. 2012 6

7
Competing Viruses - Attacks Beutel et. al. 2012 7 All attacks are Independent

8
Competing Viruses - Cure Beutel et. al. 2012 8 Abandons Chrome Abandons Firefox

9

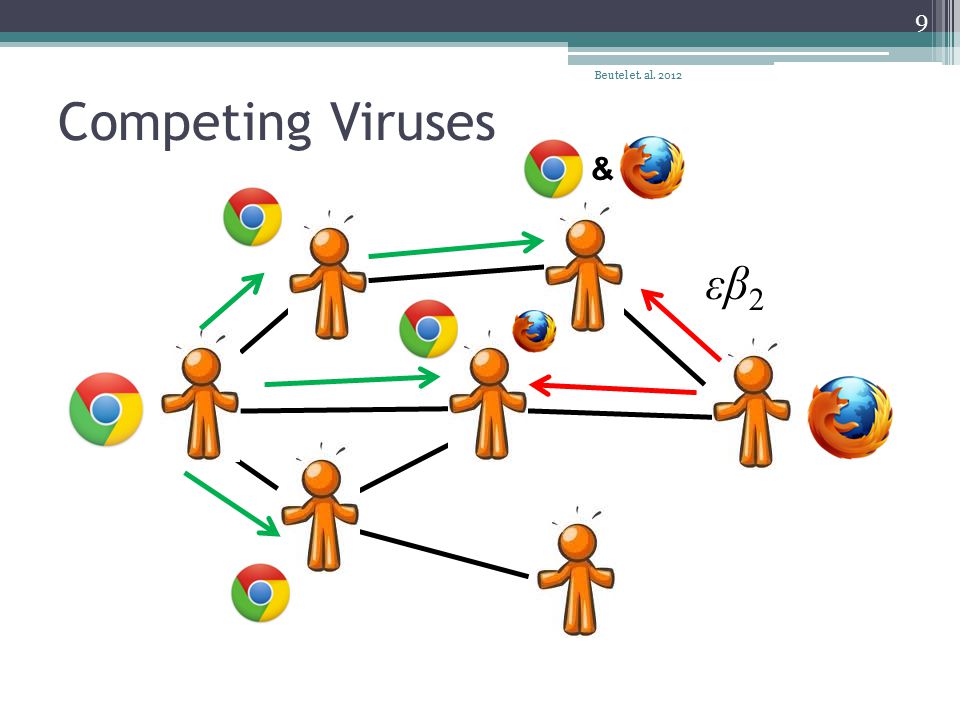

Competing Viruses Beutel et. al. 2012 9 εβ 2 &

10

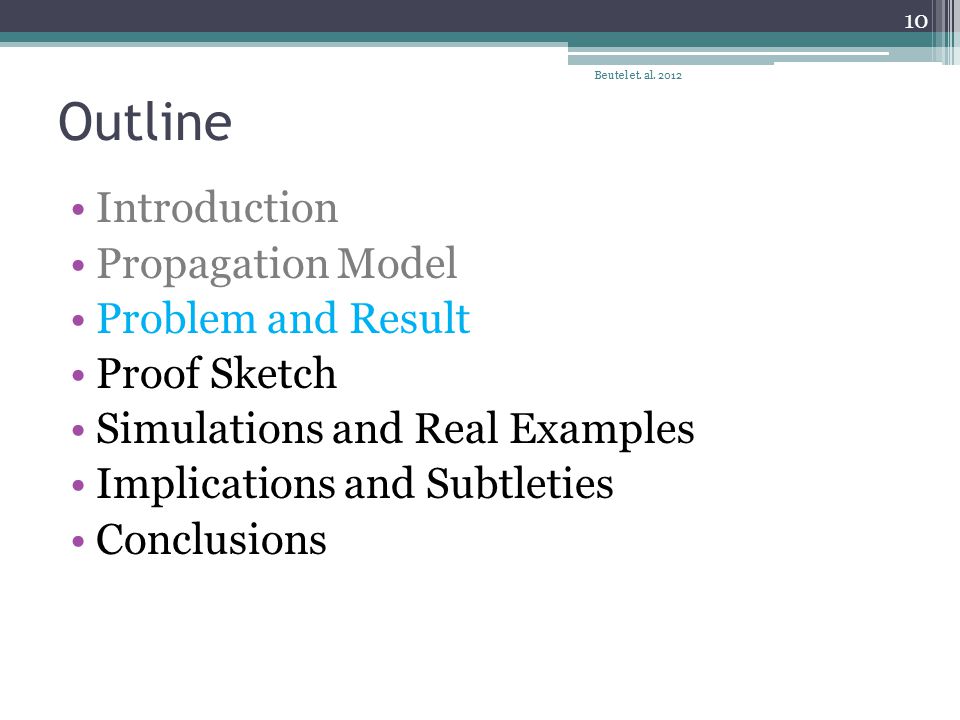

Outline Introduction Propagation Model Problem and Result Proof Sketch Simulations and Real Examples Implications and Subtleties Conclusions Beutel et. al. 2012 10

11
Question: What happens in the end? Beutel et. al. 2012 11 ASSUME: Virus 1 is stronger than Virus 2 ε = 0 Winner takes all ε = 1 Co-exist independently ε = 2 Viruses cooperate What about for 0 < ε <1 ? Is there a point at which both viruses can co-exist? What about for 0 < ε <1 ? Is there a point at which both viruses can co-exist? Clique: [Castillo-Chavez+ 1996] Arbitrary Graph: [Prakash+ 2011]

12

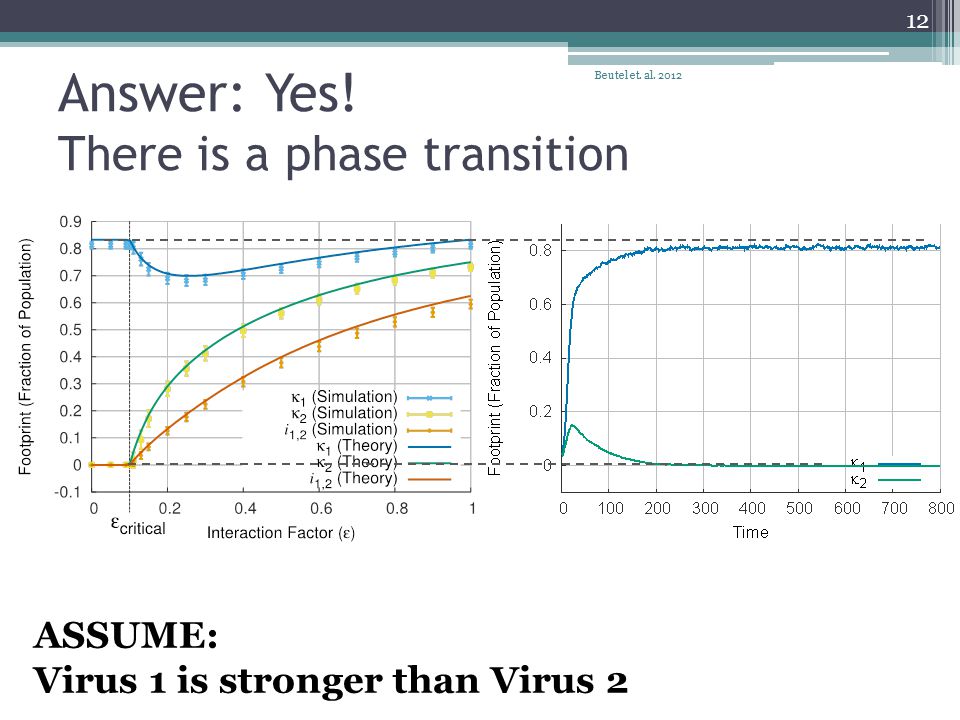

Answer: Yes! There is a phase transition Beutel et. al. 2012 12 ASSUME: Virus 1 is stronger than Virus 2

13

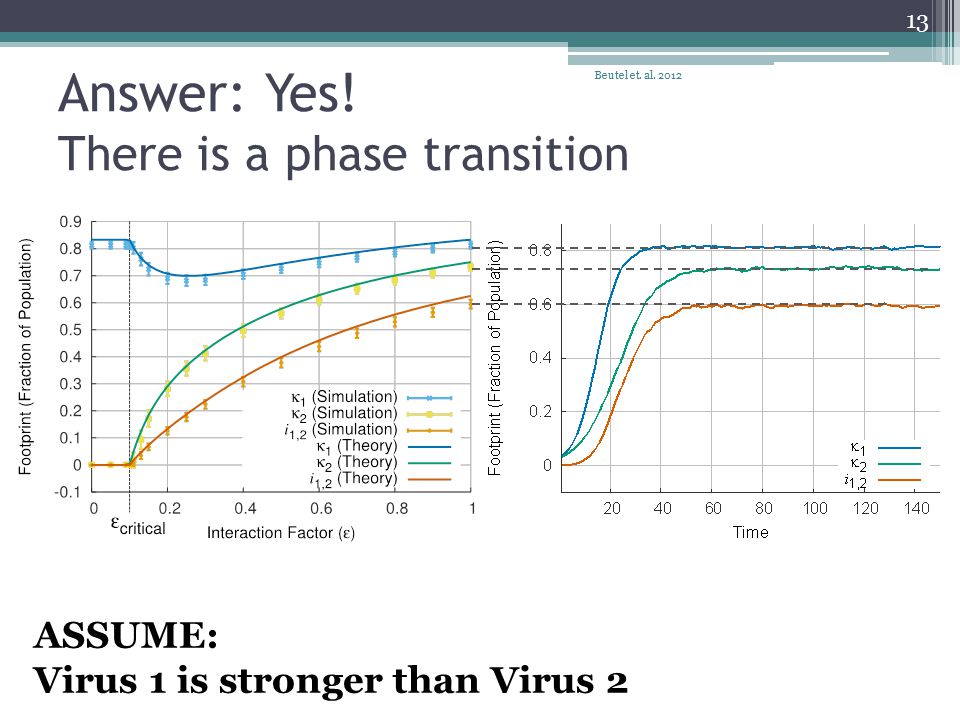

Answer: Yes! There is a phase transition Beutel et. al. 2012 13 ASSUME: Virus 1 is stronger than Virus 2

14

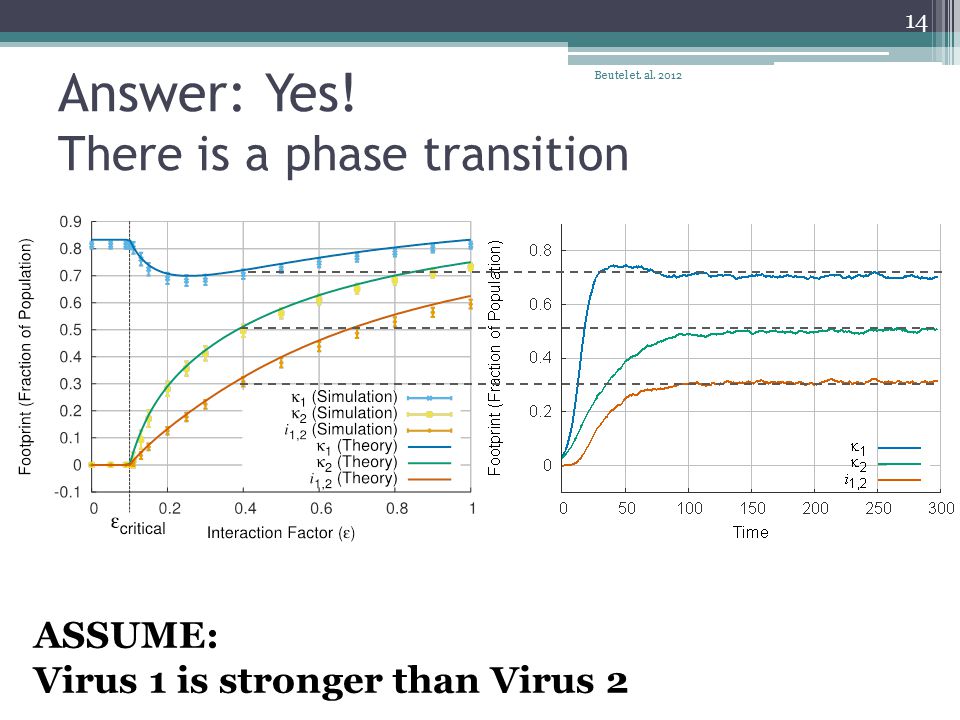

Answer: Yes! There is a phase transition Beutel et. al. 2012 14 ASSUME: Virus 1 is stronger than Virus 2

15

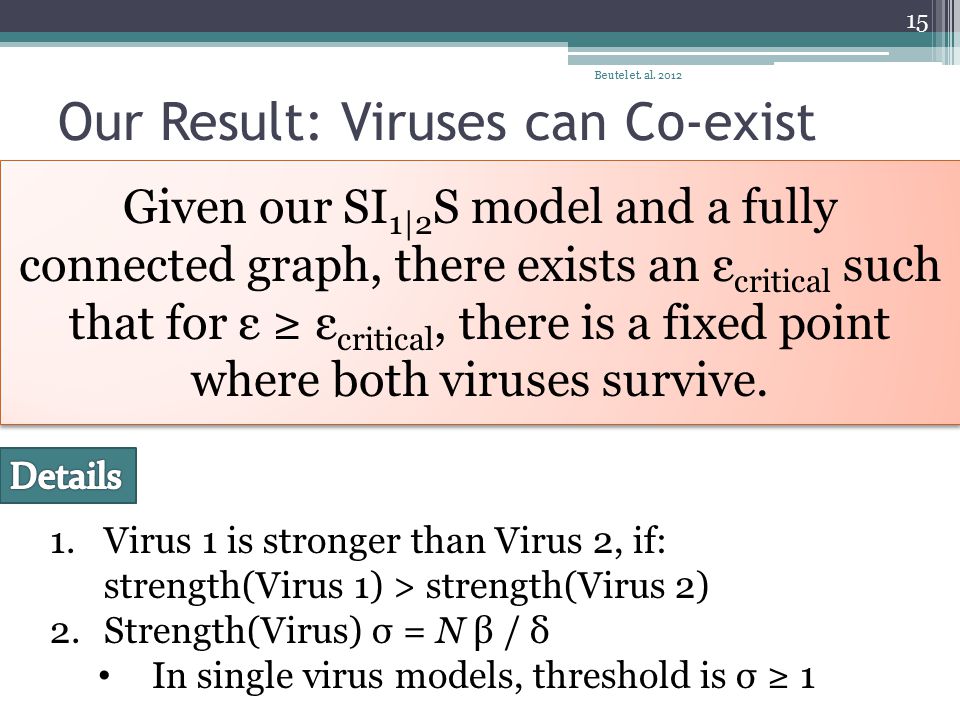

Our Result: Viruses can Co-exist Beutel et. al. 2012 15 Given our SI 1|2 S model and a fully connected graph, there exists an ε critical such that for ε ≥ ε critical, there is a fixed point where both viruses survive. 1.Virus 1 is stronger than Virus 2, if: strength(Virus 1) > strength(Virus 2) 2.Strength(Virus) σ = N β / δ In single virus models, threshold is σ ≥ 1

16

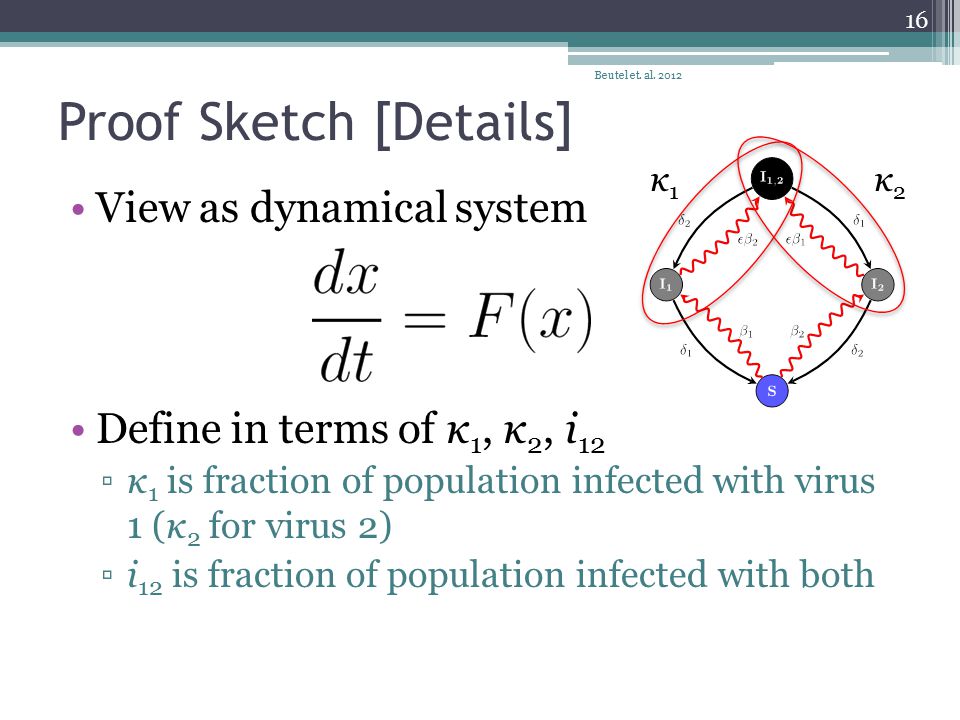

Proof Sketch [Details] View as dynamical system Define in terms of κ 1, κ 2, i 12 ▫κ 1 is fraction of population infected with virus 1 (κ 2 for virus 2) ▫i 12 is fraction of population infected with both Beutel et. al. 2012 16 κ1κ1 κ2κ2

17

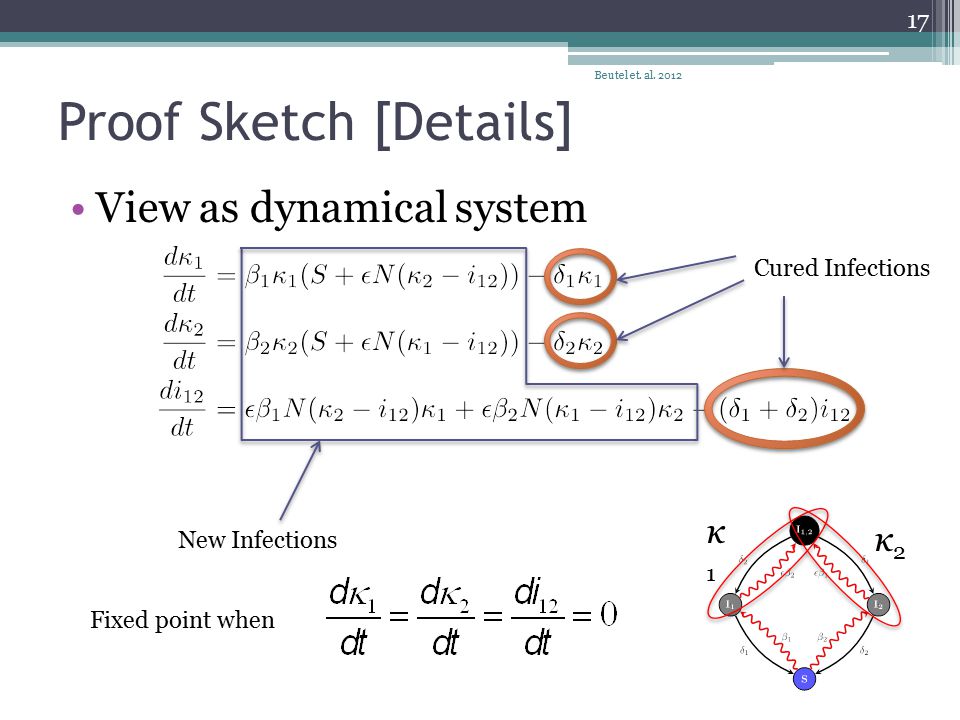

Proof Sketch [Details] View as dynamical system Beutel et. al. 2012 17 Fixed point when New Infections Cured Infections κ1κ1 κ2κ2

18
Proof Sketch [Details] 3 previously known fixed points: Beutel et. al. 2012 18 Both viruses die Virus 2 dies, virus 1 lives on alone Virus 1 dies, virus 2 lives on alone I1I1 I2I2 I 1,2

19

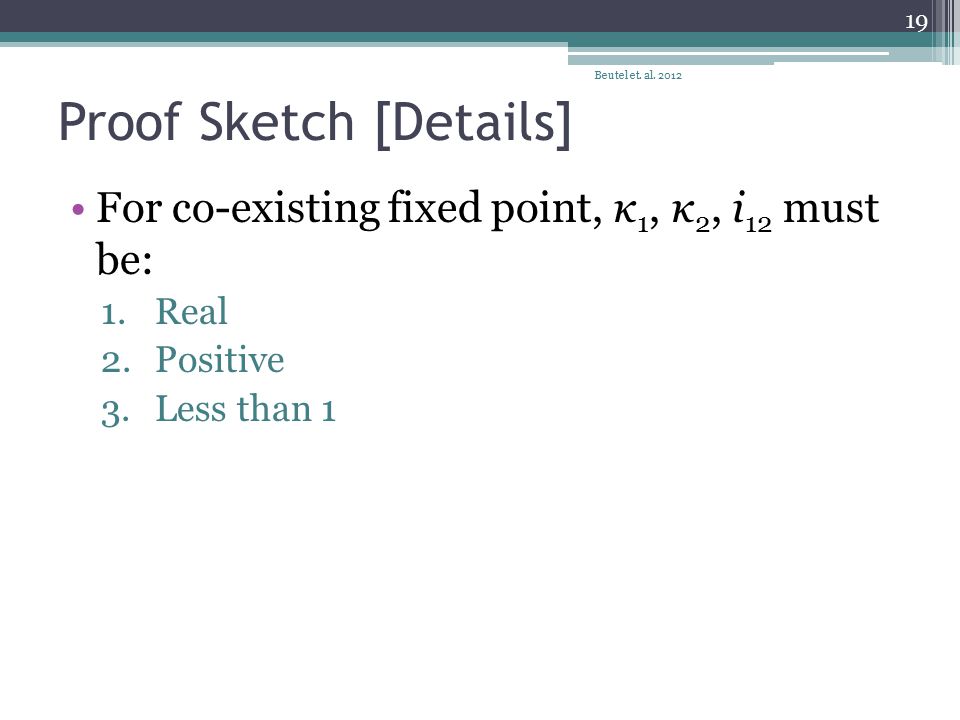

Proof Sketch [Details] For co-existing fixed point, κ 1, κ 2, i 12 must be: 1.Real 2.Positive 3.Less than 1 Beutel et. al. 2012 19

20

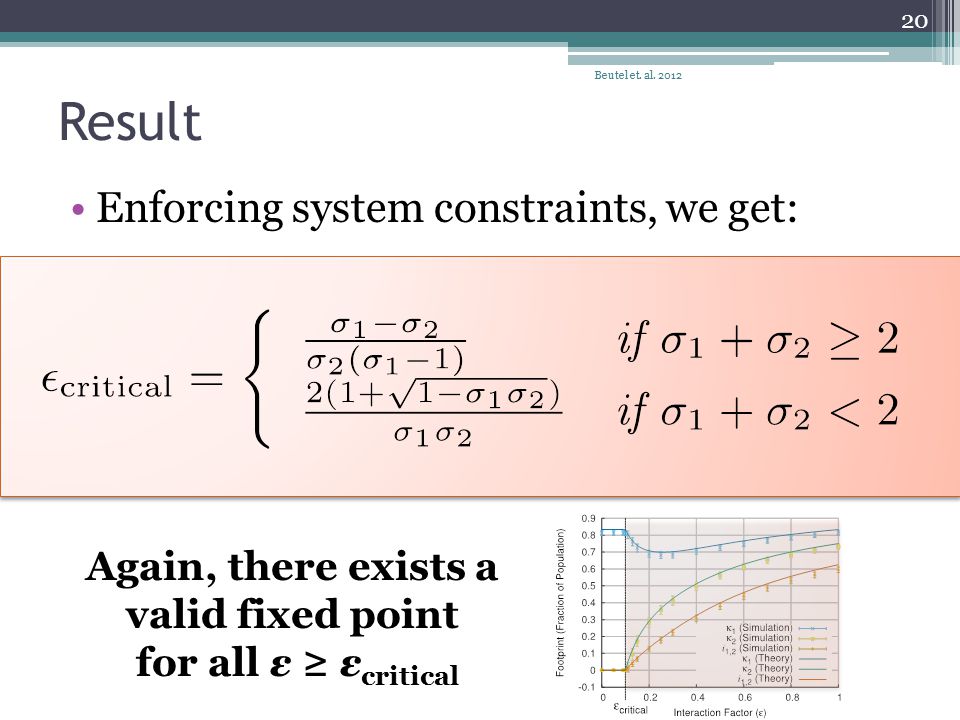

Result Enforcing system constraints, we get: Beutel et. al. 2012 20 Again, there exists a valid fixed point for all ε ≥ ε critical

21

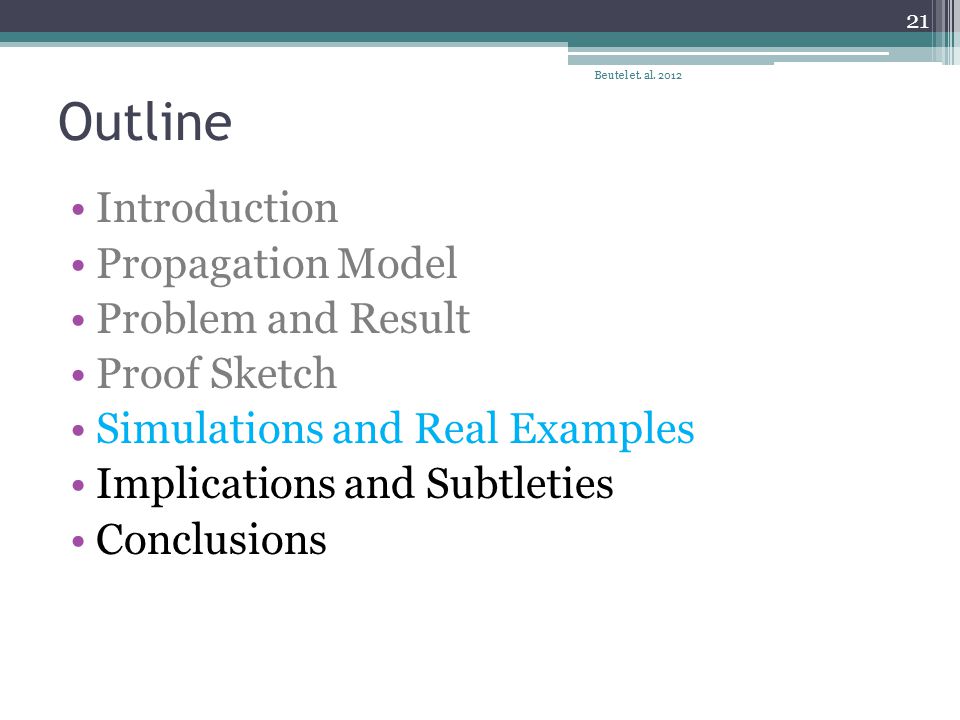

Outline Introduction Propagation Model Problem and Result Proof Sketch Simulations and Real Examples Implications and Subtleties Conclusions Beutel et. al. 2012 21

22

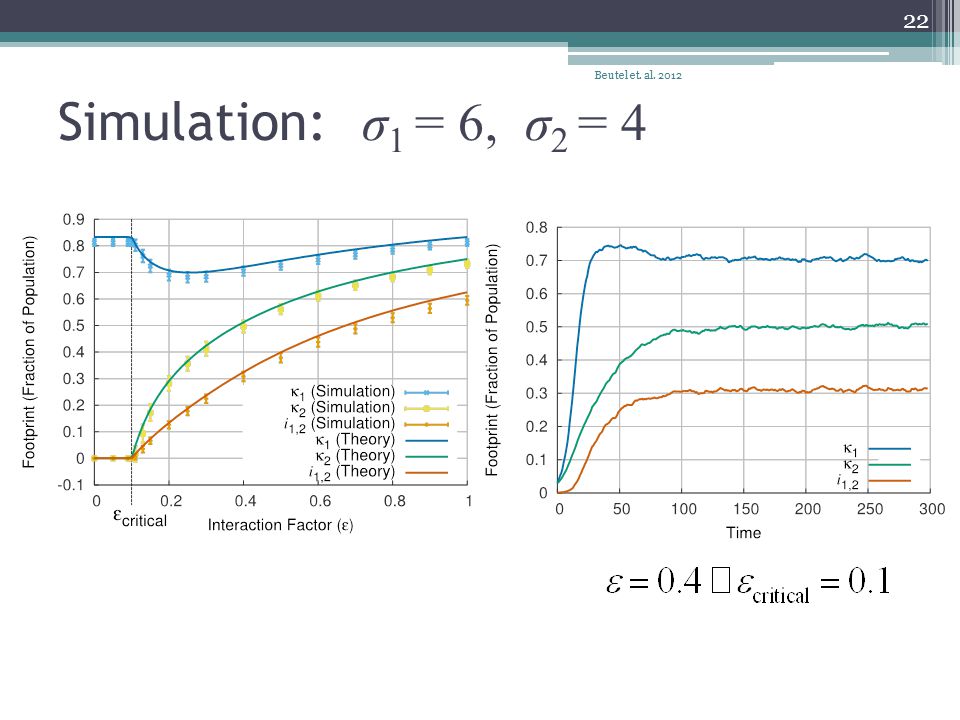

Simulation: σ 1 = 6, σ 2 = 4 Beutel et. al. 2012 22

23

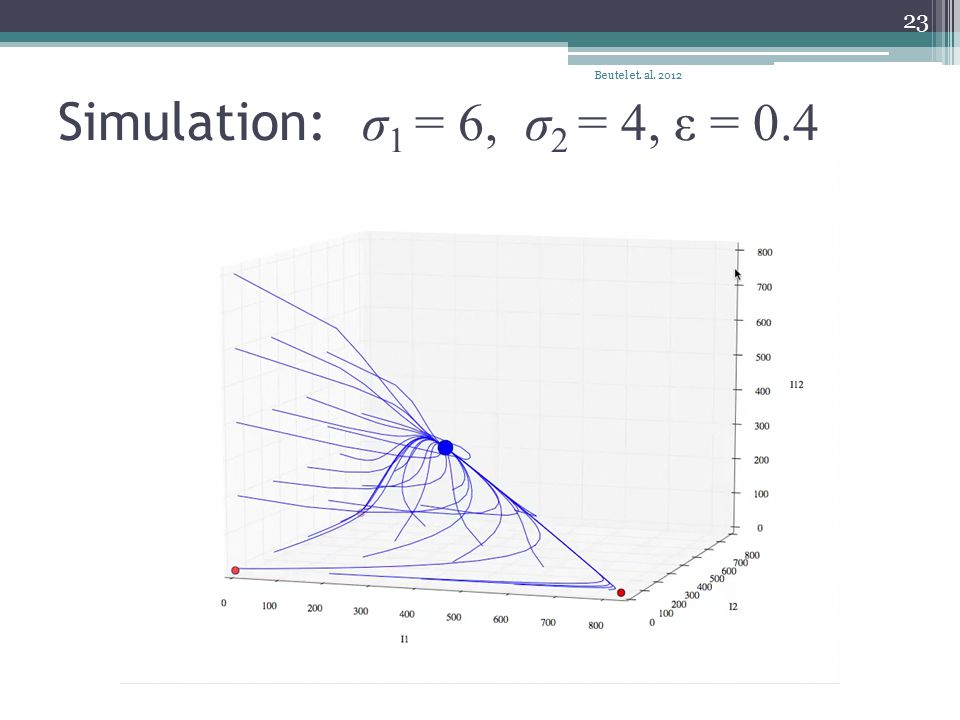

Beutel et. al. 2012 23 Simulation: σ 1 = 6, σ 2 = 4, ε = 0.4

24

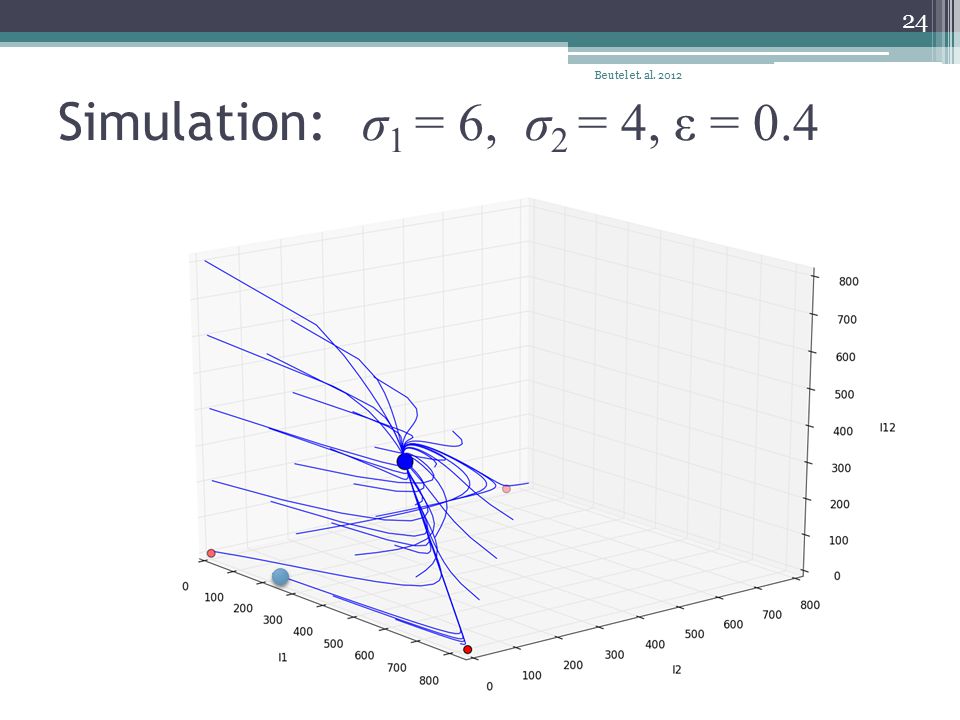

Beutel et. al. 2012 24 Simulation: σ 1 = 6, σ 2 = 4, ε = 0.4

25

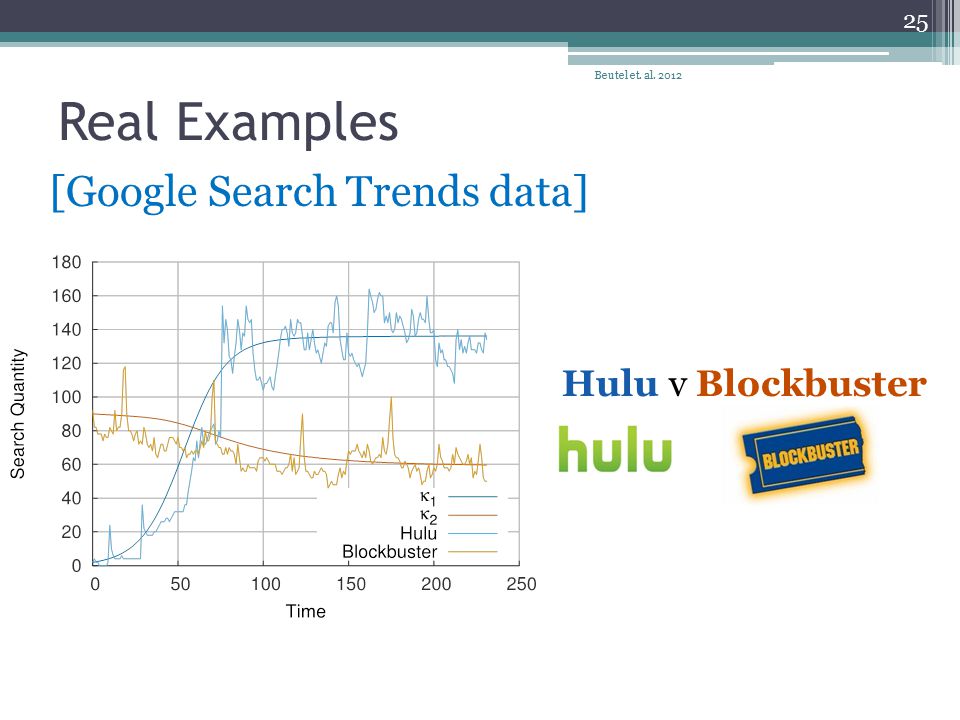

Real Examples Beutel et. al. 2012 25 Hulu v Blockbuster [Google Search Trends data]

26
Real Examples Beutel et. al. 2012 26 Chrome v Firefox [Google Search Trends data]

27
Real Examples with Prediction Beutel et. al. 2012 27 Chrome v Firefox [Google Search Trends data]

28

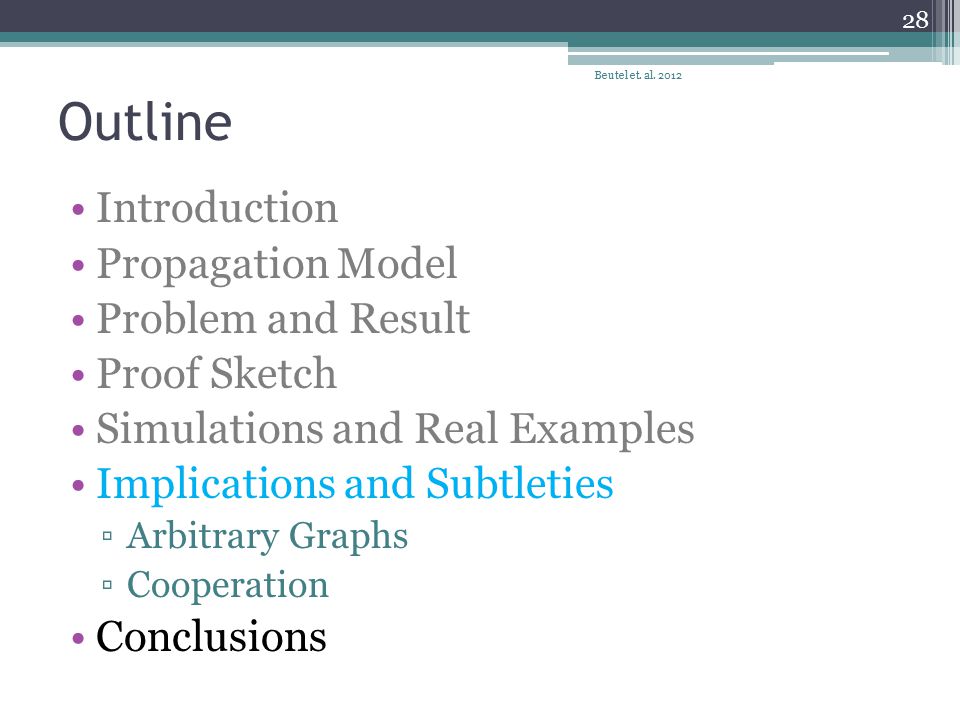

Outline Introduction Propagation Model Problem and Result Proof Sketch Simulations and Real Examples Implications and Subtleties ▫Arbitrary Graphs ▫Cooperation Conclusions Beutel et. al. 2012 28

29
Arbitrary graphs? Beutel et. al. 2012 29 Equivalent to single-virus SIS model with strength εβ 2 /δ 2 Therefore, What if virus 1 is infinitely strong ( δ 1 =0 )?

30
Cooperation: ε > 1 Two Cases: ▫Piggyback σ 1 ≥ 1 > σ 2 : Strong virus helps weak virus survive ▫Teamwork 1 > σ 1 ≥ σ 2 : Two weak viruses help each other survive Beutel et. al. 2012 30

31
Cooperation: Piggyback Setting Beutel et. al. 2012 31 σ 1 = 3, σ 2 = 0.5 ε = 1 : Independent

32
Cooperation: Piggyback Setting Beutel et. al. 2012 32 σ 1 = 3, σ 2 = 0.5 ε = 3.5

33

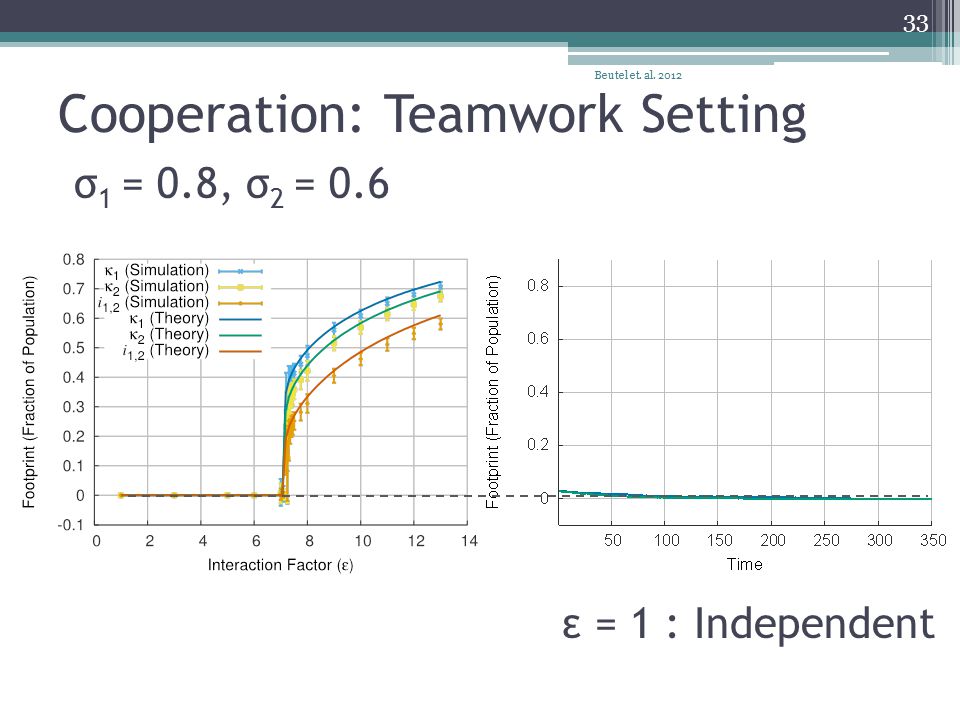

Cooperation: Teamwork Setting Beutel et. al. 2012 33 σ 1 = 0.8, σ 2 = 0.6 ε = 1 : Independent

34

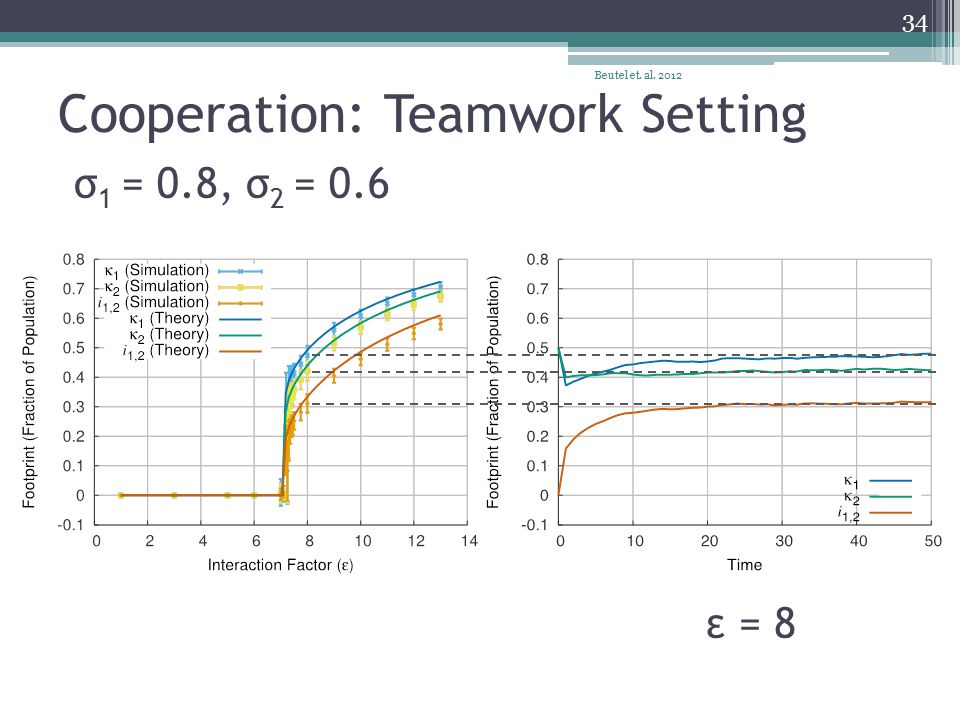

Cooperation: Teamwork Setting Beutel et. al. 2012 34 σ 1 = 0.8, σ 2 = 0.6 ε = 8

35
Outline Introduction Propagation Model Problem and Result Simulations Real Examples Proof Sketch Conclusions Beutel et. al. 2012 35

36
Conclusions Interacting Contagions (Chrome vs Firefox) ▫Flu-like model ▫Includes partial or full mutual immunity (competition) as well as cooperation Q: Can competing viruses co-exist? A: Yes Simulations and Case Studies on real data Beutel et. al. 2012 36

37
Any Questions? Alex Beutel abeutel@cs.cmu.edu http://alexbeutel.com 37

38

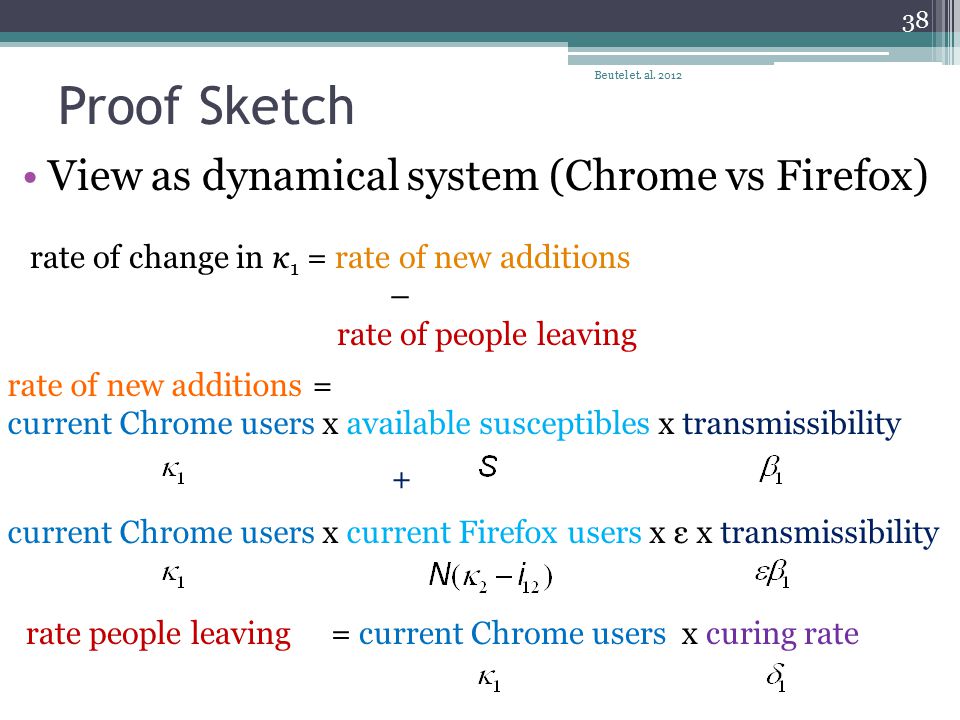

Proof Sketch View as dynamical system (Chrome vs Firefox) Beutel et. al. 2012 38 rate of change in κ 1 = rate of new additions – rate of people leaving rate of new additions = current Chrome users x available susceptibles x transmissibility + current Chrome users x current Firefox users x ε x transmissibility rate people leaving = current Chrome users x curing rate

39

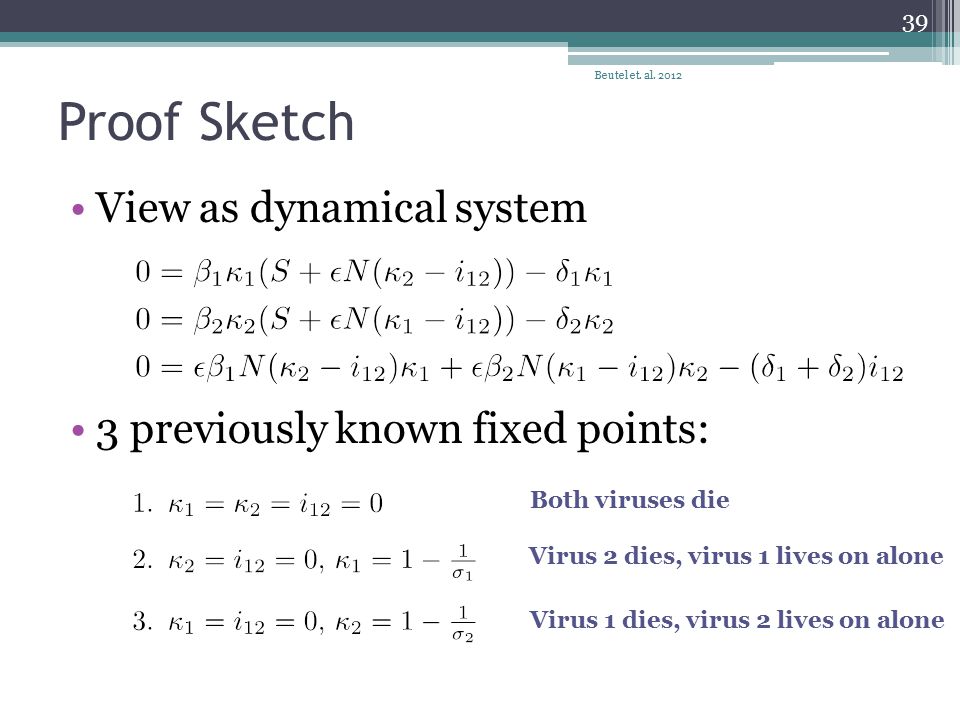

Proof Sketch View as dynamical system 3 previously known fixed points: Beutel et. al. 2012 39 Both viruses die Virus 2 dies, virus 1 lives on alone Virus 1 dies, virus 2 lives on alone

40

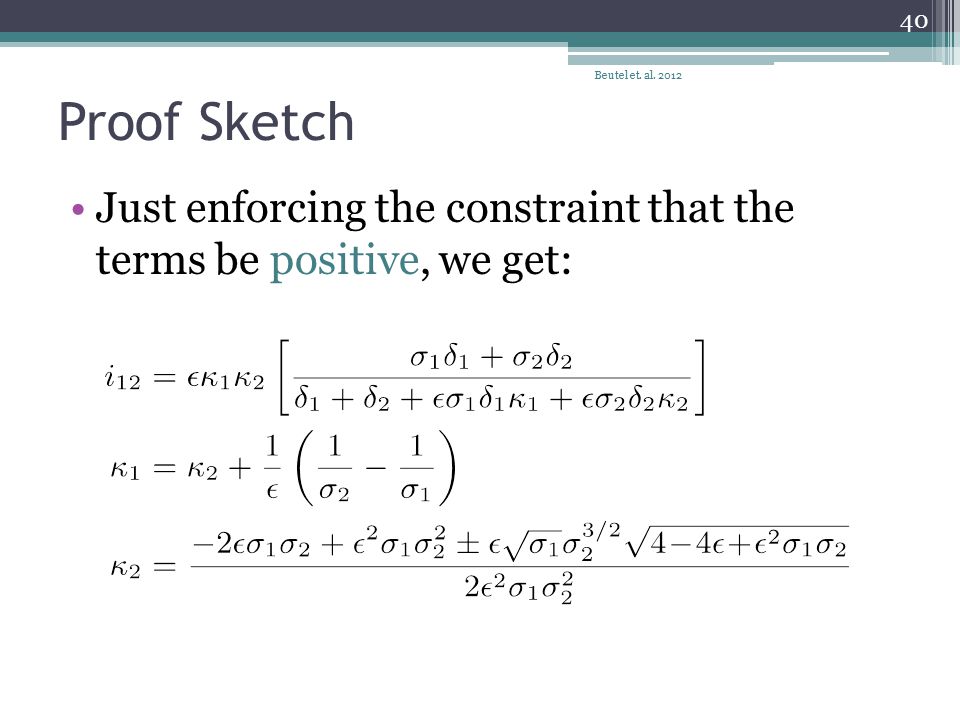

Proof Sketch Just enforcing the constraint that the terms be positive, we get: Beutel et. al. 2012 40

41

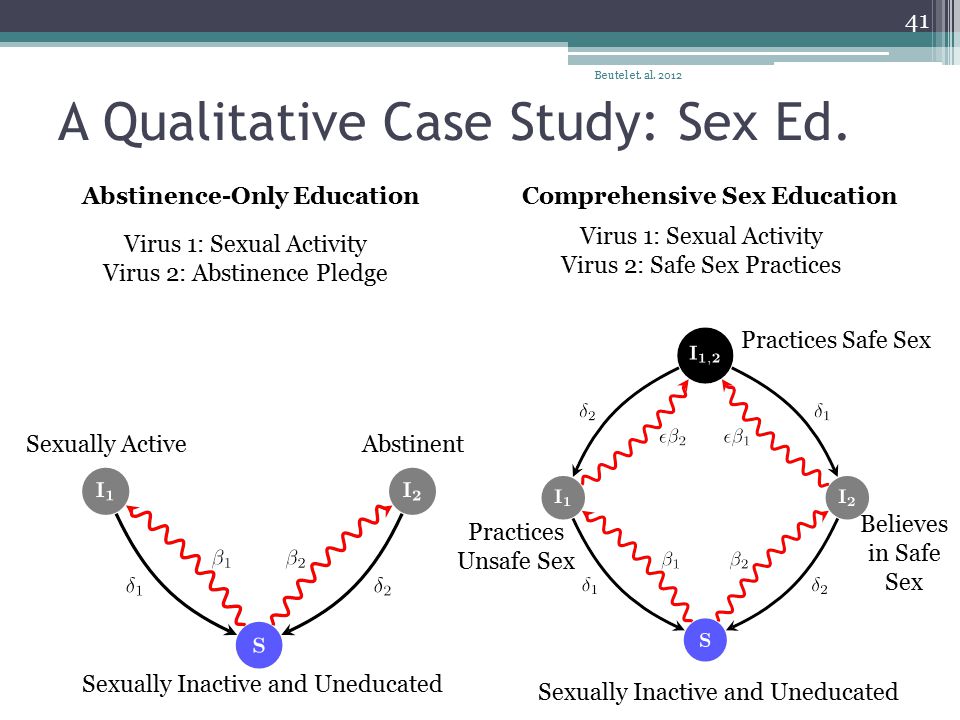

A Qualitative Case Study: Sex Ed. Beutel et. al. 2012 41 Abstinence-Only EducationComprehensive Sex Education Virus 1: Sexual Activity Virus 2: Abstinence Pledge Virus 1: Sexual Activity Virus 2: Safe Sex Practices Sexually Inactive and Uneducated Sexually ActiveAbstinent Practices Unsafe Sex Believes in Safe Sex Practices Safe Sex Sexually Inactive and Uneducated
