Xerox ® Phaser ® 6022 Color Printer Convenient, high performance color printing. ©2015 Xerox Corporation. All rights reserved. Xerox® and Xerox and Design.

Similar presentations

Presentation on theme: "Xerox ® Phaser ® 6022 Color Printer Convenient, high performance color printing. ©2015 Xerox Corporation. All rights reserved. Xerox® and Xerox and Design."— Presentation transcript:

1 Xerox ® Phaser ® 6022 Color Printer Convenient, high performance color printing. ©2015 Xerox Corporation. All rights reserved. Xerox® and Xerox and Design ® are trademarks of Xerox Corporation in the United States and/or other countries. BR11418 602PA-03UA

2 Convenience you need. Wi-Fi Connectivity Enjoy untethered mobility with built-in Wi-Fi and Wi-Fi Direct. Place the printer where you need it, no cables necessary. The one-touch Wi-Fi setup (WPS 2.0) makes establishing a Wi-Fi connection a breeze. Apple ® AirPrint™ Print email, photos and important office documents directly from your Apple iPhone ® or iPad ® with no drivers to install and no cables to connect. Where You Need It The lightweight, compact design means you can install the printer in tight busy spaces, making it easy to set up and perfect to share. Envelope/Paper Setup Navigator The Paper Setup Navigator takes the waste and guess work out of printing custom paper sizes and types, including envelopes, card stock, labels and recycled paper.

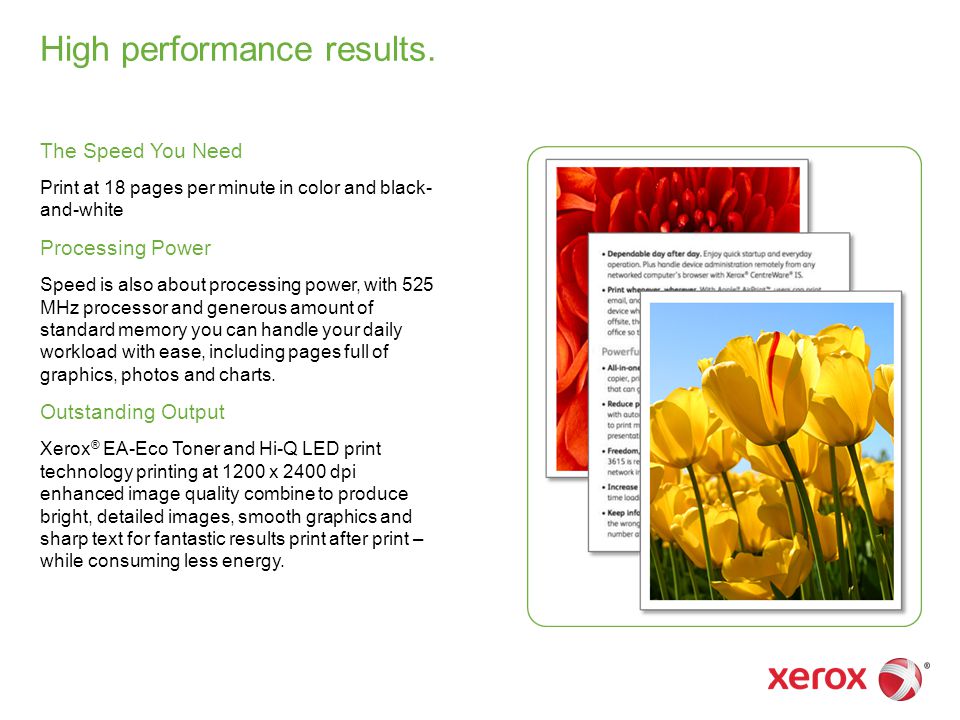

3 High performance results. The Speed You Need Print at 18 pages per minute in color and black- and-white Processing Power Speed is also about processing power, with 525 MHz processor and generous amount of standard memory you can handle your daily workload with ease, including pages full of graphics, photos and charts. Outstanding Output Xerox ® EA-Eco Toner and Hi-Q LED print technology printing at 1200 x 2400 dpi enhanced image quality combine to produce bright, detailed images, smooth graphics and sharp text for fantastic results print after print – while consuming less energy.

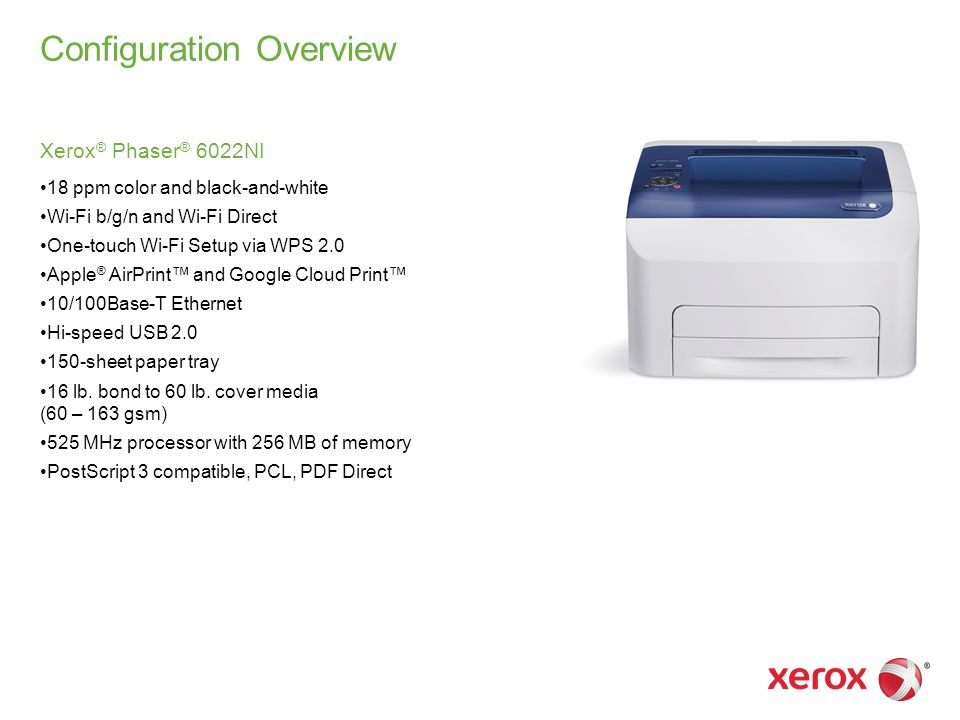

4 Configuration Overview Xerox ® Phaser ® 6022NI 18 ppm color and black-and-white Wi-Fi b/g/n and Wi-Fi Direct One-touch Wi-Fi Setup via WPS 2.0 Apple ® AirPrint™ and Google Cloud Print™ 10/100Base-T Ethernet Hi-speed USB 2.0 150-sheet paper tray 16 lb. bond to 60 lb. cover media (60 – 163 gsm) 525 MHz processor with 256 MB of memory PostScript 3 compatible, PCL, PDF Direct

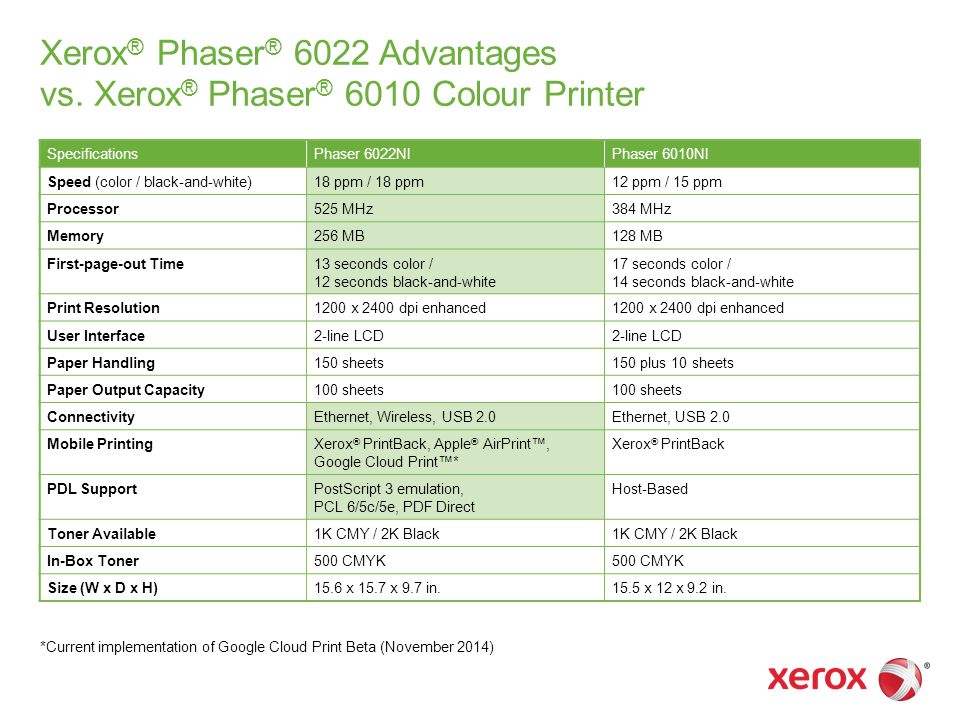

5 Xerox ® Phaser ® 6022 Advantages vs. Xerox ® Phaser ® 6010 Colour Printer SpecificationsPhaser 6022NIPhaser 6010NI Speed (color / black-and-white)18 ppm / 18 ppm12 ppm / 15 ppm Processor525 MHz384 MHz Memory256 MB128 MB First-page-out Time13 seconds color / 12 seconds black-and-white 17 seconds color / 14 seconds black-and-white Print Resolution1200 x 2400 dpi enhanced User Interface2-line LCD Paper Handling150 sheets150 plus 10 sheets Paper Output Capacity100 sheets ConnectivityEthernet, Wireless, USB 2.0Ethernet, USB 2.0 Mobile PrintingXerox ® PrintBack, Apple ® AirPrint™, Google Cloud Print™* Xerox ® PrintBack PDL SupportPostScript 3 emulation, PCL 6/5c/5e, PDF Direct Host-Based Toner Available1K CMY / 2K Black In-Box Toner500 CMYK Size (W x D x H)15.6 x 15.7 x 9.7 in.15.5 x 12 x 9.2 in. *Current implementation of Google Cloud Print Beta (November 2014)

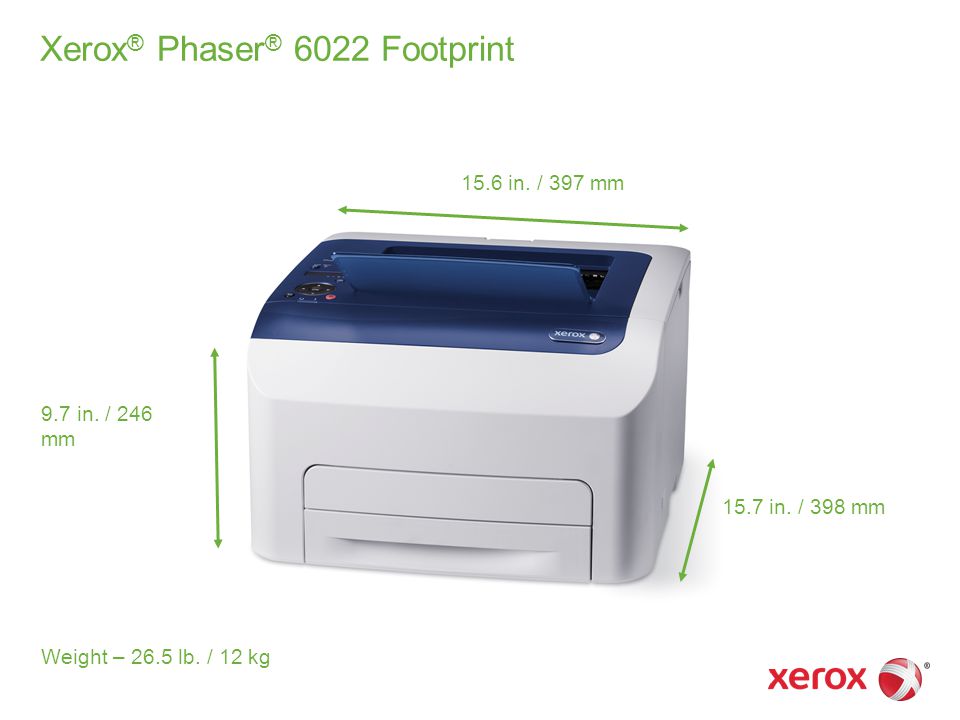

7 Xerox ® Phaser ® 6022 Footprint 15.6 in. / 397 mm 15.7 in. / 398 mm 9.7 in. / 246 mm Weight – 26.5 lb. / 12 kg

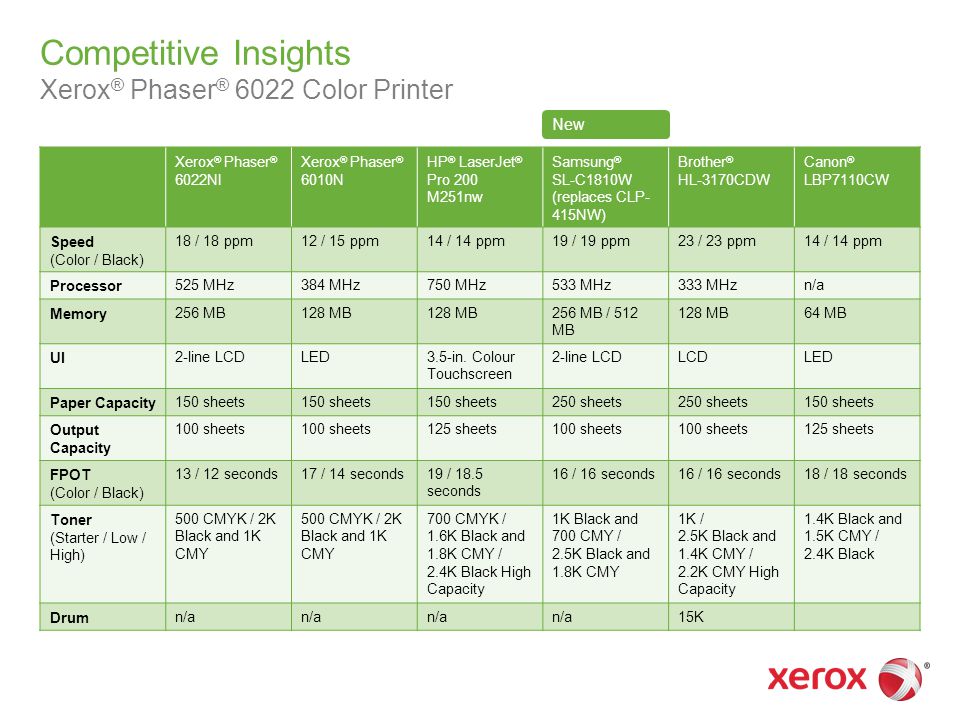

8 Competitive Insights Xerox ® Phaser ® 6022 Color Printer Xerox ® Phaser ® 6022NI Xerox ® Phaser ® 6010N HP ® LaserJet ® Pro 200 M251nw Samsung ® SL-C1810W (replaces CLP- 415NW) Brother ® HL-3170CDW Canon ® LBP7110CW Speed (Color / Black) 18 / 18 ppm12 / 15 ppm14 / 14 ppm19 / 19 ppm23 / 23 ppm14 / 14 ppm Processor525 MHz384 MHz750 MHz533 MHz333 MHzn/a Memory256 MB128 MB 256 MB / 512 MB 128 MB64 MB UI2-line LCDLED3.5-in. Colour Touchscreen 2-line LCDLCDLED Paper Capacity150 sheets 250 sheets 150 sheets Output Capacity 100 sheets 125 sheets100 sheets 125 sheets FPOT (Color / Black) 13 / 12 seconds17 / 14 seconds19 / 18.5 seconds 16 / 16 seconds 18 / 18 seconds Toner (Starter / Low / High) 500 CMYK / 2K Black and 1K CMY 700 CMYK / 1.6K Black and 1.8K CMY / 2.4K Black High Capacity 1K Black and 700 CMY / 2.5K Black and 1.8K CMY 1K / 2.5K Black and 1.4K CMY / 2.2K CMY High Capacity 1.4K Black and 1.5K CMY / 2.4K Black Drumn/a 15K New

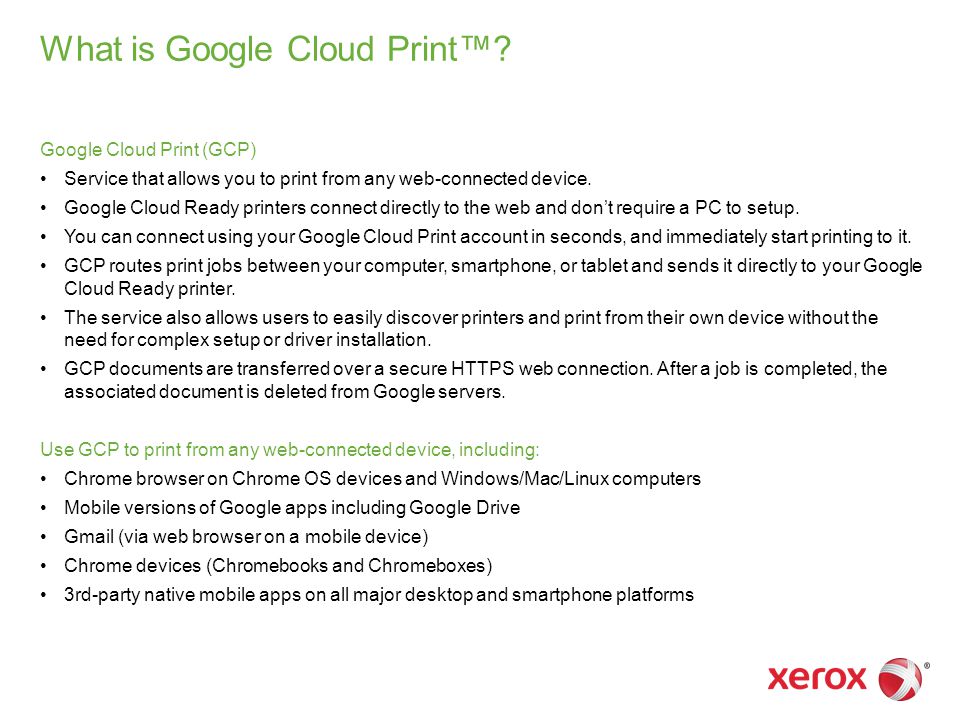

9 What is Google Cloud Print™? Google Cloud Print (GCP) Service that allows you to print from any web-connected device. Google Cloud Ready printers connect directly to the web and don’t require a PC to setup. You can connect using your Google Cloud Print account in seconds, and immediately start printing to it. GCP routes print jobs between your computer, smartphone, or tablet and sends it directly to your Google Cloud Ready printer. The service also allows users to easily discover printers and print from their own device without the need for complex setup or driver installation. GCP documents are transferred over a secure HTTPS web connection. After a job is completed, the associated document is deleted from Google servers. Use GCP to print from any web-connected device, including: Chrome browser on Chrome OS devices and Windows/Mac/Linux computers Mobile versions of Google apps including Google Drive Gmail (via web browser on a mobile device) Chrome devices (Chromebooks and Chromeboxes) 3rd-party native mobile apps on all major desktop and smartphone platforms

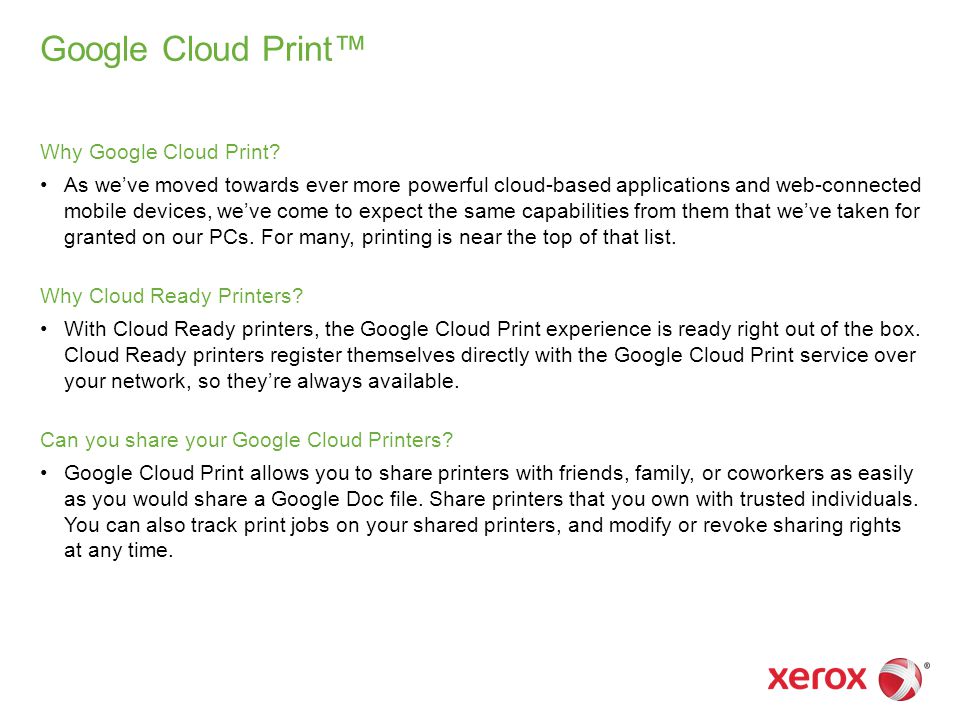

10 Google Cloud Print™ Why Google Cloud Print? As we’ve moved towards ever more powerful cloud-based applications and web-connected mobile devices, we’ve come to expect the same capabilities from them that we’ve taken for granted on our PCs. For many, printing is near the top of that list. Why Cloud Ready Printers? With Cloud Ready printers, the Google Cloud Print experience is ready right out of the box. Cloud Ready printers register themselves directly with the Google Cloud Print service over your network, so they’re always available. Can you share your Google Cloud Printers? Google Cloud Print allows you to share printers with friends, family, or coworkers as easily as you would share a Google Doc file. Share printers that you own with trusted individuals. You can also track print jobs on your shared printers, and modify or revoke sharing rights at any time.

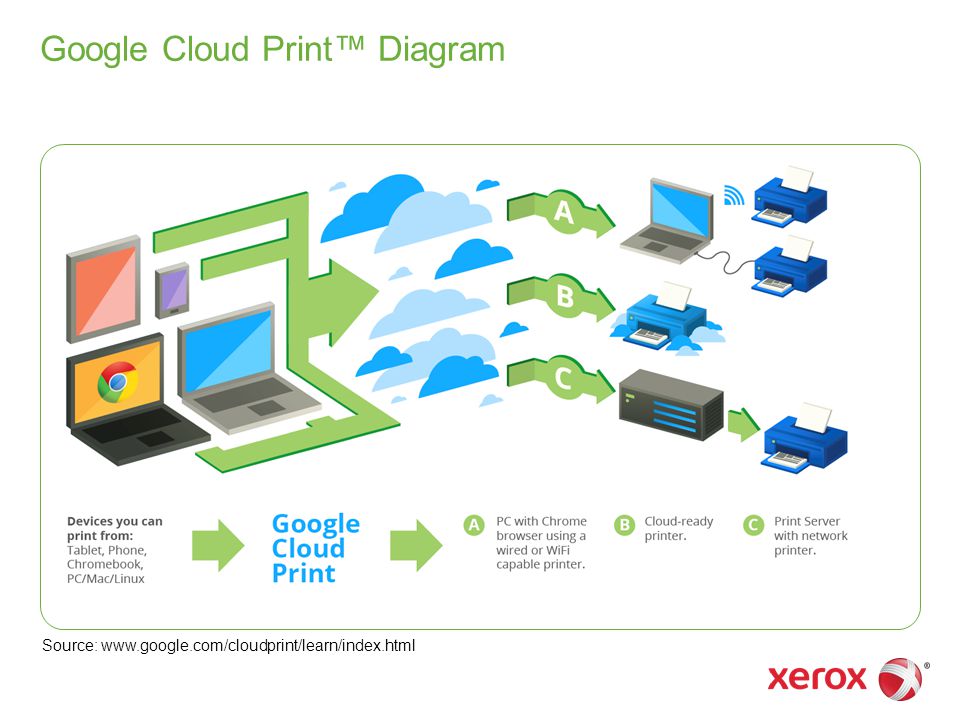

11 Google Cloud Print™ Diagram Source:
