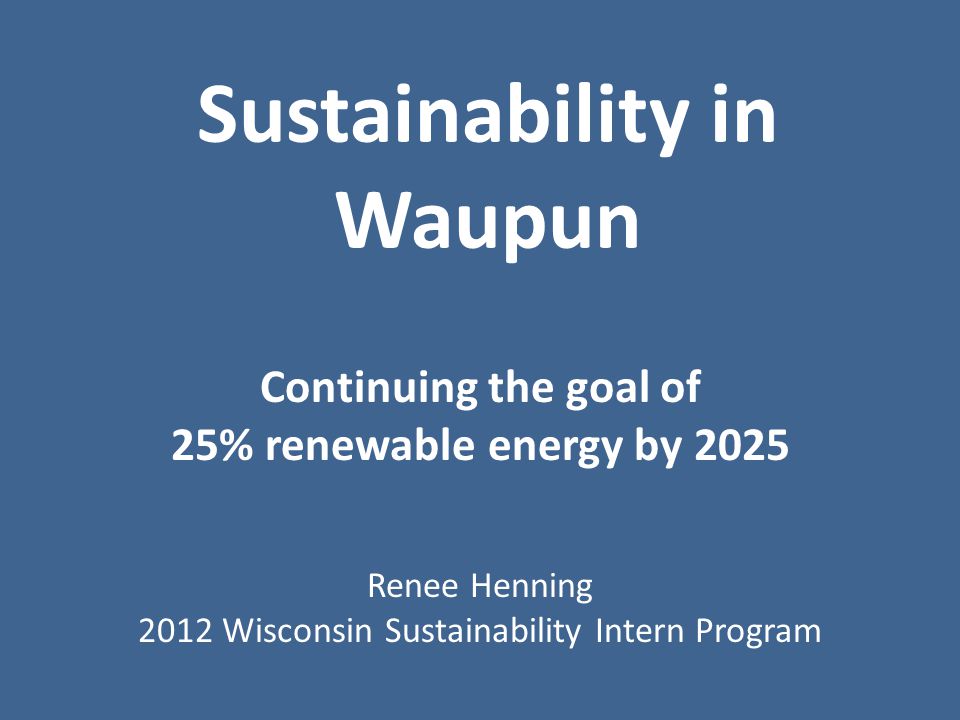

1 Sustainability in Waupun Continuing the goal of 25% renewable energy by 2025 Renee Henning 2012 Wisconsin Sustainability Intern Program

2 Projects Immediately Implemented Energy Miser Museum Boiler Pipes City Hall Attic Insulation Museum Attic Insulation Building Light Upgrade Street and Park Light Upgrade Greenhouse Gas Reduction

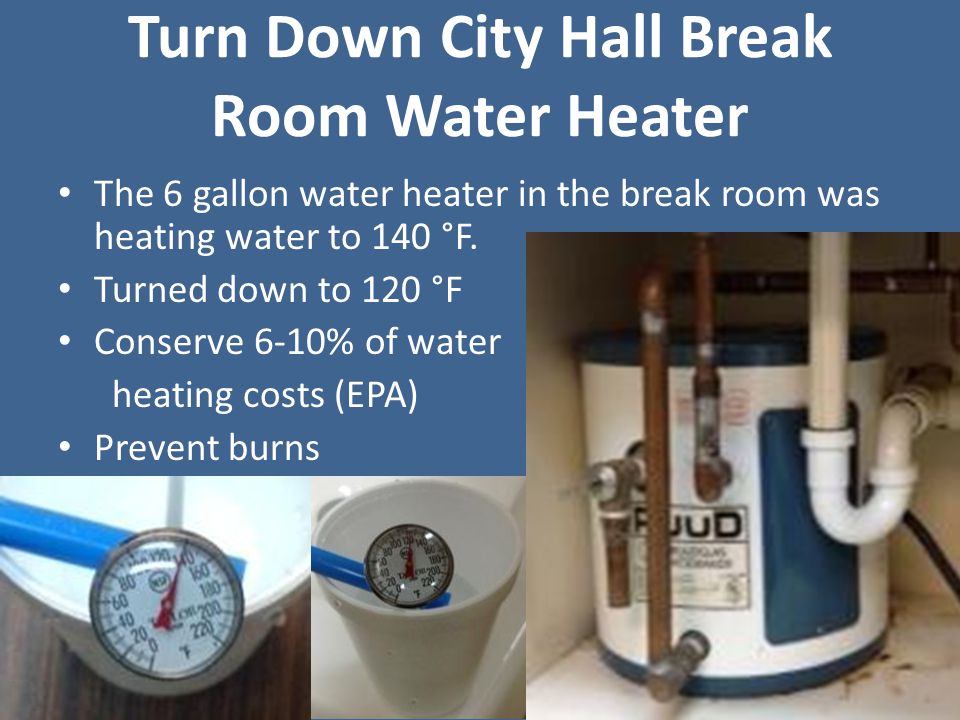

3 Turn Down City Hall Break Room Water Heater The 6 gallon water heater in the break room was heating water to 140 °F. Turned down to 120 °F Conserve 6-10% of water heating costs (EPA) Prevent burns

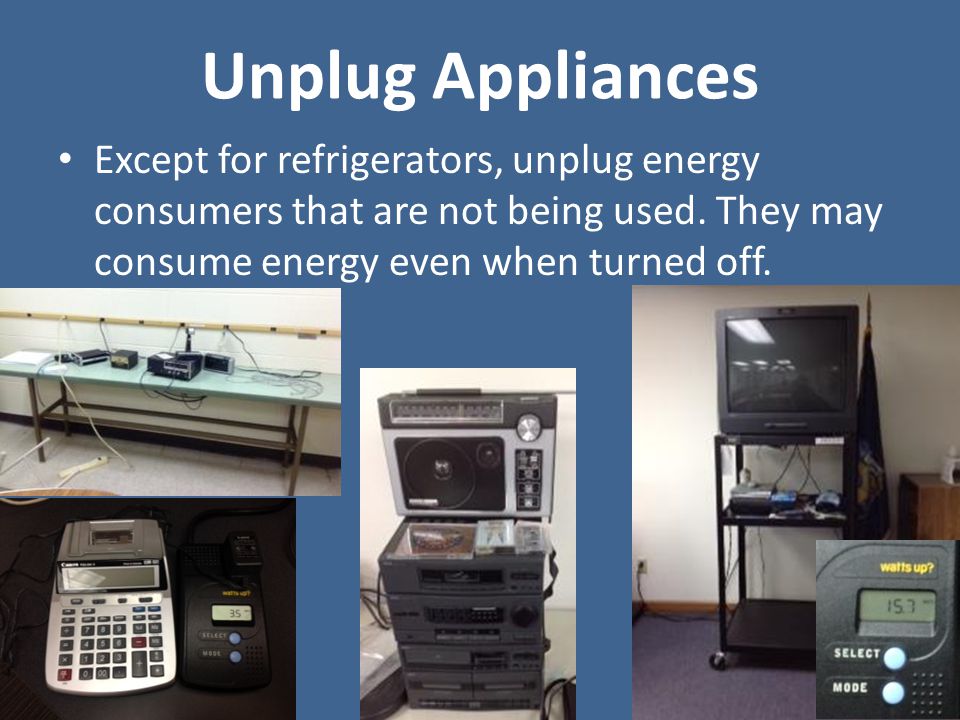

4 Unplug Appliances Except for refrigerators, unplug energy consumers that are not being used. They may consume energy even when turned off.

5 Project Priority by Payback

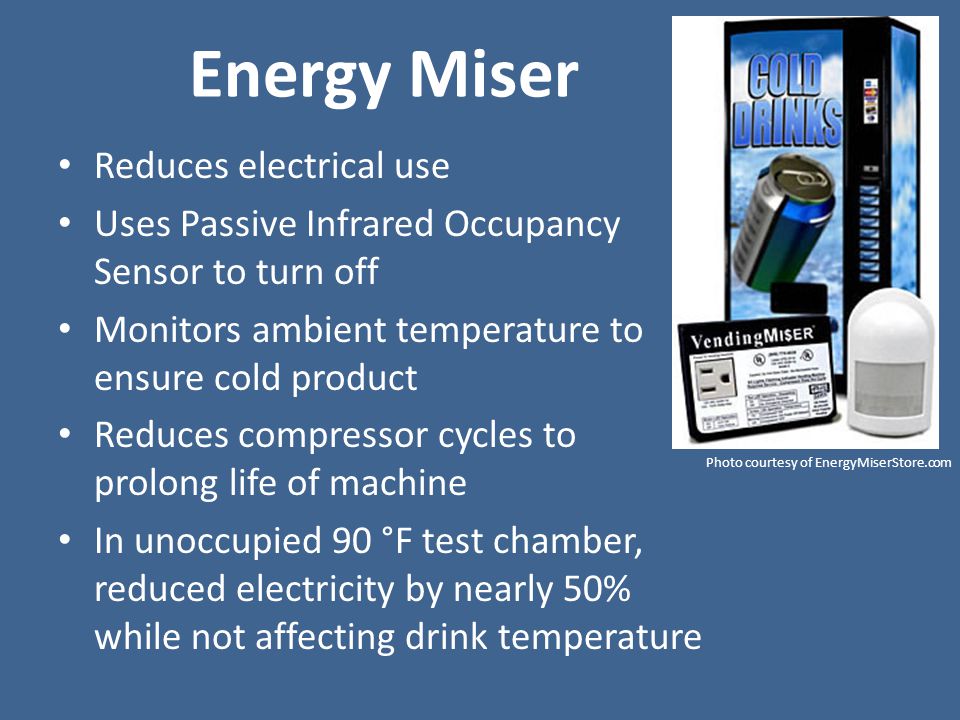

6 Energy Miser Reduces electrical use Uses Passive Infrared Occupancy Sensor to turn off Monitors ambient temperature to ensure cold product Reduces compressor cycles to prolong life of machine In unoccupied 90 °F test chamber, reduced electricity by nearly 50% while not affecting drink temperature Photo courtesy of EnergyMiserStore.com

7 Energy Miser Savings Minimum Min % Savings Min Annual Energy Savings (kW) Min Annual Cost Savings at $.10/kW with load manager22%642.4$64.24 with load manager and delamping51%1489.2$ Average Ave % Savings Ave Annual Energy Savings (kW) Ave Annual Cost Savings at $.10/kW with load manager33%963.6$96.36 with load manager and delamping56%1635.2$ Based on findings by the National Renewable Energy Laboratory

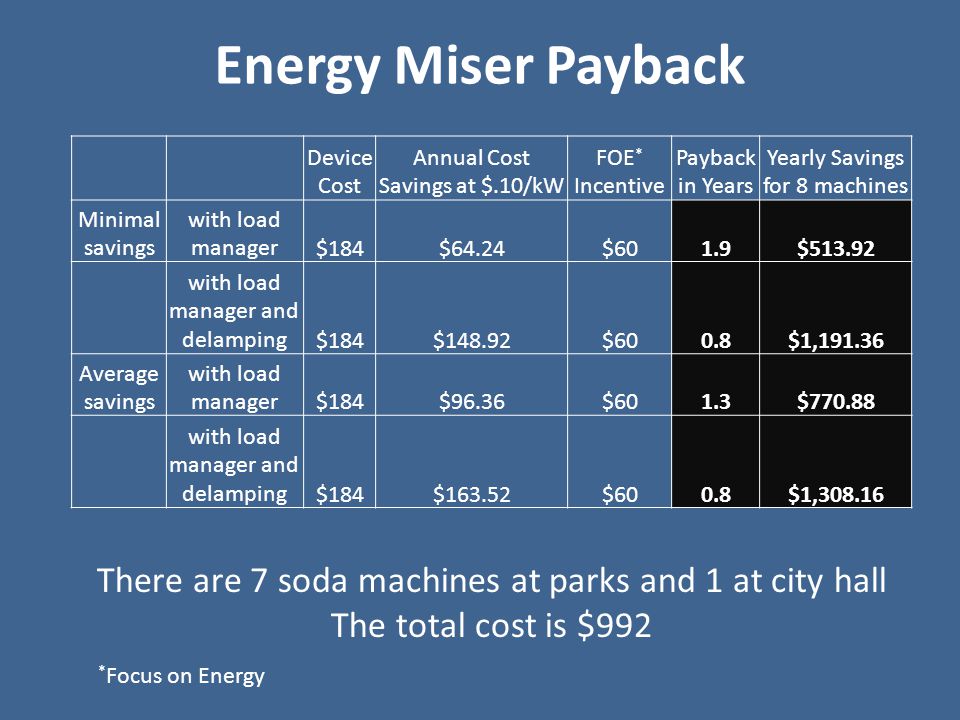

8 Energy Miser Payback Device Cost Annual Cost Savings at $.10/kW FOE * Incentive Payback in Years Yearly Savings for 8 machines Minimal savings with load manager$184$64.24$601.9$ with load manager and delamping$184$148.92$600.8$1, Average savings with load manager$184$96.36$601.3$ with load manager and delamping$184$163.52$600.8$1, There are 7 soda machines at parks and 1 at city hall The total cost is $992 * Focus on Energy

9 Museum Boiler Pipe Insulation Heat from the steam conducts onto the pipe and then conducts into the surrounding air Insulation will keep the heat in the steam Heat lost from the pipe can overheat an area, and waste energy Heat may not reach where it is needed because it dissipates into the air Insulation can reduce the energy lost from the system by 90% 2

10 Museum Boiler Pipe Insulation The pipes are not insulated

11 Museum Boiler Pipe Insulation Boiler room pipes are patched in all cases Yearly savings based on reduced insulating values and smaller pipes on average Added insulationCost FOE * Incentive Yearly SavingsPayback 1" main pipes$2,067$735$1, " main pipes$2,407$735$1, " main pipes and runouts$2,919$1,178$1, " main pipes and 1" runouts$3,259$1,178$1, * Focus on Energy

12 Insulate City Hall and Museum Attic EPA estimates that 20% of heating and cooling costs, or 10% of the electrical costs, can be saved through sealing and insulating a typical house 1.

13 City Hall Attic Insulation City Hall has no insulation

14 City Hall Attic Insulation Using Average Cost of Bids Using Lowest Bid Cost Additional R Total R Cost FOE * Incentive Savings per Year Payback in Years Payback after Incentive in Years 40 $5,000.00$1,186$1, $6,221.67$1,213$2, $7,525.00$1,232$2, Additional R Total R Cost FOE * Incentive Savings per Year Payback in Years Payback after Incentive in Years 40 $3,500$1,186$1, $4,340$1,213$2, $5,375$1,232$2, * Focus on Energy

15 Museum Attic Insulation Museum has initial insulation of R9 due to its condition

16 Museum Attic Insulation

17 Additional R Total R CostIncentive Savings per Year Payback in Years Payback after Incentive in Years 3040$1000$135$ $1200$146$ $1400$154$ Additional R Total R Cost FOE * Incentive Savings per Year Payback in Years Payback after Incentive in Years 3040$1,760.00$135$ $2,126.67$146$ $2,493.33$154$ Using Average Cost of Bids Using Lowest Bid Cost * Focus on Energy

18 Alliant Shared Savings Program A loan that is paid back with the energy savings over a maximum of 5 years 3% Administration Fee Can combine the City Hall and Museum projects for a larger contract amount It can be paid off early with no penalty Allows “shared savings” when the loan payment is less than the energy savings

19 Building Lights Project

20 Reflective Delamping Before After Still 48 foot candles at waist height

21 Building Lights Project Building Number of Fixtures FOE * Incentive Avg Purchase Cost w/ Incentive Yearly Savings Average Payback (yr) Fire Station90$550.00$3,345.57$ Police Station105$480.00$6,571.16$ City Hall Downstairs107$535.00$3,616.26$1, City Hall Upstairs207$1,150.00$5,937.41$1, Senior Center49$250.00$1,427.69$ Heritage Museum42$215.00$1,743.82$ Community Center13$33.00$729.28$ Library5$50.00$1,842.00$ Total Current Use618$3,263.00$25,213.19$4, * Focus on Energy

22 Building Maintenance Costs Bill Ganz Electric pays its employees $60 an hour Total Maintenance Cost: $3,000 Total Fixture and Maintenance Cost: $28,213.19

23 Street and Park Light Project

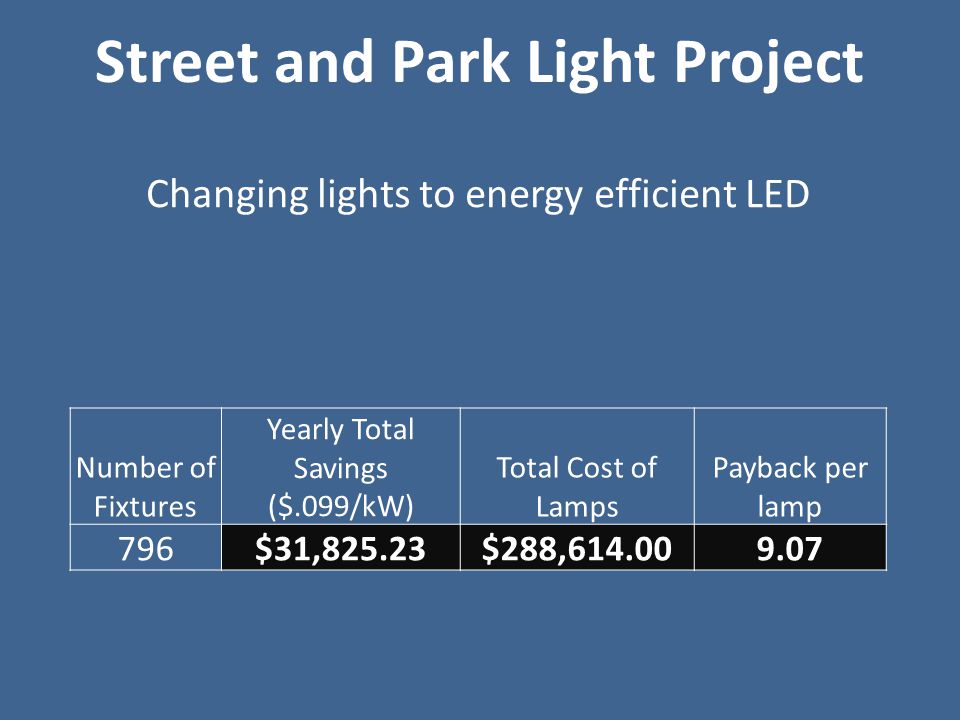

24 Number of Fixtures Yearly Total Savings ($.099/kW) Total Cost of Lamps Payback per lamp 796$31,825.23$288, Changing lights to energy efficient LED

25 Street Light Maintenance Costs Randy Posthuma (WPPI) estimated $300 for change out to LED per fixture Total Maintenance Cost $238,800 Total Fixture and Maintenance Cost $527,414

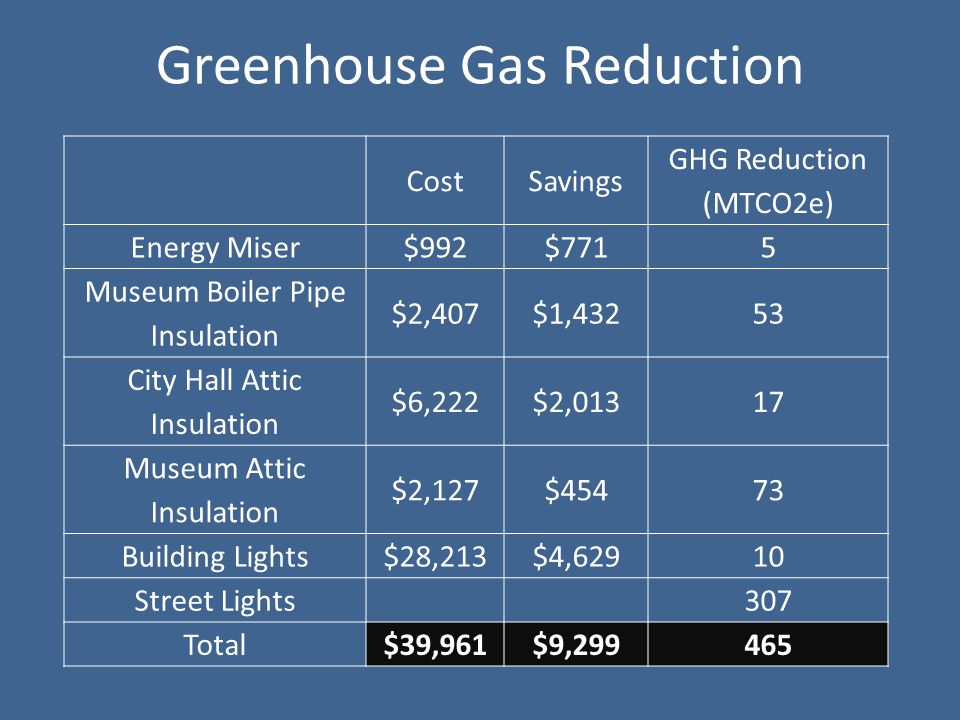

26 Greenhouse Gas Reduction CostSavings GHG Reduction (MTCO2e) Energy Miser$992$7715 Museum Boiler Pipe Insulation $2,407$1,43253 City Hall Attic Insulation $6,222$2,01317 Museum Attic Insulation $2,127$45473 Building Lights$28,213$4,62910 Street Lights 307 Total$39,961$9,299465

27 References 1. Environmental Protection Agency [EPA]. Methodology for Estimated Energy Savings from Cost-Effective Air Sealing and Insulating. Retrieved from: ethodology 2 United States Department of Energy [USDOE] Energy Efficiency & Renewable Energy- Advanced Manufacturing Office. January Insulate Steam Distribution and Condensate Return Lines. Retrieved from: _insulate.pdf

28 Thank you to the employees of the City of Waupun and to SHWEC for all the support. A special thanks to my faculty advisor, Jonathan Rivin, for all his advice.
