Lenovo ® ThinkServer ® RD350 and RD450 Speaker Name, Date.

Similar presentations


Presentation on theme: "Lenovo ® ThinkServer ® RD350 and RD450 Speaker Name, Date."— Presentation transcript:

1 Lenovo ® ThinkServer ® RD350 and RD450 Speaker Name, Date

2 2 Introducing Next-Generation Lenovo ThinkServer 2014 LENOVO. ALL RIGHTS RESERVED. ThinkServer RD350 ThinkServer RD450

3 3 ThinkServer Enhanced Portfolio 2014 LENOVO. ALL RIGHTS RESERVED. TD350 RD340 / RD440 RD350/RD450 RD550 / RD650 TS140 / TS440 SA120 RS140 Shipping First Server, Small / Branch Office SMB to Mid-sized Enterprise, Back Office Infrastructure & Storage Applications Database, Compute, Virtualization Direct-Attached Storage First server POS File/print SharePoint LOB/industry apps Virtualization Web server Database server Compute-intensive workloads LOB apps Hadoop/Lustre Database server File/print Mid- to large-scale business processing Distributed database Data collection, analysis DAS enclosure Up to 51.2 TB Shipping New Shipping

4 4 What’s new  Next gen mainstream CPUs up to 105W  267% more memory capacity with next gen DDR4  Up to 50%* more drive bays  Range of Platinum/Titanium PSU  Improved systems management capabilities Client Value  Increased performance and faster IO for business applications  Highly efficient flexible design to reduce power consumption and cost  Scalable design purposefully designed to grow with your business and keep costs low  Remote management capabilities for increased reliability and uptime RD350 and RD450 are Purposefully Designed 2014 LENOVO. ALL RIGHTS RESERVED. *RD450 has ” drive vs. RD440 with ” drive only

5 5 ThinkServer Rack Transitions PRICE SCALABILITY 2P RD350 Next-gen processor More memory (DDR4) More I/O, more power options RD450 Next-gen processor More memory (DDR4), more internal storage More I/O, more power options AnyRAID on 2.5” configuration RD340 ► RD350 RD440 ► RD LENOVO. ALL RIGHTS RESERVED.

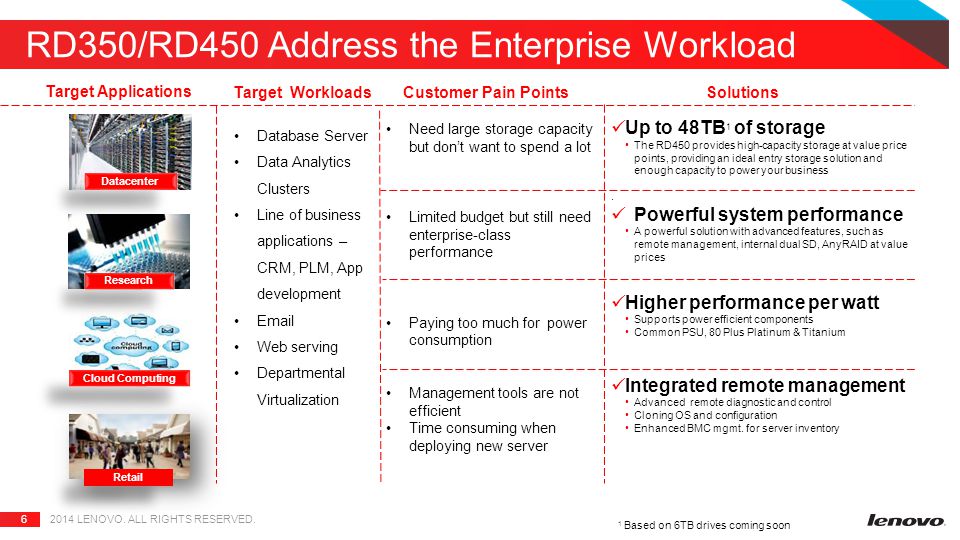

6 6 RD350/RD450 Address the Enterprise Workload 2014 LENOVO. ALL RIGHTS RESERVED. Target Applications Target Workloads Database Server Data Analytics Clusters Line of business applications – CRM, PLM, App development Web serving Departmental Virtualization Customer Pain Points Solutions Retail Cloud Computing Research Datacenter Need large storage capacity but don’t want to spend a lot Limited budget but still need enterprise-class performance Paying too much for power consumption Management tools are not efficient Time consuming when deploying new server Up to 48TB 1 of storage The RD450 provides high-capacity storage at value price points, providing an ideal entry storage solution and enough capacity to power your business. Powerful system performance A powerful solution with advanced features, such as remote management, internal dual SD, AnyRAID at value prices Higher performance per watt Supports power efficient components Common PSU, 80 Plus Platinum & Titanium Integrated remote management Advanced remote diagnostic and control Cloning OS and configuration Enhanced BMC mgmt. for server inventory 1 Based on 6TB drives coming soon

7 7 ThinkServer RD350 Key Messages 2014 LENOVO. ALL RIGHTS RESERVED. High Performance for Space Constraint Environment An excellent 1U rack-optimized server fit for small and medium businesses Up to 105W processing power with new DDR4 memory Versatile storage/network adapter card options to suit your needs Highly Reliable and Easily Fits into Your Environment Delivers high reliability with industry-leading environmental design Ensure interoperability through our strategic partnerships with industry leaders Additional energy savings with 80 Plus Titanium power supply Powerful Software Solutions Integrated provisioning and deployment tools for easier and faster deployment Enterprise manageability with enhanced hardware monitoring, alerts and diagnostics Based on industry standards and with Partner Packs to easily fit in to users environment Lenovo ThinkServer RD350 Outstanding performance, built-in value and new intuitive management tools

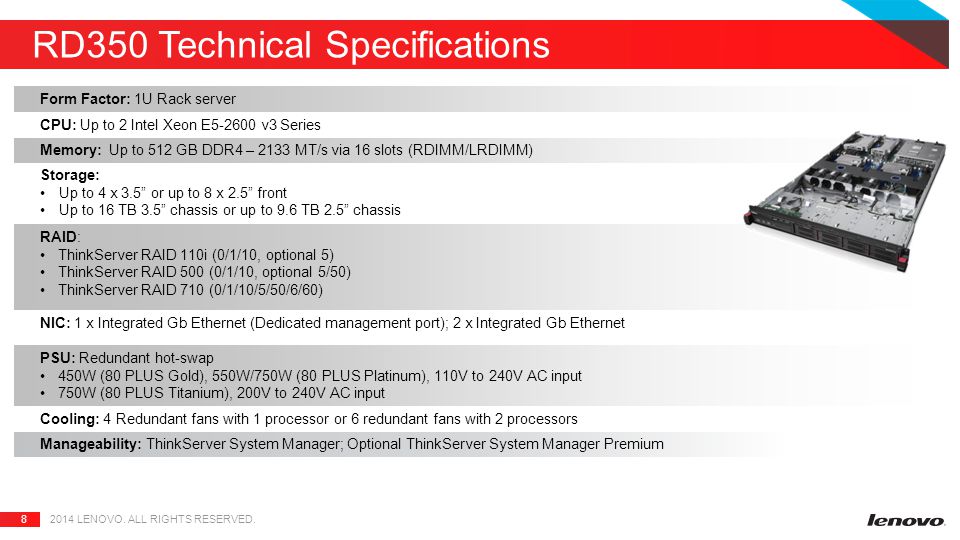

8 8 RD350 Technical Specifications 2014 LENOVO. ALL RIGHTS RESERVED. Form Factor: 1U Rack server CPU: Up to 2 Intel Xeon E v3 Series Memory: Up to 512 GB DDR4 – 2133 MT/s via 16 slots (RDIMM/LRDIMM) Storage: Up to 4 x 3.5” or up to 8 x 2.5” front Up to 16 TB 3.5” chassis or up to 9.6 TB 2.5” chassis RAID: ThinkServer RAID 110i (0/1/10, optional 5) ThinkServer RAID 500 (0/1/10, optional 5/50) ThinkServer RAID 710 (0/1/10/5/50/6/60) NIC: 1 x Integrated Gb Ethernet (Dedicated management port); 2 x Integrated Gb Ethernet PSU: Redundant hot-swap 450W (80 PLUS Gold), 550W/750W (80 PLUS Platinum), 110V to 240V AC input 750W (80 PLUS Titanium), 200V to 240V AC input Cooling: 4 Redundant fans with 1 processor or 6 redundant fans with 2 processors Manageability: ThinkServer System Manager; Optional ThinkServer System Manager Premium

9 9 ThinkServer RD450 Key Messages 2014 LENOVO. ALL RIGHTS RESERVED. Versatile Storage and Flexible IO More storage capacity and faster disk performance PCIe 3.0-enabled expansion slots and flexible I/O options. Extremely flexible design on drive and media bays Highly Reliable and Easily Fits into Your Environment Delivers high reliability with industry-leading environmental design Ensure interoperability through our strategic partnerships with industry leaders Additional energy savings with 80 Plus Titanium power supply Powerful Software Solutions Integrated provisioning and deployment tools for easier and faster deployment Enterprise manageability with enhanced hardware monitoring, alerts and diagnostics Based on industry standards and with Partner Packs to easily fit in to users environment Lenovo ThinkServer RD450 Tremendous increase in memory capacity and generous storage, all at a manageable price point

10 10 RD450 Technical Specifications 2014 LENOVO. ALL RIGHTS RESERVED. Form Factor: 2U Rack server CPU: Up to 2 Intel Xeon E v3 Series Memory: Up to 512 GB DDR4 – 2133 MT/s via 16 slots (RDIMM/LRDIMM) Storage: Up to 8 x 3.5” or up to 24 x 2.5” Up to 32 TB 3.5” chassis or up to 9.6 TB 2.5” chassis RAID: ThinkServer RAID 110i AnyRAID (0/1/10, optional 5) ThinkServer RD450 RAID 510i AnyRAID Adapter (0/1/10, optional 5) ThinkServer RD450 RAID 720i AnyRAID Adapter (0/1/10/5/50/6/60) ThinkServer RD450 RAID 720ix AnyRAID Adapter (0/1/10/5/50/6/60) ThinkServer RAID 110i (0/1/10, optional 5) ThinkServer RAID 500 (0/1/10, optional 5/50) ThinkServer RAID 710 (0/1/10/5/50/6/60) NIC: 1 x Integrated Gb Ethernet (Dedicated management port); 2 x Integrated Gb Ethernet PSU: Redundant hot-swap 450W (80 PLUS Gold), 50W/750W/1100W (80 PLUS Platinum), 110V to 240V AC input 750W (80 PLUS Titanium), 200V to 240V AC input Cooling: 3 Redundant fans with 1 processor or 4 redundant fans with 2 processors Manageability: ThinkServer System Manager; Optional ThinkServer System Manager Premium

11 11  ThinkServer Power Planner accurately estimates your power requirements to ensure appropriate levels of power and cooling  ThinkServer Energy Manager lets you take control of power usage through improved data analysis to help lower overall TCO  ThinkServer Diagnostics Tool provides comprehensive tools for troubleshooting on ThinkServer systems and installed options  ThinkServer Deployment Manager helps you efficiently install Windows and Linux operating systems, device drivers and firmware  ThinkServer System Manager is a built-in management module that provides remote access to system settings. The optional ThinkServer System Manager Premium provides remote KVM  Partner packs for Microsoft and VMware allow you to manage and monitor your ThinkServer environment from VMware vCenter or Microsoft System Center Operations Manager ThinkServer System Management Tools 2014 LENOVO. ALL RIGHTS RESERVED. ThinkServer Power PlannerThinkServer Energy ManagerThinkServer DiagnosticsThinkServer Deployment Manager ThinkServer System Manager

12 LENOVO. ALL RIGHTS RESERVED. Find everything you need to know about ThinkServer and ThinkServer Services and Options at: ThinkServer Services Portfolio (Optional): Asset Tagging, Online Data Backup, Asset Recovery Service, Financing Next Business Day 9x5 Next Business Day Onsite Response Service Some parts are customer replaceable Priority Technical Support + 4 Hr. Onsite Response Time 9x5 All parts are tech installed Priority Technical Support + Keep your Drive + 4 Hr. Onsite Response Time 24x7 All parts are tech installed A comprehensive and flexible portfolio of services designed to address customers’ business needs and budgets Good Better Best

13 13 Take Action  Work with us on a proof of concept to create the right solution for you  Get a demo server/ storage solution to test in your environment  Visit lenovo.com/thinkserverlenovo.com/thinkserver 2014 LENOVO. ALL RIGHTS RESERVED.

14
