1. www.helsinki.fi/yliopisto Ultrasound Microscopy and High Frequency Coded Signals Antti Meriläinen, Edward Hæggström

2. www.helsinki.fi/yliopisto Using high frequency acoustic waves for mm-/µm-scale imaging Method is non-destructive It “Sees” inside the sample Ultrasound images differences of acoustic impedances Ultrasound Microscopy What it is?

3. www.helsinki.fi/yliopisto Ultrasound Imaging TOF image Amplitude image

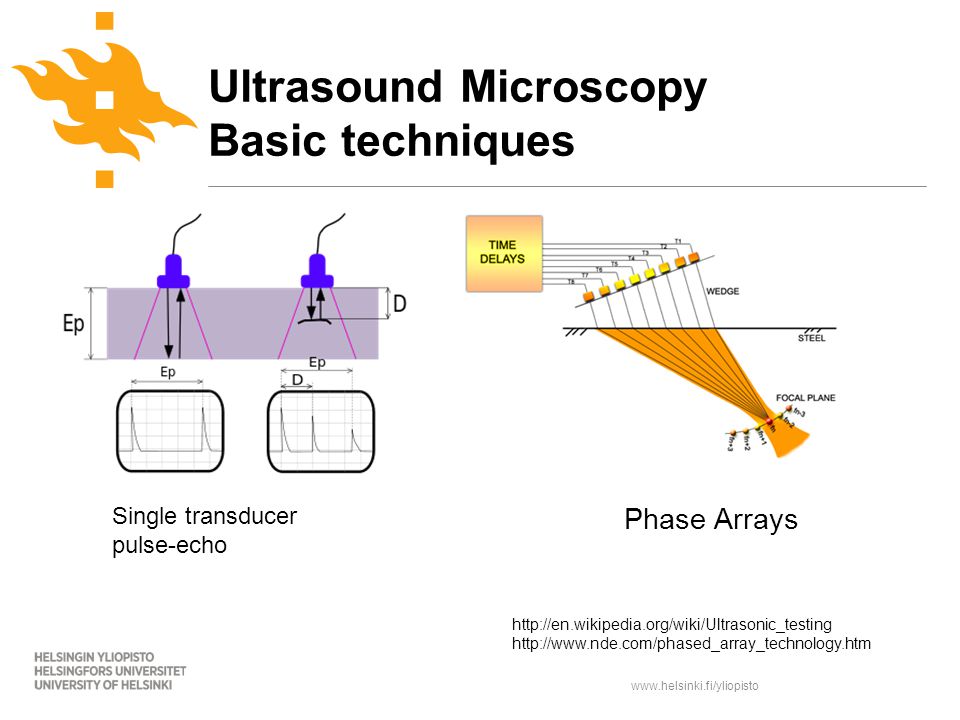

4. www.helsinki.fi/yliopisto Ultrasound Microscopy Basic techniques Phase Arrays Single transducer pulse-echo http://en.wikipedia.org/wiki/Ultrasonic_testing http://www.nde.com/phased_array_technology.htm

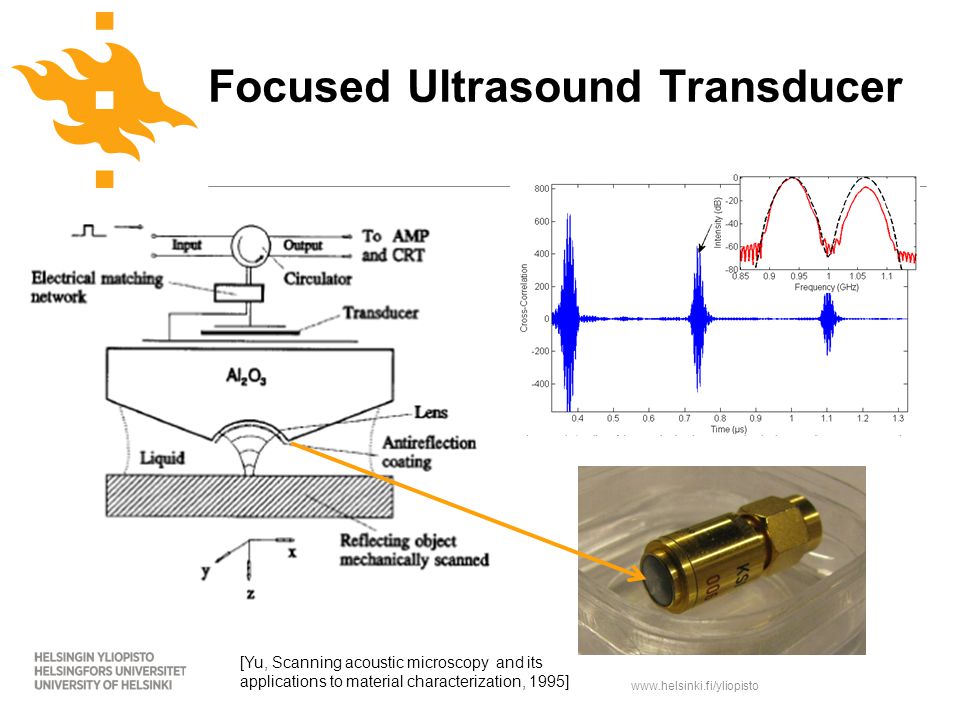

5. www.helsinki.fi/yliopisto Focused Ultrasound Transducer [Yu, Scanning acoustic microscopy and its applications to material characterization, 1995]

6. www.helsinki.fi/yliopisto TX Pulser, delta spike excitation Gated sinus wave ‒ For high frequencies ~1 GHz RX Protection circuit & Pre-amplifier (Envelope detector / pulse shaper) Oscilloscope Tx/Rx for USM Camacho, J., Fritsch, C.: ‘Protection circuits for ultrasound applications’ Ultrasonics, Ferroelectrics and Frequency Control, IEEE Transactions, 2008, 55, (5), pp.1160-1164

7. www.helsinki.fi/yliopisto Delta spike excitation Stress for transducer and sample Energy/amplitude variation with high PRF Gated sinus Stress for transducer and sample Uncertainty of Time-of-Fly (TOF) ‒ Depth resolution Challenges with current techniques

8. www.helsinki.fi/yliopisto Coded USM Coded signals Electronics Signal generation Switch and timing Preamplifier Signal Synthesis Ultrasound measurements RF-design Components PCB layout

9. www.helsinki.fi/yliopisto Tx signal is wave packed Frequency can be programmed Phase can be programmed Envelope (amplitude over time) can be programmed Example linear frequency modulation (LFM)/chirp Coded Signals

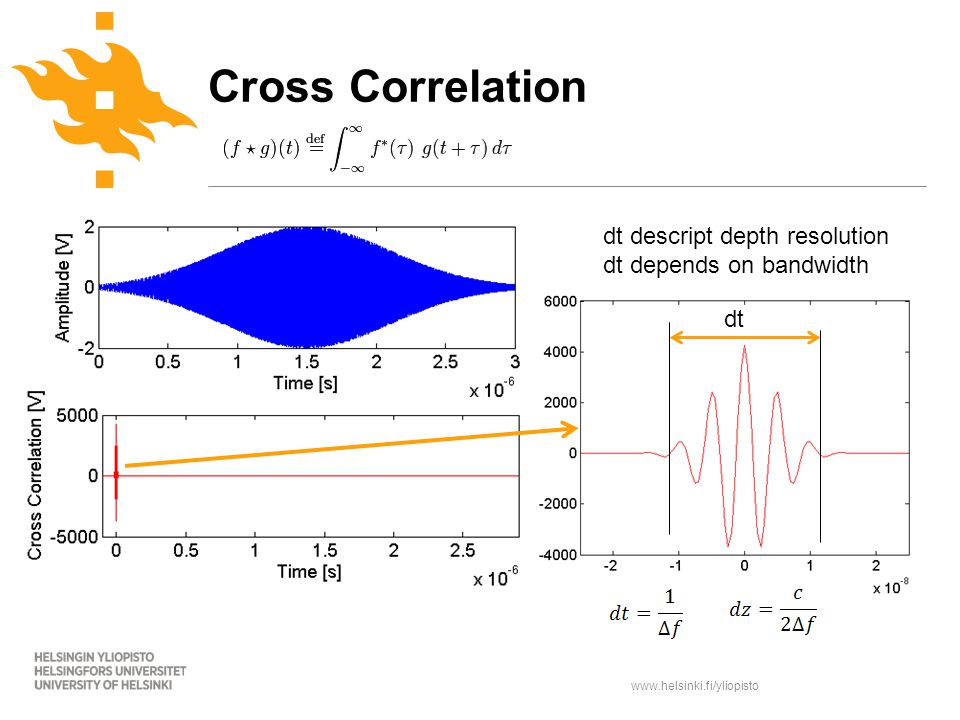

10. www.helsinki.fi/yliopisto Cross Correlation dt descript depth resolution dt depends on bandwidth dt

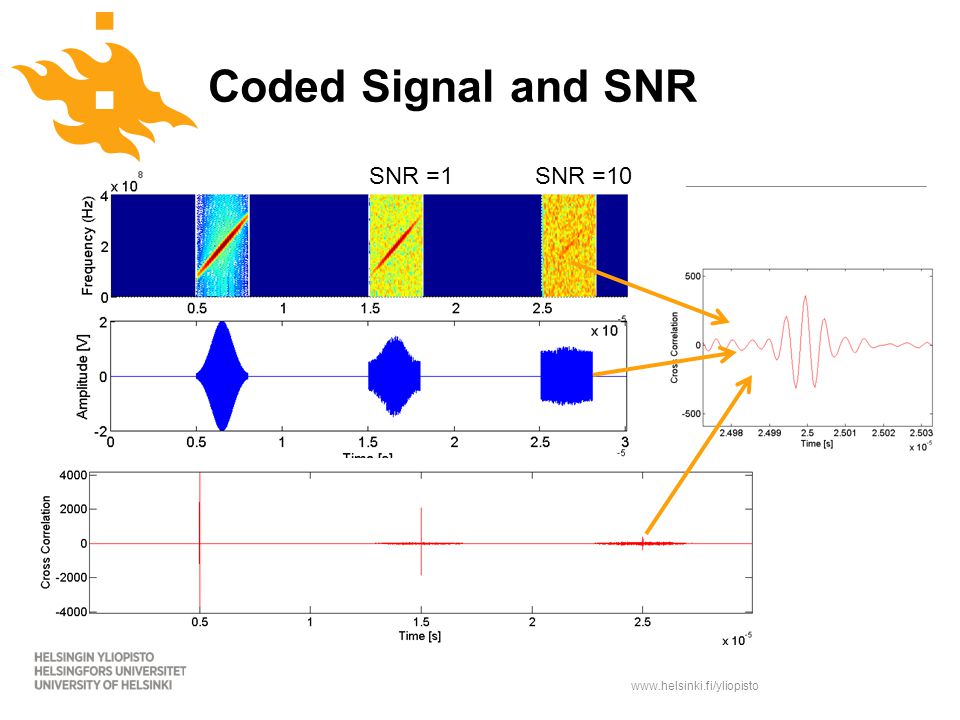

11. www.helsinki.fi/yliopisto Coded Signal and SNR SNR =10SNR =1

12. www.helsinki.fi/yliopisto Arbitrary waveform generators Digital to Analog converter (DAC) Bandwidth up to 120 MHz (2 GS/s) If you have money: 5.6 GHz (24 GS/s) High frequency signal generators Output: continuous sine wave Frequency range up to 4+ GHz Narrow modulation bandwidth (less than 1 kHz) Signal generation Numerical vector to Electric signal

13. www.helsinki.fi/yliopisto Modulation = change carrier wave by signal Amplitude modulation (AM) ‒ Quadrature amplitude modulation (QAM) Frequency modulation (FM) Phase Modulation (PM) Many other …. Modulation techniques Modulation

14. www.helsinki.fi/yliopisto AM: QAM: QAM / IQ-modulation

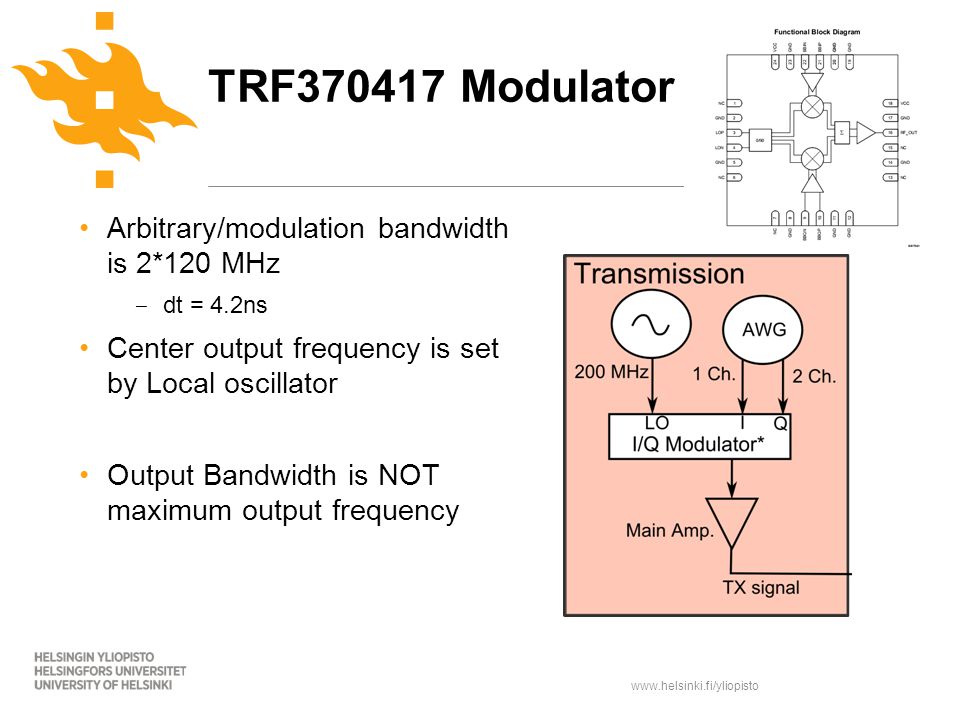

15. www.helsinki.fi/yliopisto TRF370417 Modulator Arbitrary/modulation bandwidth is 2*120 MHz ‒ dt = 4.2ns Center output frequency is set by Local oscillator Output Bandwidth is NOT maximum output frequency

16. www.helsinki.fi/yliopisto Modulator outputs 1 cm LoQI RF Out

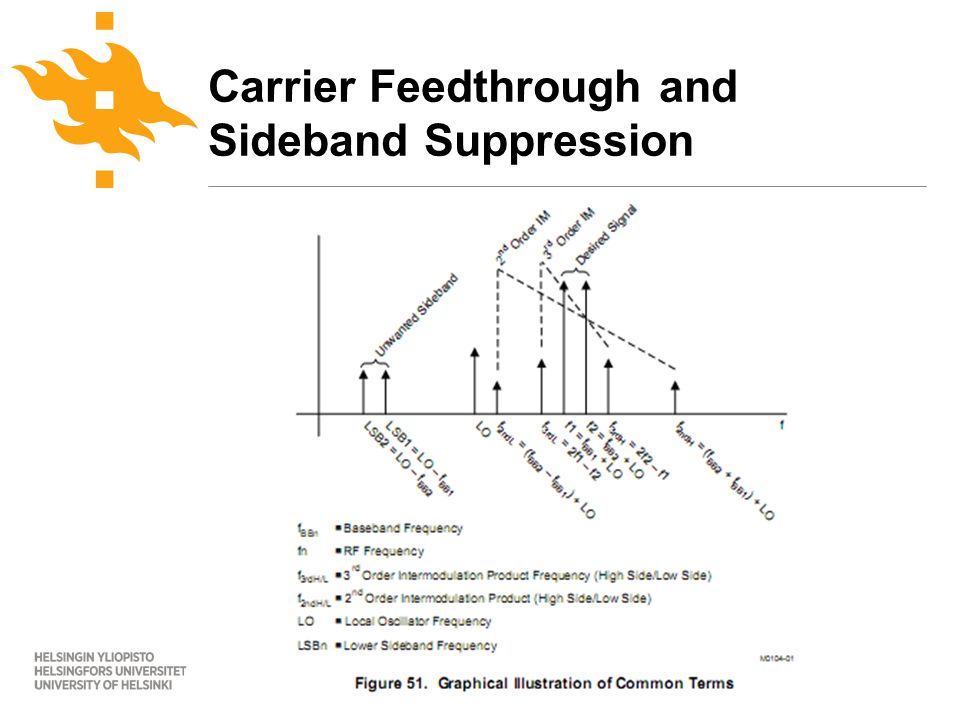

17. www.helsinki.fi/yliopisto Carrier Feedthrough and Sideband Suppression

18. www.helsinki.fi/yliopisto Preamplifier

19. www.helsinki.fi/yliopisto Amplification Cascade design Voltage range Max/Min signal input strenght Impedance maching Input impedance Output impedance DC-blocks Capacitors and inductos for high frequencies Same component can be tunet for different band Preamplifier Design Modulator -> Attenuator(-60 dB) -> Preamplifier(+55 dB)

20. www.helsinki.fi/yliopisto Receiving during transmission is impossible Transducer delay line gives time limit for coded signal Typically 0.3 – 5 µs Signal generator limits coded length 8 µs Maximize signal time and minimize switching time Switch and Timing

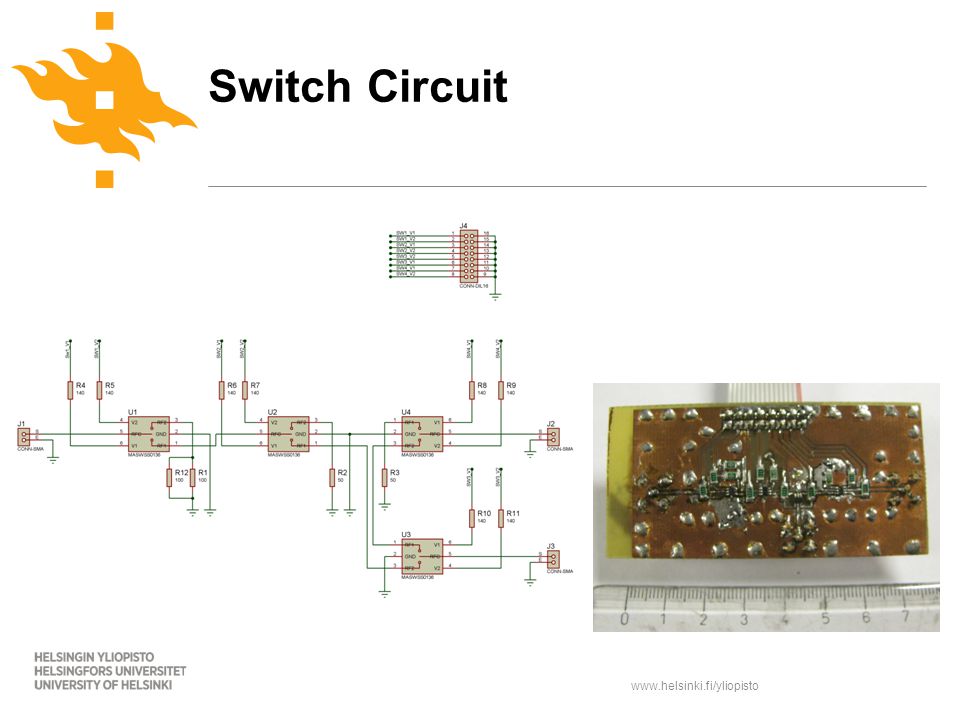

21. www.helsinki.fi/yliopisto Switch Circuit

22. www.helsinki.fi/yliopisto Power handling Bandwidth Attenuation Insertion loss (Smaller is better) Isolation (Higher is better) Switching time Glitch AC/DC coupling Control voltages Switch designing

23. www.helsinki.fi/yliopisto Circuit based on AVR µController Programmable Predictable Timing resolution is 62.5 ns AVR trigs AWG and oscilloscope and controls the switches Timing

24. www.helsinki.fi/yliopisto Timing Circuit

25. www.helsinki.fi/yliopisto Coded USM Coded signals Electronics Signal generation Switch and timing Preamplifier Signal Synthesis Ultrasound measurements RF-design Components PCB layout

26. www.helsinki.fi/yliopisto I and Q are numerical signals that can be generated by Matlab Signal generation How to generate I and Q RF LO sin LO cos XX QI LP Matlab RF LO sin LO cos XX QI + Modulator AWG I & Q

27. www.helsinki.fi/yliopisto Results with 100 – 300 MHz 27/15 Transmitted signal Received A- line B-scan image

28. www.helsinki.fi/yliopisto Signal-to-noise ratios (SNR) of surface echoes were estimated to compare coded excitation and delta spike excitation Preliminary results showed that coded chirp signal excitation increased mean SNR (16±3) dB for 75 MHz transducer Results from 2010: 30 – 70 MHz Coded signal Pulse-echo measurement using a coded 5 V pp chirp signal excitation at 30-70 MHz (left) and a 33 V pp delta spike excitation (right). The coded excitation increased mean SNR (16±3) dB.

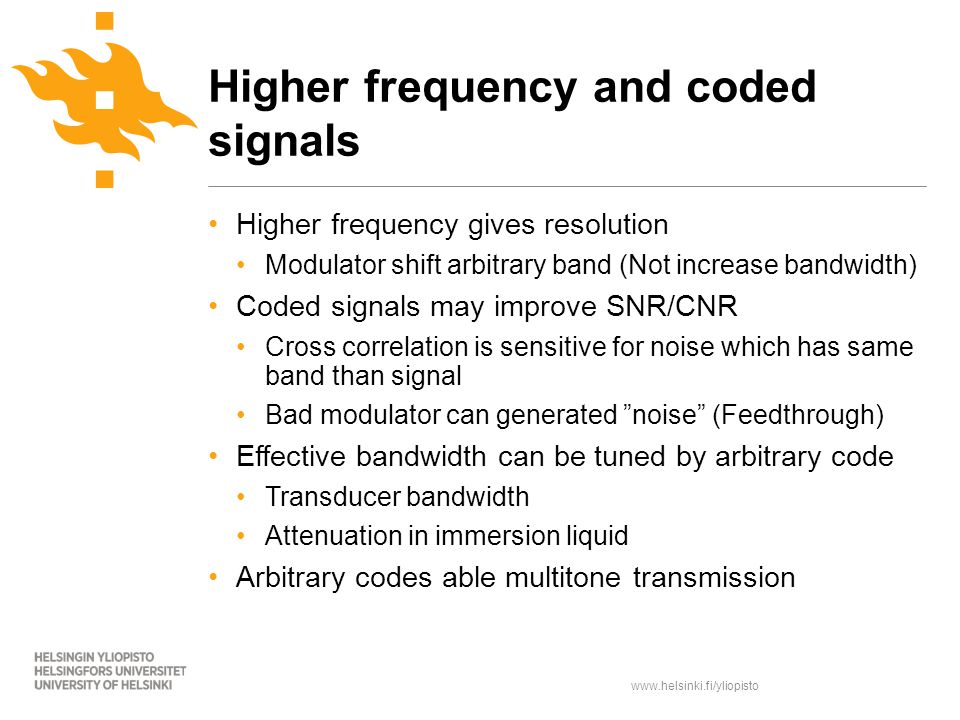

29. www.helsinki.fi/yliopisto Higher frequency and coded signals Higher frequency gives resolution Modulator shift arbitrary band (Not increase bandwidth) Coded signals may improve SNR/CNR Cross correlation is sensitive for noise which has same band than signal Bad modulator can generated ”noise” (Feedthrough) Effective bandwidth can be tuned by arbitrary code Transducer bandwidth Attenuation in immersion liquid Arbitrary codes able multitone transmission

30. www.helsinki.fi/yliopisto RF design Impedance matching Single-end vs. Differential signals Available IC components: Amplifiers Attenuators Switches Modulators / Demodulators Power detector Clock generator (PLL/VCO) All components are SMD

31. www.helsinki.fi/yliopisto Single-End vs. Differential signals Differential signals: Single supply No ground loops Longer signal path Reduces common-mode noise (noise from ground) Paired signal is required Single Simpler design (Dual supply) There is amplifiers for conversion

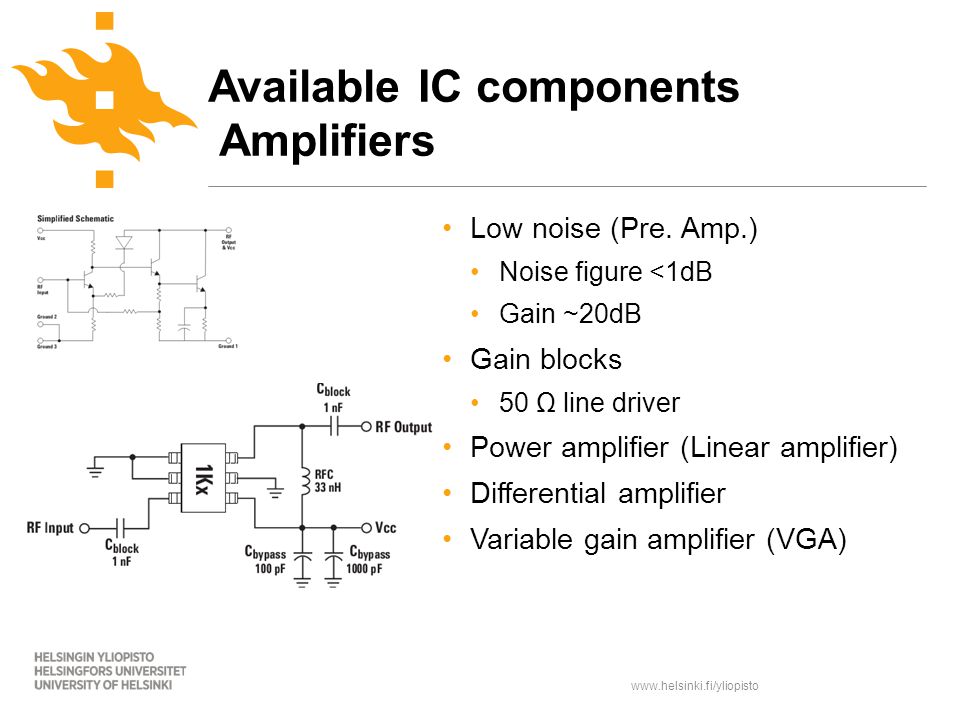

32. www.helsinki.fi/yliopisto Available IC components Amplifiers Low noise (Pre. Amp.) Noise figure <1dB Gain ~20dB Gain blocks 50 Ω line driver Power amplifier (Linear amplifier) Differential amplifier Variable gain amplifier (VGA)

33. www.helsinki.fi/yliopisto Available IC components Modulators

34. www.helsinki.fi/yliopisto Available IC components Modulators
