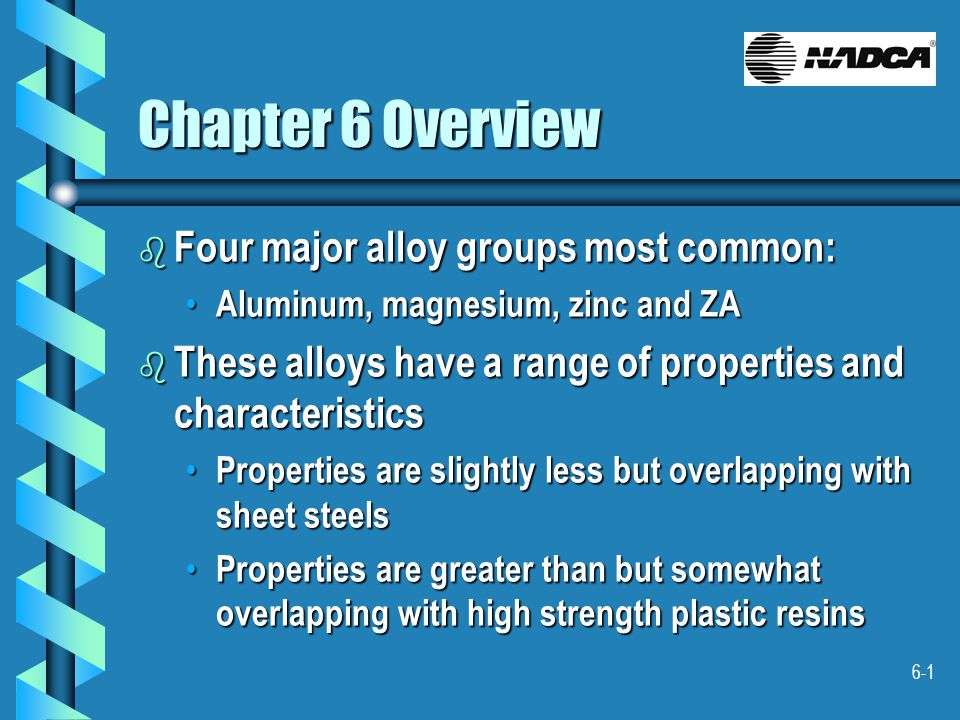

1 6-1 Chapter 6 Overview b Four major alloy groups most common: Aluminum, magnesium, zinc and ZA Aluminum, magnesium, zinc and ZA b These alloys have a range of properties and characteristics Properties are slightly less but overlapping with sheet steels Properties are slightly less but overlapping with sheet steels Properties are greater than but somewhat overlapping with high strength plastic resins Properties are greater than but somewhat overlapping with high strength plastic resins

2 6-2 Chapter 6 Objectives b Correctly identify the most common alloy from each major group b Identify the alloy with the highest strength b Identify the major alloying ingredients from an alloy specification b List nine important criteria used to select an alloy for a particular job

3 6-3 New Terms b Tensile strength Maximum stress achieved when pulling a test specimen to failure in the direction of its length Maximum stress achieved when pulling a test specimen to failure in the direction of its length b Yield strength Level of strength at which elastic strain becomes plastic strain Level of strength at which elastic strain becomes plastic strain

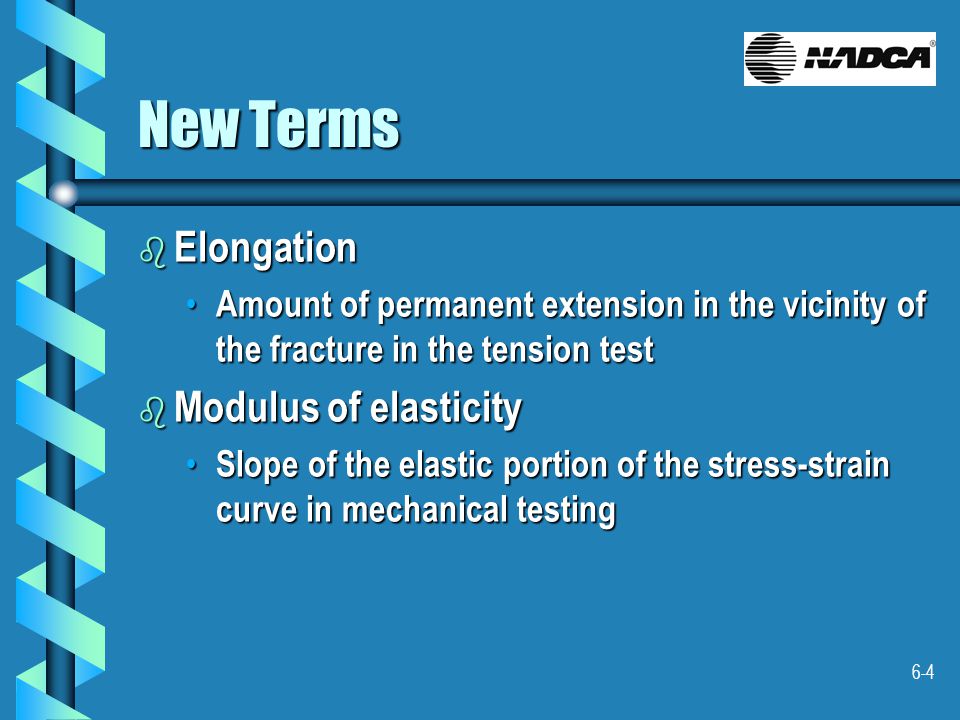

4 6-4 New Terms b Elongation Amount of permanent extension in the vicinity of the fracture in the tension test Amount of permanent extension in the vicinity of the fracture in the tension test b Modulus of elasticity Slope of the elastic portion of the stress-strain curve in mechanical testing Slope of the elastic portion of the stress-strain curve in mechanical testing

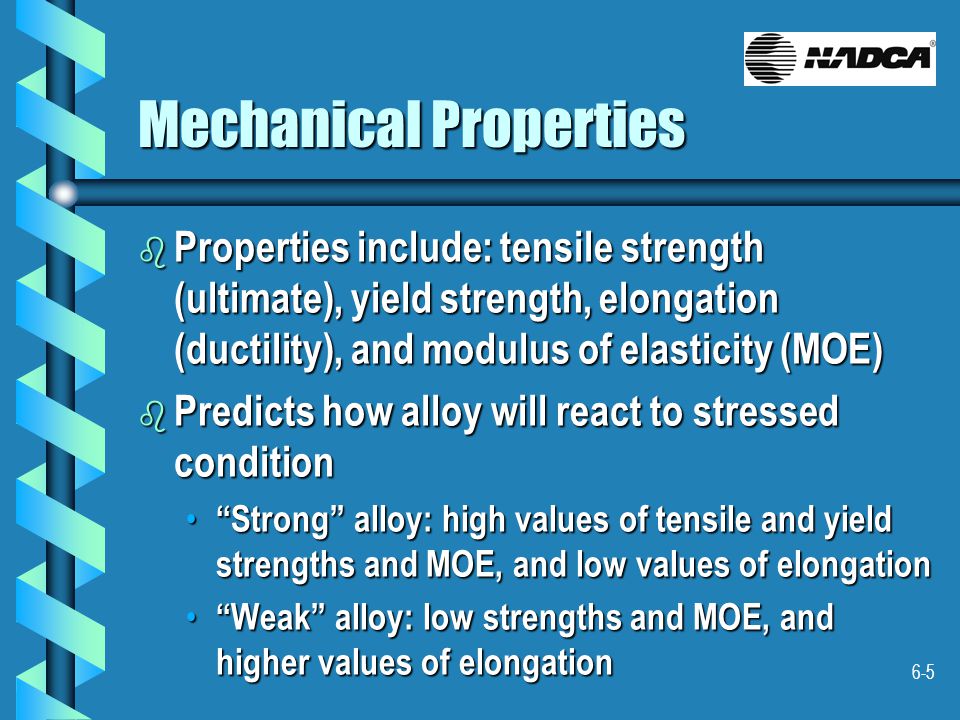

5 6-5 Mechanical Properties b Properties include: tensile strength (ultimate), yield strength, elongation (ductility), and modulus of elasticity (MOE) b Predicts how alloy will react to stressed condition “Strong” alloy: high values of tensile and yield strengths and MOE, and low values of elongation “Strong” alloy: high values of tensile and yield strengths and MOE, and low values of elongation “Weak” alloy: low strengths and MOE, and higher values of elongation “Weak” alloy: low strengths and MOE, and higher values of elongation

6 6-6 Aluminum Alloy Characteristics b Has a specific gravity of 2.7= lightweight b As a base, it has 3 primary alloying ingredients: silicon, copper and magnesium b All the other ingredients can be called impurities In some cases impurities must be controlled at specific levels, in other cases the level of impurity may be an economic compromise In some cases impurities must be controlled at specific levels, in other cases the level of impurity may be an economic compromise

7 6-7 Aluminum Product Applications b 380 aluminum alloy most commonly used Lawn mower housings, electronics chassis, engine components, home appliances, tools Lawn mower housings, electronics chassis, engine components, home appliances, tools b 383 and 384: for intricate components, improved die filling, improved resistance to hot cracking b 360: improved corrosion resistance, superior strength

8 6-8 Aluminum Product Applications b 443: greatest ductility b 413: excellent pressure tightness, highly fluid and useful for intricate detail b 390: greatest wear resistance b 518: very good corrosion resistance and ductility; used in marine and aircraft hardware and also in escalators

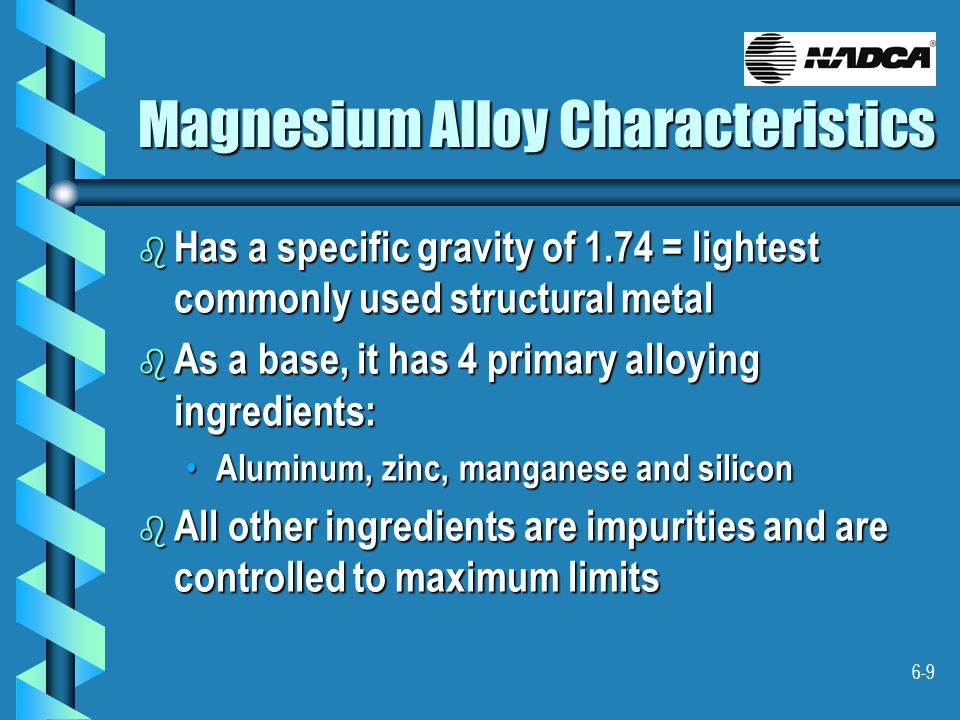

9 6-9 Magnesium Alloy Characteristics b Has a specific gravity of 1.74 = lightest commonly used structural metal b As a base, it has 4 primary alloying ingredients: Aluminum, zinc, manganese and silicon Aluminum, zinc, manganese and silicon b All other ingredients are impurities and are controlled to maximum limits

10 6-10 Magnesium Product Applications b AZ91D: found in drive train automotive components as well as handheld and laptop computers b AM60A: has good elongation and toughness; used in automotive wheels and steering wheels and archery equipment b AS41A: has creep strength at elevated temperatures

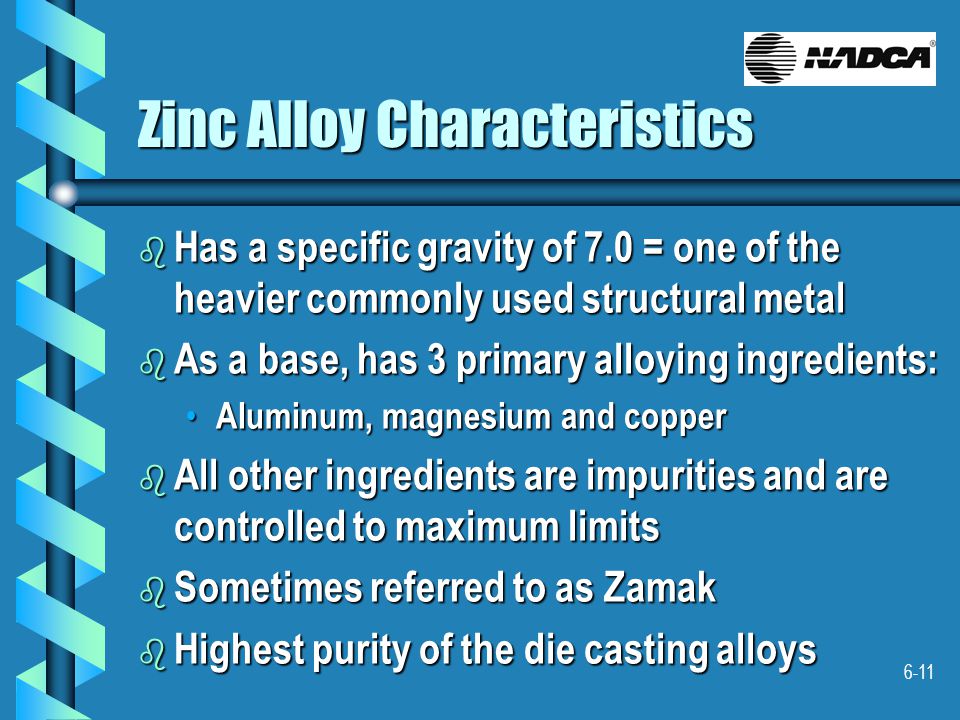

11 6-11 Zinc Alloy Characteristics b Has a specific gravity of 7.0 = one of the heavier commonly used structural metal b As a base, has 3 primary alloying ingredients: Aluminum, magnesium and copper Aluminum, magnesium and copper b All other ingredients are impurities and are controlled to maximum limits b Sometimes referred to as Zamak b Highest purity of the die casting alloys

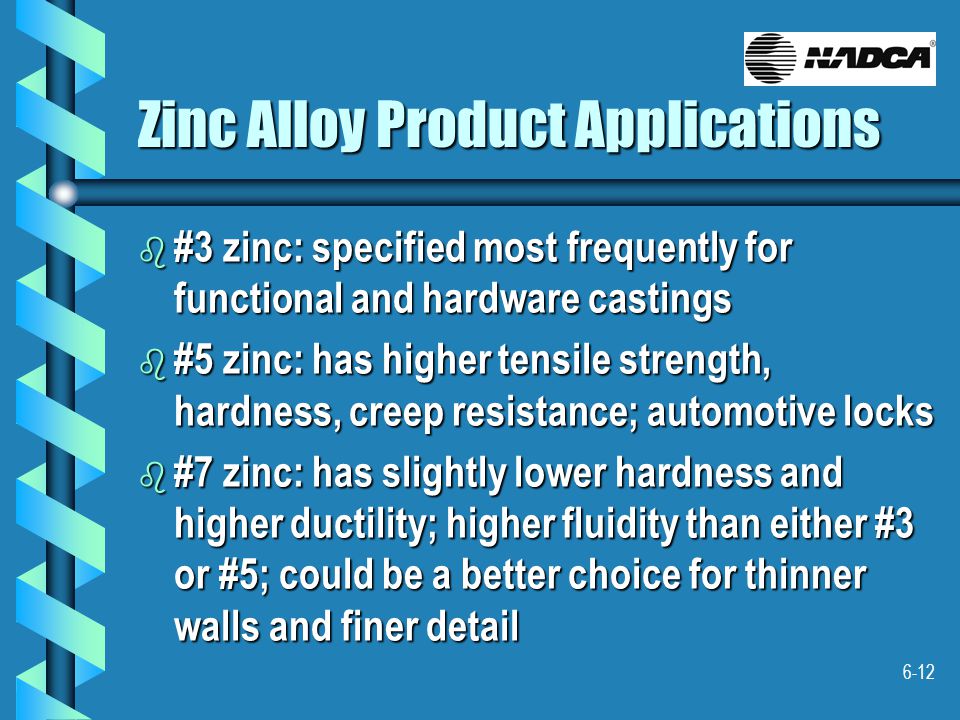

12 6-12 Zinc Alloy Product Applications b #3 zinc: specified most frequently for functional and hardware castings b #5 zinc: has higher tensile strength, hardness, creep resistance; automotive locks b #7 zinc: has slightly lower hardness and higher ductility; higher fluidity than either #3 or #5; could be a better choice for thinner walls and finer detail

13 6-13 ZA Alloy Characteristics b Developed in 1950’s b Alloys of zinc, aluminum and copper b Superior properties over Zinc Alloys Wear resistance Wear resistance Creep resistance Creep resistance Higher strength Higher strength Lighter weight Lighter weight

14 Criteria: Alloy Cost b An important factor in overall product cost b Cost of alloy should be converted to a volume basis b Aluminum alloys usually have lowest cost per cubic inch b Magnesium and zinc can be competitive because can be cast with thinner walls and at reduced volume

15 Criteria: Process Cost b An important component of overall product cost b Alloys run with hot chamber process usually run in smaller DCMs and at higher production rates than equivalent casting with the cold chamber process b Maintenance and replacement costs can vary significantly

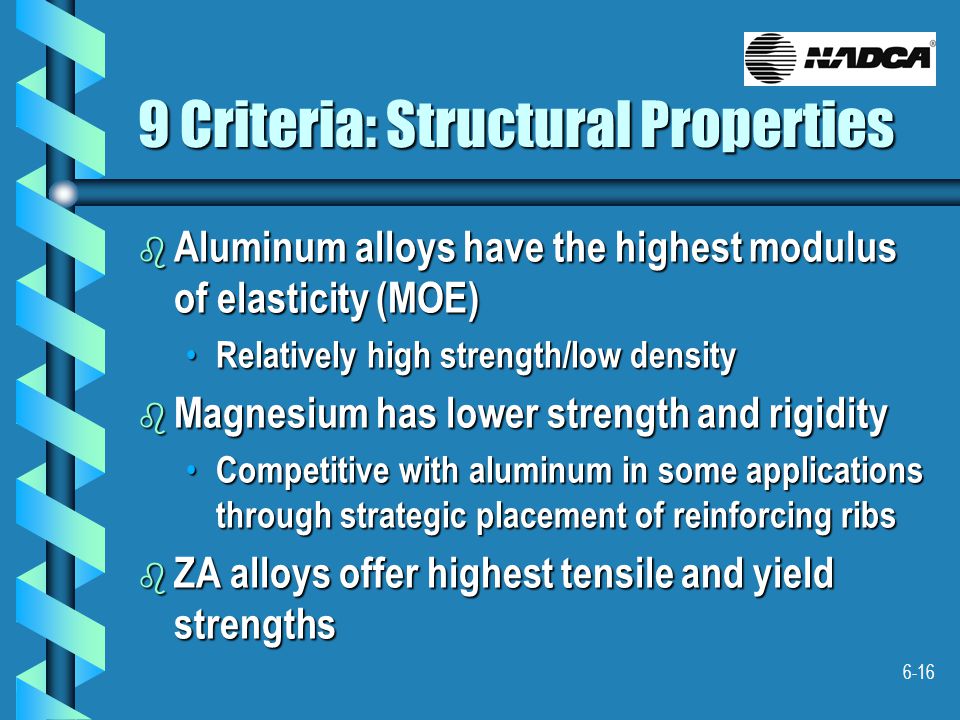

16 Criteria: Structural Properties b Aluminum alloys have the highest modulus of elasticity (MOE) Relatively high strength/low density Relatively high strength/low density b Magnesium has lower strength and rigidity Competitive with aluminum in some applications through strategic placement of reinforcing ribs Competitive with aluminum in some applications through strategic placement of reinforcing ribs b ZA alloys offer highest tensile and yield strengths

17 Criteria: Minimum Weight b Magnesium alloys are the dominant choice if weight must be minimized

18 Criteria: Impact Strength and Dent Resistance b Highest among the zinc (Zamak) alloys Diminishes sharply as temperature is reduced below 32ºF (0ºC) Diminishes sharply as temperature is reduced below 32ºF (0ºC) b Impact resistance of aluminum and magnesium alloys varies within each alloy group

19 Criteria: Surface Finish b Surface finish best achieved by the zinc and magnesium alloys Die steel surface quality is essential to casting surface quality Die steel surface quality is essential to casting surface quality

20 Criteria: Corrosion Resistance b Corrosion resistance varies from alloy to alloy and within an alloy group Can be improved with low-cost surface treatments Can be improved with low-cost surface treatments

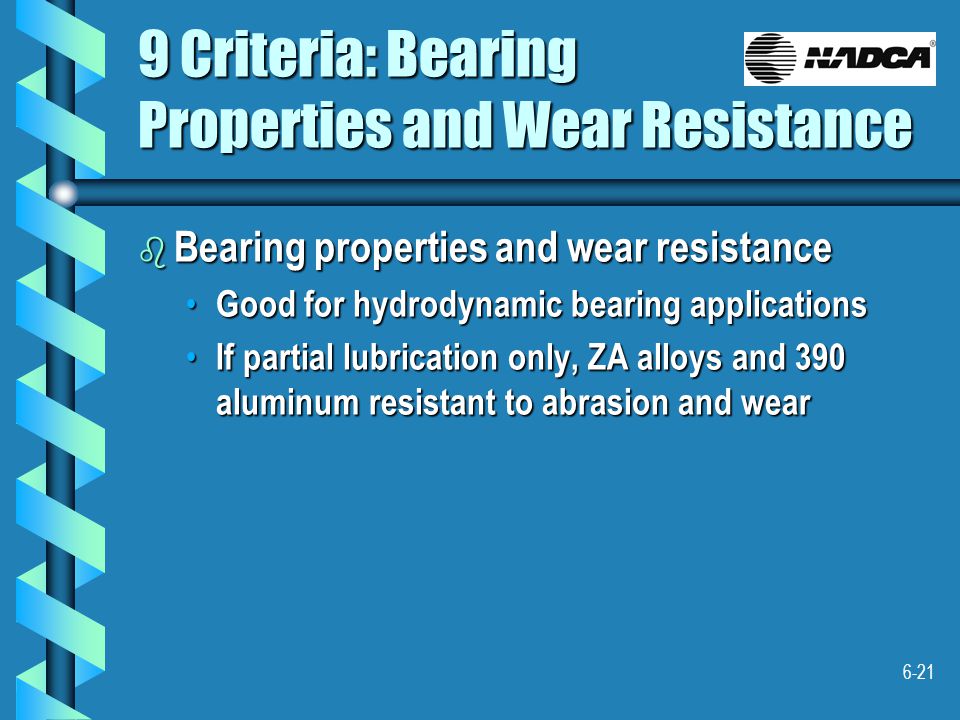

21 Criteria: Bearing Properties and Wear Resistance b Bearing properties and wear resistance Good for hydrodynamic bearing applications Good for hydrodynamic bearing applications If partial lubrication only, ZA alloys and 390 aluminum resistant to abrasion and wear If partial lubrication only, ZA alloys and 390 aluminum resistant to abrasion and wear

22 Criteria: Machineability b Machineability of all alloys excellent Magnesium alloys offer best machinability in terms of tool life, energy consumption and low cutting forces Magnesium alloys offer best machinability in terms of tool life, energy consumption and low cutting forces

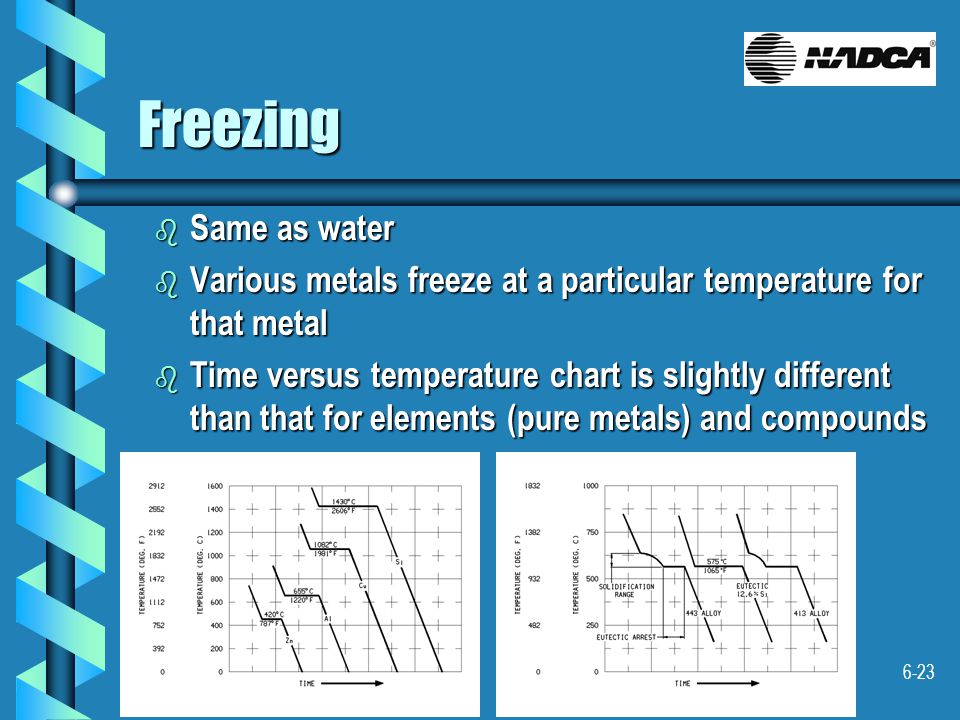

23 6-23 Freezing b Same as water b Various metals freeze at a particular temperature for that metal b Time versus temperature chart is slightly different than that for elements (pure metals) and compounds

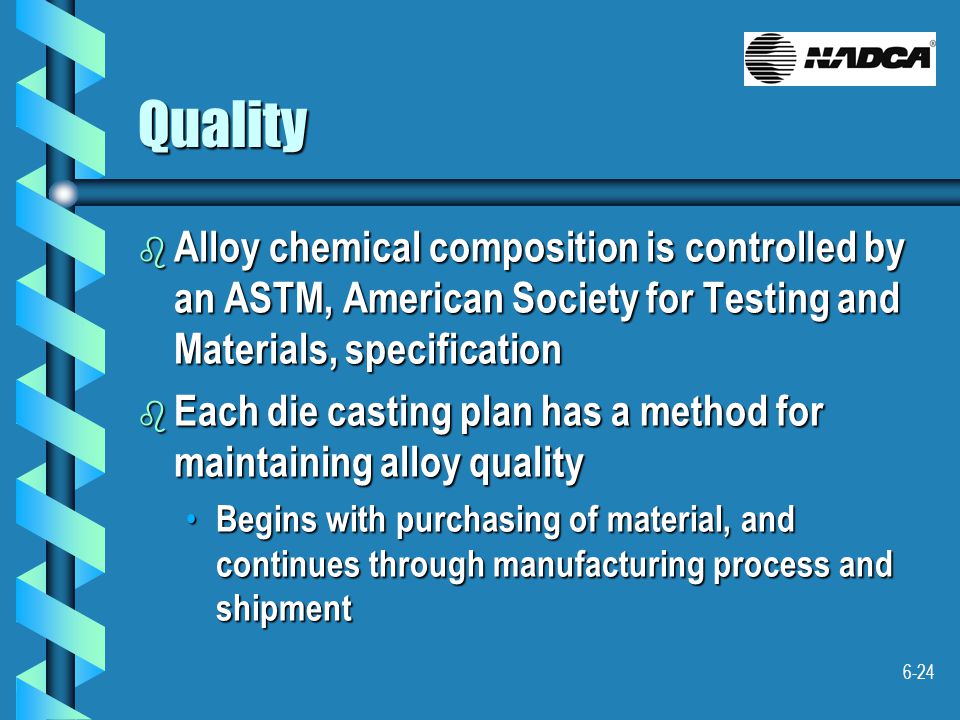

24 6-24 Quality b Alloy chemical composition is controlled by an ASTM, American Society for Testing and Materials, specification b Each die casting plan has a method for maintaining alloy quality Begins with purchasing of material, and continues through manufacturing process and shipment Begins with purchasing of material, and continues through manufacturing process and shipment

25 6-25 Quality: Cleanliness b Cleanliness component of alloy quality b Not as easily checked as chemical composition b Each time alloy is melted, some material is oxidized Oxides are impurities in alloy that could affect the casting’s properties if not removed Oxides are impurities in alloy that could affect the casting’s properties if not removed Processes to minimize amount of oxidation and remove the oxides from the alloy Processes to minimize amount of oxidation and remove the oxides from the alloy

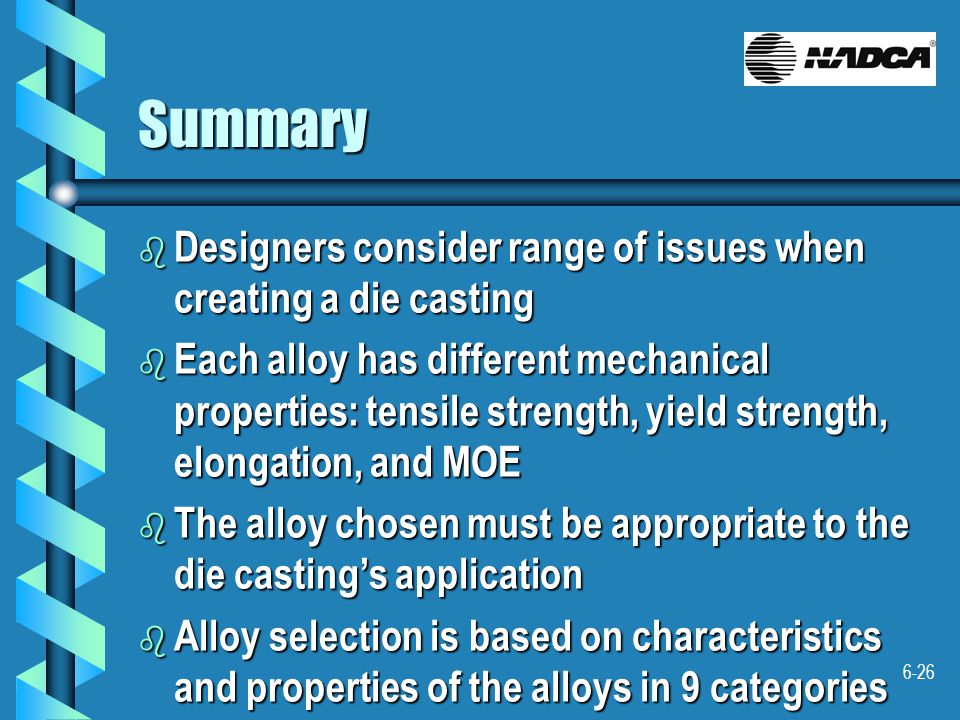

26 6-26 Summary b Designers consider range of issues when creating a die casting b Each alloy has different mechanical properties: tensile strength, yield strength, elongation, and MOE b The alloy chosen must be appropriate to the die casting’s application b Alloy selection is based on characteristics and properties of the alloys in 9 categories
