1 6. December.2013 Friday by Isabella Kung

2 Vertebrae + intervertebtal (IV) discs Spine SpineOmurgaOnurğaWirbelsäule العمود الفقري Laf dhabar Main part of the axial skeleton Vertebrae + intervertebtal (IV) discs Spine SpineOmurgaOnurğaWirbelsäule العمود الفقري Laf dhabar Main part of the axial skeleton Mgongo

3 from the cranium (skull) to the apex of the coccyx ¼ formed by the intervertebral (IV) discs. IV discs separate and bind the vertebrae together.

4 Protects Protects the spinal cord and spinal nerves. Supports Supports the weight of the body superior to the level of the pelvis. Provides Provides a partly rigid and flexible axis for the body and an extended base on which the head is placed and pivots. Plays an important role Plays an important role in posture and locomotion (the movement from one place to another).

5 vertebrae (singular = vertebra) separated by resilient intervertebral (IV) discs. Vertebral column flexible vertebrae (singular = vertebra) separated by resilient intervertebral (IV) discs. Vertebral column flexible

6 33 vertebrae arranged in 5 regions 7 cervical 12 thoracic 5 lumbar 5 sacral 4 coccygeal 7 cervical 12 thoracic 5 lumbar 5 sacral 4 coccygeal

7 Significant motion occurs between 24 superior vertebrae. Of the 9 inferior vertebrae, 5 sacral vertebrae fused in adults to form the sacrum After ~ 30, the 4 coccygeal vertebrae fuse to form the coccyx

8 become larger vertebral column descends to the sacrum become larger as the vertebral column descends to the sacrum then become progressively smaller toward apex of the coccyx

9 A typical vertebra consists of A Vertebral body A Vertebral body A Vertebral arch A Vertebral arch 7 processes 7 processes

10 Massive, cylndircal Anterior part of the bone Gives strength to the vertebral column. Supports body weight. The size of the vertebral bodies column descends most markedly from T4 inferiorly As each bears progressively greater body weight. VERTEBRAL BODY

11 Posterior to the vertebral body Consists of two (right and left) pedicles & laminae. VERTEBRAL ARCH

12 vertebral arch + posterior surface of the vertebral body vertebral foramen walls of vertebral foramen vertebral arch + posterior surface of the vertebral body vertebral foramen walls of vertebral foramen

13 Succession of vertebral foramina in the articulated vertebral column forms vertebral canal vertebral canal (spinal canal)

14 (Incisura vertebralis) Vertebral notches (Incisura vertebralis) Indentations observed in lateral views of the vertebrae Superior and inferior to each pedicle Between the superior and inferior articular processes posteriorly Between the corresponding projections of the body anteriorly.

15 intervertebral foramina The superior and inferior vertebral notches of adjacent vertebrae and the IV discs form intervertebral foramina Intervertebral foramina Spinal (posterior root) ganglia are located Spinal nerves emerge from the vertebral column with their accompanying vessels through these foramina.

16 vertebrae having foramina in their transverse processes are cervical vertebrae

17 articular facets orientation in each region different Movement needed articular facets of thoracic vertebrae nearly vertical, define an arc centered in the IV disc this arrangement permits rotation and lateral flexion of the vertebral column in this region.

18 Regional variations in size and shape of the vertebral canal accommodate the varying thickness of the spinal cord.

19 skeleton of the neck between the cranium & thoracic vertebrae

20 1)Smallest of the 24 movable vertebrae 2) Relatively larger intervertebral discs discs are thin, but relative to their small size; thick. 1)Smallest of the 24 movable vertebrae 2) Relatively larger intervertebral discs discs are thin, but relative to their small size; thick. FEATURES TYPICAL FOR CERVICAL VERTEBRAE 3) Greatest range & variety of movement of all the vertebral regions 4) foramen transversarium in the transverse process

21 carotid tubercles 5) anterior tubercles of vertebra C6 carotid tubercles Chassaignac tubercles carotid tubercles 5) anterior tubercles of vertebra C6 carotid tubercles Chassaignac tubercles FEATURES TYPICAL FOR CERVICAL VERTEBRAE

22 6) Spinous processes of C3-C6 short and usually bifid in white people 6) Spinous processes of C3-C6 short and usually bifid in white people FEATURES TYPICAL FOR CERVICAL VERTEBRAE

23 Vertebrae C3-C7 typical cervical vertebrae Large vertebral foramina restricted rotation superolateral margin uncus of the body uncus of the body uncinate process

24 C 7 - vertebra prominens A long spinous process Most prominent spinous process in 70% of people

25 No body No spinous process Widest of the cervical vertebrae superior articular surfaces of the lateral masses occipital condyles The kidney-shaped, concave superior articular surfaces of the lateral masses articulate with occipital condyles.

26 Anterior and posterior arches Anterior and posterior arches a tubercle in the center of its external aspect extend between the lateral masses forming a complete ring. Posterior arch vertebral artery A wide groove for the vertebral artery on its superior surface. C1 nerve also runs in this groove.

27 strongest of the cervical vertebrae C1, carrying the cranium,» rotates on C2 (e.g., when a person turns the head to indicate “no”).

28 The distinguishing feature blunt tooth-like dens Lies anterior to the spinal cord. Serves as the pivot about which the rotation of the head occurs.

29 large bifid spinous process

30

31 The thoracic skeleton includes: 12 pairs of ribs and associated costal cartilages 12 thoracic vertebrae and the intervertebral discs between them Sternum The thoracic skeleton includes: 12 pairs of ribs and associated costal cartilages 12 thoracic vertebrae and the intervertebral discs between them Sternum

32 FEATURES TYPICAL FOR THORACIC VERTEBRAE THORACIC VERTEBRAE articulation with ribs. 1) Bilateral costal demifacets 1) Bilateral costal demifacets on the vertebral bodies heads of ribs for articulation with heads of ribs 2) Costal facets on the transverse processes tubercles of ribs for articulation with tubercles of ribs 1) Bilateral costal demifacets 1) Bilateral costal demifacets on the vertebral bodies heads of ribs for articulation with heads of ribs 2) Costal facets on the transverse processes tubercles of ribs for articulation with tubercles of ribs

33 FEATURES TYPICAL FOR THORACIC VERTEBRAE THORACIC VERTEBRAE articulation with ribs. Articular processes of thoracic vertebrae 3) Articular processes of thoracic vertebrae extend vertically articular facets with paired, nearly coronally oriented articular facets define an arc. greatest degree of rotation is permitted here! Articular processes of thoracic vertebrae 3) Articular processes of thoracic vertebrae extend vertically articular facets with paired, nearly coronally oriented articular facets define an arc. greatest degree of rotation is permitted here!

34 4) Heart-shaped bodies 5) Long, inferiorly slanting spinous processes 4) Heart-shaped bodies 5) Long, inferiorly slanting spinous processes FEATURES TYPICAL FOR THORACIC VERTEBRAE THORACIC VERTEBRAE

35 T1-T4 vertebrae share some features of cervical vertebrae. The middle four thoracic vertebrae (T5-T8) demonstrate all the features typical of thoracic vertebrae.

36 T 1 atypical 1. long, horizontal spinous process Vertebra prominens? No. 2. complete costal facet for the 1st rib 3. demifacet for the 2nd rib. Typical pattern 1+1 costal transverse processes demifacet 1+1 costal transverse processes demifacet 1+0.5

37 [T 9] -T 10 vertebrae No inferior demifacet 1+1 costal transverse processes demifacet T 11- T 12 vertebrae No transverse costal facets 1 complete facet on each side 1+1 demifacet

38 1 COMPLETE SUP. COSTAL FACET NO INF. COSTAL DEMIFACET 1 COMPLETE COSTAL FACET NO INF. COSTAL DEMIFACET NO COSTAL FACET ON TRANSVERSE PROCESS NO COSTAL FACET ON TRANSVERSE PROCESS

39 superior half thoracic in character costal facets articular processes costal facets & articular processes inferior half lumbar in character no costal facets articular processes that permit only flexion and extension. T 12

40 in the lower back between the thorax and sacrum

41 1)massive bodies 2)transverse processes project posterosuperiorly as well as laterally. 3)mammillary processes & accessory processes FEATURES TYPICAL FOR LUMBAR VERTEBRAE LUMBAR VERTEBRAE

42 Wedged-shaped Usually composed of 5 fused sacral vertebrae in adults. Located between the hip bones Sacral canal Sacral canal continuation of the vertebral canal in the sacrum. L. sacred

43 On the pelvic and posterior surfaces of the sacrum four pairs of sacral foramina

44 Anterior projecting edge of the body of the S1 vertebra Sacral promontory (L. mountain ridge) important obstetrical landmark

45 The sacrum supports the vertebral column and forms the posterior part of the bony pelvis. lumbosacral angle The sacrum is tilted so that it articulates with the L5 vertebra at the lumbosacral angle. Eur Spine J Feb;18(2): Epub 2008 Nov 18. Assessment of lumbosacral kyphosis in spondylolisthesis: a computer-assisted reliability study of six measurement techniques. Glavas P, Mac-Thiong JM, Parent S, de Guise JA, Labelle H.

46 The pelvic surface of the sacrum is smooth and concave. 4 transverse lines Fusion of the sacral vertebrae starts after age 20.

47 The dorsal surface of the sacrum marked by five prominent longitudinal ridges. median sacral crest fused rudimentary spinous processes of the superior three or four sacral vertebra

48 Intermediate sacral crests Intermediate sacral crests fused articular processes Lateral sacral crests Lateral sacral crests tips of the transverse processes of fused sacral vertebrae

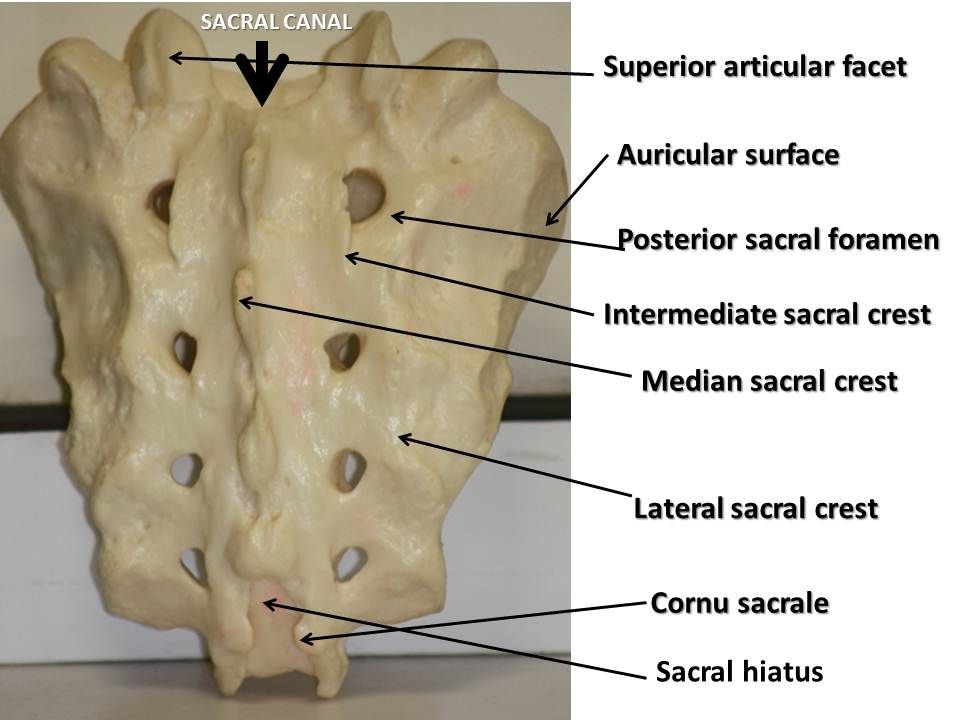

49 sacral hiatus Inverted U-shaped sacral hiatus Sacral cornua Sacral cornua (L. Horns) The sacral hiatus leads into the sacral canal. The sacral cornua, representing the inferior articular processes of S5 vertebra, project inferiorly on each side of the sacral hiatus and are a helpful guide to its location.

50 The superior part of the lateral surface of the sacrum auricular surface

51

52 A small triangular bone Formed by fusion of 4 rudimentary coccygeal vertebrae. Co1 may remain separate from the fused group. Rudimentary articular post. surface

53 Last 3 coccygeal vertebrae often fuse during middle life forming a beak-like coccyx Aging- A single bone! Muscular attachment! No contribution to support of the body weight in standing! Coccydynia

54 33 32 or 34 race, gender, and developmental factors (genetic and environmental ) Lumbar sacralization

55 A CRANIAL SHIFT A cervical rib articulates with C7 Rib 12 is small. L5 partially "sacralized". S5 partially freed B Common arrangement C CAUDAL SHIFT Rib 12 is large. A small lumbar rib is present. S1 partially "lumbarized". Co1 is incorporated into the sacrum

56 1. The neck or cervical spine, curves gently inward (lordosis) curved outward 2. The mid back, or thoracic spine, curved outward (kyphosis) 3. The low back, or lumbar spine, also curves inward (lordosis) 4. Pelvic (Sacral) curvature 1. The neck or cervical spine, curves gently inward (lordosis) curved outward 2. The mid back, or thoracic spine, curved outward (kyphosis) 3. The low back, or lumbar spine, also curves inward (lordosis) 4. Pelvic (Sacral) curvature

57 costae Ribs (L. costae) are curved, flat bones that form most of the thoracic cage. Remarkably light in weight yet highly resilient. Each rib has a spongy interior containing bone marrow (hematopoietic tissue), which forms blood cells.

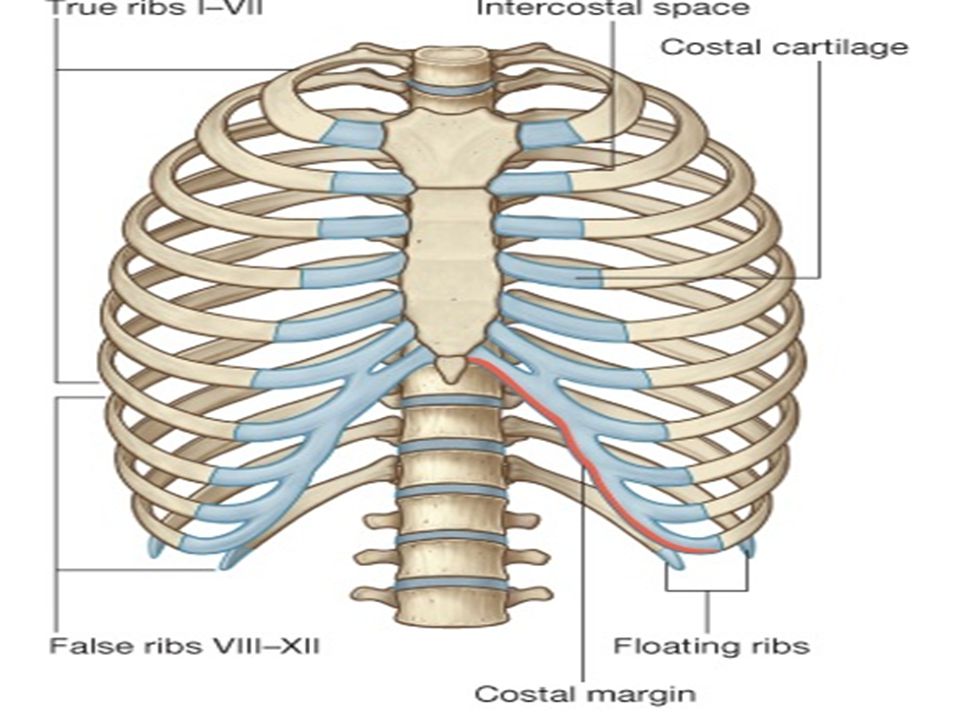

58 There are three types of ribs that can be classified as typical or atypical True (vertebrocostal) ribs (1st-7th ribs): They attach directly to the sternum through their own costal cartilages. False (vertebrochondral) ribs (8th, 9th, and usually 10th ribs): Their cartilages are connected to the cartilage of the rib above them; thus their connection with the sternum is indirect. Floating (vertebral, free) ribs (11th, 12th, and sometimes 10th ribs): The rudimentary cartilages of these ribs do not connect even indirectly with the sternum; instead they end in the posterior abdominal musculature.

59

60 Typical ribs (3rd-9th) Typical ribs (3rd-9th) have the following components: Head: two facets articulation with the corresponding vertebra one facet for the vertebra superior to it. Head: wedge-shaped and has two facets, separated by the crest of the head; one facet for articulation with the numerically corresponding vertebra and one facet for the vertebra superior to it. Neck: Neck: connects the head of the rib with the body at the level of the tubercle.

61 Tubercle: Tubercle: located at the junction of the neck and body articulates with the c articulates with the corresponding transverse process of the vertebra

62 Body (shaft): Body (shaft): thin, flat, and curved, most markedly at the costal angle where the rib turns anterolaterally. The angle also demarcates the lateral limit of attachment of the deep back muscles to the ribs. The concave internal surface of the body has a costal groove paralleling the inferior border of the rib, which provides some protection for the intercostal nerve and vessels.

63

64 Atypical ribs (1st, 2nd, and 10th-12th) are dissimilar: The 1st rib The 1st rib is the broadest (i.e., its body is widest and nearly horizontal), shortest, and most sharply curved of the 7 true ribs. single facet subclavian vesselsscalene tubercle and ridgescalene muscle A single facet on its head for articulation with the T1 vertebra only 2 transversely directed grooves crossing its superior surface for the subclavian vessels; the grooves are separated by a scalene tubercle and ridge, to which the anterior scalene muscle is attached..

65 The 2nd rib is has a thinner, less curved body and is substantially longer than the 1st rib. Its head has two facets for articulation with the bodies of the T1 and T2 vertebrae. Main atypical feature is, the tuberosity for serratus anterior a rough area on its upper surfacefrom which part of that muscle originates

66 10th-12th ribsonly one facet articulate with a single vertebra 10th-12th ribs, like the 1st rib, have only one facet on their heads and articulate with a single vertebra. 11th and 12th ribs no neck or tubercle 11th and 12th ribs are short and have no neck or tubercle.

67 Costal cartilages Prolong the ribs anteriorly Contribute to the elasticity of the thoracic wall Provide a flexible attachment for their anterior ends (tips). The cartilages increase in length through the first 7 and then gradually decrease..

68 Intercostal spaces Separate the ribs and their costal cartilages from one another. Named according to the rib forming the superior border of the space. 4th intercostal space lies between ribs 4 and intercostal spaces and 11 intercostal nerves intercostal muscles and membranes, and two sets (main and collateral) of intercostal blood vessels and nerves identified by the same number assigned to the space.

69 subcostal space The space below the 12th rib subcostal space subcostal nerve Anterior ramus (branch) of spinal nerve T12 subcostal nerve.

70 The intercostal spaces widest anterolaterally widen further with inspiration further widened by extension and/or lateral flexion of the thoracic vertebral column to the contralateral side. The intercostal spaces widest anterolaterally widen further with inspiration further widened by extension and/or lateral flexion of the thoracic vertebral column to the contralateral side.

71 Flat, elongated bone Forms the middle of the anterior part of the thoracic cage. Affords protection for mediastinal viscera in general and much of the heart in particular.

72 1)Manubrium 2)Body 3)Xiphoid process

73 A roughly trapezoidal bone. Widest and thickest of the three parts of the sternum

74 jugular notch (suprasternal notch) superior border of manubrium The easily palpated concave center of superior border of manubrium. clavicular notches Deepened by the medial (sternal) ends of the clavicles, which are much larger than the relatively small clavicular notches in the manubrium that receive them, forming the sternoclavicular (SC) joints.

75 Inferolateral to the clavicular notch, the costal cartilage of the 1st rib is tightly attached to the lateral border of the manubrium. synchondrosis of the first rib

76 sternal angle sternal angle (of Louis) The manubrium and body of the sternum in slightly different planes manubriosternal joint sternal angle (of Louis)

77 Longer, narrower, and thinner than the manubrium. Located at the level of the T5-T9 vertebrae. Its width varies because of the scalloping of its lateral borders by the costal notches.. Body of the sternum (Corpus sterni) Gladiolus

78 Smallest and most variable part of the sternum Thin and elongated Inferior end lies at the level of T10 vertebra. Xiphoid process

79

80 80 Jugular (suprasternal)notch:T2 vertebra in male, T4 in female Sternal angle (of Louis) Th 4 vertebra The border between superior and inferior mediastinum Overlies the tracheal bifurcation and aortic arch Useful for counting intercostal spaces (2nd ribs articulate here).

81

82 Xiphoid process Xiphoid process an important landmark in the median plane Its junction with the sternal body at the xiphisternal joint inferior limit of the central part of the thoracic cavity Xiphisternal joint infrasternal angle Xiphisternal joint site of the infrasternal angle (subcostal angle) formed by the right and left costal margins superior limit of the liver, central tendon of the diaphragminferior border of the heart Midline marker for superior limit of the liver, central tendon of the diaphragm, inferior border of the heart.
