1 UNIT 9 Electrostatics and Currents 1

2 Friday March 9 th 2 Electrostatics and Currents

3 TODAY’S AGENDA  Electric Charge and Forces  Hw: Practice A (all) p565 Practice B (all) p568 Practice C (all) p570 UPCOMING…  Mon:Electric Field  Tue:Problem Quiz #1 (Electric Forces)  Wed:Electric Potential Energy  Thurs:Problem Quiz #2 (Electric Fields)  Fri:NO SCHOOL (Teacher In-Service) Friday, March 9 3

4 Chapter Electrostatics and Current

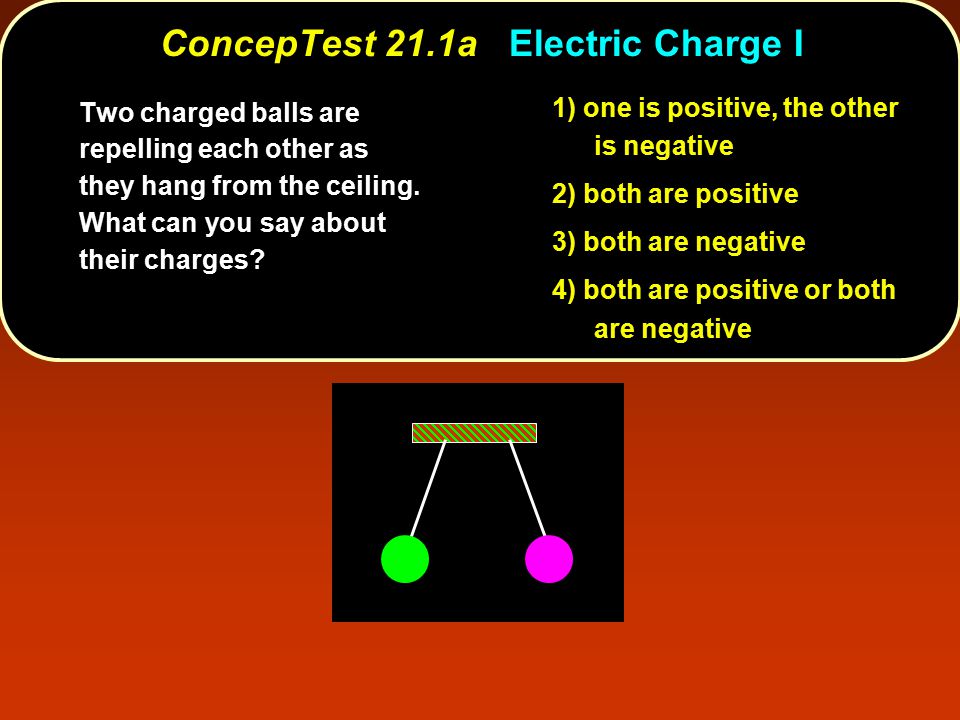

5 ConcepTest 21.1aElectric Charge I ConcepTest 21.1a Electric Charge I 1) one is positive, the other is negative 2) both are positive 3) both are negative 4) both are positive or both are negative Two charged balls are repelling each other as they hang from the ceiling. What can you say about their charges?

6 ConcepTest 21.1aElectric Charge I ConcepTest 21.1a Electric Charge I same charge The fact that the balls repel each other only can tell you that they have the same charge, but you do not know the sign. So they can be either both positive or both negative. 1) one is positive, the other is negative 2) both are positive 3) both are negative 4) both are positive or both are negative Two charged balls are repelling each other as they hang from the ceiling. What can you say about their charges? Follow-up: What does the picture look like if the two balls are oppositely charged? What about if both balls are neutral?

7 1) have opposite charges 2) have the same charge 3) all have the same charge 4) one ball must be neutral (no charge) From the picture, what can you conclude about the charges? ConcepTest 21.1bElectric Charge II ConcepTest 21.1b Electric Charge II

8 1) have opposite charges 2) have the same charge 3) all have the same charge 4) one ball must be neutral (no charge) From the picture, what can you conclude about the charges? The GREEN and PINK balls must have the same charge, since they repel each other. The YELLOW ball also repels the GREEN, so it must also have the same charge as the GREEN (and the PINK). ConcepTest 21.1bElectric Charge II ConcepTest 21.1b Electric Charge II

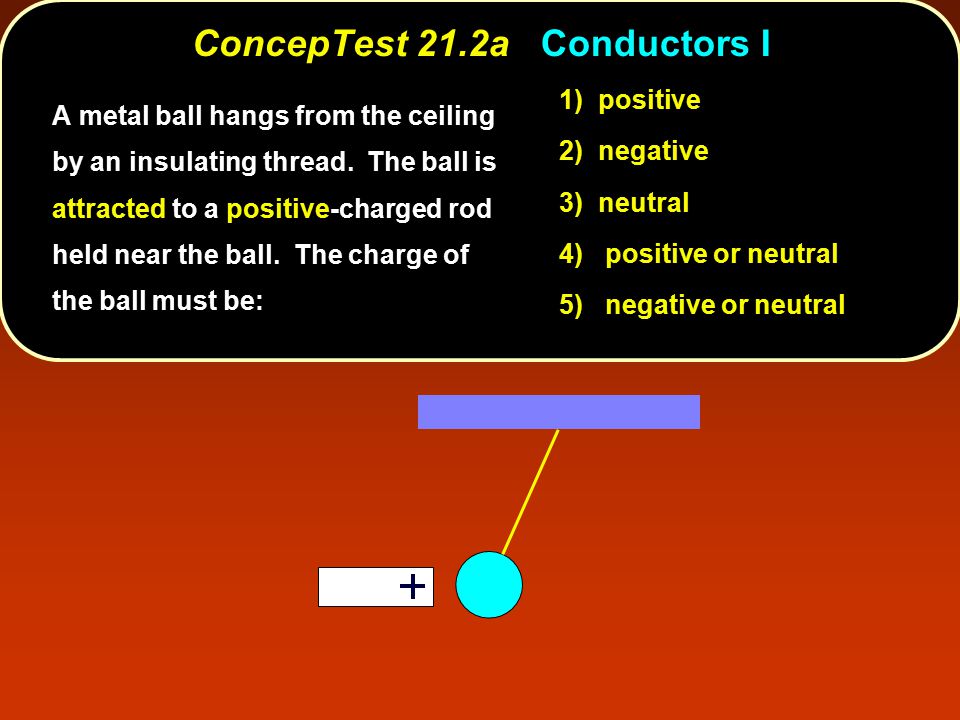

9 ConcepTest 21.2aConductors I ConcepTest 21.2a Conductors I 1) positive 2) negative 3) neutral 4) positive or neutral 5) negative or neutral A metal ball hangs from the ceiling by an insulating thread. The ball is attracted to a positive-charged rod held near the ball. The charge of the ball must be:

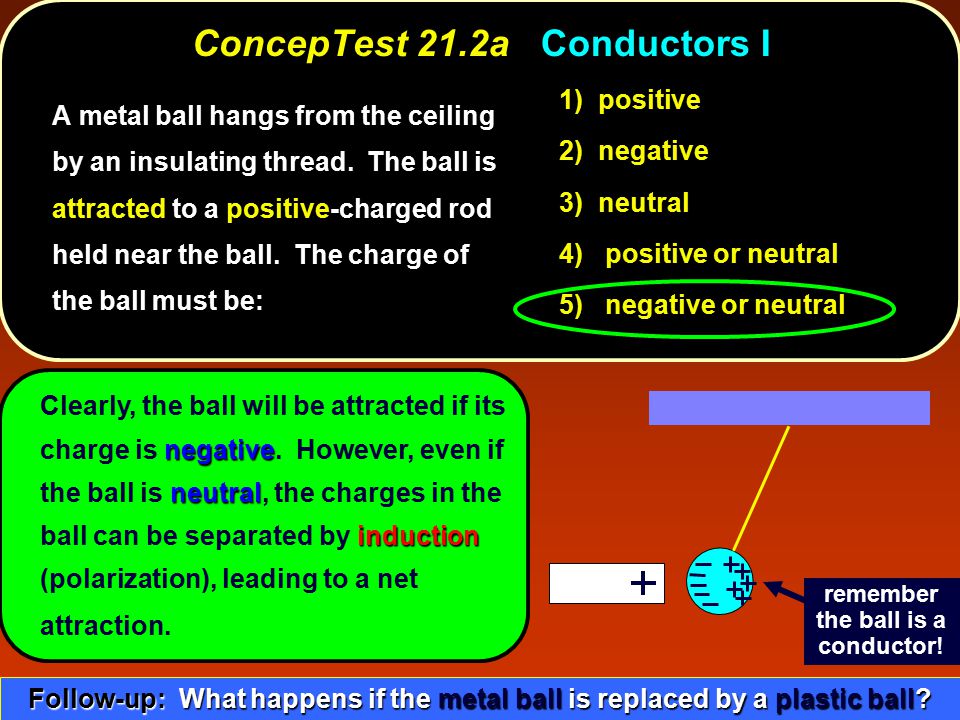

10 negative neutral induction Clearly, the ball will be attracted if its charge is negative. However, even if the ball is neutral, the charges in the ball can be separated by induction (polarization), leading to a net attraction. 1) positive 2) negative 3) neutral 4) positive or neutral 5) negative or neutral A metal ball hangs from the ceiling by an insulating thread. The ball is attracted to a positive-charged rod held near the ball. The charge of the ball must be: remember the ball is a conductor! ConcepTest 21.2aConductors I ConcepTest 21.2a Conductors I Follow-up: What happens if the metal ball is replaced by a plastic ball?

11 Electric Charge The effects of electric charge were first observed as static electricity: After being rubbed on a piece of fur, an amber rod acquires a charge and can attract small objects.

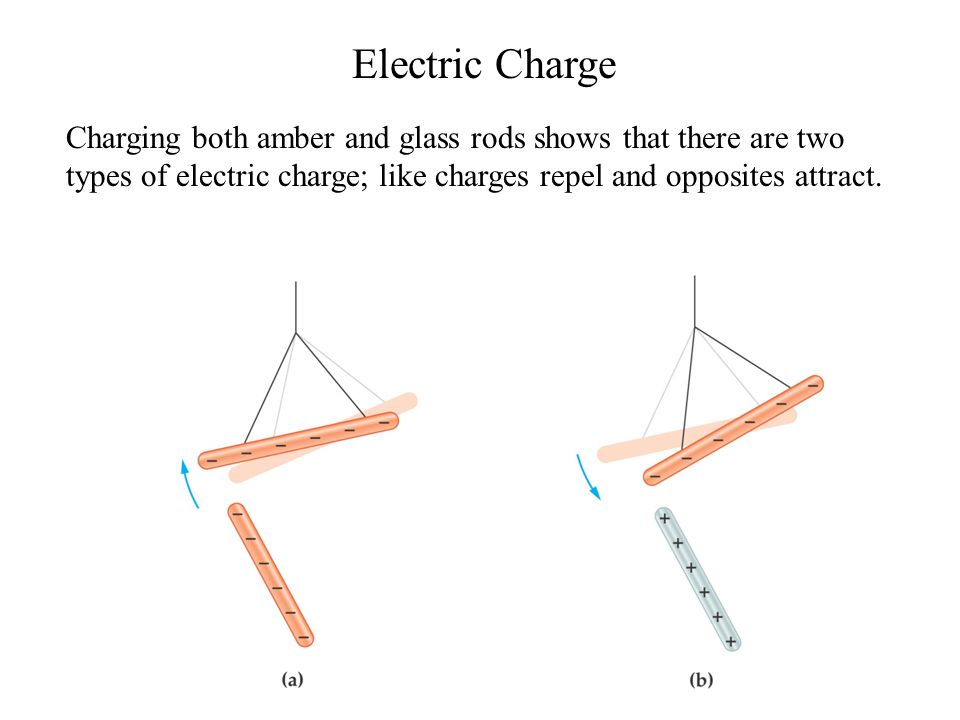

12 Electric Charge Charging both amber and glass rods shows that there are two types of electric charge; like charges repel and opposites attract.

13 Electric Charge All electrons have exactly the same charge; the charge on the proton (in the atomic nucleus) has the same magnitude but the opposite sign:

14 Electric Charge The electrons in an atom are in a cloud surrounding the nucleus, and can be separated from the atom with relative ease.

15 Electric Charge When an amber rod is rubbed with fur, some of the electrons on the atoms in the fur are transferred to the amber:

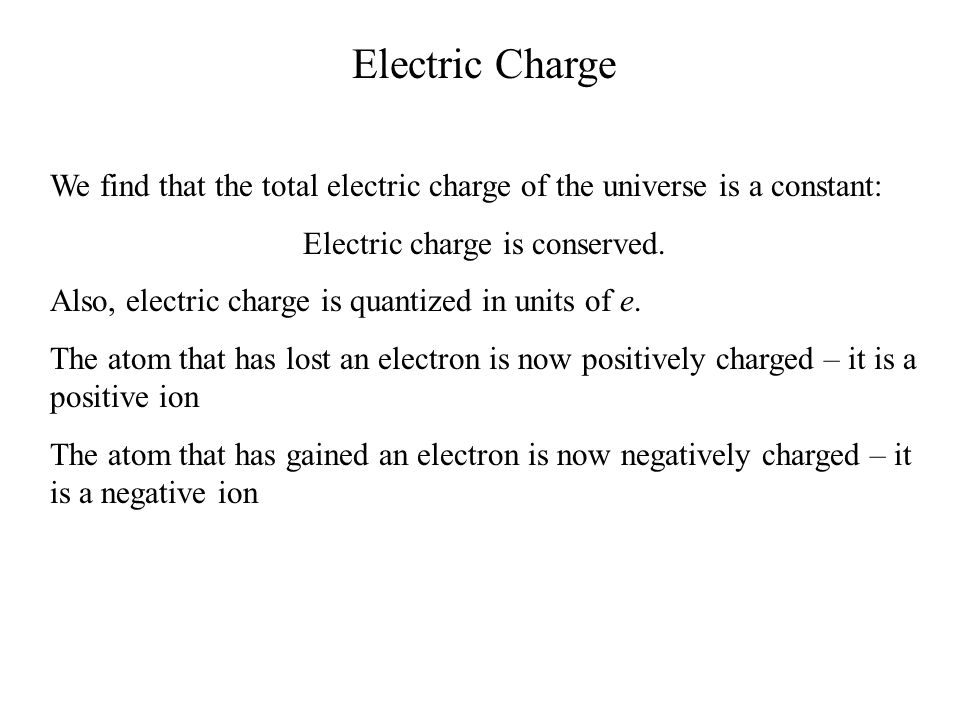

16 Electric Charge We find that the total electric charge of the universe is a constant: Electric charge is conserved. Also, electric charge is quantized in units of e. The atom that has lost an electron is now positively charged – it is a positive ion The atom that has gained an electron is now negatively charged – it is a negative ion

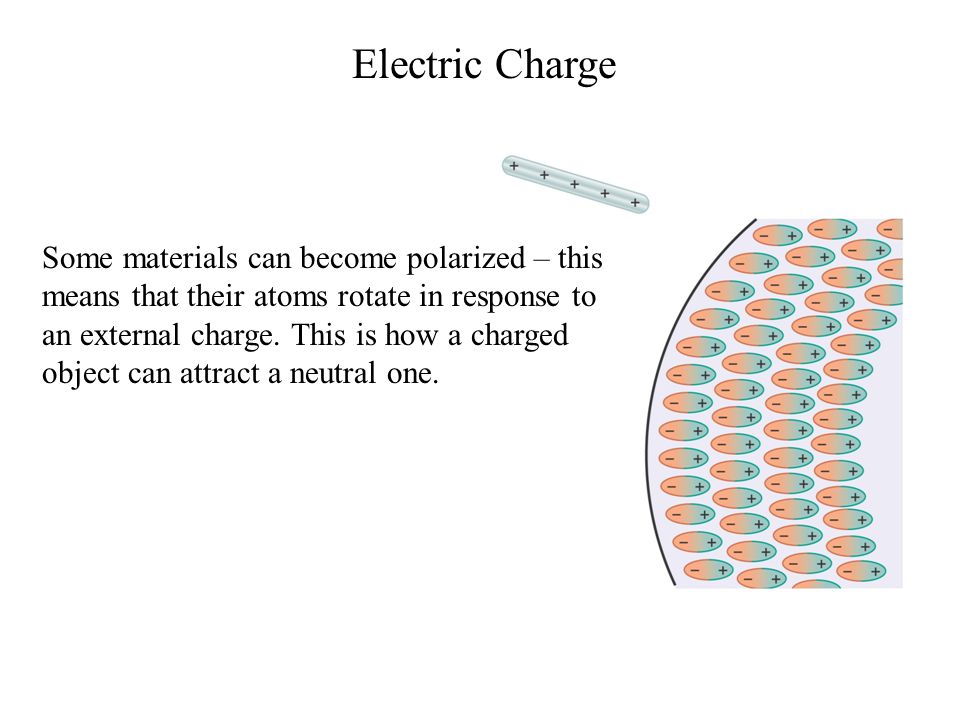

17 Electric Charge Some materials can become polarized – this means that their atoms rotate in response to an external charge. This is how a charged object can attract a neutral one.

18 Insulators and Conductors Conductor: A material whose conduction electrons are free to move throughout. Most metals are conductors. Insulator: A material whose electrons seldom move from atom to atom. Most insulators are non-metals.

19 Insulators and Conductors If a conductor carries excess charge, the excess is distributed over the surface of the conductor.

20 Charge by Induction A conductor can be charged by induction, if there is a way to ground it. This allows the like charges to leave the conductor; if the conductor is then isolated before the rod is removed, only the excess charge remains.

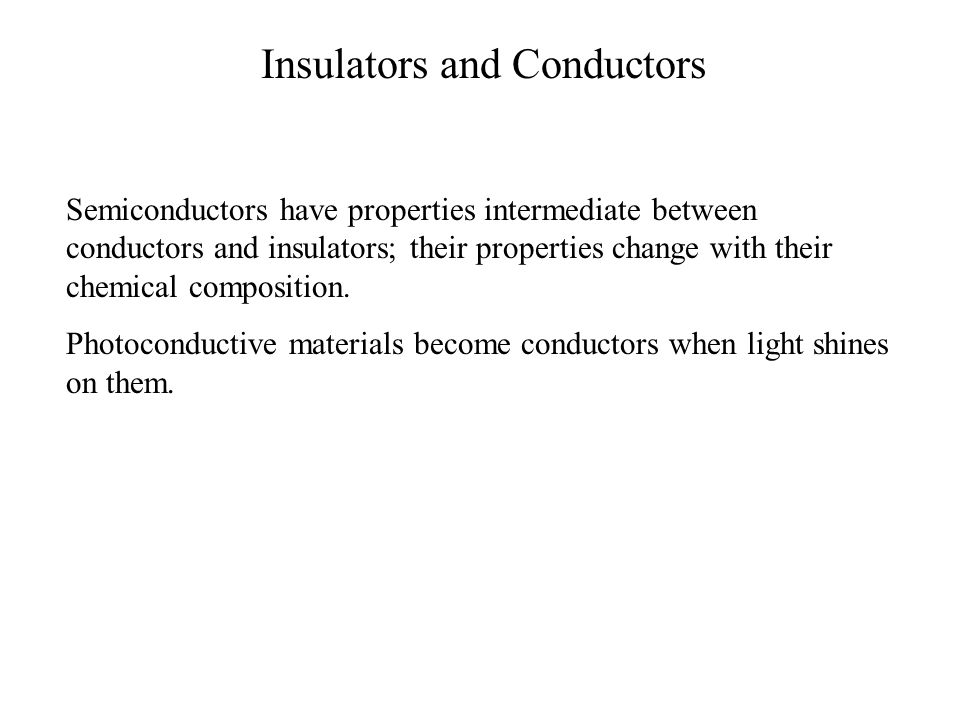

21 Insulators and Conductors Semiconductors have properties intermediate between conductors and insulators; their properties change with their chemical composition. Photoconductive materials become conductors when light shines on them.

22 Coulomb’s Law Coulomb’s law gives the force between two point charges: The force is along the line connecting the charges, and is attractive if the charges are opposite, and repulsive if the charges are like.

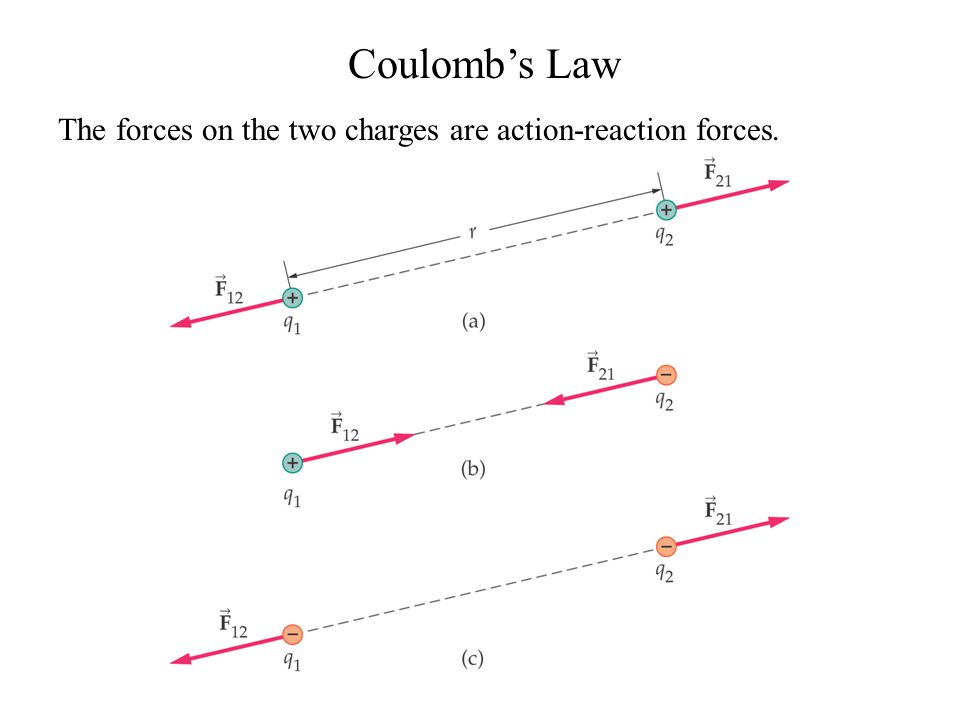

23 Coulomb’s Law The forces on the two charges are action-reaction forces.

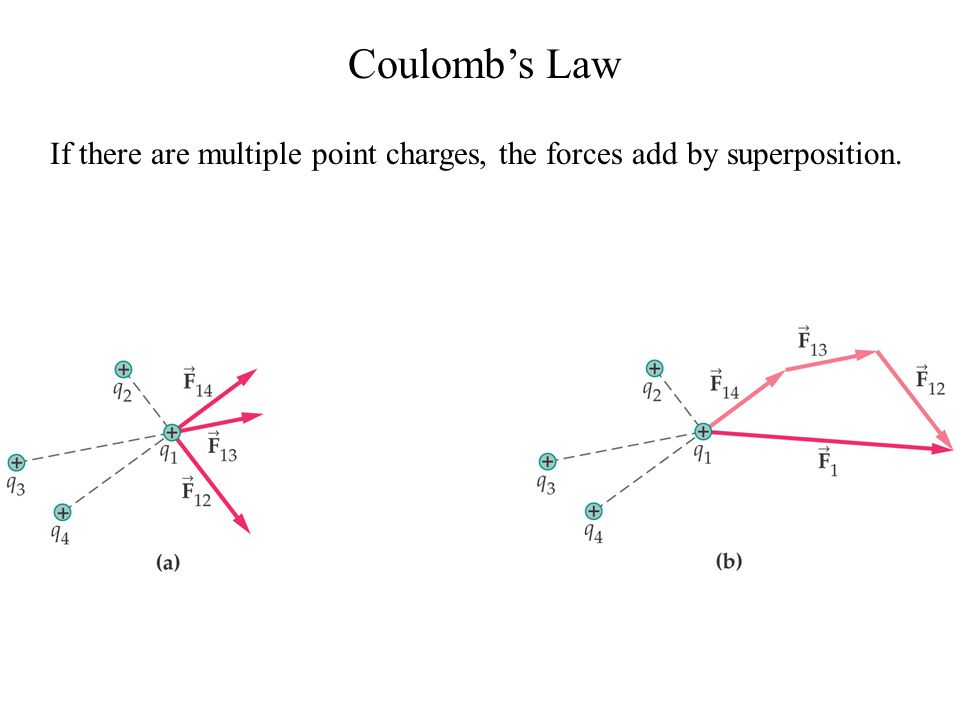

24 Coulomb’s Law If there are multiple point charges, the forces add by superposition.

25 Coulomb’s Law Coulomb’s law is stated in terms of point charges, but it is also valid for spherically symmetric charge distributions, as long as the distance is measured from the center of the sphere.

26 The Electric Field Definition of the electric field: Here, q 0 is a “test charge” – it serves to allow the electric force to be measured, but is not large enough to create a significant force on any other charges.

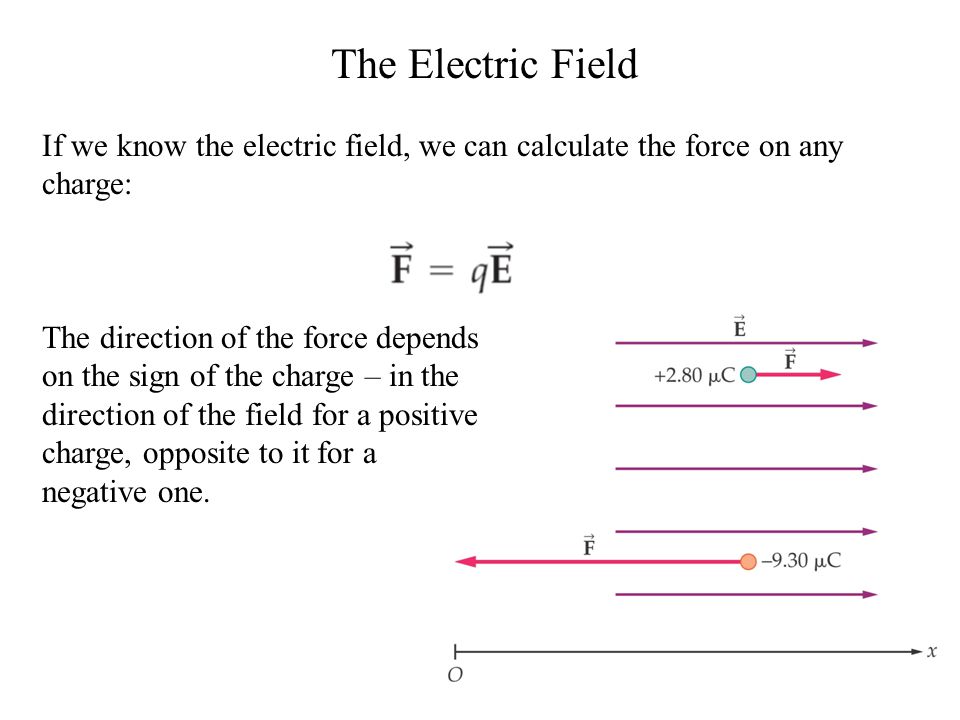

27 The Electric Field If we know the electric field, we can calculate the force on any charge: The direction of the force depends on the sign of the charge – in the direction of the field for a positive charge, opposite to it for a negative one.

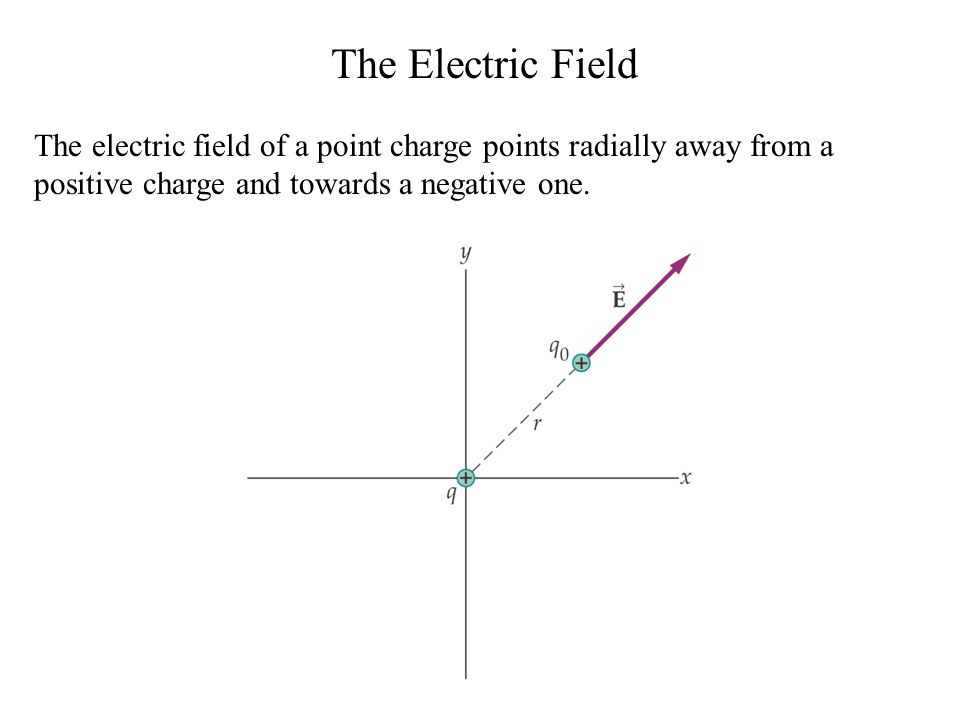

28 The Electric Field The electric field of a point charge points radially away from a positive charge and towards a negative one.

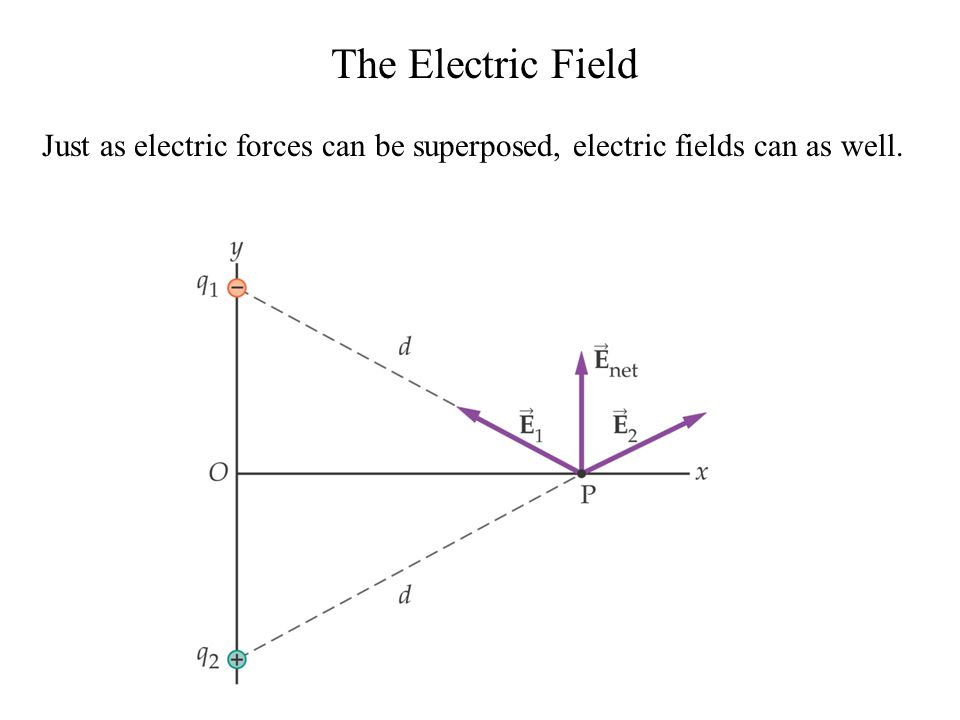

29 The Electric Field Just as electric forces can be superposed, electric fields can as well.

30 Electric Field Lines Electric field lines are a convenient way of visualizing the electric field. Electric field lines: 1.Point in the direction of the field vector at every point 2.Start at positive charges or infinity 3.End at negative charges or infinity 4.Are more dense where the field is stronger

31 Electric Field Lines The charge on the right is twice the magnitude of the charge on the left (and opposite in sign), so there are twice as many field lines, and they point towards the charge rather than away from it.

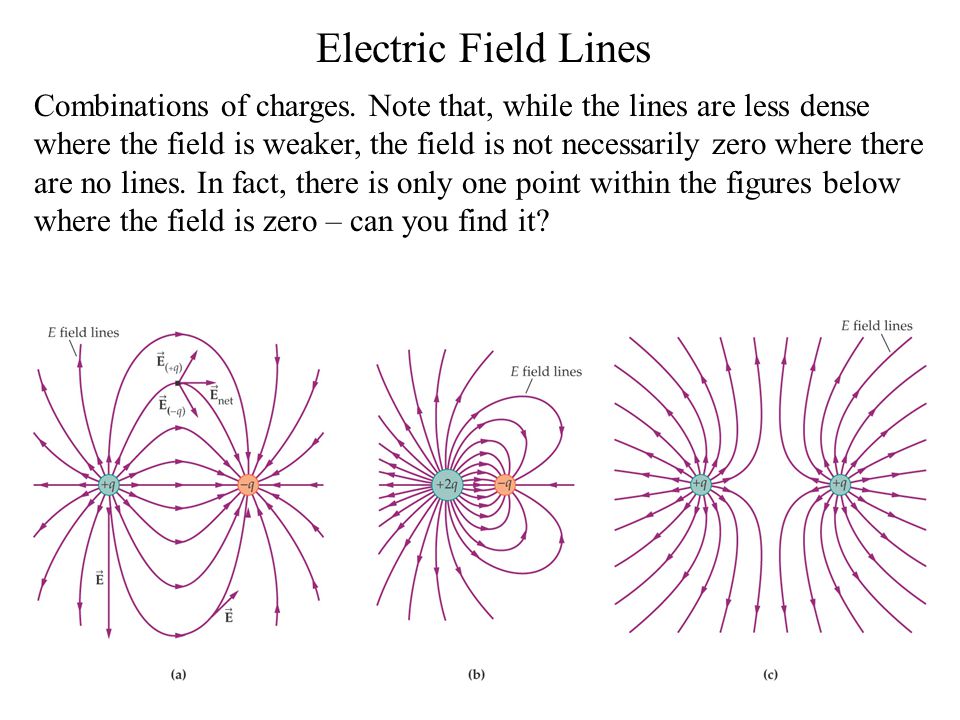

32 Electric Field Lines Combinations of charges. Note that, while the lines are less dense where the field is weaker, the field is not necessarily zero where there are no lines. In fact, there is only one point within the figures below where the field is zero – can you find it?

33 Electric Field Lines A parallel-plate capacitor consists of two conducting plates with equal and opposite charges. Here is the electric field:

34 Shielding and Charge by Induction Since excess charge on a conductor is free to move, the charges will move so that they are as far apart as possible. This means that excess charge on a conductor resides on its surface, as in the upper diagram.

35 Shielding and Charge by Induction When electric charges are at rest, the electric field within a conductor is zero.

36 Shielding and Charge by Induction The electric field is always perpendicular to the surface of a conductor – if it weren’t, the charges would move along the surface.

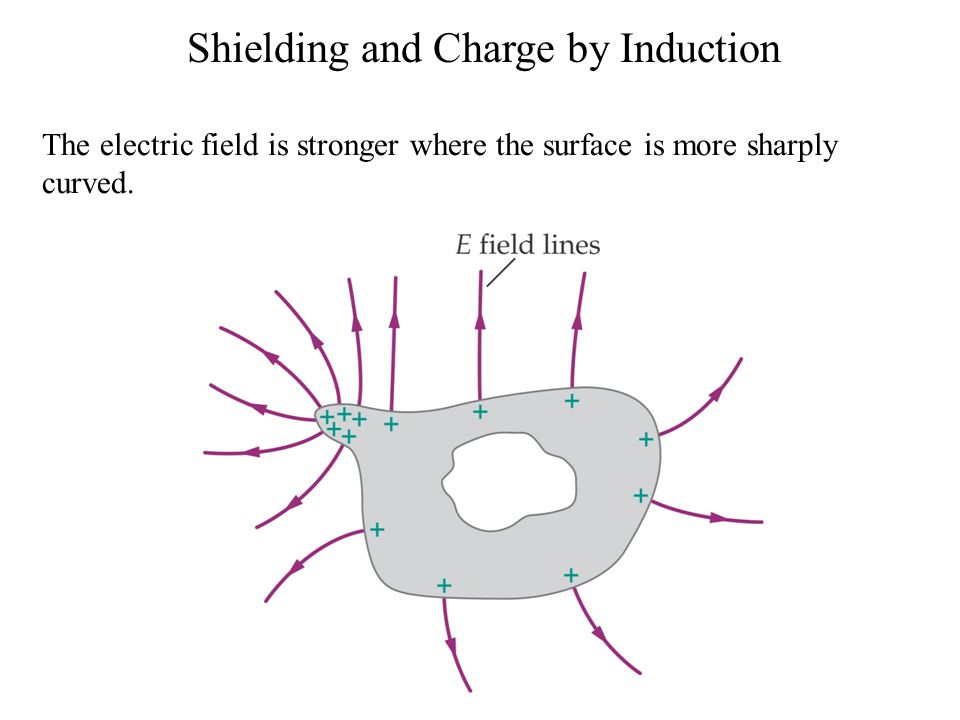

37 Shielding and Charge by Induction The electric field is stronger where the surface is more sharply curved.

38 Shielding and Charge by Induction A conductor can be charged by induction, if there is a way to ground it. This allows the like charges to leave the conductor; if the conductor is then isolated before the rod is removed, only the excess charge remains.

39 Electric Flux and Gauss’s Law Electric flux is a measure of the electric field perpendicular to a surface:

40 END 40
