2 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Oracle Data Visualizations Overview and New Features in ADF and Mobile Application Framework 2.0 Katarina Obradovic-Sarkic Senior Product Manager Oracle Mobility and Application Development Tools Oracle Confidential

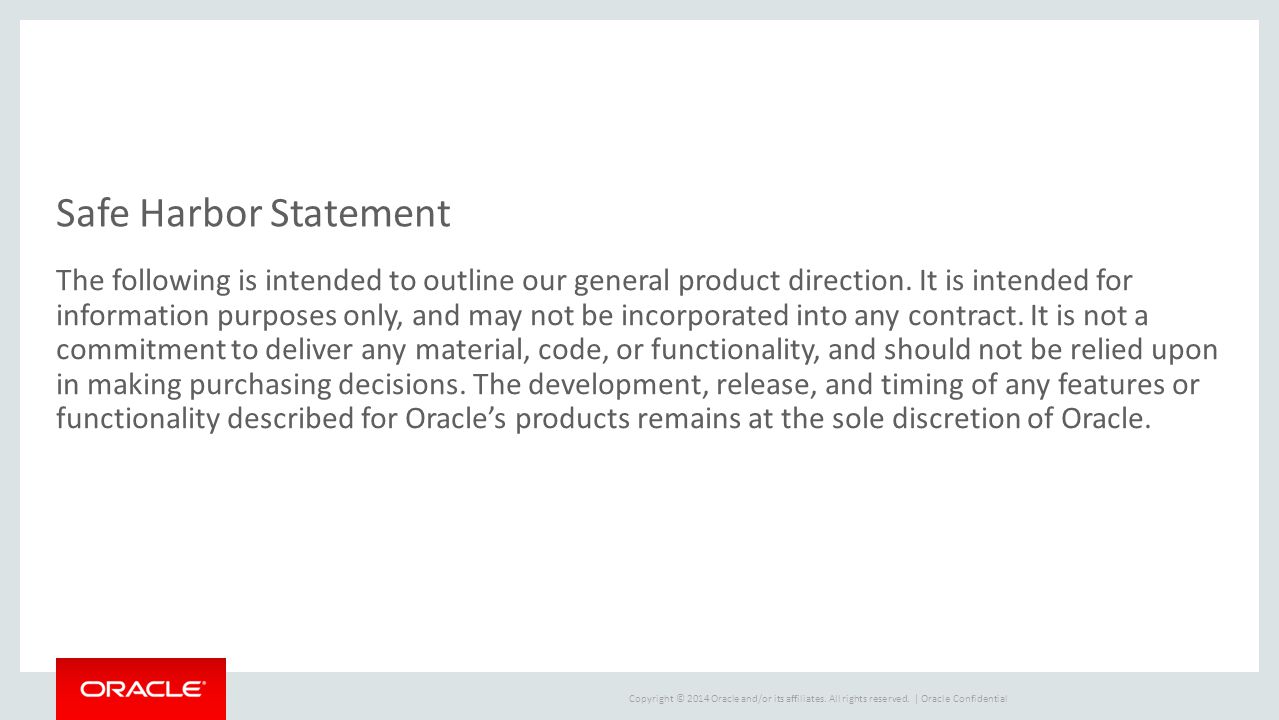

3 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Safe Harbor Statement The following is intended to outline our general product direction. It is intended for information purposes only, and may not be incorporated into any contract. It is not a commitment to deliver any material, code, or functionality, and should not be relied upon in making purchasing decisions. The development, release, and timing of any features or functionality described for Oracle’s products remains at the sole discretion of Oracle. Oracle Confidential

4 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Program Agenda Data Visualizations Overview and Usage within Oracle Primary Use Cases for Data Visualizations Dinner Break New Features in JDeveloper and ADF Data Visualizations in Mobile Application Framework 2.0 Collateral and Q & A Hands-On Session Oracle Confidential – Internal/Restricted/Highly Restricted4 6 7

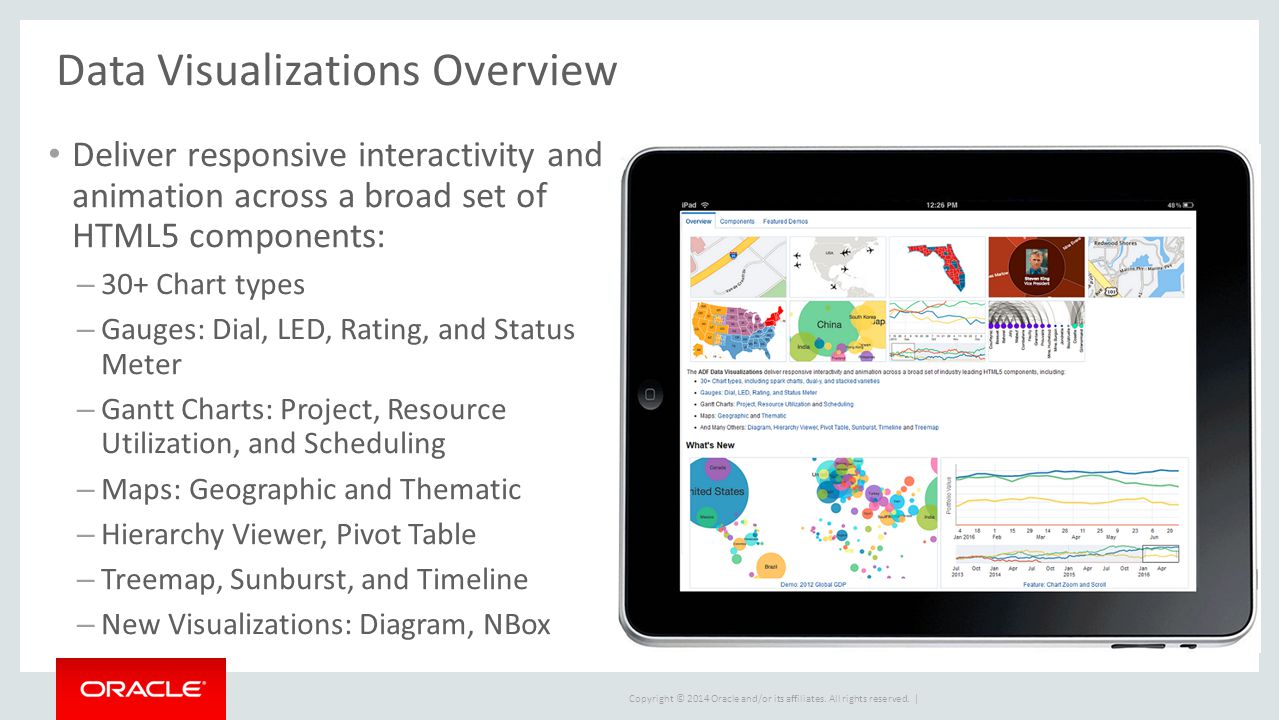

5 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Data Visualizations Overview Deliver responsive interactivity and animation across a broad set of HTML5 components: – 30+ Chart types – Gauges: Dial, LED, Rating, and Status Meter – Gantt Charts: Project, Resource Utilization, and Scheduling – Maps: Geographic and Thematic – Hierarchy Viewer, Pivot Table – Treemap, Sunburst, and Timeline – New Visualizations: Diagram, NBox

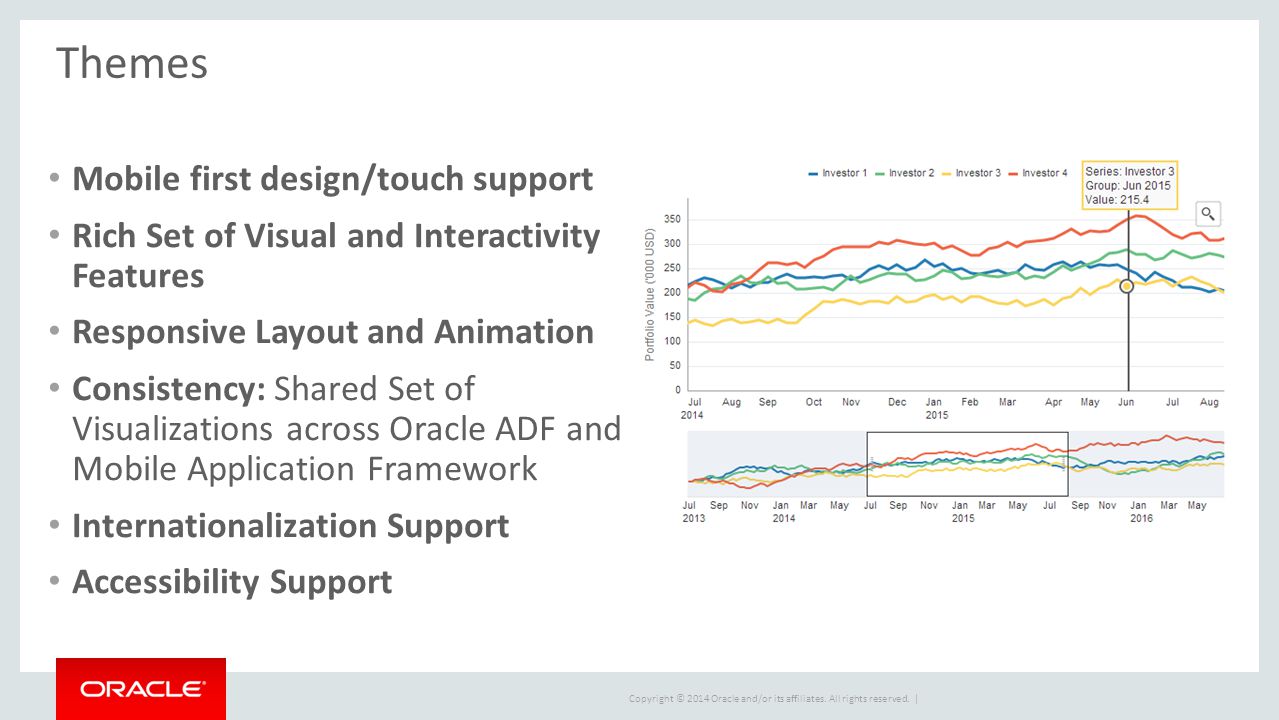

6 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Mobile first design/touch support Rich Set of Visual and Interactivity Features Responsive Layout and Animation Consistency: Shared Set of Visualizations across Oracle ADF and Mobile Application Framework Internationalization Support Accessibility Support Themes

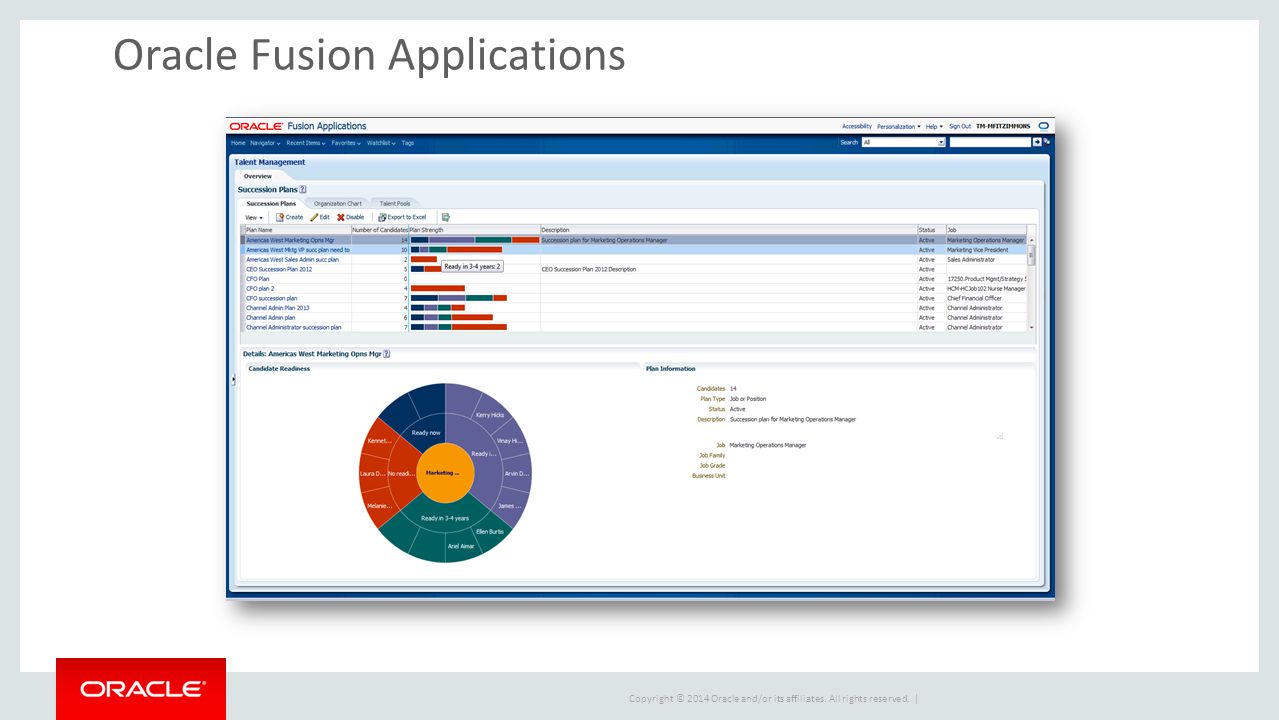

7 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Oracle Fusion Applications

8 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Oracle Fusion Applications

9 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Oracle Fusion Applications

10 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Oracle Fusion Applications

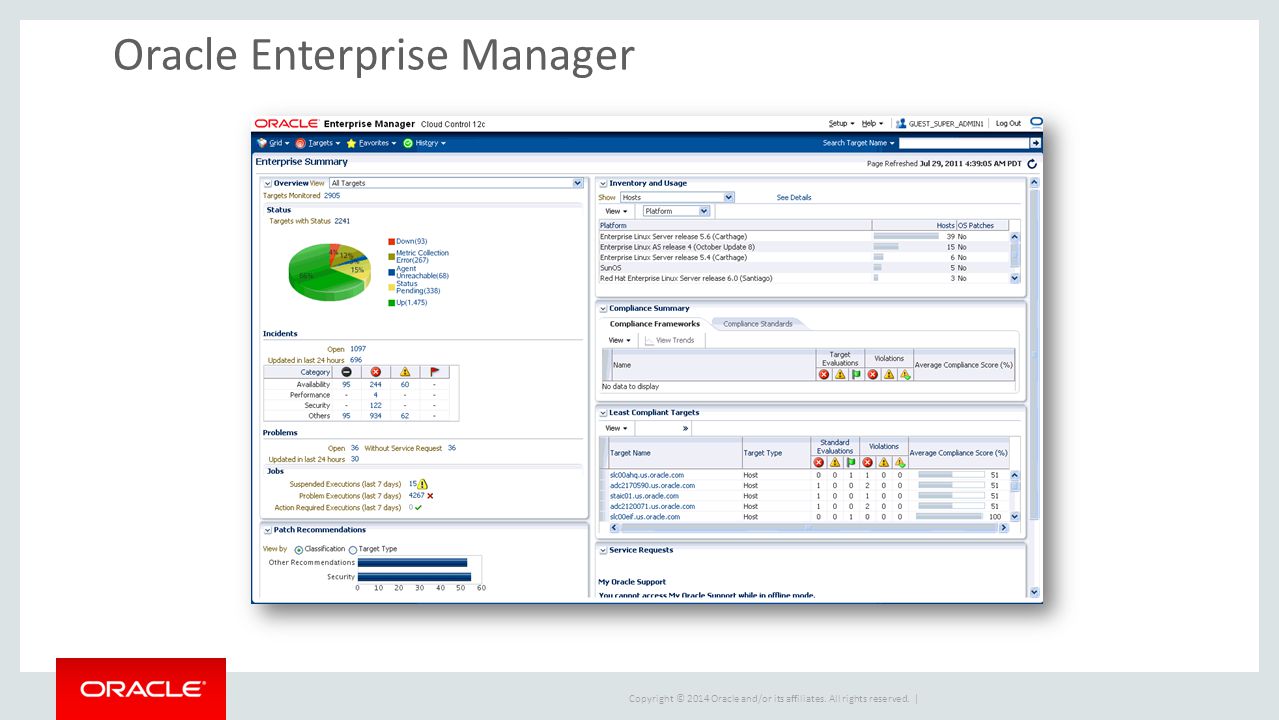

11 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Oracle Enterprise Manager

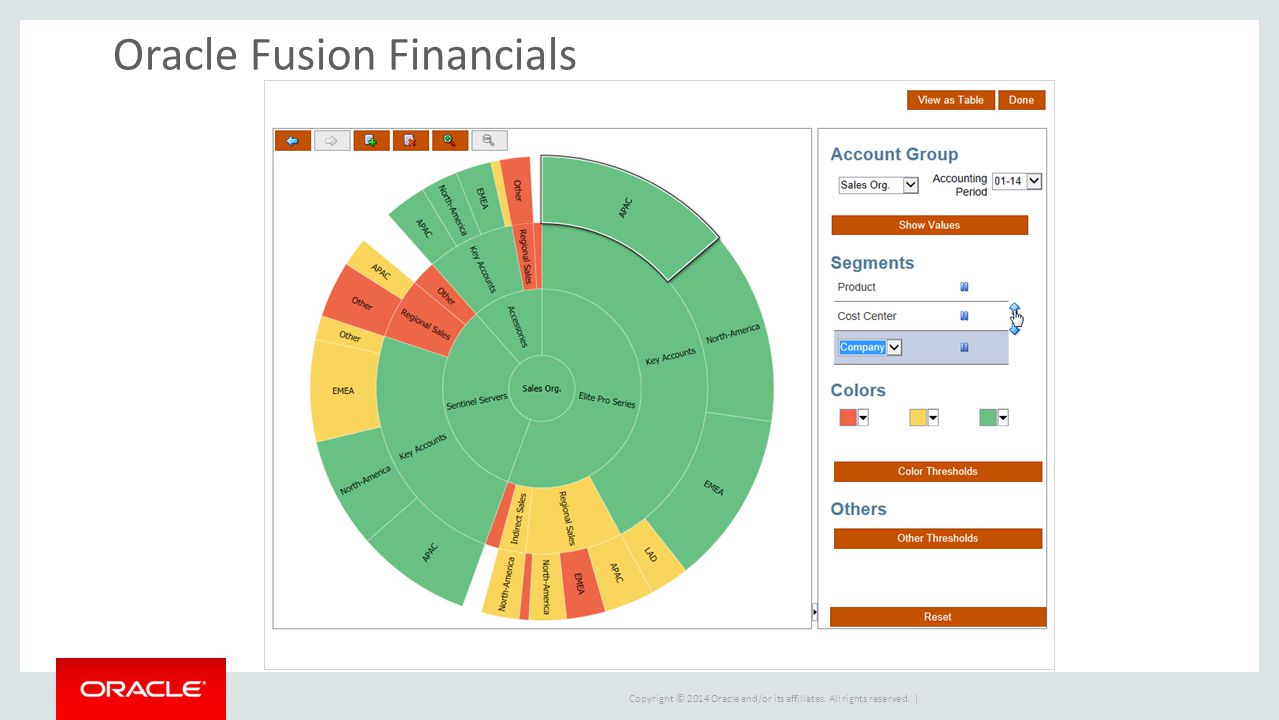

12 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Oracle Fusion Financials

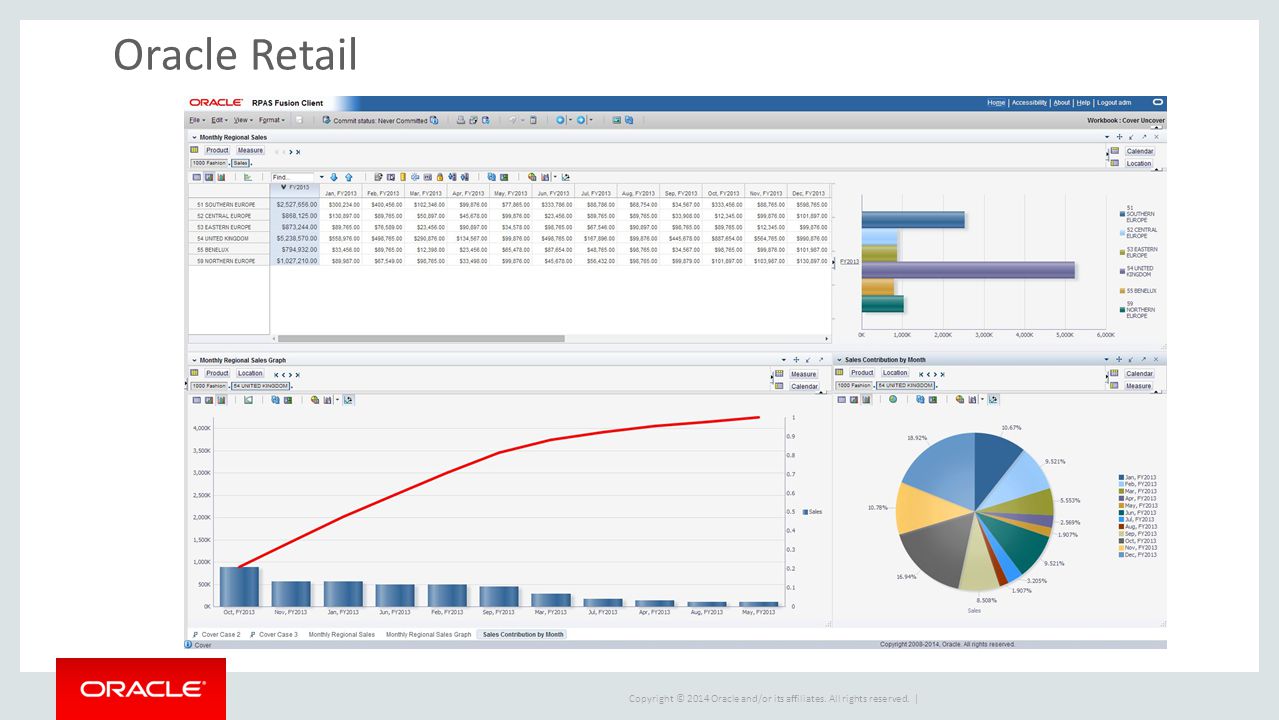

13 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Oracle Retail

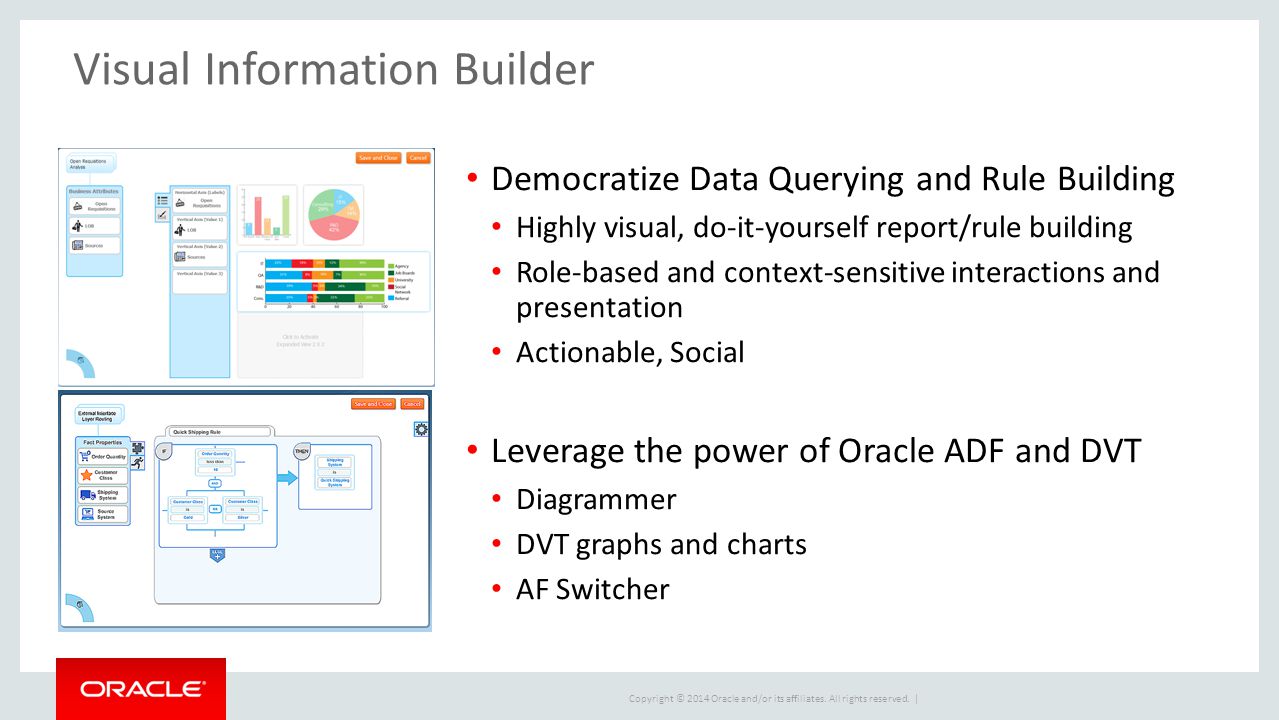

14 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Democratize Data Querying and Rule Building Highly visual, do-it-yourself report/rule building Role-based and context-sensitive interactions and presentation Actionable, Social Leverage the power of Oracle ADF and DVT Diagrammer DVT graphs and charts AF Switcher Visual Information Builder

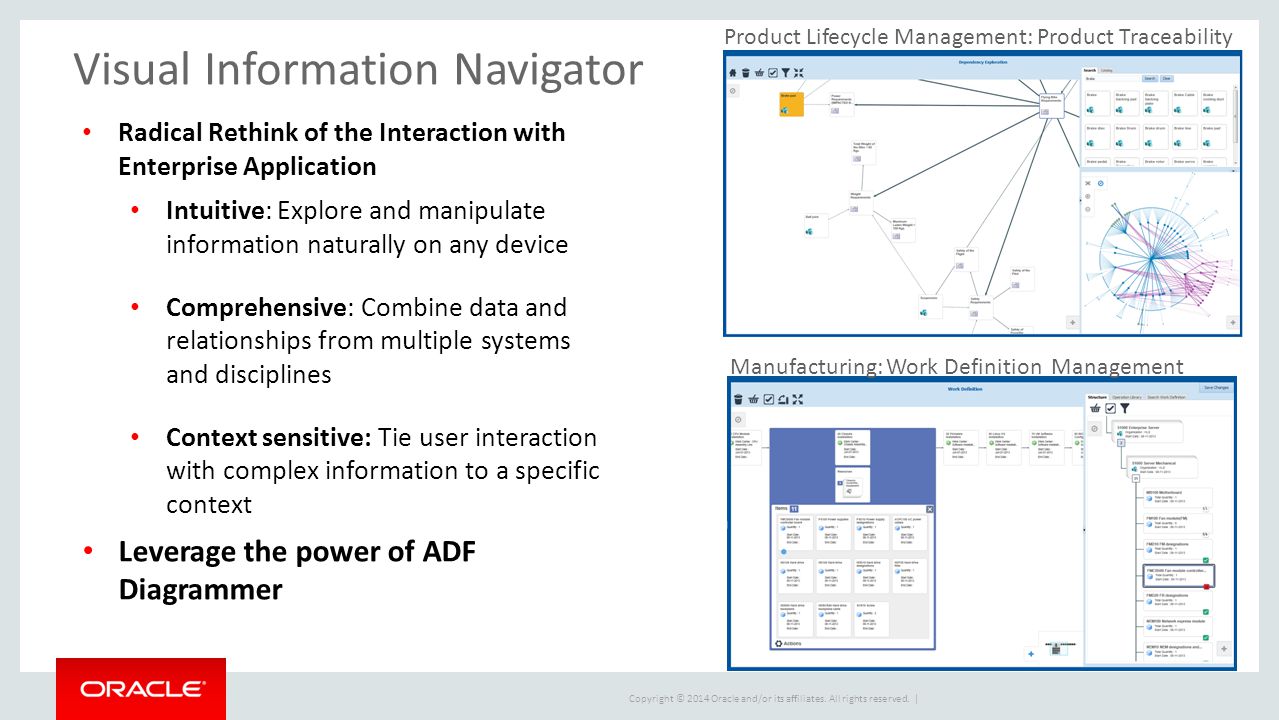

15 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Visual Information Navigator Radical Rethink of the Interaction with Enterprise Application Intuitive: Explore and manipulate information naturally on any device Comprehensive: Combine data and relationships from multiple systems and disciplines Context sensitive: Tie user interaction with complex information to a specific context Leverage the power of ADF Diagrammer Product Lifecycle Management: Product Traceability Manufacturing: Work Definition Management

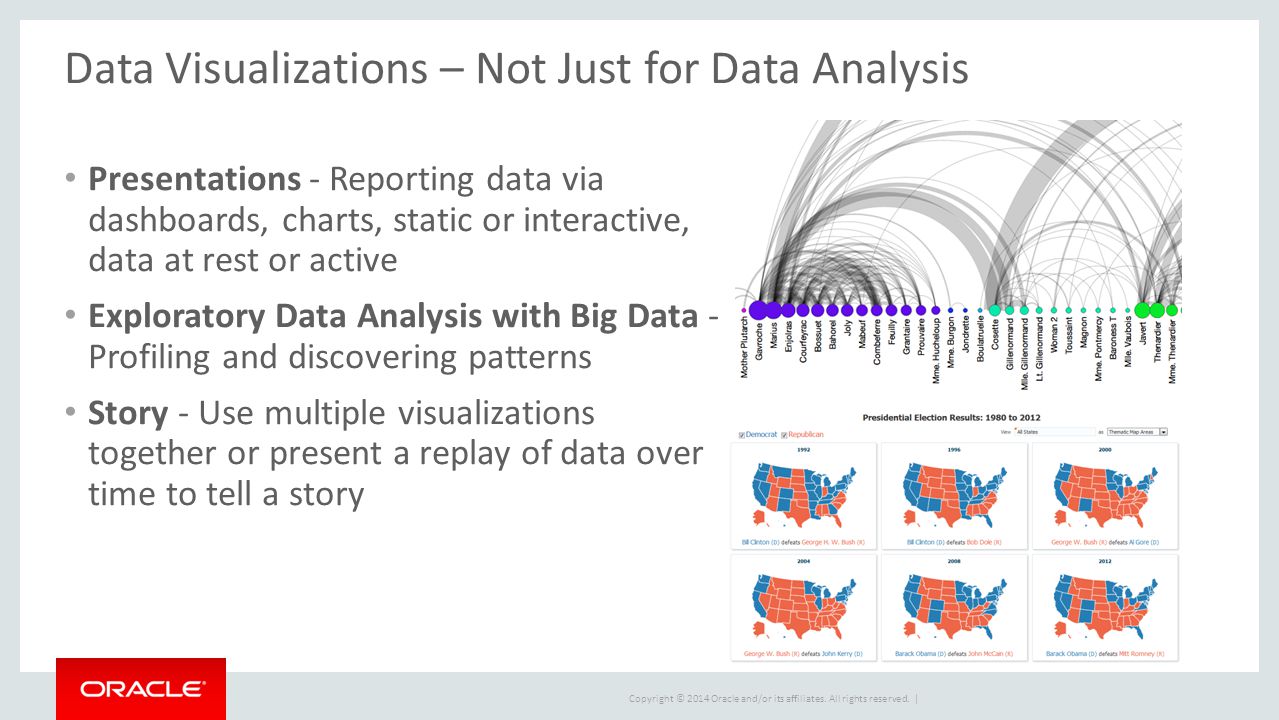

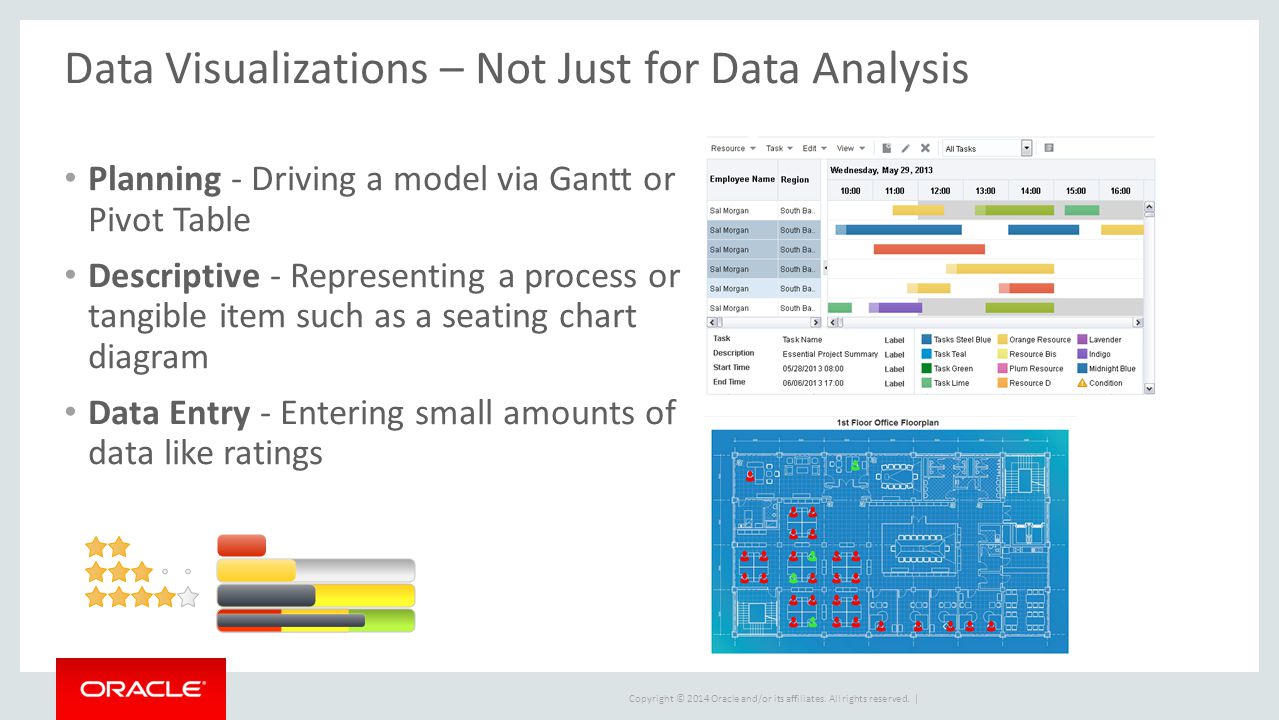

16 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Data Visualizations – Not Just for Data Analysis Presentations - Reporting data via dashboards, charts, static or interactive, data at rest or active Exploratory Data Analysis with Big Data - Profiling and discovering patterns Story - Use multiple visualizations together or present a replay of data over time to tell a story

17 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Data Visualizations – Not Just for Data Analysis Planning - Driving a model via Gantt or Pivot Table Descriptive - Representing a process or tangible item such as a seating chart diagram Data Entry - Entering small amounts of data like ratings

18 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | After the Break: Data Visualizations - New Features in JDeveloper and Mobile Application Framework Oracle Confidential

19 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | New Chart and Gauge components in ADF Already used by ADF Mobile Now exposed in ADF and new Mobile Application Framework Benefits of the New Charting Solution

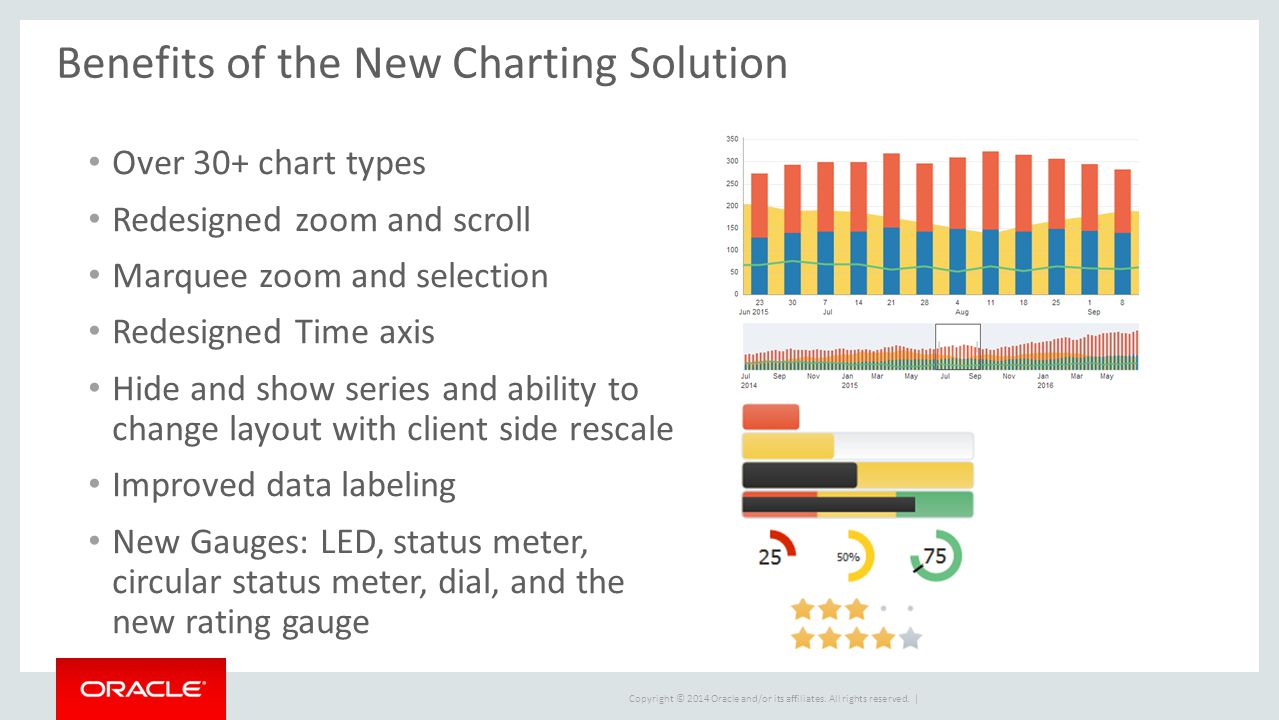

20 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Over 30+ chart types Redesigned zoom and scroll Marquee zoom and selection Redesigned Time axis Hide and show series and ability to change layout with client side rescale Improved data labeling New Gauges: LED, status meter, circular status meter, dial, and the new rating gauge Benefits of the New Charting Solution

21 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Going forward, all the new features are introduced in DVT Charts Old Graph and Gauge tags deprecated in cases where the new tags are available Funnel, Radar and Stock Graph are still supported and will be replaced in a future release Editing existing data-bound instances of deprecated tags is still supported Data-first or UI-first creation of deprecated tags is not supported Graph and Chart: Migration Strategy

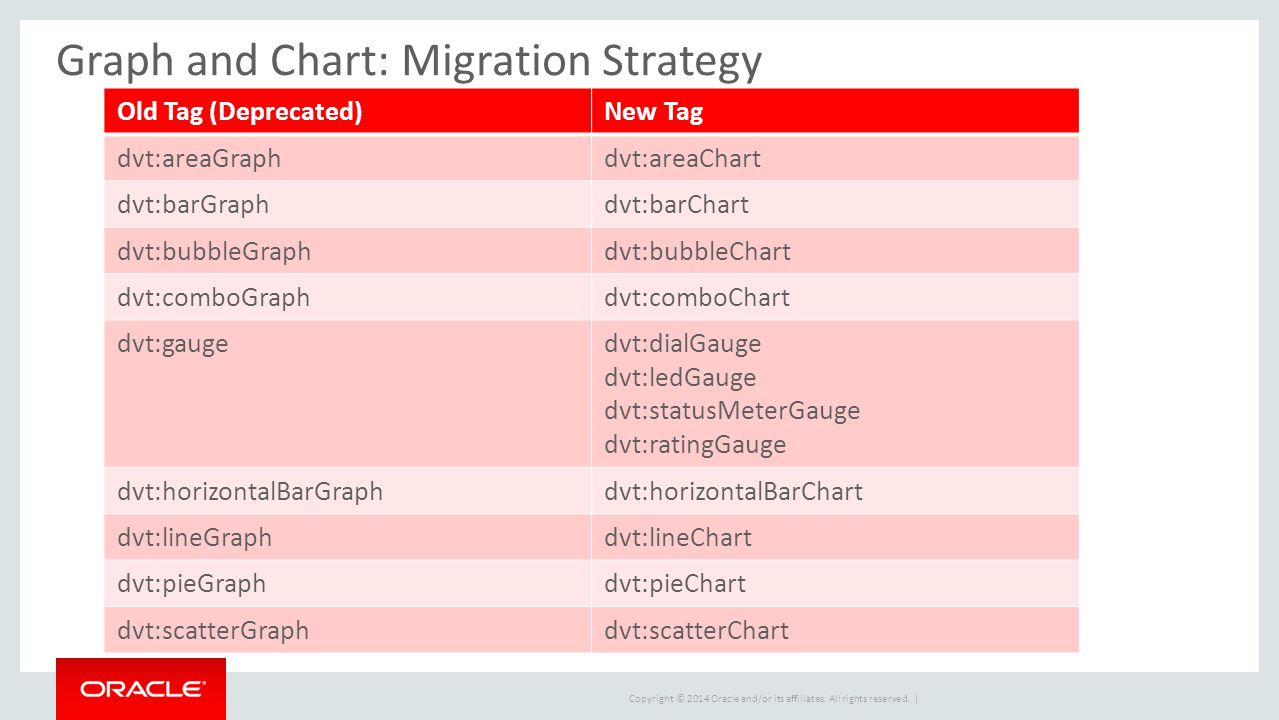

22 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Old Tag (Deprecated)New Tag dvt:areaGraphdvt:areaChart dvt:barGraphdvt:barChart dvt:bubbleGraphdvt:bubbleChart dvt:comboGraphdvt:comboChart dvt:gaugedvt:dialGauge dvt:ledGauge dvt:statusMeterGauge dvt:ratingGauge dvt:horizontalBarGraphdvt:horizontalBarChart dvt:lineGraphdvt:lineChart dvt:pieGraphdvt:pieChart dvt:scatterGraphdvt:scatterChart Graph and Chart: Migration Strategy

23 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Area layer styling and marker zoom behavior Marker rotation Ability to display isolated areas Support for custom base maps Thematic Map New Features

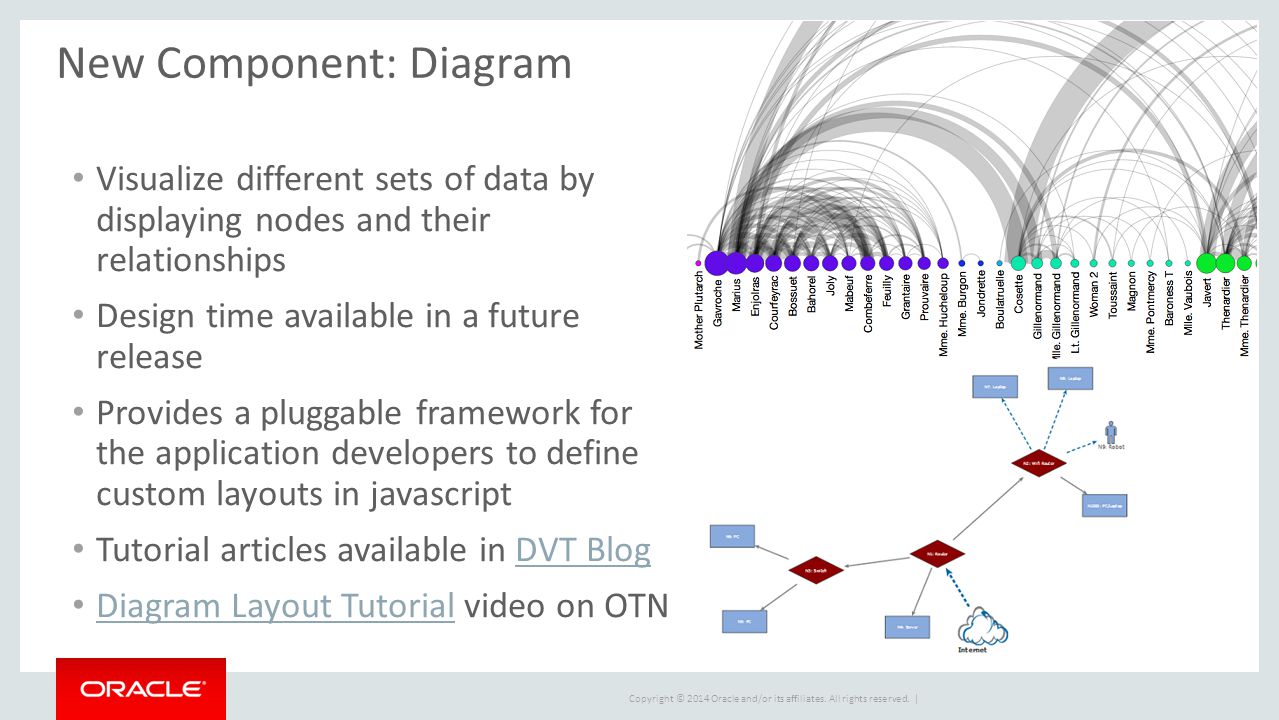

24 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Visualize different sets of data by displaying nodes and their relationships Design time available in a future release Provides a pluggable framework for the application developers to define custom layouts in javascript Tutorial articles available in DVT BlogDVT Blog Diagram Layout Tutorial video on OTN Diagram Layout Tutorial New Component: Diagram

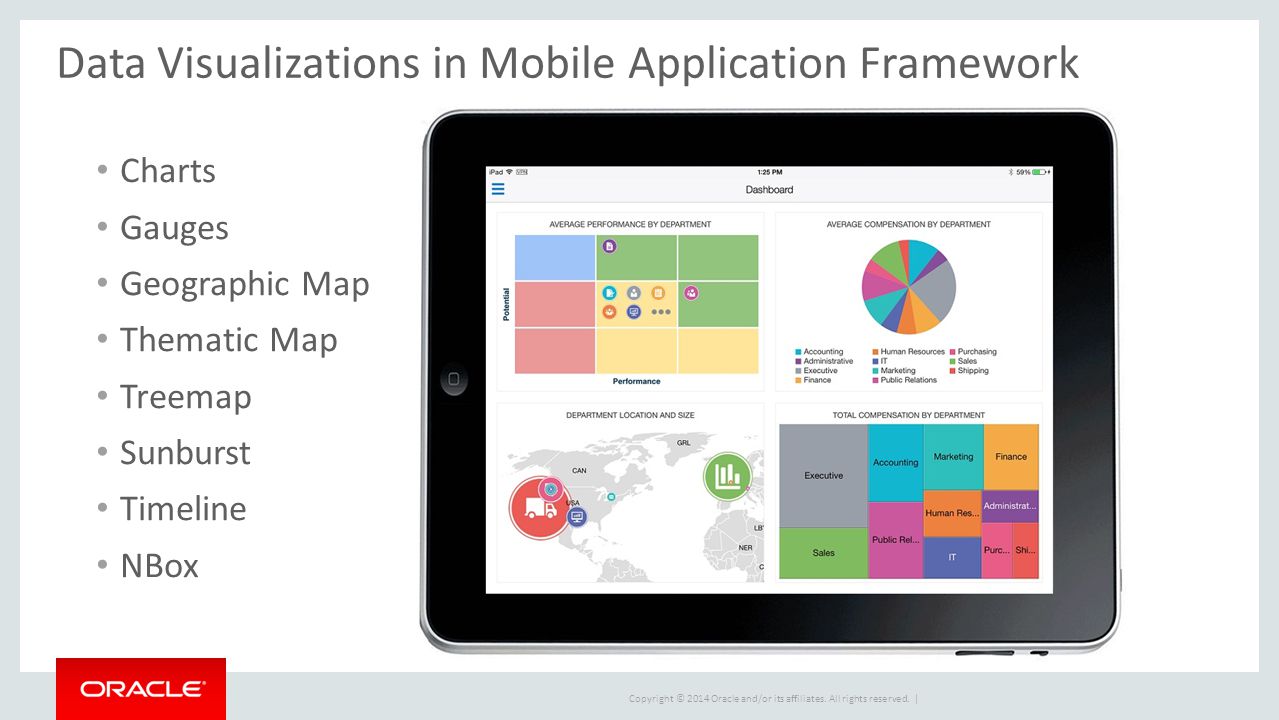

25 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Charts Gauges Geographic Map Thematic Map Treemap Sunburst Timeline NBox Data Visualizations in Mobile Application Framework

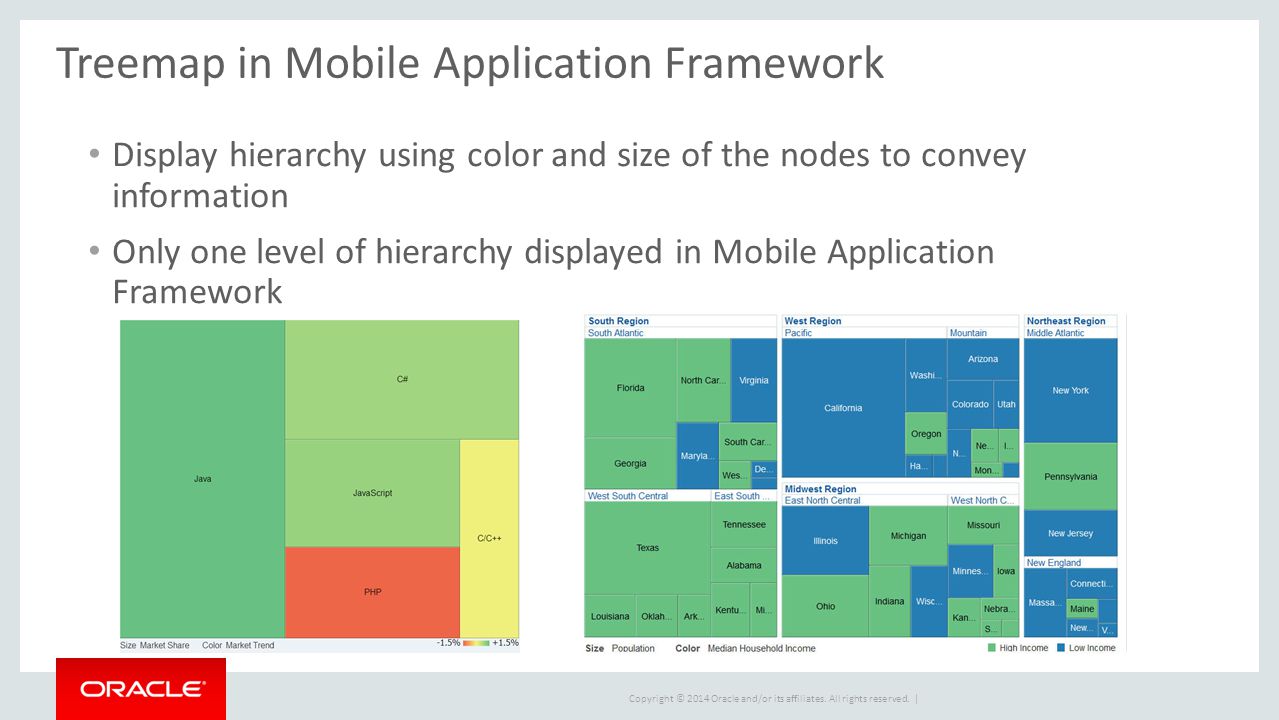

26 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Display hierarchy using color and size of the nodes to convey information Only one level of hierarchy displayed in Mobile Application Framework Treemap in Mobile Application Framework

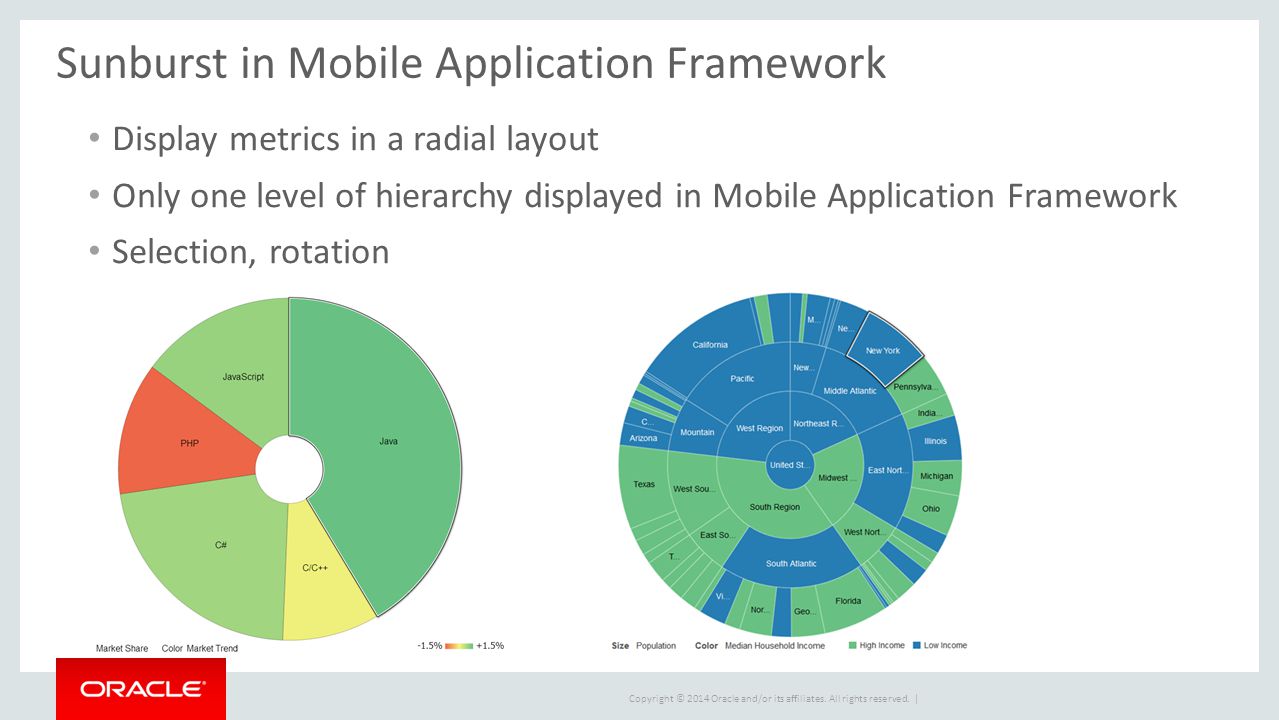

27 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Display metrics in a radial layout Only one level of hierarchy displayed in Mobile Application Framework Selection, rotation Sunburst in Mobile Application Framework

28 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Visualizes events on an interactive timeline Concepts shared with ADF Timeline New feature: Duration bars No overview window Timeline in Mobile Application Framework

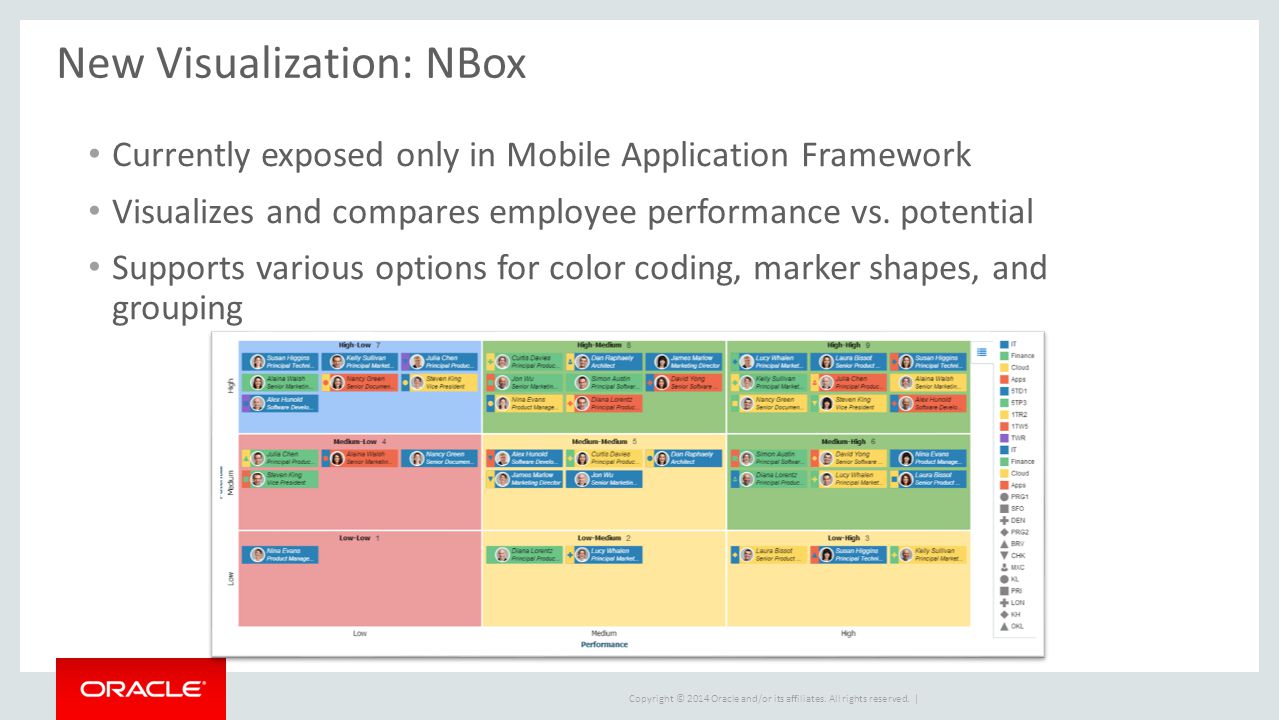

29 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Currently exposed only in Mobile Application Framework Visualizes and compares employee performance vs. potential Supports various options for color coding, marker shapes, and grouping New Visualization: NBox

30 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | DVT new features listed in the new features documentnew features document Recorded videos (ADF): – DVT New Features Overview DVT New Features Overview – Diagram Layout Tutorial Diagram Layout Tutorial – Chart Formatting Chart Formatting The Oracle Mobile Platform YouTube channel: New DVT BlogDVT Blog – Overview articles – Diagram articles by Duncan Mills Hosted demos, available for download Data Visualizations Collateral on OTN

31 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | How are DVT components important to your consulting business? Which ones have you used in delivered projects or demos? How effectively are the DVT components positioned in the development tools space? How competitive are they, compared to what else is out there? What are the most significant gaps, if any? What other charting components have you used recently or considered using? How do you find the development experience using DVT? Questions for You

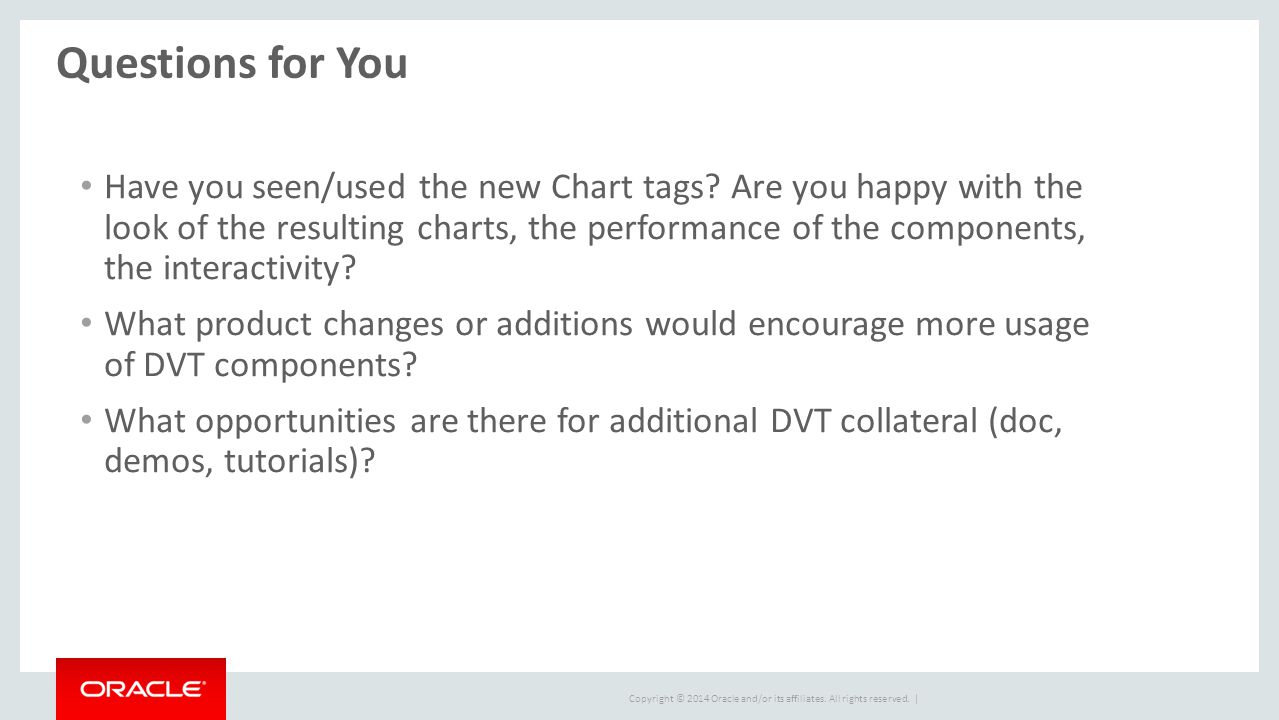

32 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Have you seen/used the new Chart tags? Are you happy with the look of the resulting charts, the performance of the components, the interactivity? What product changes or additions would encourage more usage of DVT components? What opportunities are there for additional DVT collateral (doc, demos, tutorials)? Questions for You

33

34 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Pivot Table Multiple layers on row and column edges Drag and drop pivoting Horizontal and vertical virtualized scrolling Cell, row and column selection Header and cell formatting, e.g. heatmap Automatic totals/subtotals Drilling, Filtering, header/cell sorting Cell editing Stamping Split Panes Paging support

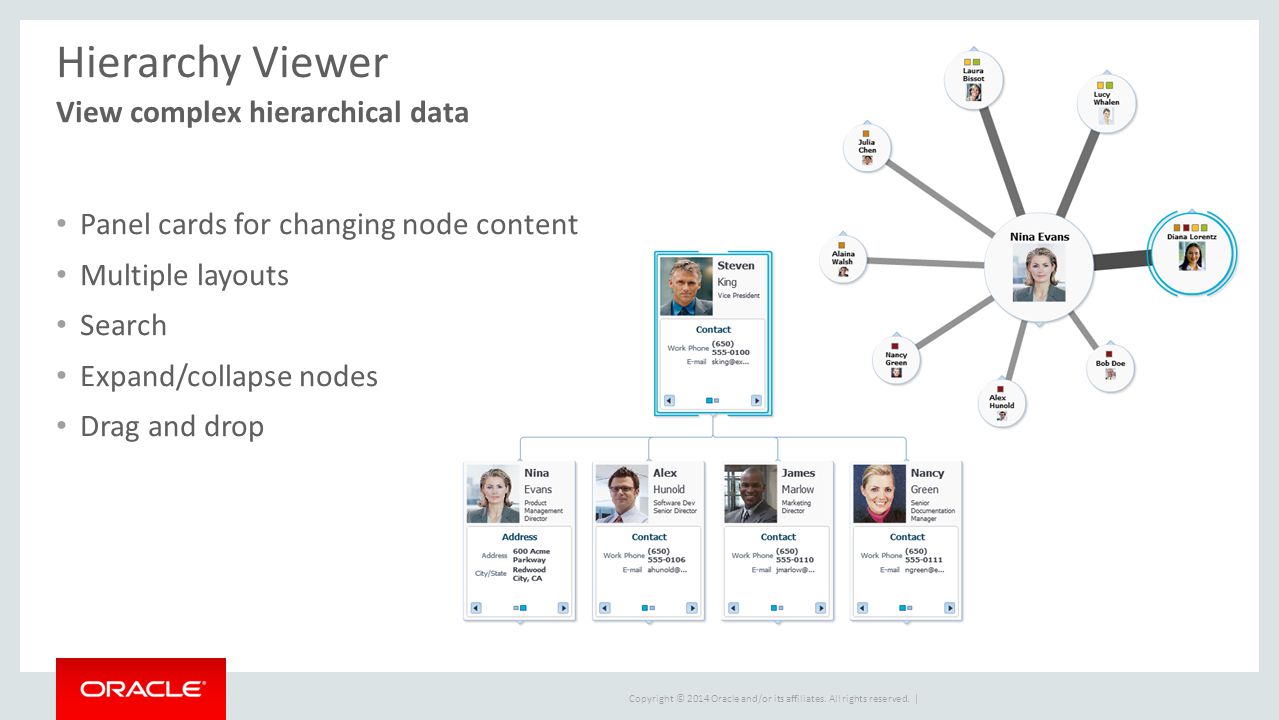

35 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Hierarchy Viewer View complex hierarchical data Panel cards for changing node content Multiple layouts Search Expand/collapse nodes Drag and drop

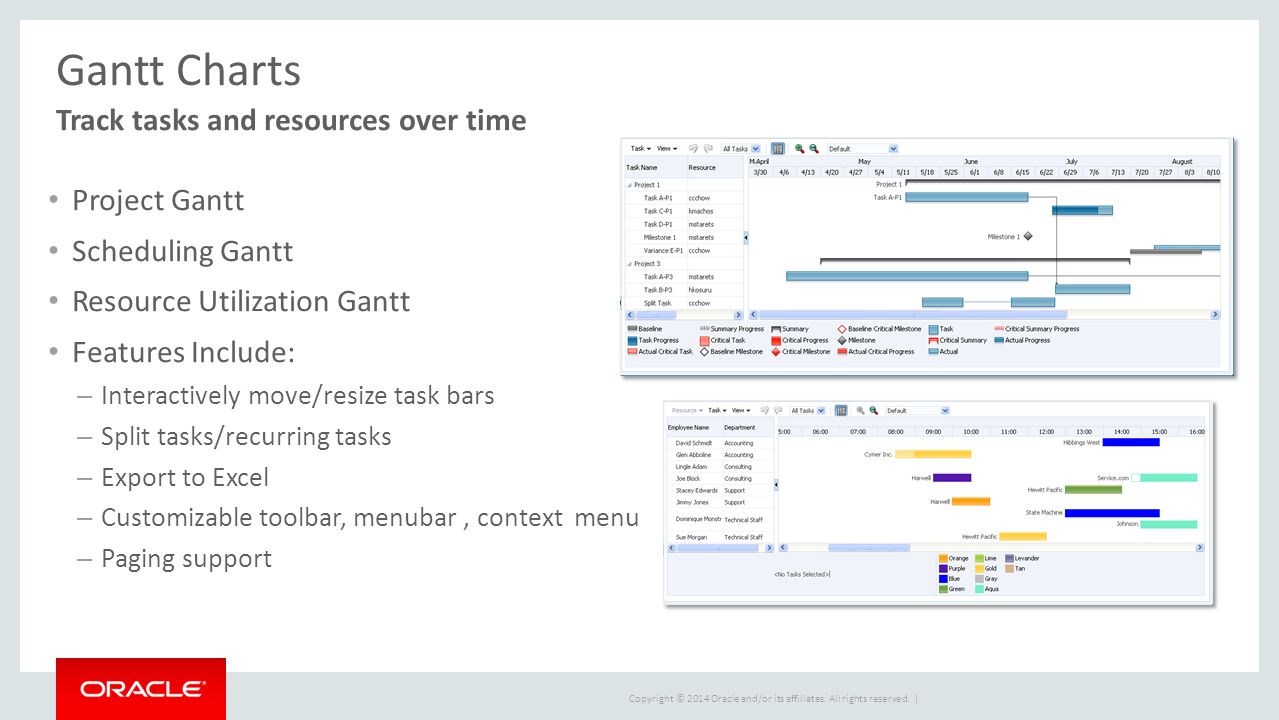

36 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Gantt Charts Track tasks and resources over time Project Gantt Scheduling Gantt Resource Utilization Gantt Features Include: – Interactively move/resize task bars – Split tasks/recurring tasks – Export to Excel – Customizable toolbar, menubar, context menu – Paging support

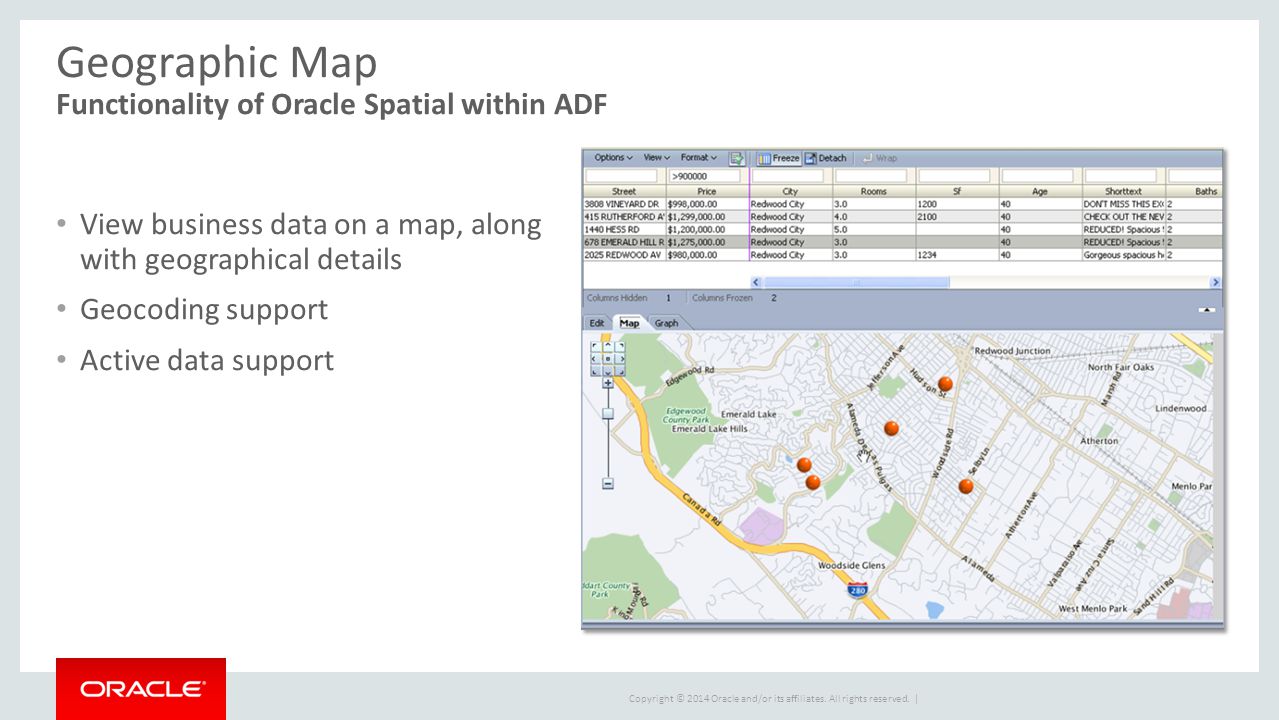

37 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Geographic Map Functionality of Oracle Spatial within ADF View business data on a map, along with geographical details Geocoding support Active data support

38 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Treemap Display hierarchy using color and size of the nodes to convey information Introduced in ADF and , MAF 2.0 Context Menus Drag and Drop Drilling/Isolate (ADF) Popups Selection Other node (group small values) Small form factor

39 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Sunburst Display the metrics for all levels in the hierarchy at the same time Introduced in ADF and , MAF 2.0 Radial layout All Treemap features Rotation Enable drilling to allow the user to traverse the hierarchy (ADF)

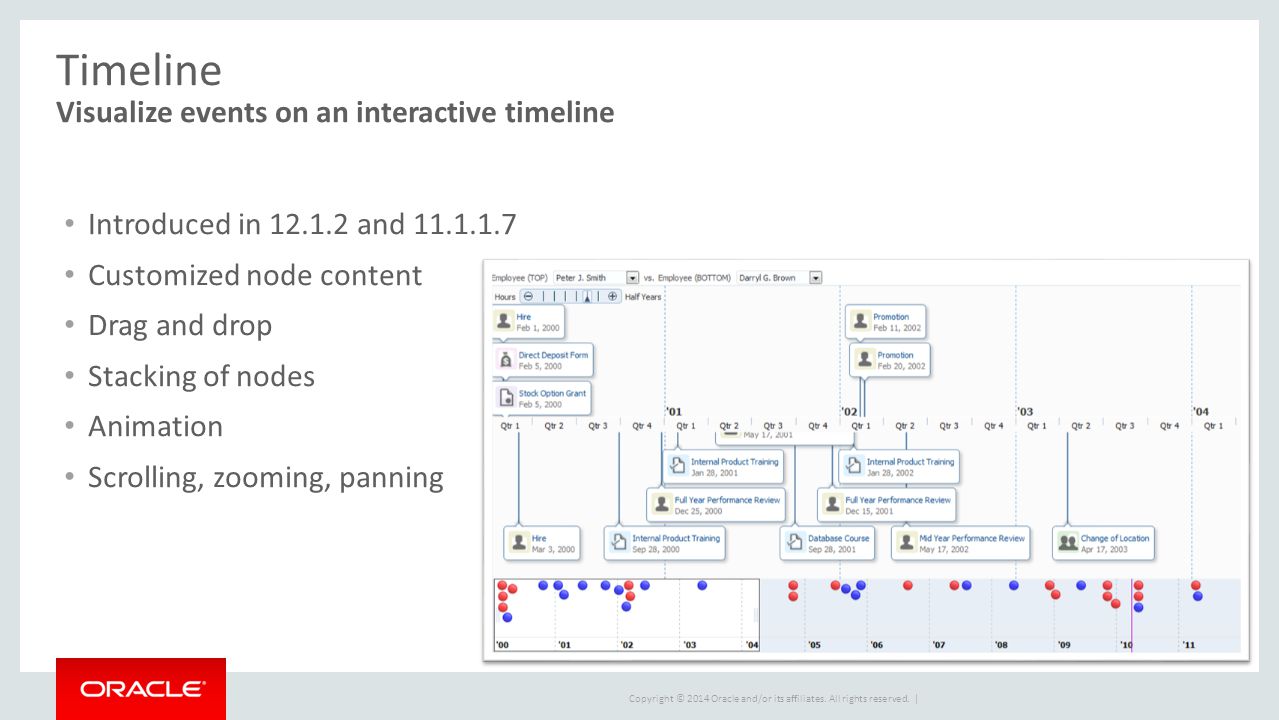

40 Copyright © 2014 Oracle and/or its affiliates. All rights reserved. | Timeline Visualize events on an interactive timeline Introduced in and Customized node content Drag and drop Stacking of nodes Animation Scrolling, zooming, panning
