Heat Losses in Aluminum Holding Furnaces and Transfer Ladles D. Schwam, A.Stibich and E. Nielsen Case Western Reserve University

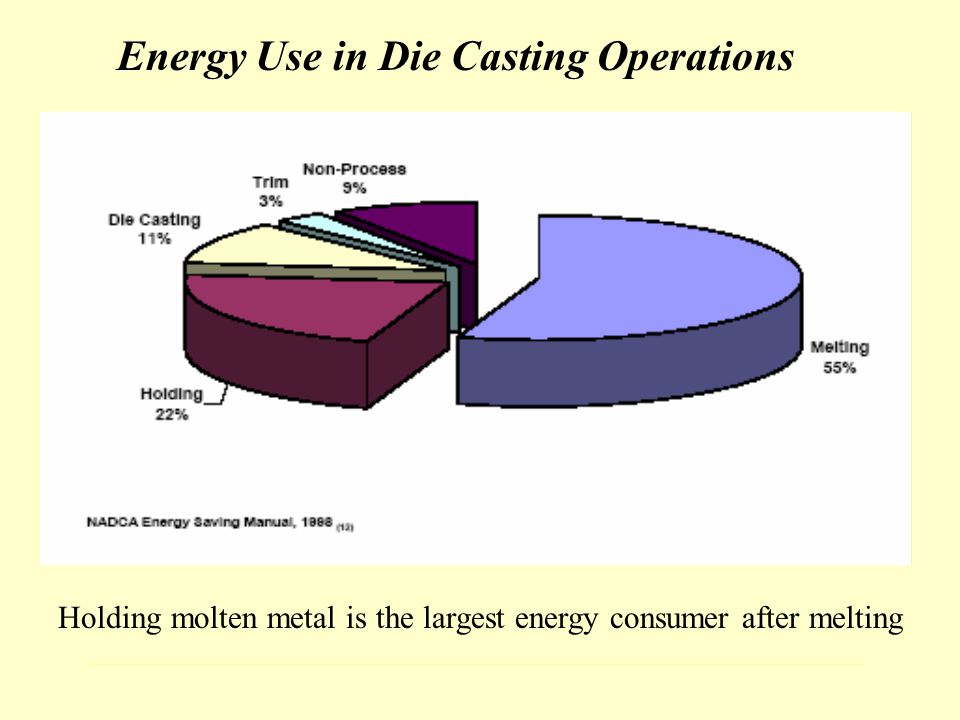

Energy Use in Die Casting Operations Holding molten metal is the largest energy consumer after melting

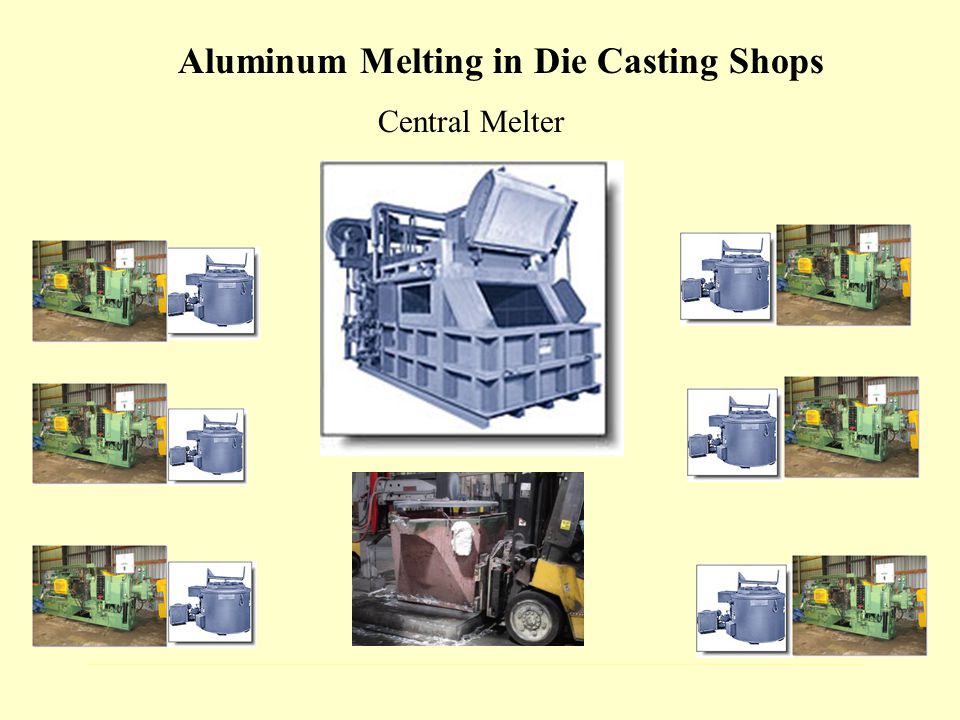

Aluminum Melting in Die Casting Shops Central Melter

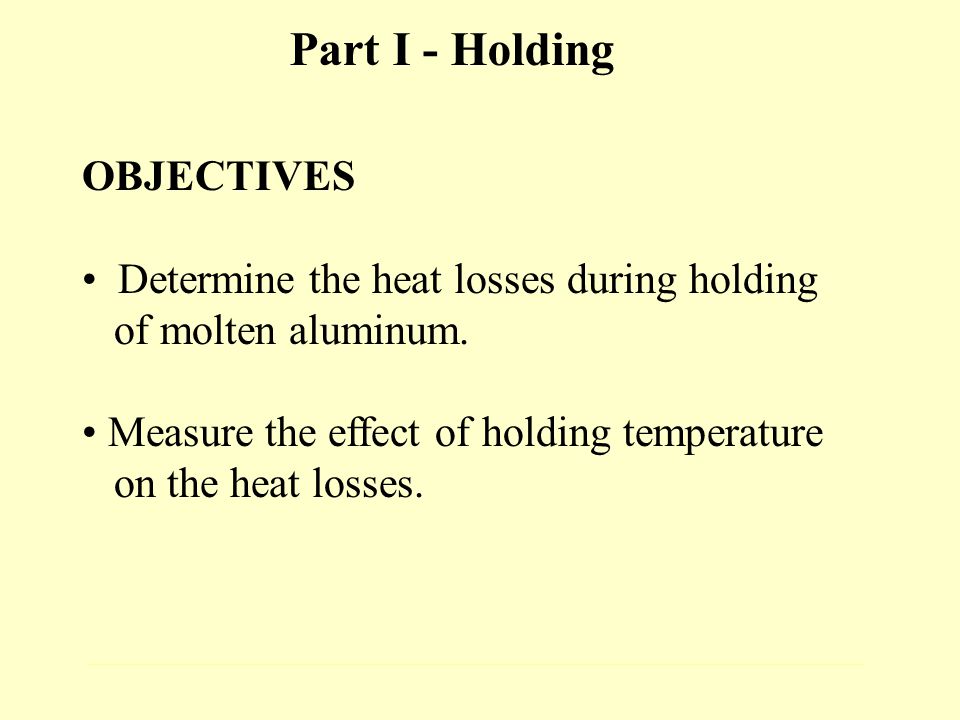

OBJECTIVES Determine the heat losses during holding of molten aluminum. Measure the effect of holding temperature on the heat losses. Part I - Holding

METHOD Monitor the energy used by a 75K electrical furnace for ten hours to hold 500# of molten aluminum at set point Covered Un-Covered

Infra-Red Images of the Holding Furnace The exposed area of the molten metal is three sq. ft. Some losses occur even with the cover in place.

Amprobe AMII Pro Power Analyzer

Hourly Energy Use for the Covered Furnace It takes almost twice as much energy to hold the metal at 1,400 o F compared to holding at 1,100 o F

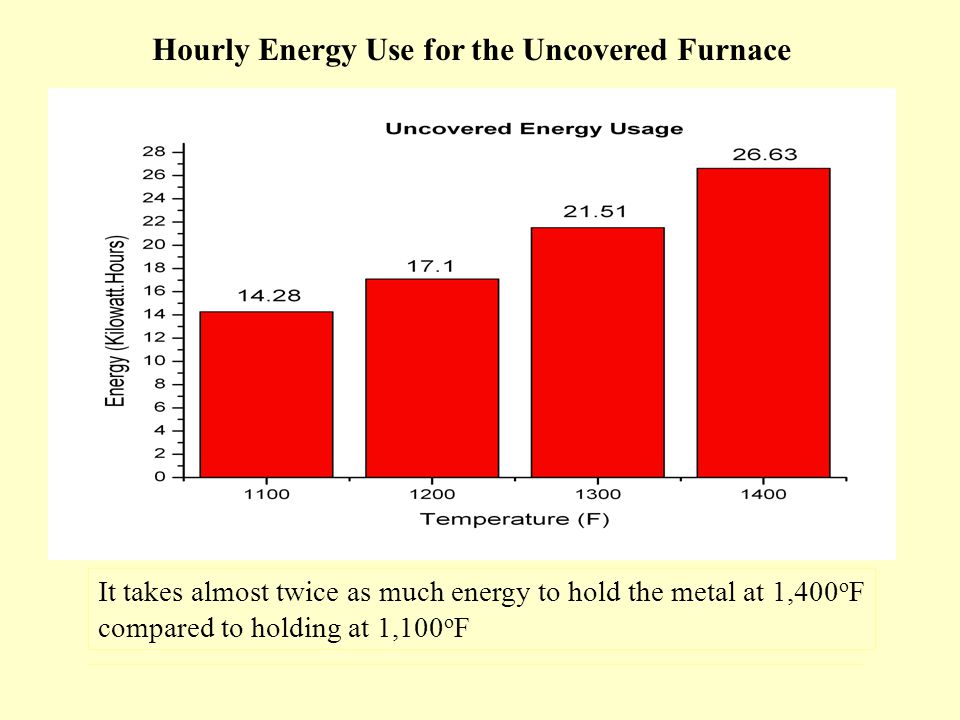

It takes almost twice as much energy to hold the metal at 1,400 o F compared to holding at 1,100 o F Hourly Energy Use for the Uncovered Furnace

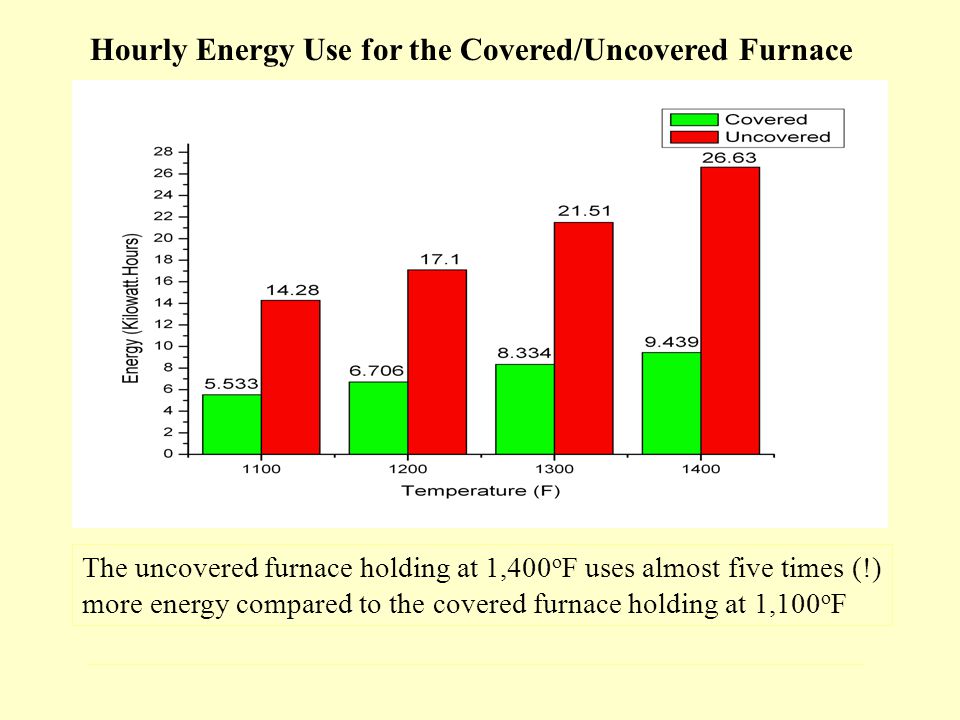

Hourly Energy Use for the Covered/Uncovered Furnace The uncovered furnace holding at 1,400 o F uses almost five times (!) more energy compared to the covered furnace holding at 1,100 o F

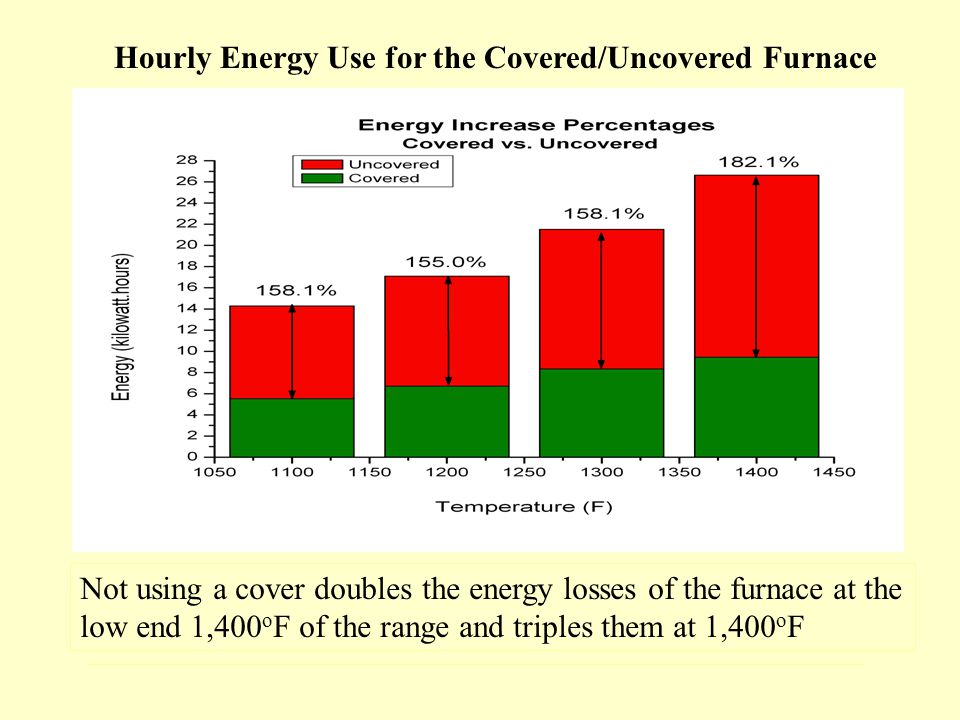

Hourly Energy Use for the Covered/Uncovered Furnace Not using a cover doubles the energy losses of the furnace at the low end 1,400 o F of the range and triples them at 1,400 o F

OBJECTIVES Determine the heat losses during ladle transfer of molten aluminum. Evaluate the effect of improved ladle insulation Assess the impact of continuous vs. interrupted ladle use on heat losses Part II - Transfer

Instrumentation The transfer ladle was instrumented for real time data acquisition

BTU-Block Flexible

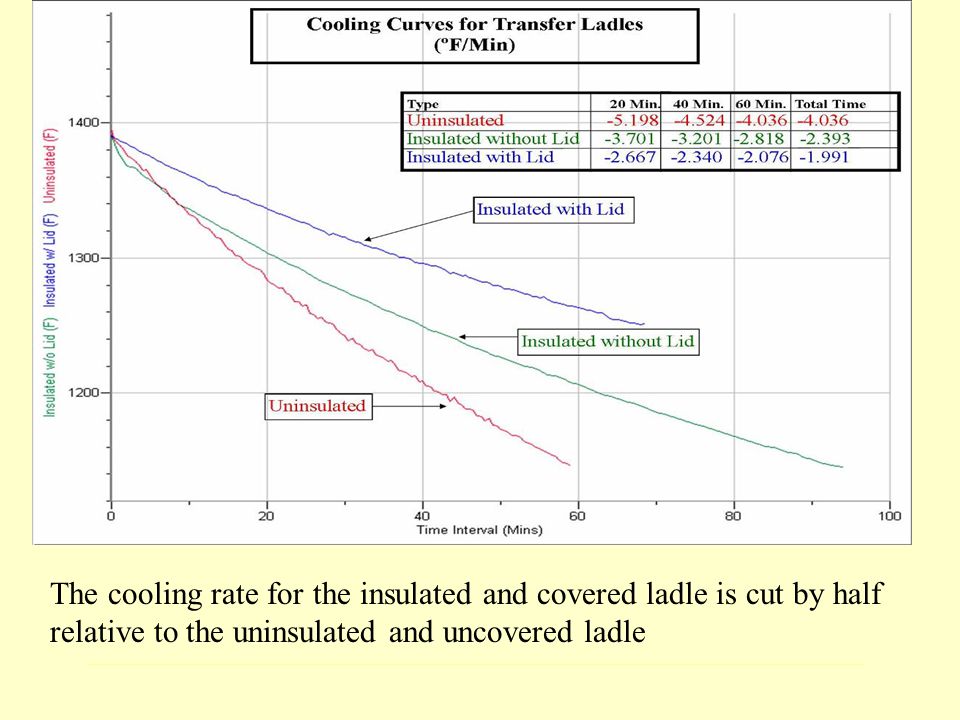

The cooling rate for the insulated and covered ladle is cut by half relative to the uninsulated and uncovered ladle

CONCLUSIONS The “insulated” ladle had a smaller temperature loss whether both ladles were started cold or in the middle of continuous cycles. During the stationary cooling curve test the “insulated” ladle outperformed the “standard” ladle by 139% in reducing the temperature drop during the first twenty minutes. The performance of both ladles improved noticeably as they were used repeatedly without significant down time. Adding a cover to an insulated ladle can cut the heat lost during a twenty minute transfer cycle by nearly half, compared to a “standard”, non-insulated ladle.
