1
Scientific Computing Lab Introduction to COMSOL - Multiphysics Dheevatsa Mudigere Institut für Informatik Scientific Computing in Computer Science

2
COMSOL - Multiphysics COMSOL Multi-physics (formerly FEMLAB) is a commercial finite element analysis and solver package for various physics and engineering applications.

3
Example - 2D steady-state thermal analysis Domain - 0.6×1.0 meters. Boundary conditions: –The left boundary is insulated. – The lower boundary is kept at 100 °C. –The upper and right boundaries are convecting to 0 °C with a heat transfer coefficient of 750 W/(m 2 °C). Material Properties –Thermal conductivity is 52 W/(m °C). –Density, ρ - 7850 kg/m 3

4
Starting COMSOL /usr/local/applic/bin/comsol

5

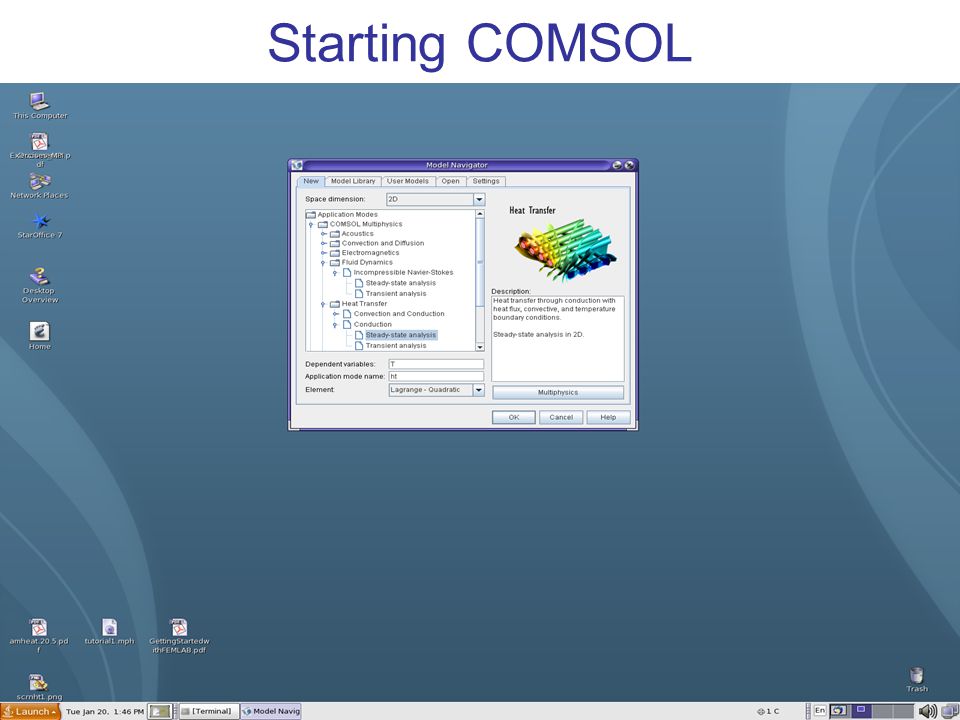

Starting COMSOL

6

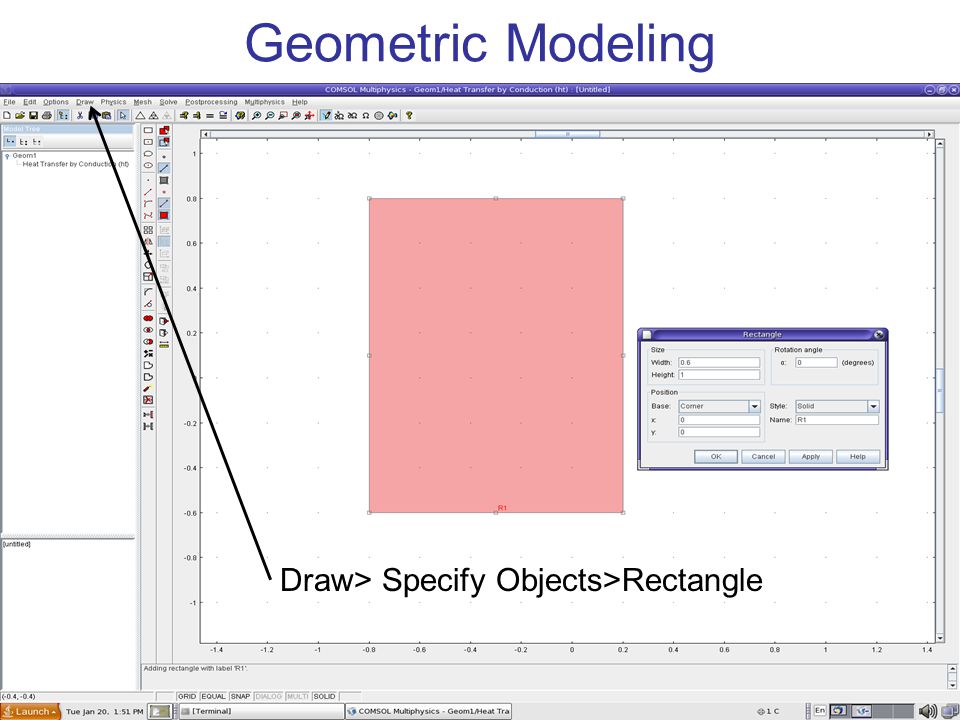

Geometric Modeling Draw> Specify Objects>Rectangle

7

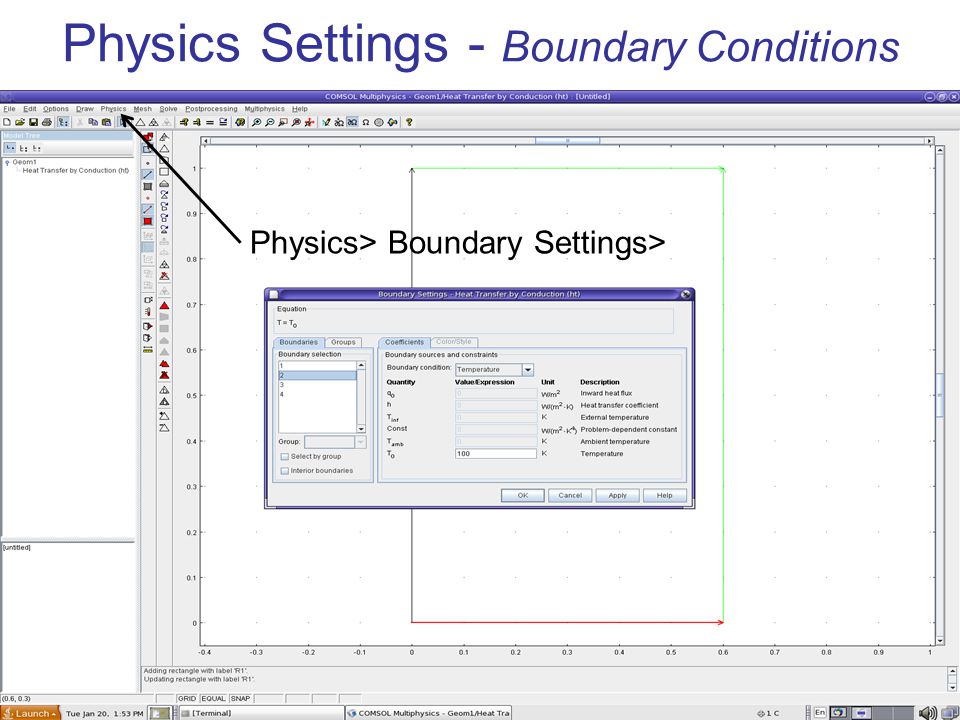

Physics Settings - Boundary Conditions Physics> Boundary Settings>

8
Physics Settings - Boundary Conditions Physics> Boundary Settings>

9

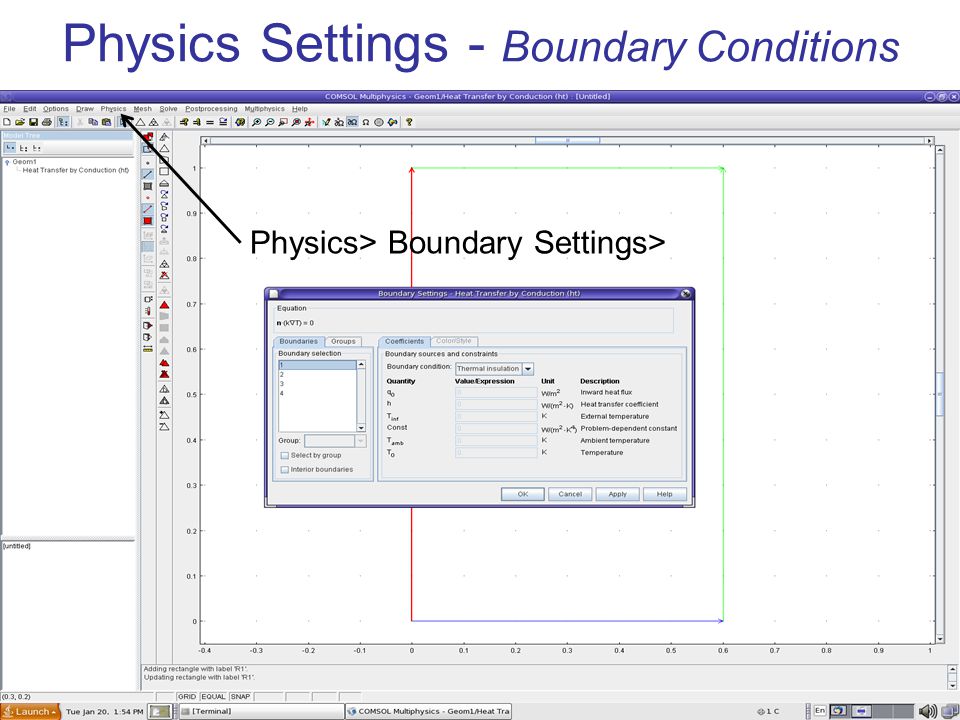

Physics Settings - Boundary Conditions Physics> Boundary Settings>

10

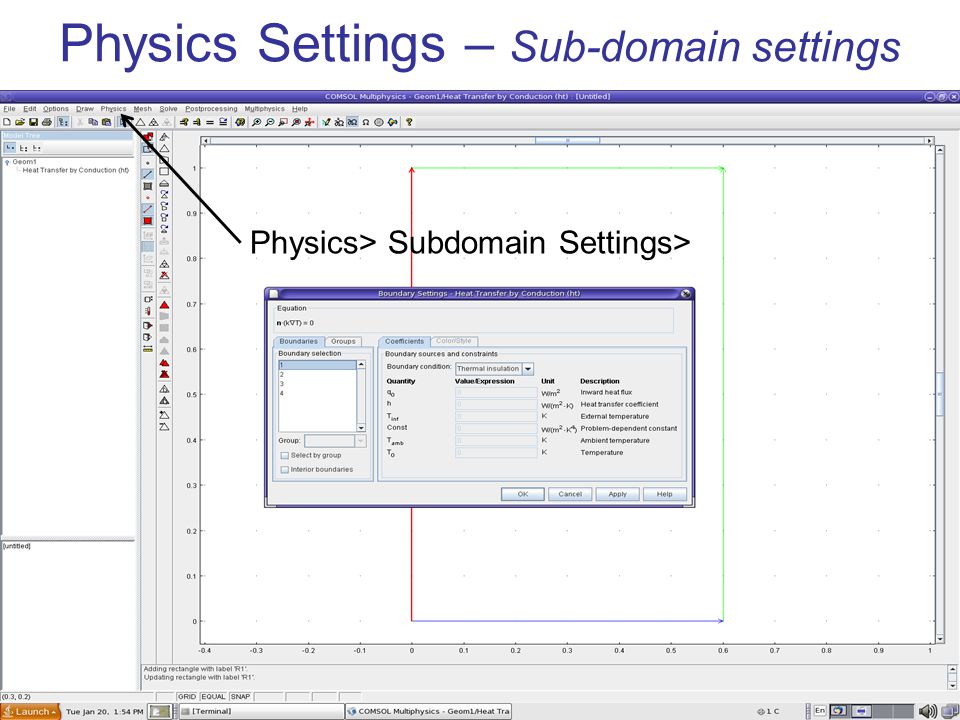

Physics Settings – Sub-domain settings Physics> Subdomain Settings>

11

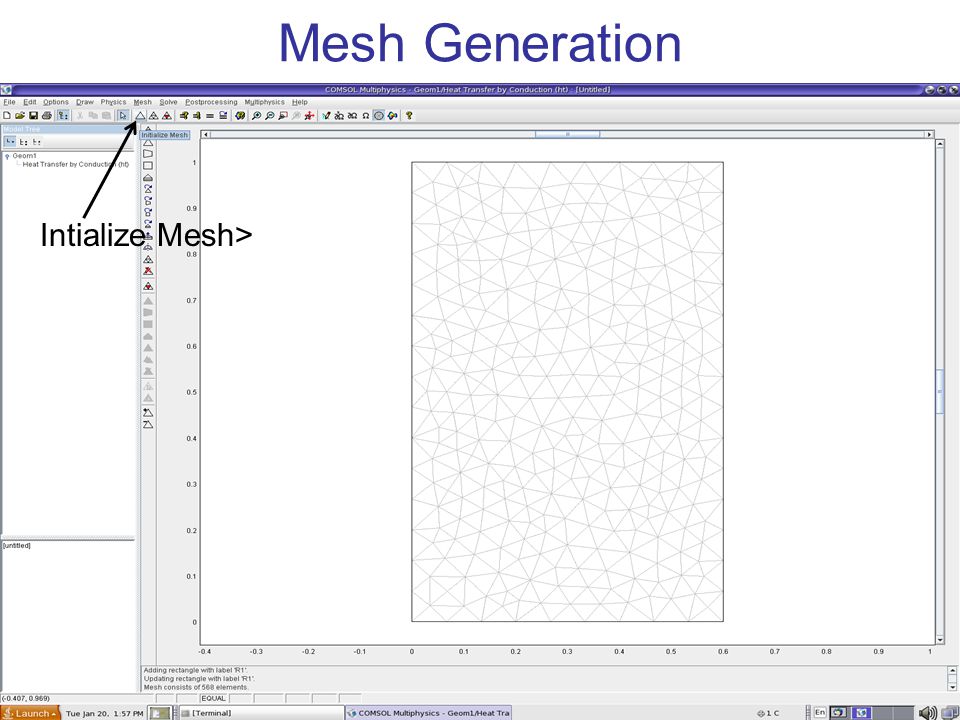

Mesh Generation Intialize Mesh>

12

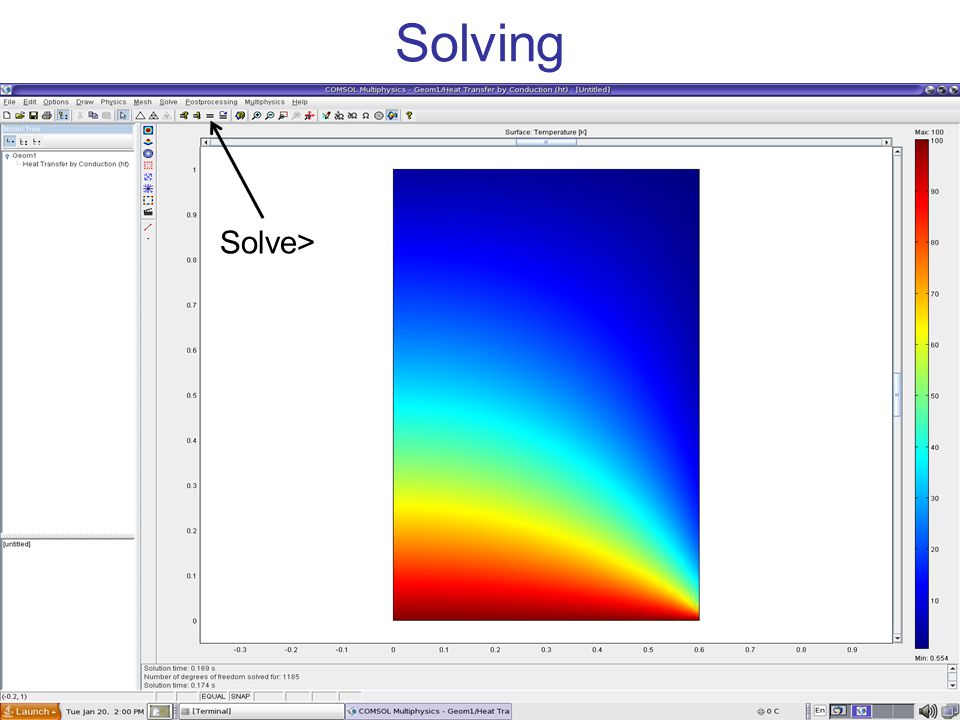

Solving Solve>

13

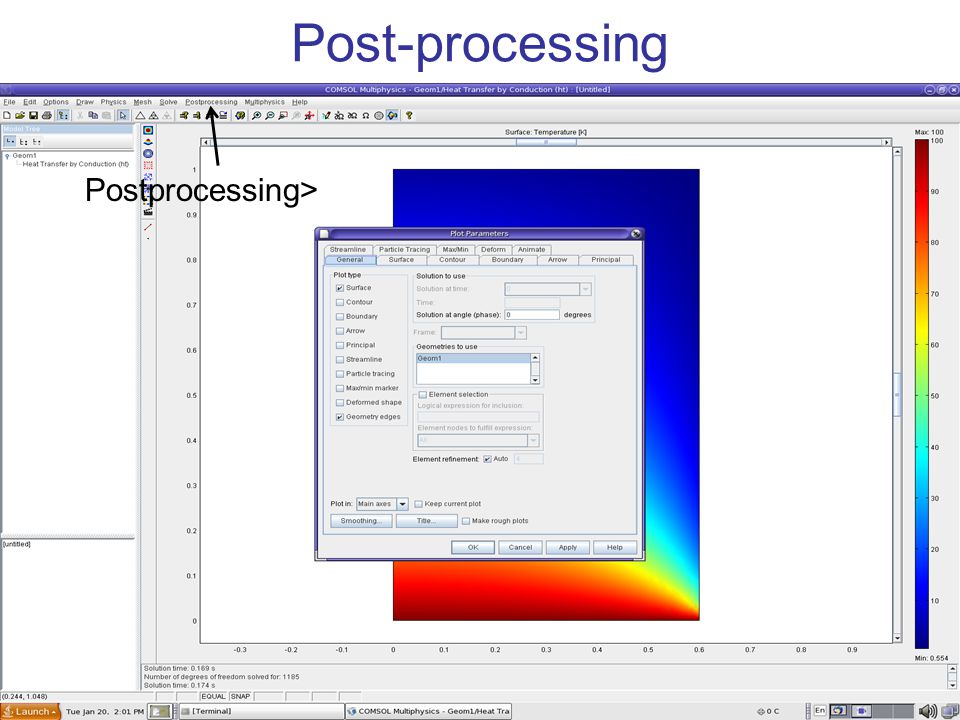

Post-processing Postprocessing>
