Presentation on theme: "Presents. Create Amazing shadows with artistic Parasoleil patterns."— Presentation transcript:

1 Presents

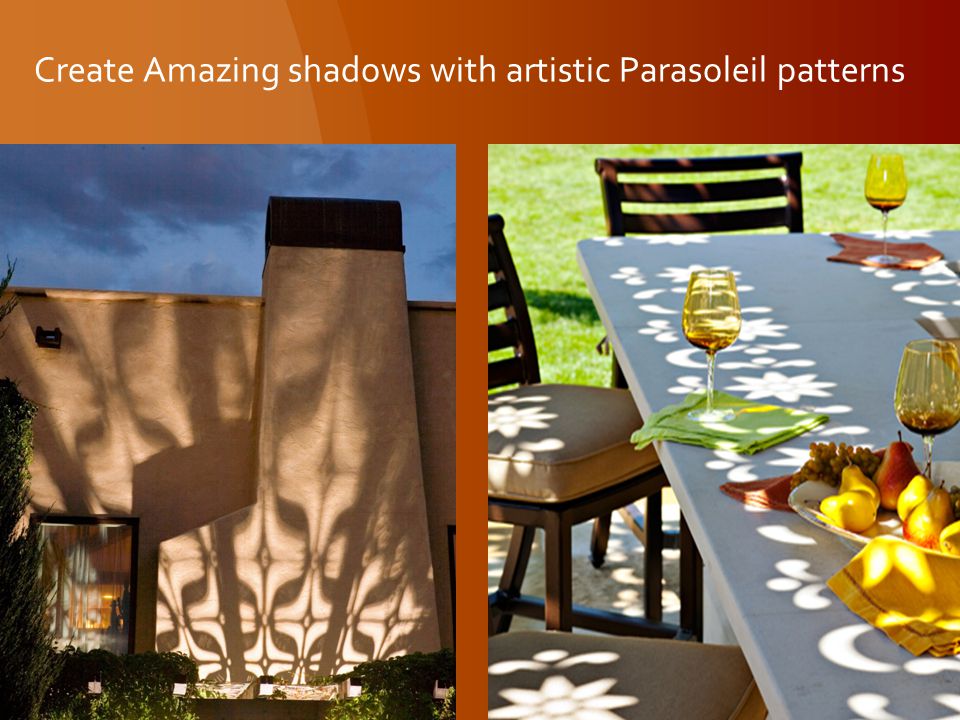

2 Create Amazing shadows with artistic Parasoleil patterns

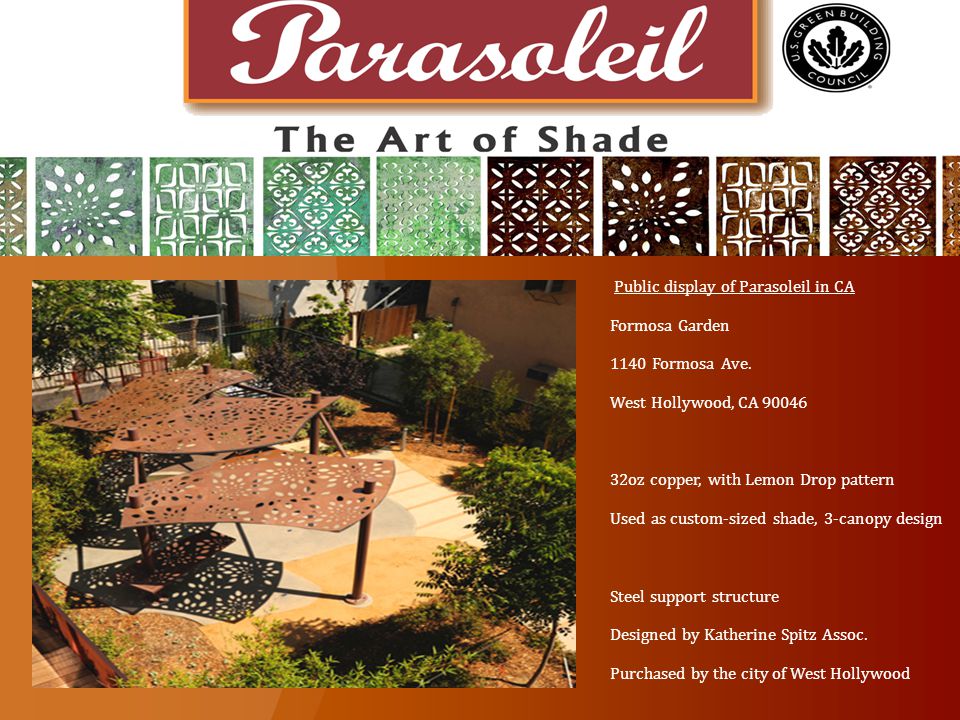

3 Public display of Parasoleil in CA Formosa Garden 1140 Formosa Ave. West Hollywood, CA oz copper, with Lemon Drop pattern Used as custom-sized shade, 3-canopy design Steel support structure Designed by Katherine Spitz Assoc. Purchased by the city of West Hollywood

4

5

6 Provide shade from the harsh sun with Parasoleil

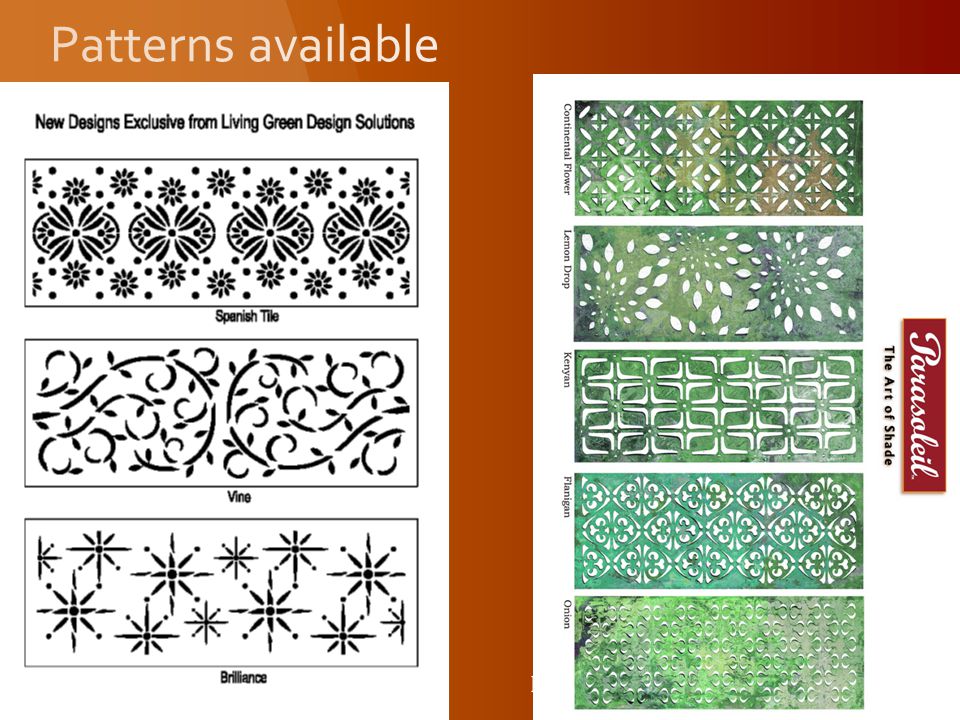

7 Presents Patterns inspired from around the world

8 Presents Patterns inspired from around the world

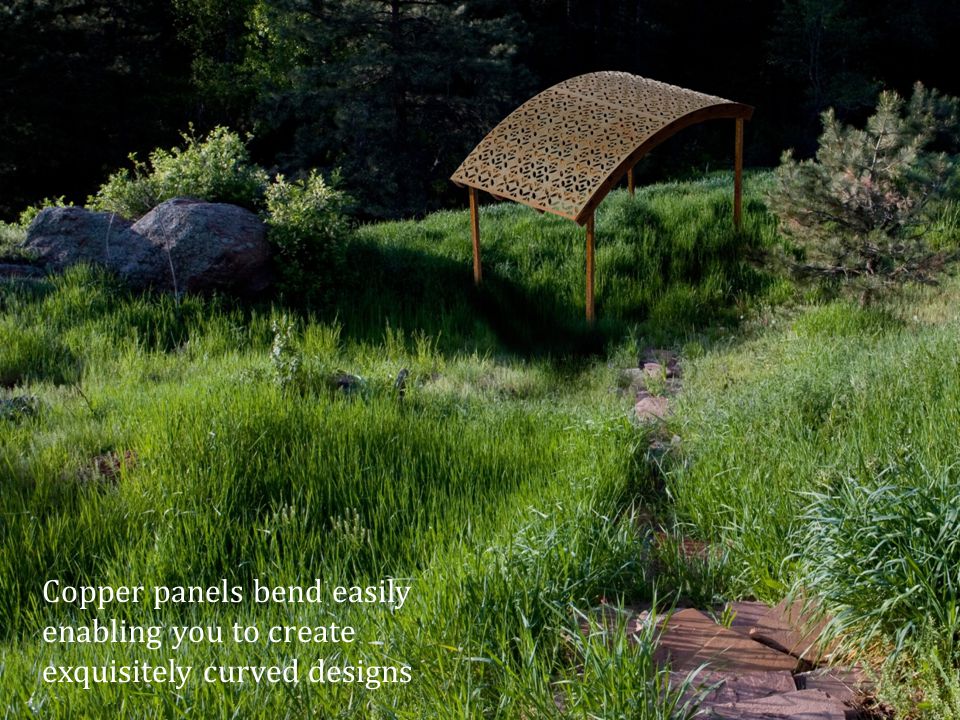

9 Presents Copper panels bend easily enabling you to create exquisitely curved designs

10 Presents No maintenance copper panels are great for awning applications.

11

12 Presents

13

14 COPPER Green Rating: A 90+% recycled content (always) 100% recyclable Fire & Smoke rating: Class A No VOC, Antimicrobial USA made No maintenance, No toxic chemicals 50+ year lifespan Natural patina protects environment Green Guide: Use thinnest possible Use strong supports Options: Factory accelerating patina Bronze patina finish Verdigris STANDARD THICKNESS SHADE Thickness:.021”/16oz Dimension:36”x 96” up to 144” (12’) long w/quantity Support: 24”oc Best use: No touch, protected Thickness:.042”/32oz Dimension: 36”x 96” Support: 24”oc Best use: low touch, all weather Thickness:.063”/ 1/16” Dimension: 36”x 96” Support: 24”oc Best use: Residential, all weather

15 ALUMINUM (choice of powdercoat) Green Rating: A- 30.9% recycle content locally harvested 17.1% PC, 27.6% PI (at best) 100% recyclable Fire & Smoke rating: Class A USA made No maintenance 20+ year lifespan Green Guide: Use strong supports Thickness: 1/16” Dimension: 36” x 96” 48”x 96” to 144” for same $/sqft Largest size: 5x15 ft. Support: 24”oc Best use: low touch, all weather Thickness: 1/8” Dimension: 36” x 96” 48”x 96” to 144” Largest size: 5x15 ft. Support: 36”oc Best use: protected use, all weather Thickness: 1/4” Dimension: 36” x 96” 48”x 96” to 144” Largest size: 5x15 ft. Support: 96”oc Best use: All use, all weather

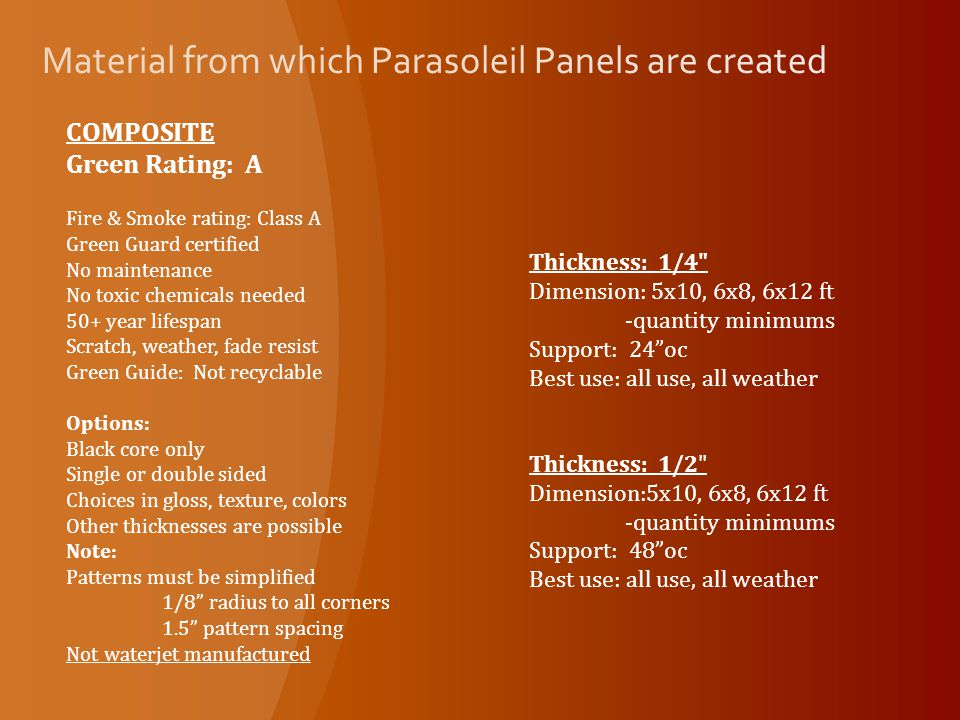

16 COMPOSITE Green Rating: A Fire & Smoke rating: Class A Green Guard certified No maintenance No toxic chemicals needed 50+ year lifespan Scratch, weather, fade resist Green Guide: Not recyclable Options: Black core only Single or double sided Choices in gloss, texture, colors Other thicknesses are possible Note: Patterns must be simplified 1/8” radius to all corners 1.5” pattern spacing Not waterjet manufactured Thickness: 1/4" Dimension: 5x10, 6x8, 6x12 ft -quantity minimums Support: 24”oc Best use: all use, all weather Thickness: 1/2" Dimension:5x10, 6x8, 6x12 ft -quantity minimums Support: 48”oc Best use: all use, all weather

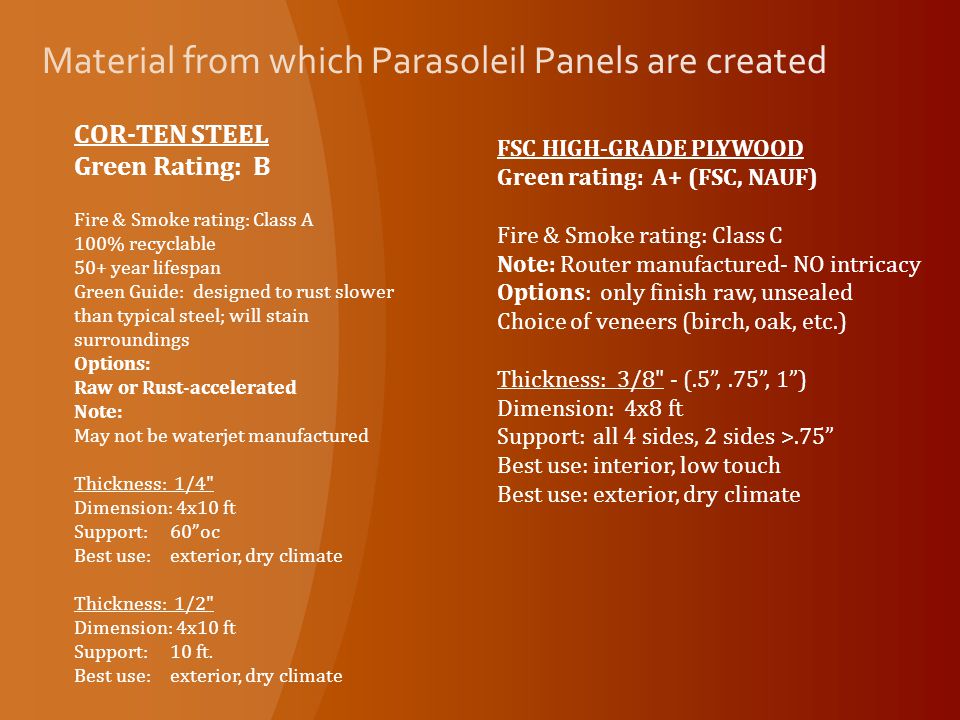

17 COR-TEN STEEL Green Rating: B Fire & Smoke rating: Class A 100% recyclable 50+ year lifespan Green Guide: designed to rust slower than typical steel; will stain surroundings Options: Raw or Rust-accelerated Note: May not be waterjet manufactured Thickness: 1/4" Dimension: 4x10 ft Support: 60”oc Best use:exterior, dry climate Thickness: 1/2" Dimension: 4x10 ft Support: 10 ft. Best use:exterior, dry climate FSC HIGH-GRADE PLYWOOD Green rating: A+ (FSC, NAUF) Fire & Smoke rating: Class C Note: Router manufactured- NO intricacy Options: only finish raw, unsealed Choice of veneers (birch, oak, etc.) Thickness: 3/8" - (.5”,.75”, 1”) Dimension: 4x8 ft Support: all 4 sides, 2 sides >.75” Best use:interior, low touch Best use:exterior, dry climate
