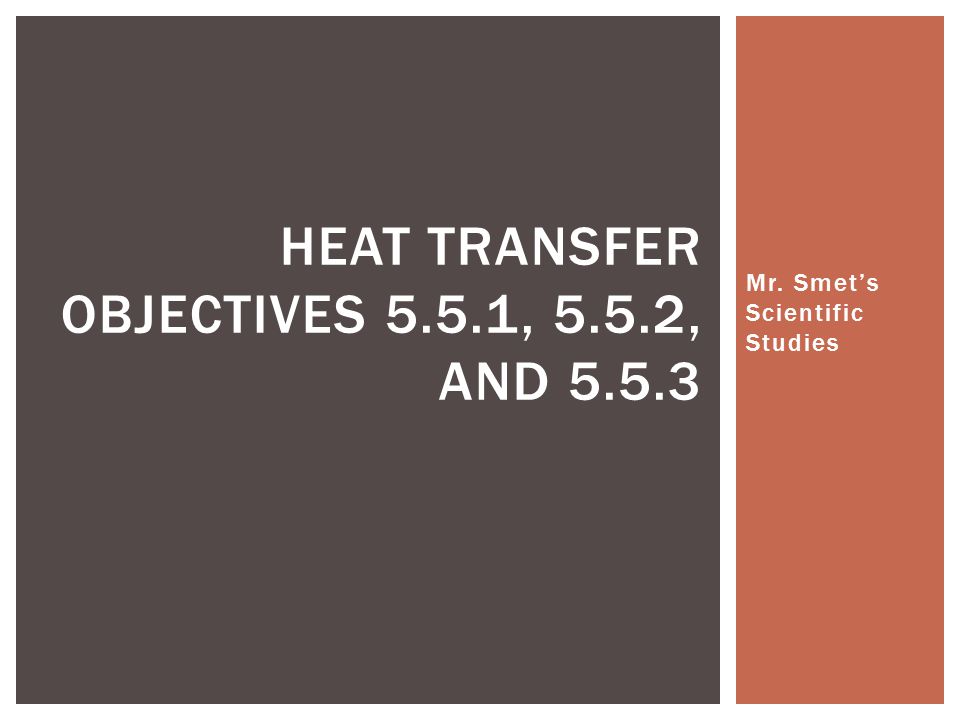

1 Mr. Smet’s Scientific Studies HEAT TRANSFER OBJECTIVES 5.5.1, 5.5.2, AND 5.5.3

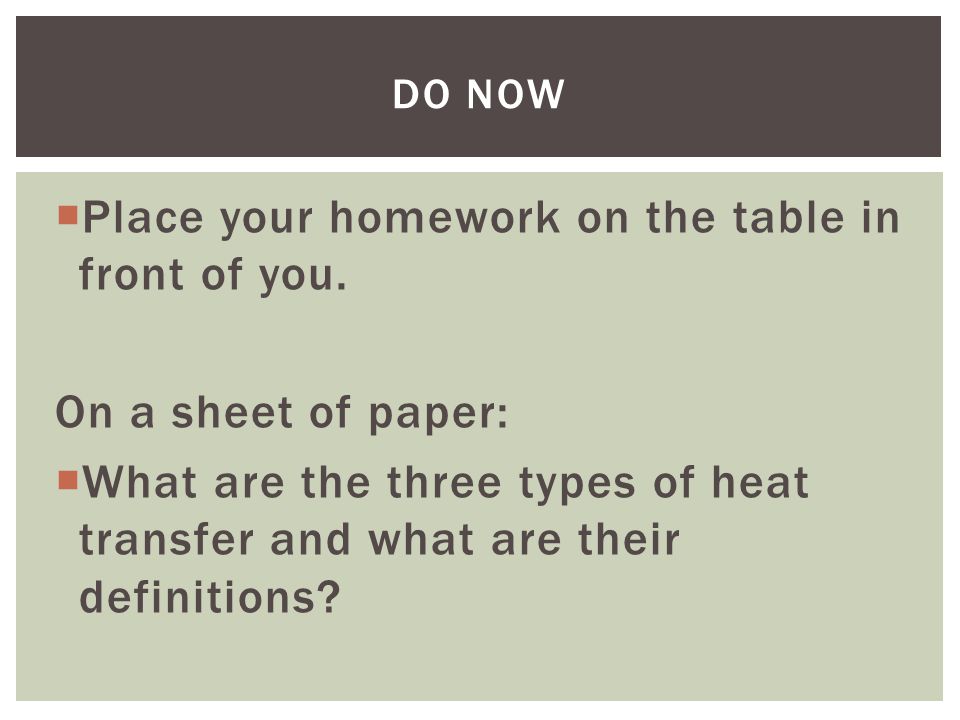

2  Place your homework on the table in front of you. On a sheet of paper:  What are the three types of heat transfer and what are their definitions? DO NOW

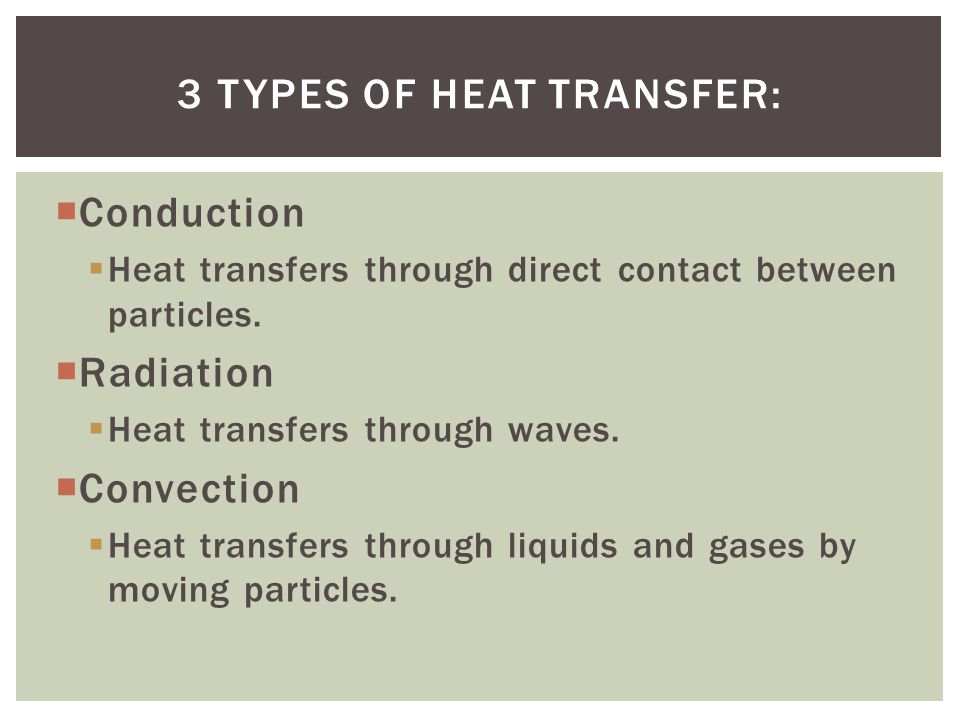

3  Conduction  Heat transfers through direct contact between particles.  Radiation  Heat transfers through waves.  Convection  Heat transfers through liquids and gases by moving particles. 3 TYPES OF HEAT TRANSFER:

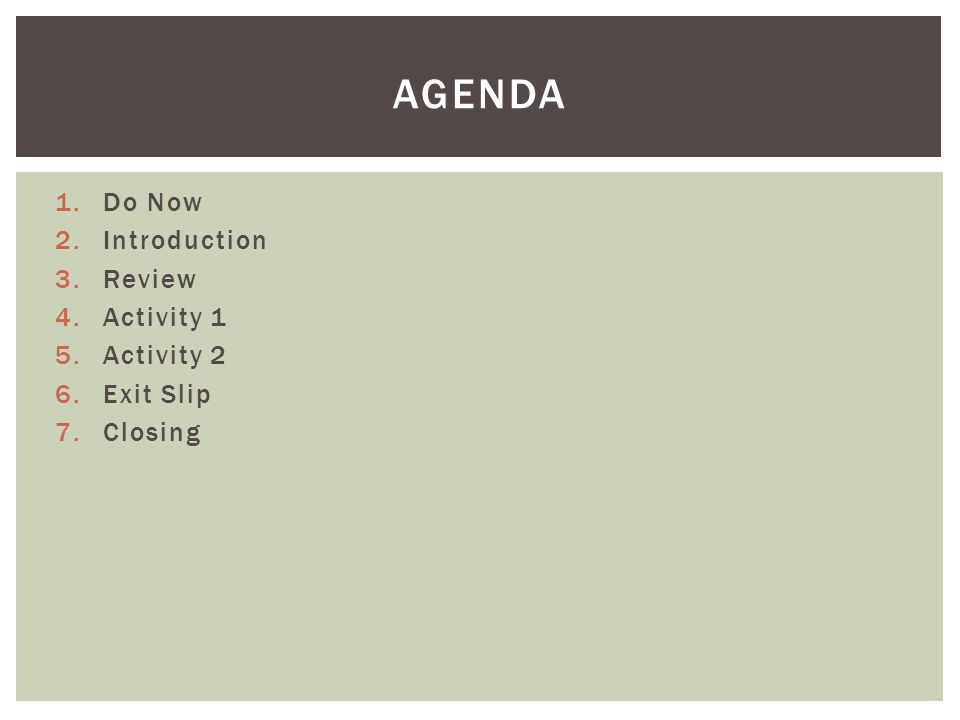

4 1.Do Now 2.Introduction 3.Review 4.Activity 1 5.Activity 2 6.Exit Slip 7.Closing AGENDA

5  Review  Activities  Exit Slip TODAY

6 5.5.1 SWBAT define the three major heat energy transfers: Conduction, Convection, and Radiation SWBAT classify situations as one of the major heat energy transfers SWBAT illustrate the three major heat energy transfers. OBJECTIVES

7 1.Do Now 2.Introduction 3.Review 4.Activity 1 5.Activity 2 6.Exit Slip 7.Closing AGENDA

8

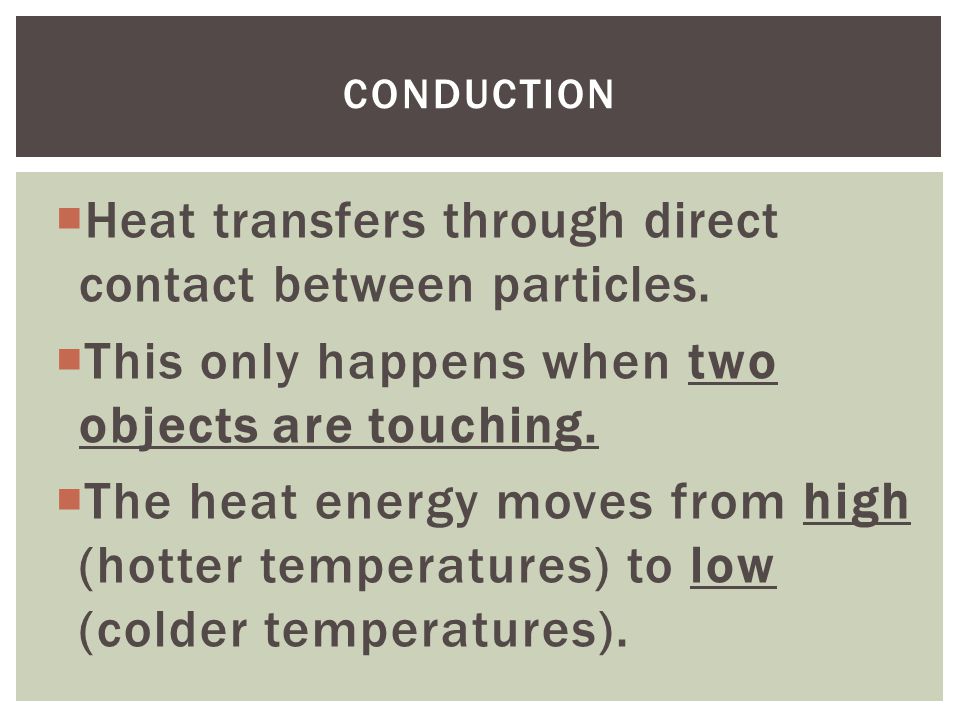

9  Heat transfers through direct contact between particles.  This only happens when two objects are touching.  The heat energy moves from high (hotter temperatures) to low (colder temperatures). CONDUCTION

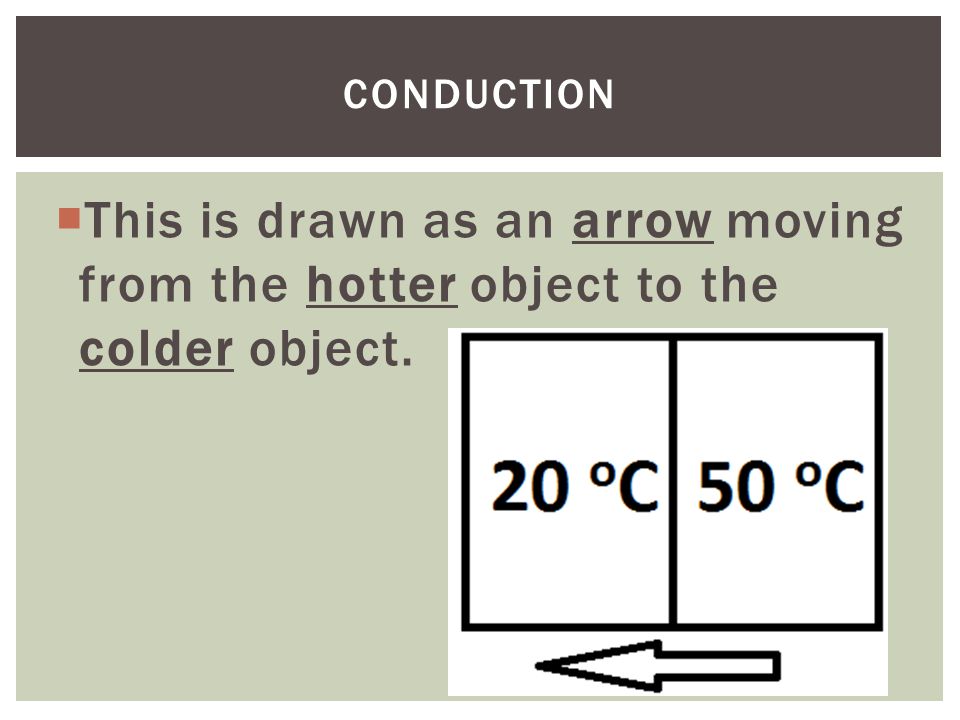

10  This is drawn as an arrow moving from the hotter object to the colder object. CONDUCTION

11

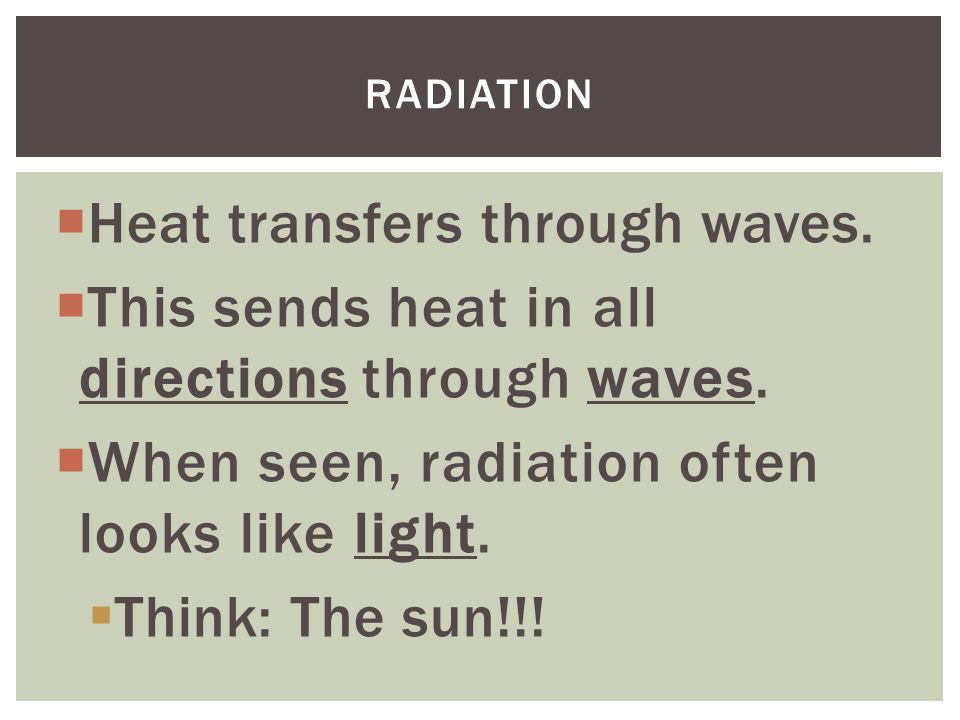

12  Heat transfers through waves.  This sends heat in all directions through waves.  When seen, radiation often looks like light.  Think: The sun!!! RADIATION

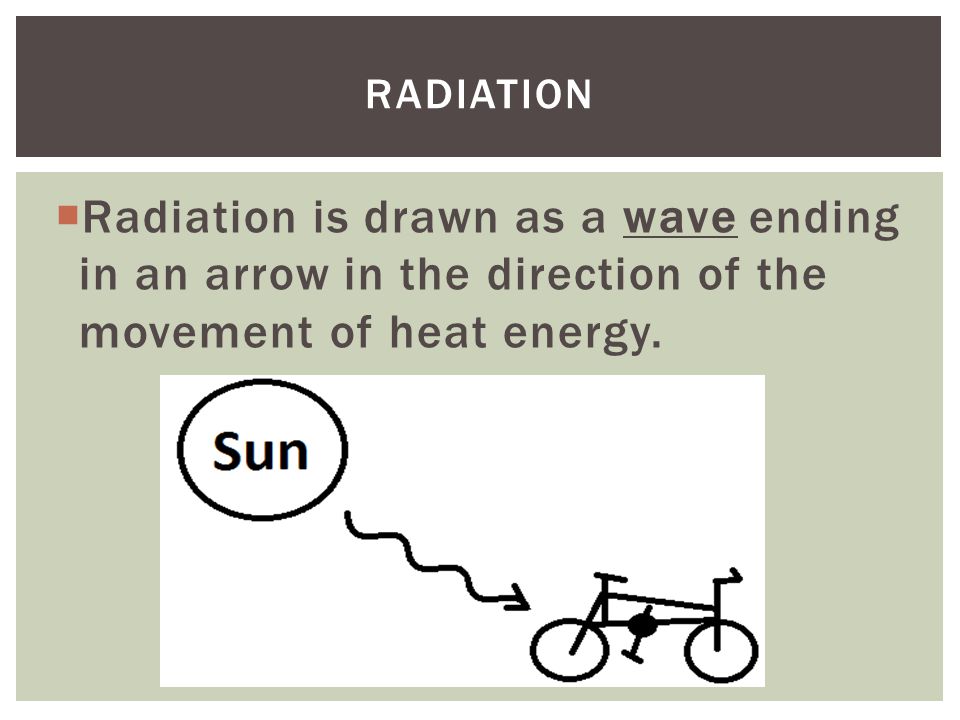

13  Radiation is drawn as a wave ending in an arrow in the direction of the movement of heat energy. RADIATION

14

15  Heat transfers through liquids and gases by moving particles.  Hot liquids and gases move up while cold liquids and gases sink, creating a circle. CONVECTION

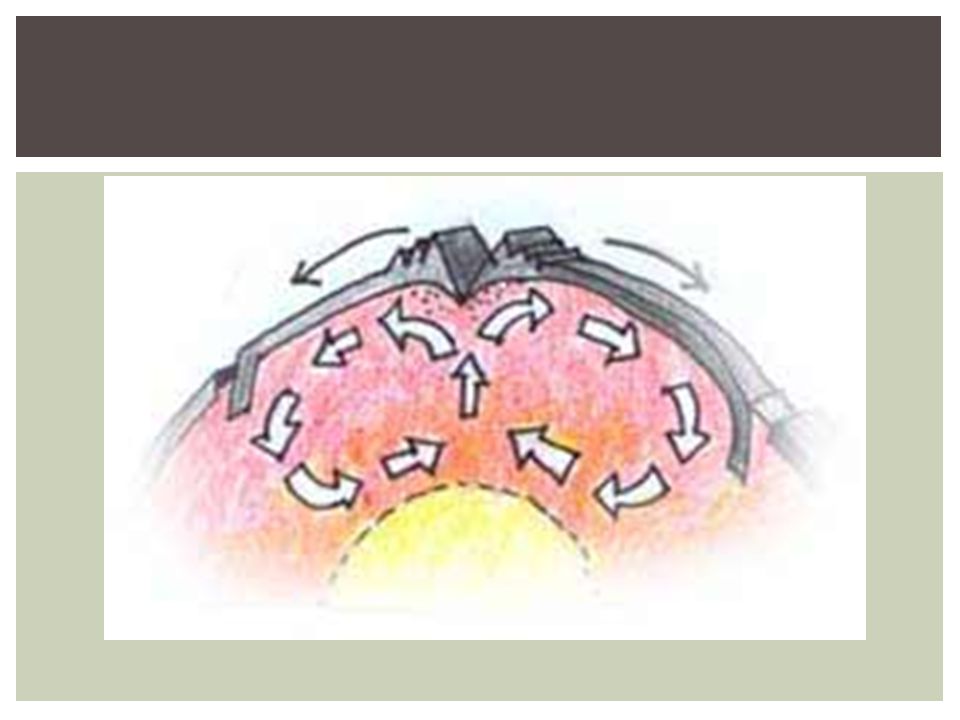

16  This is drawn as a circle with hot in one lower corner rising and cold in the opposite top corner sinking. CONVECTION

17 CHECKS FOR UNDERSTANDING

18 1.Do Now 2.Introduction 3.Review 4.Activity 1 5.Activity 2 6.Exit Slip 7.Closing AGENDA

19 Big Question: Which material (spoon, stick) in a cup of hot or cold water will melt the fastest? ACTIVITY 1 INTRODUCTION

20  2 Metal spoons  Timer  Plastic knife  ¼ inch margarine  4 Thumbtacks  Wax paper  2 Styrofoam Cups  Marker ACTIVITY 1 MATERIALS

21 1. With a Sharpie marker, label one Styrofoam cup hot and the other cup cold. 2. Place the 2 spoons and 2 popsicle sticks side-by-side on the wax paper. 3. Take the 1/4 inch slice of butter and place it on the wax paper, away from the spoons and popsicle sticks. 4. Take the plastic knife and cut the 1/4 inch square cold slice of butter into 4 equal parts. ACTIVITY 1 PROCEDURE

22 5. Put the 4 equal parts of butter each on:  the end of the metal spoons  the end of the popsicle sticks 6. Place 1 spoon and 1 Popsicle stick into both of the Styrofoam cups. 7. Place a thumbtack into the center of each of the 4 pieces of butter. ACTIVITY 1 PROCEDURE

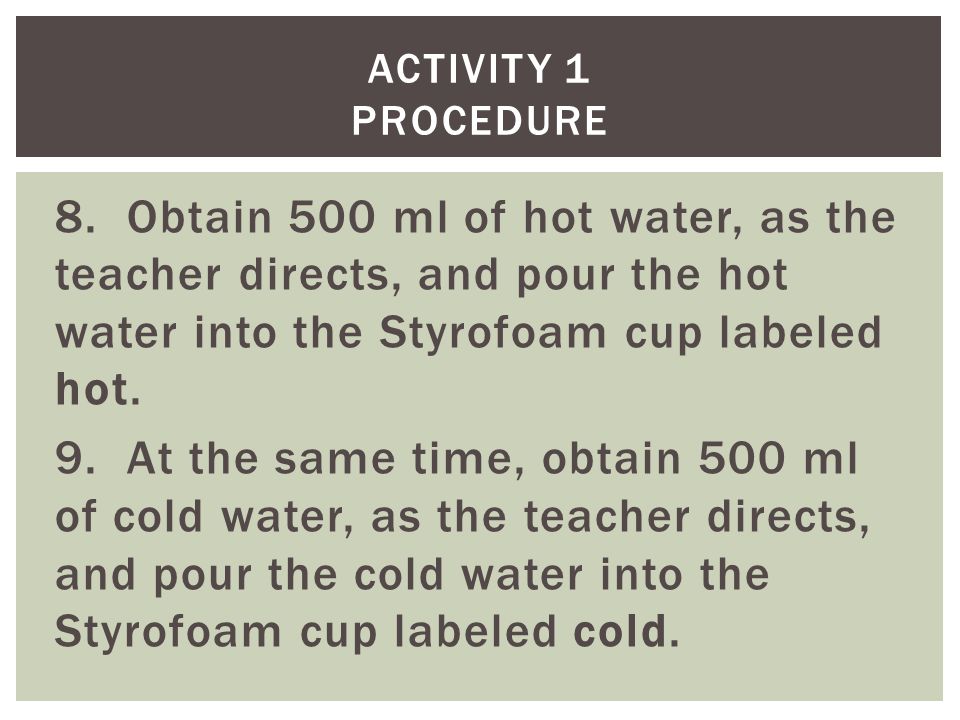

23 8. Obtain 500 ml of hot water, as the teacher directs, and pour the hot water into the Styrofoam cup labeled hot. 9. At the same time, obtain 500 ml of cold water, as the teacher directs, and pour the cold water into the Styrofoam cup labeled cold. ACTIVITY 1 PROCEDURE

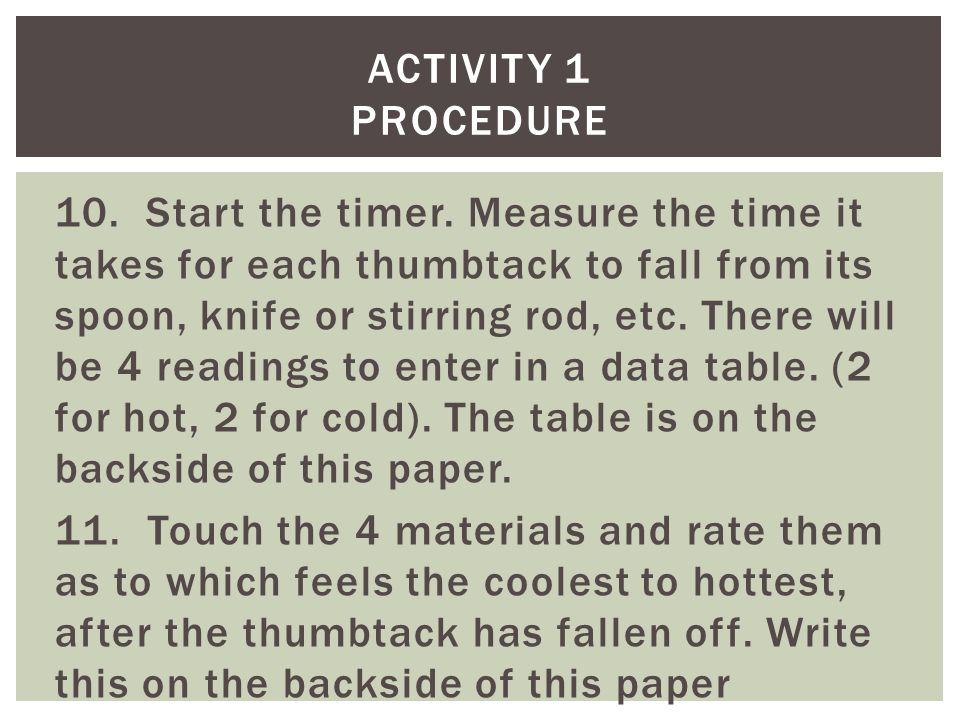

24 10. Start the timer. Measure the time it takes for each thumbtack to fall from its spoon, knife or stirring rod, etc. There will be 4 readings to enter in a data table. (2 for hot, 2 for cold). The table is on the backside of this paper. 11. Touch the 4 materials and rate them as to which feels the coolest to hottest, after the thumbtack has fallen off. Write this on the backside of this paper ACTIVITY 1 PROCEDURE

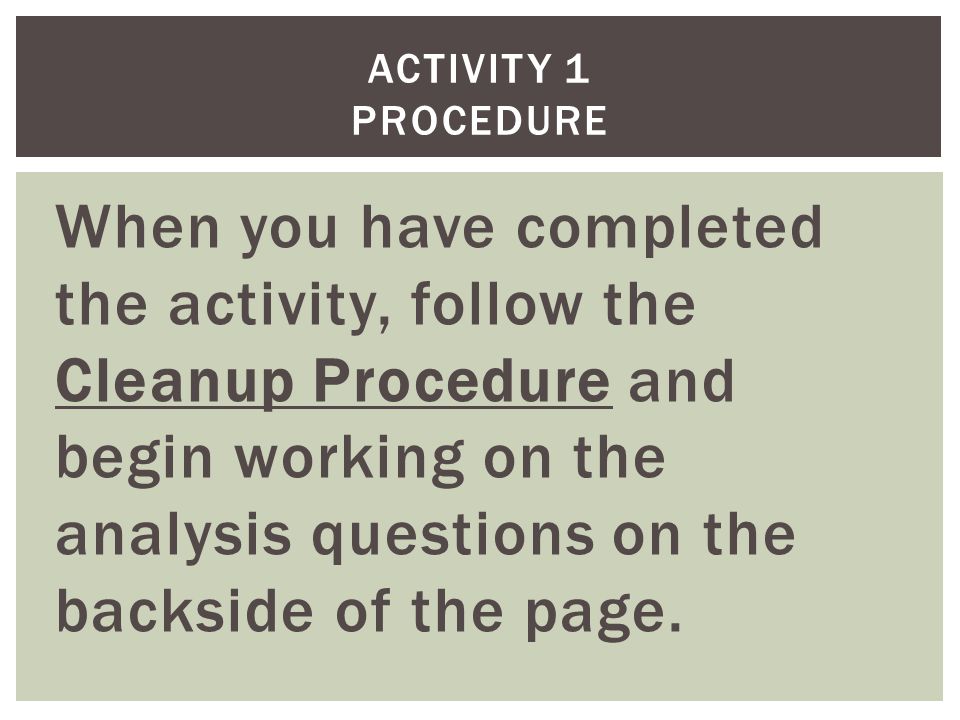

25 When you have completed the activity, follow the Cleanup Procedure and begin working on the analysis questions on the backside of the page. ACTIVITY 1 PROCEDURE

26  Throw away the butter and wax paper  Pour the water into an empty sink in the back of the room.  Place the silverware into the container on the table in the back of the room.  Place the thumbtacks in the cup in the back of the room.  Neatly stack the Styrofoam cups on the back table. ACTIVITY 1 CLEANUP PROCEDURE

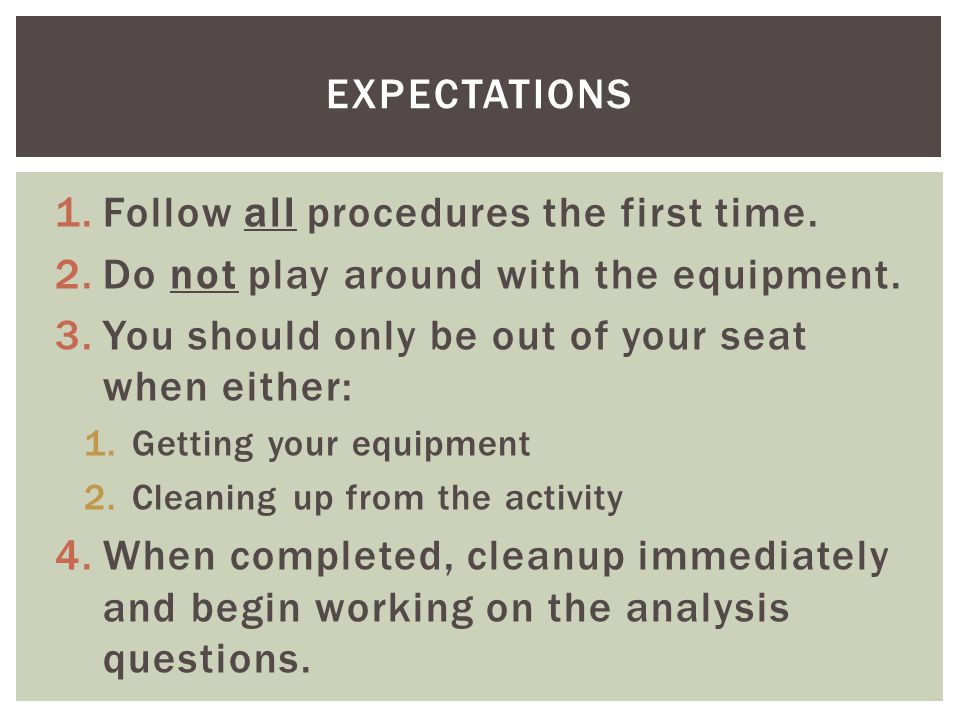

27 1.Follow all procedures the first time. 2.Do not play around with the equipment. 3.You should only be out of your seat when either: 1.Getting your equipment 2.Cleaning up from the activity 4.When completed, cleanup immediately and begin working on the analysis questions. EXPECTATIONS

28 1.Do Now 2.Introduction 3.Review 4.Activity 1 5.Activity 2 6.Exit Slip 7.Closing AGENDA

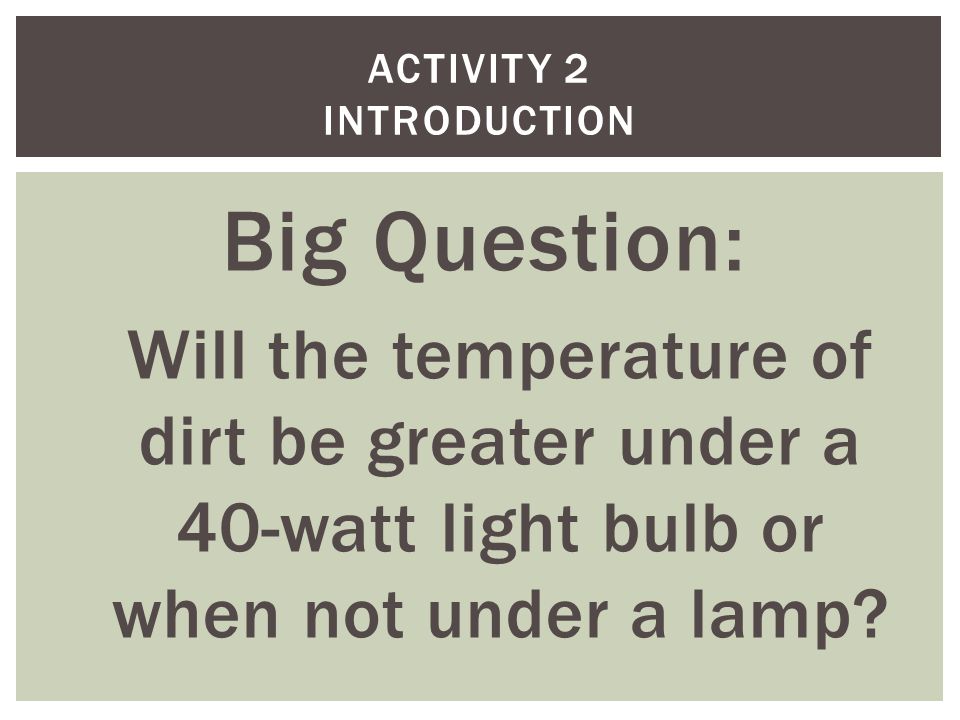

29 Big Question: Will the temperature of dirt be greater under a 40-watt light bulb or when not under a lamp? ACTIVITY 2 INTRODUCTION

30  Soil  2 Styrofoam bowls  2 Thermometers  1 lamp with 200-watt bulb  1 Timer  2 Manila Folders ACTIVITY 2 MATERIALS

31 1. Setup the manila folders like a “wall.” 2. Place one bowl on one side of the manila folders and one on the other. 3. Place one thermometer into each of the dirt piles so that the tip is just below the surface. You do not want it going all the way to the bottom. ACTIVITY 2 PROCEDURE

32 4. Place the light so that it is shining directly onto one of the bowls of dirt. Do not yet turn it on. 5. Record the temperatures of both of the bowls on the other side of this page. Notice that there are four tables: 2 each for each of the bowls. Write the temperatures down under the correct light source (none or lamp) and correct cycle (heating cycle) under Start Temperature. Also, write down the time on the wall clock. ACTIVITY 2 PROCEDURE

33 6. Turn on the lamp and start the timer. 7. For the next ten minutes, record the temperature of the dirt piles. Be sure that you record both bowls each minute and write down the temperature in the correct table. ACTIVITY 2 PROCEDURE

34 8. After ten minutes, after you have written down the temperature under ten minutes for the Heating Cycle in both, turn off the lamp. 9. Immediately, write down the temperature under the Start Temp. For Cooling Cycle for both bowls. Also, write down the Start Time. ACTIVITY 2 PROCEDURE

35 10. Restart the watch. 11. Again, write down the temperature of both piles of dirt each minute for the next ten minutes. ACTIVITY 2 PROCEDURE

36 When you have completed the activity, follow the Cleanup Procedure and begin working on the analysis questions on the backside of the page. ACTIVITY 2 PROCEDURE

37  When completed, remove the thermometer and place this in the cup on the rear table.  Walk to the trash and pour out the dirt from the bowls.  Place the bowls on the back table in a neat stack.  Wipe off and throw away and dirt remaining on the lab table.  Answer the analysis questions on the back of this paper. ACTIVITY 2 CLEANUP PROCEDURE

38 1.Follow all procedures the first time. 2.Do not play around with the equipment. 3.You should only be out of your seat when either: 1.Getting your equipment 2.Cleaning up from the activity 4.When completed, cleanup immediately and begin working on the analysis questions. EXPECTATIONS

39 1.Do Now 2.Introduction 3.Review 4.Activity 1 5.Activity 2 6.Exit Slip 7.Closing AGENDA

40 5.5.1 SWBAT define the three major heat energy transfers: Conduction, Convection, and Radiation SWBAT classify situations as one of the major heat energy transfers SWBAT illustrate the three major heat energy transfers. OBJECTIVES
