1 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Femap 10.3 What’s New Alastair Robertson Femap Marketing

2 Page 2 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Femap 10.3 Launch Plan Femap version 10.3  RTM & Press Release: October 5th  Shipping to customers: Late October

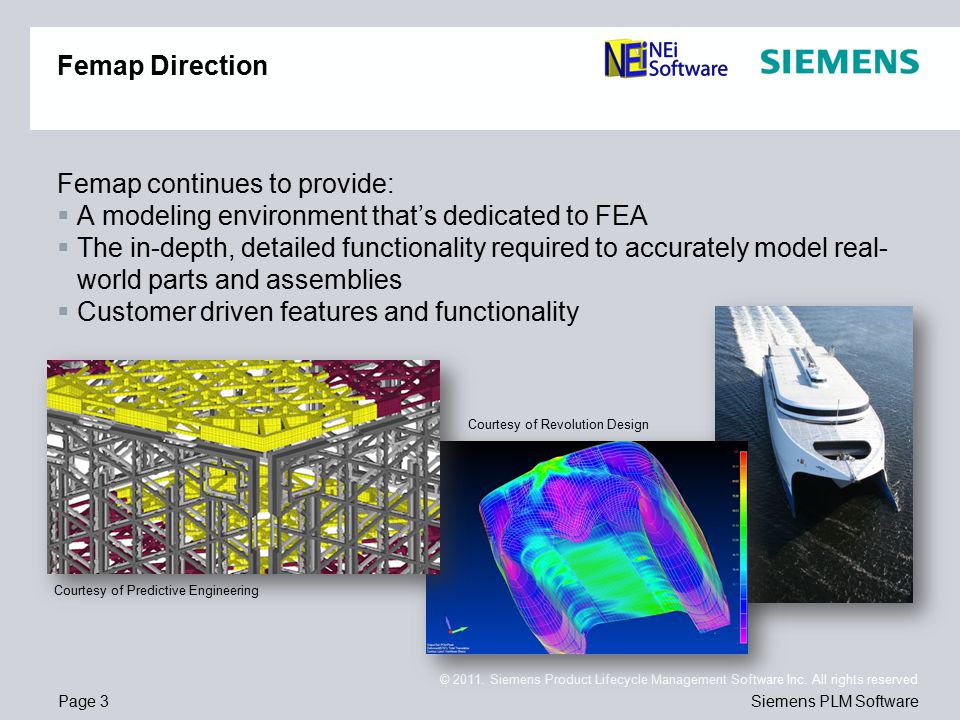

3 Page 3 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Femap Direction Femap continues to provide:  A modeling environment that’s dedicated to FEA  The in-depth, detailed functionality required to accurately model real- world parts and assemblies  Customer driven features and functionality Courtesy of Predictive Engineering Courtesy of Revolution Design

4 Page 4 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Femap 10.3 Primary Focus and Messages Improved productivity through process improvement  Automatic geometry model preparation and cleanup  Mesh most models first time without manual geometry cleanup  Improved free body diagram calculation and display Increased simulation scope through discipline extensions  Support for NEi Nastran specific functionality Faster preprocessing through performance improvements  Improved forced response performance  Improved modeling functionality performance

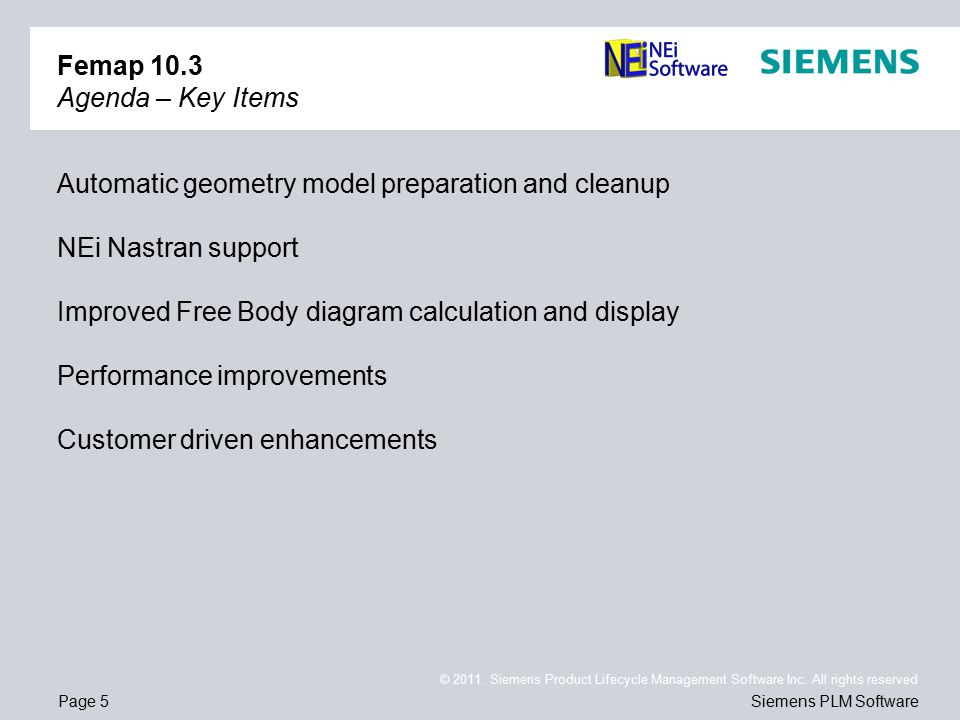

5 Page 5 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Femap 10.3 Agenda – Key Items Automatic geometry model preparation and cleanup NEi Nastran support Improved Free Body diagram calculation and display Performance improvements Customer driven enhancements

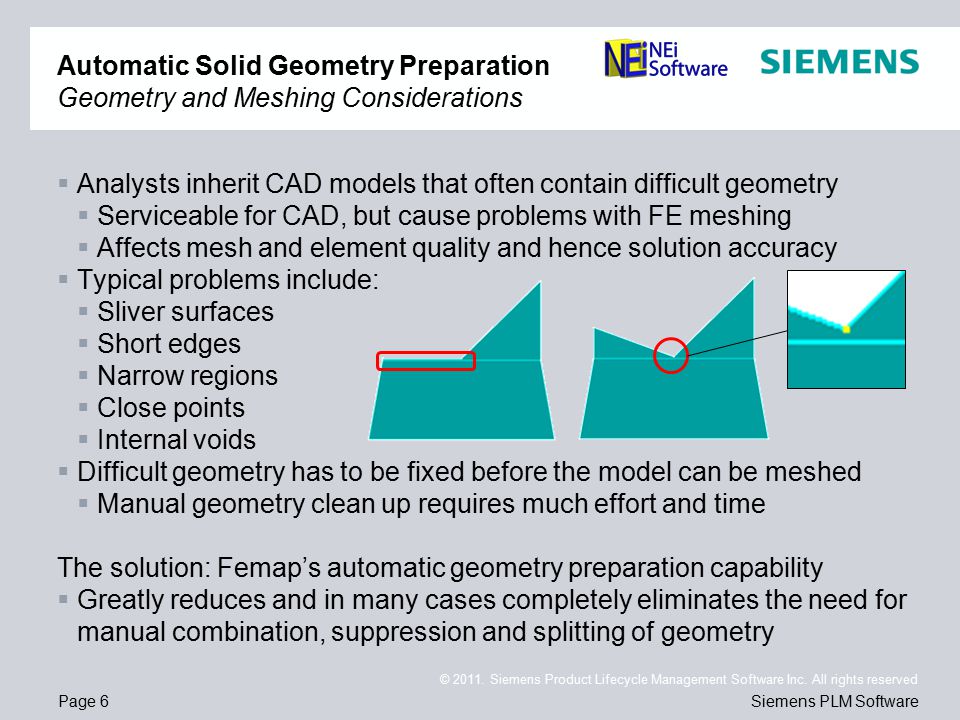

6 Page 6 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Automatic Solid Geometry Preparation Geometry and Meshing Considerations  Analysts inherit CAD models that often contain difficult geometry  Serviceable for CAD, but cause problems with FE meshing  Affects mesh and element quality and hence solution accuracy  Typical problems include:  Sliver surfaces  Short edges  Narrow regions  Close points  Internal voids  Difficult geometry has to be fixed before the model can be meshed  Manual geometry clean up requires much effort and time The solution: Femap’s automatic geometry preparation capability  Greatly reduces and in many cases completely eliminates the need for manual combination, suppression and splitting of geometry

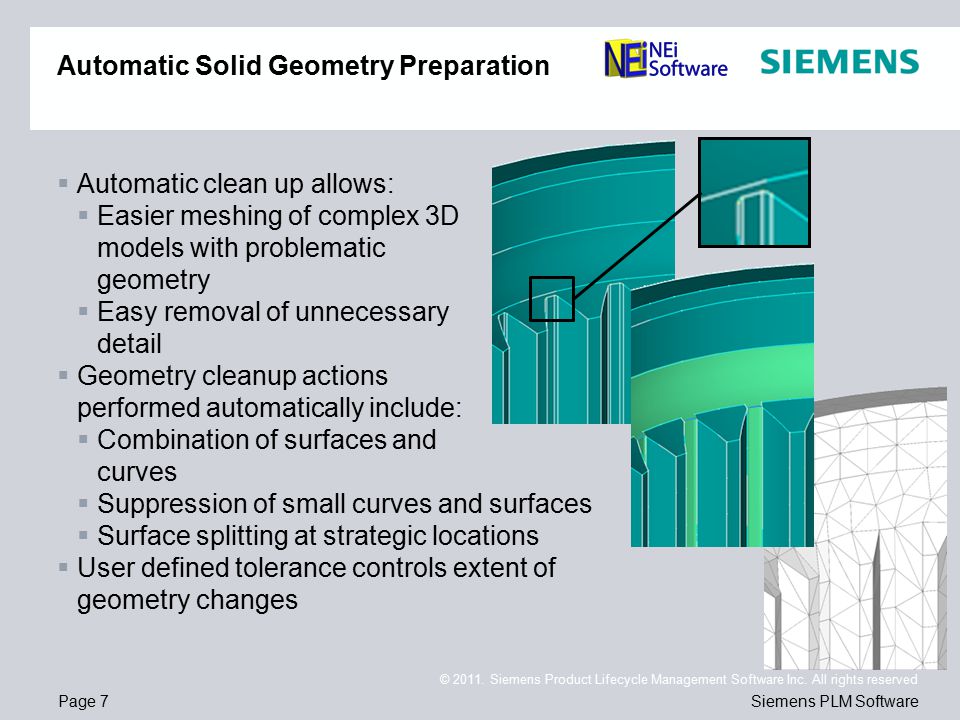

7 Page 7 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Automatic Solid Geometry Preparation  Automatic clean up allows:  Easier meshing of complex 3D models with problematic geometry  Easy removal of unnecessary detail  Geometry cleanup actions performed automatically include:  Combination of surfaces and curves  Suppression of small curves and surfaces  Surface splitting at strategic locations  User defined tolerance controls extent of geometry changes

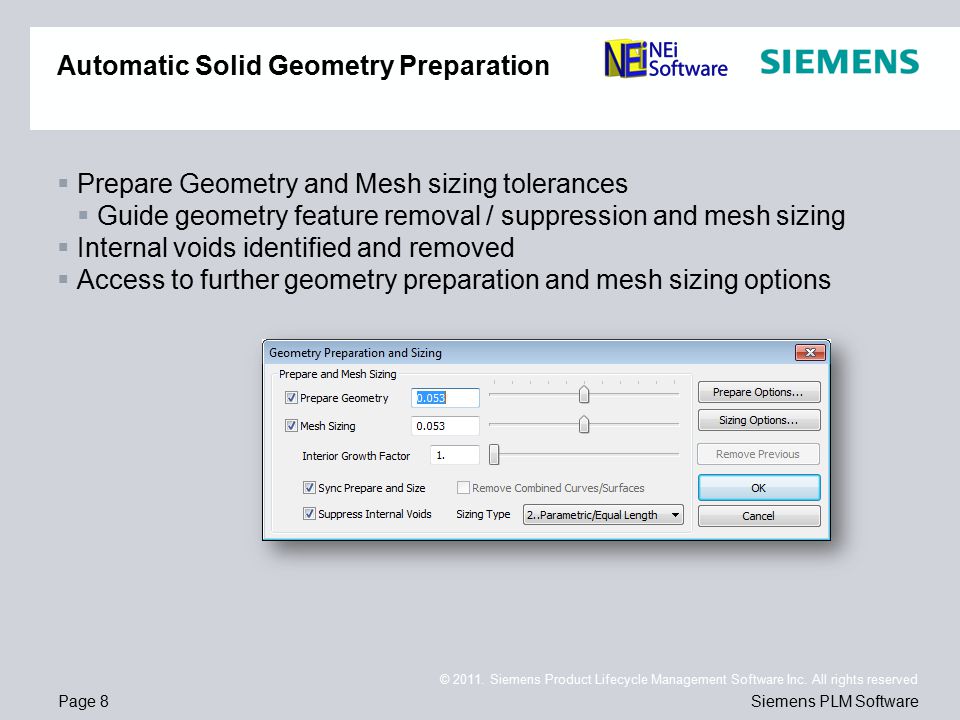

8 Page 8 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Automatic Solid Geometry Preparation  Prepare Geometry and Mesh sizing tolerances  Guide geometry feature removal / suppression and mesh sizing  Internal voids identified and removed  Access to further geometry preparation and mesh sizing options

9 Page 9 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Automatic Solid Geometry Preparation  Full control over the extent of model simplification  Identify a group of entities that should be ignored  Entities that are loaded or constrained are ignored  Set maximum sizes and angles based on geometry preparation tolerance  Identify individual options to be included in the cleanup process

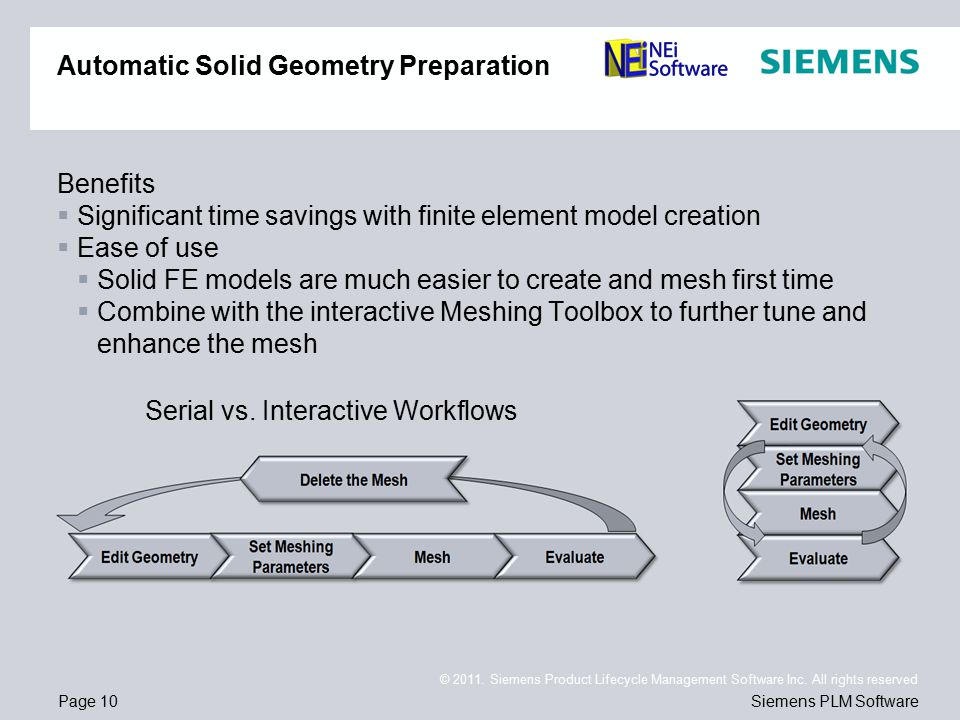

10 Page 10 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Automatic Solid Geometry Preparation Benefits  Significant time savings with finite element model creation  Ease of use  Solid FE models are much easier to create and mesh first time  Combine with the interactive Meshing Toolbox to further tune and enhance the mesh Serial vs. Interactive Workflows

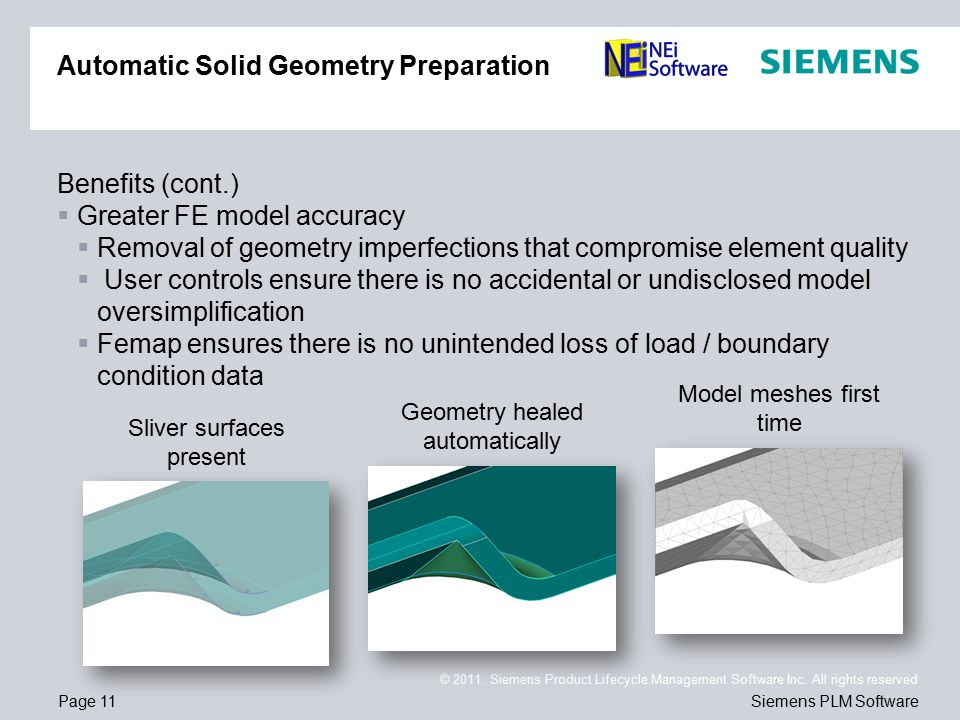

11 Page 11 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Automatic Solid Geometry Preparation Benefits (cont.)  Greater FE model accuracy  Removal of geometry imperfections that compromise element quality  User controls ensure there is no accidental or undisclosed model oversimplification  Femap ensures there is no unintended loss of load / boundary condition data Sliver surfaces present Geometry healed automatically Model meshes first time

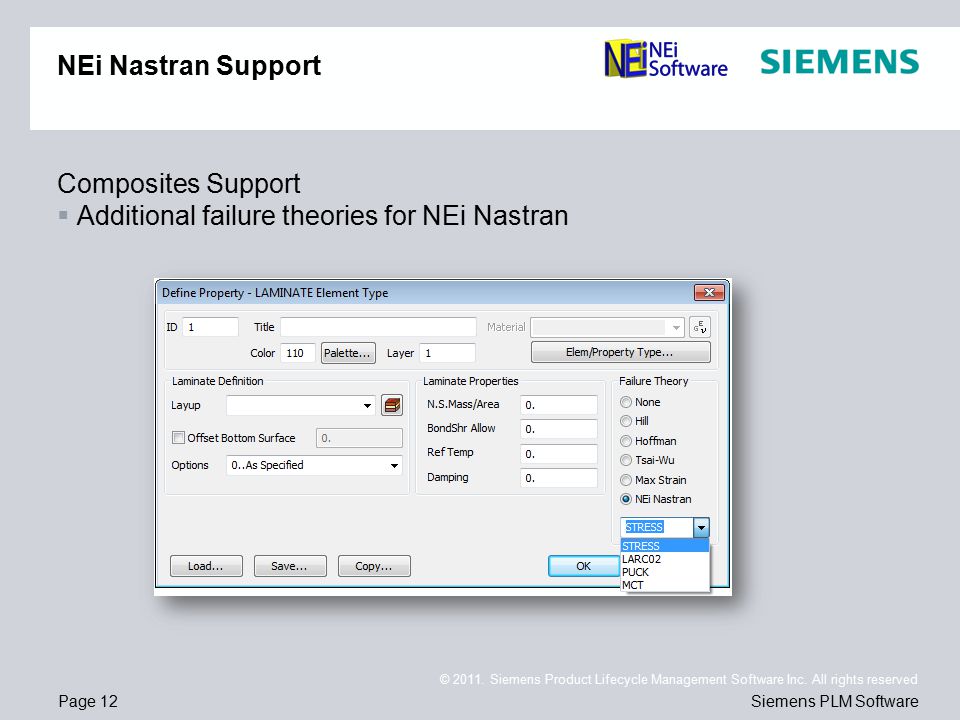

12 Page 12 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software NEi Nastran Support Composites Support  Additional failure theories for NEi Nastran

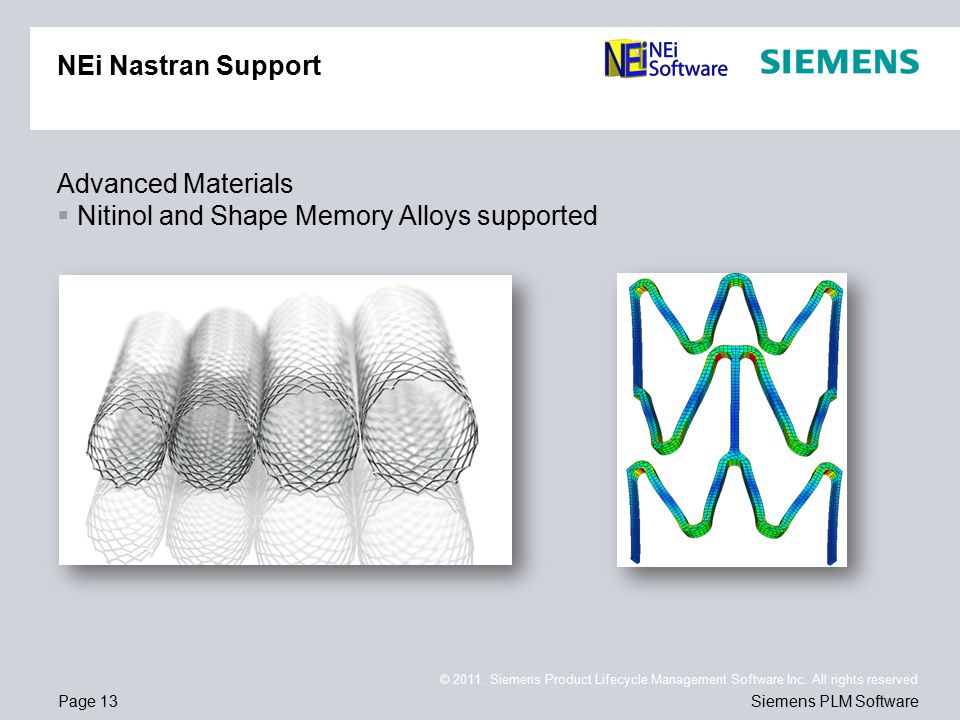

13 Page 13 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software NEi Nastran Support Advanced Materials  Nitinol and Shape Memory Alloys supported

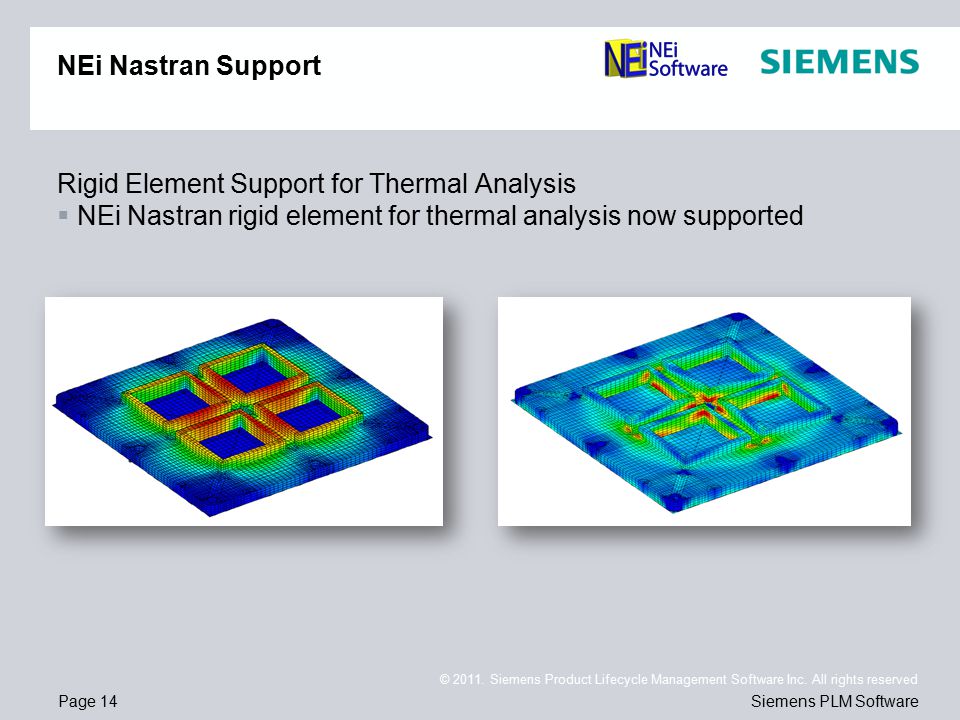

14 Page 14 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software NEi Nastran Support Rigid Element Support for Thermal Analysis  NEi Nastran rigid element for thermal analysis now supported

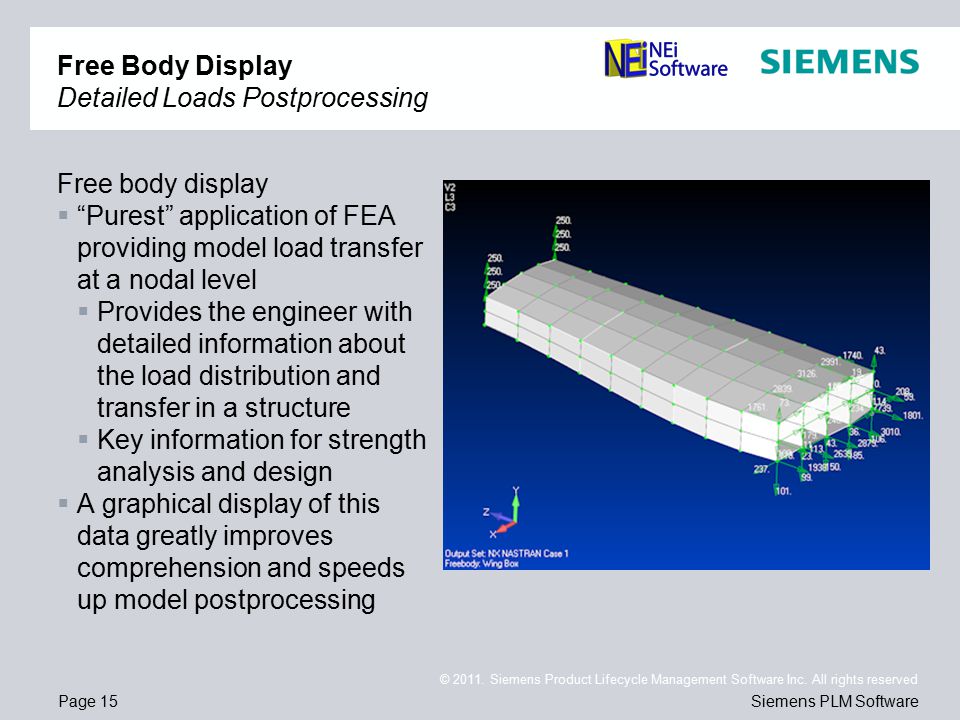

15 Page 15 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Free Body Display Detailed Loads Postprocessing Free body display  “Purest” application of FEA providing model load transfer at a nodal level  Provides the engineer with detailed information about the load distribution and transfer in a structure  Key information for strength analysis and design  A graphical display of this data greatly improves comprehension and speeds up model postprocessing

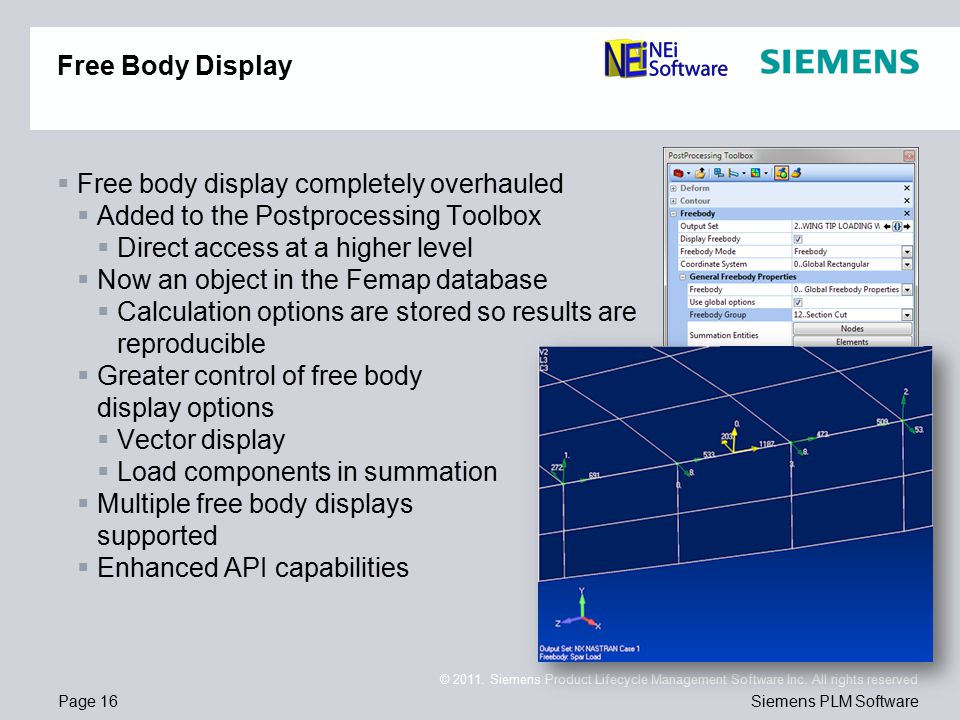

16 Page 16 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Free Body Display  Free body display completely overhauled  Added to the Postprocessing Toolbox  Direct access at a higher level  Now an object in the Femap database  Calculation options are stored so results are reproducible  Greater control of free body display options  Vector display  Load components in summation  Multiple free body displays supported  Enhanced API capabilities

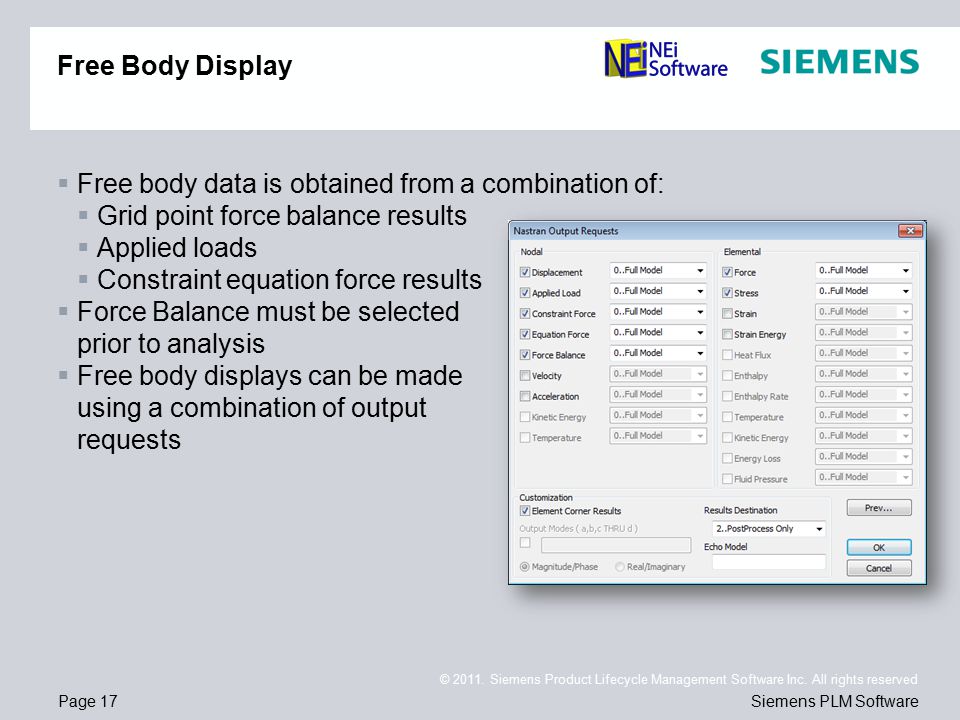

17 Page 17 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Free Body Display  Free body data is obtained from a combination of:  Grid point force balance results  Applied loads  Constraint equation force results  Force Balance must be selected prior to analysis  Free body displays can be made using a combination of output requests

18 Page 18 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Free Body Display Creating free bodies  Add Freebody icon in the Freebody Tool  Model / Output / Create Freebody menu

19 Page 19 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Free Body Display Two modes of Free Body creation 1.Free Body Only mode  Simplest method for displaying free body diagrams  User select the elements  Femap picks the nodes  Free Body vectors displayed on the nodes 2.Interface Load mode  Provides more control over Free Body display  User selects both elements and nodes  Summation vector is available  Full control of load component contribution

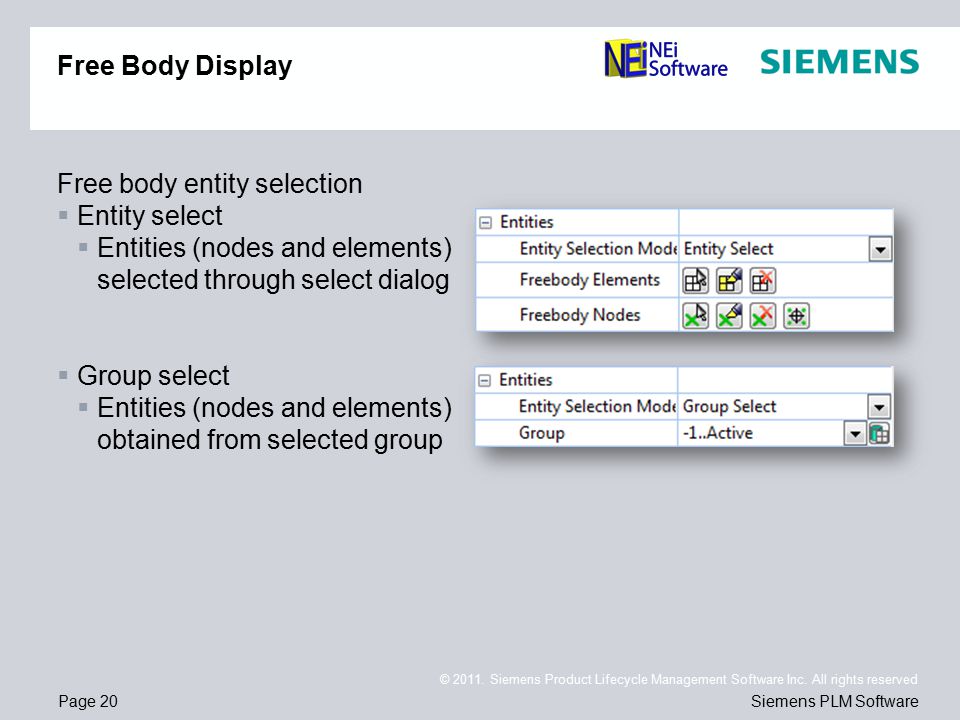

20 Page 20 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Free Body Display Free body entity selection  Entity select  Entities (nodes and elements) selected through select dialog  Group select  Entities (nodes and elements) obtained from selected group

21 Page 21 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Free Body Display Free body loads – six types available from force balance output 1.Applied loads – loads applied to nodes 2.Reaction loads – loads from SPCs 3.Multipoint reaction loads – loads from MPCs 4.Peripheral element loads – loads from elements external to the free body 5.Free body element loads – loads from elements internal to the free body 6.Total sum loads – summation of previous load types

22 Page 22 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Free Body Display Vector types available  Nodal forces  Nodal moments  Total sum forces  Total sum moments  Individually toggled for each free body  Displayed as a resultant or components  Each component can be toggled on or off

23 Page 23 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Free Body Display Free body summation vector  Total summation vector available with Interface Load method  Force summation  Moment calculation of all nodal summations at a given location

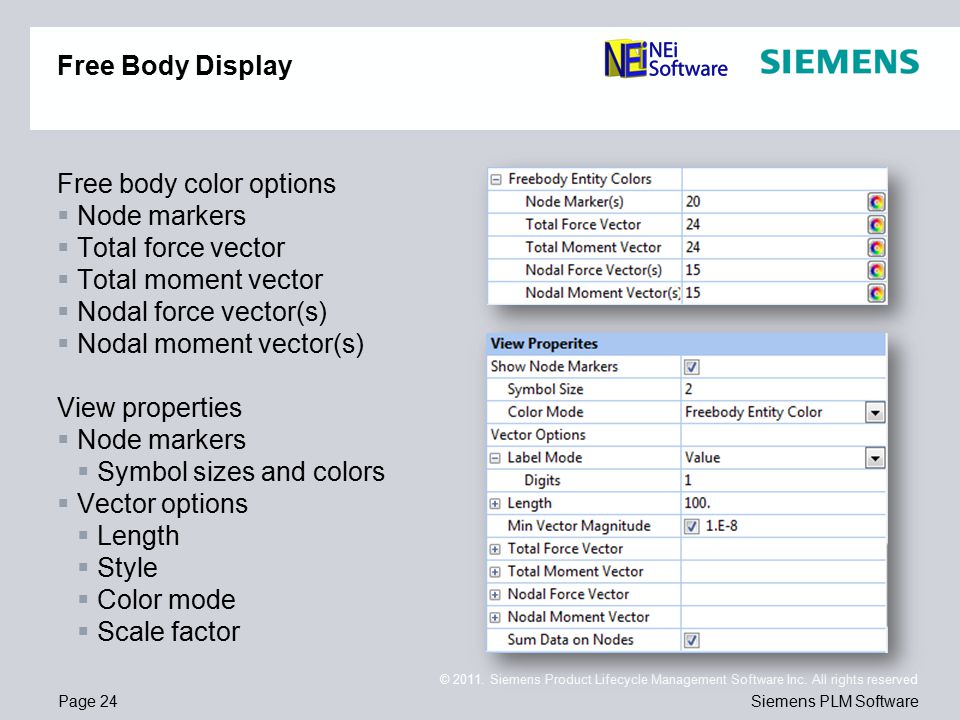

24 Page 24 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Free Body Display Free body color options  Node markers  Total force vector  Total moment vector  Nodal force vector(s)  Nodal moment vector(s) View properties  Node markers  Symbol sizes and colors  Vector options  Length  Style  Color mode  Scale factor

25 Page 25 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Free Body Display Listing Free Body data  Force Balance  Lists data for selected nodes to the Messages pane  Force Balance to Data Table  Outputs data for selected nodes to the Data Table  Force Balance Interface Load  Lists total load summation for selected nodes / elements to the Messages pane  Force Balance Interface Load to Data Table  Outputs total load summation for selected nodes / elements to the Data Table  Moment arm and forces / moment contribution data can also be included

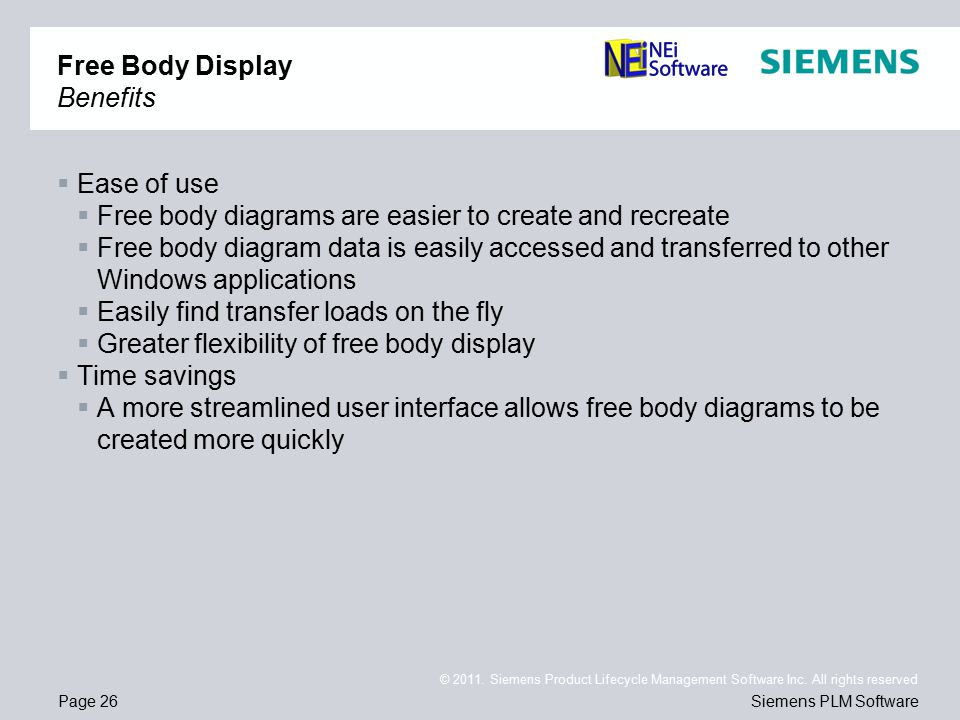

26 Page 26 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Free Body Display Benefits  Ease of use  Free body diagrams are easier to create and recreate  Free body diagram data is easily accessed and transferred to other Windows applications  Easily find transfer loads on the fly  Greater flexibility of free body display  Time savings  A more streamlined user interface allows free body diagrams to be created more quickly

27 Page 27 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Femap 10.3 Performance Improvements  Forced dynamic response – much better performance for large models with many frequencies  Preprocessing improvements  Entity Editor  Meshing Toolbox  Model Info Tree  Meshing of solids that already contain some meshed surfaces

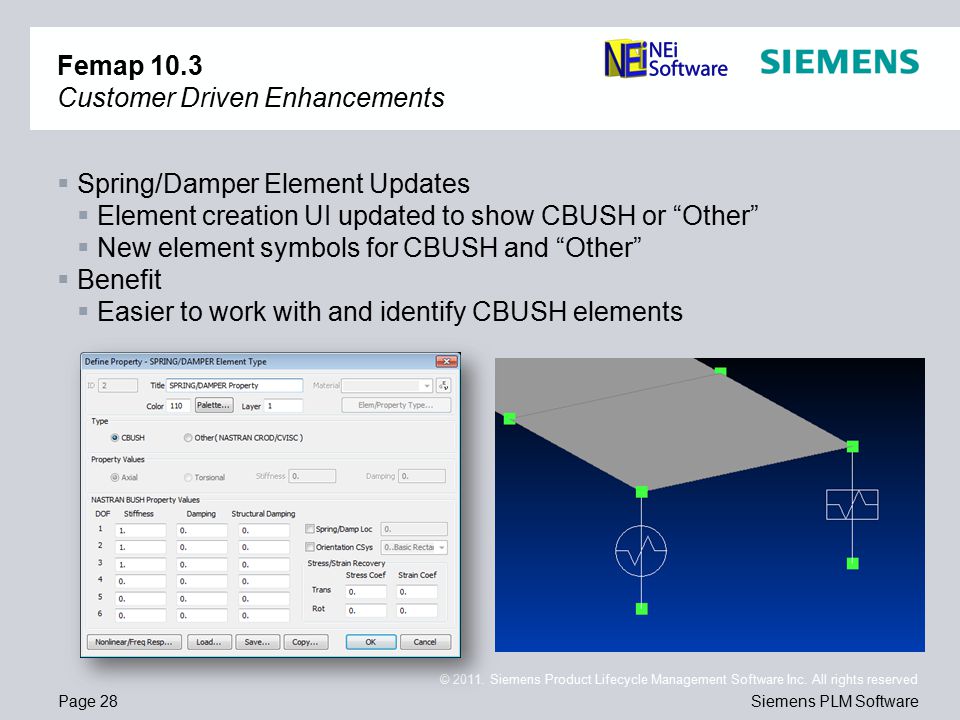

28 Page 28 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Femap 10.3 Customer Driven Enhancements  Spring/Damper Element Updates  Element creation UI updated to show CBUSH or “Other”  New element symbols for CBUSH and “Other”  Benefit  Easier to work with and identify CBUSH elements

29 Page 29 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Femap 10.3 Customer Driven Enhancements  Geometry Solid Embed  Multiple solids can be embedded into one base solid simultaneously  Benefit  Easier to edit and manipulate solid models

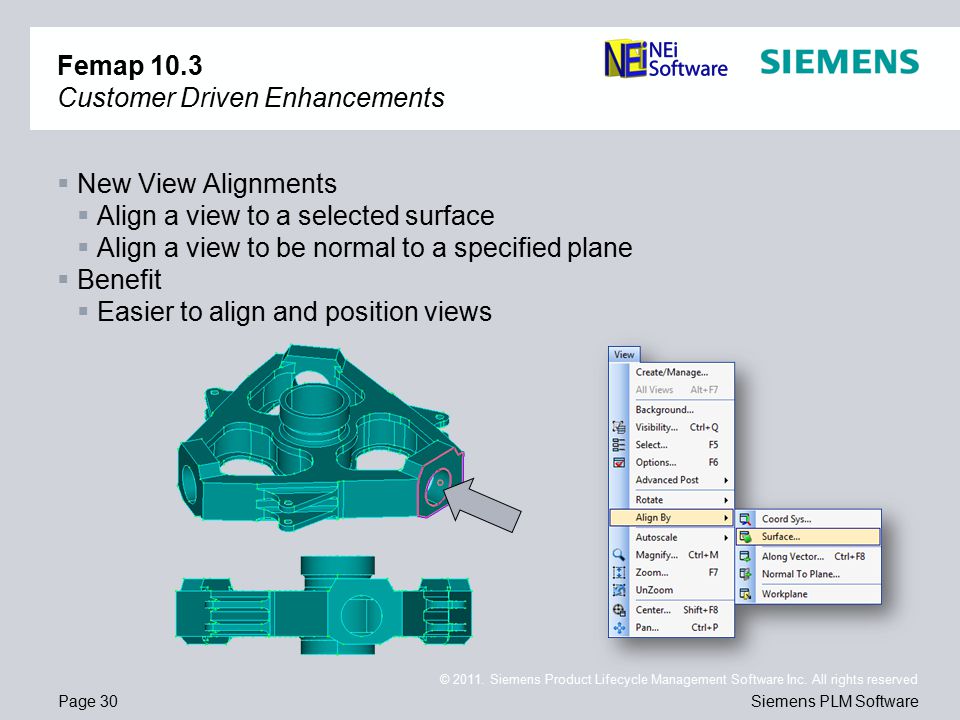

30 Page 30 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Femap 10.3 Customer Driven Enhancements  New View Alignments  Align a view to a selected surface  Align a view to be normal to a specified plane  Benefit  Easier to align and position views

31 Page 31 © Siemens Product Lifecycle Management Software Inc. All rights reserved Siemens PLM Software Q and A Thank You! Al Robertson +1 (714)
