Motion illusion, rotating snakes

2

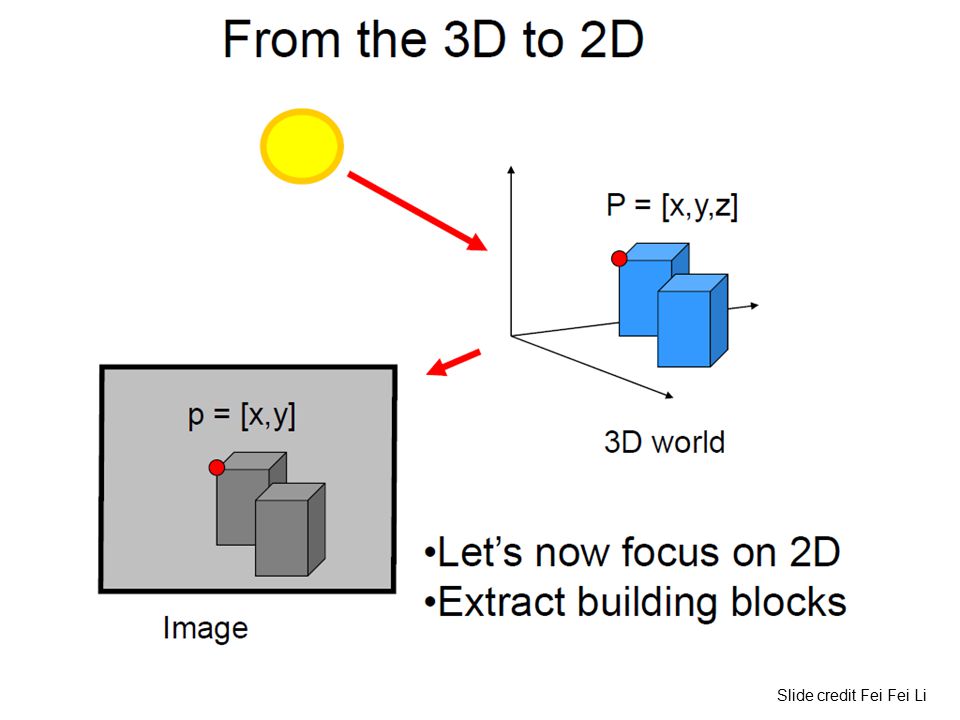

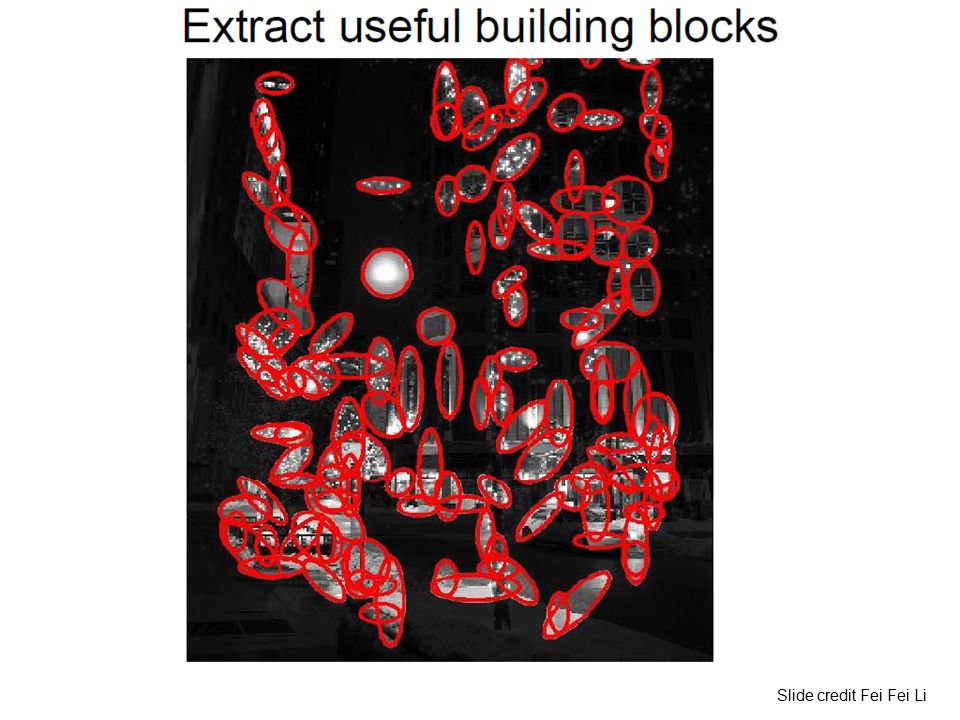

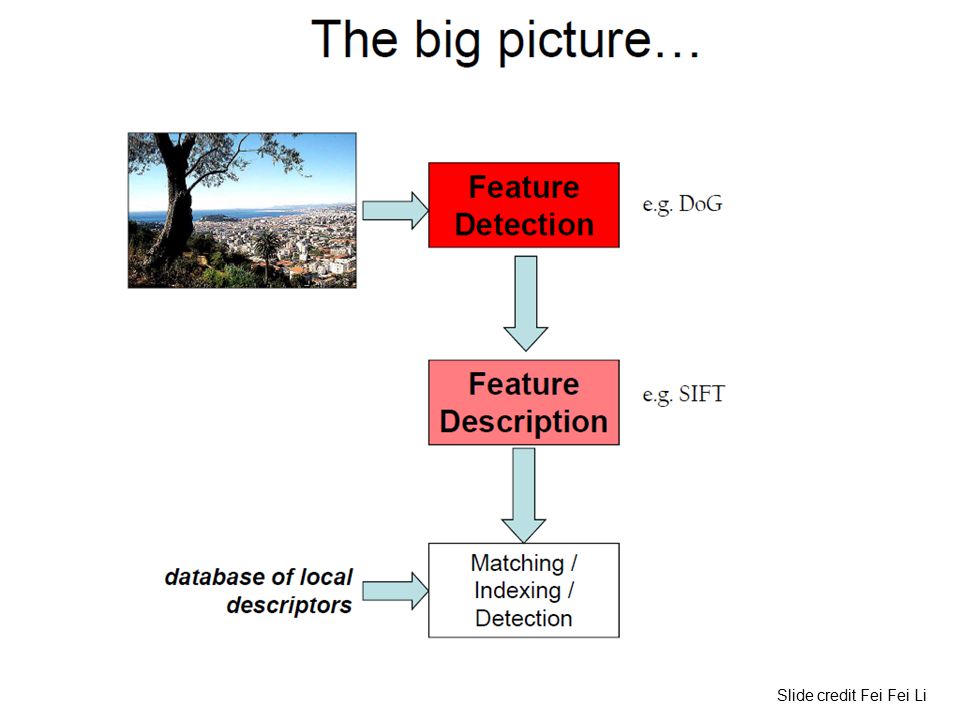

Slide credit Fei Fei Li

5
Image Filtering Computer Vision James Hays, Brown 09/11/2013 Many slides by Derek Hoiem

6
Next three classes: three views of filtering Image filters in spatial domain – Filter is a mathematical operation of a grid of numbers – Smoothing, sharpening, measuring texture Image filters in the frequency domain – Filtering is a way to modify the frequencies of images – Denoising, sampling, image compression Templates and Image Pyramids – Filtering is a way to match a template to the image – Detection, coarse-to-fine registration

7
Image filtering Image filtering: compute function of local neighborhood at each position Really important! – Enhance images Denoise, resize, increase contrast, etc. – Extract information from images Texture, edges, distinctive points, etc. – Detect patterns Template matching

8

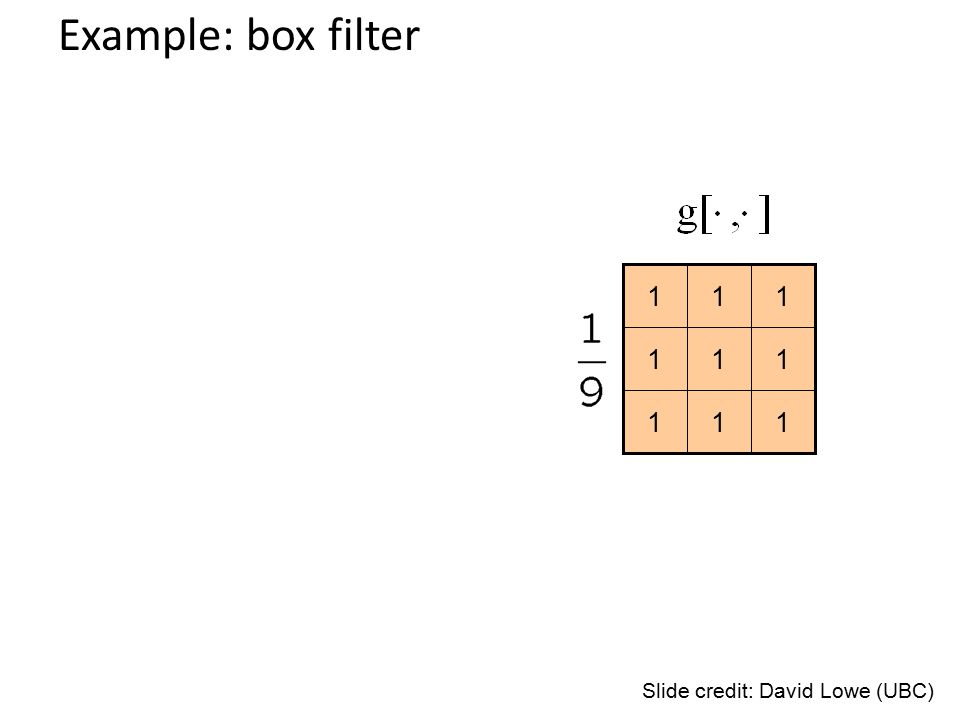

111 111 111 Slide credit: David Lowe (UBC) Example: box filter

9
0000000000 0000000000 00090 00 000 00 000 00 000 0 00 000 00 0000000000 00 0000000 0000000000 0 0000000000 0000000000 000 00 000 00 000 00 000 0 00 000 00 0000000000 00 0000000 0000000000 Credit: S. Seitz Image filtering 111 111 111

10

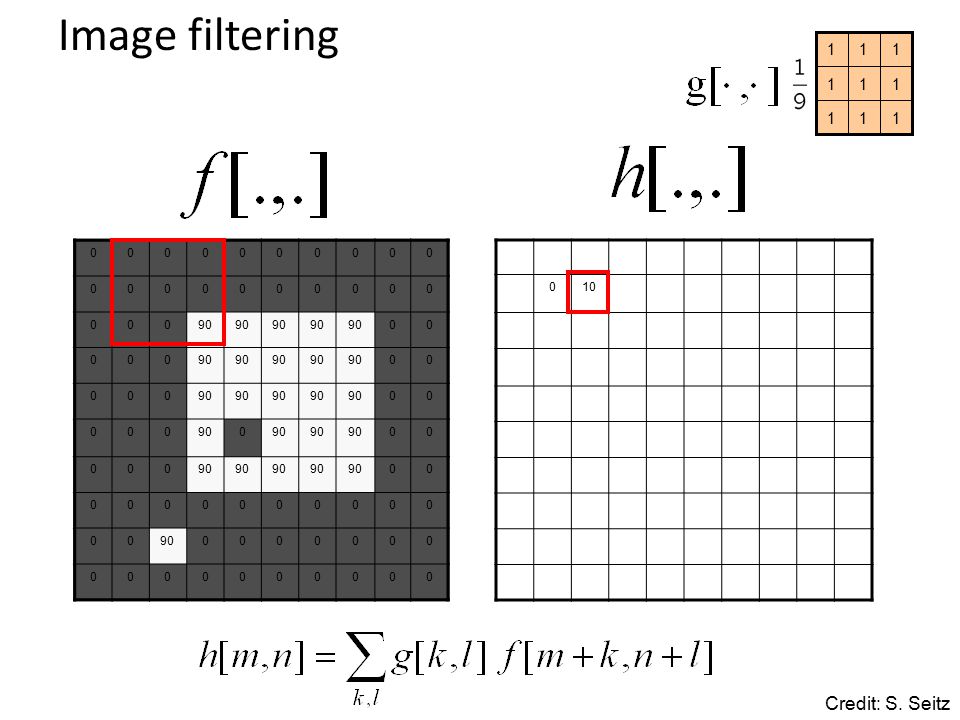

0000000000 0000000000 00090 00 000 00 000 00 000 0 00 000 00 0000000000 00 0000000 0000000000 010 0000000000 0000000000 00090 00 000 00 000 00 000 0 00 000 00 0000000000 00 0000000 0000000000 Image filtering 111 111 111 Credit: S. Seitz

11
0000000000 0000000000 00090 00 000 00 000 00 000 0 00 000 00 0000000000 00 0000000 0000000000 01020 0000000000 0000000000 00090 00 000 00 000 00 000 0 00 000 00 0000000000 00 0000000 0000000000 Image filtering 111 111 111 Credit: S. Seitz

12
0000000000 0000000000 00090 00 000 00 000 00 000 0 00 000 00 0000000000 00 0000000 0000000000 0102030 0000000000 0000000000 00090 00 000 00 000 00 000 0 00 000 00 0000000000 00 0000000 0000000000 Image filtering 111 111 111 Credit: S. Seitz

13
0102030 0000000000 0000000000 00090 00 000 00 000 00 000 0 00 000 00 0000000000 00 0000000 0000000000 Image filtering 111 111 111 Credit: S. Seitz

14
0102030 0000000000 0000000000 00090 00 000 00 000 00 000 0 00 000 00 0000000000 00 0000000 0000000000 Image filtering 111 111 111 Credit: S. Seitz ?

15
0102030 50 0000000000 0000000000 00090 00 000 00 000 00 000 0 00 000 00 0000000000 00 0000000 0000000000 Image filtering 111 111 111 Credit: S. Seitz ?

16
0000000000 0000000000 00090 00 000 00 000 00 000 0 00 000 00 0000000000 00 0000000 0000000000 0102030 2010 0204060 4020 0306090 6030 0 5080 906030 0 5080 906030 0203050 604020 102030 2010 00000 Image filtering 111 111 111 Credit: S. Seitz

17
What does it do? Replaces each pixel with an average of its neighborhood Achieve smoothing effect (remove sharp features) 111 111 111 Slide credit: David Lowe (UBC) Box Filter

18
Smoothing with box filter

19
One more on board…

20
Practice with linear filters 000 010 000 Original ? Source: D. Lowe

21

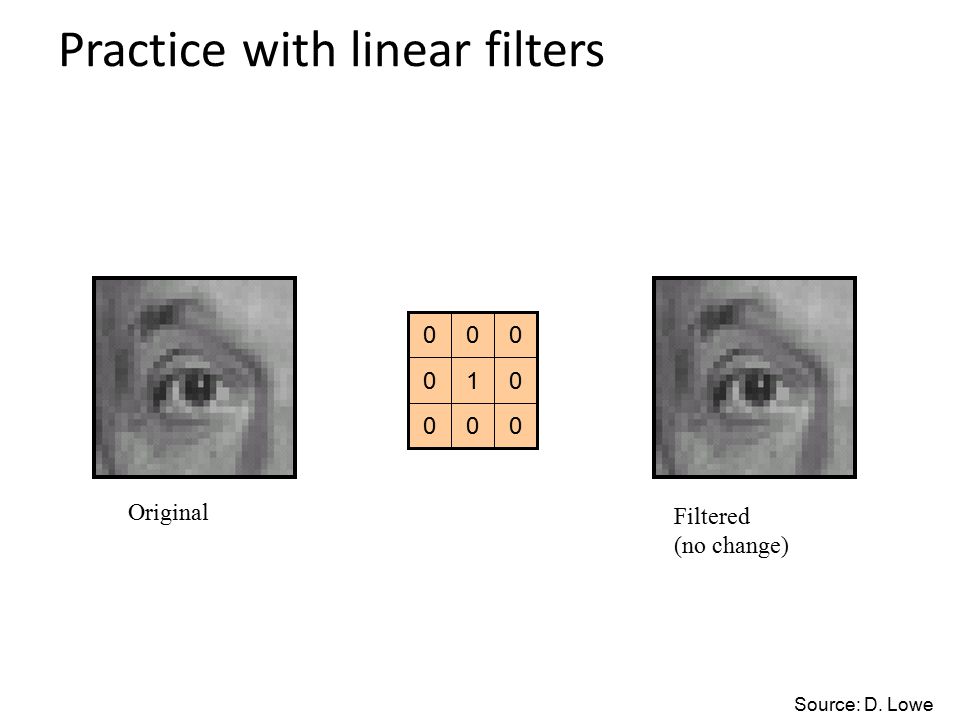

Practice with linear filters 000 010 000 Original Filtered (no change) Source: D. Lowe

22
Practice with linear filters 000 100 000 Original ? Source: D. Lowe

23

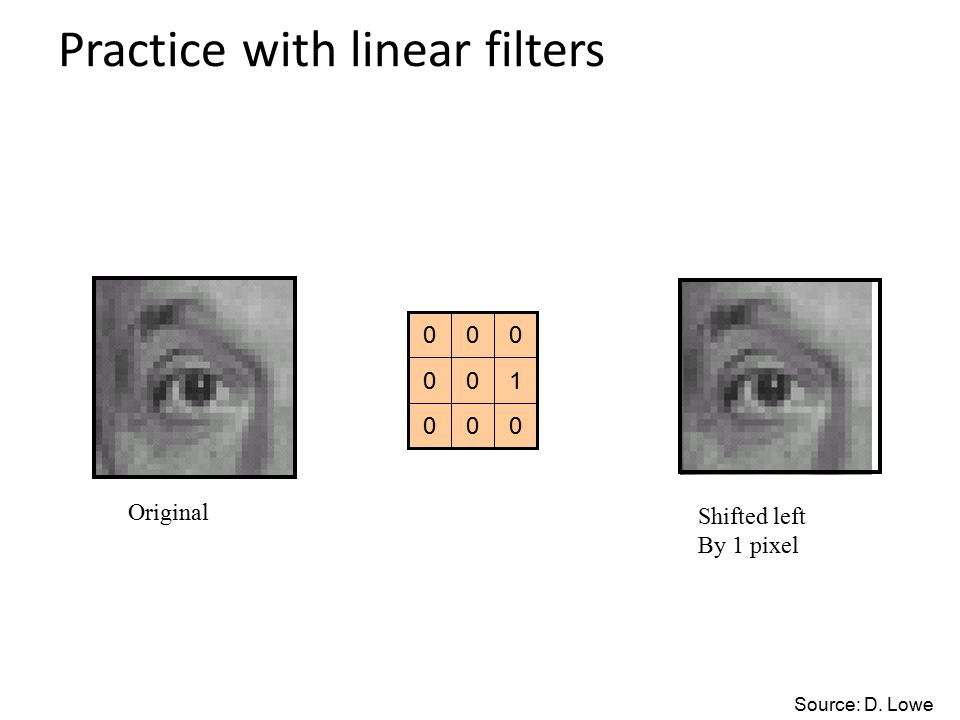

Practice with linear filters 000 100 000 Original Shifted left By 1 pixel Source: D. Lowe

24
Practice with linear filters Original 111 111 111 000 020 000 - ? (Note that filter sums to 1) Source: D. Lowe

25
Practice with linear filters Original 111 111 111 000 020 000 - Sharpening filter - Accentuates differences with local average Source: D. Lowe

26
Sharpening Source: D. Lowe

27
Other filters 01 -202 01 Vertical Edge (absolute value) Sobel

28
Other filters -2 000 121 Horizontal Edge (absolute value) Sobel

29
How could we synthesize motion blur? theta = 30; len = 20; fil = imrotate(ones(1, len), theta, 'bilinear'); fil = fil / sum(fil(:)); figure(2), imshow(imfilter(im, fil));

30
Filtering vs. Convolution 2d filtering –h=filter2(g,f); or h=imfilter(f,g); 2d convolution –h=conv2(g,f); f=imageg=filter

31
Key properties of linear filters Linearity: filter(f 1 + f 2 ) = filter(f 1 ) + filter(f 2 ) Shift invariance: same behavior regardless of pixel location filter(shift(f)) = shift(filter(f)) Any linear, shift-invariant operator can be represented as a convolution Source: S. Lazebnik

32
More properties Commutative: a * b = b * a – Conceptually no difference between filter and signal – But particular filtering implementations might break this equality Associative: a * (b * c) = (a * b) * c – Often apply several filters one after another: (((a * b 1 ) * b 2 ) * b 3 ) – This is equivalent to applying one filter: a * (b 1 * b 2 * b 3 ) Distributes over addition: a * (b + c) = (a * b) + (a * c) Scalars factor out: ka * b = a * kb = k (a * b) Identity: unit impulse e = [0, 0, 1, 0, 0], a * e = a Source: S. Lazebnik

33
Weight contributions of neighboring pixels by nearness 0.003 0.013 0.022 0.013 0.003 0.013 0.059 0.097 0.059 0.013 0.022 0.097 0.159 0.097 0.022 0.013 0.059 0.097 0.059 0.013 0.003 0.013 0.022 0.013 0.003 5 x 5, = 1 Slide credit: Christopher Rasmussen Important filter: Gaussian

34
Smoothing with Gaussian filter

35
Smoothing with box filter

36
Gaussian filters Remove “high-frequency” components from the image (low-pass filter) – Images become more smooth Convolution with self is another Gaussian – So can smooth with small-width kernel, repeat, and get same result as larger-width kernel would have – Convolving two times with Gaussian kernel of width σ is same as convolving once with kernel of width σ√2 Separable kernel – Factors into product of two 1D Gaussians Source: K. Grauman

37

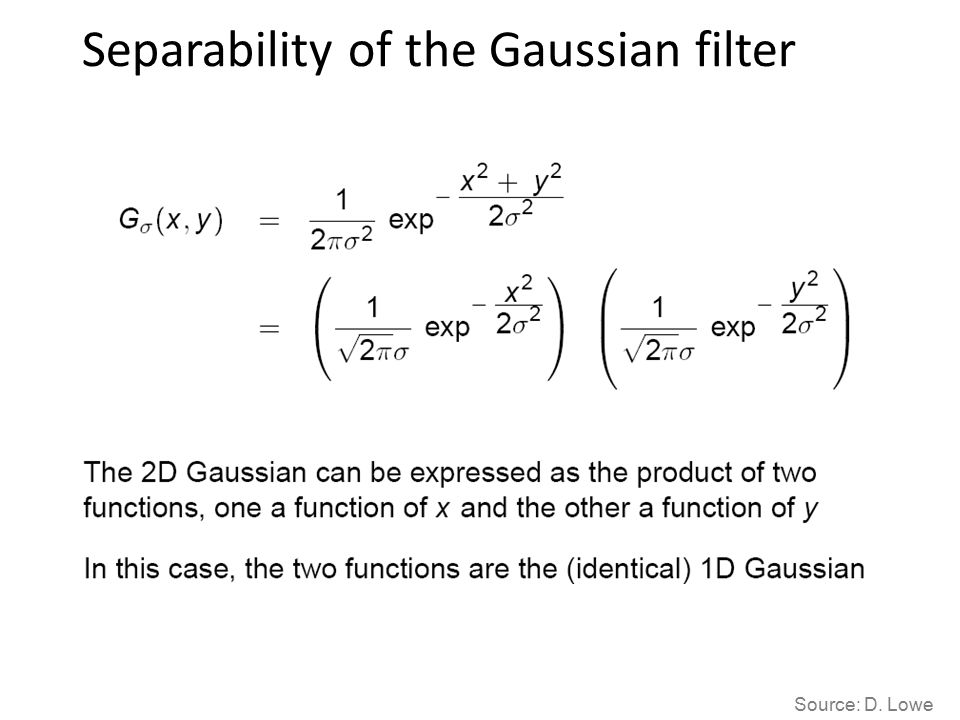

Separability of the Gaussian filter Source: D. Lowe

38
Separability example * * = = 2D convolution (center location only) Source: K. Grauman The filter factors into a product of 1D filters: Perform convolution along rows: Followed by convolution along the remaining column:

39
Separability Why is separability useful in practice?

40
Some practical matters

41
How big should the filter be? Values at edges should be near zero Rule of thumb for Gaussian: set filter half-width to about 3 σ Practical matters

42

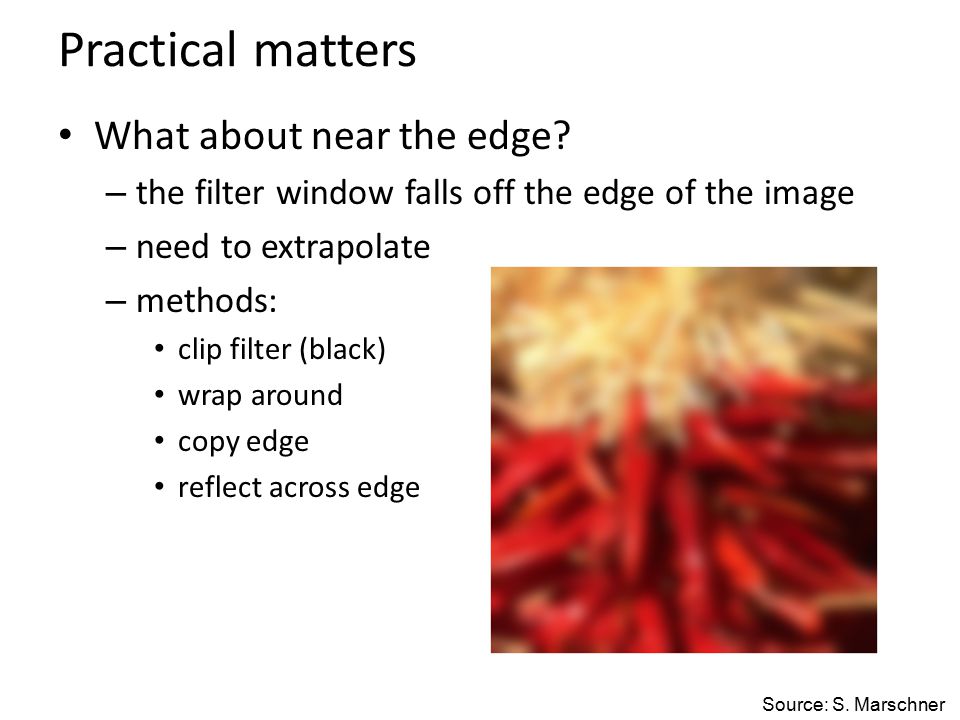

What about near the edge? – the filter window falls off the edge of the image – need to extrapolate – methods: clip filter (black) wrap around copy edge reflect across edge Source: S. Marschner

43
Practical matters – methods (MATLAB): clip filter (black): imfilter(f, g, 0) wrap around:imfilter(f, g, ‘circular’) copy edge: imfilter(f, g, ‘replicate’) reflect across edge: imfilter(f, g, ‘symmetric’) Source: S. Marschner Q?

44
Practical matters What is the size of the output? MATLAB: filter2(g, f, shape) – shape = ‘full’: output size is sum of sizes of f and g – shape = ‘same’: output size is same as f – shape = ‘valid’: output size is difference of sizes of f and g f gg gg f gg g g f gg gg full samevalid Source: S. Lazebnik

45
© 2006 Steve Marschner 45 Median filters A Median Filter operates over a window by selecting the median intensity in the window. What advantage does a median filter have over a mean filter? Is a median filter a kind of convolution? Slide by Steve Seitz

46
© 2006 Steve Marschner 46 Comparison: salt and pepper noise Slide by Steve Seitz

47
Project 1: Hybrid Images Gaussian Filter! Laplacian Filter! A. Oliva, A. Torralba, P.G. Schyns, “Hybrid Images,” SIGGRAPH 2006 “Hybrid Images,” Gaussian unit impulse Laplacian of Gaussian

48
Take-home messages Linear filtering is sum of dot product at each position – Can smooth, sharpen, translate (among many other uses) Be aware of details for filter size, extrapolation, cropping 111 111 111

49
Practice questions 1.Write down a 3x3 filter that returns a positive value if the average value of the 4-adjacent neighbors is less than the center and a negative value otherwise 2.Write down a filter that will compute the gradient in the x-direction: gradx(y,x) = im(y,x+1)-im(y,x) for each x, y

50
Practice questions 3. Fill in the blanks: a) _ = D * B b) A = _ * _ c) F = D * _ d) _ = D * D A B C D E F G HI Filtering Operator

51
Next class: Thinking in Frequency
