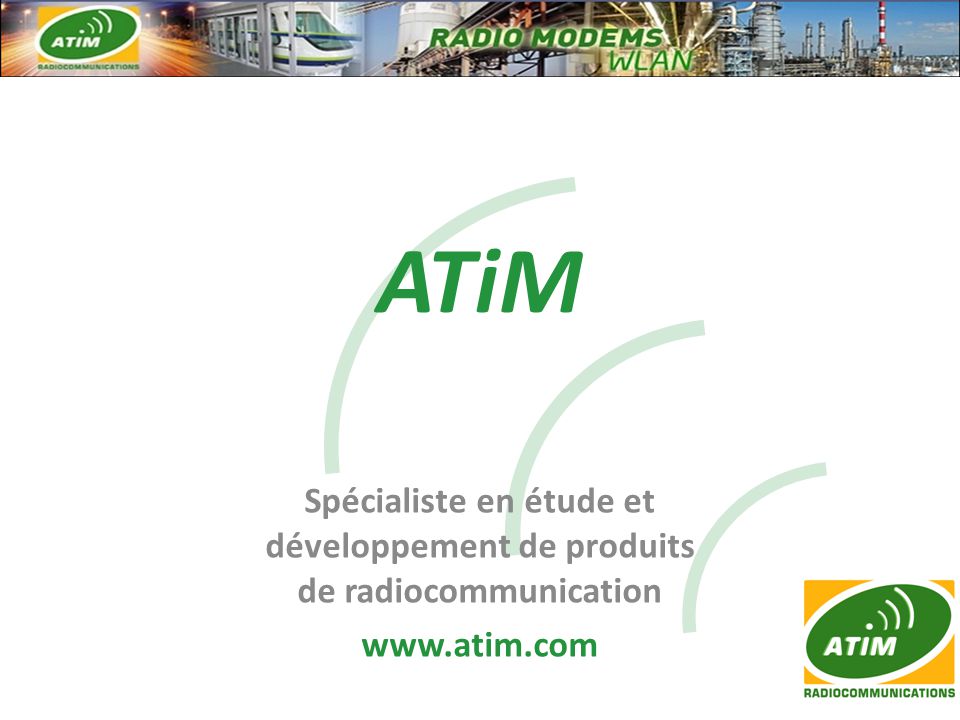

1 ATiM Spécialiste en étude et développement de produits de radiocommunication

2 o ARM-SE o Description o Operating Modes o Configuration o ARM-X o Description o Main features o Operating Modes o ARM-D/DA o Description o Main features o Operating Modes o ARM-IO o Description o IO-S, IO-D, IO-A, Low Power versions ATIM: le spécialiste de la radiocommunication 2 Agenda

3 ARM-SE « Advanced Radio Modem Serial & Ethernet » ATIM: le spécialiste de la radiocommunication 3

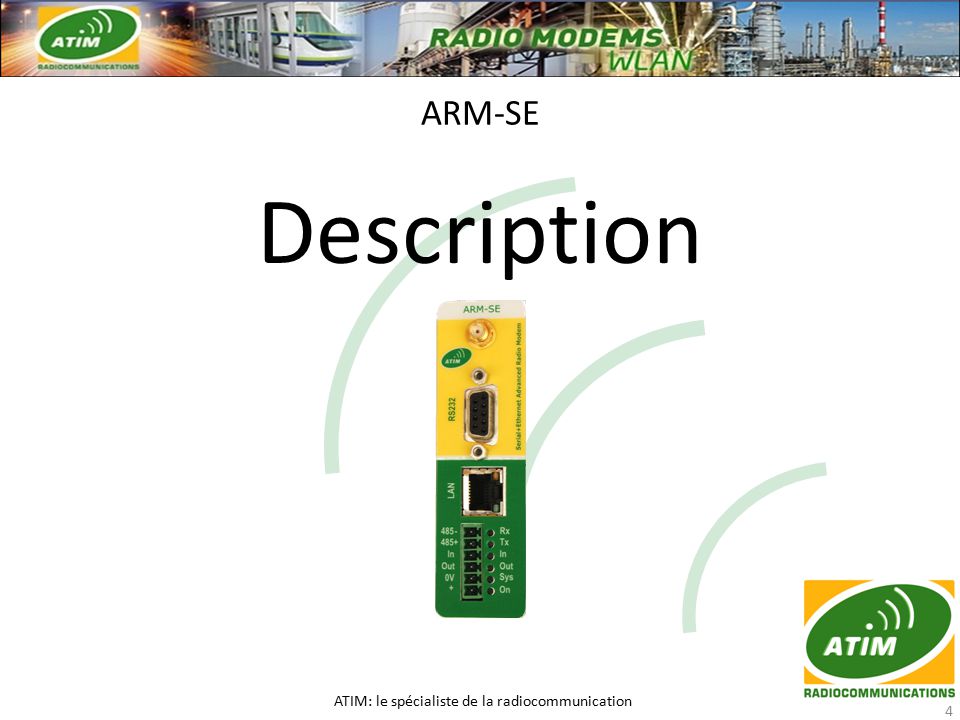

4 Description ARM-SE ATIM: le spécialiste de la radiocommunication 4

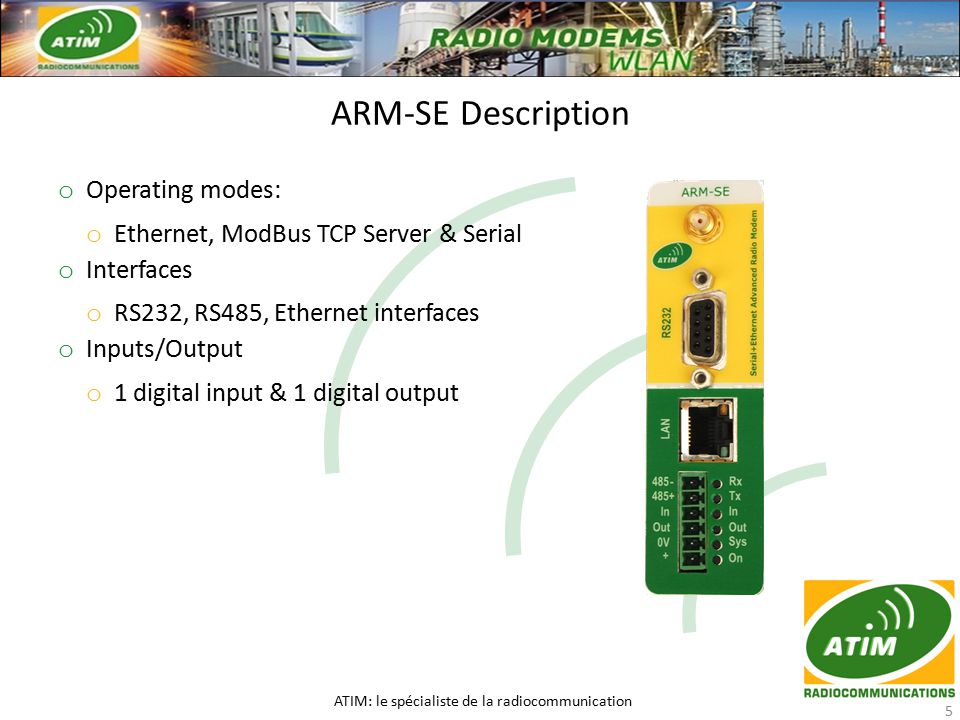

5 o Operating modes: o Ethernet, ModBus TCP Server & Serial o Interfaces o RS232, RS485, Ethernet interfaces o Inputs/Output o 1 digital input & 1 digital output ARM-SE Description ATIM: le spécialiste de la radiocommunication 5

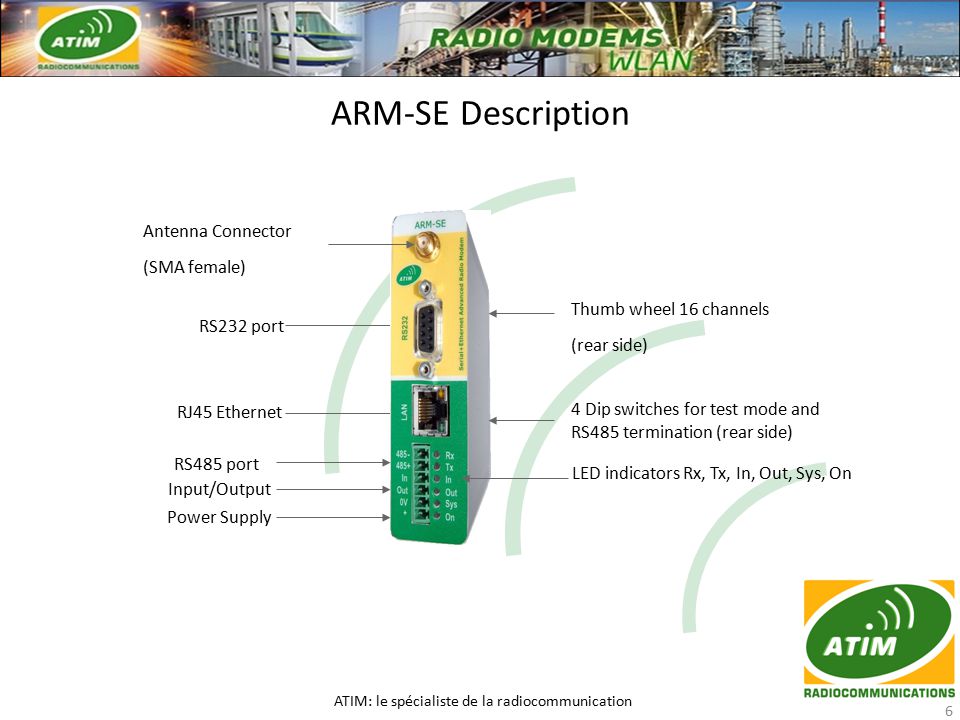

6 ARM-SE Description ATIM: le spécialiste de la radiocommunication 6 Antenna Connector (SMA female) RS232 port RJ45 Ethernet RS485 port Power Supply Input/Output LED indicators Rx, Tx, In, Out, Sys, On Thumb wheel 16 channels (rear side) 4 Dip switches for test mode and RS485 termination (rear side)

7 ARM-SE Description ATIM: le spécialiste de la radiocommunication 7 Désactivé ↔ Activé 1 : Mode test 2 : Pull-up 2.7K 3 : Pull-down 2.7K 4 : Terminaison 120Ω Selection of radio channel or test number DIP Switch Thumb Wheel

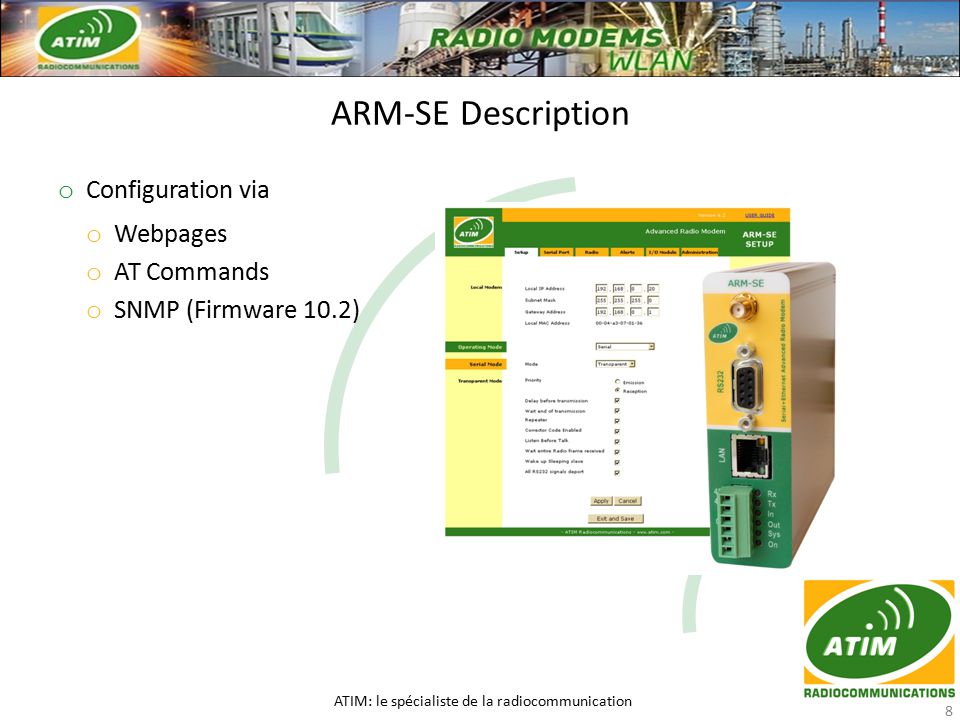

8 o Configuration via o Webpages o AT Commands o SNMP (Firmware 10.2) ARM-SE Description ATIM: le spécialiste de la radiocommunication 8

9 Operating Modes ARM-SE ATIM: le spécialiste de la radiocommunication 9

10 ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 10

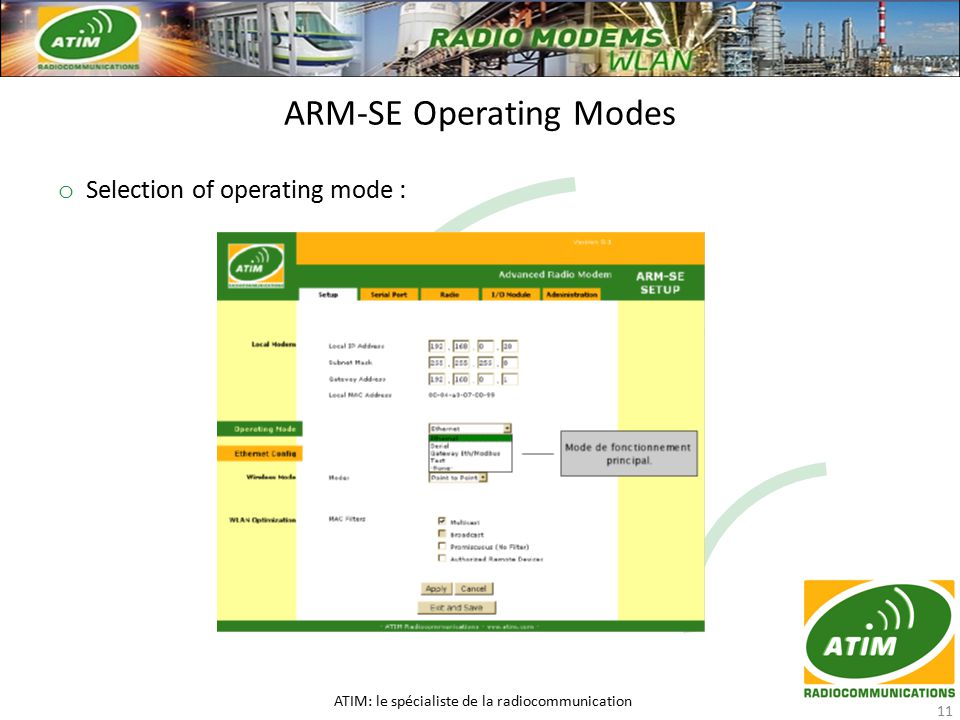

11 o Selection of operating mode : ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 11

12 o Ethernet mode: o ARM-SE connected to the « NIC » with a 10 Base T cable o The « NIC » can talk anytime o Communication reliability guaranteed by : ACK wireless headers and repeat after randomized time Wireless RTS/CTS (depends of the configuration) o Datarate difference compensated by control algorithms, « Transport » layer (Typically TCP) -> avoid flow congestion and traffic jam. ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 12

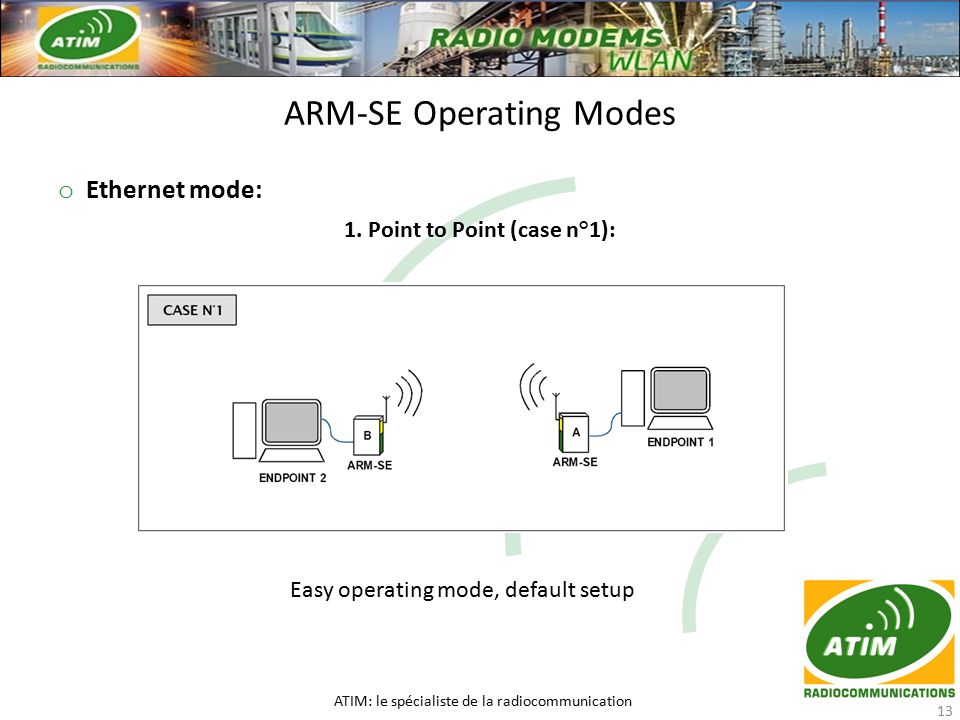

13 o Ethernet mode: 1. Point to Point (case n°1): ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 13 Easy operating mode, default setup

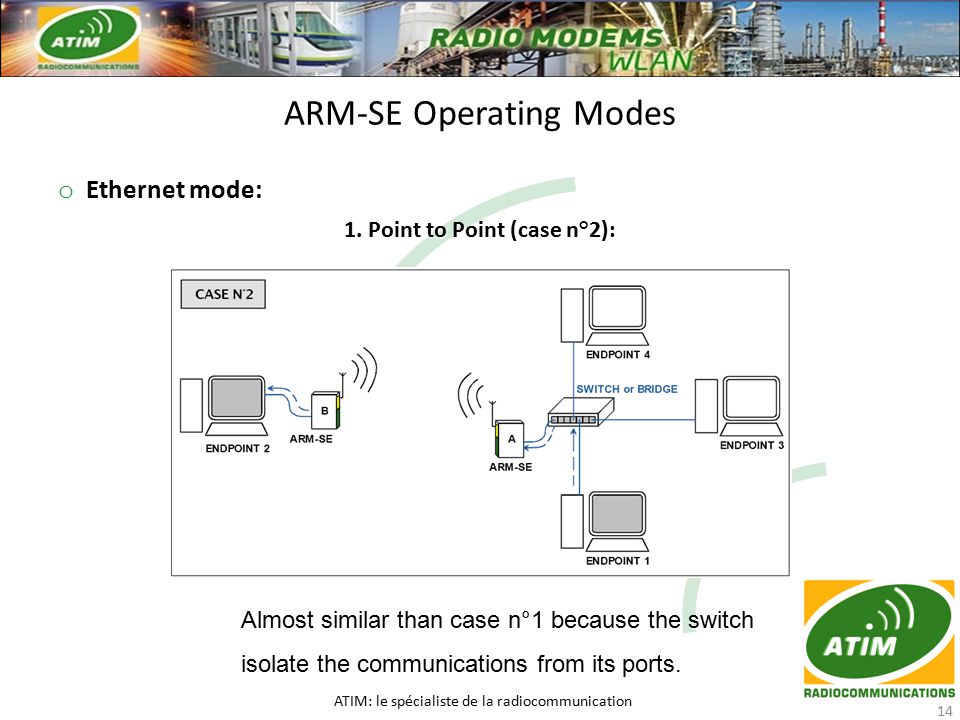

14 o Ethernet mode: 1. Point to Point (case n°2): ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 14 Almost similar than case n°1 because the switch isolate the communications from its ports.

15 o Ethernet mode: 1. Point to Point (case n°3): ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 15 Operation uselessly disturbed by repeated messages from the hub

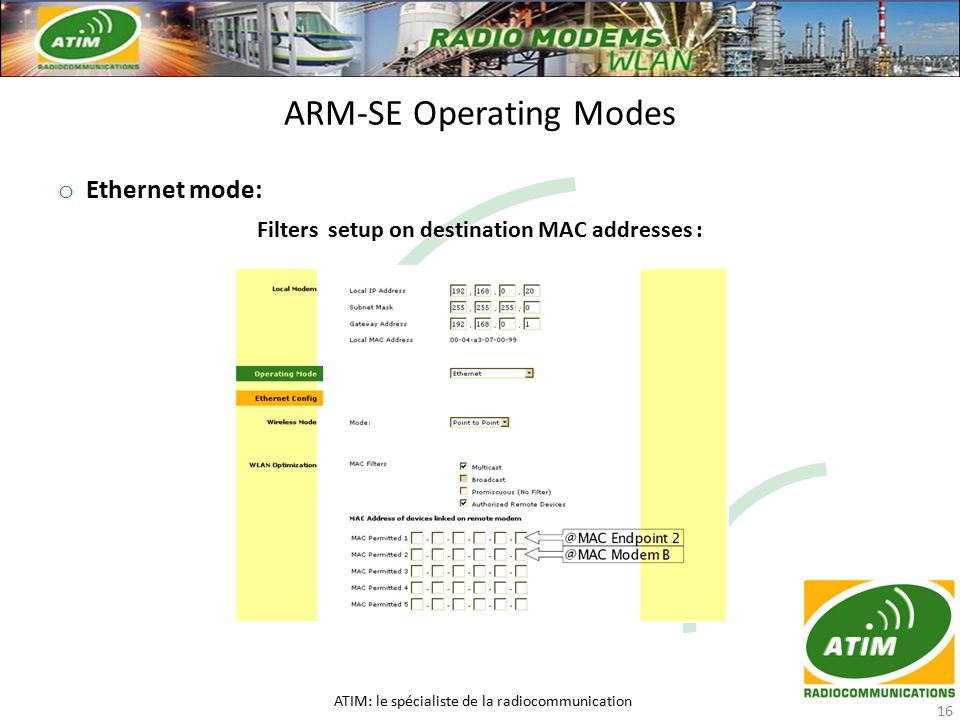

16 o Ethernet mode: Filters setup on destination MAC addresses : ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 16

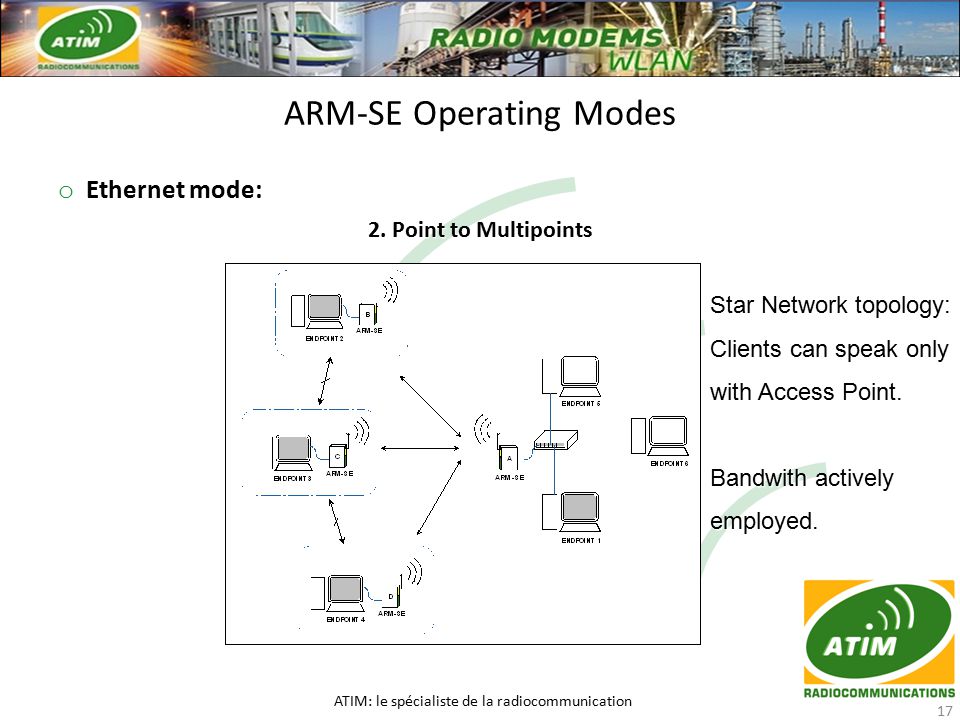

17 o Ethernet mode: 2. Point to Multipoints ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 17 Star Network topology: Clients can speak only with Access Point. Bandwith actively employed.

18 o ModBus TCP Server mode: o Identical to a ModBus slave solicited by a master/client device. o Allow communication between an Ethernet device with ModBus TCP protocol and ModBus RTU slaves. ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 18

19 o ModBus TCP Server mode: ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 19

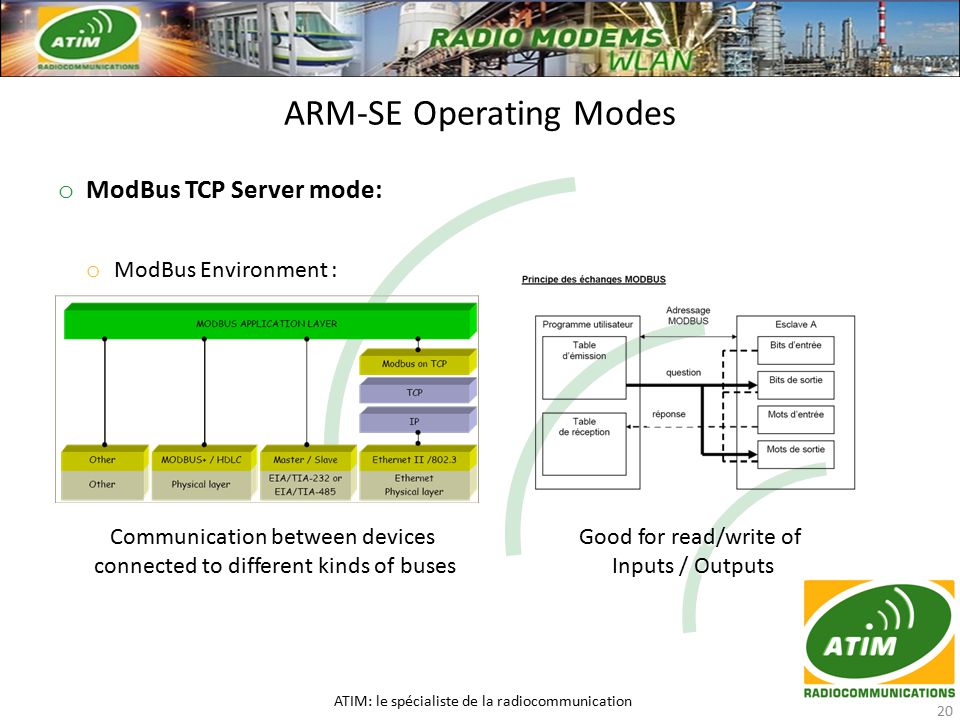

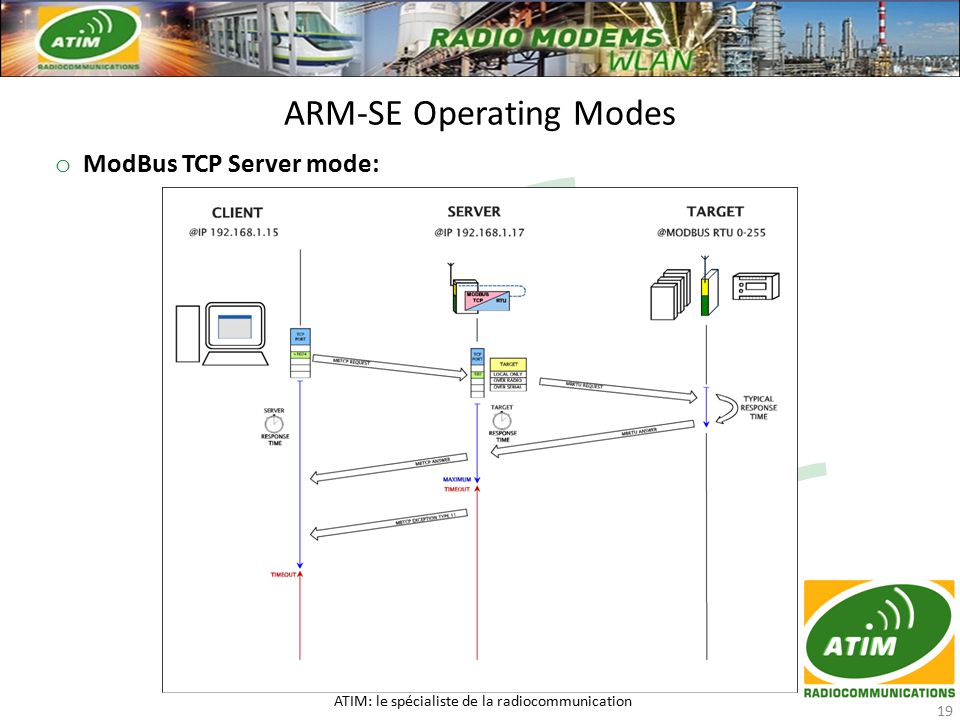

20 o ModBus TCP Server mode: o ModBus Environment : ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 20 Communication between devices connected to different kinds of buses Good for read/write of Inputs / Outputs

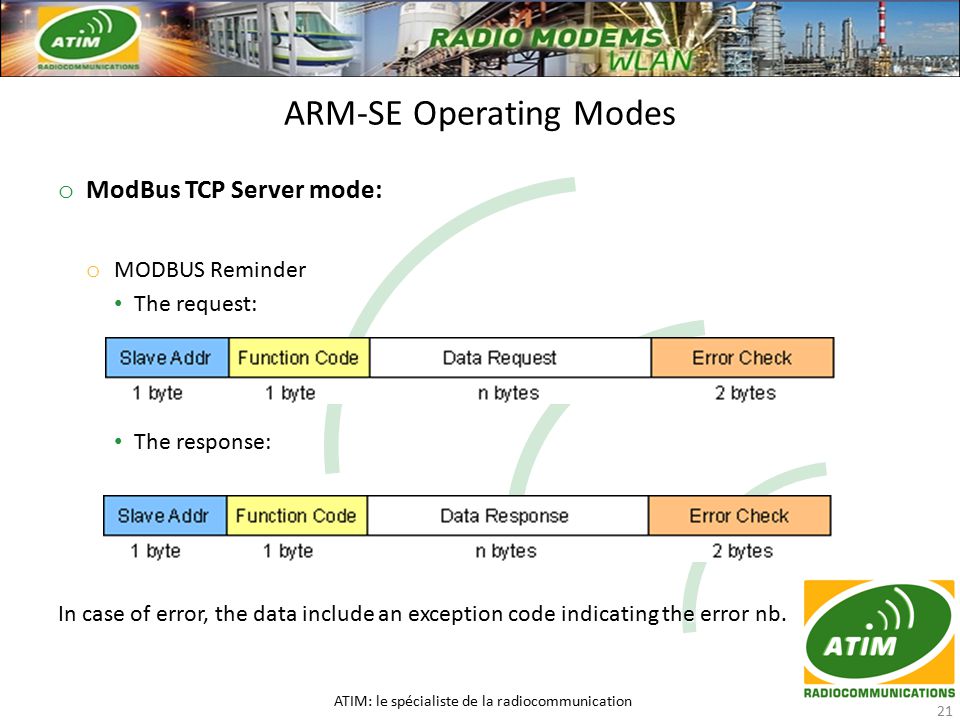

21 o ModBus TCP Server mode: o MODBUS Reminder The request: The request: The response: The response: In case of error, the data include an exception code indicating the error nb. ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 21

22 o ModBus TCP Server mode: o MODBUS Reminder Function codes: Function codes: ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 22

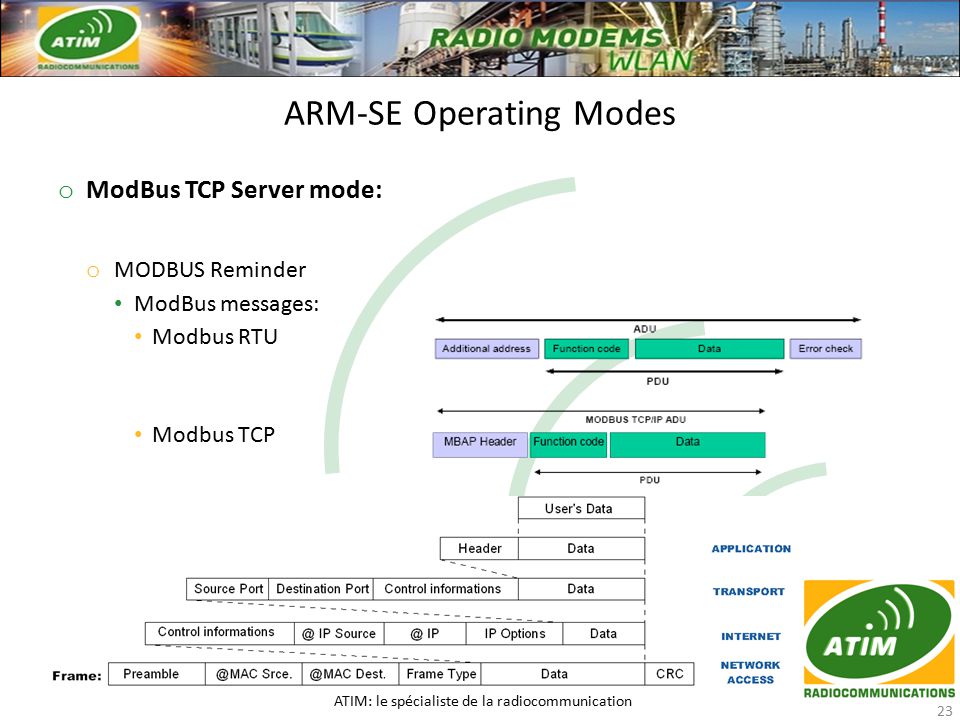

23 o ModBus TCP Server mode: o MODBUS Reminder ModBus messages: ModBus messages: Modbus RTU Modbus RTU Modbus TCP Modbus TCP ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 23

24 o ModBus TCP Server mode: o Use of the ModBus TCP/ModBus RTU gateway: ARM-SE Server ModBus TCP decapsulate the message and send it to different possible targets. ARM-SE Server ModBus TCP decapsulate the message and send it to different possible targets. ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 24

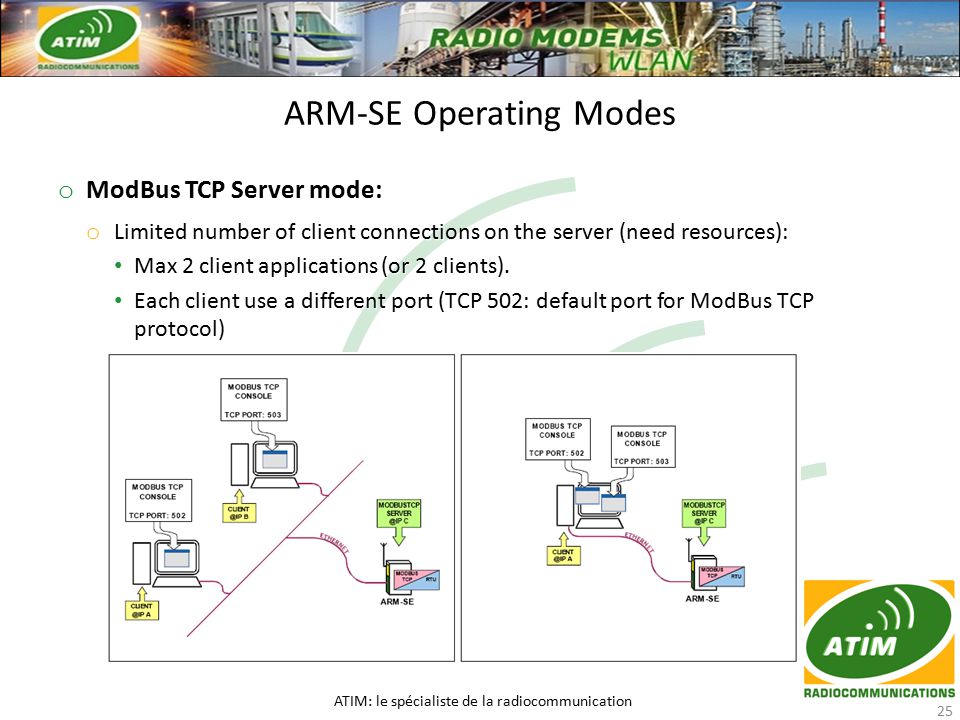

25 o ModBus TCP Server mode: o Limited number of client connections on the server (need resources): Max 2 client applications (or 2 clients). Max 2 client applications (or 2 clients). Each client use a different port (TCP 502: default port for ModBus TCP protocol) Each client use a different port (TCP 502: default port for ModBus TCP protocol) ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 25

26 o ModBus TCP Server mode: o Affectation of the TCP ports according to the target The TCP port forwards the connection to the target. The TCP port forwards the connection to the target. ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 26

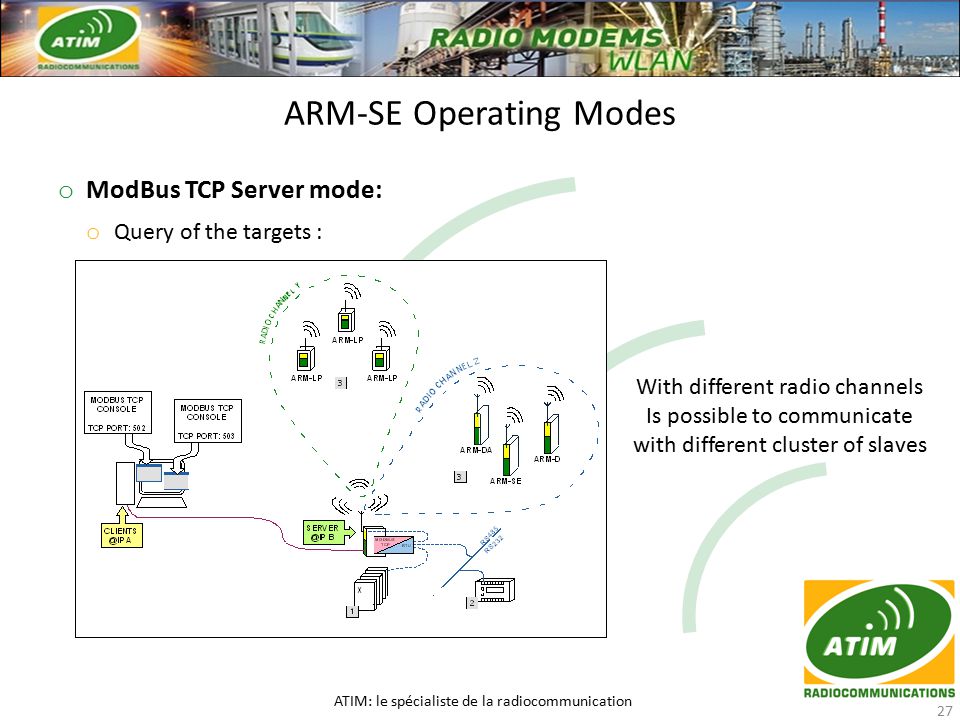

27 o ModBus TCP Server mode: o Query of the targets : ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 27 With different radio channels Is possible to communicate with different cluster of slaves

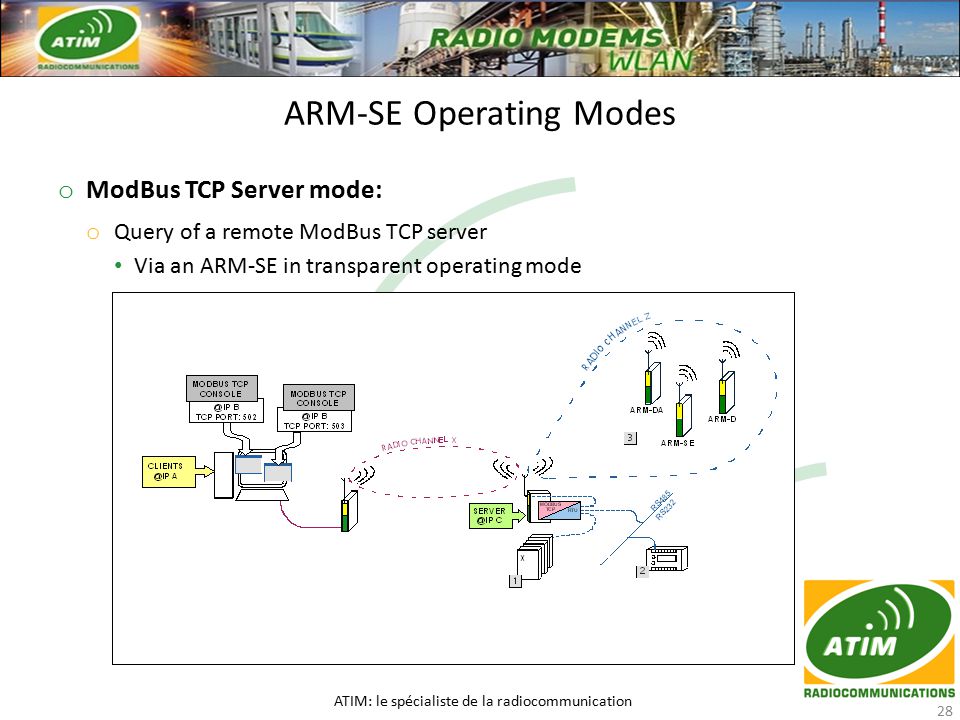

28 o ModBus TCP Server mode: o Query of a remote ModBus TCP server Via an ARM-SE in transparent operating mode Via an ARM-SE in transparent operating mode ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 28

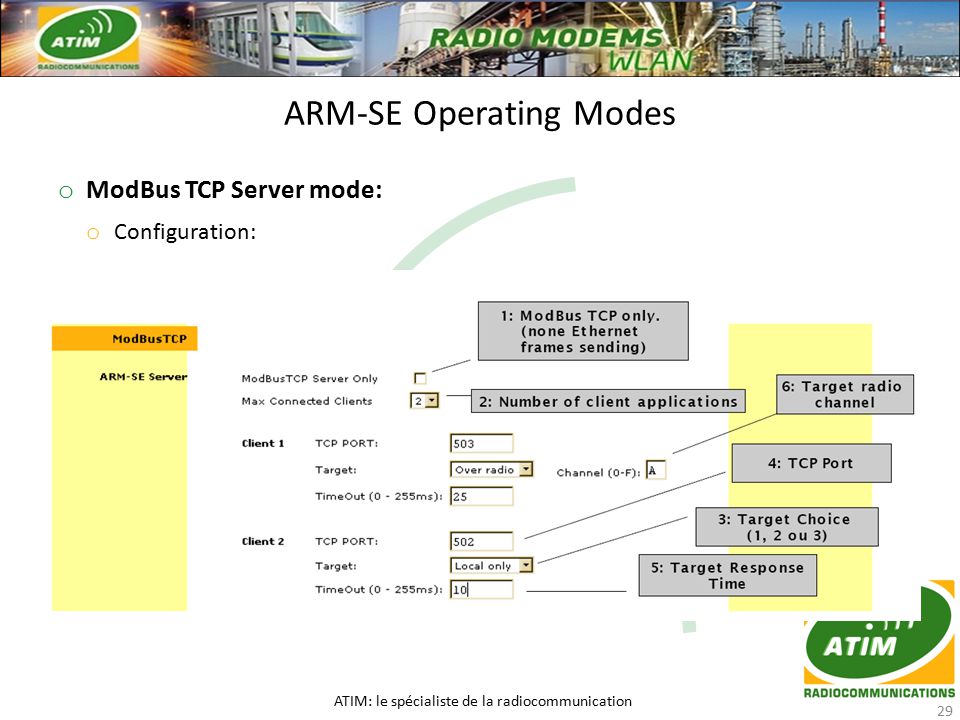

29 o ModBus TCP Server mode: o Configuration: ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 29

30 o Serial mode: 1.Transparent mode –The radio modem goes in wireless Tx as soon its receive a byte on its serial port (+ optional delay before transmission). –Transmission (Tx) while the serial buffer (1024B) contains Bytes. –Delay after Tx before to go back to reception (Rx). –RTS/CTS RS232 flow control ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 30

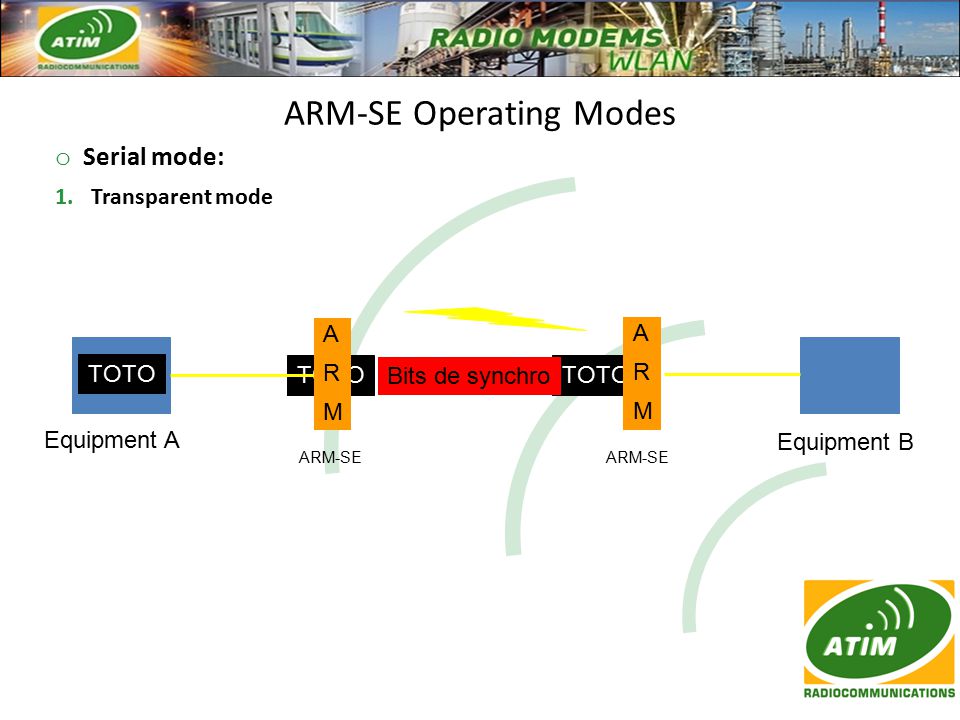

31 ARM-SE Operating Modes TOTO Bits de synchro TOTO Equipment A Equipment B ARMARM ARMARM ARM-SE o Serial mode: 1.Transparent mode

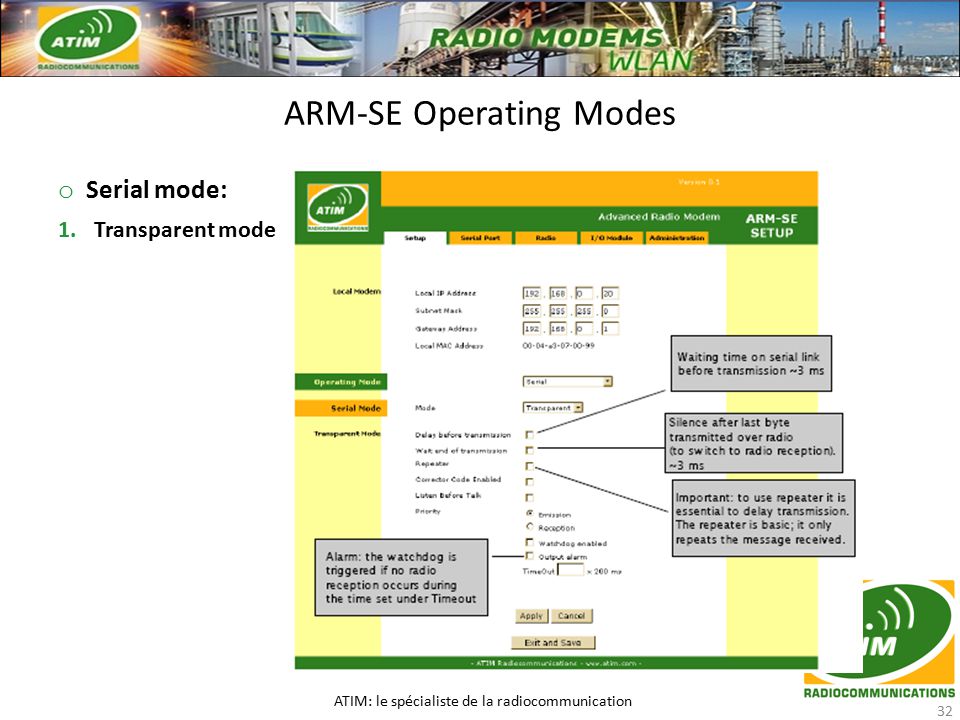

32 o Serial mode: 1.Transparent mode ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 32

33 o Serial mode: 1.Securized mode ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 33

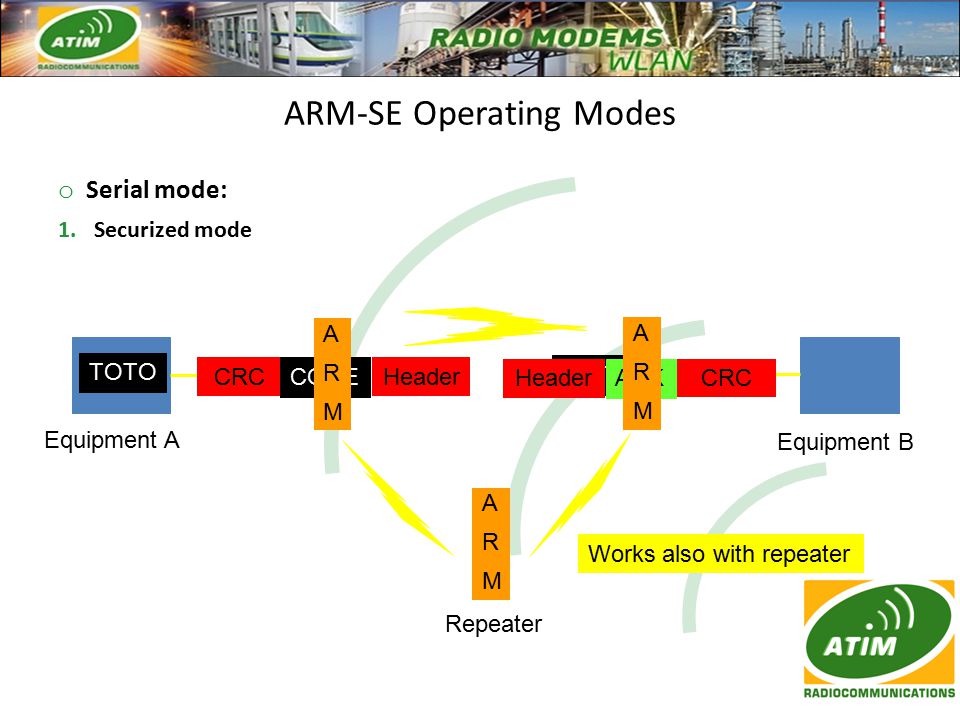

34 ARM-SE Operating Modes TOTO Equipment A Equipment B Header TOTO CRC ACK Header ARMARM CODE ARMARM ARMARM Repeater Works also with repeater o Serial mode: 1.Securized mode

35 o Serial mode: 1.Securized mode ARM-SE Operating Modes ATIM: le spécialiste de la radiocommunication 35

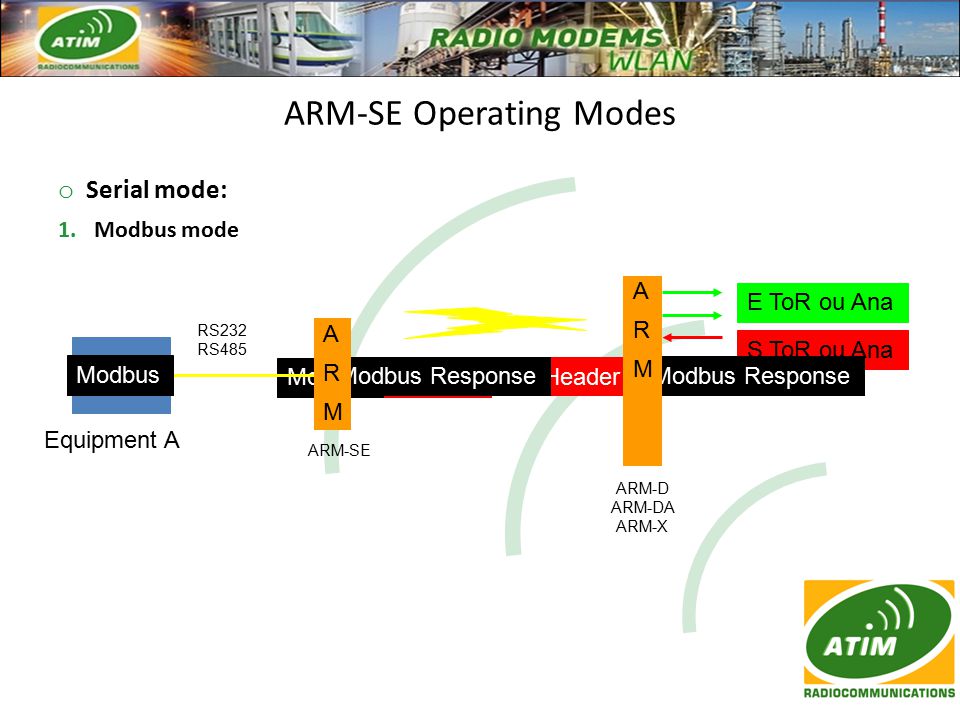

36 ARM-SE Operating Modes Header Modbus Equipment A S ToR ou Ana E ToR ou Ana ARM-D ARM-DA ARM-X Header Modbus Response ARMARM ARMARM RS232 RS485 ARM-SE o Serial mode: 1.Modbus mode

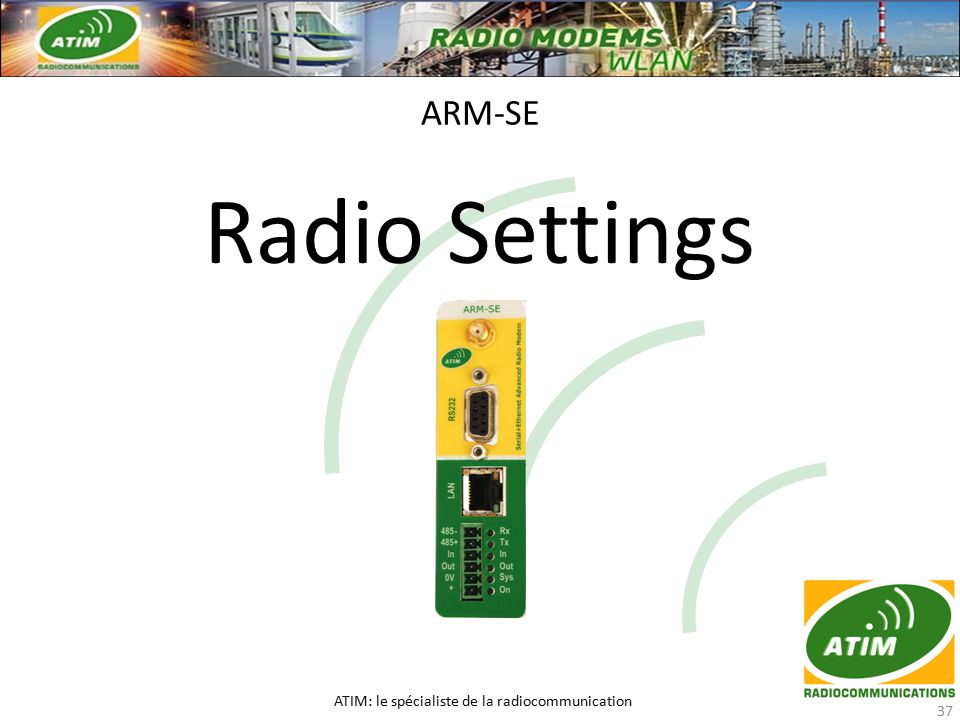

37 Radio Settings ARM-SE ATIM: le spécialiste de la radiocommunication 37

38 o To establish a link radios should be in same channel. ARM-SE Radio ATIM: le spécialiste de la radiocommunication 38 Canal Fréquence (MHz) Canal Fréquence (MHz) Puiss. Max. : 25mW Duty Cycle : 1% A B Puiss. Max. : 5mW Duty Cycle : 100% C D Puiss. Max. : 500mW Duty Cycle : 10% E F

39 o Configuration radio ARM-SE Radio ATIM: le spécialiste de la radiocommunication 39

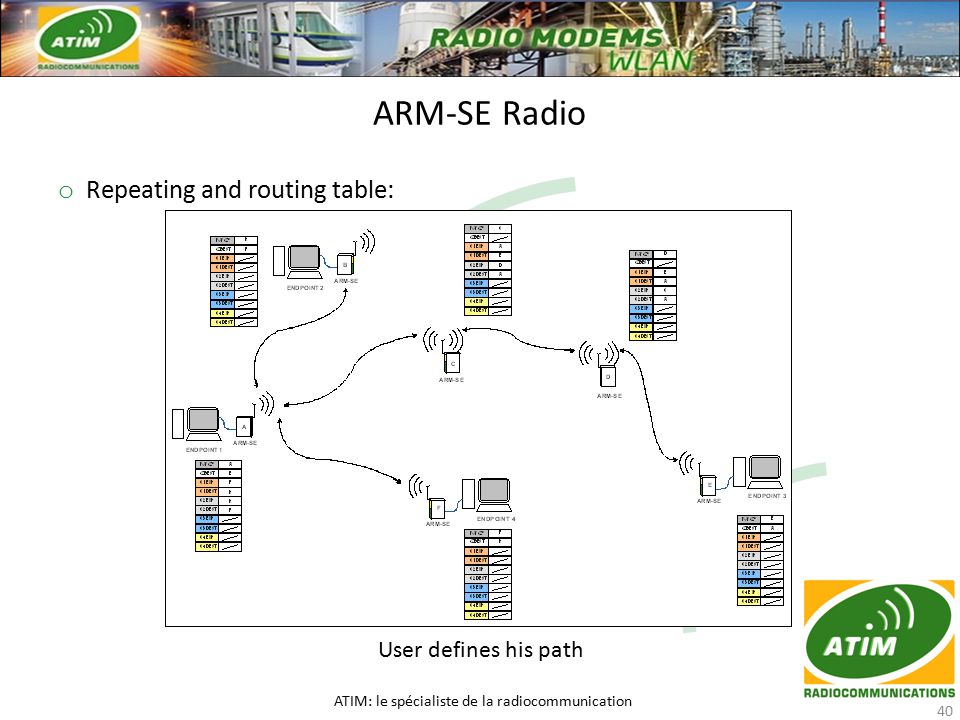

40 o Repeating and routing table: ARM-SE Radio ATIM: le spécialiste de la radiocommunication 40 User defines his path

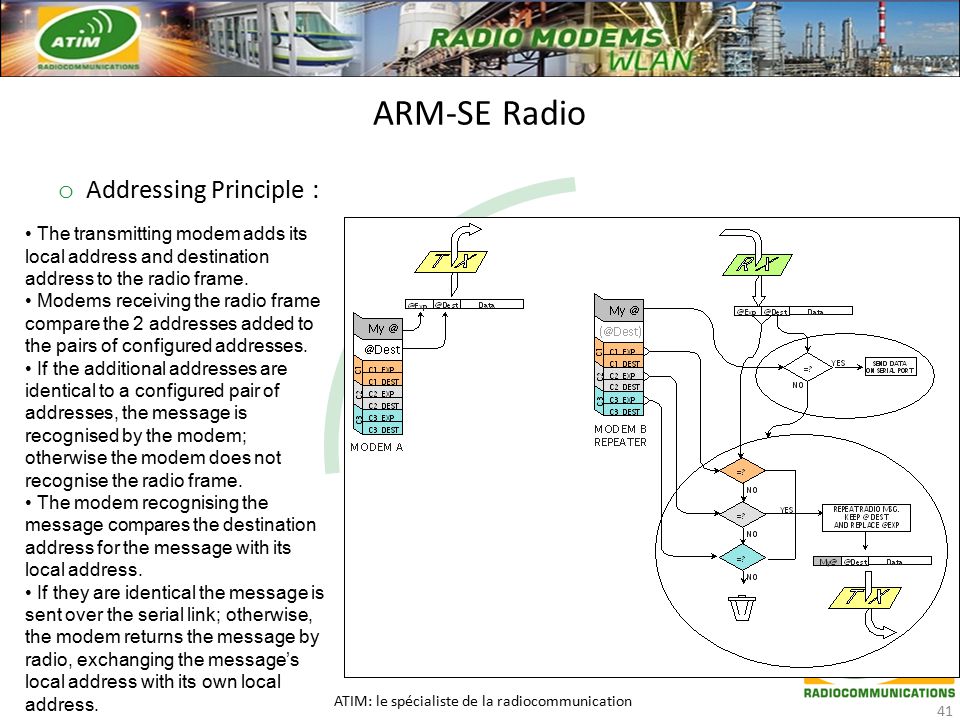

41 o Addressing Principle : ARM-SE Radio ATIM: le spécialiste de la radiocommunication 41 The transmitting modem adds its local address and destination address to the radio frame. Modems receiving the radio frame compare the 2 addresses added to the pairs of configured addresses. If the additional addresses are identical to a configured pair of addresses, the message is recognised by the modem; otherwise the modem does not recognise the radio frame. The modem recognising the message compares the destination address for the message with its local address. If they are identical the message is sent over the serial link; otherwise, the modem returns the message by radio, exchanging the message’s local address with its own local address.

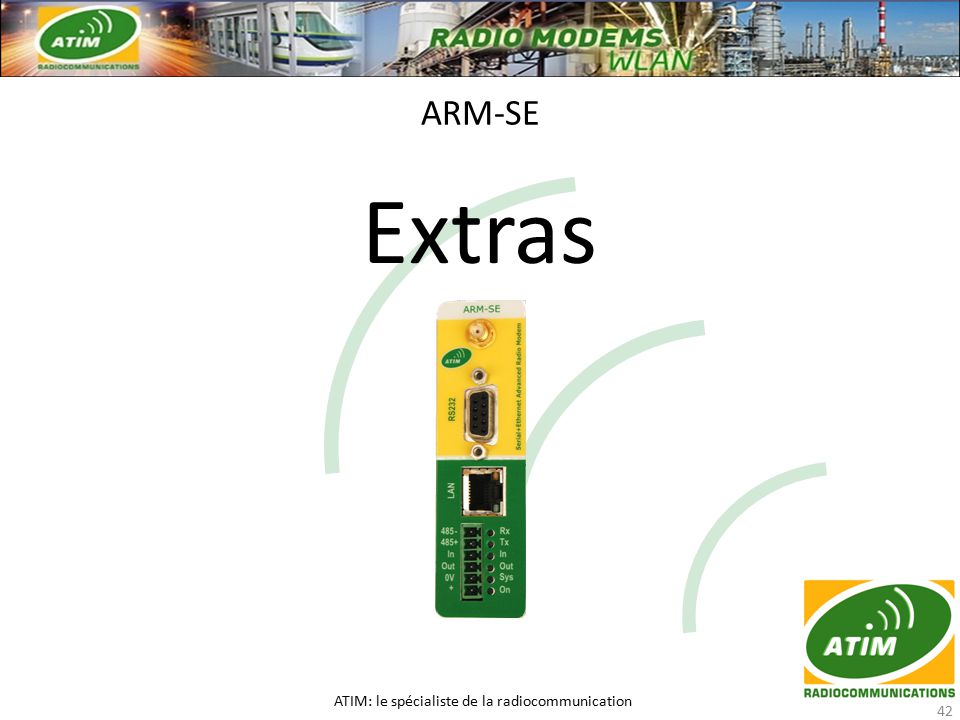

42 Extras ARM-SE ATIM: le spécialiste de la radiocommunication 42

43 o Alerts via o Watchdog o Input/Output ARM-SE Extras ATIM: le spécialiste de la radiocommunication 43

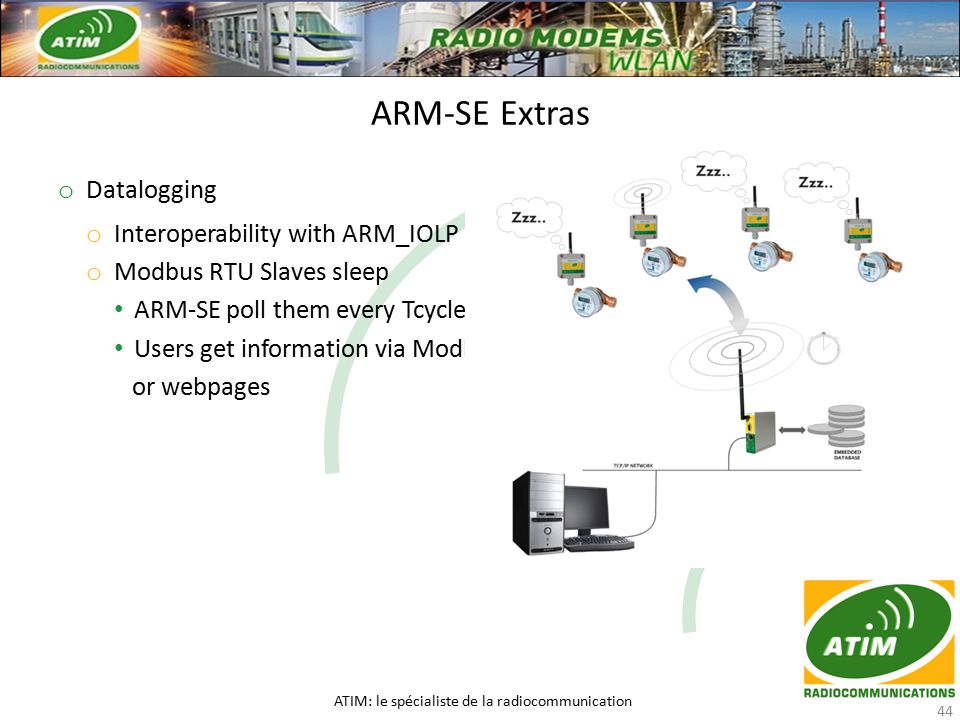

44 o Datalogging o Interoperability with ARM_IOLP o Modbus RTU Slaves sleep ARM-SE poll them every Tcycle Users get information via Modbus or webpages ARM-SE Extras ATIM: le spécialiste de la radiocommunication 44

45 o Test modes ARM-SE Extras ATIM: le spécialiste de la radiocommunication 45

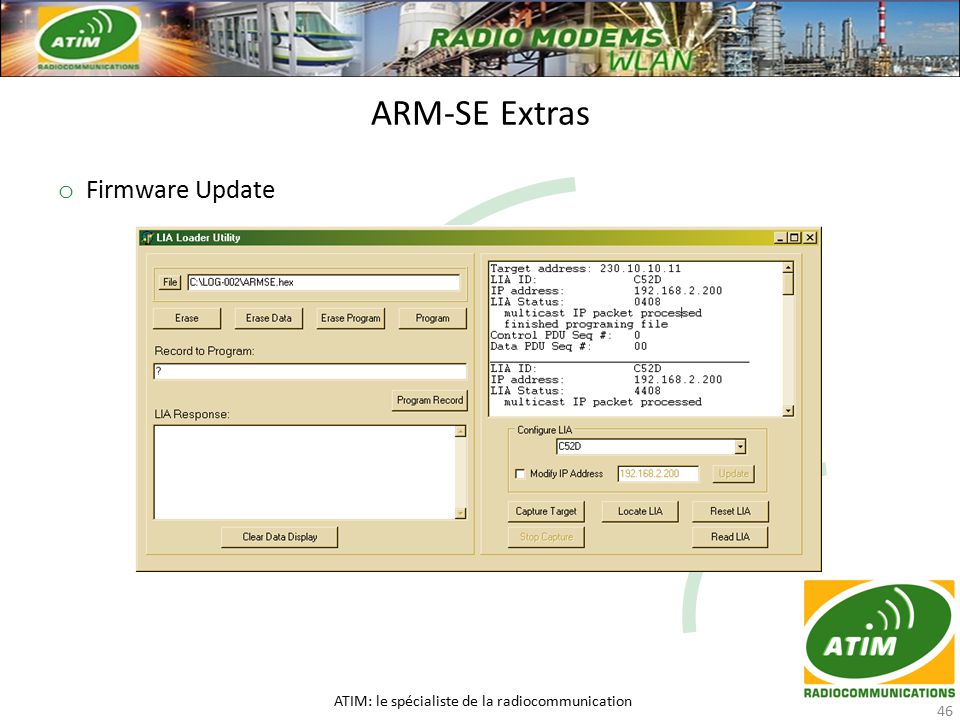

46 o Firmware Update ARM-SE Extras ATIM: le spécialiste de la radiocommunication 46

47 ARM-X « Advanced Radio Modem eXtended » ATIM: le spécialiste de la radiocommunication 47

48 o “ARM-SE Extended” o Daughter extension cards: o Own microprocessor o Maximum 4 extension cards o Interfaces o RS232, RS485, Ethernet interfaces o Inputs/Output o Max 32 Digital Inputs o Max 32 Digital Outputs o Max 16 Analog Inputs o Max 16 Analog Outputs o Stand-alone version (no radio card) ARM-X Description ATIM: le spécialiste de la radiocommunication 48

49 o Understanding the nomenclature: DigitalInput DigitalOutput AnalogInput AnalogOutput o Available versions: ARM-X Description ATIM: le spécialiste de la radiocommunication 49 X8800 X4440X4404

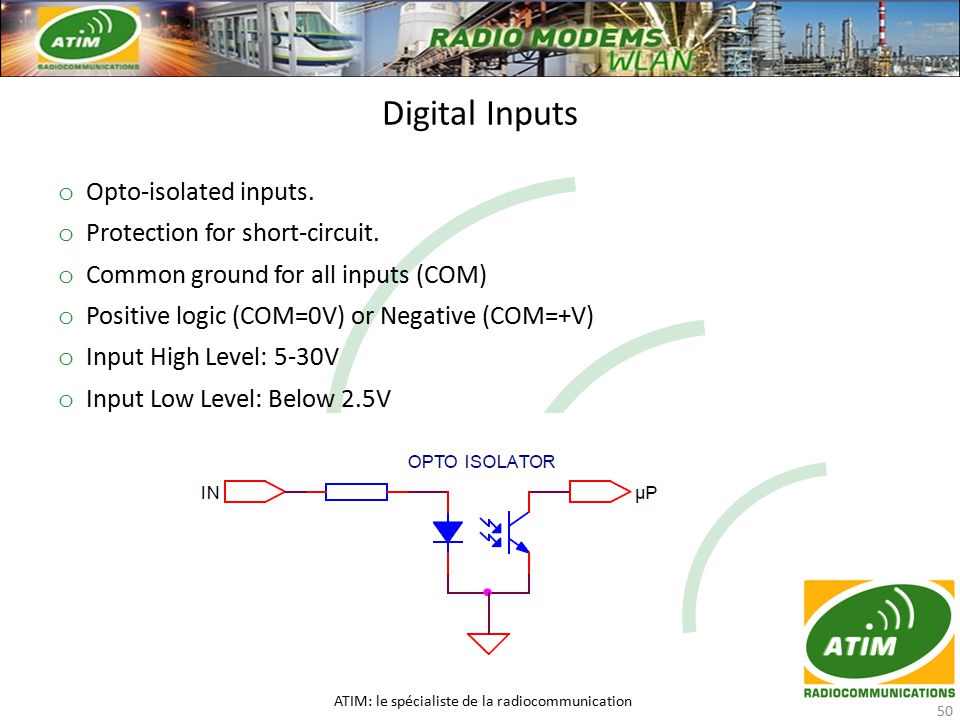

50 Digital Inputs ATIM: le spécialiste de la radiocommunication 50 o Opto-isolated inputs. o Protection for short-circuit. o Common ground for all inputs (COM) o Positive logic (COM=0V) or Negative (COM=+V) o Input High Level: 5-30V o Input Low Level: Below 2.5V

51 Digital Inputs: Functions ATIM: le spécialiste de la radiocommunication 51 o Configurable response time: 1 to 255ms (default 3ms) o Read value: Logic 0 or 1. o 32bits counter (frequency: 500Hz or 10kHz) o Rising edge o Falling edge o Both o Logic 1 o Logic 0 o Memorize value o Change of value

52 Digital Outputs ATIM: le spécialiste de la radiocommunication 52 o MOSFET type o Output voltage: 10-30V o Maximum output current: 0.5A o Short circuit protection: 0.7A-1.5A o Response time < 1ms o Safety fuse

53 Digital Outputs: Functions ATIM: le spécialiste de la radiocommunication 53 o Pulse generation: o Configurable times: Low Value – High Values Value from 1-255, base time 10ms o Trigger pulse generation with input value change.

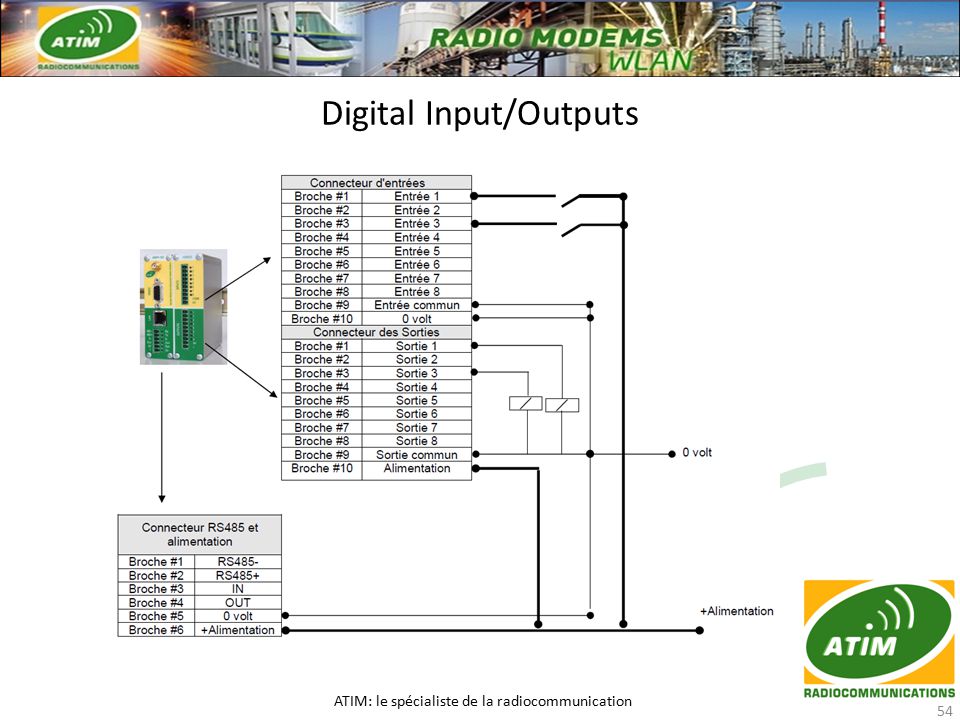

54 Digital Input/Outputs ATIM: le spécialiste de la radiocommunication 54

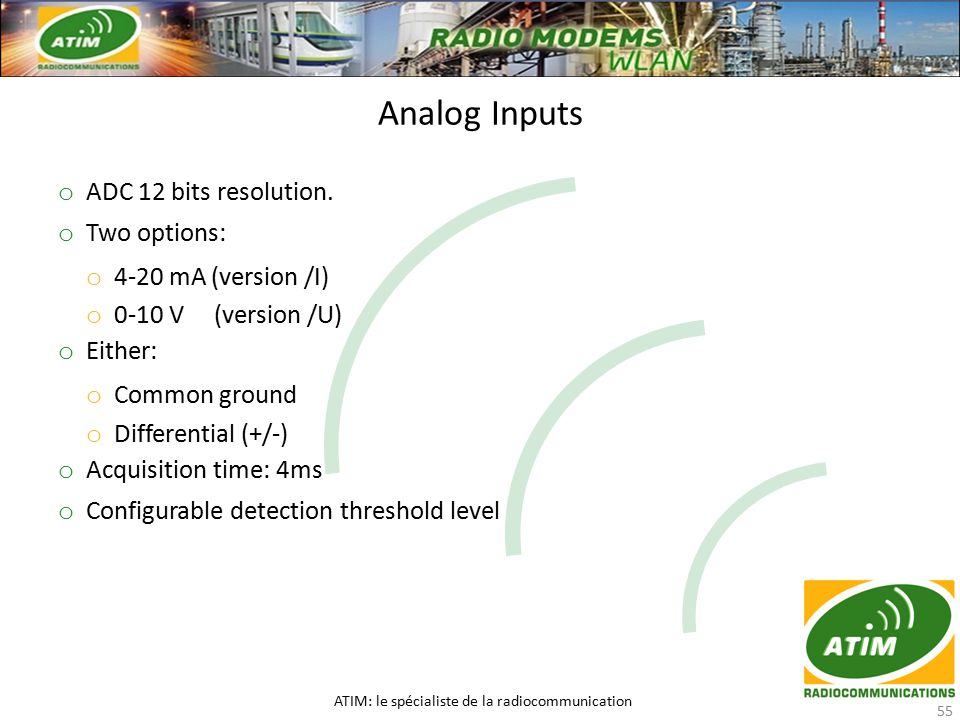

55 Analog Inputs ATIM: le spécialiste de la radiocommunication 55 o ADC 12 bits resolution. o Two options: o 4-20 mA (version /I) o 0-10 V (version /U) o Either: o Common ground o Differential (+/-) o Acquisition time: 4ms o Configurable detection threshold level

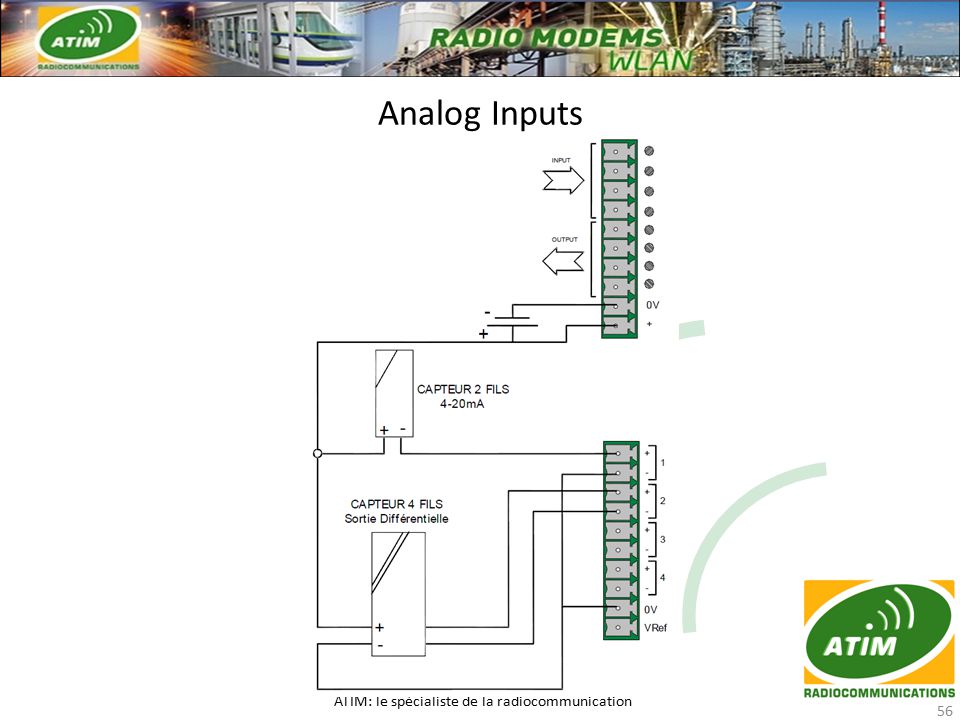

56 Analog Inputs ATIM: le spécialiste de la radiocommunication 56

57 Analog Outputs ATIM: le spécialiste de la radiocommunication 57 o DAC 12 bits resolution. o Two options: o 4-20 mA (version /I) o 0-10 V (version /U) o Common ground for all outputs o Output loads: o >2Kohms (Version U) o <0.6 Ohm (Version I)

58 Analog Outputs ATIM: le spécialiste de la radiocommunication 58

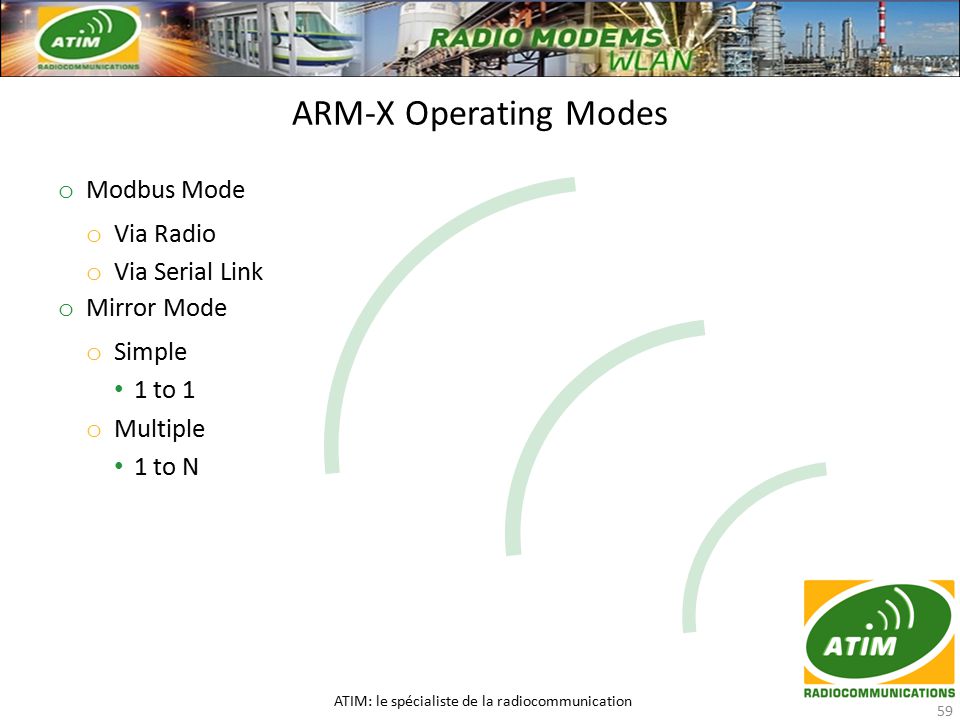

59 o Modbus Mode o Via Radio o Via Serial Link o Mirror Mode o Simple 1 to 1 o Multiple 1 to N ARM-X Operating Modes ATIM: le spécialiste de la radiocommunication 59

60 o Modbus slave o Registers o Configuration Thresholds Timing Pulse Generation Triggers o Value of inputs o Set outputs o Counters o Clear counter values ARM-X Modbus ATIM: le spécialiste de la radiocommunication 60

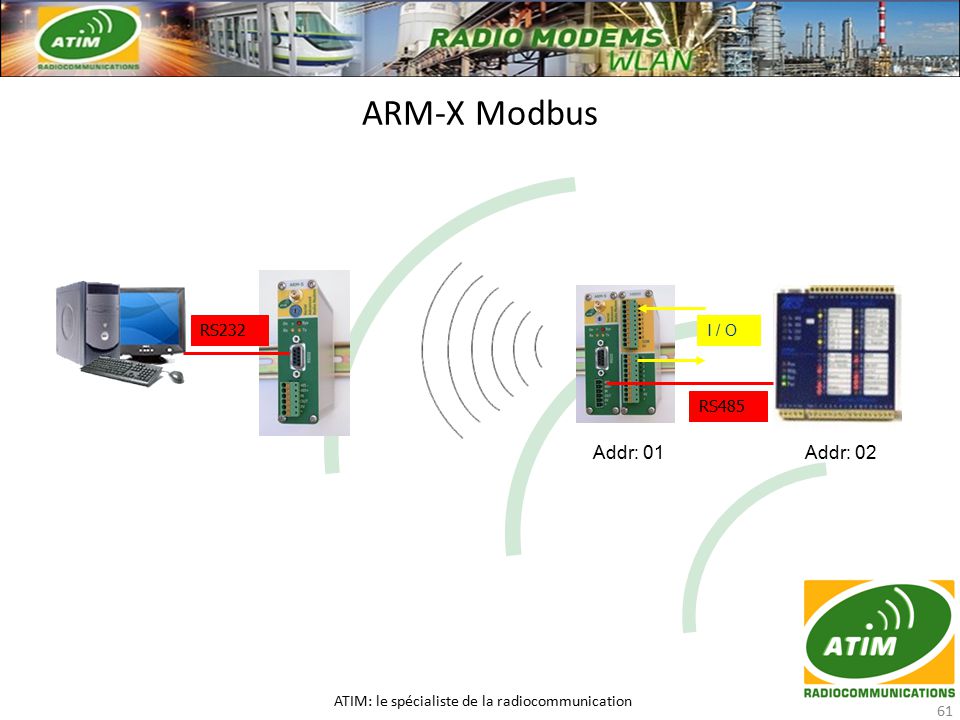

61 ARM-X Modbus ATIM: le spécialiste de la radiocommunication 61 RS232 RS485 I / O Addr: 01Addr: 02

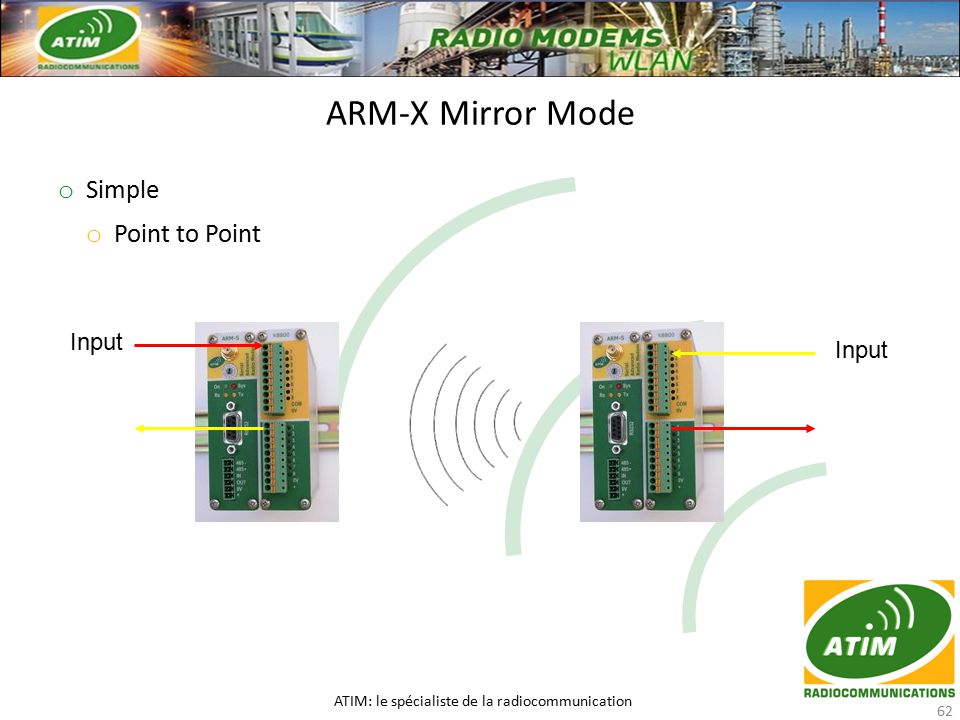

62 o Simple o Point to Point ARM-X Mirror Mode ATIM: le spécialiste de la radiocommunication 62 Input

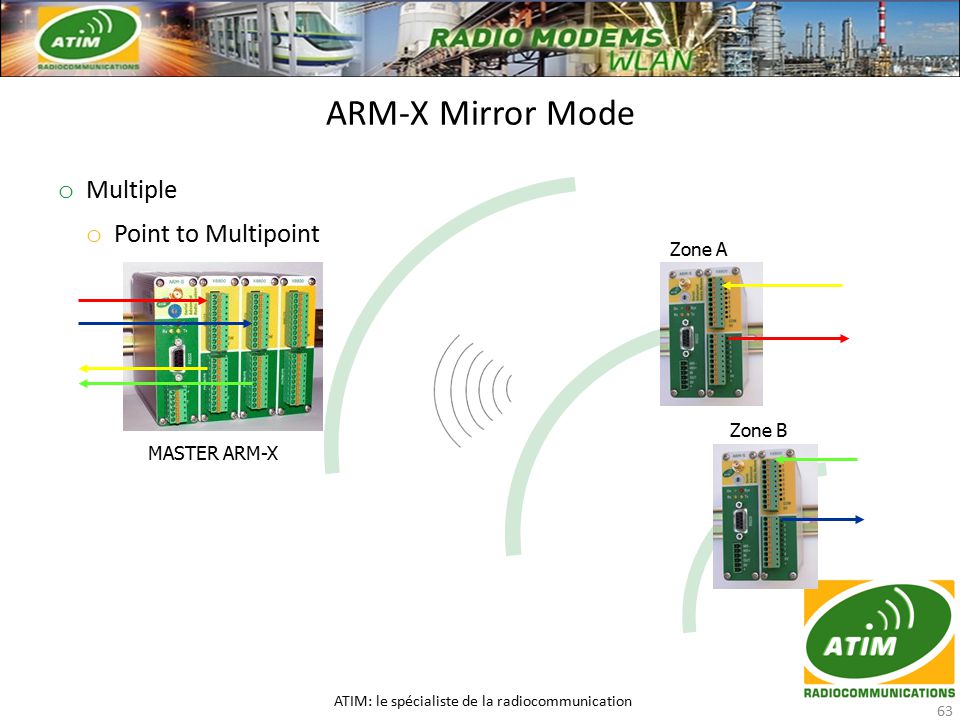

63 o Multiple o Point to Multipoint ARM-X Mirror Mode ATIM: le spécialiste de la radiocommunication 63 Zone A Zone B MASTER ARM-X

64 ARM-D/DA « Advanced Radio Modem Digital/ Digital-Analog » ATIM: le spécialiste de la radiocommunication 64

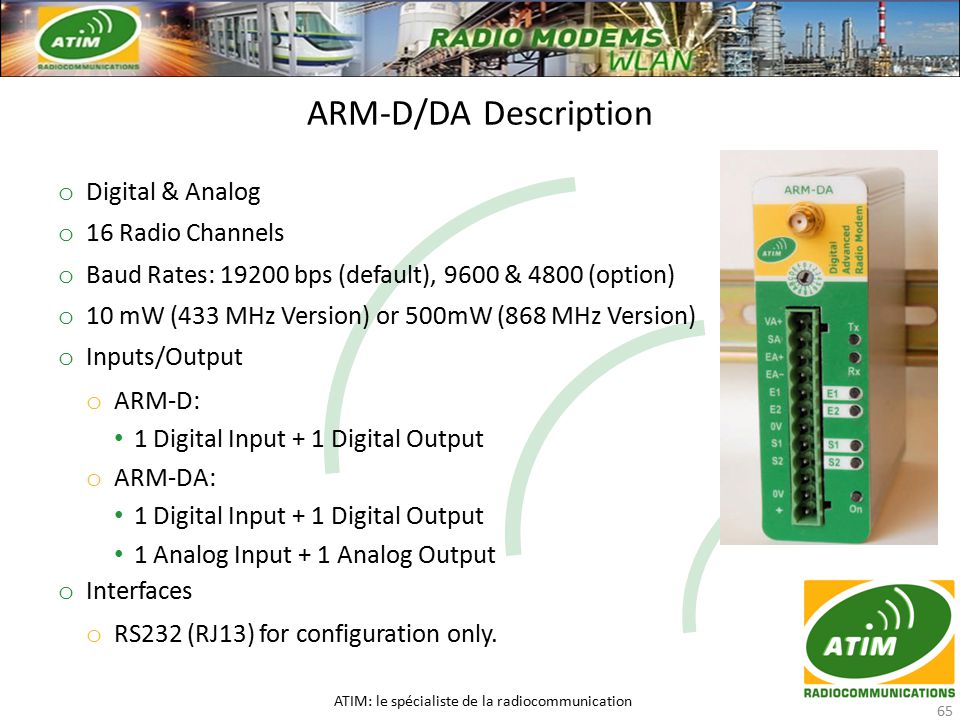

65 o Digital & Analog o 16 Radio Channels o Baud Rates: bps (default), 9600 & 4800 (option) o 10 mW (433 MHz Version) or 500mW (868 MHz Version) o Inputs/Output o ARM-D: 1 Digital Input + 1 Digital Output o ARM-DA: 1 Digital Input + 1 Digital Output 1 Analog Input + 1 Analog Output o Interfaces o RS232 (RJ13) for configuration only. ARM-D/DA Description ATIM: le spécialiste de la radiocommunication 65

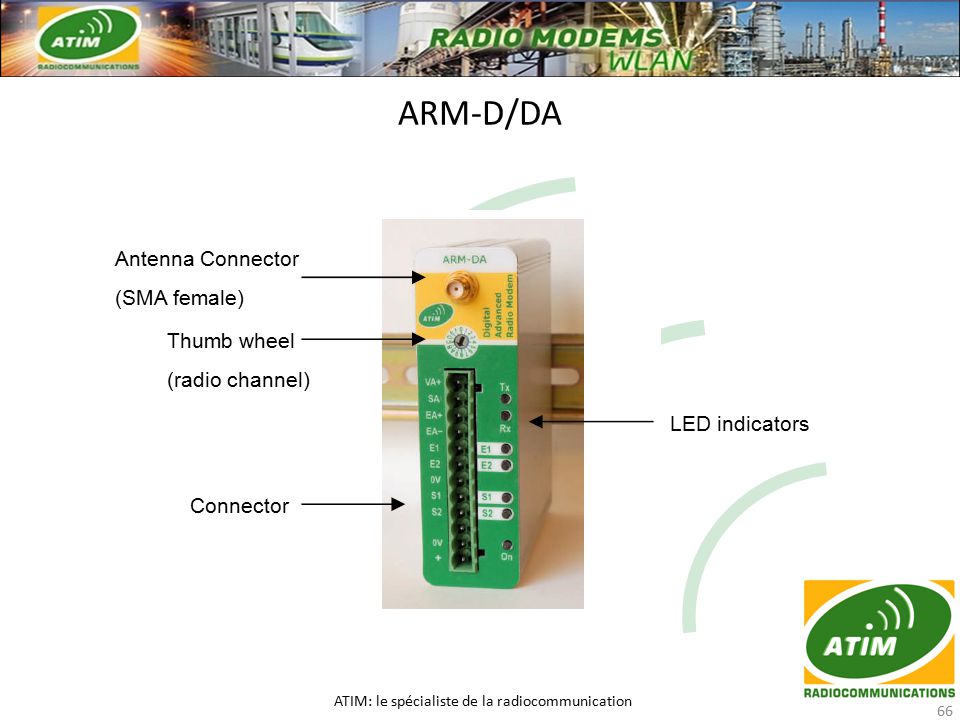

66 ARM-D/DA ATIM: le spécialiste de la radiocommunication 66 Antenna Connector (SMA female) Thumb wheel (radio channel) Connector LED indicators

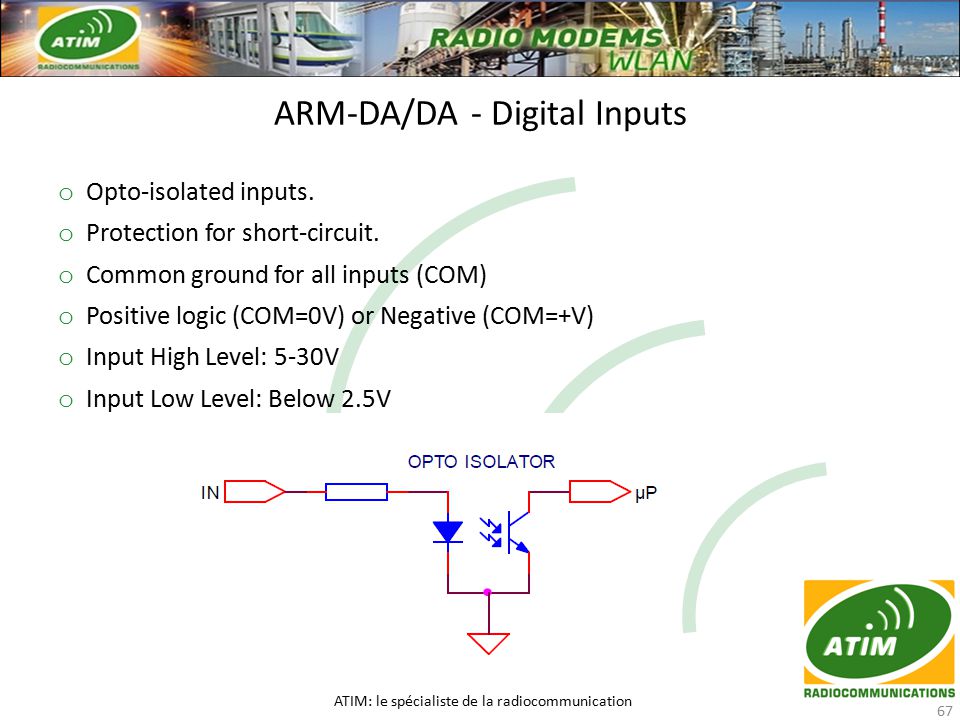

67 ARM-DA/DA - Digital Inputs ATIM: le spécialiste de la radiocommunication 67 o Opto-isolated inputs. o Protection for short-circuit. o Common ground for all inputs (COM) o Positive logic (COM=0V) or Negative (COM=+V) o Input High Level: 5-30V o Input Low Level: Below 2.5V

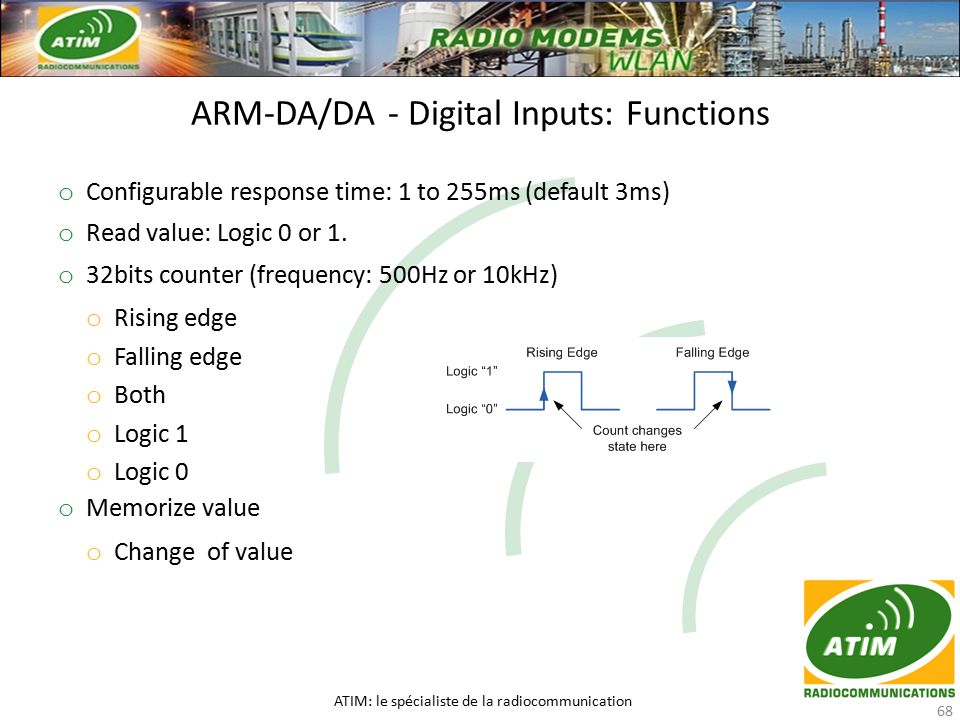

68 ARM-DA/DA - Digital Inputs: Functions ATIM: le spécialiste de la radiocommunication 68 o Configurable response time: 1 to 255ms (default 3ms) o Read value: Logic 0 or 1. o 32bits counter (frequency: 500Hz or 10kHz) o Rising edge o Falling edge o Both o Logic 1 o Logic 0 o Memorize value o Change of value

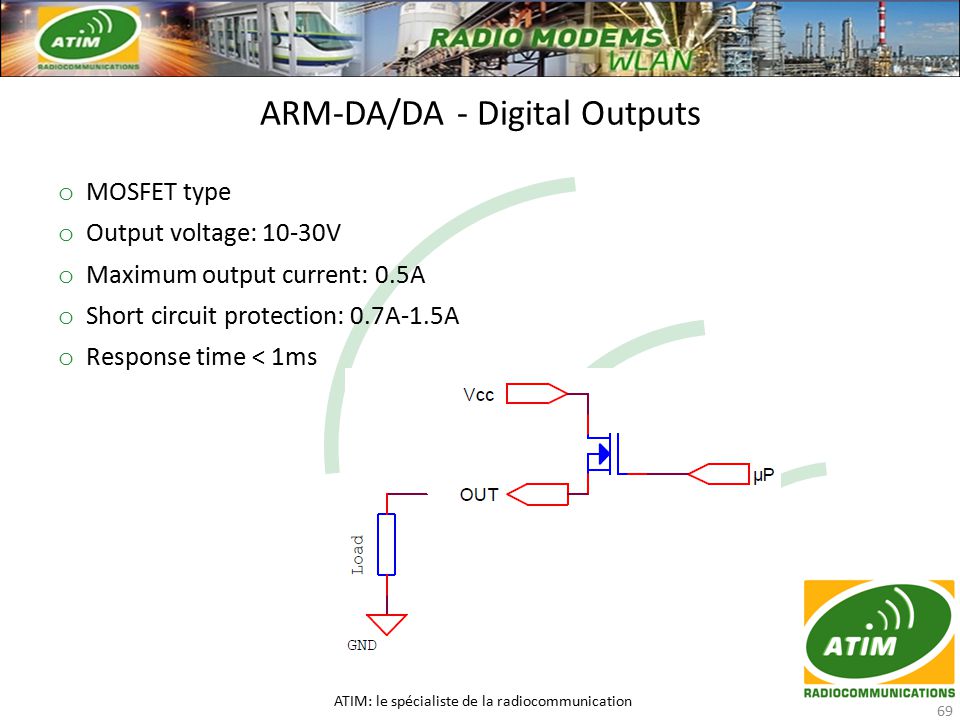

69 ARM-DA/DA - Digital Outputs ATIM: le spécialiste de la radiocommunication 69 o MOSFET type o Output voltage: 10-30V o Maximum output current: 0.5A o Short circuit protection: 0.7A-1.5A o Response time < 1ms

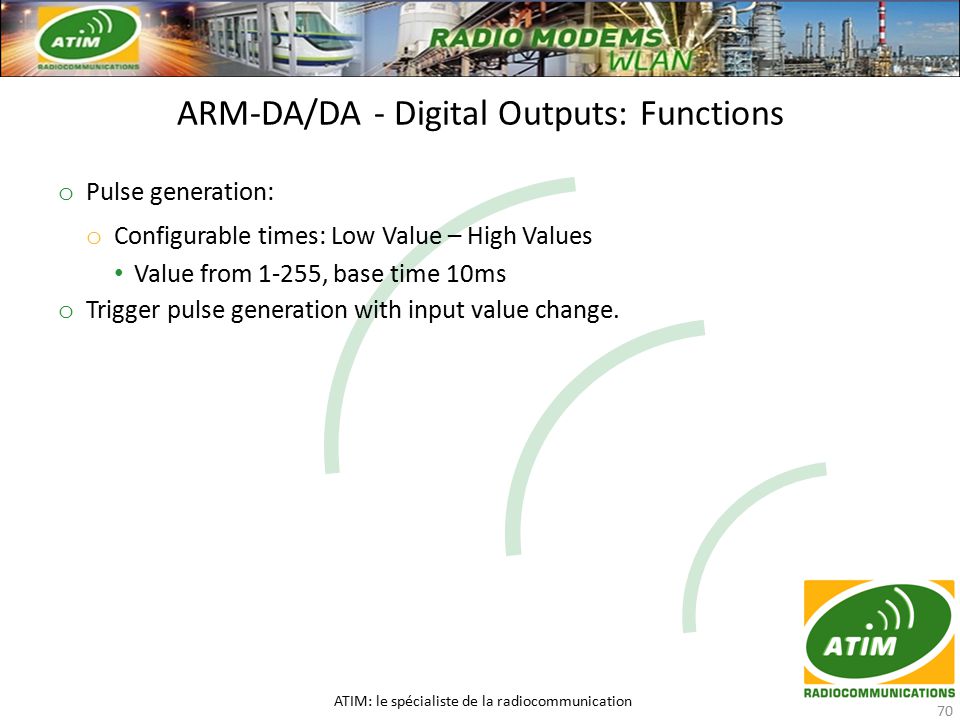

70 ARM-DA/DA - Digital Outputs: Functions ATIM: le spécialiste de la radiocommunication 70 o Pulse generation: o Configurable times: Low Value – High Values Value from 1-255, base time 10ms o Trigger pulse generation with input value change.

71 ARM-DA/DA - Analog Inputs/Outputs ATIM: le spécialiste de la radiocommunication 71 o Inputs: o ADC 12 bits resolution. o Two options: 4-20 mA 0-5 V o Differential (+/-) o Outputs: o DAC 12 bits resolution. o 4-20 mA o 0-5 V

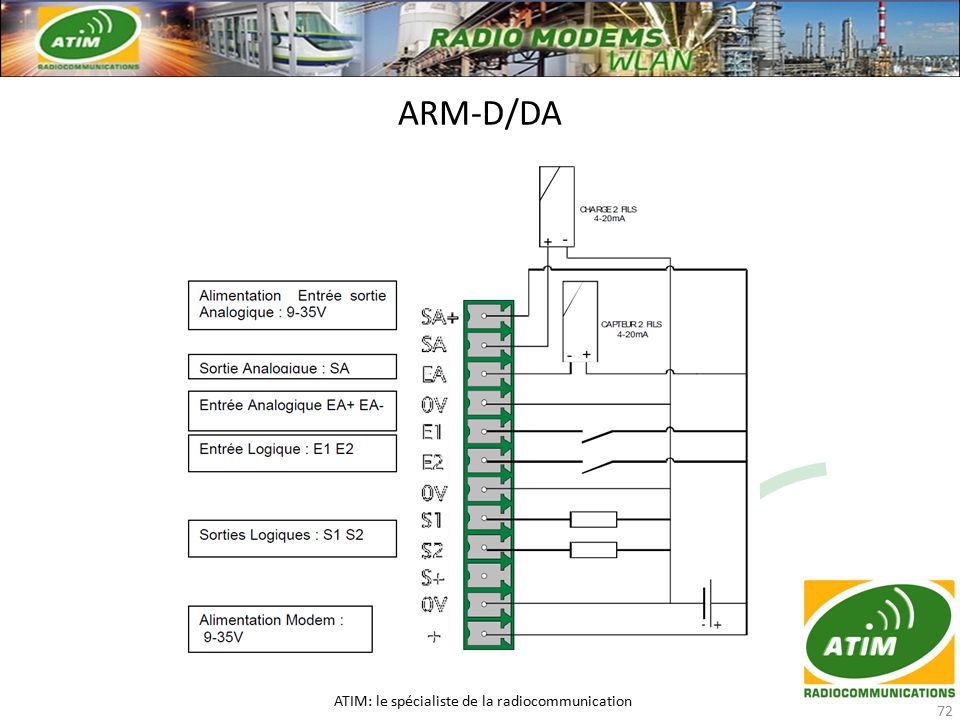

72 ARM-D/DA ATIM: le spécialiste de la radiocommunication 72

73 o Mirror Mode : o Modbus Mode : o With ARM-SE o With ARM-IO ARM-D/DA Operating modes ATIM: le spécialiste de la radiocommunication 73

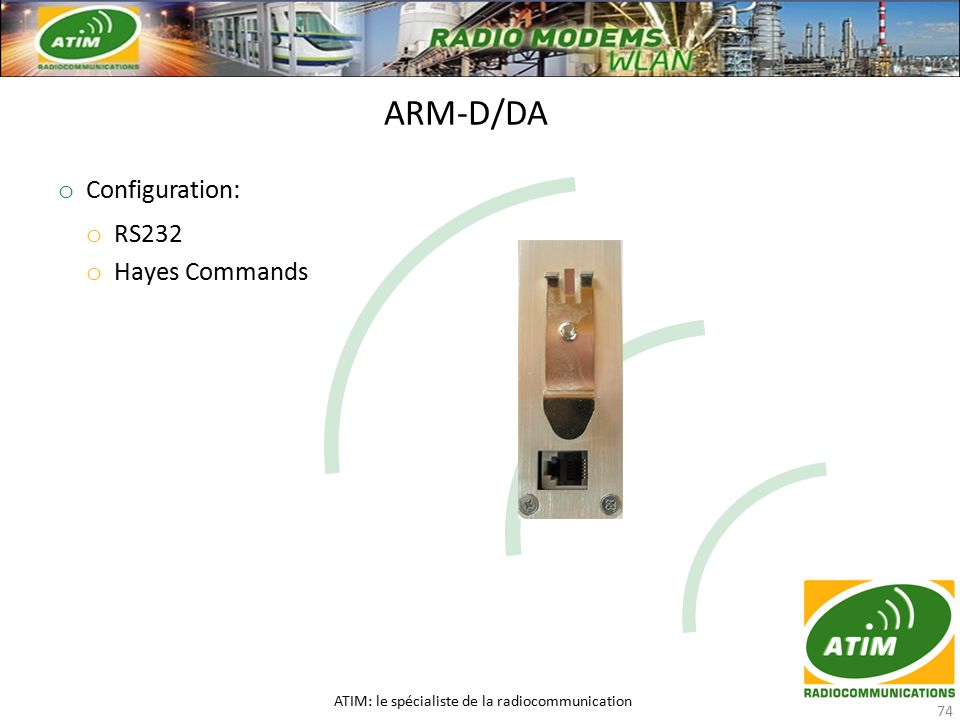

74 o Configuration: o RS232 o Hayes Commands ARM-D/DA ATIM: le spécialiste de la radiocommunication 74

75 ARM-IO « Advanced Radio Modem Input/Output » ATIM: le spécialiste de la radiocommunication 75

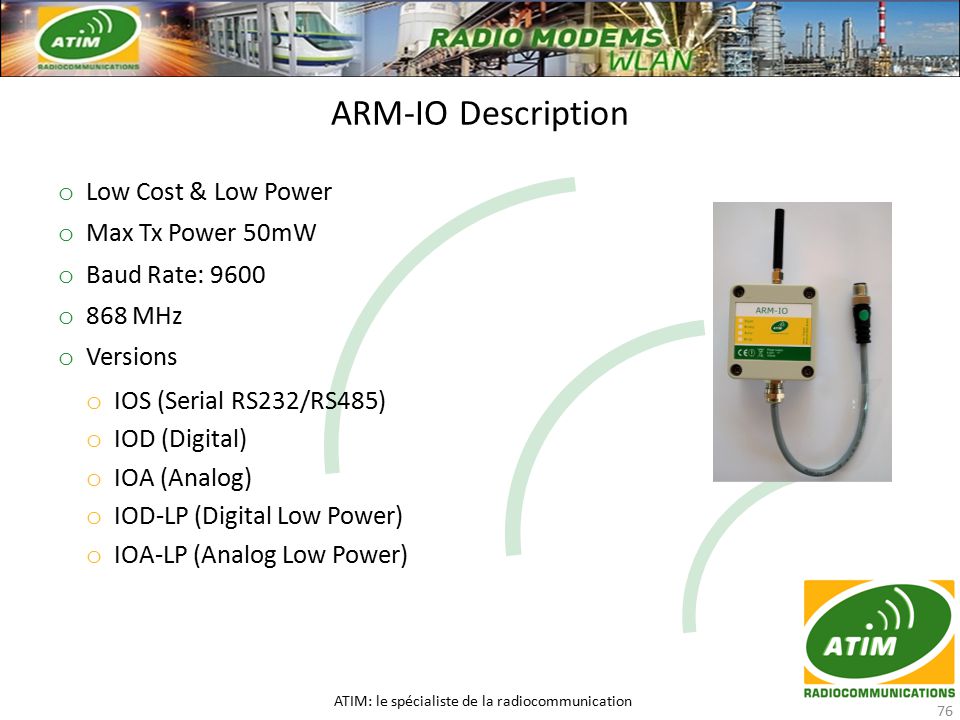

76 o Low Cost & Low Power o Max Tx Power 50mW o Baud Rate: 9600 o 868 MHz o Versions o IOS (Serial RS232/RS485) o IOD (Digital) o IOA (Analog) o IOD-LP (Digital Low Power) o IOA-LP (Analog Low Power) ARM-IO Description ATIM: le spécialiste de la radiocommunication 76

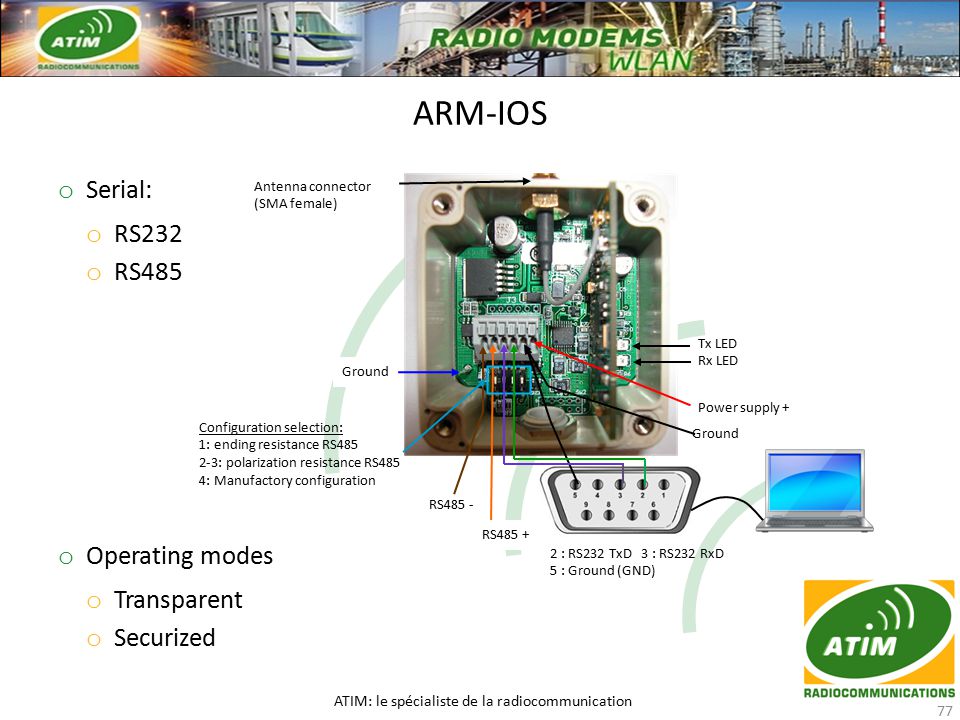

77 o Serial: o RS232 o RS485 o Operating modes o Transparent o Securized ARM-IOS ATIM: le spécialiste de la radiocommunication 77 Tx LED Rx LED Power supply + 2 : RS232 TxD 3 : RS232 RxD 5 : Ground (GND) Ground Ground RS485 + RS485 - Configuration selection: 1: ending resistance RS : polarization resistance RS485 4: Manufactory configuration Antenna connector (SMA female)

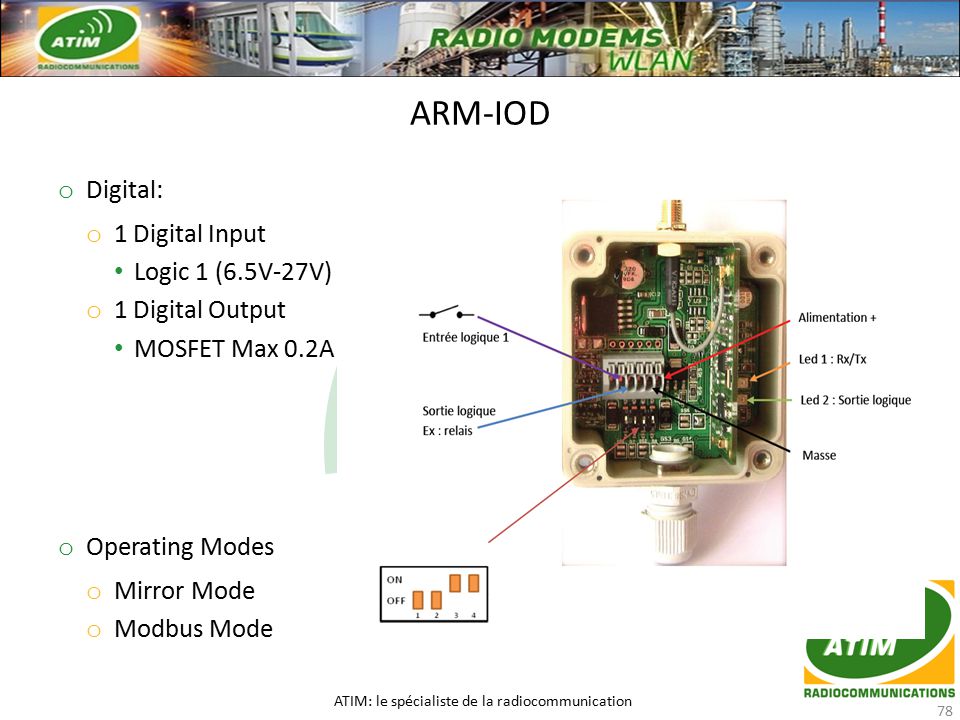

78 o Digital: o 1 Digital Input Logic 1 (6.5V-27V) o 1 Digital Output MOSFET Max 0.2A o Operating Modes o Mirror Mode o Modbus Mode ARM-IOD ATIM: le spécialiste de la radiocommunication 78

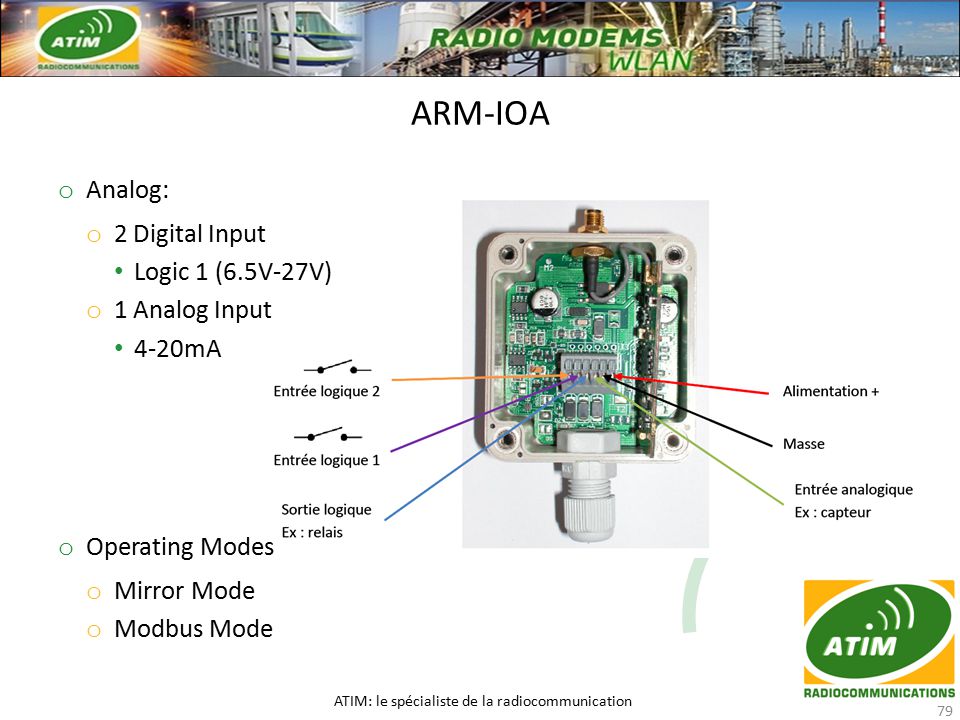

79 o Analog: o 2 Digital Input Logic 1 (6.5V-27V) o 1 Analog Input 4-20mA o Operating Modes o Mirror Mode o Modbus Mode ARM-IOA ATIM: le spécialiste de la radiocommunication 79

80 o With integrated Lithium battery o Consumption: o · ~ 30mA Rx o · ~ 80mA Tx 25mW o · ~ 15μA STDBY o ARM-IOD-LP o 2 Digital Inputs Max input value 3.6V o ARM-IOA-LP o 2 Analog Inputs 0-2.5V ARM-IOD/ ARM-IOA LOW POWER ATIM: le spécialiste de la radiocommunication 80

81 Thank you ATIM: le spécialiste de la radiocommunication 81 Luis Tel:
