Presentation on theme: "Science STAAR Need to Know 1 STAAR Reporting Category 2 Force, Motion, & Energy Middle School Science Science STAAR Need to Know."— Presentation transcript:

1 Science STAAR Need to Know 1 STAAR Reporting Category 2 Force, Motion, & Energy Middle School Science Science STAAR Need to Know

2 2 Energy The ability to do work or to cause change

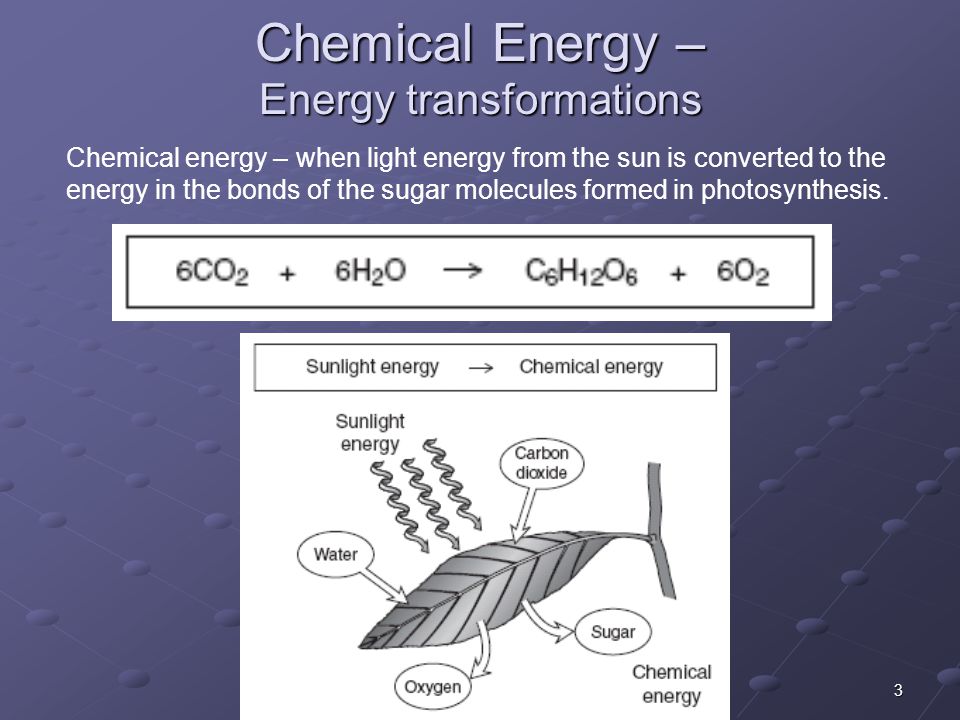

3 3Science STAAR Need to Know Chemical Energy – Energy transformations Chemical energy – when light energy from the sun is converted to the energy in the bonds of the sugar molecules formed in photosynthesis.

4 4Science STAAR Need to Know Chemical Energy Examples of chemical energy changing into heat energy: Lighting a match Burning a wood fire

5 5Science STAAR Need to Know

6 6 Electrical energy- Energy transformations Electrical energy- flow of electrons (a current) Other ways of generating electricity: Water flowing through a dam in a river to move turbines Wind generators that use the energy of moving wind & operate a generator Nuclear power plants convert atomic energy into heat. Heat boils water to form steam & then follows the same energy transformations as coal power plants666

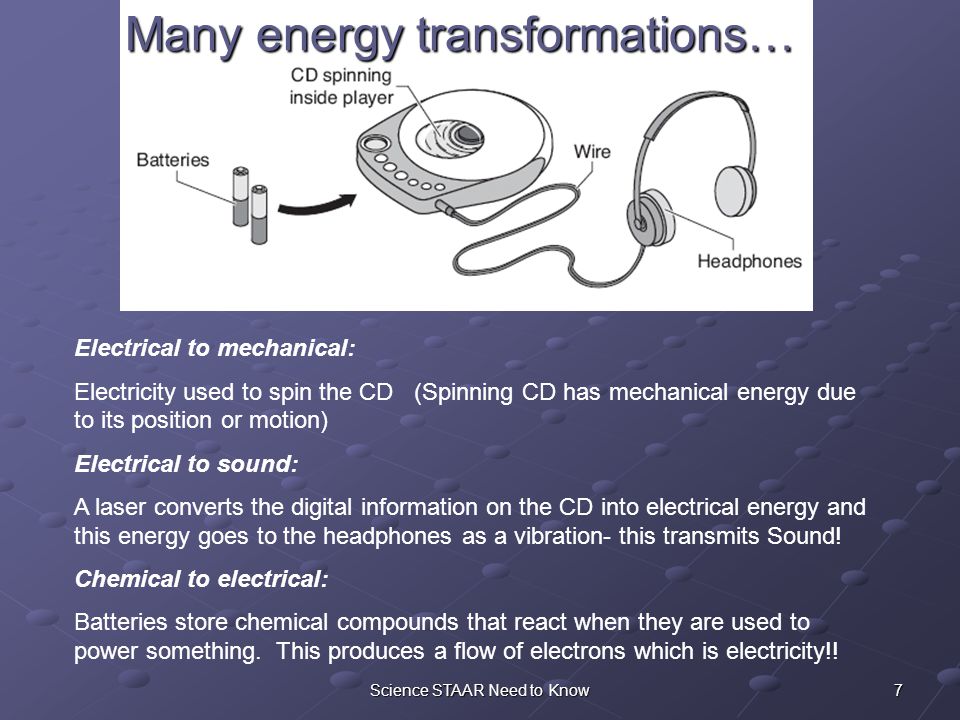

7 7Science STAAR Need to Know Many energy transformations… Electrical to mechanical: Electricity used to spin the CD (Spinning CD has mechanical energy due to its position or motion) Electrical to sound: A laser converts the digital information on the CD into electrical energy and this energy goes to the headphones as a vibration- this transmits Sound! Chemical to electrical: Batteries store chemical compounds that react when they are used to power something. This produces a flow of electrons which is electricity!!

8 8Science STAAR Need to Know Sound energy- Energy transformations Sound – consists of mechanical energy waves created by vibrations. Sound must travel through something (called “medium” or “media”) such as air, water, or a solid. The medium carries the energy of the wave from one place to another. Example: Air transmits the energy of the vibrating material in the headphones to your eardrums. A vacuum is a space that contains little or no matter. Sound can’t travel through a vacuum since there are no particles to squeeze together (compression) or spread apart (rarefaction)

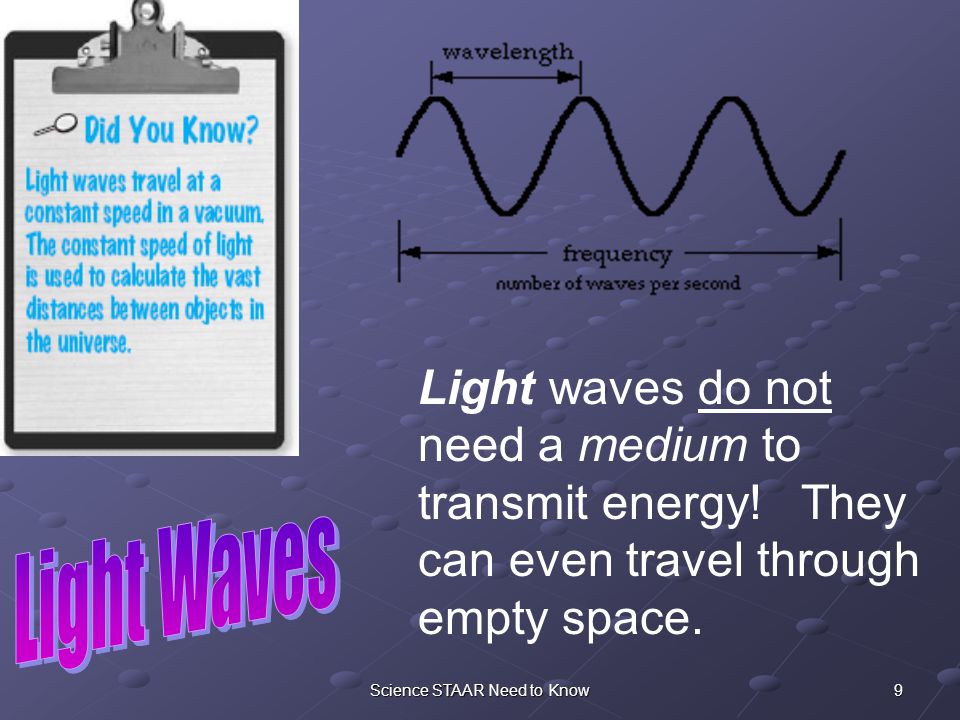

9 9Science STAAR Need to Know Light waves do not need a medium to transmit energy! They can even travel through empty space.

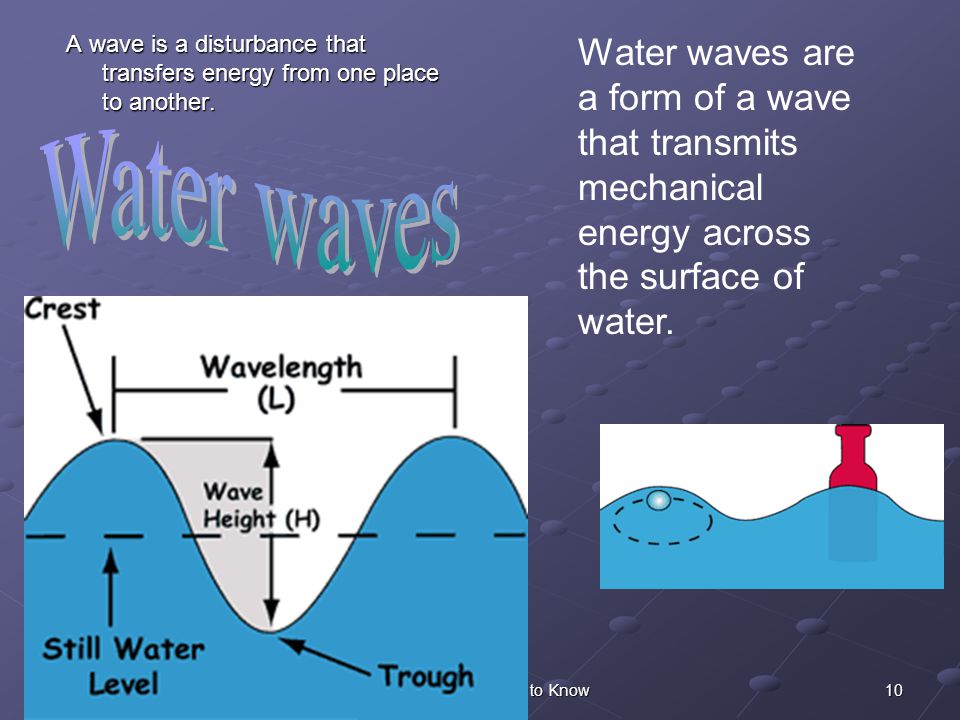

10 10Science STAAR Need to Know Water waves are a form of a wave that transmits mechanical energy across the surface of water. A wave is a disturbance that transfers energy from one place to another.

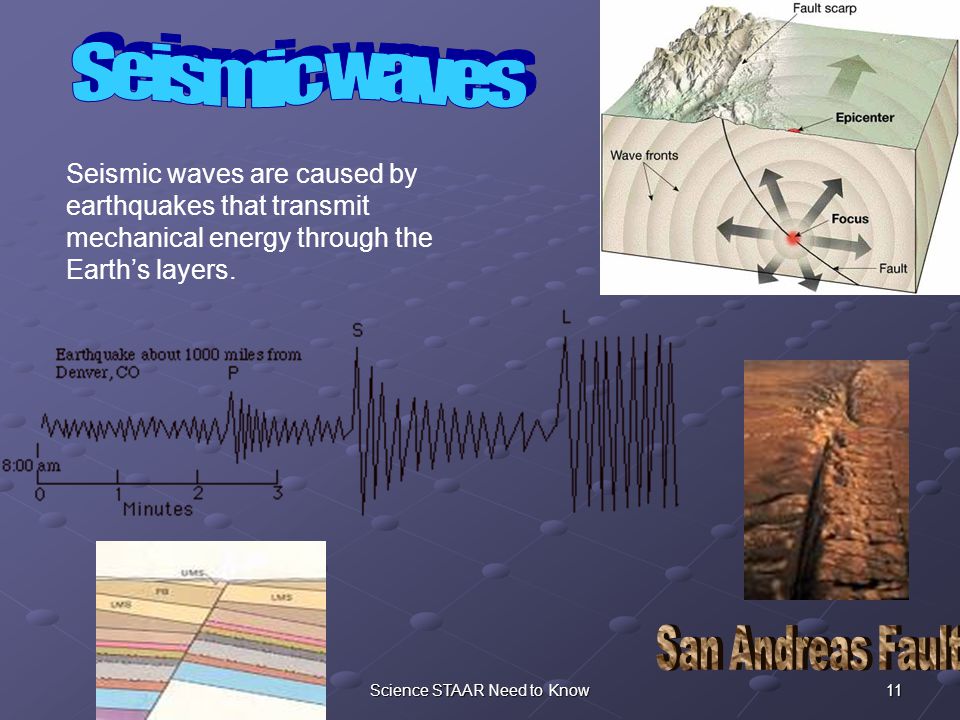

11 11Science STAAR Need to Know Seismic waves are caused by earthquakes that transmit mechanical energy through the Earth’s layers.

12 12Science STAAR Need to Know Potential (PE) Stored energy

13 13Science STAAR Need to Know Kinetic Energy (KE) Energy due to motion of an object Speed & mass affect kinetic energy– Faster/heavier…more Kinetic Energy Did you know that the gas burned in a car engine is chemical energy being turned into Kinetic Energy? Rubber band flying through the air has kinetic energy

14 14Science STAAR Need to Know Before the yo-yo begins its fall it has stored energy due to its position. At the top it has its maximum potential energy. As it starts to fall the potential energy begins to be changed into kinetic energy. At the bottom its potential energy has been converted into kinetic energy so that it now has its maximum kinetic energy A waterfall has both potential and kinetic energy. The water at the top of Bridal Veil Falls has stored potential energy. When the water begins to fall, its potential energy is changed into kinetic energy. This change in energy also happens at Niagara Falls where it is used to provide electricity from the transformation of mechanical and electromagnetic energy.

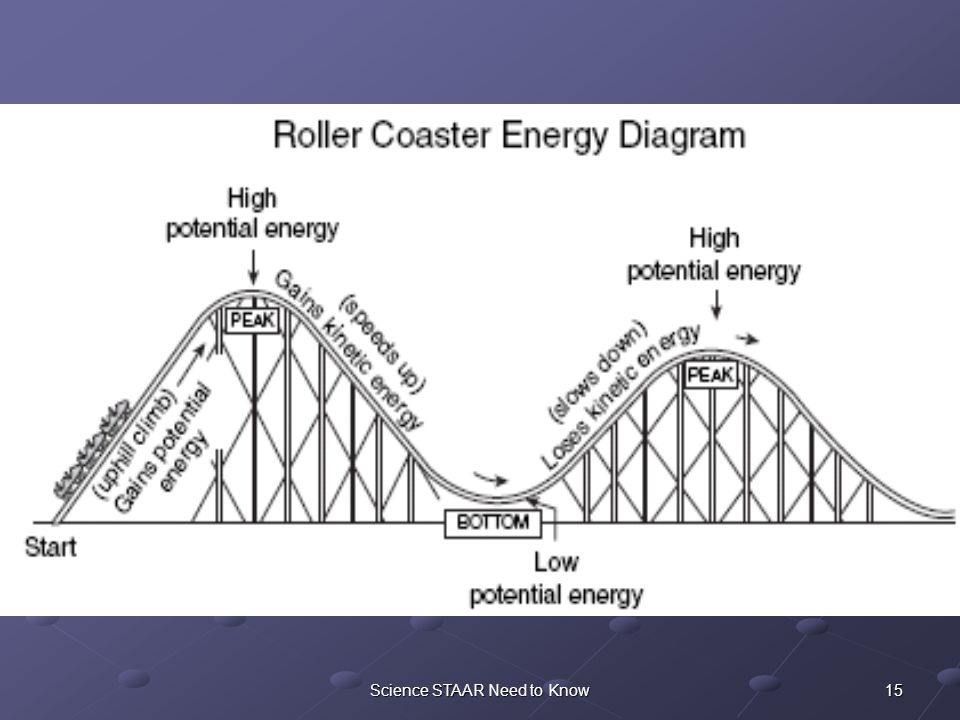

15 15Science STAAR Need to Know

16 16Science STAAR Need to Know Energy Transformations Potential energy A rock sitting at the top of a cliff Roller coaster car at the top peak of a hill A swimmer posed to dive off the end of a diving board NO MOTION !! Kinetic energy A bouncing ball A moving roller coaster A track star running A girl skiing MOTION is the key!!!!

17 17Science STAAR Need to Know Forces may MOVE objects Forces may transfer energy between objects

18 18Science STAAR Need to Know A book resting on a desk illustrates balanced forces. However, a book dropped from a desk illustrates unbalanced forces. In this case, gravity has overcome the balance of forces.

19 GRAVITY 19Science STAAR Need to Know

20 20Science STAAR Need to Know You use force to move your body When you bend your arm, your muscles contract, which applies force to your arm bones. Your arm responds to this force by moving. During breathing, muscles contract (use force) to move air in and out of the lungs. The heart contracts (uses force) to pump blood through the blood vessels, carrying oxygen to the muscles.

21 21Science STAAR Need to Know All living things use force to move Emerging seedlings exert force on the surrounding soil. This force pushes the stem of the plant out of the ground. Plants exert force to open flower petals, curl & uncurl leaves & push roots through the soil. Force is used to move materials in & out of cells. Fish exert force to swim by pushing against the water.

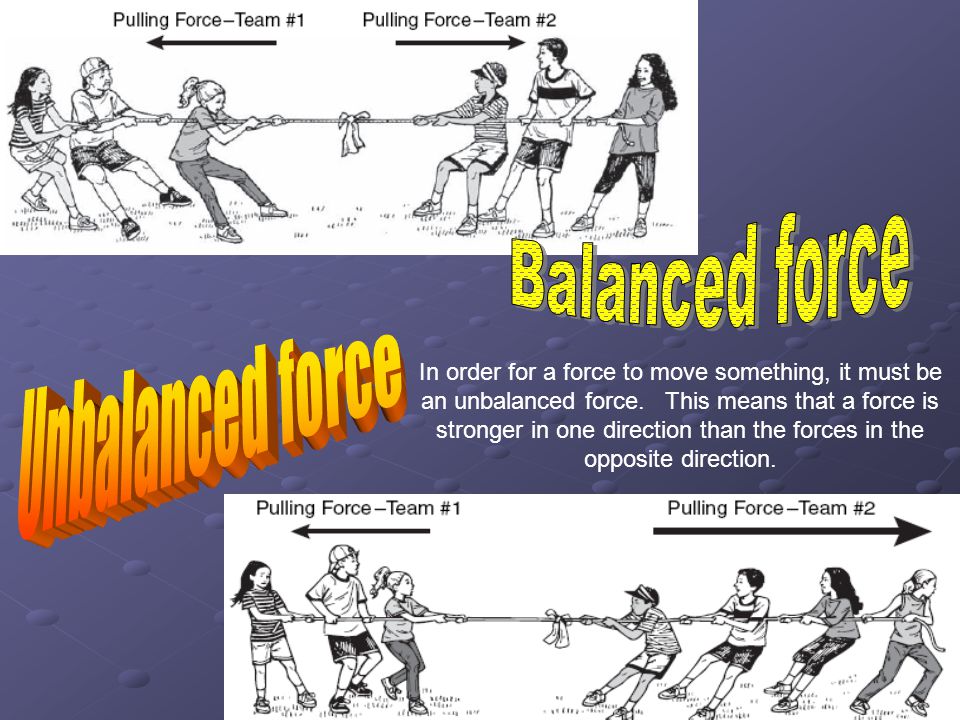

22 22Science STAAR Need to Know In order for a force to move something, it must be an unbalanced force. This means that a force is stronger in one direction than the forces in the opposite direction.

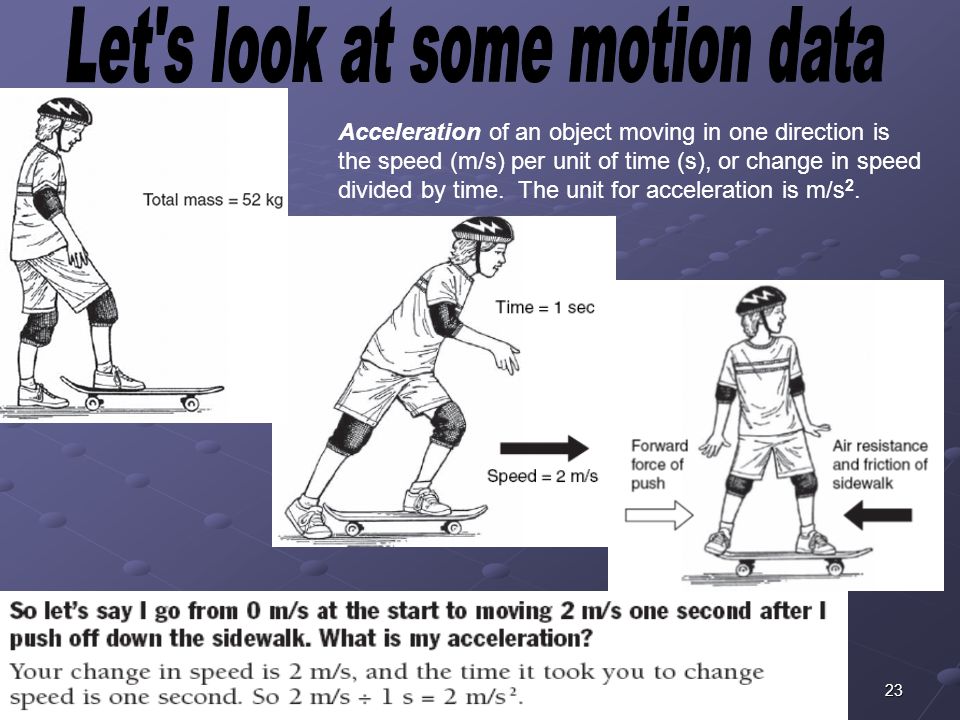

23 23Science STAAR Need to Know Acceleration of an object moving in one direction is the speed (m/s) per unit of time (s), or change in speed divided by time. The unit for acceleration is m/s 2.

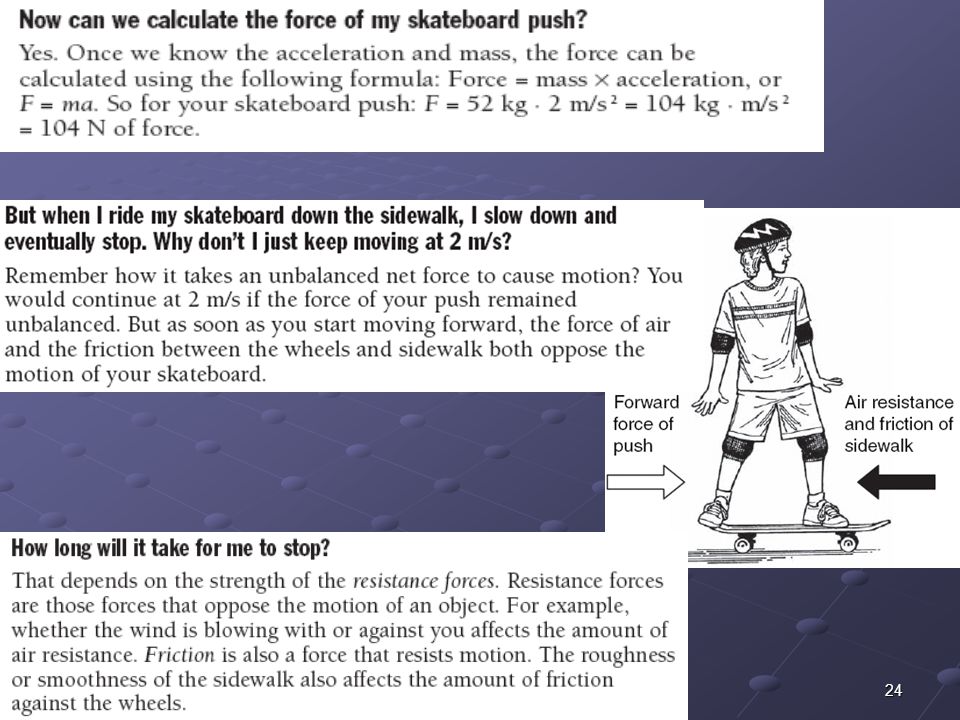

24 24Science STAAR Need to Know

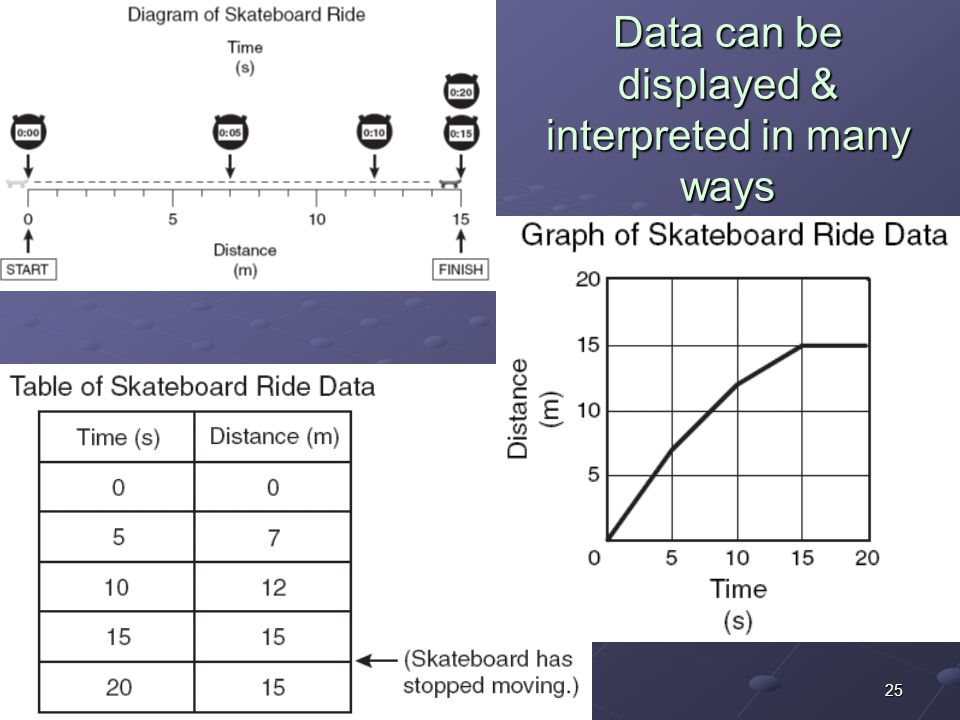

25 25Science STAAR Need to Know Data can be displayed & interpreted in many ways

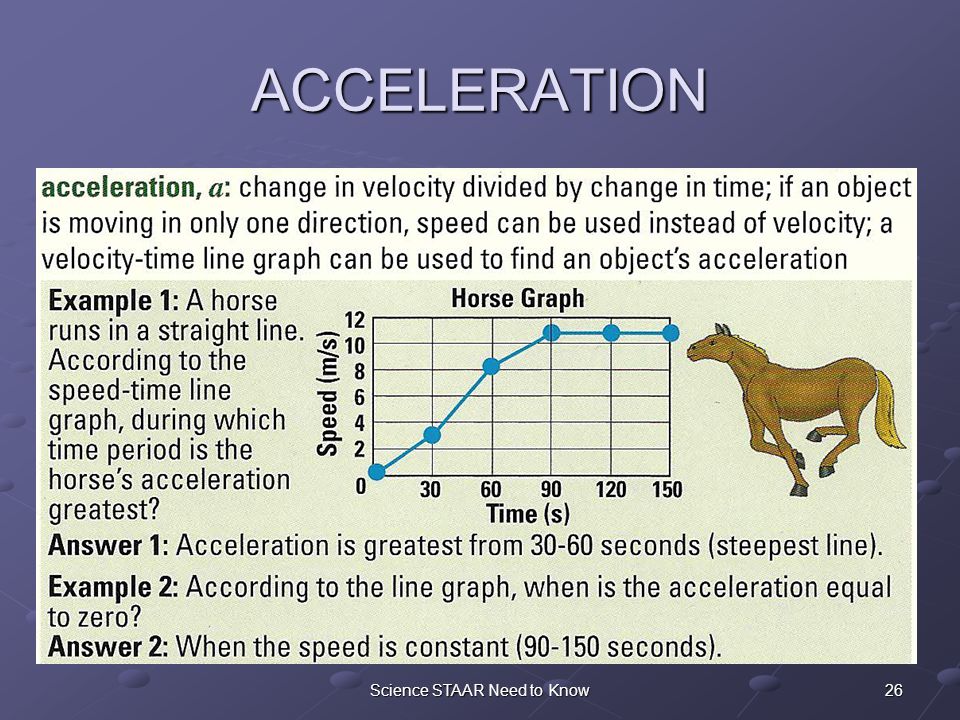

26 ACCELERATION 26Science STAAR Need to Know

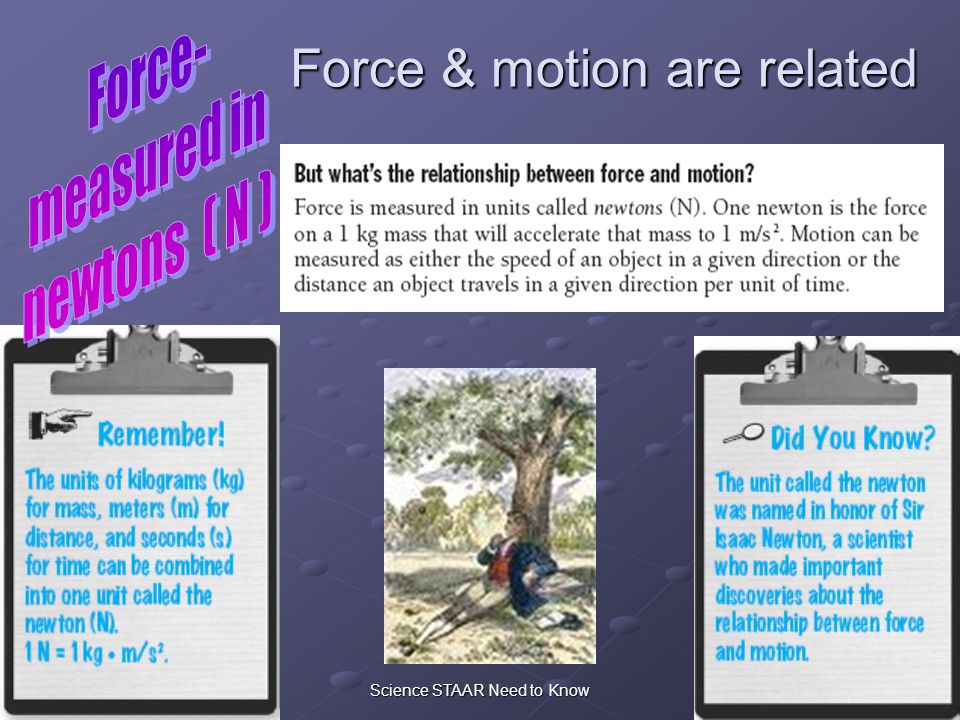

27 27Science STAAR Need to Know Force & motion are related

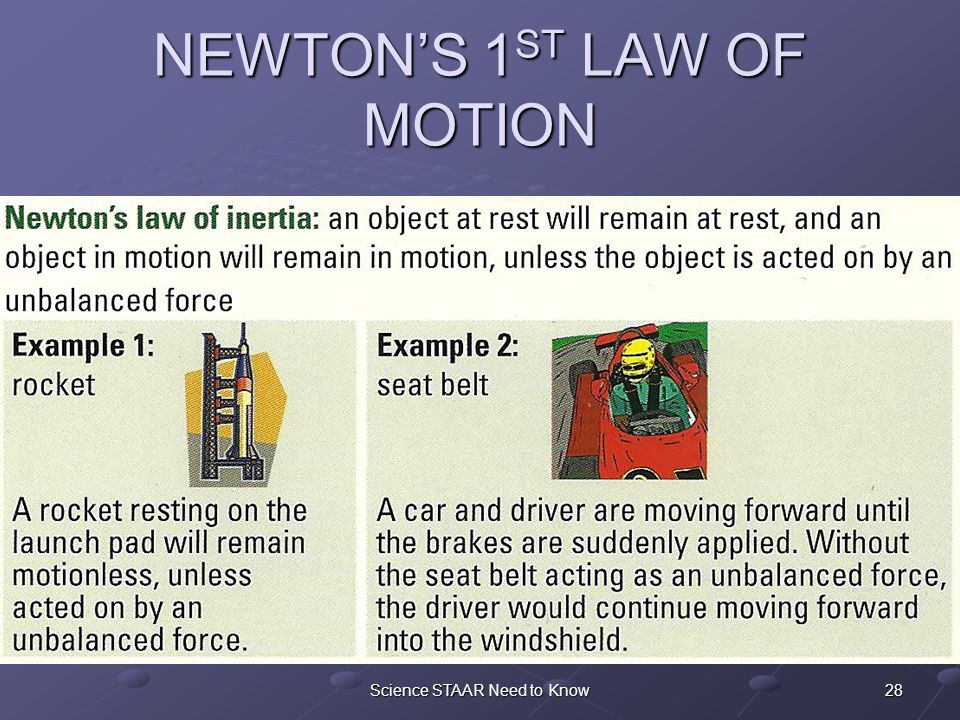

28 NEWTON’S 1 ST LAW OF MOTION 28Science STAAR Need to Know

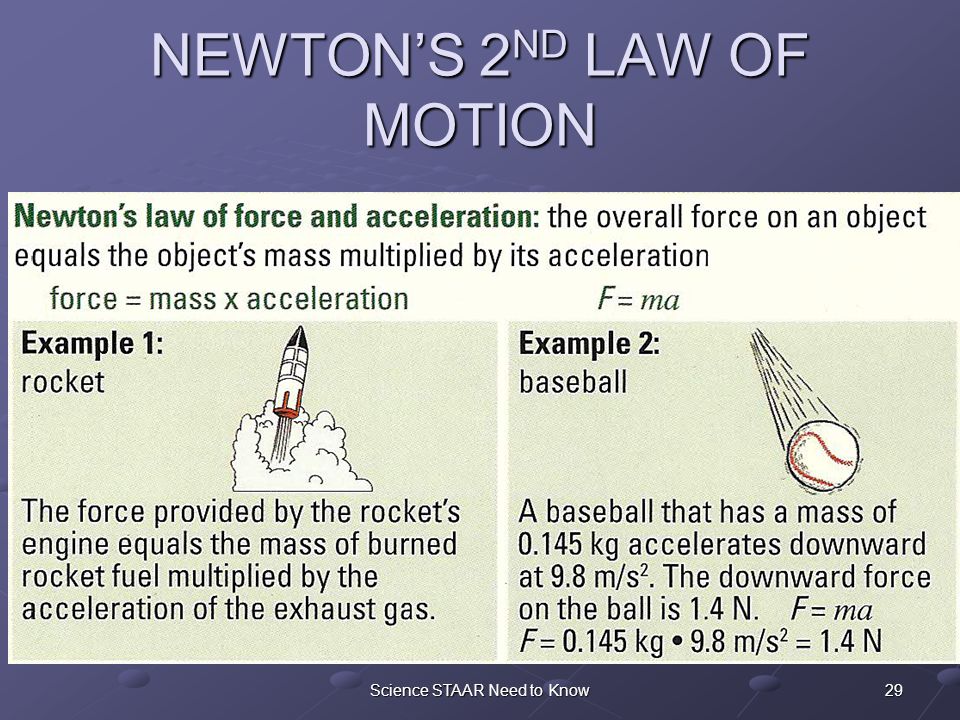

29 NEWTON’S 2 ND LAW OF MOTION 29Science STAAR Need to Know

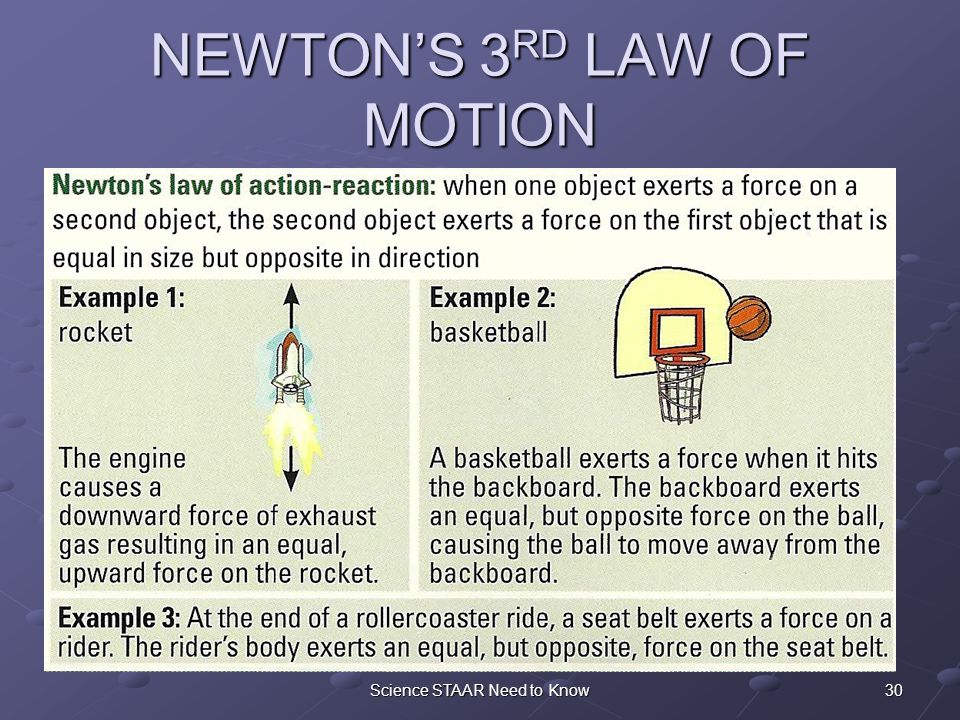

30 NEWTON’S 3 RD LAW OF MOTION 30Science STAAR Need to Know

31 31Science STAAR Need to Know

32 32Science STAAR Need to Know A lever is a bar that rests on a support called a fulcrum which lifts or moves loads. A lever is a bar that rests on a support called a fulcrum which lifts or moves loads.

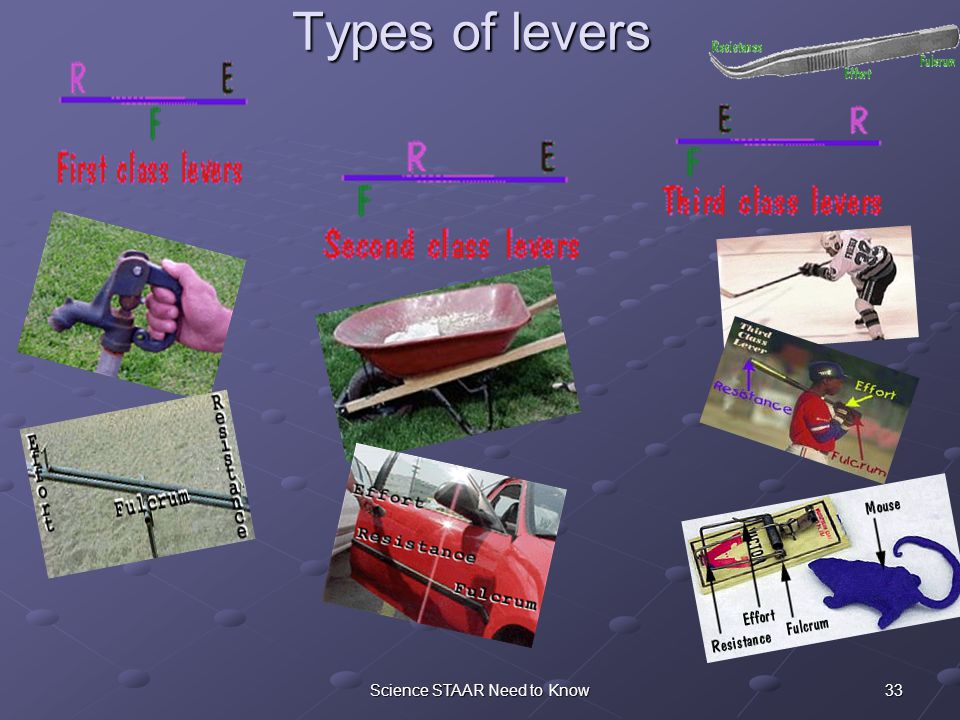

33 33Science STAAR Need to Know Types of levers

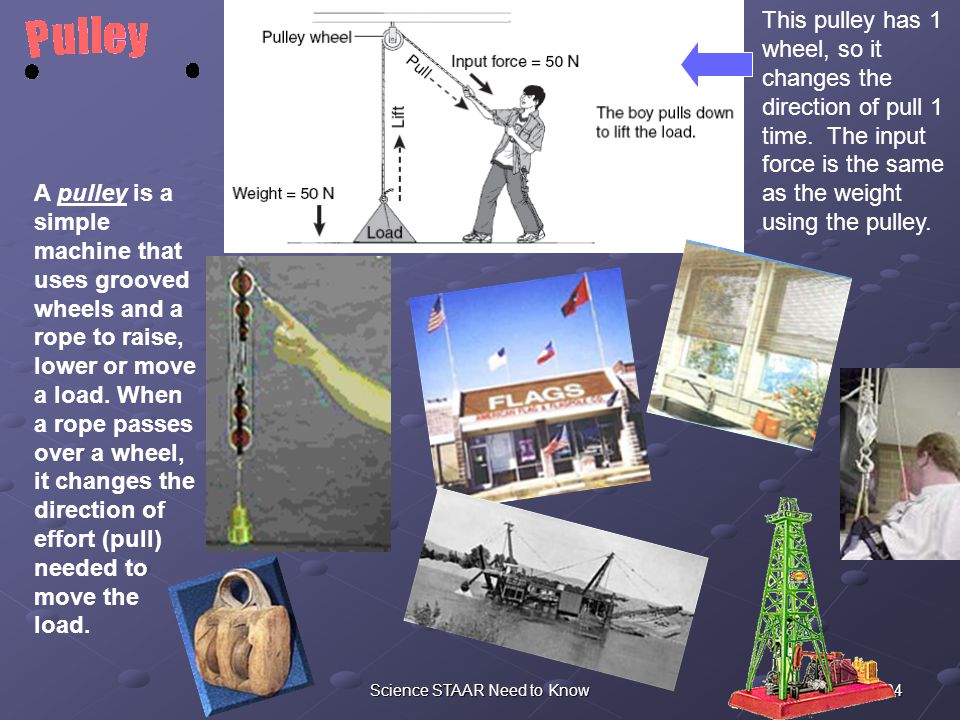

34 34Science STAAR Need to Know A pulley is a simple machine that uses grooved wheels and a rope to raise, lower or move a load. When a rope passes over a wheel, it changes the direction of effort (pull) needed to move the load. This pulley has 1 wheel, so it changes the direction of pull 1 time. The input force is the same as the weight using the pulley.

35 35Science STAAR Need to Know Wedge A wedge is an object with at least one slanting side ending in a sharp edge, which cuts material apart.

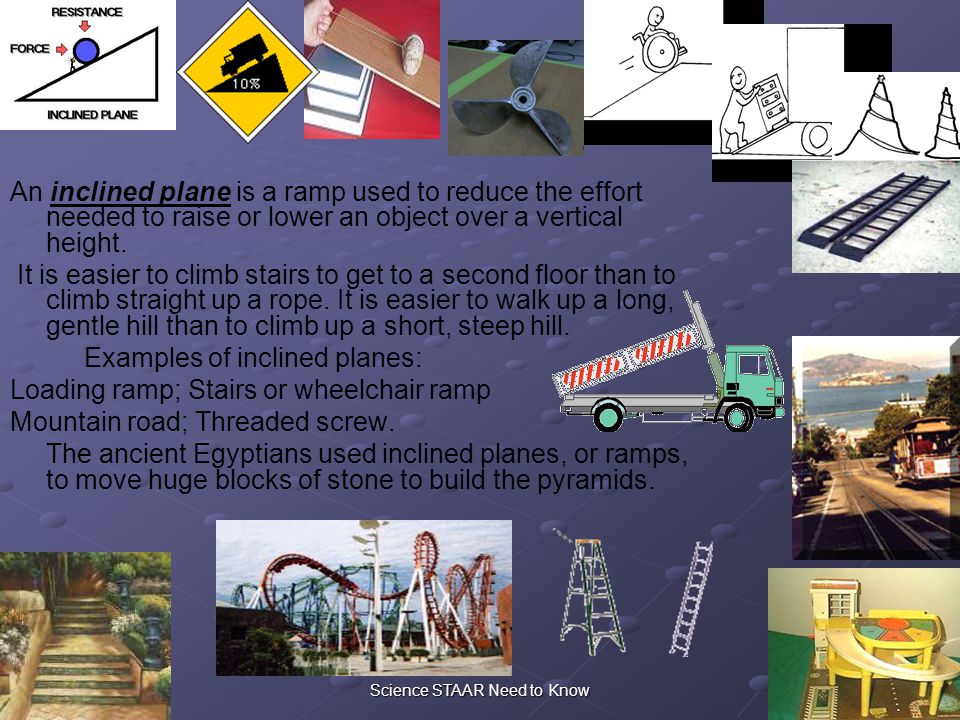

36 36Science STAAR Need to Know An inclined plane is a ramp used to reduce the effort needed to raise or lower an object over a vertical height. It is easier to climb stairs to get to a second floor than to climb straight up a rope. It is easier to walk up a long, gentle hill than to climb up a short, steep hill. Examples of inclined planes: Loading ramp; Stairs or wheelchair ramp Mountain road; Threaded screw. The ancient Egyptians used inclined planes, or ramps, to move huge blocks of stone to build the pyramids.

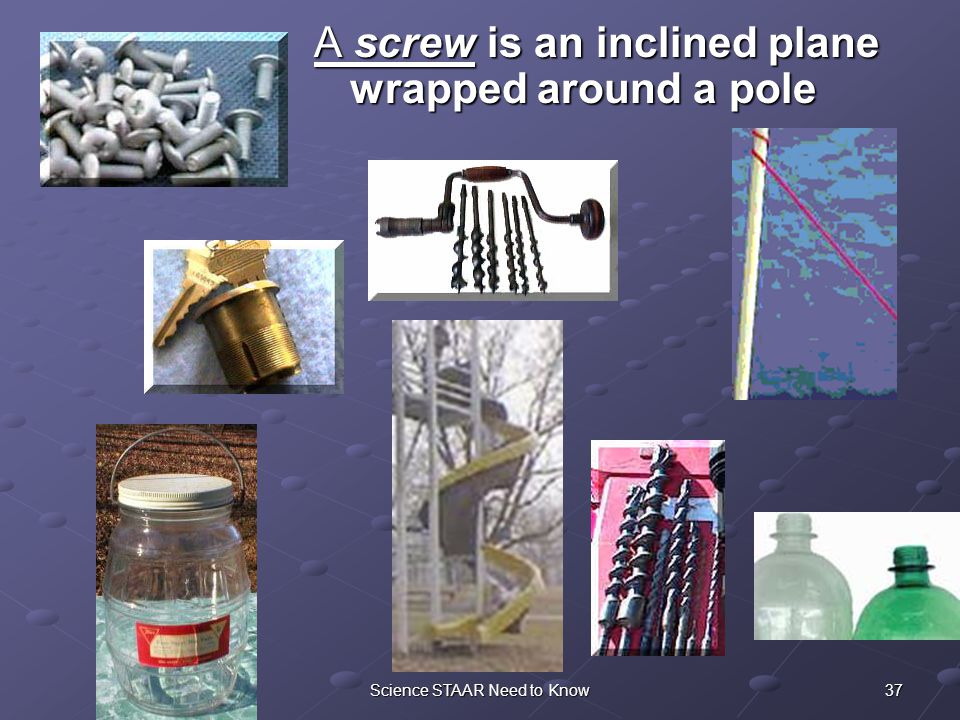

37 37Science STAAR Need to Know A screw is an inclined plane wrapped around a pole

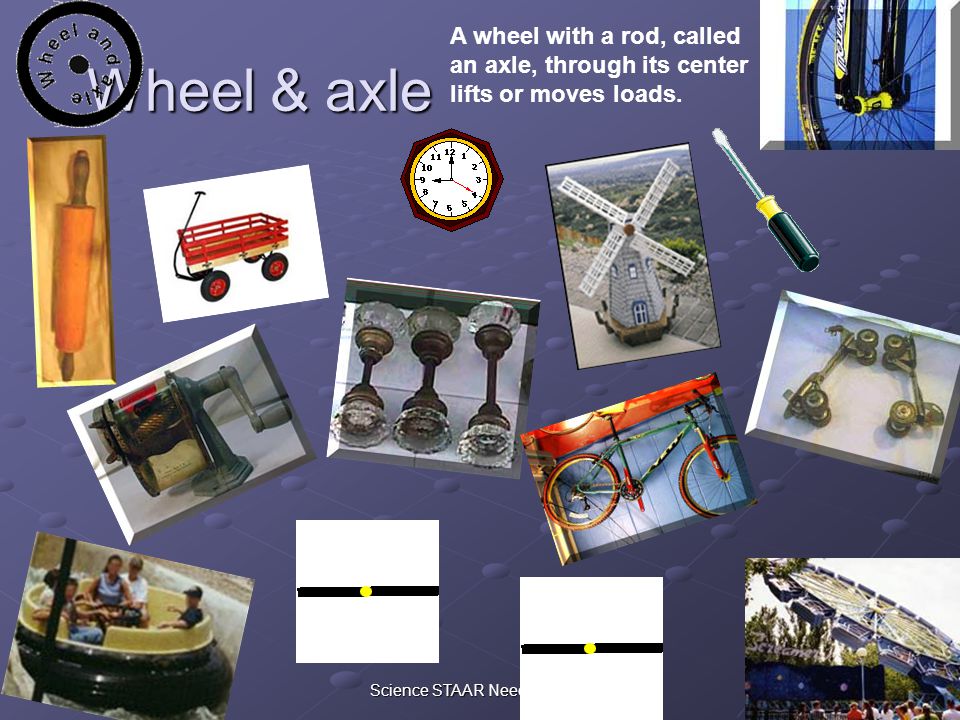

38 38Science STAAR Need to Know Wheel & axle A wheel with a rod, called an axle, through its center lifts or moves loads.
