The Magnetic Force Between Two Parallel Conductors AP Physics C Montwood High School R. Casao

2

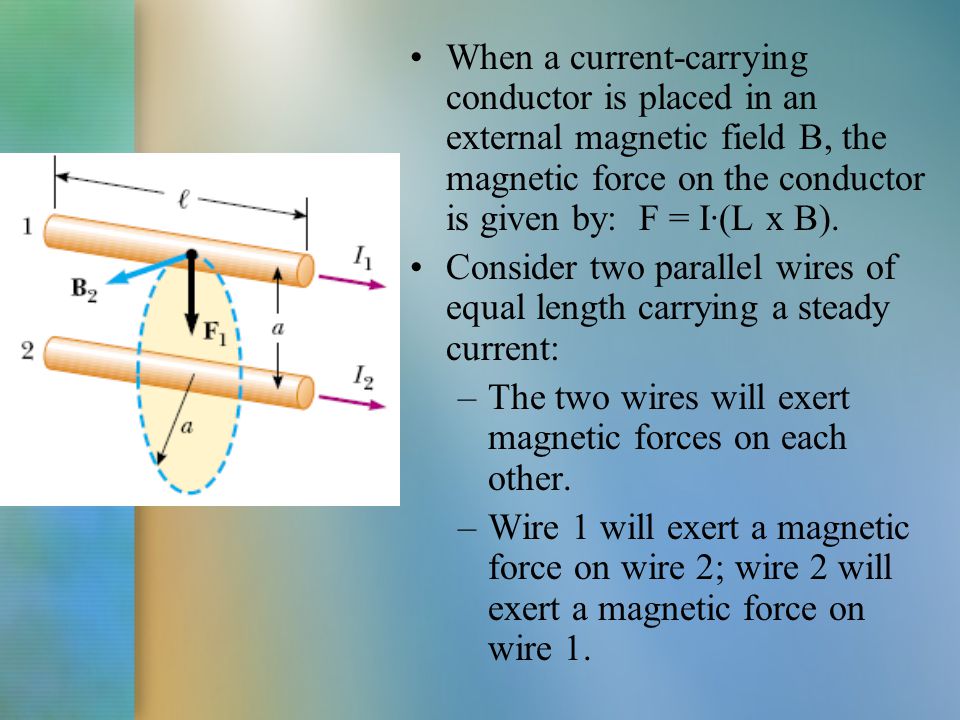

When a current-carrying conductor is placed in an external magnetic field B, the magnetic force on the conductor is given by: F = I·(L x B). Consider two parallel wires of equal length carrying a steady current: –The two wires will exert magnetic forces on each other. –Wire 1 will exert a magnetic force on wire 2; wire 2 will exert a magnetic force on wire 1.

4

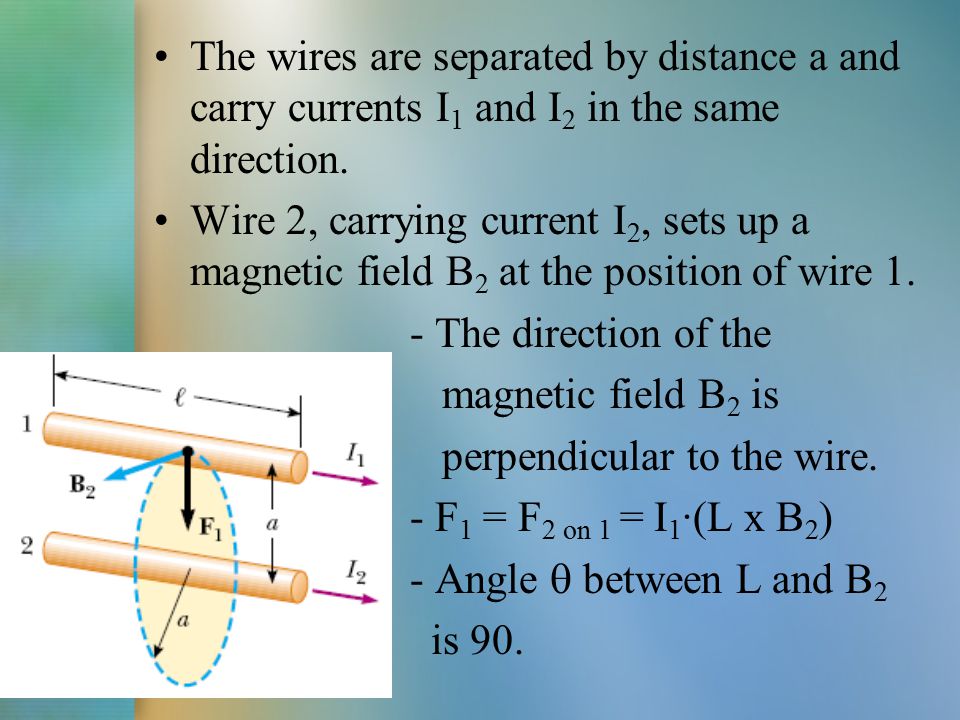

The wires are separated by distance a and carry currents I 1 and I 2 in the same direction. Wire 2, carrying current I 2, sets up a magnetic field B 2 at the position of wire 1. - The direction of the magnetic field B 2 is perpendicular to the wire. - F 1 = F 2 on 1 = I 1 ·(L x B 2 ) - Angle between L and B 2 is 90.

5

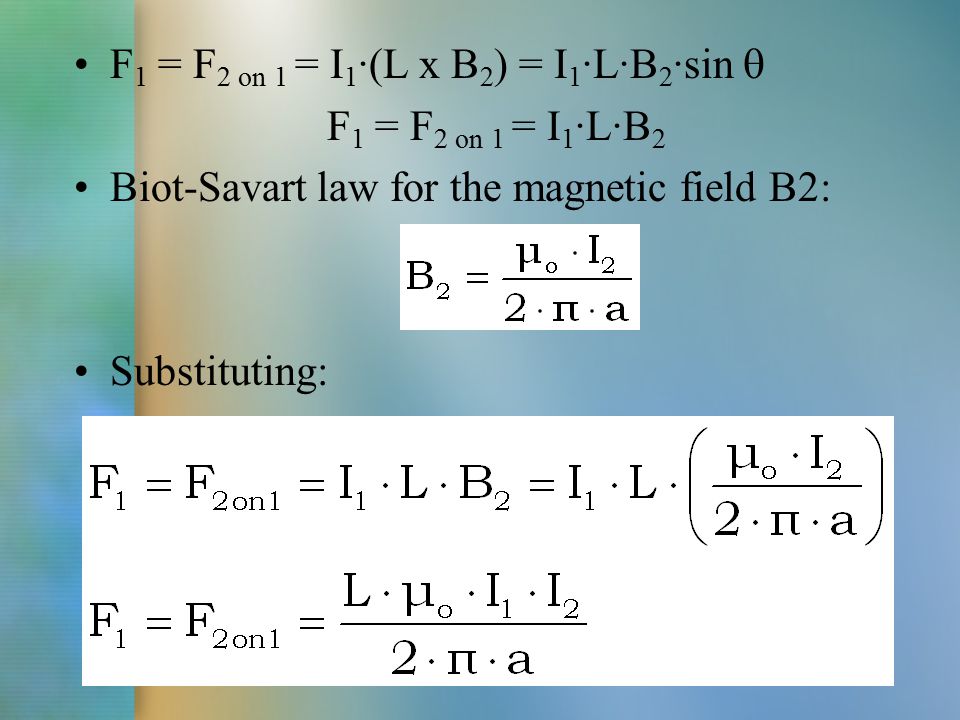

F 1 = F 2 on 1 = I 1 ·(L x B 2 ) = I 1 ·L·B 2 ·sin F 1 = F 2 on 1 = I 1 ·L·B 2 Biot-Savart law for the magnetic field B2: Substituting:

6

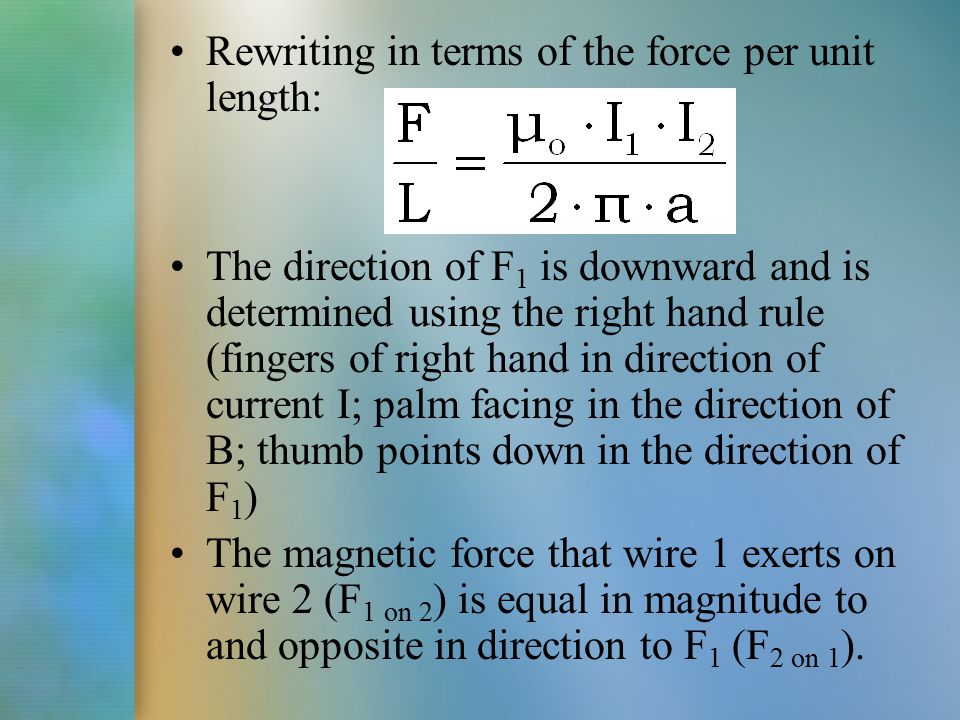

Rewriting in terms of the force per unit length: The direction of F 1 is downward and is determined using the right hand rule (fingers of right hand in direction of current I; palm facing in the direction of B; thumb points down in the direction of F 1 ) The magnetic force that wire 1 exerts on wire 2 (F 1 on 2 ) is equal in magnitude to and opposite in direction to F 1 (F 2 on 1 ).

7
Wire 1 and wire 2 will attract each other. When the currents are in opposite directions, the magnetic forces again equal in magnitude but are opposite in direction and the wires repel each other. Conclusions: parallel conductors carrying currents in the same direction attract each other; parallel conductors carrying currents in opposite directions repel each other.

8

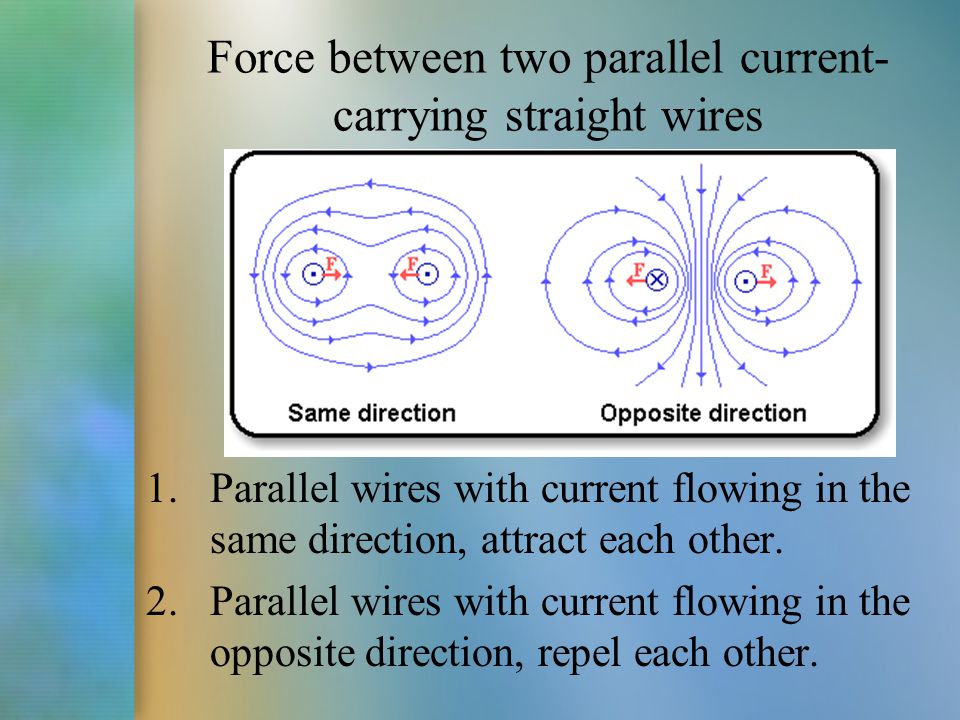

Force between two parallel current- carrying straight wires 1.Parallel wires with current flowing in the same direction, attract each other. 2.Parallel wires with current flowing in the opposite direction, repel each other.

9

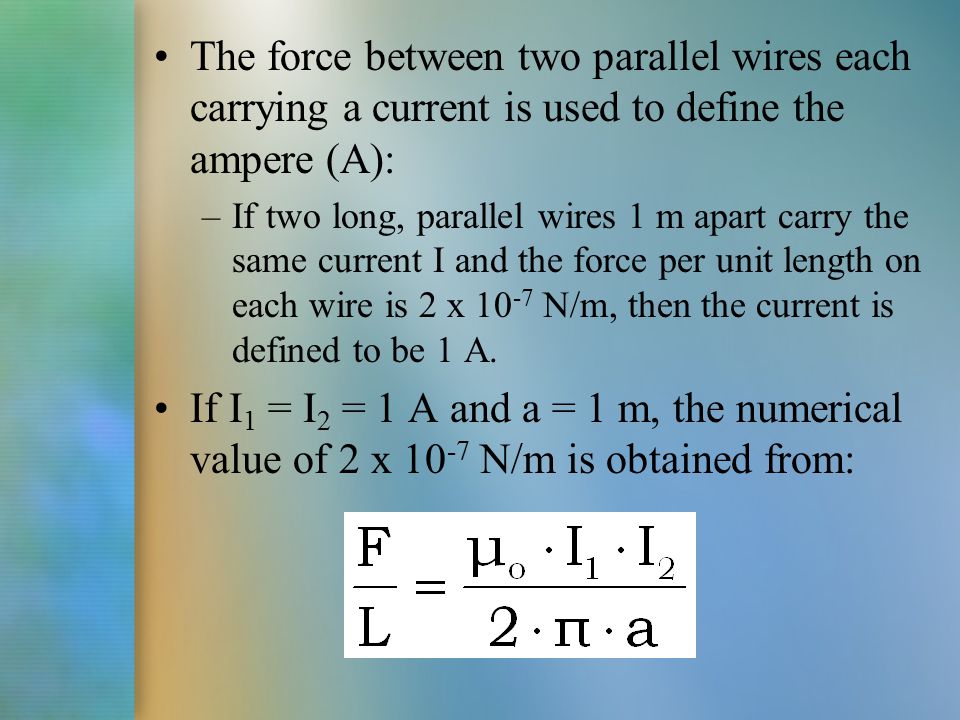

The force between two parallel wires each carrying a current is used to define the ampere (A): –If two long, parallel wires 1 m apart carry the same current I and the force per unit length on each wire is 2 x 10 -7 N/m, then the current is defined to be 1 A. If I 1 = I 2 = 1 A and a = 1 m, the numerical value of 2 x 10 -7 N/m is obtained from:

10

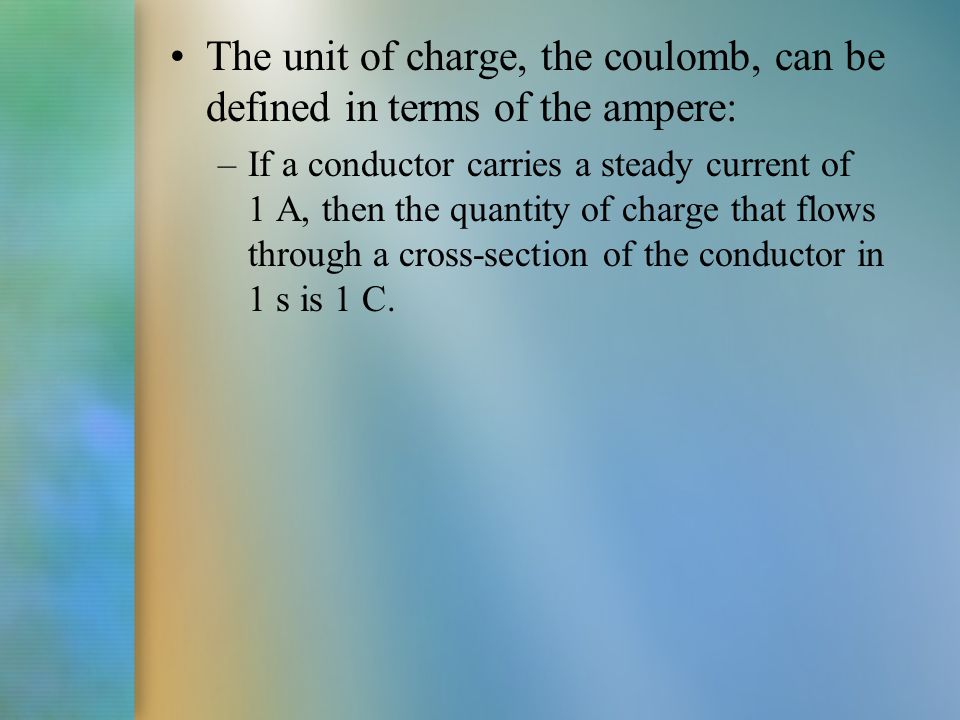

The unit of charge, the coulomb, can be defined in terms of the ampere: –If a conductor carries a steady current of 1 A, then the quantity of charge that flows through a cross-section of the conductor in 1 s is 1 C.
