1

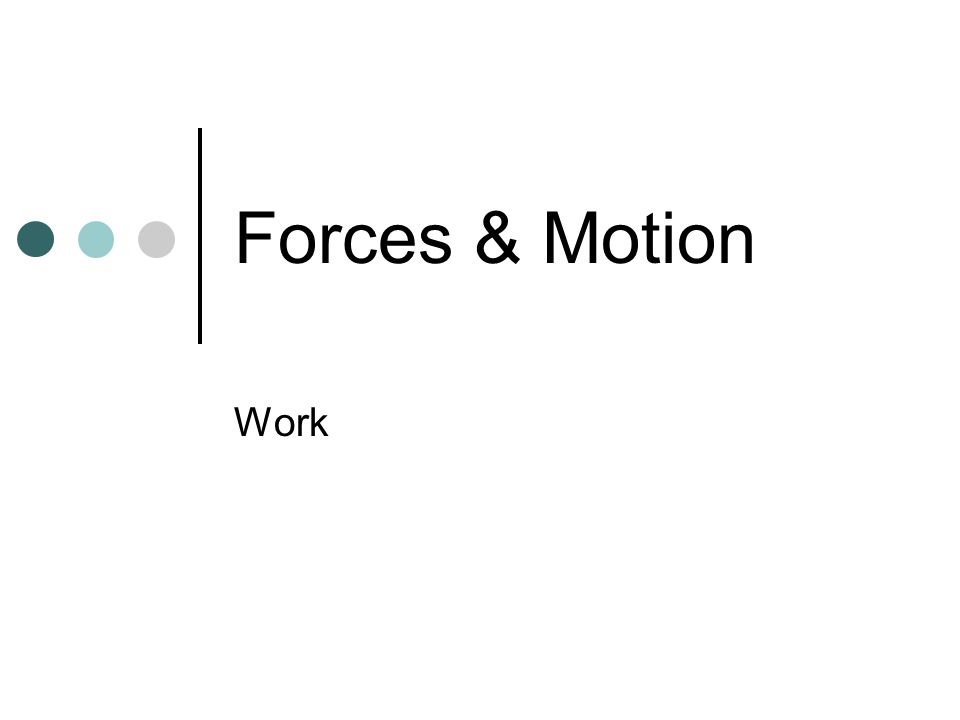

Forces & Motion Work

2
Work – force exerted on an object that causes it to move some distance Work = Force x Distance Force is still measured in Newtons Distance is measured in meters So…. the units for work are N٠m Instead of using the N٠m, we have a new unit called the Joule to measure work in.

3
Work In order for me to do work on an object, the object must move some distance as a result of my force. Example: A car is stuck in the snow and you exert a lot of force shoveling, pushing, and trying to get it to move. Since the car doesn’t end up moving, you haven’t done any work on the car!

4
Work In order for me to do work on an object, the force I exert must be in the same direction as the object’s motion. Example: Lifting a heavy box is work, but carrying the box to another location is not (even though it feels like it!) ForceMotion Force Motion

5
Calculating Work Which do you think involves more work: Exerting a force of 100 N to lift a potted tree 1 m off the ground or Exerting a force of 200 N to lift a heavier tree 1 m off the ground? Again, work = force x distance 100 N x 1 m = 100 J of work 200 N x 1 m = 200 J of work

6
Practice Problems To help rearrange the furniture in your classroom, you exert a force of 20 N to push a desk 10 m. How much work do you do? *work = 20 N x 10 m = 200 J A hydraulic lift exerts a force of 12,000 N to lift a car 2 m. How much work is done on the car? *work = 12,000 N x 2 m = 24,000 J

7
Practice Problems You exert a force of 0.2 N to lift a pencil off the floor. How much work do you do if you lift it 1.5 m? *work = 0.2 N x 1.5 m = 0.3 J Suppose an elevator lifted the previous tree 40 m still with a force of 100 N. How much work is the elevator doing? *work = 100 N x 40 m = 4,000 J
