1 DIT Equipment Inc. Sharky Splitter

2 High productivity 90 metric ton of force (100 short ton) on a 48” wide split. Split in 2 seconds (including an 8” traveling distance). Productivity of 250 to 500 boards/hr depending on number of splits per layer. Finally, a splitter that can follow, in-line, the production of the fastest board machines with a perfect split every time.

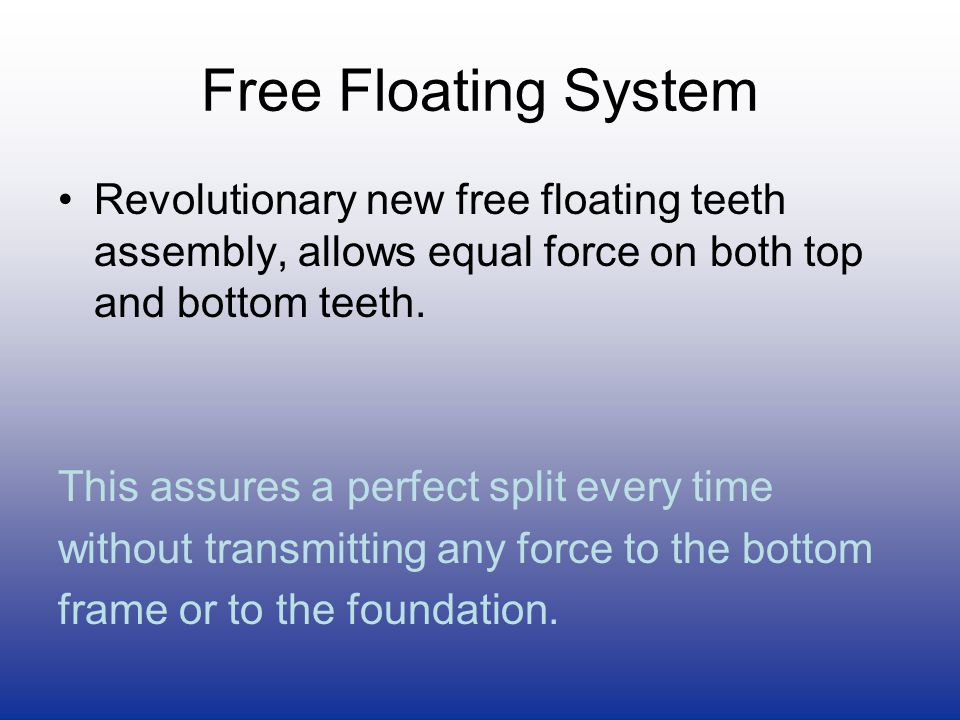

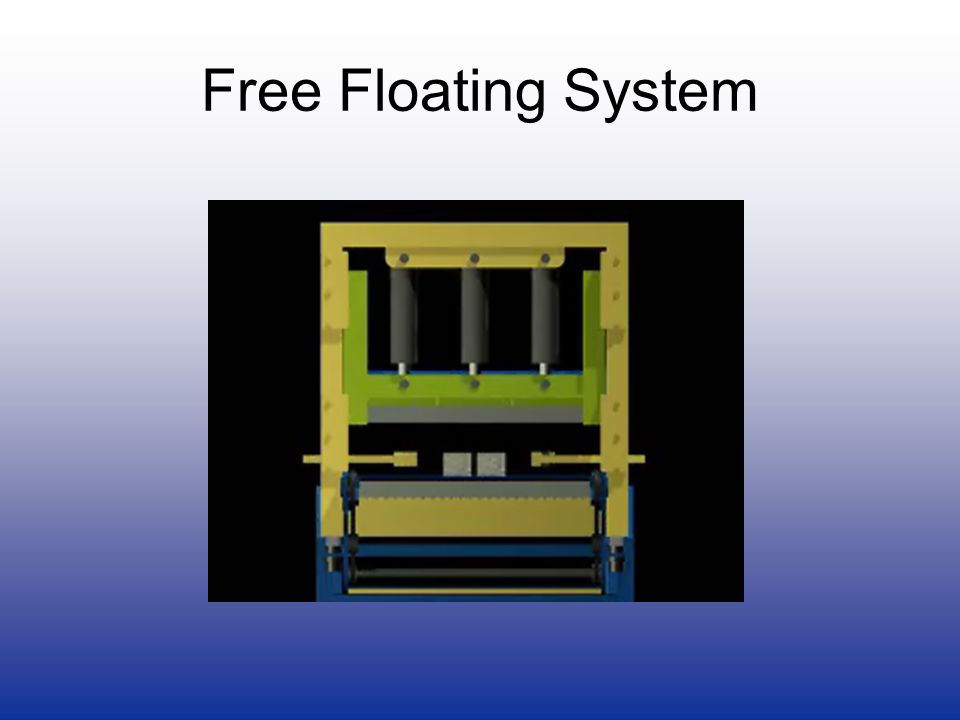

3 Free Floating System Revolutionary new free floating teeth assembly, allows equal force on both top and bottom teeth. This assures a perfect split every time without transmitting any force to the bottom frame or to the foundation.

4 Free Floating System

5

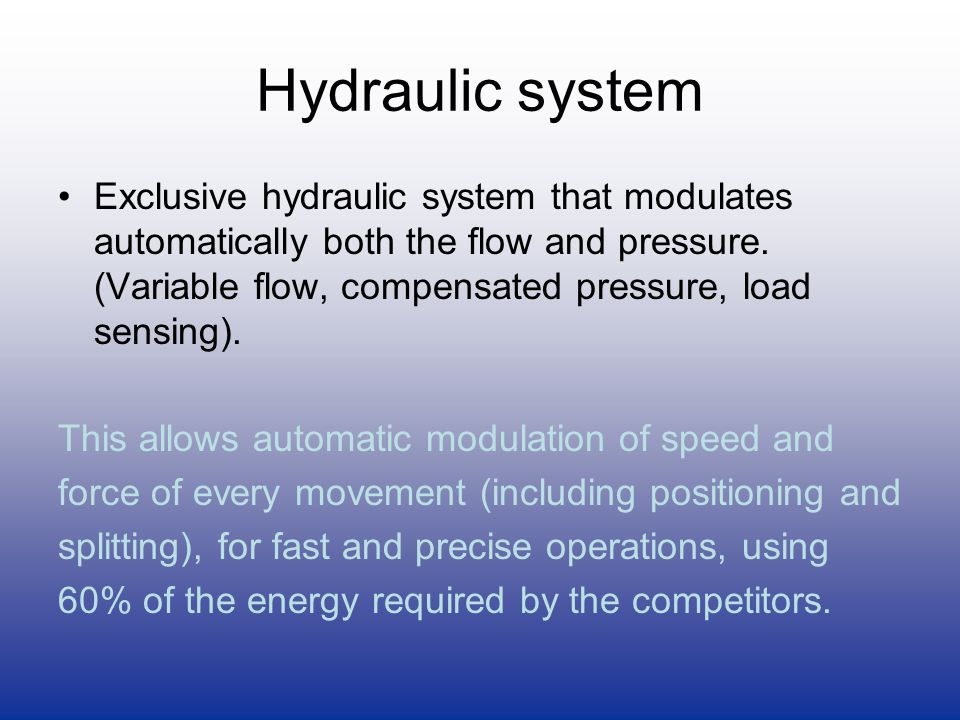

6 Hydraulic system Exclusive hydraulic system that modulates automatically both the flow and pressure. (Variable flow, compensated pressure, load sensing). This allows automatic modulation of speed and force of every movement (including positioning and splitting), for fast and precise operations, using 60% of the energy required by the competitors.

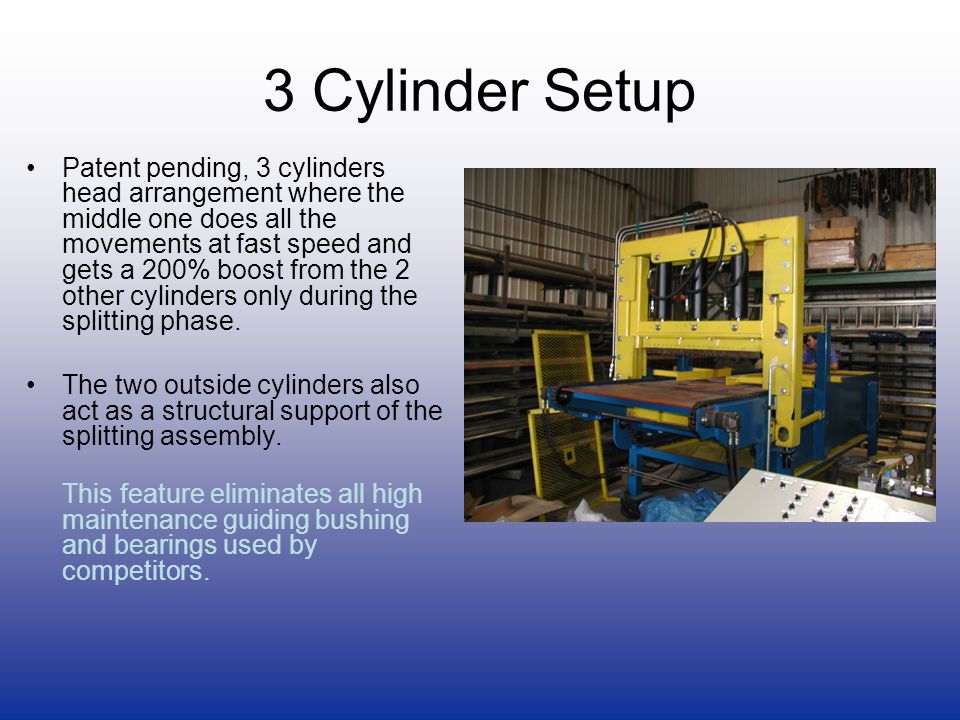

7 3 Cylinder Setup Patent pending, 3 cylinders head arrangement where the middle one does all the movements at fast speed and gets a 200% boost from the 2 other cylinders only during the splitting phase. The two outside cylinders also act as a structural support of the splitting assembly. This feature eliminates all high maintenance guiding bushing and bearings used by competitors.

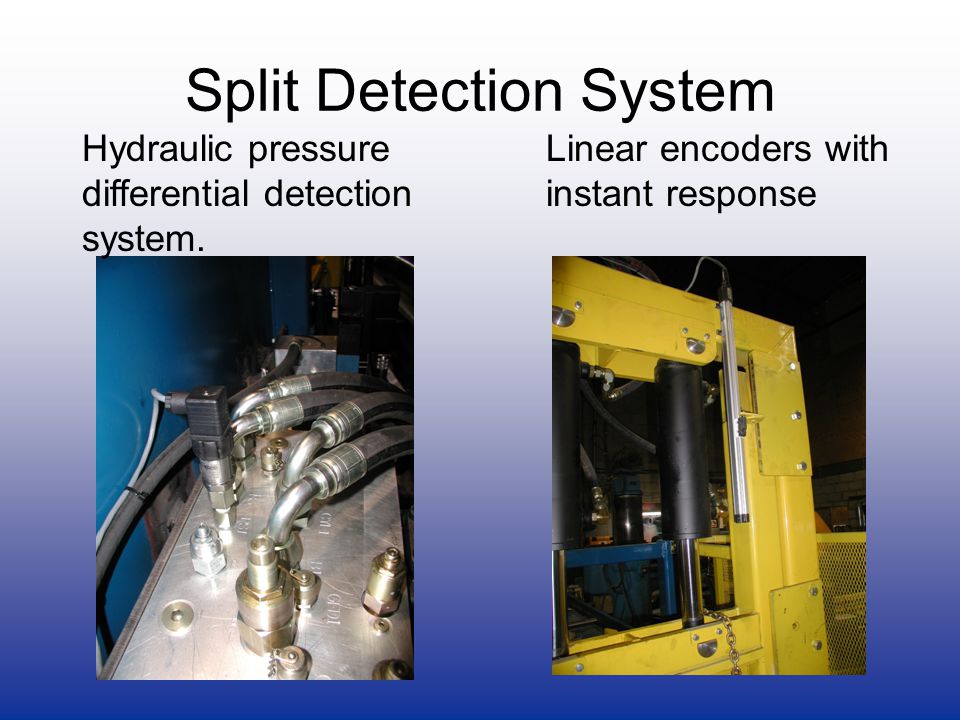

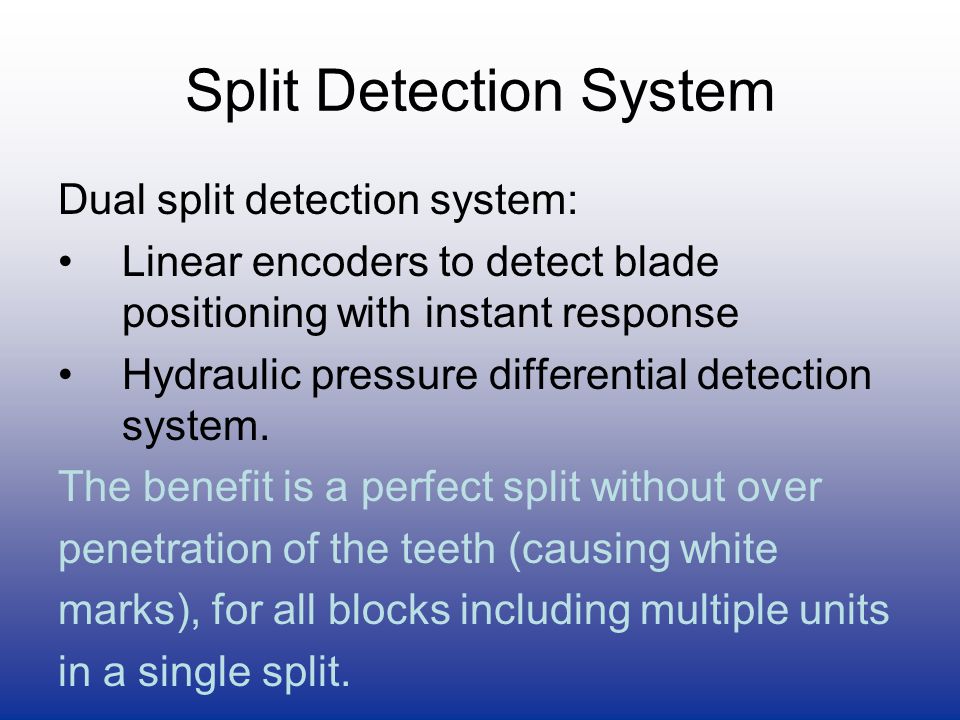

8 Split Detection System Dual split detection system: Linear encoders to detect blade positioning with instant response Hydraulic pressure differential detection system. The benefit is a perfect split without over penetration of the teeth (causing white marks), for all blocks including multiple units in a single split.

9 Split Detection System Linear encoders with instant response Hydraulic pressure differential detection system.

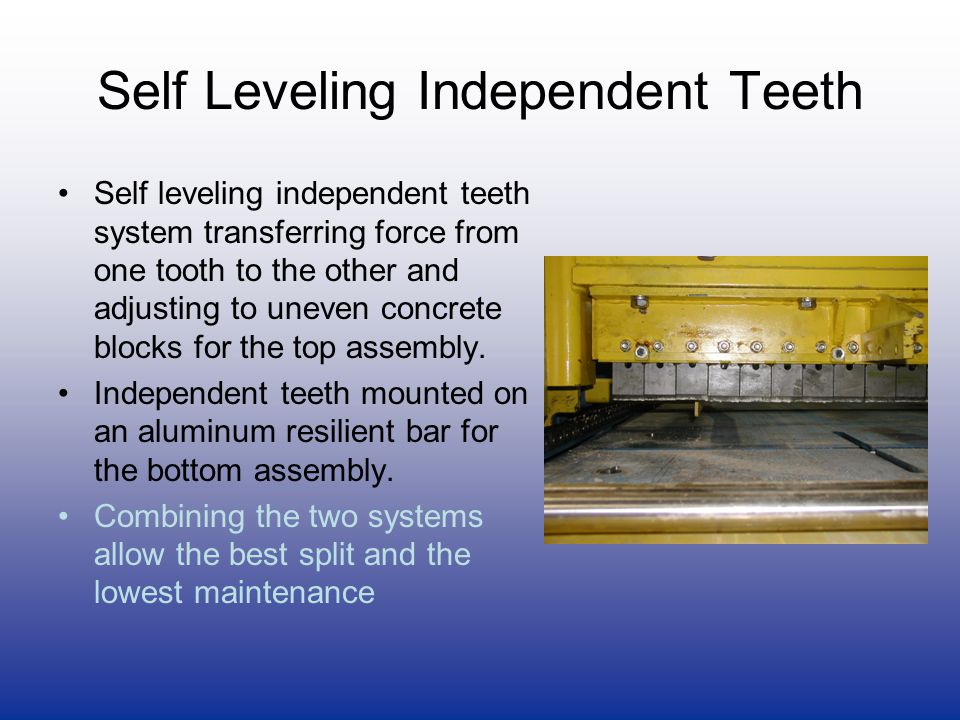

10 Self Leveling Independent Teeth Self leveling independent teeth system transferring force from one tooth to the other and adjusting to uneven concrete blocks for the top assembly. Independent teeth mounted on an aluminum resilient bar for the bottom assembly. Combining the two systems allow the best split and the lowest maintenance

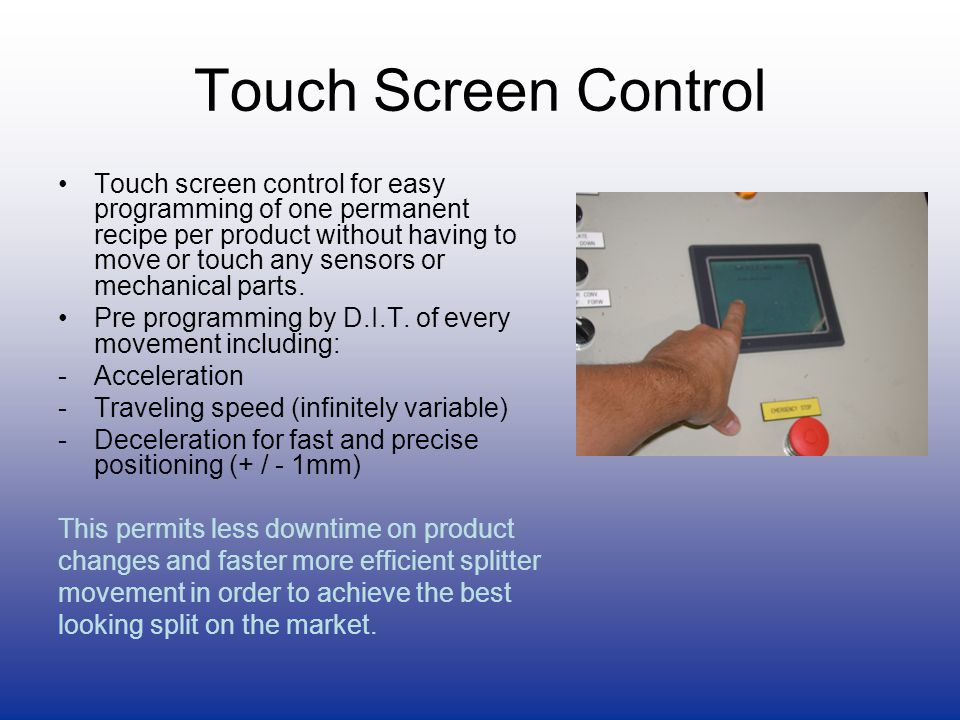

11 Touch Screen Control Touch screen control for easy programming of one permanent recipe per product without having to move or touch any sensors or mechanical parts. Pre programming by D.I.T. of every movement including: -Acceleration -Traveling speed (infinitely variable) -Deceleration for fast and precise positioning (+ / - 1mm) This permits less downtime on product changes and faster more efficient splitter movement in order to achieve the best looking split on the market.

12 Easy Blade Change Easy blade change using the splitter hydraulics and standard chains

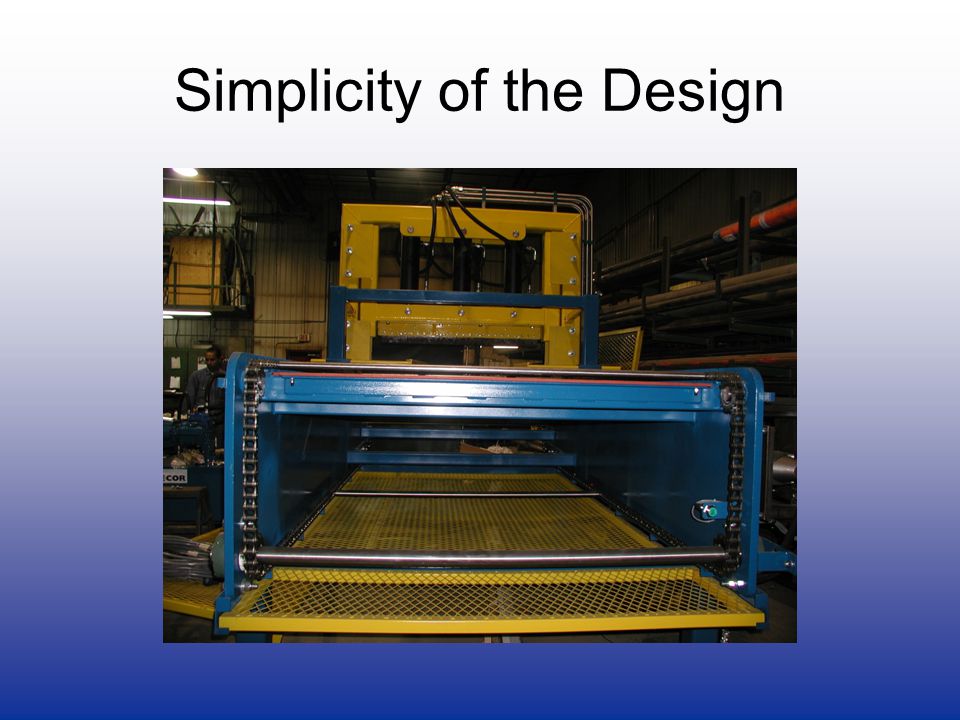

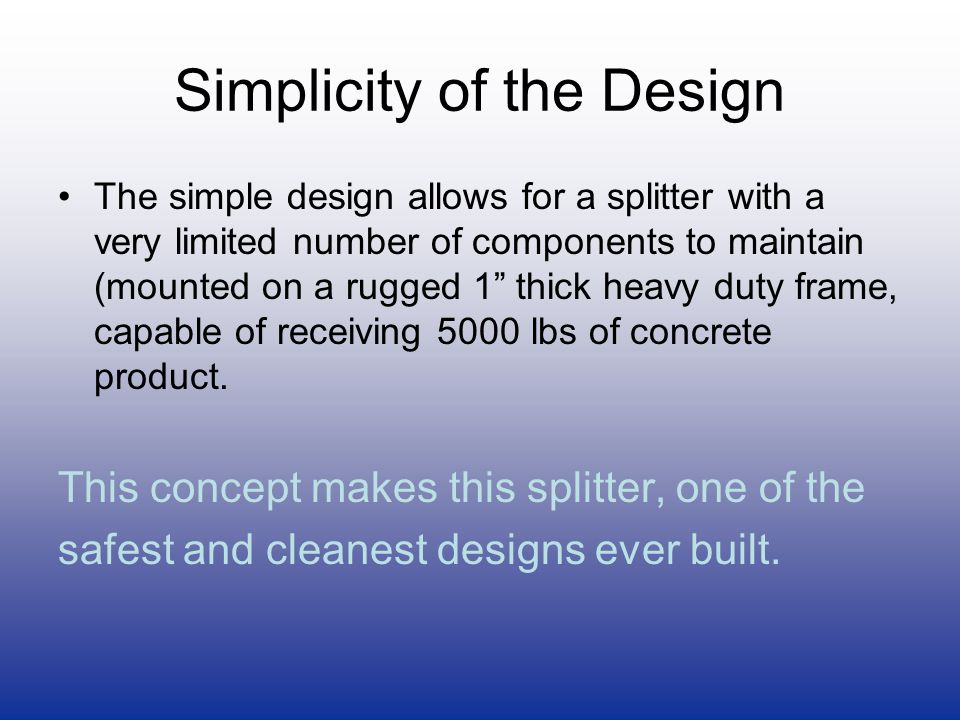

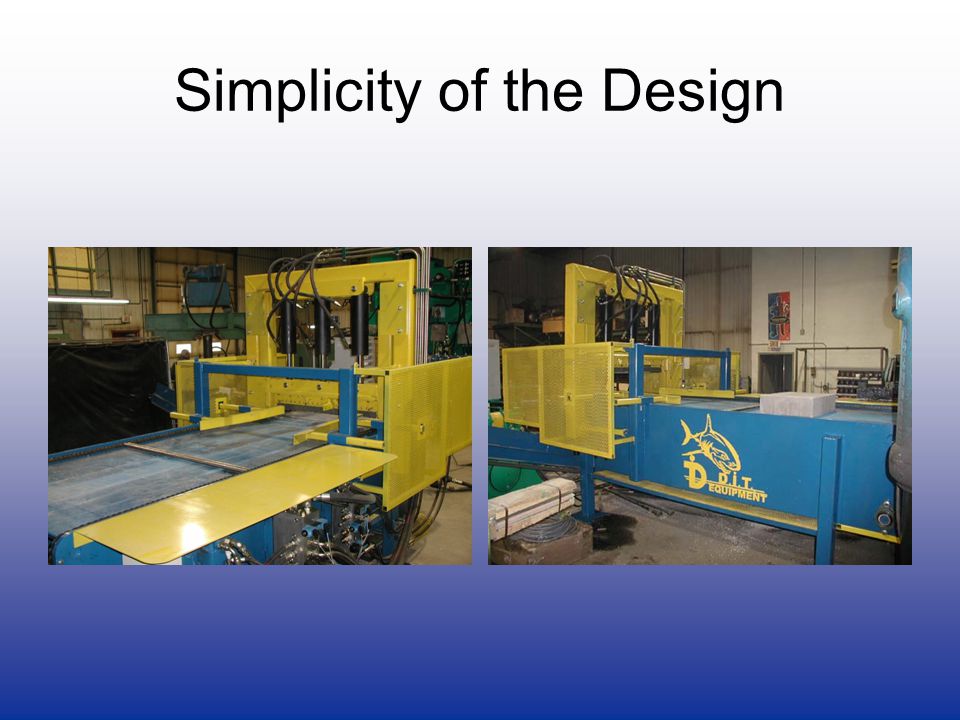

13 Simplicity of the Design The simple design allows for a splitter with a very limited number of components to maintain (mounted on a rugged 1” thick heavy duty frame, capable of receiving 5000 lbs of concrete product. This concept makes this splitter, one of the safest and cleanest designs ever built.

14 Simplicity of the Design

15

16 Heavy Duty Frame

17 Options: Flip Gate and Waist Conveyor

18

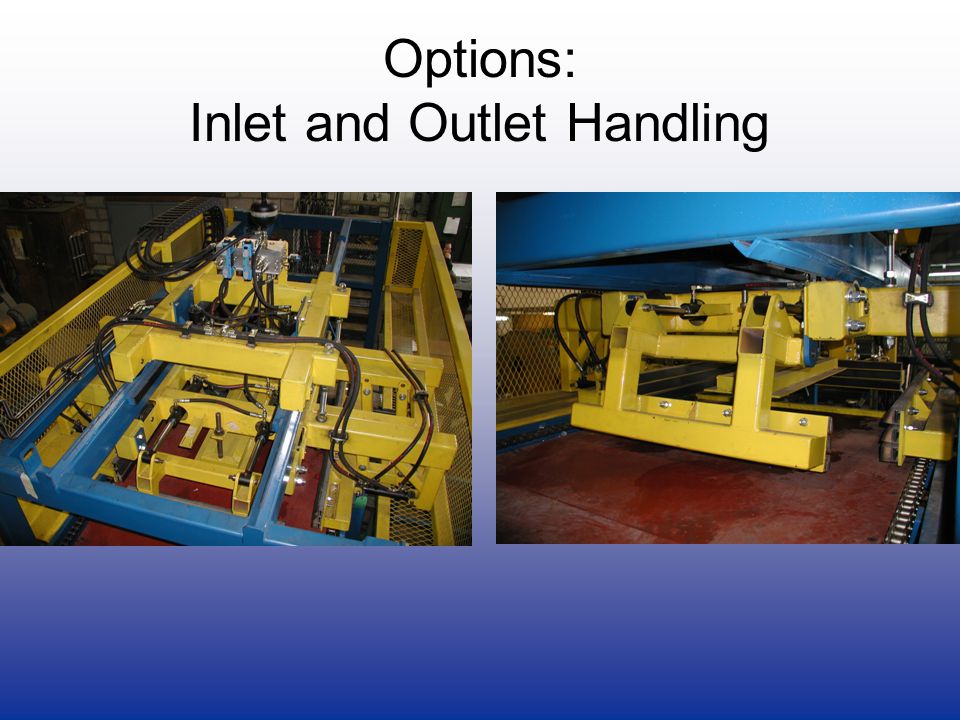

19 Options: Inlet and Outlet Handling

20 Specifications Splitting force100 short ton (90 metric ton) Max product width48”(122 cm) Min/max product height1 5/8” – 12”(4cm – 30cm) Electric power25 HP Hydraulic pressure (variable)3000 psi max Auxiliary chain pusher traction3,000 lbs ControlsAromat-Matsushita PLC Proportional valves, linear & rotary encoder Length13’ Height 9’ Width 6’ Weight9,000 lbs.
