1

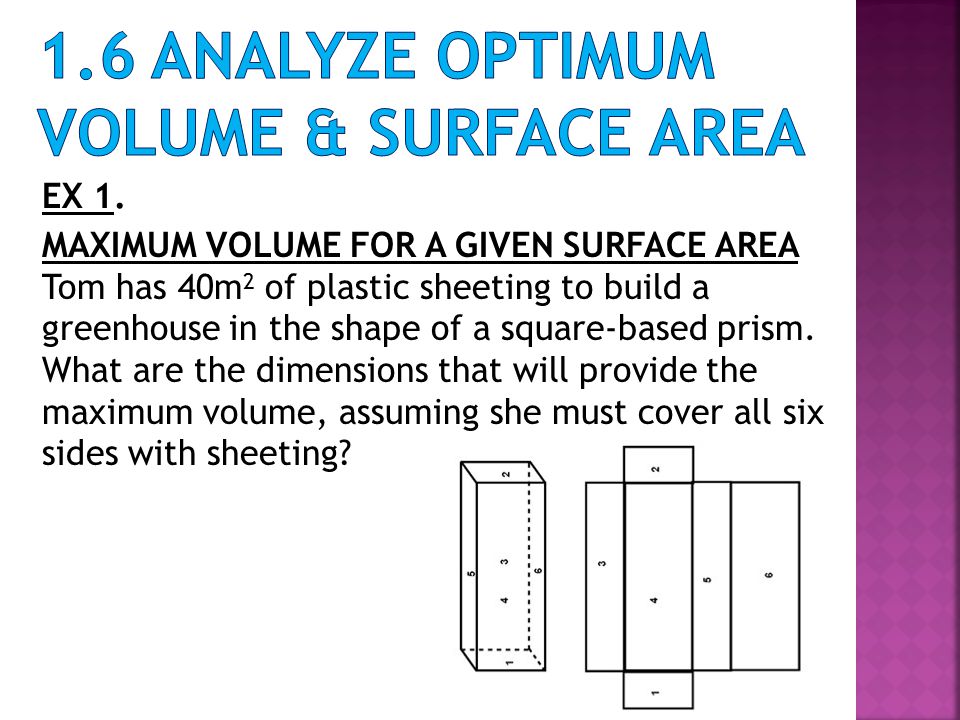

EX 1. MAXIMUM VOLUME FOR A GIVEN SURFACE AREA Tom has 40m 2 of plastic sheeting to build a greenhouse in the shape of a square-based prism. What are the dimensions that will provide the maximum volume, assuming she must cover all six sides with sheeting?

2

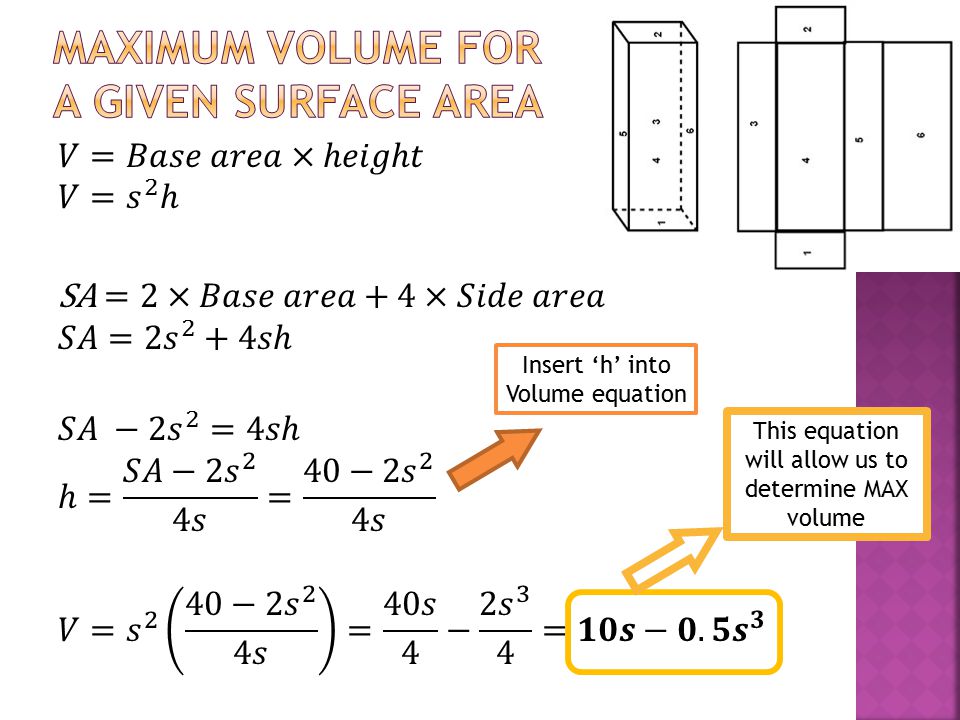

Insert ‘h’ into Volume equation This equation will allow us to determine MAX volume

3

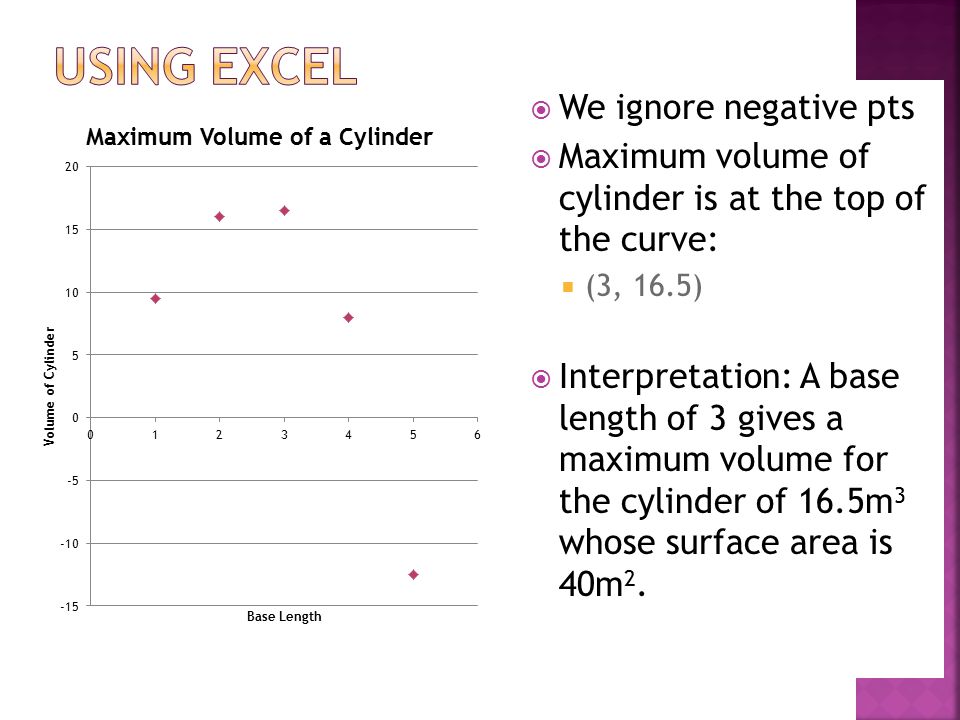

We ignore negative pts Maximum volume of cylinder is at the top of the curve: (3, 16.5) Interpretation: A base length of 3 gives a maximum volume for the cylinder of 16.5m 3 whose surface area is 40m 2.

4
>What could go wrong with our answer? >We could be missing the maximum point by a bit >Solution? Plot more points >With new graph, max point is now (2.5,17.1875) instead of (3, 16)

5

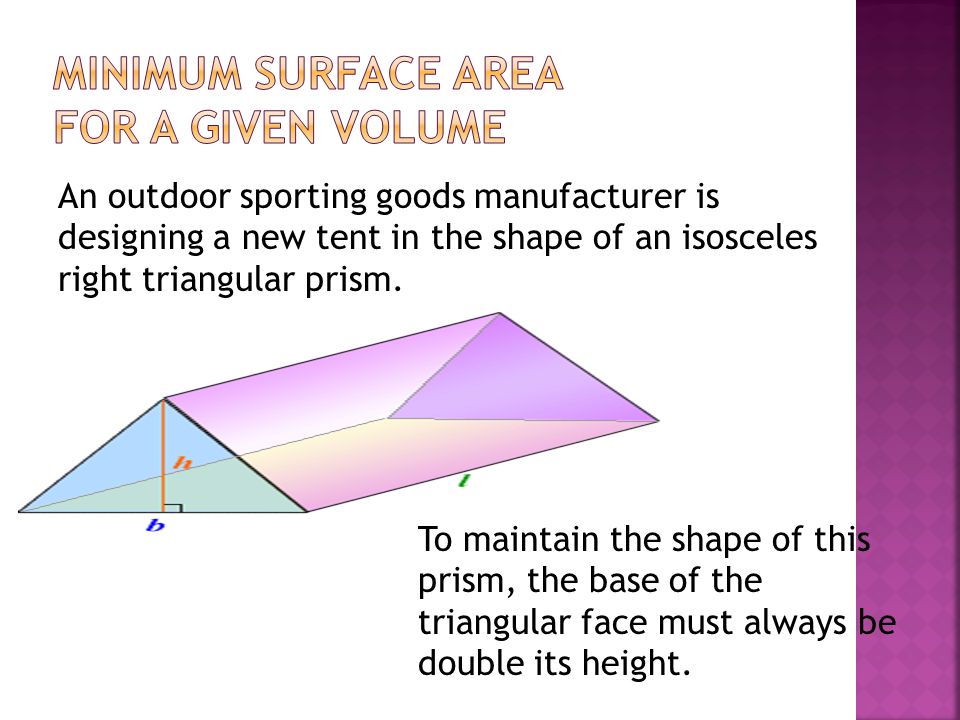

An outdoor sporting goods manufacturer is designing a new tent in the shape of an isosceles right triangular prism. To maintain the shape of this prism, the base of the triangular face must always be double its height.

6

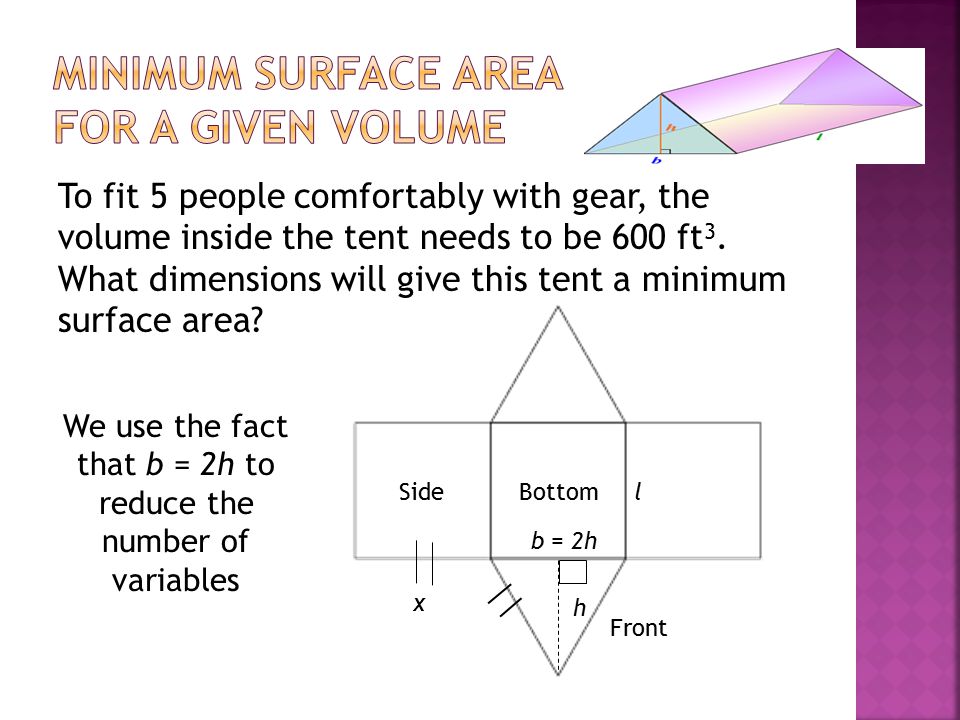

To fit 5 people comfortably with gear, the volume inside the tent needs to be 600 ft 3. What dimensions will give this tent a minimum surface area? Front SideBottom b = 2h h l We use the fact that b = 2h to reduce the number of variables x

7
Front SideBottom b = 2h h l x

8
Front SideBottom b = 2h h l x h h x A SIDE = 1.41hl TOTAL Surface Area SA = 2(A FRONT )+A BOTTOM +2(A SIDE ) =2(h 2 )+2hl+2(1.41hl) SA = 2h 2 + 4.83hl

9

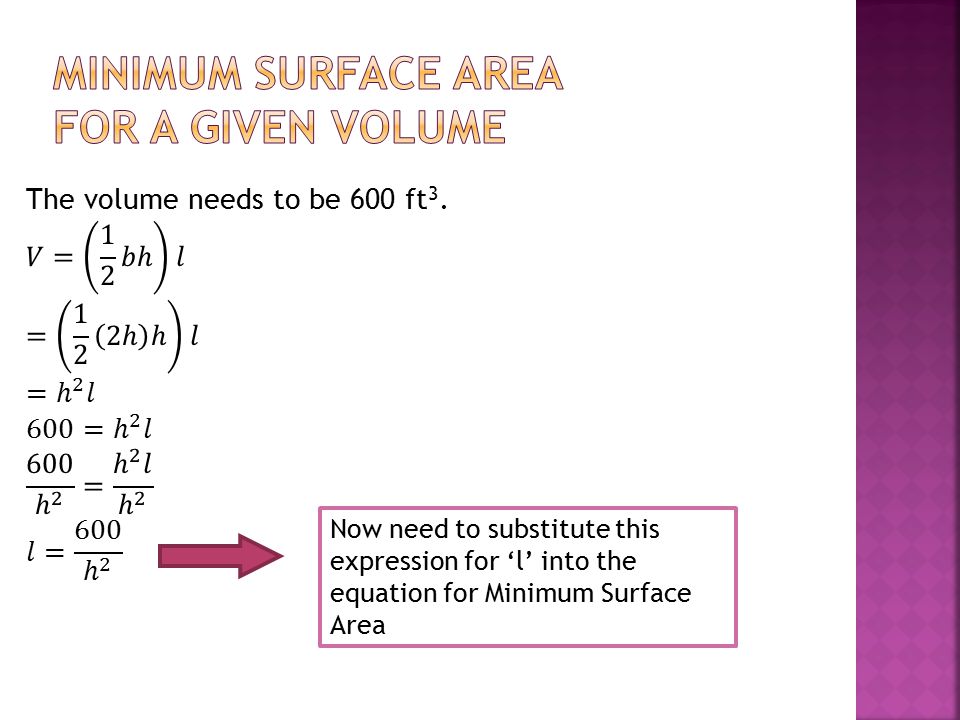

Now need to substitute this expression for ‘l’ into the equation for Minimum Surface Area

11

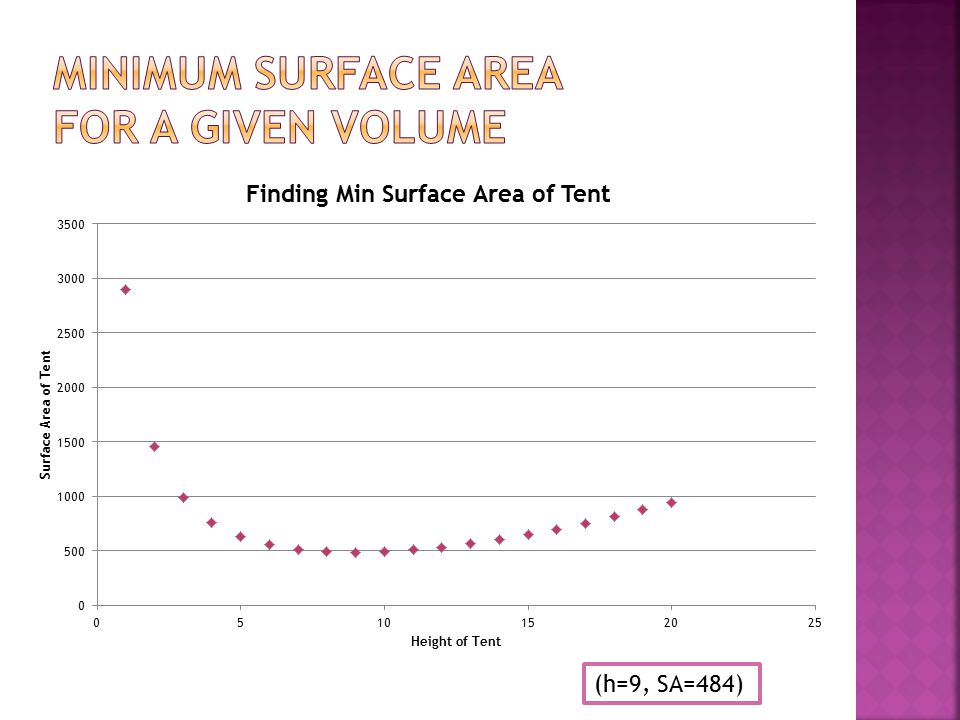

(h=9, SA=484)

12
p. 60 #2, 6, 7, 9, 12
